Isotope is a jQuery plugin that allows for dynamic, filterable layouts. It uses jQuery selectors to filter and rearrange DOM elements in various layout modes like masonry. Features include filtering by class, sorting elements, and animating element changes. New elements can be added and the layout will update automatically. It works well for portfolios, galleries, and other dynamically filtering interfaces.

1. Isotope
An exquisite jQuery plugin for magical layouts
Sem Gebresilassie

2. What is it?
 Isotope is a jquery plugin that make Intelligent, dynamic layouts that are difficult to
accomplish using CSS alone
 Using jquery selectors, isotope makes filtering more appealing to hide and reveal DOM elements
 Developed by David DeSandro
 With Isotope behind, it is also possible to reorder and sort extracted data fashionably
 Mainly used to create things like filterable portfolios or display contents in other incredibly
cool dynamic ways.
 Isotope can be used in commercial projects and applications with a one time licencing fee

3. Requirments
• As a jquery plugin Isotope requires jQuery 1.4.3 or latest to be included
• Isotope works on a container element with a group of similar child items
Html js
• Ideally, Isotope layouts should be initialized after all inner content has been loaded
• Great demonstration using this concept is found here http://isotope.metafizzy.co/demos/basic.html

4. Layout modes
• Isotope has a versatile layout engine that can accommodate multiple layout modes
• You can set and change the layout mode via the layoutMode option.
• Isotope has many built-in layout modes
• Horizontal layout modes (masonryHorizontal, fitColumns, cellsByColumn, and straightAcross)
need a container that has a height value.
• It’s important to set height value in css

5. Filtering
• Isotope can hide and show item elements via the filter option using jquery selectors
• Items matching that selector will be shown and items that do not match will be hidden
• To show only .metal items, the jQuery script would be

6. Example
• For the HTML markup in the previous slide
1. .alkali, .alkaline-earth will show .alkali AND .alkaline-earth item elements.
2. .metal.transition will show item elements that have BOTH .metal and .transition classes.
3. .metal:not(.transition) will show .metal item elements that are NOT .transition.
• Filtering functionality needs the following Recommended CSS

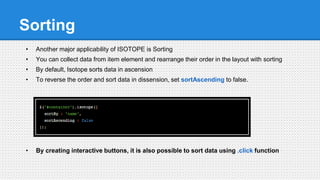

7. Sorting
• Another major applicability of ISOTOPE is Sorting
• You can collect data from item element and rearrange their order in the layout with sorting
• By default, Isotope sorts data in ascension
• To reverse the order and sort data in dissension, set sortAscending to false.
• By creating interactive buttons, it is also possible to sort data using .click function

8. Animating
• Isotope provides JavaScript animation fall back for lesser browsers
• You can control how Isotope handles animation with the animationEngine options
• 'best-available': if browser supports CSS transitions, Isotope uses .css(). If not, falls back to using
.animate().
• 'css': Isotope uses .css()
• 'jquery': Isotope uses .animate()
• animationEngine determines the jQuery method to apply styles, .css() or .animate()
• useful for relying on CSS transitions to handle animation

9. Adding new elements
• Isotope provides several techniques and methods to add new elements to DOM
• addItems method :The addItems method adds new content to an Isotope container
• insert method: will append the content to the container, filter the new content, sort all the content, then trigger a reLayout so all item elements
are properly laid out.
• appended method:The appended method is a convenience method triggers addItems on new content, then lays out only the new content at the
end of the layout

10. • insert method: will append the content to the container, filter the new content, sort all the content, then trigger a reLayout so all item
elements are properly laid out.
• When adding items you’ll need these styles in your CSS for the reveal animation to work
properly
Demo http://users.metropolia.fi/~semg/eservice/isotope/
...

11. Resources
• Home page
http://isotope.metafizzy.co/docs/introduction.html
• Repository
https://github.com/desandro/isotope
• Author’s David DeSandro page
http://v3.desandro.com/
• Tut
http://www.9bitstudios.com/2013/04/jquery-isotope-tutorial/
