Irisys offers a highly accurate people counting solution with an accuracy of over 95% and up to 16 configurable counting lines. The system is designed for low maintenance and low power consumption, suitable for both indoor and outdoor applications, while ensuring privacy compliance. It includes data collection tools and is backed by a long lifespan and reliability, supported by an extensive range of connection options.

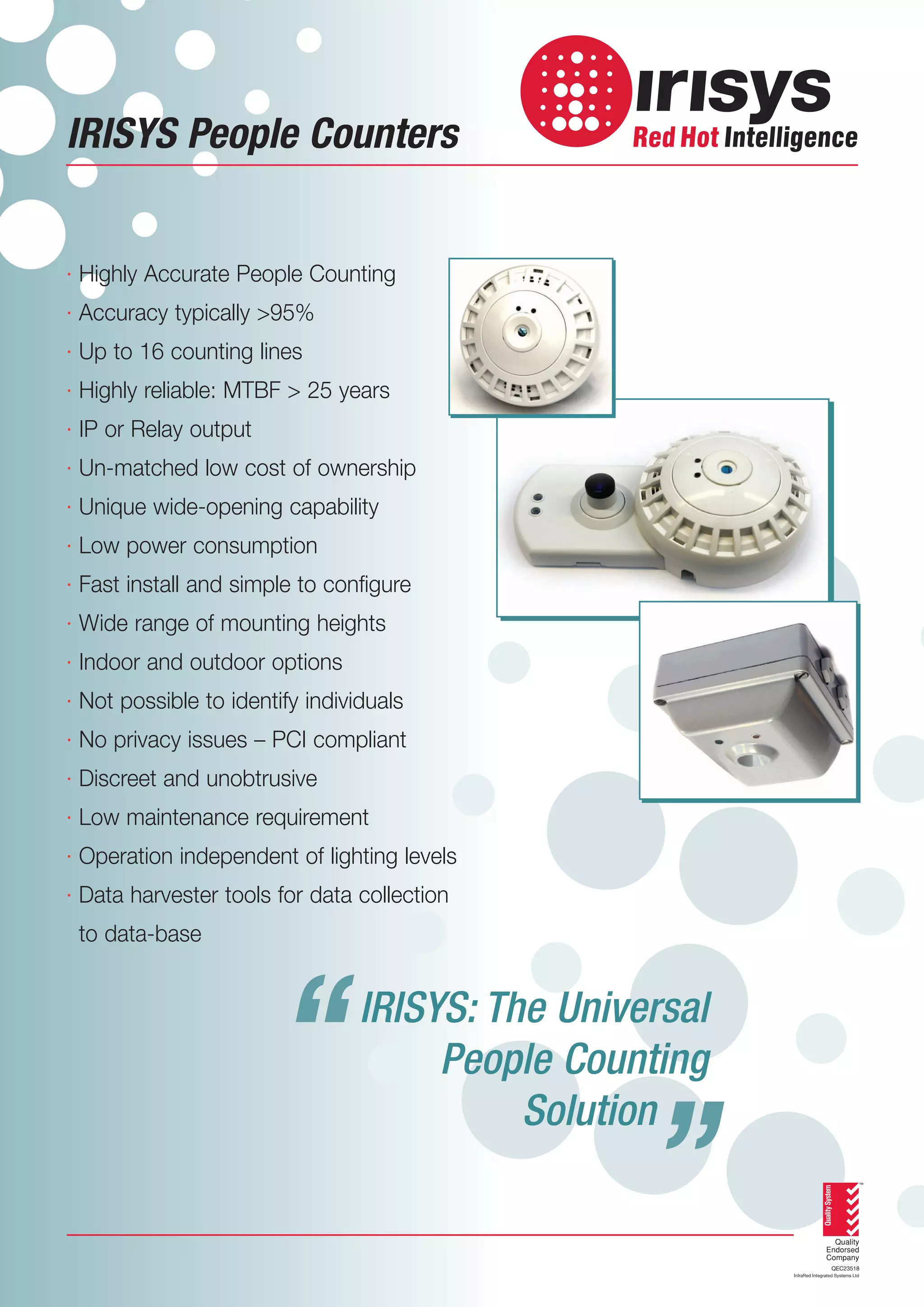

1. IRISYS People Counters
· Highly Accurate People Counting
· Accuracy typically >95%
· Up to 16 counting lines
· Highly reliable: MTBF > 25 years
· IP or Relay output
· Un-matched low cost of ownership
· Unique wide-opening capability
· Low power consumption
· Fast install and simple to configure
· Wide range of mounting heights
· Indoor and outdoor options
· Not possible to identify individuals
· No privacy issues – PCI compliant
· Discreet and unobtrusive
· Low maintenance requirement
· Operation independent of lighting levels
· Data harvester tools for data collection
to data-base
“
“
IRISYS: The Universal
People Counting
Solution

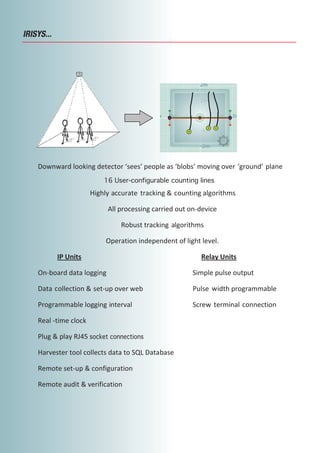

2. IRISYS...
16 User-configurable counting lines
socket connections

3. the universal people counting solution

4. IRISYS...

5. the universal people counting solution

6. IRISYS...

7. the universal people counting solution

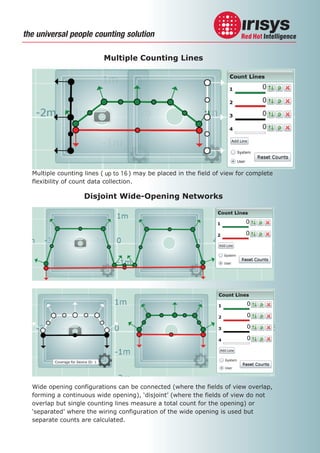

up to 16

8. IRISYS...

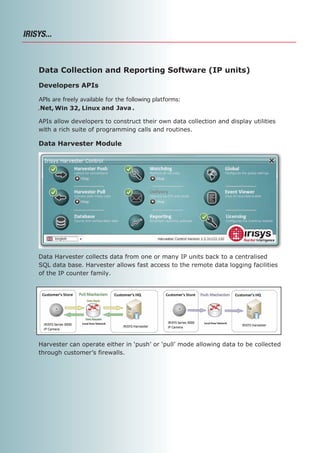

APIs are freely available for the following platforms:

9. the universal people counting solution

10. IRISYS...

11. the universal people counting solution

12. IRISYS...

13. the universal people counting solution

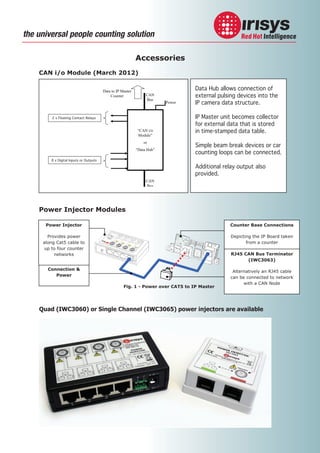

Data Hub allows connection of
external pulsing devices into the
IP camera data structure.
2 x Floating Contact Relays
IP Master unit becomes collector
for external data that is stored
in time-stamped data table.
Simple beam break devices or car
counting loops can be connected.
8 x Digital Inputs or Outputs
Additional relay output also
provided.
Quad (IWC3060) or Single Channel (IWC3065) power injectors are available

14. IRISYS...

15. the universal people counting solution

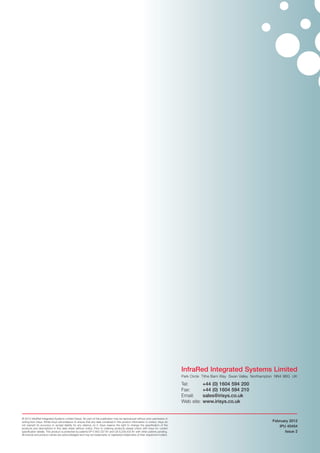

16. InfraRed Integrated Systems Limited
Park Circle Tithe Barn Way Swan Valley Northampton NN4 9BG UK
Tel:
Fax:
Email:
Web site:
© 2012 InfraRed Integrated Systems Limited (Irisys). No part of this publication may be reproduced without prior permission in
writing from Irisys. Whilst Irisys will endeavor to ensure that any data contained in this product information is correct, Irisys do
not warrant its accuracy or accept liability for any reliance on it. Irisys reserve the right to change the specification of the
products and descriptions in this data sheet without notice. Prior to ordering products please check with Irisys for current
specification details. This product is protected by patents EP 0 853 237 B1 and US 6,239,433 B1 with other patents pending.
All brands and product names are acknowledged and may be trademarks or registered trademarks of their respective holders.
+44 (0) 1604 594 200
+44 (0) 1604 594 210
sales@irisys.co.uk
www.irisys.co.uk
February 2012
IPU 40454
Issue 2
