This document introduces Apigility, a PHP API development tool designed to simplify API design and implementation. It covers key concepts such as API-first development, architecture types (RPC and REST), output formats, error handling, authentication, and versioning. The presentation includes practical examples, best practices, installation methods, and links to demonstrations and additional resources.

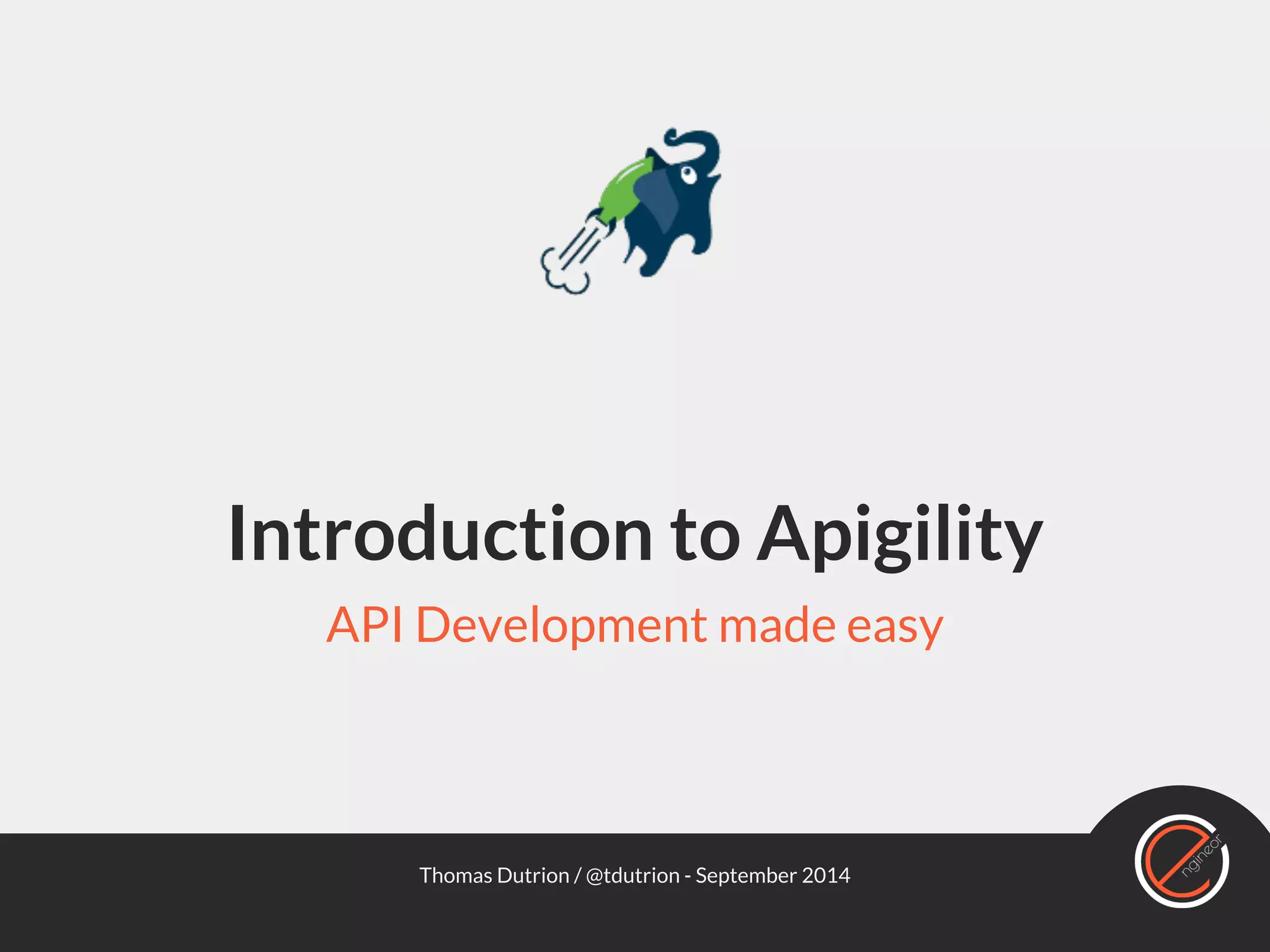

1. Introduction to Apigility
API Development made easy
Thomas Dutrion / @tdutrion - September 2014

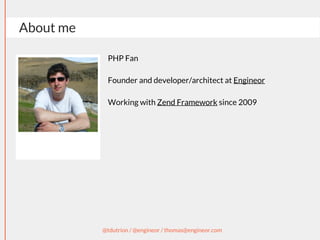

2. About me
PHP Fan
Founder and developer/architect at Engineor
Working with Zend Framework since 2009
@tdutrion / @engineor / thomas@engineor.com

3. API based architecture
● Multiplication of the device types and size
● Server side software independent from clients
● Public access to data
=> API-First development: api-first.com
Introduction to Apigility

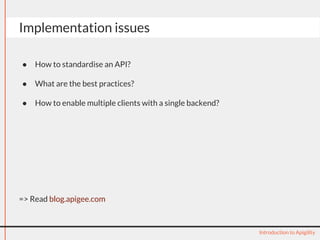

4. Implementation issues
● How to standardise an API?
● What are the best practices?
● How to enable multiple clients with a single backend?
=> Read blog.apigee.com
Introduction to Apigility

5. API basics
Introduction to Apigility

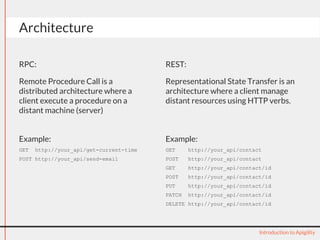

6. Architecture
RPC:
Remote Procedure Call is a
distributed architecture where a
client execute a procedure on a
distant machine (server)
REST:
Representational State Transfer is an
architecture where a client manage
distant resources using HTTP verbs.
Introduction to Apigility
Example:
GET http://your_api/get-current-time
POST http://your_api/send-email
Example:
GET http://your_api/contact
POST http://your_api/contact
GET http://your_api/contact/id
POST http://your_api/contact/id
PUT http://your_api/contact/id
PATCH http://your_api/contact/id
DELETE http://your_api/contact/id

7. Output format standards
JSON
application/json
{
“name”: “edPug”,
“type”: “meetup”
}
JSON HAL
application/hal+json
{
“_links”: {
“self”: {
“href”: “http://localhost:8000/meetups/1”
}
}
“name”: “edPug”,
“type”: “meetup”
}
Introduction to Apigility
Provide context to the entity / collection, self descriptive API

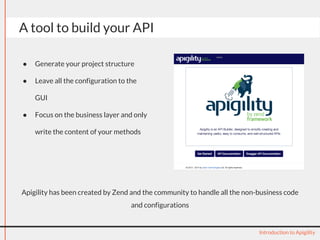

8. A tool to build your API
● Generate your project structure
● Leave all the configuration to the
GUI
● Focus on the business layer and only
write the content of your methods
Apigility has been created by Zend and the community to handle all the non-business code
Introduction to Apigility
and configurations

9. Content negotiation
● Let the user (frontend developer)
decide the output type he wants
● Build-in JSON and HAL JSON types,
you can add your own
● Based on the accept header
The documentation is a good example to test different output type on the same resource
Introduction to Apigility

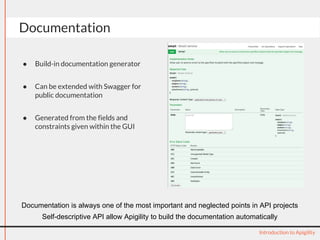

10. Documentation
● Build-in documentation generator
● Can be extended with Swagger for
public documentation
● Generated from the fields and
constraints given within the GUI
Documentation is always one of the most important and neglected points in API projects
Self-descriptive API allow Apigility to build the documentation automatically
Introduction to Apigility

11. application/problem+json
{
“type”:
“/api/problems/forbidden”,
“title”: “Forbidden”,
“detail”: “Your API key is
missing or invalid.”,
“status”: 403,
“authenticationUrl”:
“/api/oauth”
}
Error handling
https://tools.ietf.org/html/draft-nottingham-http-problem-07
Introduction to Apigility
HTTP Problem RFC
● Standard error message
● Use http status code
● Help your frontend developers to
deal with errors

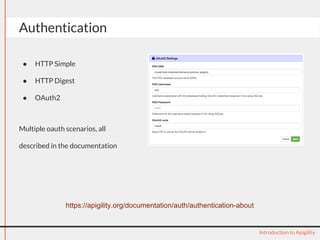

12. Authentication
● HTTP Simple
● HTTP Digest
● OAuth2
Multiple oauth scenarios, all
described in the documentation
Introduction to Apigility
https://apigility.org/documentation/auth/authentication-about

13. Versioning
● https://blog.apigee.com/detail/restful_api_design_how_many_versions
● https://blog.apigee.
com/detail/api_restful_design_question_verisioning_number_in_the_url
Apigility provides a built in versioning
You can specify the version through url or headers at your convenience
Introduction to Apigility
https://apigility.org/documentation/api-primer/versioning

14. Concrete introduction to Apigility
History:
● Announced during the ZendCon
US in October 2013
● First release 8th October 2013
(version 0.6.0)
● Currently version 1.0.4
Introduction to Apigility
Problems solved:
● Standardising APIs
● Rapid API centric application
development
● APIs for file upload as well
● Give access to fast and clean API
development for non developers
(database connected API)

15. Installation
● Using Composer
● Using the auto installer
● Using the archive download
● Using the skeleton or as a dependance
Watch the demo: https://www.youtube.com/watch?v=cE2rwGi437I
Introduction to Apigility

16. Create a database connected API
Watch the demo: https://www.youtube.com/watch?v=KYsOCCPrOwE
Introduction to Apigility
● Use HTTP verbs to query resources
● Fetch automatically data from the table
● The demo does not show a full CRUD, try it yourself, it’s easy!

17. Add an authentication
● Add an HTTP Basic authentication
● Not very dynamic (requires to change htpasswd for each new user)
● Requires HTTPS
=> good for internal projects or non critical project, prefer oauth in most cases
Watch the demo: https://www.youtube.com/watch?v=0I_rTFRQid0
Introduction to Apigility

18. Add a version
● Generate new files in background
● Use accept header to select a version
● Use a route parameter to select a version
Watch the demo: https://www.youtube.com/watch?v=Nt4BNn3QRoQ
Introduction to Apigility

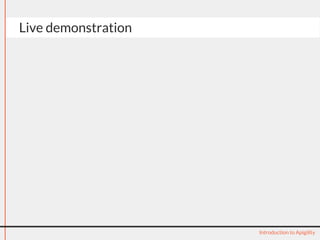

19. Live demonstration
Introduction to Apigility

20. Questions?
Feel free to comment the presentation: http://www.slideshare.net/engineor/introduction-to-apigility
Thanks to:
● Enrico Zimuel / @ezimuel - https://speakerdeck.com/ezimuel/apigility-the-api-builder-for-php
● Enrico Zimuel / @ezimuel - http://goo.gl/io7nqO
● Rob Allen / @akrabat - http://akrabat.com/wp-content/uploads/20140318-phpne-apigility-intro.pdf
Introduction to Apigility
