1. Cypher Query
Language
Chicago Graph Database Meet-Up
Max De Marzi
Updated for Neo4j 2.x by Brian Underwood

2. What is Cypher?
•Graph Query Language for
Neo4j
•Aims to make querying simple

3. Motivation
Why Cypher?
• Existing Neo4j query mechanisms were
not simple enough
• Too verbose (Java API)
• Too prescriptive (Gremlin)

4. Motivation
SQL?
• Unable to express paths
• these are crucial for graph-based
reasoning
• Neo4j is schema/table free

5. Design Decisions
Pattern matching

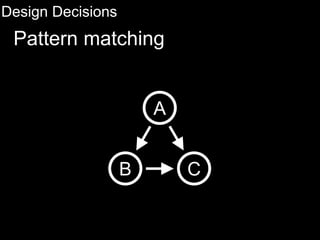

6. Design Decisions
Pattern matching
A
B C

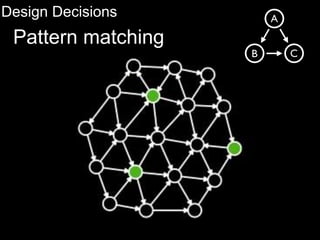

7. Design Decisions
Pattern matching

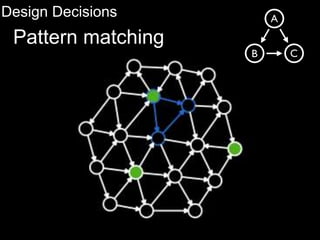

8. Design Decisions
Pattern matching

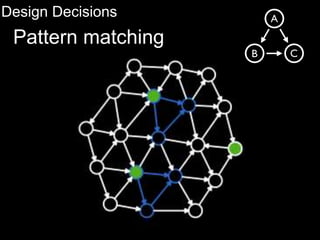

9. Design Decisions
Pattern matching

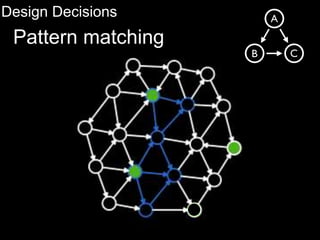

10. Design Decisions
Pattern matching

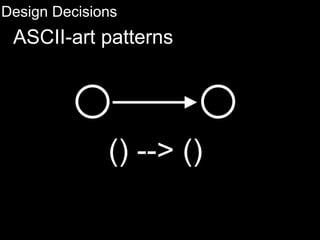

11. Design Decisions
ASCII-art patterns
() --> ()

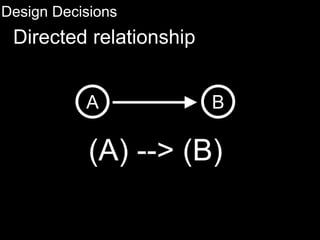

12. Design Decisions
Directed relationship
(A) --> (B)
A B

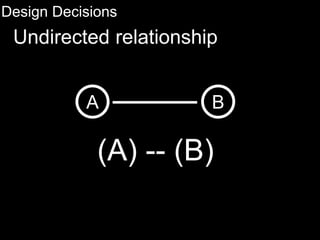

13. Design Decisions
Undirected relationship
(A) -- (B)
A B

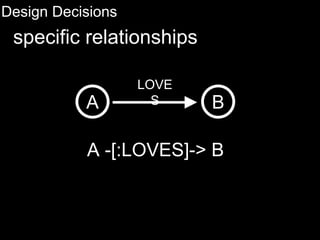

14. Design Decisions
specific relationships
A -[:LOVES]-> B
A B
LOVE
S

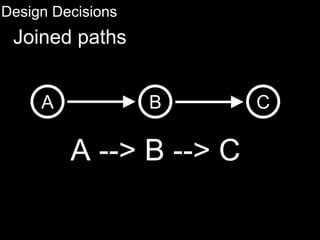

15. Design Decisions
Joined paths
A --> B --> C
A B C

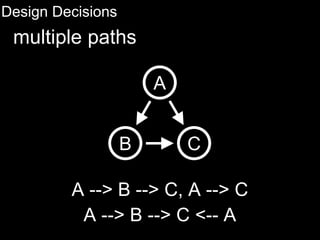

16. Design Decisions
multiple paths
A --> B --> C, A --> C
A
B C
A --> B --> C <-- A

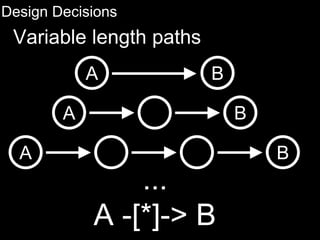

17. Design Decisions
Variable length paths
A -[*]-> B
A B
A B
A B
...

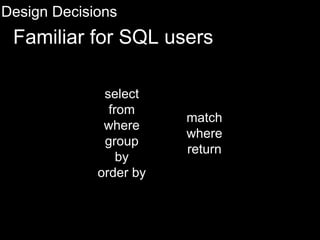

18. Design Decisions
Familiar for SQL users
select
from
where
group
by
order by
match
where
return

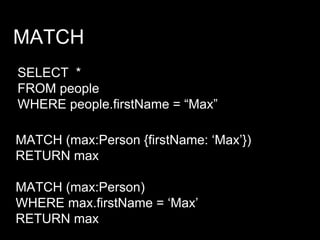

19. MATCH
SELECT *
FROM people
WHERE people.firstName = “Max”
MATCH (max:Person {firstName: ‘Max’})
RETURN max
MATCH (max:Person)
WHERE max.firstName = ‘Max’
RETURN max

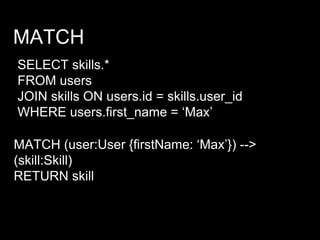

20. MATCH
SELECT skills.*
FROM users
JOIN skills ON users.id = skills.user_id
WHERE users.first_name = ‘Max’
MATCH (user:User {firstName: ‘Max’}) -->
(skill:Skill)
RETURN skill

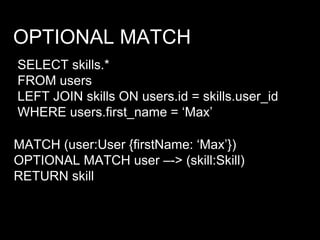

21. OPTIONAL MATCH
SELECT skills.*
FROM users
LEFT JOIN skills ON users.id = skills.user_id
WHERE users.first_name = ‘Max’
MATCH (user:User {firstName: ‘Max’})
OPTIONAL MATCH user –-> (skill:Skill)
RETURN skill

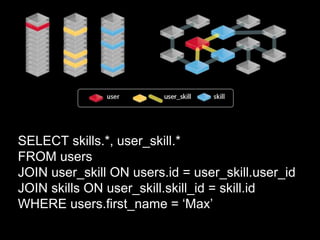

22. SELECT skills.*, user_skill.*
FROM users
JOIN user_skill ON users.id = user_skill.user_id
JOIN skills ON user_skill.skill_id = skill.id
WHERE users.first_name = ‘Max’

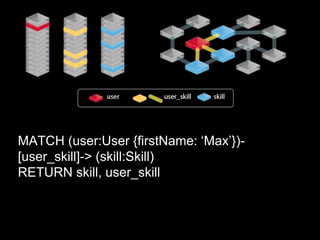

23. MATCH (user:User {firstName: ‘Max’})-
[user_skill]-> (skill:Skill)
RETURN skill, user_skill

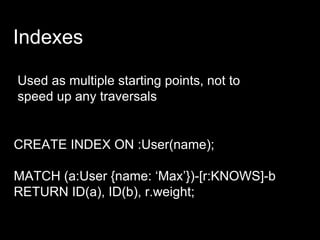

24. Indexes
Used as multiple starting points, not to
speed up any traversals
CREATE INDEX ON :User(name);
MATCH (a:User {name: ‘Max’})-[r:KNOWS]-b
RETURN ID(a), ID(b), r.weight;

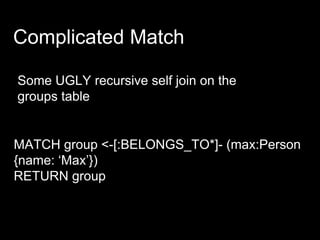

25. Complicated Match
Some UGLY recursive self join on the
groups table
MATCH group <-[:BELONGS_TO*]- (max:Person
{name: ‘Max’})
RETURN group

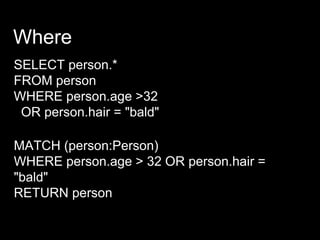

26. Where
SELECT person.*
FROM person
WHERE person.age >32
OR person.hair = "bald"
MATCH (person:Person)
WHERE person.age > 32 OR person.hair =
"bald"
RETURN person

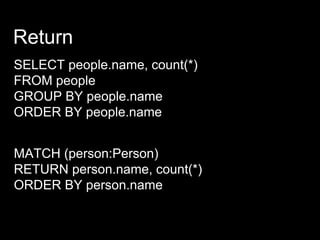

27. Return
SELECT people.name, count(*)
FROM people
GROUP BY people.name
ORDER BY people.name
MATCH (person:Person)
RETURN person.name, count(*)
ORDER BY person.name

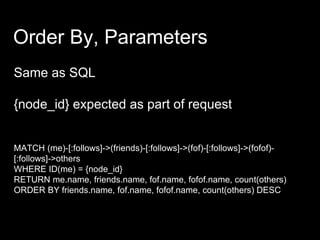

28. Order By, Parameters
Same as SQL
{node_id} expected as part of request
MATCH (me)-[:follows]->(friends)-[:follows]->(fof)-[:follows]->(fofof)-
[:follows]->others
WHERE ID(me) = {node_id}
RETURN me.name, friends.name, fof.name, fofof.name, count(others)
ORDER BY friends.name, fof.name, fofof.name, count(others) DESC

29. Graph Functions
Some UGLY multiple recursive self and inner joins
on the user and all related tables
MATCH p = shortestPath( lucy-[*]-kevin )
WHERE ID(lucy) = 1000 AND ID(kevin) = 759
RETURN p

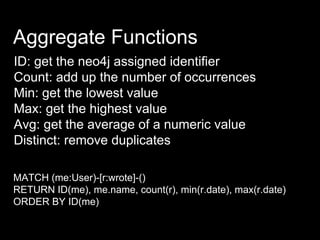

30. Aggregate Functions
ID: get the neo4j assigned identifier
Count: add up the number of occurrences
Min: get the lowest value
Max: get the highest value
Avg: get the average of a numeric value
Distinct: remove duplicates
MATCH (me:User)-[r:wrote]-()
RETURN ID(me), me.name, count(r), min(r.date), max(r.date)
ORDER BY ID(me)

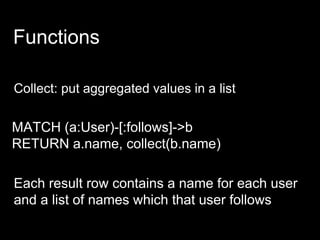

31. Functions
Collect: put aggregated values in a list
MATCH (a:User)-[:follows]->b
RETURN a.name, collect(b.name)
Each result row contains a name for each user
and a list of names which that user follows

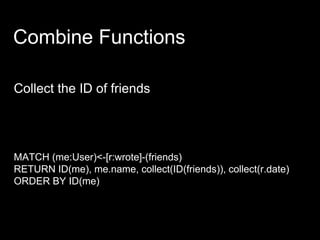

32. Combine Functions
Collect the ID of friends
MATCH (me:User)<-[r:wrote]-(friends)
RETURN ID(me), me.name, collect(ID(friends)), collect(r.date)
ORDER BY ID(me)

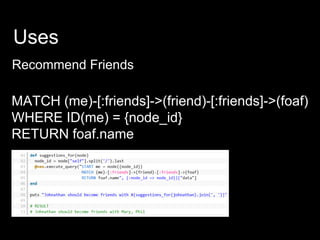

33. Uses
Recommend Friends
MATCH (me)-[:friends]->(friend)-[:friends]->(foaf)
WHERE ID(me) = {node_id}
RETURN foaf.name

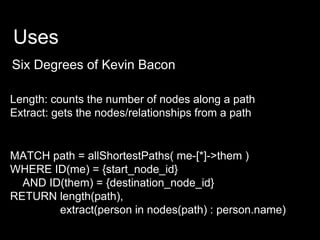

34. Uses
Six Degrees of Kevin Bacon
MATCH path = allShortestPaths( me-[*]->them )
WHERE ID(me) = {start_node_id}
AND ID(them) = {destination_node_id}
RETURN length(path),
extract(person in nodes(path) : person.name)
Length: counts the number of nodes along a path
Extract: gets the nodes/relationships from a path

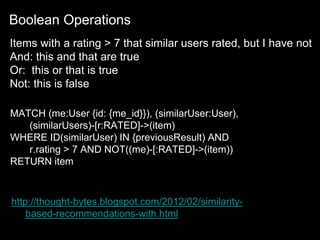

35. http://thought-bytes.blogspot.com/2012/02/similarity-
based-recommendations-with.html
MATCH (me:User {id: {me_id}}), (similarUser:User),
(similarUsers)-[r:RATED]->(item)
WHERE ID(similarUser) IN {previousResult) AND
r.rating > 7 AND NOT((me)-[:RATED]->(item))
RETURN item
Items with a rating > 7 that similar users rated, but I have not
And: this and that are true
Or: this or that is true
Not: this is false
Boolean Operations

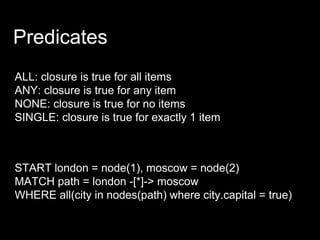

36. START london = node(1), moscow = node(2)
MATCH path = london -[*]-> moscow
WHERE all(city in nodes(path) where city.capital = true)
Predicates
ALL: closure is true for all items
ANY: closure is true for any item
NONE: closure is true for no items
SINGLE: closure is true for exactly 1 item

37. Thanks for Listening!
Questions?
maxdemarzi.com
