The Genee Pro Digital+ interactive whiteboard is durable with a strong surface that can withstand heavy use. It has interactive shortcut buttons and is easy to use for novice users. The board comes with 2 wireless pens, wall mounting parts, a USB cable, and an optional stand and eraser. It is available in sizes from 64 to 101 inches and has a high resolution, fast response time, and accurate touch.

1. Let do the magic!
on
Genee Pro Digital Board
The PRO Digital+ interactive whiteboard is durable and has a strong surface which
can with stand all the rigours of use. You can also use this board as a standard
whiteboard. The PRO Digital+ has interactive soft key shortcut buttons, and is easy
to use, even for novice users. The PRO Digital+ comes with 2 wireless pens, wall
mounting parts, USB extended cable and optional stand and eraser.

2. “
Transform your classroom or presentation
hall into a high-end interactive learning environment.

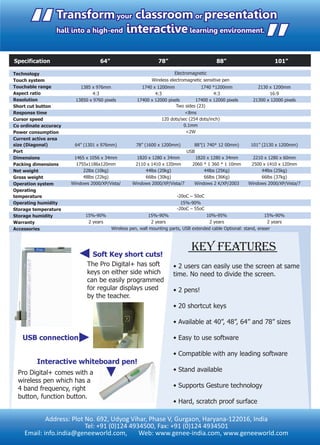

Specification 64” 78” 88” 101”
Technology Electromagnetic
Touch system Wireless electromagnetic sensitive pen
Touchable range 1385 x 976mm 1740 x 1200mm 1740 *1200mm 2130 x 1200mm
Aspect ratio 4:3 4:3 4:3 16:9
Resolution 13850 x 9760 pixels 17400 x 12000 pixels 17400 x 12000 pixels 21300 x 12000 pixels
Short cut button Two sides (23)
Response time <8ms
Cursor speed 120 dots/sec (254 dots/inch)
Co ordinate accuracy 0.1mm
Power consumption <2W
Current active area
size (Diagonal) 64” (1301 x 976mm) 78” (1600 x 1200mm) 88”(1 740* 12 00mm) 101” (2130 x 1200mm)
Port USB
Dimensions 1465 x 1056 x 34mm 1820 x 1280 x 34mm 1820 x 1280 x 34mm 2210 x 1280 x 60mm
Packing dimensions 1755x1186x120mm 2110 x 1410 x 120mm 2060 * 1 360 * 1 10mm 2500 x 1410 x 120mm
Net weight 22lbs (10kg) 44lbs (20kg) 44lbs (25Kg) 44lbs (25kg)
Gross weight 48lbs (22kg) 66lbs (30kg) 66lbs (36Kg) 66lbs (37kg)
Operation system Windows 2000/XP/Vista/ Windows 2000/XP/Vista/7 Windows 2 K/XP/2003 Windows 2000/XP/Vista/7
Operating
temperature -20oC – 50oC
Operating humidity 15%-90%
Storage temperature -20oC – 55oC
Storage humidity 15%-90% 15%-90% 10%-95% 15%-90%
Warranty 2 years 2 years 2 years 2 years
Accessories Wireless pen, wall mounting parts, USB extended cable Optional: stand, eraser
Key Features
Soft Key short cuts!
The Pro Digital+ has soft • 2 users can easily use the screen at same
keys on either side which time. No need to divide the screen.
can be easily programmed
for regular displays used • 2 pens!
by the teacher.
• 20 shortcut keys
• Available at 40”, 48”, 64” and 78” sizes
USB connection • Easy to use software
• Compatible with any leading software
Interactive whiteboard pen!
Pro Digital+ comes with a • Stand available
wireless pen which has a
4 band frequency, right • Supports Gesture technology
button, function button.
• Hard, scratch proof surface
