Slides from Moscow Blockchain Researchers meetup about http://eprint.iacr.org/2016/994.pdf

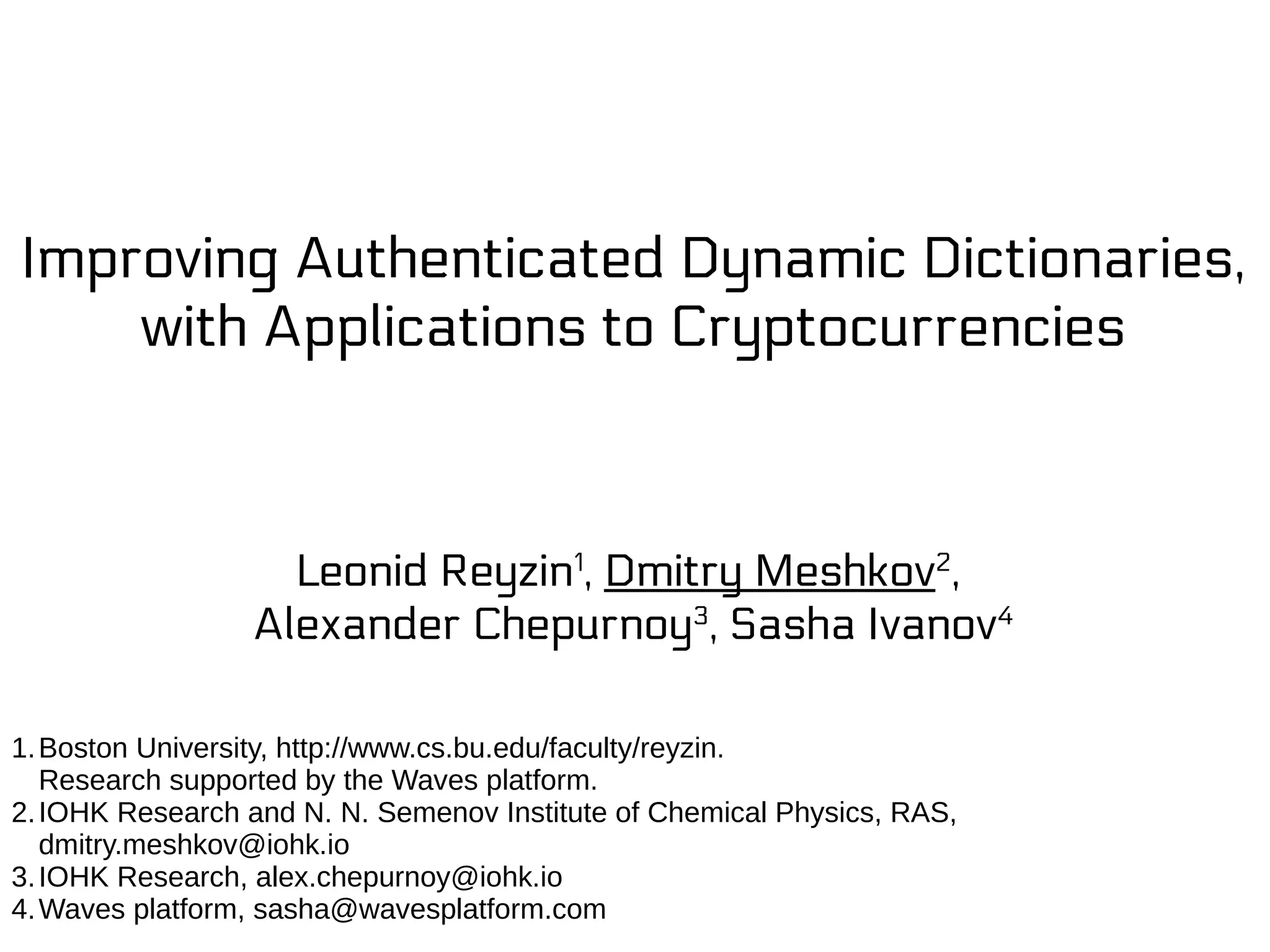

1. Improving Authenticated Dynamic Dictionaries,
with Applications to Cryptocurrencies
Leonid Reyzin1
, Dmitry Meshkov2
,
Alexander Chepurnoy3
, Sasha Ivanov4
1.Boston University, http://www.cs.bu.edu/faculty/reyzin.
Research supported by the Waves platform.
2.IOHK Research and N. N. Semenov Institute of Chemical Physics, RAS,
dmitry.meshkov@iohk.io
3.IOHK Research, alex.chepurnoy@iohk.io
4.Waves platform, sasha@wavesplatform.com

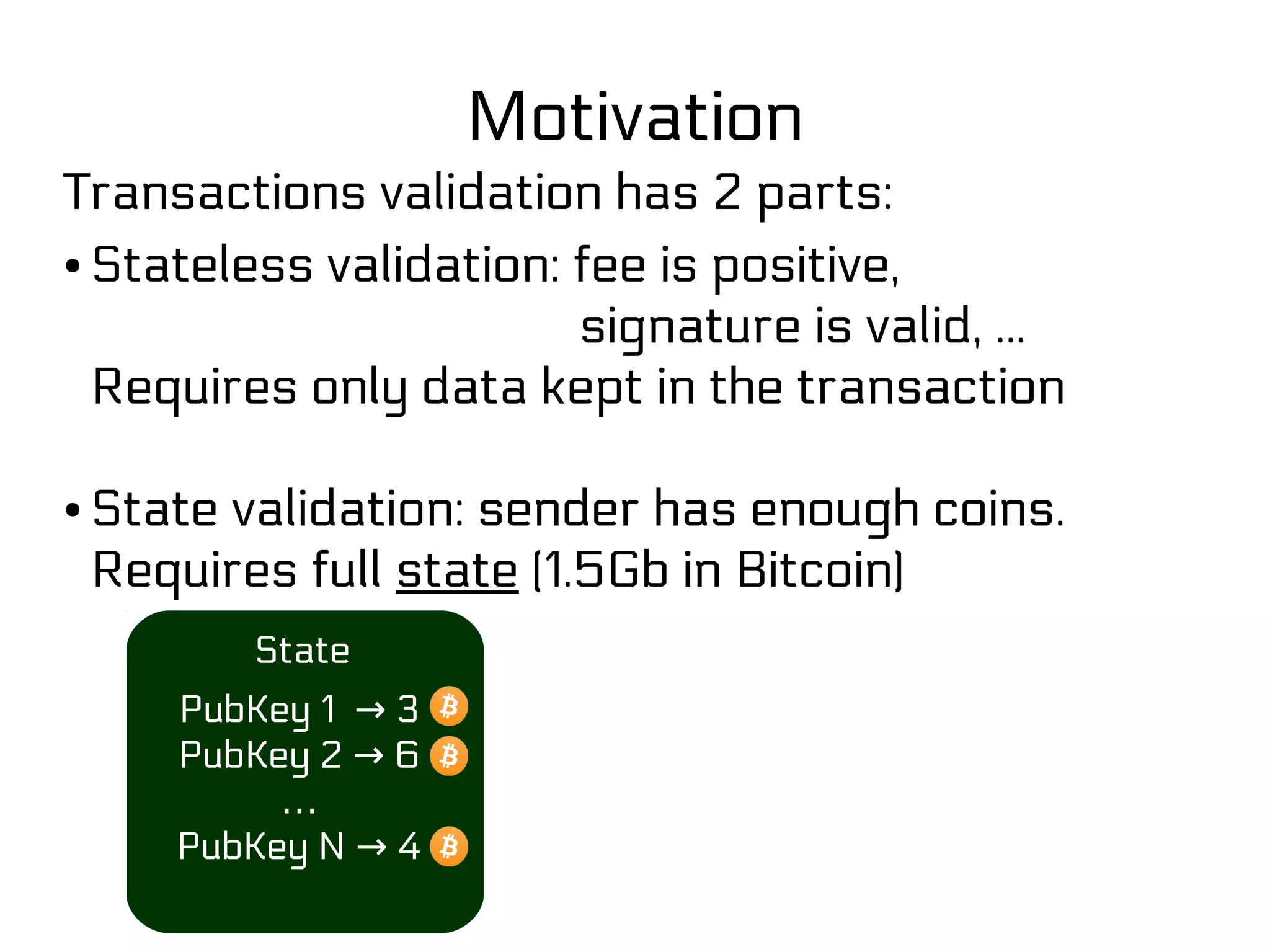

2. Motivation
Transactions validation has 2 parts:
● Stateless validation: fee is positive,
signature is valid, ...
Requires only data kept in the transaction
● State validation: sender has enough coins.
Requires full state (1.5Gb in Bitcoin)
State
PubKey 1 3→
PubKey 2 6→
…
PubKey N 4→

3. Motivation
Transactions validation:
● Requires full state (even bigger problem for
multi-asset blockchains)
Multi-asset blockchain state
Asset 1 State
PubKey 1 3→
PubKey 2 6→
…
PubKey M 4→
Asset 2 State
PubKey 1 8→
PubKey 2 7→
…
PubKey L 2→
Asset N State
PubKey 1 3→
PubKey 2 7→
…
PubKey K 5→

4. Motivation
Where to store this big state?:
● HDD => slow validation => DoS
● RAM => only powerful computers => centralization

5. Authenticated Dictionaries to the Rescue
Header
Consensus data
Transactions
Merkle tree
Tx_root
Header
Consensus data
Transactions
Merkle tree
Tx_root Tx_proofs_root
Transaction
proofs
Our proposal
White, Bill. "A Theory for Lightweight Cryptocurrency Ledgers." (2015).

6. Authenticated Dictionaries: Merkle Tree

7. Authenticated Dictionaries: Merkle Tree

8. Proofs: authenticated state
● Make state authenticated
● Easy: proof of a sender's balance (standard
Merkle tree proof with respect to the root).
● More complicated: ensuring the prover changed
the balances correctly.
● Important: we do not wish to trust the prover!
Merkle RootAsset 1 State
PubKey 1 3→
PubKey 2 6→
…
PubKey M 4→
Pk1: 3 Pk2: 6 PkN: 4

9. Proofs: two-party
● Proof of a sender balance AND tree changes
● Should be enough to calculate new root hash
● Verifier keeps root hash only
Root N-1
Pk1: 3
Root N
Pk2Pk1
Pk2: 6 PkN: 4 Pk2: 2 Pk1: 7 PkN: 4

10. Proofs: two-party
● Prover
● Full verifier
● Light verifier
Root N-1
Pk1: 3
Root NTransactions
Pk2: 6 PkN: 4 Pk2: 2 Pk1: 7 PkN: 4
Asset 1 State
Asset 1 State
PubKey 1 3→
PubKey 2 6→
PubKey N 4→
Transactions
Asset 1 State
Asset 1 State
PubKey 1 2→
PubKey 2 7→
PubKey N 4→
Txs + proofsRoot N-1 Root N

11. Prior work
Skiplist1
Lookup proof size 1.5 log2
N
Insert proof size 1.5 log2
N
1) Papamanthou and Tamassia. "Time and space efficient algorithms for two-party
authenticated data structures." 2007.
Ms.
s

12. Prior work
Skiplist1
Red-black tree2
Lookup proof size 1.5 log2
N 1.7 log2
N
Insert proof size 1.5 log2
N 5 log2
N
1) Papamanthou and Tamassia. "Time and space efficient algorithms for two-party
authenticated data structures." 2007.
2)Miller, Hicks, Katz, Shi. "Authenticated data structures, generically." 2014.

13. Prior work
Skiplist1
Red-black tree2
Ethereum trie3
Lookup proof size 1.5 log2
N 1.7 log2
N 3 log2
N
Insert proof size 1.5 log2
N 5 log2
N ???
1) Papamanthou and Tamassia. "Time and space efficient algorithms for two-party
authenticated data structures." 2007.
2)Miller, Hicks, Katz, Shi. "Authenticated data structures, generically." 2014.
3)Wood. "Ethereum: A secure decentralised generalised transaction ledger." 2014.

14. Our improvements: AVL
Skiplist1
Red-black tree2
Ethereum trie3
Our AVL+ tree
Lookup proof size 1.5 log2
N 1.7 log2
N 3 log2
N log2
N
Insert proof size 1.5 log2
N 5 log2
N ??? log2
N
1) Papamanthou and Tamassia. "Time and space efficient algorithms for two-party
authenticated data structures." 2007.
2)Miller, Hicks, Katz, Shi. "Authenticated data structures, generically." 2014.
3)Wood. "Ethereum: A secure decentralised generalised transaction ledger." 2014.

15. Our improvements: AVL
Skiplist1
Red-black tree2
Ethereum trie3
Our AVL+ tree
Lookup proof size 1.5 log2
N 1.7 log2
N 3 log2
N log2
N
Insert proof size 1.5 log2
N 5 log2
N ??? log2
N
Deterministic
1) Papamanthou and Tamassia. "Time and space efficient algorithms for two-party
authenticated data structures." 2007.
2)Miller, Hicks, Katz, Shi. "Authenticated data structures, generically." 2014.
3)Wood. "Ethereum: A secure decentralised generalised transaction ledger." 2014.

16. Our improvements: AVL
Main ideas:
● AVL tree paths are shorter than skiplist paths
● Use deterministic rebalancing operations that
don't look off the main path
● For N=106
, proof size = 753 bytes
(32-byte hashes, 26-byte keys, 8-byte values)

17. Single operation proof size

18. Our improvements: batching
Root
● Transactions may change same public key
● Multiple proofs can be combined together
pk1 pk2 pk3 pk4 pk5 pk6 pk7 pk8
Root
pk1 pk2 pk3 pk4 pk5 pk6 pk7 pk8

19. Multiple operations proof size
● For tree N=106
and batch B=103
, compressed
proof size is 400 bytes, plain – 750 bytes

20. Simulated blockchain
● Verification on commodity hardware
● Mining on commodity hardware!

21. Thank you!
● Paper: http://ia.cr/2016/994
● Code: https://github.com/input-output-hk/scrypto
● Slides: http://www.slideshare.net/DmitryMeshkov
● Twitter: https://twitter.com/DmitryMeshkov
● Email: dmitry.meshkov@iohk.io
