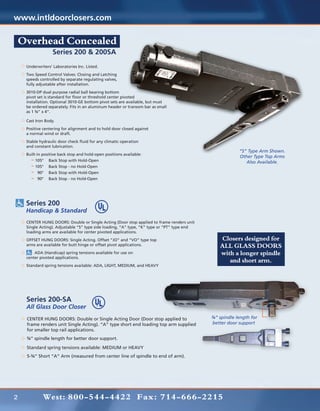

Overhead Concealed
Series 200 & 200SA
Underwriters’ Laboratories Inc. Listed.
Two Speed Control Valves: Closing and Latching
speeds controlled by separate regulating valves,
fully adjustable after installation.
3010-DP dual purpose radial ball bearing bottom
pivot set is standard for floor or threshold center pivoted
installation. Optional 3010-GE bottom pivot sets are available, but must
be ordered separately. Fits in an aluminum header or transom bar as small
as 1 ¾” x 4”.
Cast Iron Body.
Positive centering for alignment and to hold door closed against
a normal wind or draft.
Stable hydraulic door check fluid for any climatic operation
and constant lubrication.
“S” Type Arm Shown.
Built-in positive back stop and hold-open positions available:
Other Type Top Arms
105° Back Stop with Hold-Open Also Available.
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold-Open
Series 200
Handicap & Standard
CENTER HUNG DOORS: Double or Single Acting (Door stop applied to frame renders unit
Single Acting). Adjustable “S” type side loading, “A” type, “K” type or “PT” type end
loading arms are available for center pivoted applications.
OFFSET HUNG DOORS: Single Acting. Offset “JO” and “VO” type top Closers designed for
arms are available for butt hinge or offset pivot applications. ALL GLASS DOORS
ADA (Handicap) spring tensions available for use on with a longer spindle
center pivoted applications.
and short arm.
Standard spring tensions available: ADA, LIGHT, MEDIUM, and HEAVY
Series 200-SA
All Glass Door Closer
CENTER HUNG DOORS: Double or Single Acting Door (Door stop applied to ¾” spindle length for
frame renders unit Single Acting). “A” type short end loading top arm supplied better door support
for smaller top rail applications.
¾” spindle length for better door support.
Standard spring tensions available: MEDIUM or HEAVY
5-¾” Short “A” Arm (measured from center line of spindle to end of arm).
2 West: 800-544-4422 Fax: 714-666-2215

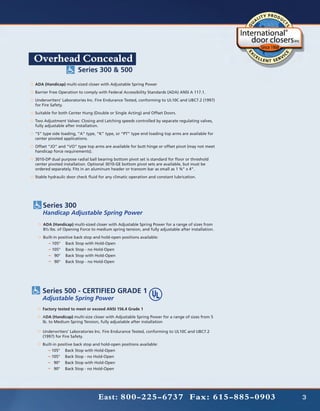

3. Overhead Concealed
Series 300 & 500
ADA (Handicap) multi-sized closer with Adjustable Spring Power
Barrier Free Operation to comply with Federal Accessibility Standards (ADA) ANSI A 117.1.
Underwriters’ Laboratories Inc. Fire Endurance Tested, conforming to UL10C and UBC7.2 (1997)
for Fire Safety.
Suitable for both Center Hung (Double or Single Acting) and Offset Doors.
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating valves,
fully adjustable after installation.
“S” type side loading, “A” type, “K” type, or “PT” type end loading top arms are available for
center pivoted applications.
Offset “JO” and “VO” type top arms are available for butt hinge or offset pivot (may not meet
handicap force requirements).
3010-DP dual purpose radial ball bearing bottom pivot set is standard for floor or threshold
center pivoted installation. Optional 3010-GE bottom pivot sets are available, but must be
ordered separately. Fits in an aluminum header or transom bar as small as 1 ¾” x 4”.
Stable hydraulic door check fluid for any climatic operation and constant lubrication.
Series 300
Handicap Adjustable Spring Power
ADA (Handicap) multi-sized closer with Adjustable Spring Power for a range of sizes from
8½ lbs. of Opening Force to medium spring tension, and fully adjustable after installation.
Built-in positive back stop and hold-open positions available:
105° Back Stop with Hold-Open
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold-Open
Series 500 - CERTIFIED GRADE 1
Adjustable Spring Power
Factory tested to meet or exceed ANSI 156.4 Grade 1
ADA (Handicap) multi-size closer with Adjustable Spring Power for a range of sizes from 5
lb. to Medium Spring Tension, fully adjustable after installation
Underwriters’ Laboratories Inc. Fire Endurance Tested, conforming to UL10C and UBC7.2
(1997) for Fire Safety.
Built-in positive back stop and hold-open positions available:
105° Back Stop with Hold-Open
105° Back Stop - no Hold-Open
90° Back Stop with Hold-Open
90° Back Stop - no Hold-Open
East: 800-225-6737 Fax: 615-885-0903 3

4. www.intldoorclosers.com

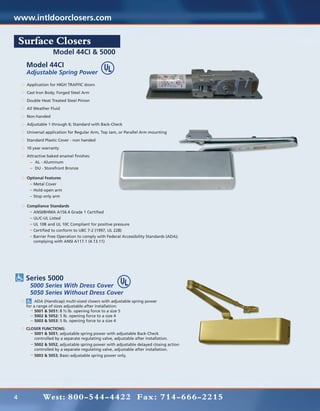

Surface Closers
Model 44CI & 5000
Model 44CI
Adjustable Spring Power
Application for HIGH TRAFFIC doors
Cast Iron Body; Forged Steel Arm
Double Heat Treated Steel Pinion
All Weather Fluid
Non-handed
Adjustable 1 through 6; Standard with Back-Check
Universal application for Regular Arm, Top Jam, or Parallel Arm mounting
Standard Plastic Cover - non handed
10 year warranty
Attractive baked enamel finishes:
AL - Aluminum
DU - Storefront Bronze
Optional Features
Metal Cover
Hold-open arm
Stop only arm
Compliance Standards
ANSI/BHMA A156.4 Grade 1 Certified
UL/C-UL Listed
UL 10B and UL 10C Compliant for positive pressure
Certified to conform to UBC 7-2 (1997, UL 228)
Barrier Free Operation to comply with Federal Accessibility Standards (ADA);
complying with ANSI A117.1 (4.13.11)
Series 5000
5000 Series With Dress Cover
5050 Series Without Dress Cover
ADA (Handicap) multi-sized closers with adjustable spring power
for a range of sizes adjustable after installation:
5001 & 5051: 8 ½ lb. opening force to a size 5
5002 & 5052: 5 lb. opening force to a size 4
5003 & 5053: 5 lb. opening force to a size 4
CLOSER FUNCTIONS:
5001 & 5051; adjustable spring power with adjustable Back-Check
controlled by a separate regulating valve, adjustable after installation.
5002 & 5052; adjustable spring power with adjustable delayed closing action
controlled by a separate regulating valve, adjustable after installation.
5003 & 5053; Basic-adjustable spring power only.
4 West: 800-544-4422 Fax: 714-666-2215

5. Surface Closers
Series 800 & 1800
Underwriters’ Laboratories Inc. Listed
Two Speed Control Valves: Closing and Latching speeds controlled by separate regulating
valves, fully adjustable after installation.
Universal Application: Non-handed for standard, top jamb or parallel arm installation.
Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
Stable hydraulic door check fluid for any climatic operation
and constant lubrication.
Furnished with regular, hold-open or fusible link hold-open arms.
Hold-open arms are adjustable for holding from 90° to 180°.
Attractive Baked Enamel finishes:
AL - Aluminum
DU - Storefront Bronze
Series 800
Standard Series 850
Adjustable Back-Check Series 880
Range of sizes:
Standard : 851, 852, 853, 854, and 855
Back-Check : 883, 884 and 885
Series 880 has adjustable Back-Check function controlled by a separate regulating valve,
adjustable after installation.
Regular arms are equipped with a 15% (+)(-) 7½% power adjustment bracket.
Hold-Open arms are adjustable for holding from 90° to 180°.
Narrow design permits installation on most modern glass and
aluminum doors without adaptors.
Series 1800
Grade 1
Factory tested to meet or exceed ANSI 156.4 Grade 1
Barrier Free operation to comply with Federal Accessibility Standards (ADA)
complying with ANSI 117.1
Narrow design permits installation on most glass and aluminum doors without adapters
Standard application for regular arm and Top Jamb installation; optional parallel arm
installation (requires optional PA bracket.)
Two Adjustment Valves: Closing and Latching speeds controlled by separate regulating
valves, adjustable after installation. (Three valves with optional back-check)
Slim Plastic Cover or Full Cover (optional)
5 year warranty
Attractive baked enamel finishes:
AL - Aluminum
DU - Storefront Bronze
East: 800-225-6737 Fax: 615-885-0903 5

6. www.intldoorclosers.com

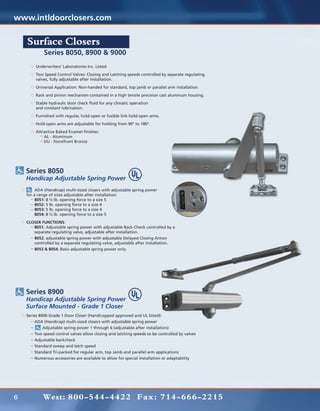

Surface Closers
Series 8050, 8900 & 9000
Underwriters’ Laboratories Inc. Listed
Two Speed Control Valves: Closing and Latching speeds controlled by separate regulating
valves, fully adjustable after installation.
Universal Application: Non-handed for standard, top jamb or parallel arm installation.
Rack and pinion mechanism contained in a high tensile precision cast aluminum housing.
Stable hydraulic door check fluid for any climatic operation
and constant lubrication.
Furnished with regular, hold-open or fusible link hold-open arms.
Hold-open arms are adjustable for holding from 90° to 180°.
Attractive Baked Enamel finishes:
AL - Aluminum
DU - Storefront Bronze
Series 8050
Handicap Adjustable Spring Power
ADA (Handicap) multi-sized closers with adjustable spring power
for a range of sizes adjustable after installation:
8051: 8 ½ lb. opening force to a size 5
8052: 5 lb. opening force to a size 4
8053: 5 lb. opening force to a size 4
8054: 8 ½ lb. opening force to a size 5
CLOSER FUNCTIONS:
8051; Adjustable spring power with adjustable Back-Check controlled by a
separate regulating valve, adjustable after installation.
8052; adjustable spring power with adjustable Delayed Closing Action
controlled by a separate regulating valve, adjustable after installation.
8053 & 8054; Basic-adjustable spring power only.
Series 8900
Handicap Adjustable Spring Power
Surface Mounted - Grade 1 Closer
Series 8900 Grade 1 Door Closer (Handicapped approved and UL listed):
ADA (Handicap) multi-sized closers with adjustable spring power
Adjustable spring power 1 through 6 (adjustable after installation)
Two speed control valves allow closing and latching speeds to be controlled by valves
Adjustable backcheck
Standard sweep and latch speed
Standard Tri-packed for regular arm, top Jamb and parallel arm applications
Numerous accessories are available to allow for special installation or adaptability
6 West: 800-544-4422 Fax: 714-666-2215

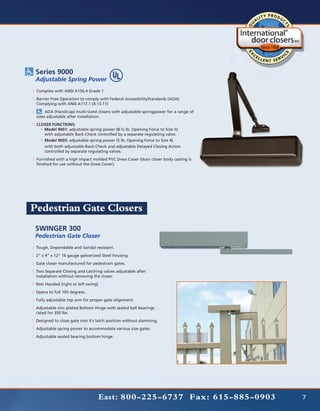

7. Series 9000
Adjustable Spring Power
Complies with ANSI A156.4 Grade 1
Barrier Free Operation to comply with Federal AccessibilityStandards (ADA):
Complying with ANSI A117.1 (4.13.11)
ADA (Handicap) multi-sized closers with adjustable springpower for a range of
sizes adjustable after installation.
CLOSER FUNCTIONS:
Model 9001: adjustable spring power (8-½ lb. Opening Force to Size 5)
with adjustable Back-Check controlled by a separate regulating valve.
Model 9003: adjustable spring power (5 lb. Opening Force to Size 4)
with both adjustable Back-Check and adjustable Delayed Closing Action
controlled by separate regulating valves.
Furnished with a high impact molded PVC Dress Cover (door closer body casting is
finished for use without the Dress Cover).
Pedestrian Gate Closers
SWINGER 300
Pedestrian Gate Closer
Tough, Dependable and Vandal resistant.
2” x 4” x 12” 16 gauge galvanized Steel housing.
Gate closer manufactured for pedestrain gates.
Two Separate Closing and Latching valves adjustable after
installation without removing the closer.
Non Handed (right or left swing)
Opens to full 105 degrees.
Fully adjustable top arm for proper gate alignment.
Adjustable zinc plated Bottom Hinge with sealed ball bearings
rated for 350 lbs.
Designed to close gate into it’s latch position without slamming.
Adjustable spring power to accommodate various size gates.
Adjustable sealed bearing bottom hinge.
East: 800-225-6737 Fax: 615-885-0903 7

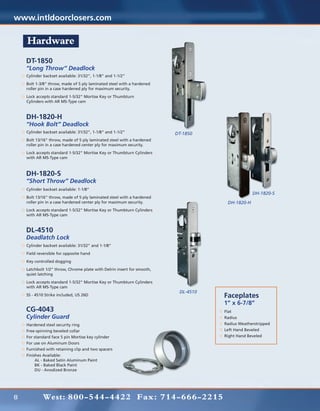

8. www.intldoorclosers.com
Hardware
DT-1850
“Long Throw” Deadlock
Cylinder backset available: 31/32”, 1-1/8” and 1-1/2”
Bolt 1-3/8” throw, made of 5 ply laminated steel with a hardened
roller pin in a case hardened ply for maximum security.
Lock accepts standard 1-5/32” Mortise Key or Thumbturn
Cylinders with AR MS-Type cam
DH-1820-H
“Hook Bolt” Deadlock
Cylinder backset available: 31/32”, 1-1/8” and 1-1/2” DT-1850
Bolt 13/16” throw, made of 5 ply laminated steel with a hardened
roller pin in a case hardened center ply for maximum security.
Lock accepts standard 1-5/32” Mortise Key or Thumbturn Cylinders
with AR MS-Type cam
DH-1820-S
“Short Throw” Deadlock
Cylinder backset available: 1-1/8”
DH-1820-S
Bolt 13/16” throw, made of 5 ply laminated steel with a hardened
roller pin in a case hardened center ply for maximum security. DH-1820-H
Lock accepts standard 1-5/32” Mortise Key or Thumbturn Cylinders
with AR MS-Type cam
DL-4510
Deadlatch Lock
Cylinder backset available: 31/32” and 1-1/8”
Field reversible for opposite hand
Key controlled dogging
Latchbolt 1/2” throw, Chrome plate with Delrin insert for smooth,
quiet latching
Lock accepts standard 1-5/32” Mortise Key or Thumbturn Cylinders
with AR MS-Type cam
DL-4510
SS - 4510 Strike included, US 26D Faceplates
1” x 6-7/8”
CG-4043 Flat
Cylinder Guard Radius
Hardened steel security ring Radius Weatherstripped
Free-spinning beveled collar Left Hand Beveled
For standard face 5 pin Mortise key cylinder Right Hand Beveled
For use on Aluminum Doors
Furnished with retaining clip and two spacers
Finishes Available:
AL - Baked Satin Aluminum Paint
BK - Baked Black Paint
DU - Anodized Bronze
8 West: 800-544-4422 Fax: 714-666-2215

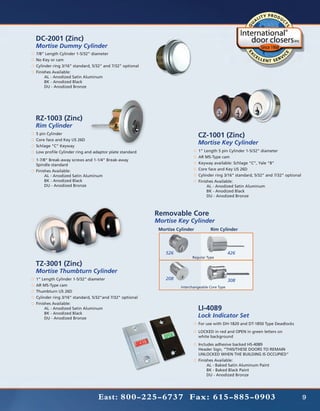

9. DC-2001 (Zinc)
Mortise Dummy Cylinder
7/8” Length Cylinder 1-5/32” diameter
No Key or cam
Cylinder ring 3/16” standard, 5/32” and 7/32” optional
Finishes Available:
AL - Anodized Satin Aluminum
BK - Anodized Black
DU - Anodized Bronze
RZ-1003 (Zinc)
Rim Cylinder
5 pin Cylinder
CZ-1001 (Zinc)
Core face and Key US 26D
Schlage “C” Keyway
Mortise Key Cylinder
Low profile Cylinder ring and adaptor plate standard 1” Length 5 pin Cylinder 1-5/32” diameter
AR MS-Type cam
1-7/8” Break-away screws and 1-1/4” Break-away
Spindle standard Keyway available: Schlage “C”, Yale “8”
Finishes Available: Core face and Key US 26D
AL - Anodized Satin Aluminum Cylinder ring 3/16” standard, 5/32” and 7/32” optional
BK - Anodized Black Finishes Available:
DU - Anodized Bronze AL - Anodized Satin Aluminum
BK - Anodized Black
DU - Anodized Bronze
Removable Core
Mortise Key Cylinder
Mortise Cylinder Rim Cylinder
526 426
Regular Type
TZ-3001 (Zinc)
Mortise Thumbturn Cylinder
1” Length Cylinder 1-5/32” diameter 208 308
AR MS-Type cam Interchangeable Core Type
Thumbturn US 26D
Cylinder ring 3/16” standard, 5/32”and 7/32” optional
Finishes Available:
AL - Anodized Satin Aluminum LI-4089
BK - Anodized Black
DU - Anodized Bronze
Lock Indicator Set
For use with DH-1820 and DT-1850 Type Deadlocks
LOCKED in red and OPEN in green letters on
white background
Includes adhesive backed HS-4089
Header Sign, “THIS/THESE DOORS TO REMAIN
UNLOCKED WHEN THE BUILDING IS OCCUPIED”
Finishes Available:
AL - Baked Satin Aluminum Paint
BK - Baked Black Paint
DU - Anodized Bronze
East: 800-225-6737 Fax: 615-885-0903 9

10. www.intldoorclosers.com
PH-4520
Paddle Handle
For use with DL-4510 type Latch Lock
“Push” or “Pull” Paddle Handle
Field reversible for opposite hand with
PUSH and PULL Plates included
Cam Plug, field reversible, included
Extruded Aluminum Handle
Finishes Available:
AL - Handle anodized Satin Aluminum
Housing baked Satin Aluminum paint
DU - Handle anodized Storefront Bronze
Housing baked Storefront Bronze paint
HL-4560
Lever Handle
For use with DL-4510 type Latch Lock
Cam Plug, field reversible, included
Finishes Available:
AL - Baked Satin Aluminum Paint
BK - Baked Black Paint
DU - Baked Storefront Bronze Paint
CP-4560
Cam Plug
For use with HL-4560 Lever Handle
and PH-4520 Paddle Handle
10 West: 800-544-4422 Fax: 714-666-2215

11. PH-4000

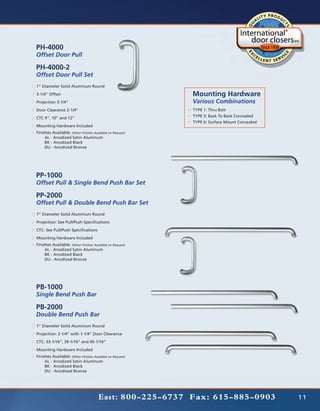

Offset Door Pull
PH-4000-2
Offset Door Pull Set
1” Diameter Solid Aluminum Round
3-1/4” Offset Mounting Hardware
Projection 3-1/4” Various Combinations
Door Clearance 2-1/4” TYPE 1: Thru Bolt
CTC 9”, 10” and 12” TYPE 5: Back To Back Concealed
TYPE 6: Surface Mount Concealed
Mounting Hardware Included
Finishes Available: (Other Finishes Available on Request)
AL - Anodized Satin Aluminum
BK - Anodized Black
DU - Anodized Bronze
PP-1000
Offset Pull & Single Bend Push Bar Set
PP-2000
Offset Pull & Double Bend Push Bar Set
1” Diameter Solid Aluminum Round
Projection: See Pull/Push Specifications
CTC: See Pull/Push Specifications
Mounting Hardware Included
Finishes Available: (Other Finishes Available on Request)
AL - Anodized Satin Aluminum
BK - Anodized Black
DU - Anodized Bronze
PB-1000
Single Bend Push Bar
PB-2000
Double Bend Push Bar
1” Diameter Solid Aluminum Round
Projection: 2-1/4” with 1-1/4” Door Clearance
CTC: 33-1/16”, 39-1/16” and 45-1/16”
Mounting Hardware Included
Finishes Available: (Other Finishes Available on Request)
AL - Anodized Satin Aluminum
BK - Anodized Black
DU - Anodized Bronze
East: 800-225-6737 Fax: 615-885-0903 11

12. www.intldoorclosers.com

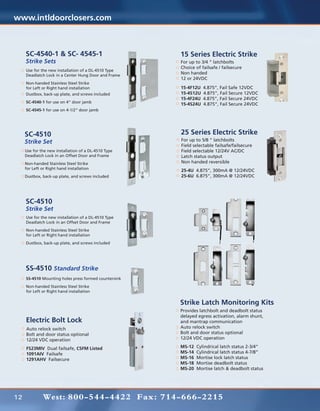

SC-4540-1 & SC- 4545-1 15 Series Electric Strike
Strike Sets For up to 3/4 “ latchbolts
Choice of failsafe / failsecure
Use for the new installation of a DL-4510 Type
Deadlatch Lock in a Center Hung Door and Frame
Non handed
12 or 24VDC
Non-handed Stainless Steel Strike
for Left or Right hand installation 15-4F12U 4.875”, Fail Safe 12VDC
Dustbox, back-up plate, and screws included 15-4S12U 4.875”, Fail Secure 12VDC
15-4F24U 4.875”, Fail Secure 24VDC
SC-4540-1 for use on 4” door jamb
15-4S24U 4.875”, Fail Secure 24VDC
SC-4545-1 for use on 4-1/2” door jamb
SC-4510 25 Series Electric Strike
Strike Set For up to 5/8 “ latchbolts
Field selectable failsafe/failsecure
Use for the new installation of a DL-4510 Type Field selectable 12/24V AC/DC
Deadlatch Lock in an Offset Door and Frame Latch status output
Non-handed Stainless Steel Strike Non handed reversible
for Left or Right hand installation
25-4U 4.875”, 300mA @ 12/24VDC
Dustbox, back-up plate, and screws included 25-6U 6.875”, 300mA @ 12/24VDC
SC-4510
Strike Set
Use for the new installation of a DL-4510 Type
Deadlatch Lock in an Offset Door and Frame
Non-handed Stainless Steel Strike
for Left or Right hand installation
Dustbox, back-up plate, and screws included
SS-4510 Standard Strike
SS-4510 Mounting holes press formed countersink
Non-handed Stainless Steel Strike
for Left or Right hand installation
Strike Latch Monitoring Kits
Provides latchbolt and deadbolt status
delayed egress activation, alarm shunt,
Electric Bolt Lock and mantrap communication
Auto relock switch Auto relock switch
Bolt and door status optional Bolt and door status optional
12/24 VDC operation 12/24 VDC operation
FS23MIV Dual failsafe, CSFM Listed MS-12 Cylindrical latch status 2-3/4”
1091AIV Failsafe MS-14 Cylindrical latch status 4-7/8”
1291AHV Failsecure MS-16 Mortise lock latch status
MS-18 Mortise deadbolt status
MS-20 Mortise latch & deadbolt status
12 West: 800-544-4422 Fax: 714-666-2215

13. UniFLEX™ 45 Series
Full Featured Electric Strike
For up to ¾” latchbolts
Field reversible failsafe/failsecure
Field selectable 12/24V AC/DC
1/4” horizontal alignment adj.
Latch position status SPDT std.
Keeper closed & deadlocked status SPDT std.
Low profile 1-3/16” deep
45-A Universal Includes:
4 7/8” square corners
4 7/8” radius corners
7 15⁄16” radius corners
55-ABC
45-4SU 4 7/8” 45-4RV 4 7/8”
square corners square corners
stainless steel stainless steel
45-6RVU 6 7/8” 45-7RV 7 15/16”
radius corners radius corners
UniFLEX™
Universal Strike
CM
55-ABC Universal Strike for cylindrical
locks, mortise locks without deadbolts and
mortise exit devices, including:
SDC, Accurate, Arrow, Baldwin, Best, Corbin
Russwin, Dorma, Falcon, Hager, Marks, Sargent,
UniFLEX™ Schlage, Yale
Application Specific Strike CM
Up to ¾” Latchbolt and 1” Deadbolt
Field Reversible, Failsafe/Failsecure
1/8” Horizontal alignment adjustment
Dual Voltage 12/24VDC
Exceeds 1,000,000 cycles
Factory tested 2500 lbs static strength
UL 1034 Burglary-Resistant
Warnock Hersey Tested according to:
UL 10C, 3 Hr Fire Rated
NFPA-252
CAN4-S104 (ULC-S104) 55-A 55-B/C 55-DE 55-F
East: 800-225-6737 Fax: 615-885-0903 13

14. www.intldoorclosers.com
Additional Door Stops are
available, see Master Catalog
9000 Series
Heavy Duty - Surface Mount
For exterior, vestibule and interior single acting doors
All stainless steel components - Prefix N
Hold-open can be disengaged to act as a stop only
Maximum door opening 110°,minimum door thickness 1-3/4”
Available in all BHMA finishes including US32 & US32D
1000SL Slim Line
Heavy Duty - Concealed
For exterior, vestibule or interior single or double acting door
All stainless steel components
Prefix N (Stop Only)
3/4”maximum channel depth
Maximum door opening 110o,minimum door thickness 1-3/4”
DH-6000
Heavy Duty Kick Down Holder
Zinc Alloy Construction
Non-Marking Rubber Shoe
7” Body Height
Comes with Mounting Screws
Finishes Available:
AL - Aluminum
DU - Storefront Bronze
TB-4015 & TB-4016
Threshold Bolt Kit
TB-4015: For doors with cylinder height up to 53-1/2”.
Threaded rod can be cut for cylinder heights lower than 53-1/2”
TB-4016: For doors with cylinder height 34” to 37”. HB-4015-N
Bolt 3/8” hexagon hardened steel Special Header Bolt Set
11/16” bolt throw Standard for 84” Doors with Cylinder
Heights of not less than 33”
Unit complete for attachment to basic
Deadlock to provide two-point security ER-4015-N Extension Rod Kit is
available for 8’-9’ Door Heights
14 West: 800-544-4422 Fax: 714-666-2215

15. HB-4085, HB-4086 & HB-4087
Header Bolt Set
HB-4085: For doors 30-1/2” to 50” from
Centerline of cylinder to top of door
HB-4086: For doors 55-5/8” to 77-1/2” from
Centerline of cylinder to top of door
HB-4087: For doors 67” to 89” from
Centerline of cylinder to top of door HS-4089
Interactive leaf lock when used with basic Header Sign
Long Throw Deadlock in active leaf For use on transoms and door headers
5/8” throw expanding bolt One piece, self-adhesive decal
Minor adjustments can be made after installation
Black letters on aluminum background
Unit complete with Rod Guide and Header Strike
THIS/THESE DOORS TO REMAIN UNLOCKED WHEN THE BUILDING IS OCCUPIED
FB-1200
Flushbolt
15”/16” x 4-1/4” Radius Face
Positive “U” joint actuator with 5/8” throw
FB-1201-K
1/8”, 3/16” and 1/4” offset with 7/8” backset
Flushbolt
15”/16” x 4-1/4” Radius Face
Rod length for 12” Centerline of face installation
Positive “U” joint actuator with 5/8” throw
Square Nylon Tip with beveled corners fits in 1/2” square hole
1/8” offset with 11/16” backset
Finishes Available:
AL - Baked Satin Aluminum Paint Square Nylon Tip with beveled corners fits in 1/2” square hole
BK - Baked Black Paint
DU - Baked Storefront Bronze Paint Finishes Available:
AL - Baked Satin Aluminum Paint
FB-1201: 1/8” offset, without guide BK - Baked Black Paint
FB-1202: 1/8” offset, with guide DU - Baked Storefront Bronze Paint
FB-1203: 1/4” offset, without guide
FB-1204: 1/4” offset, with guide
FB-1205: 3/16” offset, without guide
FB-1206: 3/16” offset, with guide
ER-1200
FB-2200 Flushbolt Extension Rod
Flushbolt 1/4-20 x 12” Threaded rod
15”/16” x 4-1/4” Radius Face Includes coupler
Positive “U” joint actuator with 7/8” throw
1/8”, and 1/4” offset with 7/8” backset
Rod length for 12” Centerline of face installation
Square Nylon Tip with beveled corners fits in 1/2” square hole FG-1200
Finishes Available: Standard Flushbolt Guide
AL - Baked Satin Aluminum Paint
For use with FB-1200 and FB-2200 Flushbolts
BK - Baked Black Paint
DU - Baked Storefront Bronze Paint
FB-2201: 1/8” offset, without guide
FG-1250
FB-2202: 1/8” offset, with guide Extension Hole Flushbolt Guide
FB-2203: 1/4” offset, without guide
FB-2204: 1/4” offset, with guide For use with FB-1200 and FB-2200 Flushbolts
East: 800-225-6737 Fax: 615-885-0903 15

16. www.intldoorclosers.com
Thresholds Saddle Thresholds
IDC413, IDC513 and IDC713
Available in 36” and 48” lengths
Custom sizes and colors available
Finishes Available:
Aluminum mill finish
DKB - Aluminum dark bronze
1/4"
Typical Wall .125
4"
IDC413 / IDC413DKB
1/4"
Typical Wall .125
5"
IDC513 / IDC513DKB
1/4"
Typical Wall .125
7"
IDC713 / IDC713DKB
Saddle Thresholds
IDC424E, IDC425E and IDC427E
Available in 36” and 48” lengths
Custom sizes and colors available
Finishes Available:
Aluminum mill finish
Typical Wall .109 1/2"
DKB - Aluminum dark bronze
4"
IDC424E / IDC424EDKB 1/2"
Typical Wall .109
5"
IDC425E / IDC425EDKB
1/2"
Typical Wall .109
7"
IDC427E / IDC427EDKB
16 West: 800-544-4422 Fax: 714-666-2215

17. 7/
vinyl
1"
Door Sweeps
Door Sweeps & Brush Seals IDC97V
IDC601 - Nylon Brush Seals
Synthetic polymer: Polyamide bristles
Excellent abrasion resistance, flexibilty and memory
Moisture resistant
7/8"
Retains insecticides well
Temperature range -70F to 160F
BHMA Certified to ANSI A156.22 performance tests for Heat, Cold, Air
Leakage and Smoke Control in most common profiles nylon brush
7/8"
Not effective against water penetration
1"
#6 x 3/4” Stainless Steel sheetmetal screws furnished. Screw holes are
slotted for adjustment
vinyl
Available colors: Clear with gray brush, Gold with black brush and Dark
Bronze with black bush IDC601
1"
Stock sizes 36” and 48”, custom sizes available
9/32"
Door Sweeps & Brush Seals
IDC97V - Vinyl Sweep
IDC97V
Products are UL10B and Can4-S104-80M Classified, complies with NFPA 80 and NFPA 252 for 9/16"
application to Steel fire doors rated up to 3 hrs., and wood type fire doors treated up to 1-1/2 hrs.
7/8"
Positive Pressure UL10C Classified, Category “J” Complies with IBC UBC7-2 (1997) NFPA 80 & 252
7/8"
Smoke & Draft Control Gasketing, Category “H” Complies with IBC7-2 (1997) Part 2, UL1784, NFPA 3/4"
105 for use on “S” labeled Positive pressure Steel fire doors up to 3 hours and wood type fire doors vinyl
rated up to 1-1/2 hours
1"
Air Filtration Tested to ASTM E283, Standard Test Method for Determining Rate of Air Leakage
nylon brush
through Exterior windows, Curtain Walls and Doors
IDC673
1"
#6 x 3/4” stainless steel SMS furnished and Screw holes are slotted for adjustment
IDC97V
Available colors: Clear, Gold and dark bronze. Vinyl is standard gray, bronze frame has black vinyl
Stock sizes 36” and 48”, custom sizes available
IDC601
Door Sweeps & Brush Seals
9/32"
IDC673 - Concealed Fastener Nylon Brush Sweeps
7/8"
Synthetic polymer: Polyamide bristles
9/16" Excellent abrasion resistance, flexibilty and memory
Moisture resistant
Retains insecticides well nylon brush
Temperature range -70F to 160F
1"
BHMA Certified to ANSI A156.22 performance tests for Heat, Cold, Air Leakage and Smoke
3/4"
Control in most common profiles
Not effective against water penetration
IDC601
#6 x 3/4” Stainless Steel sheetmetal screws furnished. Screw holes are slotted for adjustment
IDC673 Available colors: Clear with gray brush, Gold with black brush and Dark Bronze with black brush
Stock sizes 36” and 48”, custom sizes available
9/32"
East: 800-225-6737 Fax: 615-885-0903 17
9/16"

18. www.intldoorclosers.com
Offset Pivot Sets
3/4” Offset for use with Aluminum Doors and Frames
Oilite bronze bushing in top frame portion
Case hardened stud in floor/jamb portion (stainless steel
stud in Series 5000 floor/jamb portion)
Case hardened, spring loaded pin in top door portion
(case hardened fixed pin in Series 5000 top door portion)
Full race ball bearing in bottom door portion
1/8” vertical adjustment
For doors up to 125 lbs.
Finishes Available:
AL - Baked Satin Aluminum Paint Series 3000
BK - Baked Black Paint
DU - Baked Storefront Bronze Paint
Series 2000
Series 4000
Series 2000 OP-2700: Flush Door
Offset Pivot Set OP-2700: 1/8” Recessed Door
Series 3000 OP-3001: Left Flush Door
Offset Pivot Set OP-3002: Right Flush Door
OP-3101: Left 1/8” Recessed Door
OP-3102: Right 1/8” Recessed Door
Series 4000 OP-4001: Left Flush Door
Offset Pivot Set OP-4002: Right Flush Door
Series 5000
Series 5000 OP-5001: Left 1/8” Recessed Door
Offset Pivot Set OP-5002: Right 1/8” Recessed Door
Series 6000 OP-6001: Left 7/64” Recessed Door
Offset Pivot Set OP-6002: Right 7/64” Recessed Door
Series 6000
18 West: 800-544-4422 Fax: 714-666-2215

19. OP-7000
Offset Pivot Set (Kawneer Type)
A380 Precision die cast aluminum
Oilite bronze bushing in top frame portion
Full race ball bearing in bottom door portions
Door height adjustable by bottom door portion
Case hardened stud in floor/jamb portion
Includes steel reinforcement plates for the door portions
OP-7001 (Left)
OP-7002 (Right)
OP-7000
1689
Non-Handed Offset Pivot Set
Non-Handed Offset Top and Bottom Pivot Set
For Use With 1-3/4” (44.4 mm) Aluminum Doors
Maximum Door Weight is 125 Pounds (57 Kg)
1689
Bottom Pivot
600-PS
Floor Mount
Floor Mount Bottom Pivot Set for use with 1” deep
Bottom Door Rail
East: 800-225-6737 Fax: 615-885-0903 19

20. www.intldoorclosers.com
Intermediate Pivots
IP-1900
Intermediate Pivot Set
3/4” Offset for use with Aluminum Doors and Frames
Full race ball bearing baked by an oilite bronze bushing
in the door portion
Case hardened pin in jamb portion fully retractable for
ease of installation
Easy vertical adjustment IP-1900
Precision Aluminum die cast
For doors up to 125 lbs.
Finishes Available:
AL - Baked Satin Aluminum Paint
IP-1901 (Left)
BK - Baked Black Paint
IP-1902 (Right)
DU - Baked Storefront Bronze Paint
IP-2200
Intermediate Pivot Set
3/4” Offset for use with Aluminum Doors and Frames
Full race ball bearing baked by an oilite bronze bushing
in the door portion
Case hardened pin in jamb portion fully retractable for
ease of installation
Easy vertical adjustment
Precision Aluminum Extrusion
For doors up to 125 lbs.
IP-2201 (Left)
IP-2202 (Right)
IP-2200
Center Hung Pivots
Series 400
For use with Aluminum Doors and Frames
400-PF 400-PC 400-PD
Top Pivot Frame Portion Dress Plate Frame Portion Top Pivot Door Portion
400-PF mounting holes drilled & tapped For use with 400-PF1 only
400-PF1 mounting holes drilled & countersunk
20 West: 800-544-4422 Fax: 714-666-2215

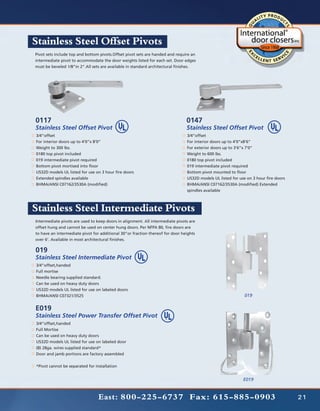

21. Stainless Steel Offset Pivots
Pivot sets include top and bottom pivots.Offset pivot sets are handed and require an
intermediate pivot to accommodate the door weights listed for each set. Door edges
must be beveled 1/8”in 2”.All sets are available in standard architectural finishes.
0117 0147
Stainless Steel Offset Pivot Stainless Steel Offset Pivot
3/4”offset 3/4”offset
For interior doors up to 4’0”x 8’0” For interior doors up to 4’0”x8’6”
Weight to 300 lbs. For exterior doors up to 3’6”x 7’0”
0180 top pivot included Weight to 600 lbs.
019 intermediate pivot required 0180 top pivot included
Bottom pivot mortised into floor 019 intermediate pivot required
US32D models UL listed for use on 3 hour fire doors Bottom pivot mounted to floor
Extended spindles available US32D models UL listed for use on 3 hour fire doors
BHMA/ANSI C07162/3530A (modified) BHMA/ANSI C07162/3530A (modified) Extended
spindles available
Stainless Steel Intermediate Pivots
Intermediate pivots are used to keep doors in alignment. All intermediate pivots are
offset hung and cannot be used on center hung doors. Per NFPA 80, fire doors are
to have an intermediate pivot for additional 30”or fraction thereof for door heights
over 6’. Available in most architectural finishes.
019
Stainless Steel Intermediate Pivot
3/4”offset,handed
Full mortise
Needle bearing supplied standard.
Can be used on heavy duty doors
US32D models UL listed for use on labeled doors
BHMA/ANSI C07321/3525 019
E019
Stainless Steel Power Transfer Offset Pivot
3/4”offset,handed
Full Mortise
Can be used on heavy duty doors
US32D models UL listed for use on labeled door
(8) 28ga. wires supplied standard*
Door and jamb portions are factory assembled
*Pivot cannot be separated for installation
E019
East: 800-225-6737 Fax: 615-885-0903 21

22. www.intldoorclosers.com

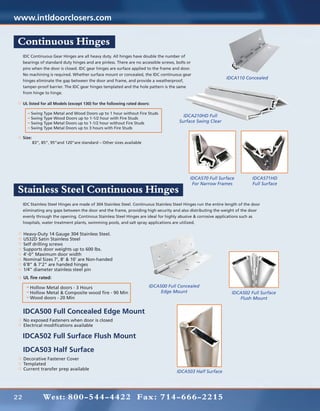

Continuous Hinges
IDC Continuous Gear Hinges are all heavy duty. All hinges have double the number of
bearings of standard duty hinges and are pinless. There are no accessible screws, bolts or
pins when the door is closed. IDC gear hinges are surface applied to the frame and door.
No machining is required. Whether surface mount or concealed, the IDC continuous gear
IDCA110 Concealed
hinges eliminate the gap between the door and frame, and provide a weatherproof,
tamper-proof barrier. The IDC gear hinges templated and the hole pattern is the same
from hinge to hinge.
UL listed for all Models (except 130) for the following rated doors:
Swing Type Metal and Wood Doors up to 1 hour without Fire Studs
IDCA210HD Full
Swing Type Wood Doors up to 1-1/2 hour with Fire Studs
Swing Type Metal Doors up to 1-1/2 hour without Fire Studs Surface Swing Clear
Swing Type Metal Doors up to 3 hours with Fire Studs
Size:
83”, 85”, 95”and 120”are standard – Other sizes available
IDCA570 Full Surface IDCA571HD
For Narrow Frames Full Surface
Stainless Steel Continuous Hinges
IDC Stainless Steel Hinges are made of 304 Stainless Steel. Continuous Stainless Steel Hinges run the entire length of the door
eliminating any gaps between the door and the frame, providing high security and also distributing the weight of the door
evenly through the opening. Continous Stainless Steel Hinges are ideal for highly abusive & corrosive applications such as
hospitals, water treatment plants, swimming pools, and salt spray applications are utilized.
Heavy-Duty 14 Gauge 304 Stainless Steel.
US32D Satin Stainless Steel
Self drilling screws
Supports door weights up to 600 lbs.
4’-0” Maximum door width
Nominal Sizes 7’, 8’ & 10’ are Non-handed
6’8” & 7’2” are handed hinges
1/4” diameter stainless steel pin
UL fire rated:
Hollow Metal doors - 3 Hours IDCA500 Full Concealed
Hollow Metal & Composite wood fire - 90 Min Edge Mount IDCA502 Full Surface
Wood doors - 20 Min Flush Mount
IDCA500 Full Concealed Edge Mount
No exposed Fasteners when door is closed
Electrical modifications available
IDCA502 Full Surface Flush Mount
IDCA503 Half Surface
Decorative Fastener Cover
Templated
Current transfer prep available
IDCA503 Half Surface
22 West: 800-544-4422 Fax: 714-666-2215

23. IDCA504 Surface Mounted
Decorative Fastener Cover
Templated
Current transfer prep available (door leaf only)
IDCA505 Full Concealed Edge Guard
No exposed Fasteners when closed IDCA504 Surface
Adjustable to accommodate variances in door thickness Mounted
Templated
Electrical modifications available
Wrap around guard protects from unslightly gouges and
dents and also protects from further damage. Load of the
door is distributed along the entire length of jamb.
Square Edge Hinge side door only
IDCA506 Surface Mounted
Decorative Fastener Cover IDCA505 Full Concealed
Templated
Edge Guard
Current transfer prep available (door leaf only)
IDCA511 Full Concealed Swing Clear With Edge Guard IDCA506 Half Surface
With Edge Guard
No exposed Fasteners when door is closed
Templated
IDCA515 Full Concealed With Edge Guard
No exposed Fasteners when door is closed
Templated
Electrical modifications available
IDCA515 Full Concealed
With Edge Guard
IDCA511 Full Concealed Swing
Clear With Edge Guard
Stainless Steel Edge Guards
Heavy-Duty 16 Gauge 304 Stainless Steel.
US32D Satin Stainless Steel
No exposed Fasteners when door is closed
Self drilling screws
Nominal sizes 6’8”, 7’, 7’2”, 8’ & 10’
Symmetrically templated, Non Handed
Hardware cut-outs available
Specify when ordering:
IDCA528 Edge Guard IDCA538C IDCA548T Full Edge
Square edge door or Beveled edge door
with 1 Lip Only Full Edge Guard Guard With Astragal
East: 800-225-6737 Fax: 615-885-0903 23

24. www.intldoorclosers.com
Butt Hinges
IDCAHP Series
5 Knuckle 2 Bearing
IDCAHA Series
5 Knuckle 2 Bearing
IDCAH SPR Series
Spring Hinge IDCAHP 4545 BB - NRP IDCAHP 4545 PB - NRP
Size:
4.0”x4.0”
4.5”x4.0”
4.5”x4.5”
5.0”x5.0”
Other specs are available.
Please contact us!
Finishes Available:
US3, US4, US10, US10B, US26,
US26D, US32, US32D, White, etc.
Options:
NRP (Non-Removable Pin)
IDCAH SPB 4545
IDCAHA 4545 PB
Spring Hinge
Power Transfers
Power Transfer Hinge
UL 10B listed for 3 hr fire doors
4 foot cable (standard)
Optional DPS
PTH-4Q 4 wires, 1 Amp
PTH-2-4Q 6 wires, 1 pair - 16 Amp inrush,
2 Amp continuous, 2 pair - 1 Amp
PTH-10Q 10 Wires, 1 Amp
DPS Door status contact, optional
PTH
Electric Power Transfer Device
IDC’s heavy duty Electric Power Transfer Device
provides a concealed and secure means of
transferring electric lock and exit device power
and signal wires from the frame to the door.
Completely concealed when the door is closed
the PTM Electric Power Transfer Device is ideal
for heavy traffic and applications requiring
higher security to inhibit tampering and abuse.
PTD
24 West: 800-544-4422 Fax: 714-666-2215

25. Mechanical Exit Devices
8000 Series Exit Device – Grade 1
Panic and Fire Rated
IDC 8000 Series Exit Devices are heavy duty and designed for heavy
traffic applications. The devices are Underwriters Laboratory (UL, Rim Mount Exit Device
USA and ULC, Canada) listed for PanicExit Hardware or Fire Exit
Hardware, and are certified to ANSI A156.3-2001 Grade 1.
All devices are non-handed design
Slight pressure on device touch bar will retract latch(s) for immediate exit
Mortise Exit Device
Auxiliary guarded latch deadlocks latch bolt automatically when door is closed
High shock-resistant latching mechanical design for protection from vandalism
All inside components are made of high rust-resistant alloy or heavily
electroplated steel
Anti-fading, electroplated or architectual base material finishes on all exposed
surfaces are available
With a dogging mechanism, users have a choice of hex-key or cylinder Surface Vertical Rod Exit Device
operated for positive push-pull action at peak traffic time. This dogging
device will also help by increasing the life of the exit device (panic label only).
Available in Wide or Narrow Stiles, Surface Vertical Rod (SVR), Concealed
Vertical Rod (CVR)
Less Bottom Rod (LBR) and Rim or Mortise locks
Concealed Vertical Rod Exit Device
Escutcheon Trim
Series 8000
Trim has 4 through-bolts to the device chassis directly for better security and
durability. It fits 1-3/4” (44) door standard. For 2” (51mm), 2-1/4” (57mm) thick
door or the shim-mounted exit device, specify the door thickness when ordering.
Clutch freewheeling design. The lever rotates when the door is locked,
preventing excessive force from being applied to the horizontal lever.
Operation Key Locks & Unlocks Lever Always Active KeyRetracts Latchbolt Pull When Dogged
Options Lever (No Cylinder) (Rigid Lever) (Rigid Lever)
Electrical Trim
Functions Classroom Passage Storeroom Dummy
Field reversible fail safe / ≠fail secure
Cylinder Blank Night Latch Dummy Audible tone when energized
Trim Designation
Escutcheon Lever Escutcheon Lever Escutcheon Lever Escutcheon Lever
4 ft cable and connectors
89L01A 89L01B 89L01C 89L01D 600/300 mA @ 12/24VDC
For Rim, Surface / Concealed Vertical Rod, LBR Exit Devices Use
Model Number
& Application 89E01A 89E01B 89E01C 89E01D
For Mortise Lock Exit Devices Use Only
East: 800-225-6737 Fax: 615-885-0903 25

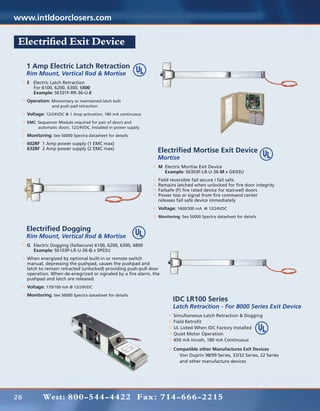

26. www.intldoorclosers.com
Electrified Exit Device
1 Amp Electric Latch Retraction
Rim Mount, Vertical Rod & Mortise
E Electric Latch Retraction
For 6100, 6200, 6300, 6800
Example: S6101F-RR-36-U-E
Operation: Momentary or maintained latch bolt
and push pad retraction
Voltage: 12/24VDC @ 1 Amp activation, 180 mA continuous
EMC: Sequencer Module required for pair of doors and
automatic doors. 12/24VDC. Installed in power supply
Monitoring: See S6000 Spectra datasheet for details
602RF 1 Amp power supply (1 EMC max)
632RF 2 Amp power supply (2 EMC max)
Electrified Mortise Exit Device
Mortise
M Electric Mortise Exit Device
Example: S6303F-LR-U-36-M x GK03U
Field reversible fail secure / fail safe.
Remains latched when unlocked for fire door integrity
Failsafe (F) fire rated device for stairwell doors
Power loss or signal from fire command center
releases fail safe device immediately
Voltage: 1600/300 mA @ 12/24VDC
Monitoring: See S6000 Spectra datasheet for details
Electrified Dogging
Rim Mount, Vertical Rod & Mortise
G Electric Dogging (failsecure) 6100, 6200, 6300, 6800
Example: S6103P-LR-U-36-G x SP03U
When energized by optional built-in or remote switch
manual, depressing the pushpad, causes the pushpad and
latch to remain retracted (unlocked) providing push-pull door
operation. When de-enegrized or signaled by a fire alarm, the
pushpad and latch are released.
Voltage: 170/100 mA @ 12/24VDC
Monitoring: See S6000 Spectra datasheet for details
IDC LR100 Series
Latch Retraction - For 8000 Series Exit Device
Simultaneous Latch Retraction & Dogging
Field Retrofit
UL Listed When IDC Factory Installed
Quiet Motor Operation
450 mA Inrush, 180 mA Continuous
Compatible other Manufactures Exit Devices
Von Duprin 98/99 Series, 33/32 Series, 22 Series
and other manufacture devices
26 West: 800-544-4422 Fax: 714-666-2215

27. Exit Alarm
Rim Mount, Vertical Rod & Mortise
A Exit Alarm, 9V battery powered
B Exit Alarm, 12-24V AC/DC input, 9V battery backup
For 6100, 6200, 6300, 6800
Example: S6801P-LR-U-36-A
100 dB alarm; visual and audible On/Off status:
Armed - green LED blinks every 4 seconds,
Alarm mode - red LED, Bypass - no LED
Remote status output
15 or 60 second arming delay
2 modes: Continuous alarm with manual key reset;
Automatic re-arm 2 minutes after door closes with
any manual key reset before 2 minutes.
Options: , 10 & 20 minutes alarm; 1 or 5 second re-arm delay
6
Remote access control, arm, disarm inputs
REX and latch status outputs
Delayed Egress
DE Wall mount delayed egress controller with keypad
and electrified exit device, 6100, 6200, 6300, 6800
Example: S6101F-R-U-36-DE x GK03U
KDE Keypad controller with redundant key switch capable
of all keypad control features
602RF 1 Amp power supply
User PIN codes may be assigned to 1, 2 or all control functions.
Reset, sustained bypass and momentary bypass (RES).
Audible alarm voice release time, warning or safety message
Visual display countdown, locked/unlocked, egress executed
15 or 30 second exit delay, 1 or 2 second nuisance delay
Monitoring: See S6000 Spectra datasheet for details
Electric Frame Actuator
Hitower Pro Frame Actuator Controlled Fire Exit Device
Features include failsafe operation and unlocks by access
control, power loss or signal from fire command center. Door
stays latched even when unlocked. All wiring is maintained in
the strike jamb. Complies with national building and fire codes
No wiring through door
Specify Voltage: 24VDC, 24VAC, 115VAC
No door transfer hinge
Monitoring: See S6000 Spectra datasheet for details
500 Series Exit Device REX Switches
27 SPDT & DPDT 5 Amp switch kits
Retrofit mechanical exit devices
Request-to-Exit & alarm shunt
Delayed egress activation
Magnetic lock release
Switch kits available for
Von Duprin, Yale, Sargent, Adams Rite, Arrow, Cal Royal, Corbin,
Dor-O-Matic, Jackson, Kawneer, Monarch, Precision
East: 800-225-6737 Fax: 615-885-0903 27

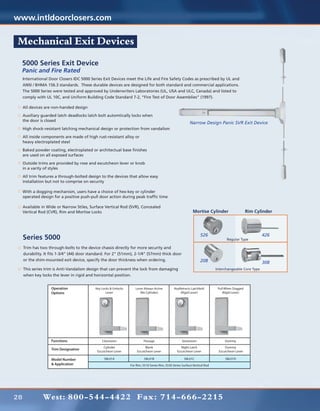

28. www.intldoorclosers.com
Mechanical Exit Devices
5000 Series Exit Device
Panic and Fire Rated
International Door Closers IDC 5000 Series Exit Devices meet the Life and Fire Safety Codes as prescribed by UL and
ANSI / BHMA 156.3 standards. These durable devices are designed for both standard and commercial applications.
The 5000 Series were tested and approved by Underwriters Laboratories (UL, USA and ULC, Canada) and listed to
comply with UL 10C, and Uniform Building Code Standard 7-2, “Fire Test of Door Assemblies” (1997).
All devices are non-handed design
Auxiliary guarded latch deadlocks latch bolt automtically locks when
the door is closed
Narrow Design Panic SVR Exit Device
High shock-resistant latching mechanical design or protection from vandalism
All inside components are made of high rust-resistant alloy or
heavy electroplated steel
Baked powder coating, electroplated or architectual base finishes
are used on all exposed surfaces
Outside trims are provided by rose and escutcheon lever or knob
in a varity of styles
All trim features a through-bolted design to the devices that allow easy
installation but not to comprise on security
With a dogging mechanism, users have a choice of hex-key or cylinder
operated design for a positive push-pull door action during peak traffic time
Available in Wide or Narrow Stiles, Surface Vertical Rod (SVR), Concealed
Vertical Rod (CVR), Rim and Mortise Locks Mortise Cylinder Rim Cylinder
526 426
Series 5000 Regular Type
Trim has two through-bolts to the device chassis directly for more security and
durability. It fits 1-3/4” (44) door standard. For 2” (51mm), 2-1/4” (57mm) thick door
or the shim-mounted exit device, specify the door thickness when ordering. 208 308
This series trim is Anti-Vandalism design that can prevent the lock from damaging Interchangeable Core Type
when key locks the lever in rigid and horizontal position.
Operation Key Locks & Unlocks Lever Always Active KeyRetracts Latchbolt Pull When Dogged
Options Lever (No Cylinder) (Rigid Lever) (Rigid Lever)
Functions Classroom Passage Storeroom Dummy
Cylinder Blank Night Latch Dummy
Trim Designation
Escutcheon Lever Escutcheon Lever Escutcheon Lever Escutcheon Lever
Model Number 58L01A 58L01B 58L01C 58L01D
& Application For Rim, 5510 Series Rim, 5530 Series Surface Vertical Rod
28 West: 800-544-4422 Fax: 714-666-2215

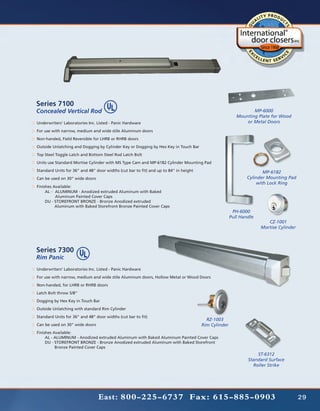

29. Series 7100
Concealed Vertical Rod MP-6000
Mounting Plate for Wood
Underwriters’ Laboratories Inc. Listed - Panic Hardware or Metal Doors
For use with narrow, medium and wide stile Aluminum doors
Non-handed, Field Reversible for LHRB or RHRB doors
Outside Unlatching and Dogging by Cylinder Key or Dogging by Hex Key in Touch Bar
Top Steel Toggle Latch and Bottom Steel Rod Latch Bolt
Units use Standard Mortise Cylinder with MS Type Cam and MP-6182 Cylinder Mounting Pad
Standard Units for 36” and 48” door widths (cut bar to fit) and up to 84” in height MP-6182
Can be used on 30” wide doors Cylinder Mounting Pad
with Lock Ring
Finishes Available:
AL - ALUMINUM - Anodized extruded Aluminum with Baked
Aluminum Painted Cover Caps
DU - STOREFRONT BRONZE - Bronze Anodized extruded
Aluminum with Baked Storefront Bronze Painted Cover Caps
PH-6000
Pull Handle
CZ-1001
Mortise Cylinder
Series 7300
Rim Panic
Underwriters’ Laboratories Inc. Listed - Panic Hardware
For use with narrow, medium and wide stile Aluminum doors, Hollow Metal or Wood Doors
Non-handed, for LHRB or RHRB doors
Latch Bolt throw 5/8”
Dogging by Hex Key in Touch Bar
Outside Unlatching with standard Rim Cylinder
Standard Units for 36” and 48” door widths (cut bar to fit)
RZ-1003
Can be used on 30” wide doors Rim Cylinder
Finishes Available:
AL - ALUMINUM - Anodized extruded Aluminum with Baked Aluminum Painted Cover Caps
DU - STOREFRONT BRONZE - Bronze Anodized extruded Aluminum with Baked Storefront
Bronze Painted Cover Caps
ST-6312
Standard Surface
Roller Strike
East: 800-225-6737 Fax: 615-885-0903 29

30. www.intldoorclosers.com
Mechanical Locksets
Grade 1 Cylindrical Locks
IDC ALS Series locksets are designed for commercial,
industrial and institutional use, where dependable
operation and longevity is required along with high
resistance to vandalism and abuse. Applications R-Lever
include office buildings, government centers,
factories, schools and hospitals and more. Internal
clutch provides vandal resistance by permitting lever
rotation without retracting latch when locked.
Independent heavy duty springs provide effective Standard
lever return and support.
R-Lever, I-Core
Mechanical - ANSI GRADE 1
Cylindrical Locksets
ANSI/BHMA Grade 1
ANSI A250.13 compliant
Internal clutch for vandal resistance Standard, I-Core
2-3/4” backset
4 7/8” strike standard
2 3/4” strike optional
Dull chrome finish standard
Functions
Function Ordering Example:
ALS10LF Passage ALS10 x _ _
ALS20LF Privacy LF - L Type w/Flat Rose
ALS30LF Entrance RF- R Type with/Flate Rose
ALS40LF Classroom LR- L Type with/Round Rose
ALS50LF Store room RR- R Type with/Round Rose
NOTE: Dull chrome finish standard
ALS10
Standard
ALP Series Grade 2
Cylindrical Locksets Available ALS10
R-Lever
30 West: 800-544-4422 Fax: 714-666-2215

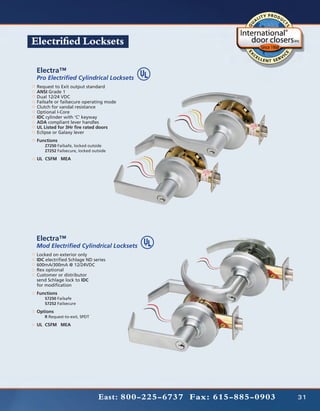

31. Electrified Locksets
Electra™
Pro Electrified Cylindrical Locksets
Request to Exit output standard
ANSI Grade 1
Dual 12/24 VDC
Failsafe or failsecure operating mode
Clutch for vandal resistance
Optional I-Core
IDC cylinder with ‘C’ keyway
ADA compliant lever handles
UL Listed for 3Hr fire rated doors
Eclipse or Galaxy lever
Functions
Z7250 Failsafe, locked outside
Z7252 Failsecure, locked outside
UL CSFM MEA
Electra™
Mod Electrified Cylindrical Locksets
Locked on exterior only
IDC electrified Schlage ND series
600mA/300mA @ 12/24VDC
Rex optional
Customer or distributor
send Schlage lock to IDC
for modification
Functions
S7250 Failsafe
S7252 Failsecure
Options
R Request-to-exit, SPDT
UL CSFM MEA
East: 800-225-6737 Fax: 615-885-0903 31

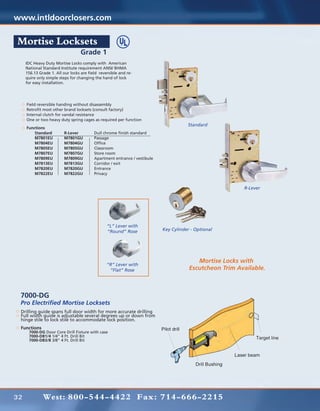

32. www.intldoorclosers.com
Mortise Locksets
Grade 1
IDC Heavy Duty Mortise Locks comply with American
National Standard Institute requirement ANSI/ BHMA
156.13 Grade 1. All our locks are field reversible and re-
quire only simple steps for changing the hand of lock
for easy installation.
Field reversible handing without disassembly
Retrofit most other brand locksets (consult factory)
Internal clutch for vandal resistance
One or two heavy duty spring cages as required per function
Standard
Functions
Standard R-Lever Dull chrome finish standard
M7801EU M7801GU Passage
M7804EU M7804GU Office
M7805EU M7805GU Classroom
M7807EU M7807GU Store room
M7809EU M7809GU Apartment entrance / vestibule
M7813EU M7813GU Corridor / exit
M7820EU M7820GU Entrance
M7822EU M7822GU Privacy
R-Lever
“L” Lever with
“Round” Rose Key Cylinder - Optional
Mortise Locks with
“R” Lever with
“Flat” Rose Escutcheon Trim Available.
7000-DG
Pro Electrified Mortise Locksets
Drilling guide spans full door width for more accurate drilling
Full width guide is adjustable several degrees up or down from
hinge stile to lock stile to accommodate lock position.
Functions
7000-DG Door Core Drill Fixture with case
7000-DB1/4 1/4” 4 Ft. Drill Bit
7000-DB3/8 3/8” 4 Ft. Drill Bit
32 West: 800-544-4422 Fax: 714-666-2215

33. Mortise Locksets
Selectric®
Pro Electrified Mortise Locksets
IDC quality standards
ANSI Grade 1 Heavy Duty
Replaces most lock brands
Field selectable Failsafe or Failsecure
Field selectable function:
locked outside only or both sides
Field selectable 12/24VDC
Field selectable handing
Select factory supplied IDC trim
or Schlage trim provided by others
UL Listed for 3Hr fire rated doors
Functions
Z7830 Failsafe, locked both sides
Z7832 Failsecure, locked both sides
Schlage Best
Z7850 Failsafe, locked outside
Z7852 Failsecure, locked outside
Z7835 Locked outside and/or inside
Outside failsecure, inside failsafe
Options
R Failsafe, locked both sides
D Failsecure, locked both sides Sargent
S Failsafe, locked outside
UL CSFM MEA Dorma Corbin Russwin
Selectric®
Mod Mortise Lock Electrification
Electrification of Major Brands: Marks
Send the mechanical lock to IDC, and IDC will return the
electrified lockset to the customer. To expedite delivery,
IDC stocks major brands for electrification. Customer
may then send mechanical locks to IDC for credit and Arrow Yale
replenishment of IDC stock.
Field selectable 12/24VDC
UL Listed for 3 hr fire rated doors
Functions
7830 Failsafe, locked both sides
Cal Royal
7832 Failsecure, locked both sides
7850 Failsafe, locked outside
7852 Failsecure, locked outside
Options*
Falcon PDQ
R Request-to-exit, SPDT
D Door Status, SPDT
S Latched and Locked, SPDT
L Latchbolt Status, SPDT
*not available with all brands
UL CSFM MEA
East: 800-225-6737 Fax: 615-885-0903 33

34. www.intldoorclosers.com
Field Upgrade & Service Without
Removing From The Frame
1511V & 1512V
1650lbs. Holding Force
ANSI Grade 1
BHMA Certified Holding Force
12/24VDC Sensing Input
350mA@24VDC (single)
700mA@12VDC (single)
1511V (Single)
1512V (Double)
UL10C CSFM MEA UBC
1571V & 1572V Energy Saver
1200lbs. Holding Force
ANSI Grade 1
BHMA Certified Holding Force
12/24VDC Sensing Input
125mA@24VDC (single)
250mA@12VDC (single) Single
Lower Power Consumption 1511V, 1571V & 1581
1571V (Single)
1572V (Double)
UL10C CSFM MEA UBC
1581V & 1582V
650lbs. Holding Force
ANSI Grade 1
BHMA Certified Holding Force
12/24VDC Sensing Input
220mA@24VDC (single)
440mA@12VDC (single)
1581V (Single)
1582V (Double) Double
UL10C CSFM MEA UBC
1512V, 1572V & 1582
E6200
Full Featured Magnetic Lock
1200 lb holding force
Retrofits Securitron and Locknetics 70 magnetic locks
Magnetic bond sensor standard
Door status standard
10ft (3.05m) jacketed, stranded conductor cable
Dual voltage 12/24VDC
Steel housing, US32/630
E-6200
Full Featured Magnetic Lock
34 West: 800-544-4422 Fax: 714-666-2215

35. Interlocking Quick Mount Assembly
Monitoring and Timer Options Examples
D - Door position sensor 1511VD
B - Magnetic bond sensor 1511VB
T - Adjustable 1-30 sec. timer 1511VT
L - Bi-Color LED 1511VL
A - Anti-Tamper sensor 1511VA
Multiple option example 1511VDBT
See modular program pricing when ordering separately for
field upgrades. Different part numbers and pricing may apply
Universal Top Jamb Kits
TJ1V for 1511 and 1571
TJ2V for 1512 and 1572
TJ81V for 1581V Universal Glass Door Kits
TJ82V for 1582V Compatible with all lock models
Field adjustable for .5”, .625” and .75” glass doors
HDB1 For 1511, 1571, 1581
HDB2 For 1512, 1572, 1582
Hi/Shear EMLock®
2000lbs. Holding Force
Static sensor activates lock only when door
is aligned and at rest
Lateral & vertical alignment adj.
Sensing 12/24VDC input
Status sensors optional
1561-ITCM .875”-1.125” top channels
561-HTCM Up to 1.9375” top channels
1561-FTCM Mortise armature prep
UL10C CSFM MEA UBC Hi/Shear EMLock®
East: 800-225-6737 Fax: 615-885-0903 35

36. www.intldoorclosers.com
Mini Exit Check® Delayed Egress
650lbs. Holding Force
15 sec exit delay, 1 sec nuisance delay
Subdued alarm, two tones
UBC, NFPA 101 NFPA 1. UFC, IBC, IFC,
BOCA & Chicago code compliant
Field selectable manual or auto power-up modes
1581SNDV NFPA compliant Exit Switches
1581SBDV BOCA, Chicago compliant Illuminated green “PUSH TO EXIT” sign
Momentary switch button
SPDT contact
Stainless steel finish
422U 1 Gang, 2” button
Exit Check® Delayed Egress Lock 423U 1 Gang, 1-60 sec timer, 2” button
1650lbs. Holding Force 412NU Narrow, 1¾” button
Activated by door movement or sense
bar 15 sec. unlock delay, 1 or 2 sec. nuisance
delay Emergency release input
Mode status outputs
Dual 12/24VDC operation
NFPA, UBC, IBC, IFC, CBC compliant
BOCA & Chicago compliant optional
Digital countdown display
Selectable voice or tone warning
1511SNAKV Single
1511TNAKV Tandem Mechanical Switch Bar
SPDT Contact (2 contacts opt.)
Power loop included
Epoxy kit optional for all glass door
42 & 48” optional
101-DE Exit Check® Push To Exit sign included
Delayed Egress Controller Code compliant sign
15 or 30 second exit delay MSB550V 36” 628 Aluminum
Built-In 3 function keypadControl Inputs MSB550Y 36” 335 Black Anodized
Built-in annunciation Monitoring outputs 500-GL Glass door kit & adhesive
Optional EMLock outputs
Choice of mounting UL CSFM
Trigger modes
Power- up modes
Display modes
101-DE Wall mount controller with keypad control and reset
Specify Lock: 1581DEV, 1571DEV, 1511DEV, 1575DEU, 1576DEU
Emergency Pull Station
Blue housing with easy to read activation instructions Sure Exit® Sense Bar
avoids confusion with red fire alarm stations.
2-SPDT 10 Amp Contacts; 1-SPDT for lock release and Sensor technology
1-SPDT auxiliary contact for remote monitoring, CCTV Tri-failsafe, auto activated emergency release
activation or alarm activation. Two SPDT outputs
12/24VDC operation
492 Pull station emergency door release Special finishes and lengths available
492GL4 Four replacement glass rods Push To Exit sign included
492BB Blue surface mount box
PSB560V 36” Aluminum
PSB560Y 36” Black Anodized
500-GL Glass door kit & adhesive
UL CSFM
36 West: 800-544-4422 Fax: 714-666-2215

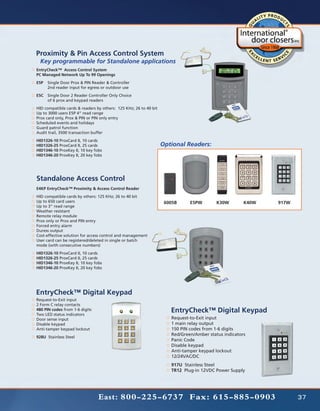

37. Proximity & Pin Access Control System
Key programmable for Standalone applications
EntryCheck™ Access Control System
PC Managed Network Up To 99 Openings
E5P Single Door Prox & PIN Reader & Controller
2nd reader input for egress or outdoor use
E5C Single Door 2 Reader Controller Only Choice
of 6 prox and keypad readers
HID compatible cards & readers by others: 125 KHz; 26 to 40 bit
Up to 3000 users E5P 4” read range
Prox card only, Prox & PIN or PIN only entry
Scheduled events and holidays
Guard patrol function
Audit trail, 3500 transaction buffer
HID1326-10 ProxCard II, 10 cards
HID1326-25 ProxCard II, 25 cards Optional Readers:
HID1346-10 ProxKey II, 10 key fobs
HID1346-20 ProxKey II, 20 key fobs
Standalone Access Control
E4KP EntryCheck™ Proximity & Access Control Reader
HID compatible cards by others: 125 KHz; 26 to 40 bit
Up to 650 card users 6005B E5PW K30W K40W 917W
Up to 3” read range
Weather resistant
Remote relay module
Prox only or Prox and PIN entry
Forced entry alarm
Duress output
Cost-effective solution for access control and management
User card can be registered/deleted in single or batch
mode (with consecutive numbers)
HID1326-10 ProxCard II, 10 cards
HID1326-25 ProxCard II, 25 cards
HID1346-10 ProxKey II, 10 key fobs
HID1346-20 ProxKey II, 20 key fobs
EntryCheck™ Digital Keypad
Request-to-Exit input
2 Form C relay contacts
480 PIN codes from 1-6 digits
Two LED status indicators
EntryCheck™ Digital Keypad
Door sense input Request-to-Exit input
Disable keypad 1 main relay output
Anti-tamper keypad lockout 150 PIN codes from 1-6 digits
Red/Green/Amber status indicators
928U Stainless Steel
Panic Code
Disable keypad
Anti-tamper keypad lockout
12/24VAC/DC
917U Stainless Steel
TR12 Plug-in 12VDC Power Supply
East: 800-225-6737 Fax: 615-885-0903 37

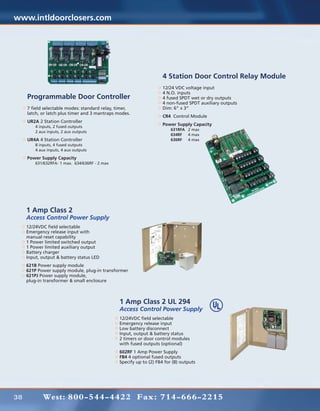

38. www.intldoorclosers.com
4 Station Door Control Relay Module
12/24 VDC voltage input
4 N.O. inputs
Programmable Door Controller 4 fused SPDT wet or dry outputs
4 non-fused SPDT auxiliary outputs
7 field selectable modes: standard relay, timer, Dim: 6” x 3”
latch, or latch plus timer and 3 mantraps modes.
CR4 Control Module
UR2A 2 Station Controller
4 inputs, 2 fused outputs Power Supply Capacity
631RFA 2 max
2 aux inputs, 2 aux outputs
634RF 4 max
UR4A 4 Station Controller 636RF 4 max
8 inputs, 4 fused outputs
4 aux inputs, 4 aux outputs
Power Supply Capacity
631/632RFA- 1 max. 634/636RF - 2 max
1 Amp Class 2
Access Control Power Supply
12/24VDC field selectable
Emergency release input with
manual reset capability
1 Power limited switched output
1 Power limited auxiliary output
Battery charger
Input, output & battery status LED
621B Power supply module
621P Power supply module, plug-in transformer
621PJ Power supply module,
plug-in transformer & small enclosure
1 Amp Class 2 UL 294
Access Control Power Supply
12/24VDC field selectable
Emergency release input
Low battery disconnect
Input, output & battery status
2 timers or door control modules
with fused outputs (optional)
602RF 1 Amp Power Supply
FB4 4 optional fused outputs
Specify up to (2) FB4 for (8) outputs
38 West: 800-544-4422 Fax: 714-666-2215

39. 1.5 Amp Class 2 UL 294
Access Control Power Supply
12/24VDC field selectable
Emergency release input
Low battery disconnect
Input, output & battery status
2 timers or door control modules
with fused outputs (optional)
631RF 1.5 Amp power supply
FB4 4 optional fused outputs
2 Amp Class 2
Access Control Power Supply
12/24VDC field selectable
Low battery disconnect
Input, output & battery status
Emergency release input with
manual reset capability
2 timers or door control modules
with fused outputs (optional)
632RF 2 Amp power supply
FB4 4 optional fused outputs
4 Amp Class 2
Access Control Power Supply
(1) 4A output & (2) 2A outputs
Field selectable 12/24VDC
Emergency release input with field
selectable manual reset
Low battery disconnect
Input, output & battery status
Large cabinet: 16”Wx14”Hx6”D
634RF 4 Amp Power Supply
FB4 4 optional fused outputs
Specify up to (4) FB4 for (16) outputs
6 Amp Class 2
Access Control Power Supply
(1) 6A output & (3) 2A outputs
Field selectable 12/24VDC
Emergency release input with
field selectable manual reset
Low battery disconnect
Input, output & battery status
Large cabinet: 16”Wx14”Hx6”D
636RF 6 Amp Power Supply
FB4 4 optional fused outputs
Specify up to (6) FB4 for (24) outputs
East: 800-225-6737 Fax: 615-885-0903 39

40. Proud of our Past Focused on the Future
OHC Closers Stainless Steel Pivots
Surface Closers Aluminum Geared Hinges
Gate Closer Stainless Steel Pin & Barrel Hinges
Door Hardware Butt Hinges & Power Transfers
Miscellaneous Hardware Mechanical - Electrified Exit Devices &
Strikes Escutcheon Trim
Door Holders, Stops & Flush Bolts Mechanical - Locksets
Thresholds Mechanical - Electrified Mortise Locksets
Door Sweeps Electro-Magnetic Locks
Aluminum Steel Pivots Access Controls
www.intldoorclosers.com
WEST: 4431 E. La Palma, Anaheim, CA 92807 EAST: 1920 Air Lane Drive, Nashville, TN 37210
Tel: (714) 666-0390 (800) 544-4422 Tel: (615) 885-7060 (800) 225-6737
Fax: (714) 666-2215 Fax: (615) 885-0903
Email: west@intldoorclosers.com Email: east@intldoorclosers.com
www.intldoorclosers.com
