Icom Catalogue

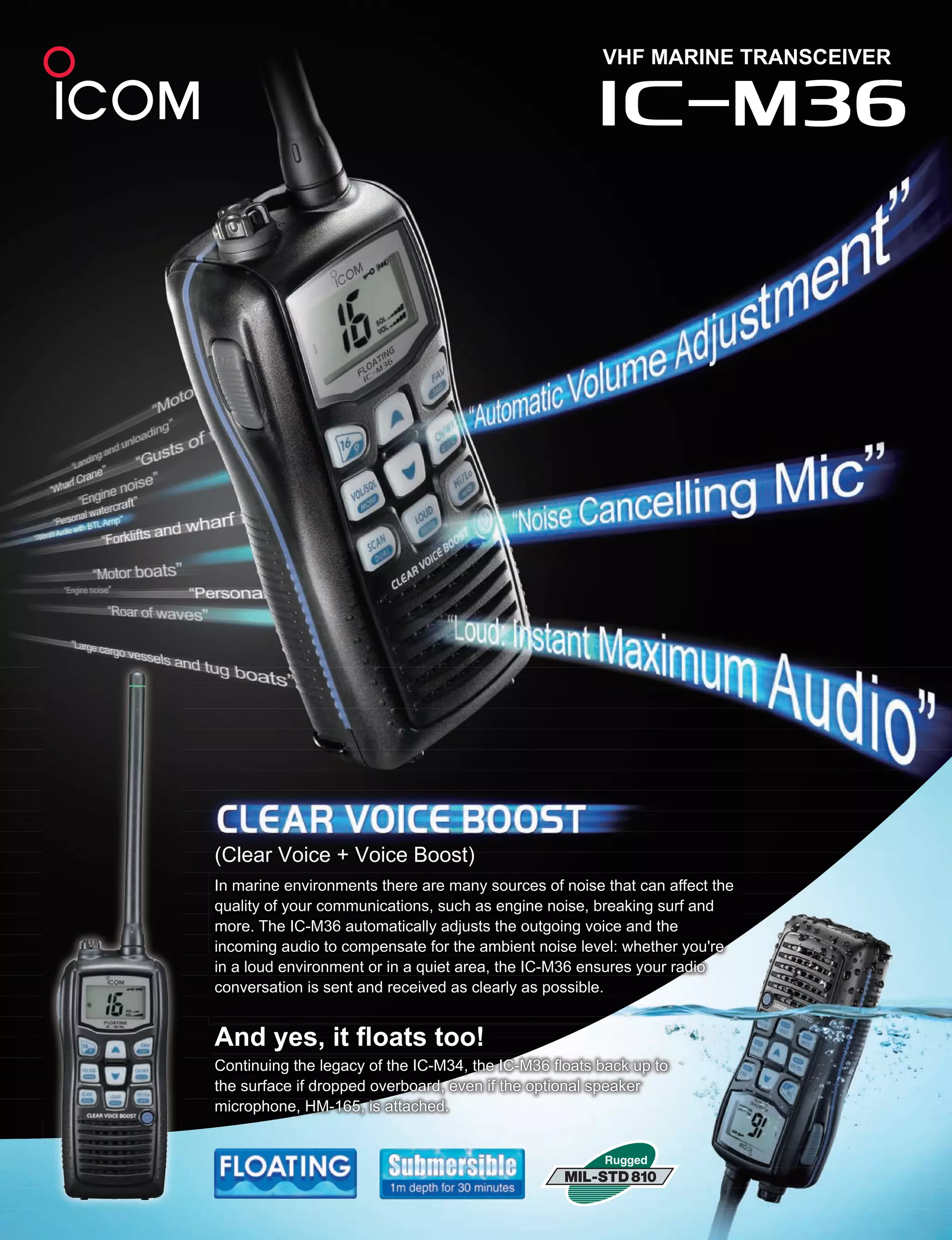

1. VHF MARINE TRANSCEIVER
In marine environments there are many sources of noise that can affect the
quality of your communications, such as engine noise, breaking surf and
more. The IC-M36 automatically adjusts the outgoing voice and the
incoming audio to compensate for the ambient noise level: whether you're
in a loud environment or in a quiet area, the IC-M36 ensures your radio
conversation is sent and received as clearly as possible.
Continuing the legacy of the IC-M34, the IC-M36 floats back up to
the surface if dropped overboard, even if the optional speaker
microphone, HM-165, is attached.
And yes, it floats too!
(Clear Voice + Voice Boost)
3. (NAV & COM channels for U.S.A.)
(COM channels for U.S.A.)
(NAV & COM channels for Europe)
(COM channels for Europe)
VHF AIR BAND TRANSCEIVERS
VOR navigation*
The IC-A24/E has VOR navigation func-
tions. The DVOR mode shows the radial to
or from a VOR station and the CDI mode
shows the course deviation to/from a VOR
station.You can also input your intended ra-
dial to/from the VOR station and show the
course deviation on the display. In the USA
version, the duplex operation allows you to call a COM channel, while
you are using VOR navigation. (* IC-A24/E only)
External DC power jack
An external DC power jack allows for operation
with the wall charger, BC-167 or the cigarette
lighter cable, CP-20. When the battery pack is in-
stalled, simultaneous charging during operation is
also possible. In addition, an optional battery case,
BP-208N, is available.
Water resistant construction
The water resistant construction provides reliable
operation in wet conditions.
* Equivalent to IPX4 of the corresponding international
standard IEC 60529 (2001).
And more...
• 200 memory channels (20 Ch × 10 banks) with
6 character names
• Dedicated 121.5MHz emergency key
• Side tone function allows you to hear your
own voice via an external aviation headset.
• 8.33kHz channel spacing (Depending on version)
• NOAA weather channels (IC-A24/A6 only)
• Tag scanning and memory bank scanning
• ANL (Auto Noise Limiter) for noise reduction
• Low battery alert
The pilot’s favorite
handheld is here!
Easy to use while flying
Simple one-handed operation is the most
essential feature of the IC-A24/A6 series.
The well labeled, large keypad provides user
friendly operation. The large display shows
both letters and numbers and is easy to see,
making for fast frequency recognition. The
display is backlit, and so is the keypad. The
light stays on until you turn it off – a very
handy feature for flying at night.
“Flip-flop” channel recall
The IC-A24/A6 series stores the last 10 chan-
nels used. You can easily recall those chan-
nels by pushing the “flip-flop” recall
buttons on the front panel. It is con-
venient for switching between several chan-
nels, such as NAV and COM channels.
CDI mode display
IC-A24 IC-A6
5. (Full keypad)
(Simple keypad)
VHF AIR BAND TRANSCEIVERS
700mW* loud audio
Because air band radios are usually
operated in high-noise environments, it is
essential for the radio to provide loud and
clear audio. The IC-A14/S series employs a
BTL amplifier that doubles the audio output,
offering loud and clear audio that’ll cut through
cabin or tarmac noise. (* Internal speaker only)
Full keypad type or Simple keypad type
The IC-A14 full keypad type allows you to input
the channel or frequency directly and has an
exclusive button for the 121.5MHz emergency
channel. The IC-A14 receives NAV and WX
channels. The IC-A14S simple keypad type
provides simpler operation with a minimum
of buttons that is suitable for ground crews.
Compact, light weight and
rugged body
The IC-A14/S series is compact (only
120mm tall) and light weight (approx. 350g
including antenna and BP-232N). The water
resistant construction, equivalent to IPX4,
provides reliable operation in wet conditions.
Large capacity Lithium-Ion
battery pack
With the 2000mAh large capacity Lithium-Ion
battery pack, BP-232N, the IC-A14/S series
provides stable output power and 18 hours
long (approx.) operating time*. The BP-261,
battery case takes 6 AA (LR6) alkaline cells
for convenient battery backup.
* Typical operation, Tx:Rx: Stand-by=5:5:90. IC-A14S
200 channels with memory banks
A total of 200* memory channels can be named with
an 8-character channel name for easy recognition. For
fast and simple operation, these channels can be
grouped into 10 memory banks*.
* IC-A14 only. The IC-A14S has 100 memory channels and
memory banks are not available.
BC-179 holder type battery charger
The battery charger, BC-179, securely holds and
charges the radio, even in bumpy conditions.
The cigarette lighter cable, CP-22, can be
used with the BC-179.
Easy to Use, Rugged and Compact
with Icom's “V Speed” Audio!
Easy to Use, Rugged and Compact
with Icom's “V Speed” Audio!
IC-A14
8. The IC-78 is a high performance HF transceiver. Innovative features such
as 99 memory channels, high C/N ratio, direct channel entering, data com-
munication capabilities and more, offer easy operation for anyone. All these
features come in a compact, rugged package that can be conveniently used
in a base station or in a vehicle, as you prefer.
Reliable
straight forward
HF communications
With the speaker facing the operator, audio
sounds can be clearly heard without im-
pediment during operation. It is no longer
necessary to manually increase the volume
to try and capture audio sounds.
When the optional CR-338 HIGH STABILITY
CRYSTAL UNIT is installed, it allows up to
±0.5 ppm of extremely high stable operation.
Durable, powerful construction
Flexible filter selection
High frequency stability
Front mounted loud speaker
An optional IF filter can be installed into the
transceiver, providing 5 passband widths
selectable in SSB, CW or RTTY modes.
VFO mode operation*
For continuous frequency operation, VFO
mode operation* capability is available. It is
convenient when searching for signals,
around the programmed frequencies, such
as short wave broadcasts, etc.
*depending on version
Superior basic performance
A 4-element system is employed for the 1st
receive mixer, providing superior receive
IMD, especially from in-band, nearby inter-
fering signals. A well-designed double-con-
version system to help minimize image and
spurious responses for better signal fidelity,
is also built-in. A newly designed PLL circuit
has been adopted to improve C/N ratio
characteristics. The combination of the 4-
element system mixer and new PLL circuit
allows superior basic performance.
An affordable 99 duplex memory channels
are available for storing individual transmit
and receive frequencies, operating mode,
filter setting, as well as 8-character channel
names. You can enter channel assign-
ments easily from the 10-key pad. In addi-
tion, an extra 1 call memory is available for
storing the most often used, or most impor-
tant frequency. An independent, one-touch
recall switch is available.
The IC-78 is equipped with a large easy-to-
read LCD. A minimum number of switches
and controls allow for superior feature se-
lectability. Keys access functions directly–
there’s no secondary function key. You can
enter your operating frequency*, or mem-
ory channel number directly from the 10-
key pad.
*depending on version
Simple operation
Ample 99 channels with
8-digit channel name capabilityThe IC-78 delivers a powerful 100 W of out-
put power, providing the talk power you
need to reach the most distant locations. Its
one-piece, die-cast aluminum construction
combined with a large heat sink, helps
keep internal temperatures down and en-
sures that operation is stable at high duty
cycles. And its compact size of 240(W)×
95(H)×239(D) mm* makes installation easy.
*97⁄16(W)×33⁄4(H)×913⁄32(D) in.
9. ■ Direct channel selection
A 10-key pad has been adopted on
the front panel. A channel number,
or an operating frequency*, can be
entered from the keypad directly.
Also, memory channel editing is
possible. A large channel selector
and up/down keys are available to
suit your operating style for your
convenience. Total and simple oper-
ation is provided!
*depending on version
■ Cloning capability
Programmed data cloning capability
between transceivers is available,
so that an identical transceiver set-
ting can be made immediately.
■ Built-in 2-tone alarm*
The 2-tone alarm for an emergency
signal transmission is built-in*. Inde-
pendent tone switch is adopted for
quick and simple emergency calls.
*depending on version
■ Data communications
In addition to the current voice and
key operation, FSK (First Shift Keying)
type RTTY mode is available. By
connecting a terminal unit or termi-
nal node controller to the ACC
socket on the rear panel, data ac-
quisition and text-base file transfers
and other data communication can
be made. On RTTY, shift width, tone
frequencies and polarization are
also selectable.
■ Superior features support serious communications ■
■ Noise blanker
To reduce pulse-type noise, a level
adjustable noise blanker is built-in.
Various levels of pulse-type noise,
such as from car ignitions, etc., can
be reduced.
■ Pre-amp. and attenuator
A pre-amplifier and an RF attenua-
tor are adopted for more pleasant
reception. Convenient when weak
signals or extremely strong signals
are received, to present better qual-
ity readability.
■ SQL/RF gain controller
In addition to the squelch control,
an RF gain control is available, and
the controller is combined with the
squelch control. The RF gain ad-
justs minimum response receiver
gain, and ignores signals weaker
than the pre-set level— providing
pleasant stand-by, or scanning. The
SQL/RF GAIN controller action is
selectable from squelch only, RF
gain only or combined, in the SET
mode according to your operating
style and mode.
■ Other features
• Built-in mic. compressor increases
average talk power
• Complete CW features
• Variety of scanning function types
• IF shift interference rejection
• Built-in antenna tuner control circuit
and selectable antenna tuner
• Hand microphone is supplied
• VOX capability, and more...
11. Digital voice recorder (DVR)
Record your callsign, CQ, or other information in 4 transmit play-
back memories with alphanumeric labels. A total of 90 seconds is
available for the four memories. A front panel REC control allows
you to record incoming signals, too! The DVR makes portable con-
testing or mini-expeditions a breeze!
Flexible installation with detachable panel
Smaller than the IC-706MKIIG, the IC-7000 measures only
167(W)×58(H)×180(D) mm*1
. With the detachable front panel*2
many
installation possibilities are available.
*1
69⁄16(W)×29⁄32(H)×73⁄32(D) in
*2
An optional separation cable is required
Remote control Microphone
The supplied HM-151 remote control micro-
phone allows you to control often used
functions of the IC-7000. This includes band
hopping with Icom’s Triple Band Stack reg-
isters.
2-mode band scope
The band scope function lets you watch
conditions around the band. In Center
mode the band scope is centered on the re-
ceiving frequency. In Fixed mode the band
scope sweeps a fixed range.
2 ×× DSP
That’s two times the DSP in the IC-7000 that will leave many base
station rigs in the noise! While it is too early to list all the great fea-
tures, here are a few to keep you talking!
Improved AGC loop performance
With Multiple AGC loops, you will never experience AGC pumping
from a signal filtered out by the DSP! The digital IF filter and manual
notch filter are included in the AGC loop, so you will never encounter
AGC blocking. As with the 756PROIII and IC-7800, the AGC time con-
stants are adjustable for slow, middle, fast for each operating mode.
Digital IF filters
All the filters you want at your fingertips! You will never have to pur-
chase “Optional” filters as the IC-7000 has 41 different filter widths.
You just dial in the width you want and select whether you want a
sharp or soft filter shape for SSB and CW modes. Then to pull-in
the the weak ones, a quick turn of the the concentric twin PBT
knobs, allow you to either narrow the IF
passband, or shift the entire passband to
eliminate the QRM.
2 ×× MNF (Manual Notch Filter)
Pull out the weak signals in crowded band conditions with Icom’s
NEW two-point MNF manual notch filter. Apply 70 dB of rejection to
two signals at once! Notch width is ad-
justable – wide, medium, and narrow – and
an auto-tuning notch filter is available, too.
HM-151
Manual notch filter setting
IF filter setting screen
13. Rugged and reliable for serious
ground crew communications
Setting a new standard for ground based communications,
the IC-A110 /EURO provide durability and reliability in de-
manding operational environments.
● Capable of being installed in any vehicle
IC-A110/EURO are adaptable to vehicles working on a 12 V,
as well as a 24 V power source.
● Front mounted loud speaker
A loud speaker mounted in the front of the transceiver is free of
any obstacles blocking audio reproduction. And 10 W, of pow-
erful output power is available for the external speaker.
● Dial selection
With a simple rotation of the dial, frequently used memory chan-
nels, or desired frequency selection can be made.
● Memory channel name capability
Up to 7-character memory names can be assigned for each
channel. Allows simple and quick channel recognition and se-
lection.
● Side tone function
Operator’s transmitted messages and calls are audio modu-
lated and can be heard by standard airband headsets*, even in
the most demanding operating airport conditions.
*Option OPC-871 is necessary when using standard type headset.
● Convenient on hook scan functions
Hanging the microphone on the mic. hanger activates the auto
scan function. When released, the transceiver will return to the
last used, or priority channel, depending on the selection.
● Usable in extreme cold
The adopted LCD guaranteed usable in temperatures from
–30˚C to +70˚C (–22˚F to +158˚F). Normal performance, as well
as display indications, are guaranteed
even in extremely cold areas.
VHF AIR BAND TRANSCEIVERS
15. 16ch (F15/F25)
Max.4ch(F15S/F25S)
2-Tone, 5-Tone
CTCSS, DTCS
Tough and
reliable
15-16 hrs.operating
time with BP-232N
Optional voice
scrambler
VHF AND UHF TRANSCEIVERS
(UHF transceiver, toggle type)
(VHF transceiver, toggle type)
(UHF transceiver, rotary type)
(VHF transceiver, rotary type)
16. Tough and reliable construction
The IC-F15/S series is built around an alu-
minum die-cast chassis and covered with
tough polycarbonate casing. This radio is
built to last. Its dual slide rail securely locks
the battery to the radio. The battery termi-
nal is covered with a non-corrosive rubber
packing. The belt clip is clamped between
the radio and the battery, making it nearly
impossible to knock loose.
Simple operation
Having only 3 buttons, volume and chan-
nel knobs, the IC-F15/S series does not
require special training to use. Positive
button action for sure operation even
when wearing gloves, allows you to get
down to the business of communicating
without fuss.
Wide frequency coverage
The IC-F15/S series covers a wide fre-
quency range with one version (136–174,
400–470MHz). Wide, middle and narrow
channel spacing* is programmable per
channel.
(* Programmable 25/12.5kHz or 20/12.5kHz)
The IC-F15/S series shows Icom’s
sign. Simple operation for every
tool for your daily business. Its
sistant to shock and vibration.Th
locks the battery pack to the rad
age, Li-Ion battery pack, loud and
and option unit connector comb
performance, the IC-F15/S series
tions.
Built to last, built to work!
17. UT-108: Provides DTMF decoder capabilities.
UT-109 (#01): Up to 32 scrambling codes are available.
UT-110 (#01): Up to 1020 scrambling codes are available.
UT-124: Automatically sends an emergency signal when the trans-
ceiver is left in a horizontal position for a preset time.
MB-130:
Vehicle charger bracket for
use with BC-160.
OPTIONS
STUBBY ANTENNAS
• FA-SC56VS : 150–162MHz
• FA-SC57VS : 160–174MHz
• FA-SC73US : 450–490MHz
CUT ANTENNAS
• FA-SC61VC : 136–174MHz
• FA-SC61UC : 380–520MHz
Cut the antenna element to tune
to a specific center frequency.
ANTENNAS
• FA-SC25V : 136–150MHz
• FA-SC55V : 150–174MHz
• FA-SC25U : 400–430MHz
• FA-SC57U : 430–470MHz
Some options may not be available in some countries. Please ask your dealer for details.
Lithium-Ion battery standard
The IC-F15/S series comes with a high ca-
pacity 2000mAh (typ.) Li-Ion battery pack,
BP-232N, as standard. Li-Ion batteries
have virtually no memory issues and al-
lows you flexible charging.
Optional board
The IC-F15/S series has an expansion
socket for adding an optional board. Voice
scrambler, man down and DTMF decoder
features are available, depending on the
installed board.
Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, CTCSS
and DTCS capabilities as standard to set
up your own talk groups and quiet stand-
by when others are talking.
Multiple 2-Tone, Multiple 5-Tone
Up to 10 2-Tone/8 5-Tone codes can be
decoded on a channel. When a matched
tone is received, the following items are
programmable for each code.
• Beep sound • Answer back • Stun
• LED blink • Scan
Other features
• LED low battery alert
• TOT function and lock out penalty timer
• 2 step power saver
• Normal and priority scan
• 500mW loud and clear audio
• Optional VOX headset
• PC programming capability
• Embedded ESN (Electronic serial number)
• PTT ID function (Transmit only) automati-
cally sends your own ID number when
the PTT button is pushed/released
s new direction in PMR radio de-
yone but a powerful and reliable
very durable construction is re-
he dual rail guide design securely
dio. Wide range frequency cover-
d clear audio, built-in signalings
bined with Icom grade electrical
will easily exceed your expecta-
▲ BP-240▲ BP-230N ▲ BP-232N ▲ BP-232H
BC-121N MULTI-CHARGER + AD-106 CHARGER ADAPTER
+ BC-157 AC ADAPTER
Rapidly charges up to 6 battery packs (Six AD-106s are required).
Charging time: approx. 3 hours when BP-232N is attached.
OPC-656 DC POWER CABLE :For use with the BC-121N. (12–20V DC required).
HM-153LA : Durable earphone-microphone with revolving clip.
HM-158LA : Compact and durable body with plug screw connector.
HM-159LA : Full size durable speaker microphone.
HM-166LA : Light-weight earphone microphone with revolving clip.
SP-13 : EARPHONE Provides clear audio in noisy environments.
HS-94 : Earhook headset with flexible boom microphone.
HS-95 : Behind-the-head headset with flexible boom microphone.
HS-97 : Throat microphone fits around your neck and picks up
speech vibration.
VS-1L : PTT/VOX unit. Required when using these headsets with
the radio.
CP-17L CIGARETTE LIGHTER CABLE,
OPC-515L DC POWER CABLE
For use with the BC-160 or BC-119N.
(12–16V DC required).
MB-93 : Swivel type belt clip.
MB-94 : Alligator type. Same as supplied.
MB-96N : Swivel type belt hanger.
MB-96F : Fixed type belt hanger.
MULTI-CHARGER
▲ BC-121N+AD-106 (6 pcs.) ▲ OPC-656 ▲ BC-157S
BELT CLIPS AND
LEATHER BELT HANGERS
▲ MB-96F▲ MB-93
INTERNAL UNITS
UT-109 VOICE
SCRAMBLER UNIT
UT-108 DTMF
DECODER MB-130
UT-124 MAN
DOWN UNIT
UT-110 VOICE
SCRAMBLER UNIT
HEADSETS and PTT/VOX UNIT
▲ HS-95
▲ HS-94 ▲ HS-97
SPEAKER-MICROPHONES HM-158LA
▲ HM-159LAHM-166LA ▲
▲ HM-153LA
▲ VS-1L
REGULAR CHARGER
▲ BC-171
▲ BC-147S ▲ BC-145S
RAPID CHARGER POWER SUPPLY CABLES
▲ CP-17L ▲ OPC-515L
▲ BC-160
Battery
packs
Type Capacity
Operating
time*
Output power
(VHF/UHF)
BP-230N
Li-Ion,
7.4V
950mAh (min.)
980mAh (typ.)
9 hours 5W/4W
BP-232N
Li-Ion,
7.4V
1900mAh (min.)
2000mAh (typ.)
18 hours 5W/4W
BP-232H
Li-Ion,
7.4V
2250mAh (min.)
2300mAh (typ.)
21 hours 5W/4W
BP-240
AAA (LR03)
batteries × 6
– 1W
* Operating time is approximate time (at 20˚C).Tx: Rx: standby=5:5:90.
Power save on.
BC-171 DESKTOP CHARGER
+ BC-147*1 AC ADAPTER
Charges the BP-232N in 10 hours (ap-
prox.).
*1 BC-145/BC-147SA for 120V AC.
SE for 230V AC. SV for 240V AC.
BC-160 DESKTOP CHARGER
+ BC-145*1 AC ADAPTER
Charges the BP-232N in 3 hours (approx.).
BC-119N + AD-106 + BC-145*1 is also
available. : Charges the BP-232N in 3
hours (approx.).
BATTERY PACKS AND CASE
▲
VEHICLE CHARGER
BRACKET
19. VHF AND UHF TRANSCEIVERS
(VHF Transceiver)
(UHF Transceiver)
1m depth for 30 minutes
Photo includes optional speaker-microphone, HM-138.
20. IPX7 waterproof protection
The gasket sealed waterproof housing pro-
vides superior wa-
terproof protection,
equivalent to IPX7*.
Reliable and depend-
able use in harsh
conditions such as
rain, snow, sudden
change in tempera-
ture, make the IC-
F50/F60 the radio for
all situations.
* According to the international standard IEC 529
(1989). 1m depth for 30 minutes.
Built-in Tone signaling
Use the built-in CTCSS, DTCS, 2-Tone and
5-Tone capability to set up your own talk
groups and quiet stand-by when others are
talking. You can also set up selective calls
to individuals or control a repeater.
Multiple 2-Tone, Multiple 5-Tone
Up to 10 2-Tone codes can be decoded on
a single memory channel. This is perfect for
professionals who require multiple district
paging on one channel. When a matched
tone is received, the following items are
programmable for each code.
• Bell icon • Answer back • Stun
• Beep sound • Auto transmit • Scan
Firefighters, Police, Security,
own unique challenges, but a
munications. Icom’s IC-F50/F
easy to use. Rain or shine, th
Superior Wat
Supports Dem
▼ IC-F50 ▼ IC-F60
21. Li-Ion battery pack
The large capacity 1950mAh (typ.) Lithium-
Ion (Li-Ion) battery pack, BP-227 provides
a practical 10 hours* of operating time. Li-
Ion batteries allow flexible charging and
have almost no memory effect.
* Typical operation Tx:Rx: Stand-by=5:5:90
Up to 7 programmable buttons
The [P0]–[P3], [Red] and [Up], [Down] but-
tons are programmable to meet specific
needs. The [Red] button on the top panel
can be assigned as an emergency trigger.
Alphanumeric display
The 8-character alphanumeric display
shows channel, bank, tone code and scan-
ning channel names on the display. 7 oper-
ational icons on the sub-line show various
status at a glance.
Wide range coverage and large
channel capacity
The IC-F50/F60 covers a wide frequency
range in one version. The large capacity of
128 memory channels with 8 memory
zones allows you to divide and store a vari-
ety of channels from local to wide area net-
work channels. Both wide and narrow
(25/12.5kHz) channel bandwidth is program-
mable to each channel.
Compact body
56(W)×97(H)×36.4(D) mm* compact body
with durable, dependable construction, has
been tested to MIL standard specifications.
* 27⁄32(W)×313⁄16(H)×17⁄16(D) in
Built-in voice scrambler
The IC-F50/F60 has a built-in inversion
type voice scrambler in all versions. When
a more secure system is required, versions
with a rolling type voice scrambler* equiva-
lent to the UT-110 are available.
* Built-in, optional unit not required.
MDC 1200 Compatible
The following selective calling and ANI features
are available with the built-in MDC signaling.
• PTT ID • Radio check
• Caller ID • Selective call
• Emergency, emergency mic monitoring
• Radio stun/revive • 500 Aliases
• Status/message • Call alert
Intrinsically safe version
Intrinsically safe version approved by the
FMRC, is suitable for use in hazardous areas
where flammable gasses or liquids are used.
See specification page for applied classes.
Other features
• Built-in audio compander • 8 DTMF auto-
dial memories • BIIS 1200 mode program-
mable • Normal and priority scans • 2 step
power saver • Optional AA alkaline battery
case, BP-226 for battery back up • Busy, re-
peater lockout functions • Power ON pass-
word, and more...
Oil industry and Public utilities. Each profession has its
all have one thing in common: the need for reliable com-
F60 offers a compact waterproof, MIL STD package, that’s
his radio keeps you in contact in nearly any environment.
OPTIONS
BP-226
AA (LR6)
batteries × 5
BP-227/BP-227FM
Li-Ion 7.2V
1850mAh (min.)
1950mAh (typ.)
BP-226 BATTERY CASE: AA (LR6)×5 alkaline cells.
BP-226 is water-resistant, equivalent to IPX4.
BP-227/FM Li-Ion BATTERY PACK, 7.2V, 1850mAh
(min.), 1950mAh (typ.). Provides 10 hours operating
time* (approx.). Operating temp. range: –20°C to
+60°C; –4°F to +140°F. * Tx: Rx: standby=5:5:90.
BP-227FM is intrinsically safe version.
BC-147 BC-152 BC-119N+AD-100
BC-121N+AD-100
(6 pcs.)
HM-168 : Compact type speaker-microphone. Equivalent to IPX7.
HM-169 : Rugged type speaker-microphone. Equivalent to IP57.
HM-170GP : GPS speaker-microphone for BIIS mode. Equivalent to IP57.
HM-138 : Full sized speaker-microphone. Equivalent to IPX7.
MB-86 : Swivel type belt clip.
MB-98 : Alligator type. Same as supplied.
MB-96N : Swivel type belt hanger.
MB-96F : Fixed type belt hanger.
CP-17L : Cigarette lighter cable for use with BC-152/BC-119N.
OPC-515L : DC power cable for use with BC-152/BC-119N.
OPC-656 : DC power cable for use with the BC-121N.
OPC-515L
ANTENNAS
FA-S24V : 136–150MHz
FA-S59V : 150–174MHz
FA-S27U : 400–470MHz
FA-S56U : 450–520MHz
FA-S74U : 490–520MHz
STUBBY ANTENNAS
FA-S62VS : 150–162MHz
FA-S63VS : 160–174MHz
FA-S57US : 450–490MHz
BELT CLIPS AND LEATHER
BELT HANGERS
terproof Protection
manding Communication
Upper and lower case characters available.
BATTERY CHARGER
BC-145 BC-190
RAPID CHARGER RAPID CHARGER MULTI-CHARGER
BC-145
MB-86
BC-157
OPC-966 :
RS-232C interface cable
for connecting with a PC.
INTERFACE
CABLE
CP-17LMB-96F
BC-121N MULTI-CHARGER + AD-100
CHARGER ADAPTER
+ BC-157 AC ADAPTER
Rapid charges up to 6 battery packs (Six AD-
100s are required) in 2–2.5 hours.
Some options may not be available in some countries. Please ask your dealer for details.
HM-170GPHM-169
SPEAKER-MICROPHONES
HM-168 OPC-656
CIGARETTE LIGHTER CABLE AND
DC POWER CABLES
BC-119N DESKTOP CHARGER
+ AD-100 CHARGER ADAPTER
+ BC-145*1
AC ADAPTER
Rapidly charges the BP-227 in 2–2.5 hrs.
BC-190 DESKTOP CHARGER
+ BC-145*1
AC ADAPTER
Rapidly charges the BP-227. Charge the
radio, even when the radio power is on.
BC-152 DESKTOP CHARGER
+ BC-147*1
AC ADAPTER
Regularly charges the BP-227 in 9–10
hours.
*1
BC-145/BC-147SA for 120V AC. SE for 230V AC. SV for 240V AC.
23. VHF AND UHF TRANSCEIVERS
VHF transceiver UHF transceiver
Limited functions.
Simple operation for
instant communication
The IC-F3003 series is so easy to use there's
no special training required. The few knobs
and buttons are generously sized for easy op-
eration and are designed to provide non-slip,
positive action – even while wearing gloves.
Easy to hear in noisy areas
The built-in bridge-tied load (BTL) amplifier
offers powerful 800mW* audio output from
the large 45mm speaker. The radio delivers
loud and intelligible audio even in noisy envi-
ronments.
* Typical with internal speaker
Longer operating time
A new high efficiency FET of the IC-F3003
series reduces consumption current and
provides 20 hours* of operating time with
the BP-265, 2000mAh battery pack. Even
when used with the BP-264, the radio offers
14 hours* of operating time.
*Tx:Rx:Standby=5:5:90. Power save function ON.
Weather resistant, dust protection,
military rugged
While the radio is a compact unit with a
height of only 111mm, the radio is tested
to dust protection and water resistant
equivalent to IP54 and 11 categories of MIL-
STD-810 environmental test. In short, the
IC-F3003 series is built rugged!
Internal VOX capability for
hands-free operation
The radio has the internal VOX capability for
hands-free operation. Optional compatible
headset with plug adapter cable OPC-2004
can be used with the radio. Also, the VOX
gain and VOX delay time are adjustable.
Selective calling,
quiet stand-by and more
2-Tone and 5-Tone signalings give you
selective calling, quiet stand-by and other
convenient functions with programming. The
radio “stun” function disables a radio over
the air and the “revive” function restores the
stunned radio.
Scan features
The priority scan allows you to monitor one
or two priority channels while scanning
other non-priority channels. The Tx channel
and talk back functions allow you to make
a quick response while scanning.
Other features
• DTMF autodial • CTCSS/DTCS encoder/decoder
• BIIS PTT ID transmission • MDC PTT ID and emergency
• Low battery alert • 2-step power save
• PC programmable • Time out timer
• Talk around function • Lone worker function
• Enhanced emergency • 3-color LED
• Surveillance function
Dust Protection Water Resistance
26. Compact lightweight body
The rounded compact* design fits com-
fortably in your palm and is lightweight**
for carrying around all day. The large size
programmable buttons have ample but-
ton-pitch to allow blind touch operation.
* 53(W)×120(H)×36.9(D) mm
** 300g including BP-232H
IP54 dust-protection and
splash resistance
The IC-F3022 series meets IP54 require-
ments for dust-protection and splash re-
sistance. The aluminum die-cast chassis
is the basis for this rugged construction,
allowing long-life usage in various envi-
ronments.
128 memory channels and
button control memory channel
The IC-F3022 series has 128 memory
channels with 8 zones. Memory channel se-
lection can be made easily with the up/down
buttons laid out below the PTT button.
Most popular signalings built-in
Use the built-in 2-Tone, 5-Tone, CTCSS
and DTCS capabilities as standard to set
up your own talk groups and quiet stand-
by when others are talking.
Multiple 2-Tone, Multiple 5-Tone
Up to ten 2-Tone and eight 5-Tone codes
can be decoded on a channel. When a
matched tone is received, the following
items are programmable for each code.
• Beep sound • Answer back • Scan
• Bell icon • Radio stun/kill
Lithium-Ion battery standard
Supplied 2300mAh (typ.) Li-Ion battery
pack, BP-232H, provides 18 hours* of op-
erating time. Li-Ion batteries have virtually
no memory issues and allows you flexible
charging. * Typical operation; Tx:Rx:Stand-
by=5:5:90, power save on
Only Icom quality can offer this
featured radio. In this compact
tive features such as multiple s
ium-Ion battery and wide freque
rugged handheld easily exceed
ble performance and communic
▲ IC-F4022S▲ IC-F3022T
27. Lone worker function
When the radio is not operated for a pre-
set period, the radio sounds a beep and
requires you to push any button. If the
radio is not operated for a preset time, an
emergency signal automatically transmits
and informs your co-worker that some-
thing may have happened to the individ-
ual worker.
Mode dependent scan
In the mode dependent setting, the scan-
ning setting is dependent on the operating
channel. When you change the operating
channel, the scanning list automatically
changes to the list set for that channel. It
is convenient when you move to a differ-
ent operating area and change an operat-
ing channel, you don’t have to change the
scanning setting.
MDC 1200 compatible
The following MDC features are available
with the built-in MDC signaling.
• PTT ID (Tx/Rx) • Radio check (Rx)
• Emergency* (Tx/Rx) • Stun/revive (Rx)
• 5 alias table (Max.) (* No ACK)
Optional internal units
The IC-F3022 series has a 40-pin expan-
sion socket for adding an optional board.
Voice scrambler, man down and DTMF
decoder features are available, depend-
ing on the installed board.
Other features
• 2 step power saver
• 8 DTMF autodial memories
• Surveillance function temporarily turns
off the LED backlight and beep sound
• Optional man down unit, UT-124R
• Normal and priority scan
• Nuisance delete function temporarily
deletes a channel from the scanning list
• TOT (Time-Out-Timer) function and lock
out penalty timer
• Low battery beep function
simple to use but versatile rich
light weight body, many attrac-
signalings, large capacity Lith-
ency coverage are standard.This
ds your expectations with relia-
cation quality.
▲ BP-230N ▲ BP-232H ▲ BP-240
BATTERY PACKS AND CASE
STUBBY ANTENNAS
• FA-SC56VS: 150–162MHz, 80mm
• FA-SC57VS: 160–174MHz, 80mm
• FA-SC73US: 450–490MHz, 60mm
CUT ANTENNAS
• FA-SC61VC: 136–174MHz
• FA-SC61UC: 380–520MHz
Cut the antenna element to tune to a
specific center frequency.
ANTENNAS
• FA-SC25V: 136–150MHz
• FA-SC55V: 150–174MHz
• FA-SC25U: 400–430MHz
• FA-SC57U: 430–470MHz
OPTIONS Some options may not be available in some countries. Please ask your dealer for details.
BC-171 DESKTOP CHARGER
+ BC-147 AC ADAPTER
Charges the BP-232H in 10 hours (ap-
prox.).
*1 BC-145/BC-147SA for 120V AC.
SE for 230V AC. SV for 240V AC.
BC-145SUK for 230V AC.
BC-160 DESKTOP CHARGER
+ BC-145 AC ADAPTER
Charges the BP-232H in 3 hours (approx.).
BC-119N + AD-106 + BC-145 is also
available. : Charges the BP-232H in 3
hours (approx.).
▲ BC-160
RAPID CHARGER
▲ BC-145
REGULAR CHARGER
▲ BC-147
▲ BC-171
▲ HS-95
▲ HS-97
HEADSETS and PTT/VOX UNIT
HS-94: Earhook headset with flexible boom microphone.
HS-95: Behind-the-head headset with flexible boom microphone.
HS-97: Throat microphone fits around your neck and picks up
speech vibration.
VS-1L: PTT/VOX unit. Required when using these headsets with
the transceiver.
▲
CP-23L CIGARETTE LIGHTER CABLE,
OPC-515L DC POWER CABLE
For use with the BC-119N. (12–16V DC
required).
▲ MB-93
MB-93 : Swivel type belt clip.
MB-94 : Alligator type. Same as supplied.
MB-96N : Swivel type belt hanger.
MB-96F : Fixed type belt hanger.
BELT CLIPS AND LEATHER BELT HANGERS
▲ MB-96F
▲ OPC-515L▲ CP-23L
POWER SUPPLY CABLES
UT-109R: Up to 32 scrambling codes are available. 40-pin type.
UT-110R: Up to 1020 scrambling codes are available. 40-pin type.
UT-108R: Provides DTMF decoder capabilities. 40-pin type.
UT-124R: Automatically sends an emergency signal when the
transceiver is left in a horizontal position for a preset
time. 40-pin type.
INTERNAL UNITS
UT-109R VOICE
SCRAMBLER UNIT
UT-110R VOICE
SCRAMBLER UNIT
UT-108R
DTMF DECODER
UT-124R MAN
DOWN UNIT
HM-153L: Durable earphone-microphone with revolving clip.
HM-158L: Compact and durable body with screw-type connector.
HM-159L: Full size durable speaker microphone.
HM-166L: Light-weight earphone microphone with revolving clip.
▲ HM-159L
SPEAKER-MICROPHONES HM-158L
HM-166L ▲
▲ HM-153L
Battery
packs
Type Capacity Operating time* Output power
BP-230N
Li-Ion,
7.4V
950mAh (min.)
980mAh (typ.)
7.35 hours
5W/4W
(VHF/UHF)
BP-232H
Li-Ion,
7.4V
2250mAh (min.)
2300mAh (typ.)
18 hours
5W/4W
(VHF/UHF)
BP-240
AAA (LR03)
batteries × 6
– 1W
* Operating time is approximate time (at 20˚C).Tx: Rx: standby=5:5:90.
Power save on.
▲ BC-197
MULTI-CHARGER
▲ BC-157S ▲ OPC-656
SP-27 : Acoustic
tube earphone with
clothing clip.
SP-13 : Provides
clear audio in noisy
environments.
EARPHONES
SP-27
▲
BC-197 MULTI-CHARGER + BC-157S AC ADAPTER
Rapidly charges up to 6 battery packs. Charger adapter AD-122 is supplied
with the BC-197.
OPC-656 DC POWER CABLE :For use with the BC-197. (12–20V DC required).
BC-121N + AD-106 + BC-157S is also available.
▲ HS-94
29. Limited functions.
IP67
VHF AND UHF TRANSCEIVERS
VHF transceiver UHF transceiver
IP67 waterproof and dust-tight protection
The IC-F3032S series provides outstanding
protection against water and dust equivalent to
IP67. The IC-F3032S series can withstand 1m
depth of water for 30 minutes and its dust-tight
construction that prevents the ingress of powder
dust, sand, mud and other objects.
Longer operating time
The supplied waterproof Li-Ion battery pack,
BP-232WP (7.4V, 2300mAh (typ.)), provides
17.5 hours* of operating time. The battery has
been designed for reliability in extremely cold
environments.
*Tx:Rx:Standby=5:5:90. Power save function ON.
Selective calling,
quiet stand-by and more
The IC-F3032S series has built-in 2-Tone, 5-Tone,
CTCSS and DTCS signaling capabilities for
group communication or selective calling. When a
matched 2-Tone/5-Tone is received, the following
actions are programmable for each code.
• Answer back calls • Beep sounds • Bell icon
• Radio stun/kill/revive • Auto TX • Scan
MDC 1200 compatible
The following selective calling and ANI features
are programmable with the built-in MDC signaling.
• PTT ID • Emergency (No ACK transmission)
• Radio check (RX only) • Stun/Revive (RX only)
Emergency function
A red button on the top panel can be used
as an emergency button and can be used
to transmit an emergency signal. Man down
(optional UT-124R required) and lone worker
functions can also be used for the emergency
function trigger.
Scan features
Priority scan allows you to monitor one or two
priority channels while scanning other chan-
nels. The mode dependent scan automatically
changes the scanning list following the operat-
ing channel. The Tx channel and talk back func-
tions allow you to make a quick response while
scanning.
Internal option units available
The IC-F3032S series has an internal socket
for a variety of option units including voice
scrambler, DTMF decoder or man down unit.
Other features
• Up to 128 memory channel with 8 zones
• 8-character alphanumeric LCD
• 8 DTMF autodial memories
• Optional HM-168LWP, waterproof speaker-mic
• BIIS PTT ID transmission
• Low battery alert • 2-step power save
• PC programmable • Time out timer
• Talk around function • Surveillance function
Superior Waterproof Protection
Combined with Versatile Functions
