The I400 system has three main components: transmitters, a graphic terminal, and a coupler. The transmitters connect up to four load cells and transmit weight information over a CAN Open field bus. The graphic terminal displays scale channels, runs application software, and is available in rack or stainless steel models. Optional accessories include communication modules, digital I/O modules, and analog outputs. The coupler connects the system to non-CAN Open field buses like Profibus DP or DeviceNet. The I400 is certified for various weighing applications including multiple range and multi-increment scales for non-automatic weighing and catch weighing, check weighing, belt scales, and discontinuous totalizing.

1. I400 System Overview

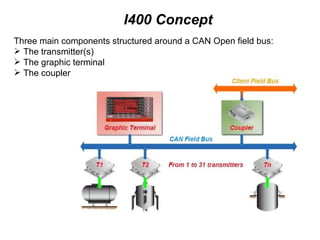

2. I400 Concept Three main components structured around a CAN Open field bus: The transmitter(s) The graphic terminal The coupler

3. I400 Transmitter This component provides 2 functions: Connection box function: direct connection of 1 to 4 load cells Transmitter function: analog/digital conversion and sending weight information through the field bus Available in 2 versions: I400 TB: black plated steel model I400 TB-S: stainless steel model Option: I/0 digital interface card: 6 inputs/6 outputs and one analog output 4/20 mA I400 TB

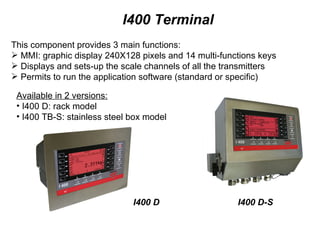

4. I400 Terminal This component provides 3 main functions: MMI: graphic display 240X128 pixels and 14 multi-functions keys Displays and sets-up the scale channels of all the transmitters Permits to run the application software (standard or specific) Available in 2 versions: I400 D: rack model I400 TB-S: stainless steel box model I400 D-S I400 D

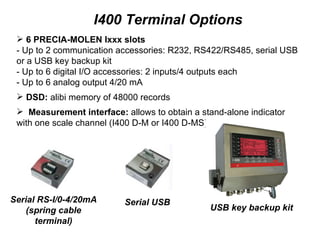

5. I400 Terminal Options 6 PRECIA-MOLEN Ixxx slots - Up to 2 communication accessories: R232, RS422/RS485, serial USB or a USB key backup kit - Up to 6 digital I/O accessories: 2 inputs/4 outputs each - Up to 6 analog output 4/20 mA DSD: alibi memory of 48000 records Measurement interface: allows to obtain a stand-alone indicator with one scale channel (I400 D-M or I400 D-MS) Serial RS-I/0-4/20mA (spring cable terminal) Serial USB USB key backup kit

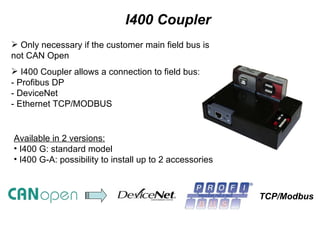

6. I400 Coupler Only necessary if the customer main field bus is not CAN Open I400 Coupler allows a connection to field bus: - Profibus DP - DeviceNet - Ethernet TCP/MODBUS Available in 2 versions: I400 G: standard model I400 G-A: possibility to install up to 2 accessories TCP/Modbus

7. I400 - NAWI certifications Class III Multi-ranges 1 x 6000 and 2 x 6000 Class III Multi-increments 2 x 3000 3 x 3000 (S4 platform - range from 300 kg to 3000 kg) Class IIII Multi-ranges 1 x 1000 and 2 x 1000 Class II Multi-ranges 1 x 20000 and 2 x 20000 (special scales with 4 load cells 2 t to 20 t) All none automatic weighing applications Certifications Metrological screen

8. I400 - AWI certifications MID – Discontinuous totaliser Accuracy class 0,5 We hope class 0,2 for July 09 ABS mode Automatic Bulk Scale - ABS (X and XL ranges) MID – Automatic catch weighing instrument Class XIII(1) in the X category for check-weigher (prepackaged products) Class Y(a) in the Y category for all other catchweighers (weight/price labeller, dosing system,…) Dynamic or static weighing (DCKW or CKW mode) Check Weigher - CKW Certifications Metrological screen Applications
