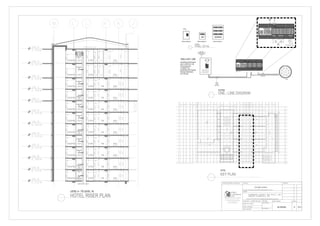

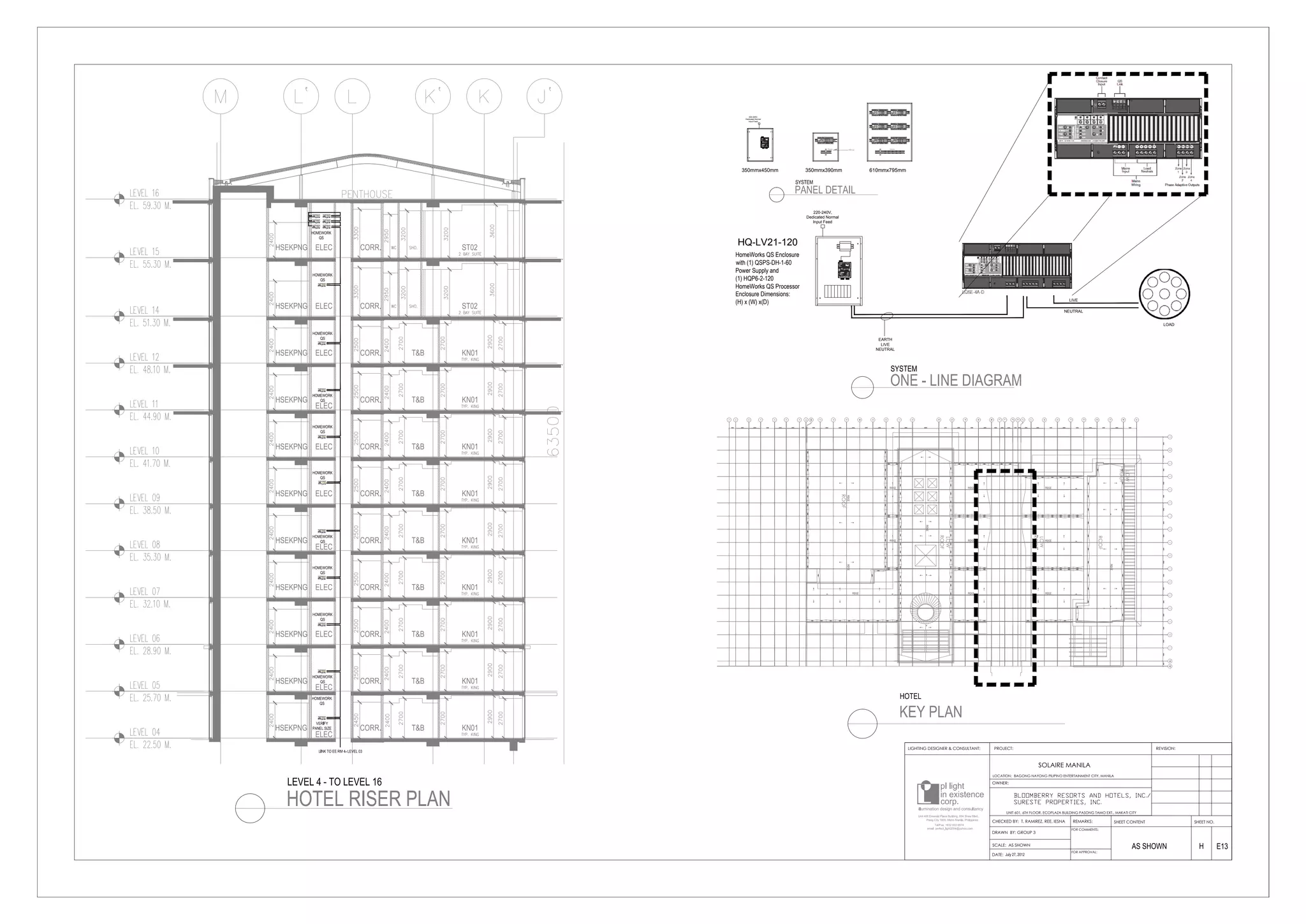

This document provides specifications for a HomeWorks QS Enclosure including a QSPS-DH-1-60 power supply and HQP6-2-120 HomeWorks QS Processor. The enclosure dimensions are 350mmx450mmx610mmx795mm and is powered by a 220-240V dedicated normal input feed. It was drawn by Group 3, checked by T. Ramirez and is for a project located in Bagong Nayong Pilipino Entertainment City, Manila.

1. 220-240V,
Dedicated Normal
Input Feed
HQ-LV21-120
HomeWorks QS Enclosure
with (1) QSPS-DH-1-60
Power Supply and
(1) HQP6-2-120
HomeWorks QS Processor
Enclosure Dimensions:
(H) x (W) x(D)
EARTH
LIVE
NEUTRAL
NEUTRAL
LIVE
LOAD
220-240V,
Dedicated Normal
Input Feed
350mmx450mm
DIN railSpace Space
350mmx390mm 610mmx795mm
CHECKED BY: T. RAMIREZ, REE, IESNA
DRAWN BY: GROUP 3
SCALE: AS SHOWN
DATE:
REMARKS: SHEET CONTENT
LIGHTING DESIGNER & CONSULTANT: PROJECT:
LOCATION:
OWNER:
SOLAIRE MANILA
REVISION:
SHEET NO.
BAGONG NAYONG PILIPINO ENTERTAINMENT CITY, MANILA
UNIT 601, 6TH FLOOR, ECOPLAZA BUILDING PASONG TAMO EXT., MAKATI CITY
FOR COMMENTS:
FOR APPROVAL:
