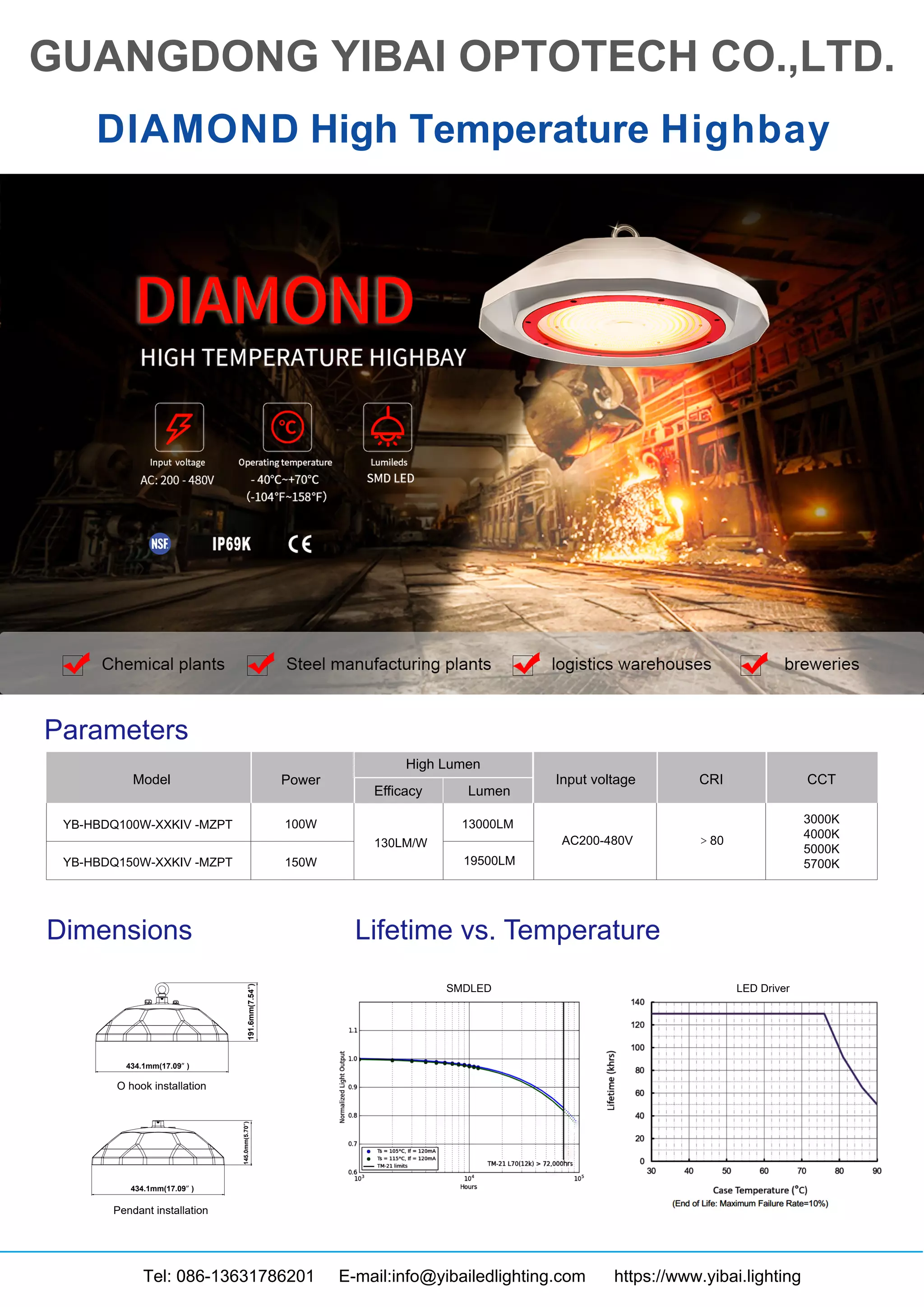

The document provides specifications for two LED high bay models, YB-HBDQ100W-XXKIV and YB-HBDQ150W-XXKIV, highlighting their power, lumen output, and temperature characteristics. It mentions their efficacy at 130lm/W and various color temperatures available. Additionally, it includes company contact information for Guangdong Yibai Optotech Co., Ltd.

1. Parameters
Dimensions Lifetime vs. Temperature
Model
YB-HBDQ100W-XXKIV -MZPT
YB-HBDQ150W-XXKIV -MZPT
Power
High Lumen
100W
AC200-480V
150W
Efficacy Lumen
130LM/W
13000LM
19500LM
Input voltage CRI
＞80
CCT
3000K
4000K
5000K
5700K
434.1mm(17.09� )
434.1mm(17.09� )
191.6mm(7.54�)
145.0mm(5.70�)
O hook installation
Pendant installation
SMDLED LED Driver
DIAMOND High Temperature Highbay
GUANGDONG YIBAI OPTOTECH CO.,LTD.
Tel: 0
086-13631786201 E-mail:info@yibailedlighting.com https://www.yibai.lighting
