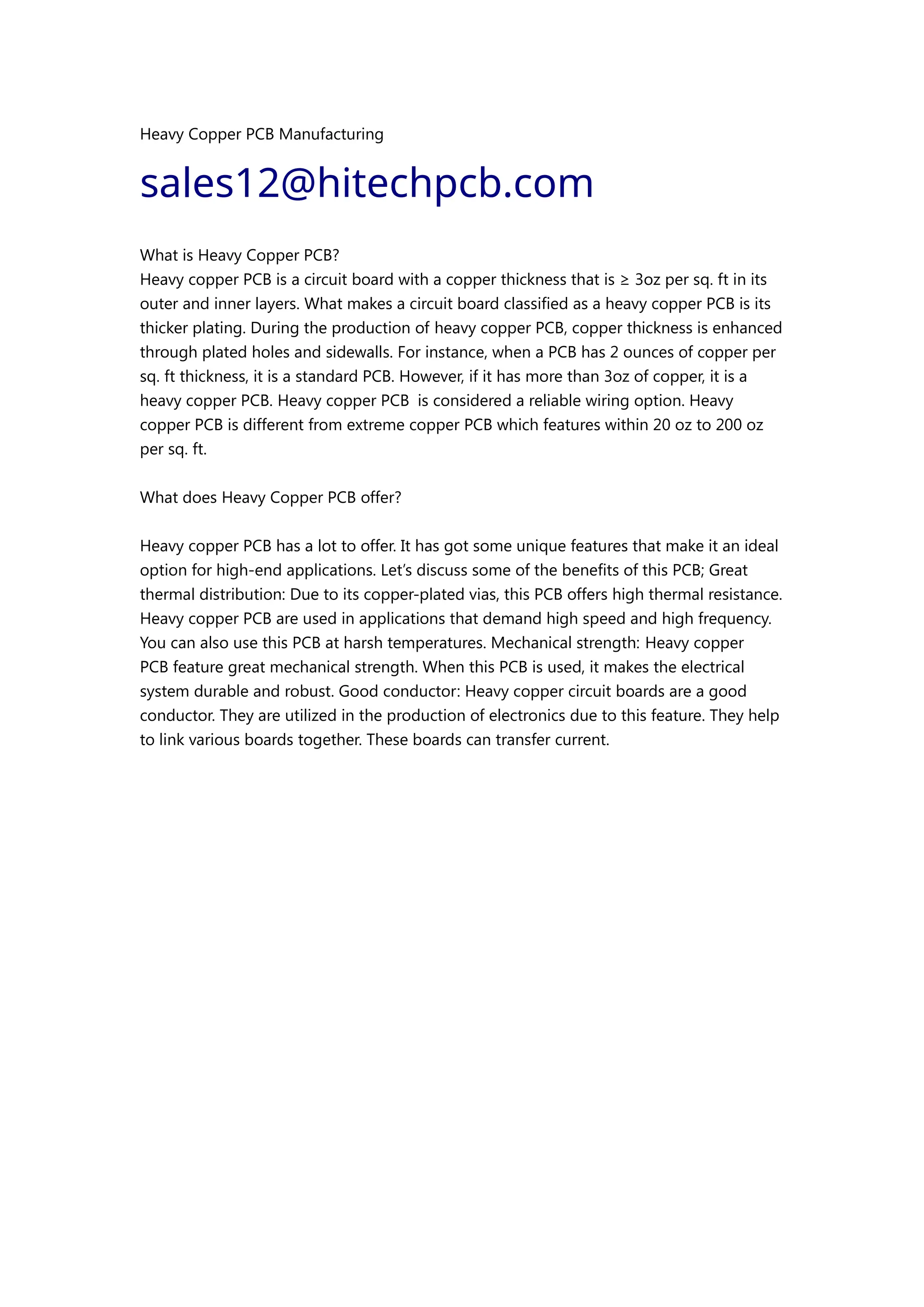

Heavy copper PCB is defined as circuit boards with a copper thickness of 3 ounces or more per square foot, distinguished by improved thermal distribution and mechanical strength. These boards are essential in high-power applications, capable of withstanding significant currents and providing effective heat dissipation, making them suitable for industries such as automotive and aerospace. The manufacturing process involves specialized techniques for copper plating and etching to achieve the necessary thickness and quality for various electronic applications.

1. Heavy Copper PCB Manufacturing
sales12@hitechpcb.com
What is Heavy Copper PCB?
Heavy copper PCB is a circuit board with a copper thickness that is ≥ 3oz per sq. ft in its
outer and inner layers. What makes a circuit board classified as a heavy copper PCB is its
thicker plating. During the production of heavy copper PCB, copper thickness is enhanced
through plated holes and sidewalls. For instance, when a PCB has 2 ounces of copper per
sq. ft thickness, it is a standard PCB. However, if it has more than 3oz of copper, it is a
heavy copper PCB. Heavy copper PCB is considered a reliable wiring option. Heavy
copper PCB is different from extreme copper PCB which features within 20 oz to 200 oz
per sq. ft.
What does Heavy Copper PCB offer?
Heavy copper PCB has a lot to offer. It has got some unique features that make it an ideal
option for high-end applications. Let’s discuss some of the benefits of this PCB; Great
thermal distribution: Due to its copper-plated vias, this PCB offers high thermal resistance.
Heavy copper PCB are used in applications that demand high speed and high frequency.
You can also use this PCB at harsh temperatures. Mechanical strength: Heavy copper
PCB feature great mechanical strength. When this PCB is used, it makes the electrical
system durable and robust. Good conductor: Heavy copper circuit boards are a good
conductor. They are utilized in the production of electronics due to this feature. They help
to link various boards together. These boards can transfer current.

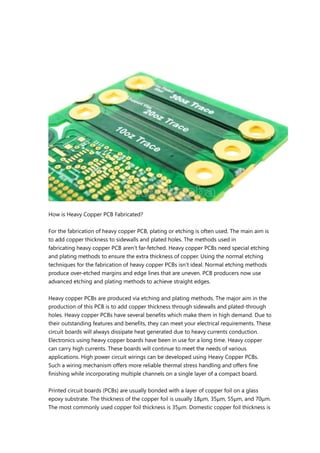

2. How is Heavy Copper PCB Fabricated?
For the fabrication of heavy copper PCB, plating or etching is often used. The main aim is
to add copper thickness to sidewalls and plated holes. The methods used in
fabricating heavy copper PCB aren’t far-fetched. Heavy copper PCBs need special etching
and plating methods to ensure the extra thickness of copper. Using the normal etching
techniques for the fabrication of heavy copper PCBs isn’t ideal. Normal etching methods
produce over-etched margins and edge lines that are uneven. PCB producers now use
advanced etching and plating methods to achieve straight edges.
Heavy copper PCBs are produced via etching and plating methods. The major aim in the
production of this PCB is to add copper thickness through sidewalls and plated-through
holes. Heavy copper PCBs have several benefits which make them in high demand. Due to
their outstanding features and benefits, they can meet your electrical requirements. These
circuit boards will always dissipate heat generated due to heavy currents conduction.
Electronics using heavy copper boards have been in use for a long time. Heavy copper
can carry high currents. These boards will continue to meet the needs of various
applications. High power circuit wirings can be developed using Heavy Copper PCBs.
Such a wiring mechanism offers more reliable thermal stress handling and offers fine
finishing while incorporating multiple channels on a single layer of a compact board.
Printed circuit boards (PCBs) are usually bonded with a layer of copper foil on a glass
epoxy substrate. The thickness of the copper foil is usually 18μm, 35μm, 55μm, and 70μm.
The most commonly used copper foil thickness is 35μm. Domestic copper foil thickness is

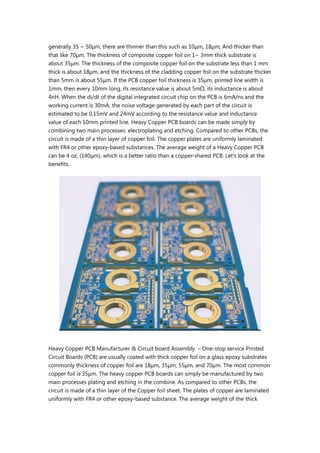

3. generally 35 ~ 50μm, there are thinner than this such as 10μm, 18μm; And thicker than
that like 70μm. The thickness of composite copper foil on 1~ 3mm thick substrate is
about 35μm. The thickness of the composite copper foil on the substrate less than 1 mm
thick is about 18μm, and the thickness of the cladding copper foil on the substrate thicker
than 5mm is about 55μm. If the PCB copper foil thickness is 35μm, printed line width is
1mm, then every 10mm long, its resistance value is about 5mΩ, its inductance is about
4nH. When the di/dt of the digital integrated circuit chip on the PCB is 6mA/ns and the
working current is 30mA, the noise voltage generated by each part of the circuit is
estimated to be 0.15mV and 24mV according to the resistance value and inductance
value of each 10mm printed line. Heavy Copper PCB boards can be made simply by
combining two main processes: electroplating and etching. Compared to other PCBs, the
circuit is made of a thin layer of copper foil. The copper plates are uniformly laminated
with FR4 or other epoxy-based substances. The average weight of a Heavy Copper PCB
can be 4 oz. (140μm), which is a better ratio than a copper-shared PCB. Let's look at the
benefits.
Heavy Copper PCB Manufacturer & Circuit board Assembly – One-stop service Printed
Circuit Boards (PCB) are usually coated with thick copper foil on a glass epoxy substrates
commonly thickness of copper foil are 18μm, 35μm, 55μm, and 70μm. The most common
copper foil is 35μm. The heavy copper PCB boards can simply be manufactured by two
main processes plating and etching in the combine. As compared to other PCBs, the
circuit is made of a thin layer of the Copper foil sheet. The plates of copper are laminated
uniformly with FR4 or other epoxy-based substance. The average weight of the thick

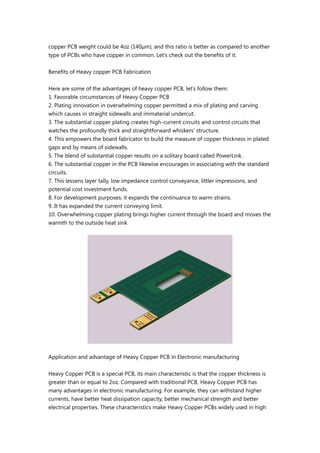

4. copper PCB weight could be 4oz (140μm), and this ratio is better as compared to another
type of PCBs who have copper in common. Let’s check out the benefits of it.
Benefits of Heavy copper PCB Fabrication
Here are some of the advantages of heavy copper PCB, let’s follow them:
1. Favorable circumstances of Heavy Copper PCB
2. Plating innovation in overwhelming copper permitted a mix of plating and carving
which causes in straight sidewalls and immaterial undercut.
3. The substantial copper plating creates high-current circuits and control circuits that
watches the profoundly thick and straightforward whiskers’ structure.
4. This empowers the board fabricator to build the measure of copper thickness in plated
gaps and by means of sidewalls.
5. The blend of substantial copper results on a solitary board called PowerLink.
6. The substantial copper in the PCB likewise encourages in associating with the standard
circuits.
7. This lessens layer tally, low impedance control conveyance, littler impressions, and
potential cost investment funds.
8. For development purposes, it expands the continuance to warm strains.
9. It has expanded the current conveying limit.
10. Overwhelming copper plating brings higher current through the board and moves the
warmth to the outside heat sink
Application and advantage of Heavy Copper PCB in Electronic manufacturing
Heavy Copper PCB is a special PCB, its main characteristic is that the copper thickness is
greater than or equal to 2oz. Compared with traditional PCB, Heavy Copper PCB has
many advantages in electronic manufacturing. For example, they can withstand higher
currents, have better heat dissipation capacity, better mechanical strength and better
electrical properties. These characteristics make Heavy Copper PCBs widely used in high

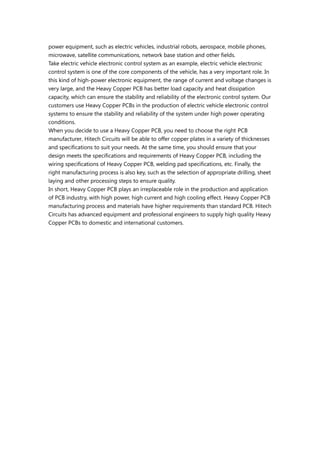

5. power equipment, such as electric vehicles, industrial robots, aerospace, mobile phones,
microwave, satellite communications, network base station and other fields.
Take electric vehicle electronic control system as an example, electric vehicle electronic
control system is one of the core components of the vehicle, has a very important role. In
this kind of high-power electronic equipment, the range of current and voltage changes is
very large, and the Heavy Copper PCB has better load capacity and heat dissipation
capacity, which can ensure the stability and reliability of the electronic control system. Our
customers use Heavy Copper PCBs in the production of electric vehicle electronic control
systems to ensure the stability and reliability of the system under high power operating
conditions.
When you decide to use a Heavy Copper PCB, you need to choose the right PCB
manufacturer, Hitech Circuits will be able to offer copper plates in a variety of thicknesses
and specifications to suit your needs. At the same time, you should ensure that your
design meets the specifications and requirements of Heavy Copper PCB, including the
wiring specifications of Heavy Copper PCB, welding pad specifications, etc. Finally, the
right manufacturing process is also key, such as the selection of appropriate drilling, sheet
laying and other processing steps to ensure quality.
In short, Heavy Copper PCB plays an irreplaceable role in the production and application
of PCB industry, with high power, high current and high cooling effect. Heavy Copper PCB
manufacturing process and materials have higher requirements than standard PCB. Hitech
Circuits has advanced equipment and professional engineers to supply high quality Heavy
Copper PCBs to domestic and international customers.

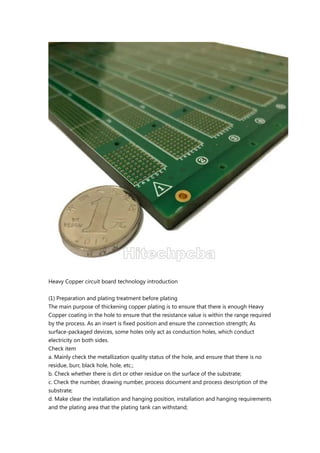

6. Heavy Copper circuit board technology introduction
(1) Preparation and plating treatment before plating
The main purpose of thickening copper plating is to ensure that there is enough Heavy
Copper coating in the hole to ensure that the resistance value is within the range required
by the process. As an insert is fixed position and ensure the connection strength; As
surface-packaged devices, some holes only act as conduction holes, which conduct
electricity on both sides.
Check item
a. Mainly check the metallization quality status of the hole, and ensure that there is no
residue, burr, black hole, hole, etc.;
b. Check whether there is dirt or other residue on the surface of the substrate;
c. Check the number, drawing number, process document and process description of the
substrate;
d. Make clear the installation and hanging position, installation and hanging requirements
and the plating area that the plating tank can withstand;

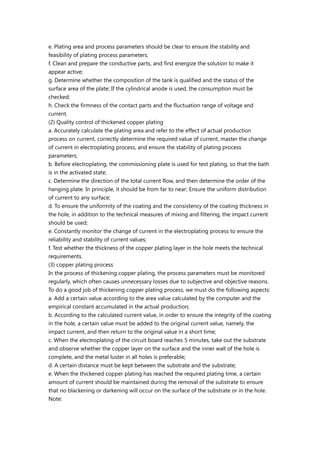

7. e. Plating area and process parameters should be clear to ensure the stability and
feasibility of plating process parameters;
f. Clean and prepare the conductive parts, and first energize the solution to make it
appear active;
g. Determine whether the composition of the tank is qualified and the status of the
surface area of the plate; If the cylindrical anode is used, the consumption must be
checked;
h. Check the firmness of the contact parts and the fluctuation range of voltage and
current.
(2) Quality control of thickened copper plating
a. Accurately calculate the plating area and refer to the effect of actual production
process on current, correctly determine the required value of current, master the change
of current in electroplating process, and ensure the stability of plating process
parameters;
b. Before electroplating, the commissioning plate is used for test plating, so that the bath
is in the activated state;
c. Determine the direction of the total current flow, and then determine the order of the
hanging plate. In principle, it should be from far to near; Ensure the uniform distribution
of current to any surface;
d. To ensure the uniformity of the coating and the consistency of the coating thickness in
the hole, in addition to the technical measures of mixing and filtering, the impact current
should be used;
e. Constantly monitor the change of current in the electroplating process to ensure the
reliability and stability of current values;
f. Test whether the thickness of the copper plating layer in the hole meets the technical
requirements.
(3) copper plating process
In the process of thickening copper plating, the process parameters must be monitored
regularly, which often causes unnecessary losses due to subjective and objective reasons.
To do a good job of thickening copper plating process, we must do the following aspects:
a. Add a certain value according to the area value calculated by the computer and the
empirical constant accumulated in the actual production;
b. According to the calculated current value, in order to ensure the integrity of the coating
in the hole, a certain value must be added to the original current value, namely, the
impact current, and then return to the original value in a short time;
c. When the electroplating of the circuit board reaches 5 minutes, take out the substrate
and observe whether the copper layer on the surface and the inner wall of the hole is
complete, and the metal luster in all holes is preferable;
d. A certain distance must be kept between the substrate and the substrate;
e. When the thickened copper plating has reached the required plating time, a certain
amount of current should be maintained during the removal of the substrate to ensure
that no blackening or darkening will occur on the surface of the substrate or in the hole.
Note:

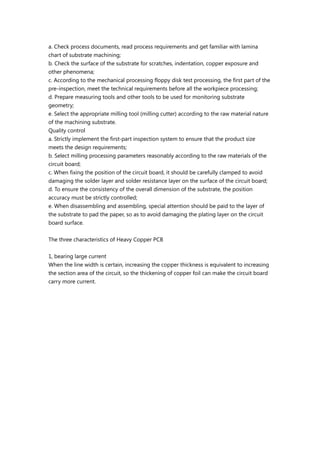

8. a. Check process documents, read process requirements and get familiar with lamina
chart of substrate machining;
b. Check the surface of the substrate for scratches, indentation, copper exposure and
other phenomena;
c. According to the mechanical processing floppy disk test processing, the first part of the
pre-inspection, meet the technical requirements before all the workpiece processing;
d. Prepare measuring tools and other tools to be used for monitoring substrate
geometry;
e. Select the appropriate milling tool (milling cutter) according to the raw material nature
of the machining substrate.
Quality control
a. Strictly implement the first-part inspection system to ensure that the product size
meets the design requirements;
b. Select milling processing parameters reasonably according to the raw materials of the
circuit board;
c. When fixing the position of the circuit board, it should be carefully clamped to avoid
damaging the solder layer and solder resistance layer on the surface of the circuit board;
d. To ensure the consistency of the overall dimension of the substrate, the position
accuracy must be strictly controlled;
e. When disassembling and assembling, special attention should be paid to the layer of
the substrate to pad the paper, so as to avoid damaging the plating layer on the circuit
board surface.
The three characteristics of Heavy Copper PCB
1, bearing large current
When the line width is certain, increasing the copper thickness is equivalent to increasing
the section area of the circuit, so the thickening of copper foil can make the circuit board
carry more current.

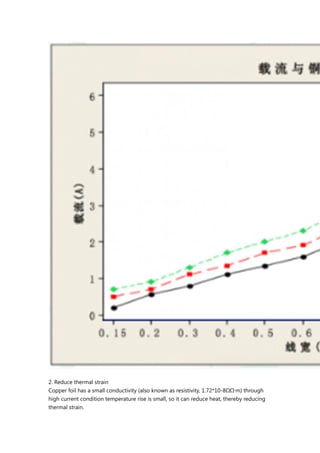

9. 2. Reduce thermal strain
Copper foil has a small conductivity (also known as resistivity, 1.72*10-8ΩΩ·m) through
high current condition temperature rise is small, so it can reduce heat, thereby reducing
thermal strain.

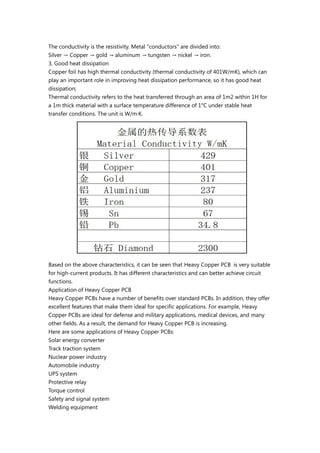

10. The conductivity is the resistivity. Metal "conductors" are divided into:
Silver Copper gold aluminum tungsten nickel iron.
→ → → → → →
3, Good heat dissipation
Copper foil has high thermal conductivity (thermal conductivity of 401W/mK), which can
play an important role in improving heat dissipation performance, so it has good heat
dissipation;
Thermal conductivity refers to the heat transferred through an area of 1m2 within 1H for
a 1m thick material with a surface temperature difference of 1°C under stable heat
transfer conditions. The unit is W/m·K.
Based on the above characteristics, it can be seen that Heavy Copper PCB is very suitable
for high-current products. It has different characteristics and can better achieve circuit
functions.
Application of Heavy Copper PCB
Heavy Copper PCBs have a number of benefits over standard PCBs. In addition, they offer
excellent features that make them ideal for specific applications. For example, Heavy
Copper PCBs are ideal for defense and military applications, medical devices, and many
other fields. As a result, the demand for Heavy Copper PCB is increasing.
Here are some applications of Heavy Copper PCBs:
Solar energy converter
Track traction system
Nuclear power industry
Automobile industry
UPS system
Protective relay
Torque control
Safety and signal system
Welding equipment

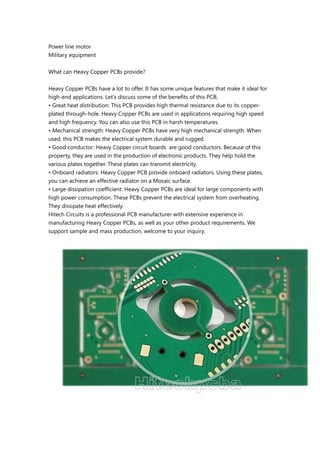

11. Power line motor
Military equipment
What can Heavy Copper PCBs provide?
Heavy Copper PCBs have a lot to offer. It has some unique features that make it ideal for
high-end applications. Let's discuss some of the benefits of this PCB;
• Great heat distribution: This PCB provides high thermal resistance due to its copper-
plated through-hole. Heavy Copper PCBs are used in applications requiring high speed
and high frequency. You can also use this PCB in harsh temperatures.
• Mechanical strength: Heavy Copper PCBs have very high mechanical strength. When
used, this PCB makes the electrical system durable and rugged.
• Good conductor: Heavy Copper circuit boards are good conductors. Because of this
property, they are used in the production of electronic products. They help hold the
various plates together. These plates can transmit electricity.
• Onboard radiators: Heavy Copper PCB provide onboard radiators. Using these plates,
you can achieve an effective radiator on a Mosaic surface.
• Large dissipation coefficient: Heavy Copper PCBs are ideal for large components with
high power consumption. These PCBs prevent the electrical system from overheating.
They dissipate heat effectively.
Hitech Circuits is a professional PCB manufacturer with extensive experience in
manufacturing Heavy Copper PCBs, as well as your other product requirements. We
support sample and mass production, welcome to your inquiry.
