Heating solution using Panstamp and Python

•

1 like•5,140 views

Small presentation about how I redesigned the heating system at home. Presentation's video: http://youtu.be/NA2fmZYHfmw Python Meetup Barcelona - 25/September/2014

Devices & Hardware

Heating solution using Panstamp
and Python
Oriol Rius
oriol@joor.net
@oriolrius
http://oriolrius.cat
September 25th, 2014

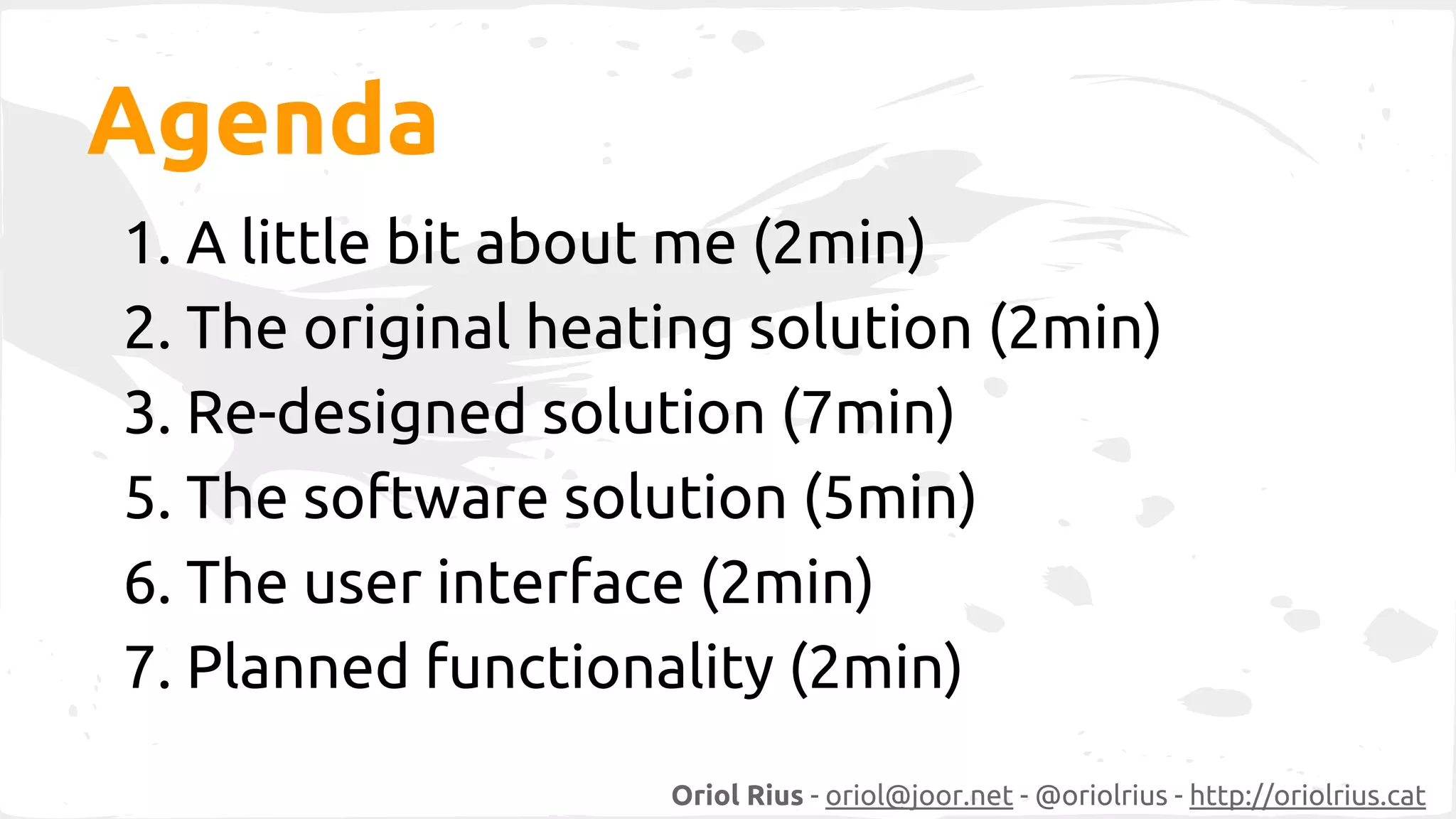

Agenda
1. A little bit about me (2min)
2. The original heating solution (2min)
3. Re-designed solution (7min)
5. The software solution (5min)
6. The user interface (2min)
7. Planned functionality (2min)
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

Who am I? - numbers
● Programmer: 27 years
● Systems: 22y Unix & 20y Linux
● Networking: 20 years (AX.25, X.25 i TCP/IP)
● Worker : 16 years
● Blogger: 14 years
● Entrepreneur: 12 years
● Architect: 10 years
● Software Development Methodologies: 5 years
● Coach: 4 years
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

Who am I? - currently
● IEE - Empowering - Big Data project
www.iee-empowring.eu
● M2M Cloud Factory - telemetry and telecontrol
framework
www.m2mcloudfactory.com
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

Who am I? - the full story
http://oriolrius.cat/CV
http://linkedin.com/in/oriolrius
http://oriolrius.cat/blog
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

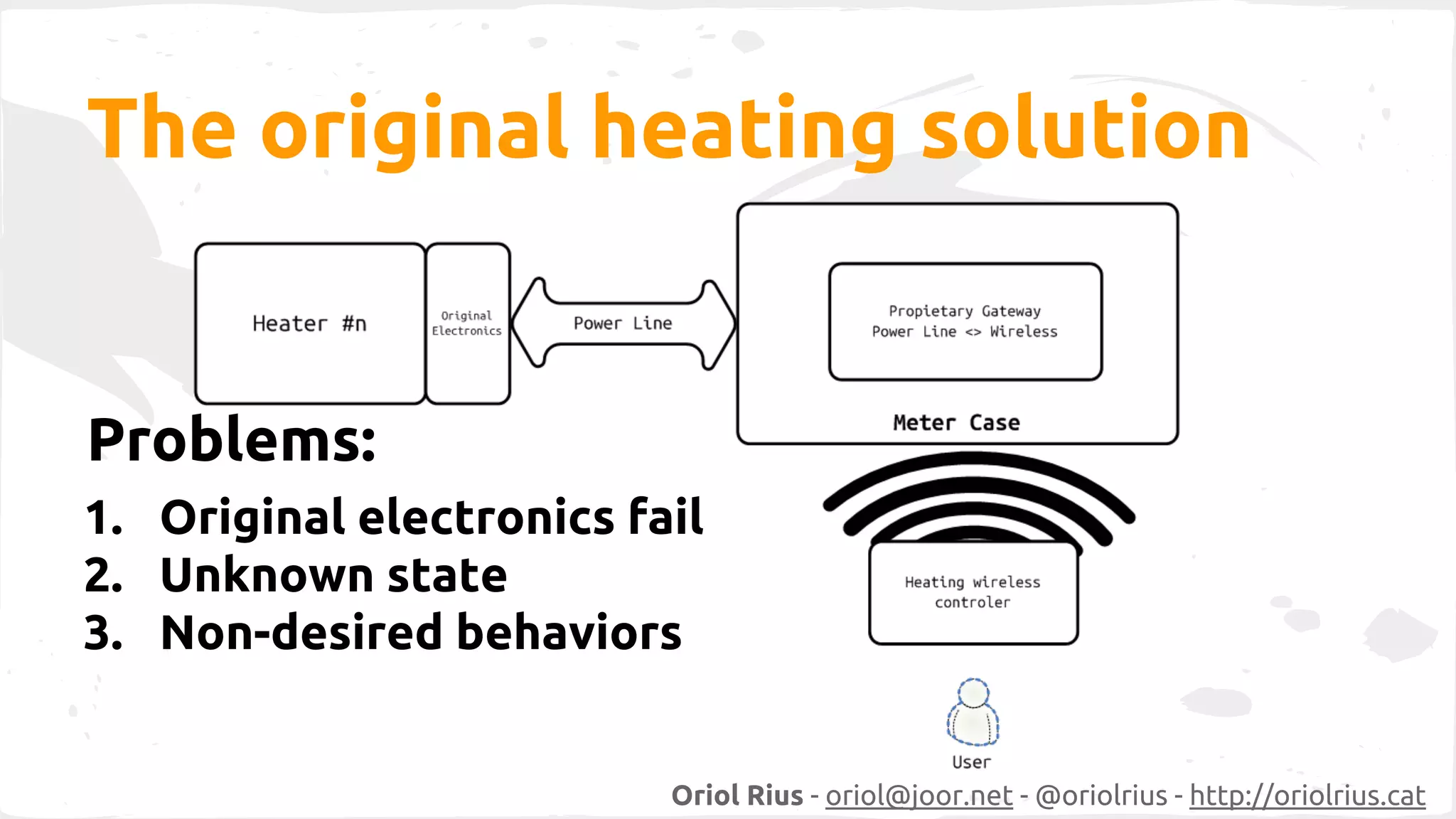

The original heating solution
Problems:
1. Original electronics fail
2. Unknown state
3. Non-desired behaviors
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

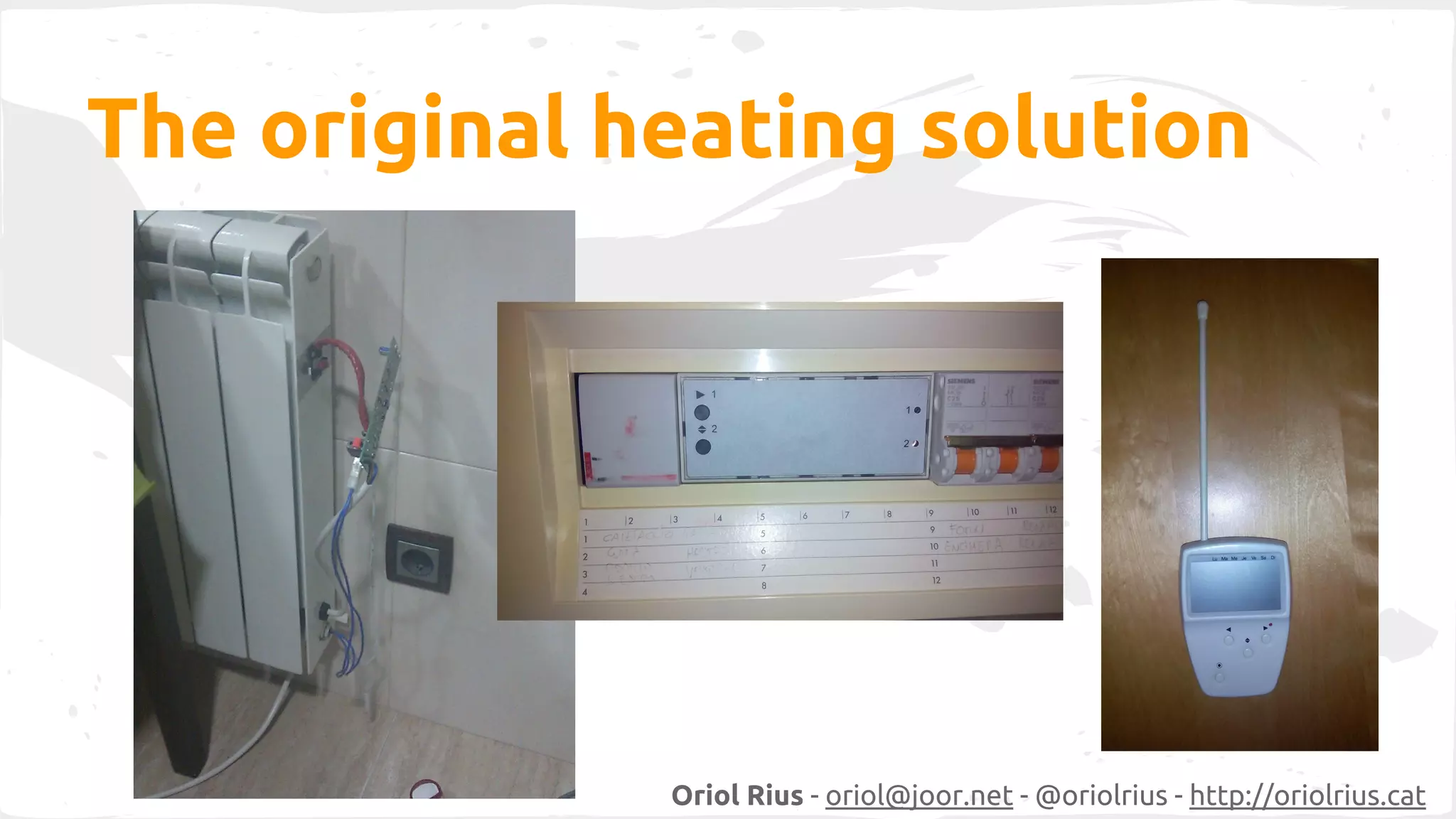

The original heating solution
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

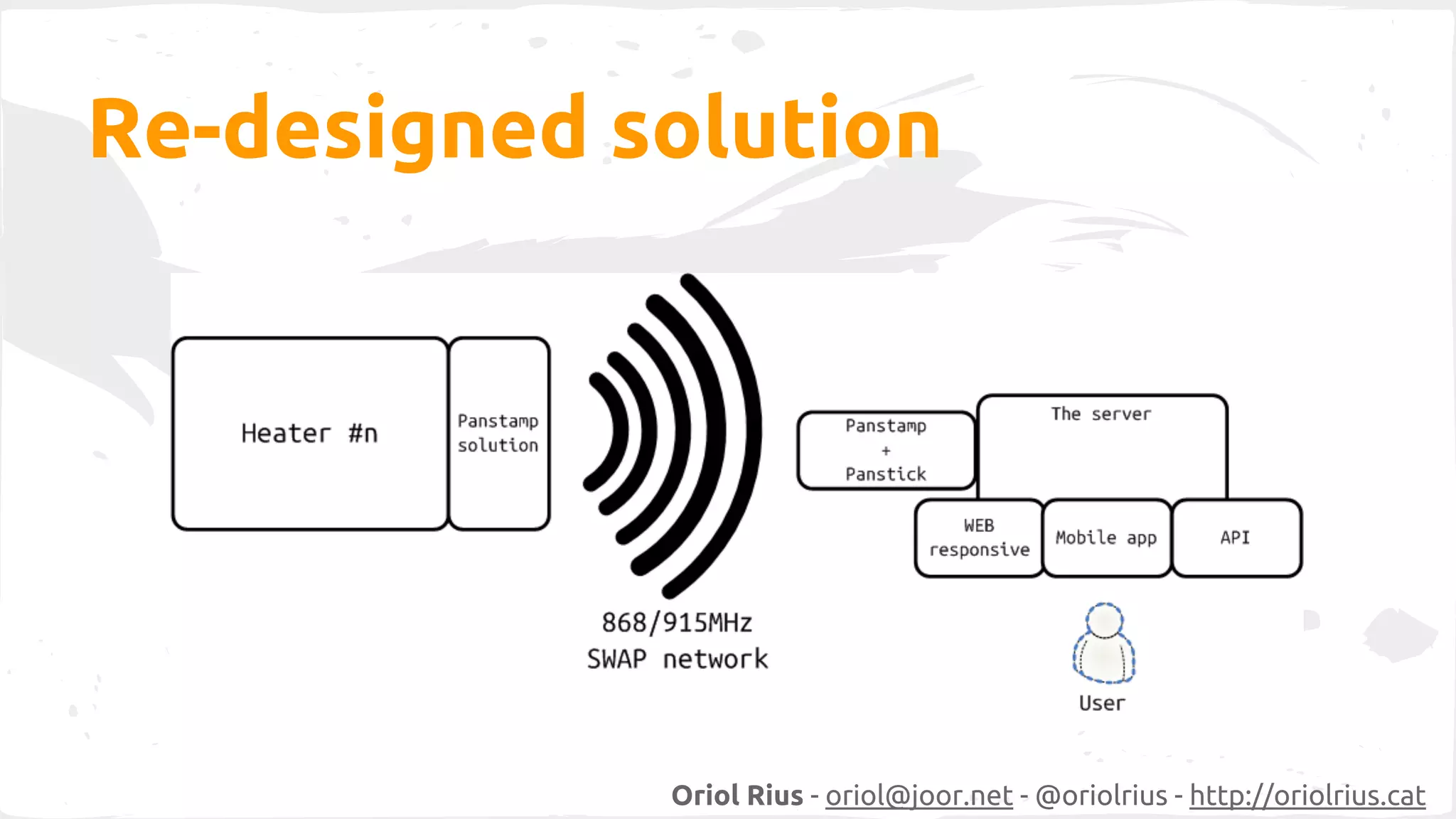

Re-designed solution
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

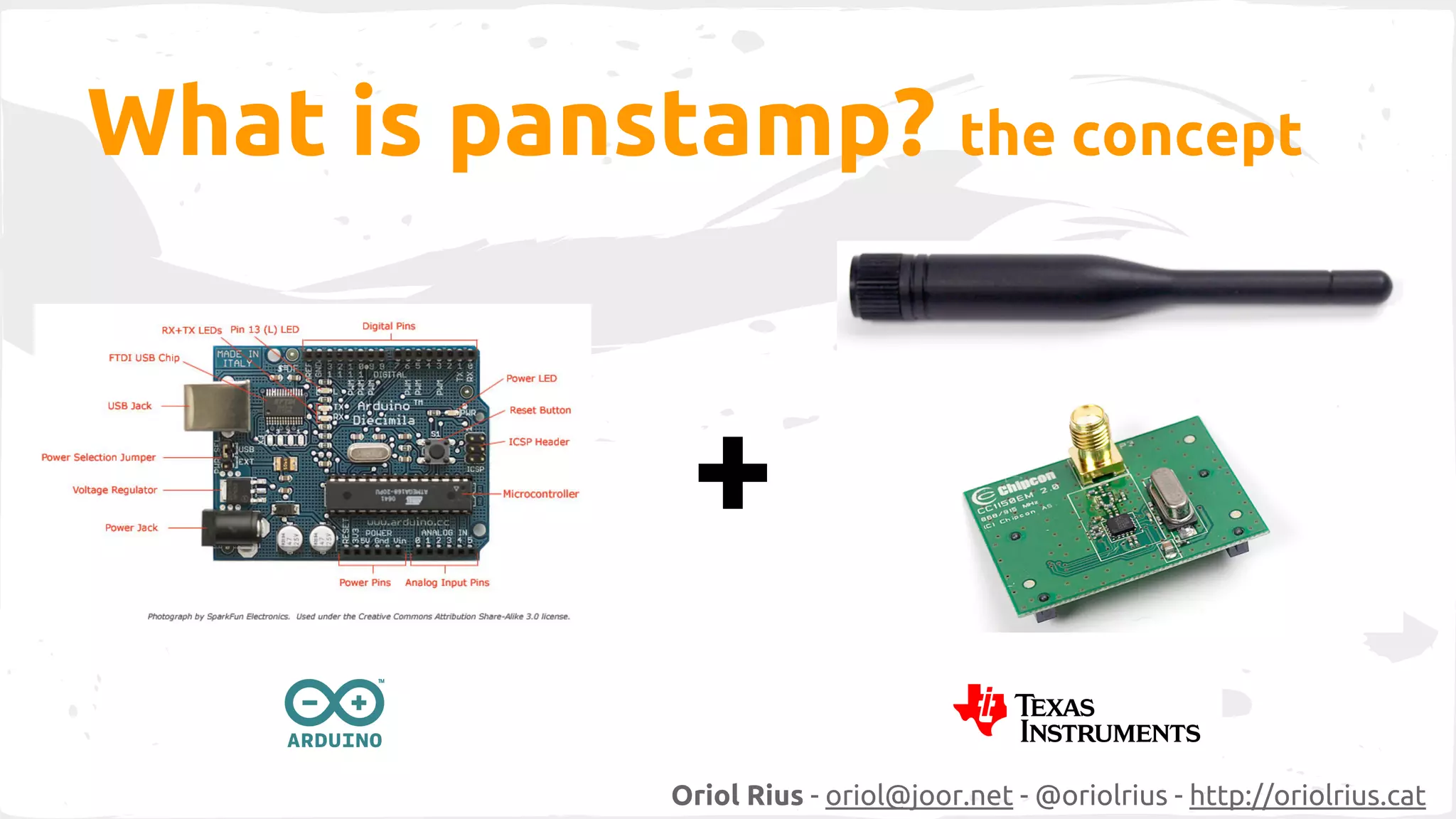

What is panstamp? the concept
+
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

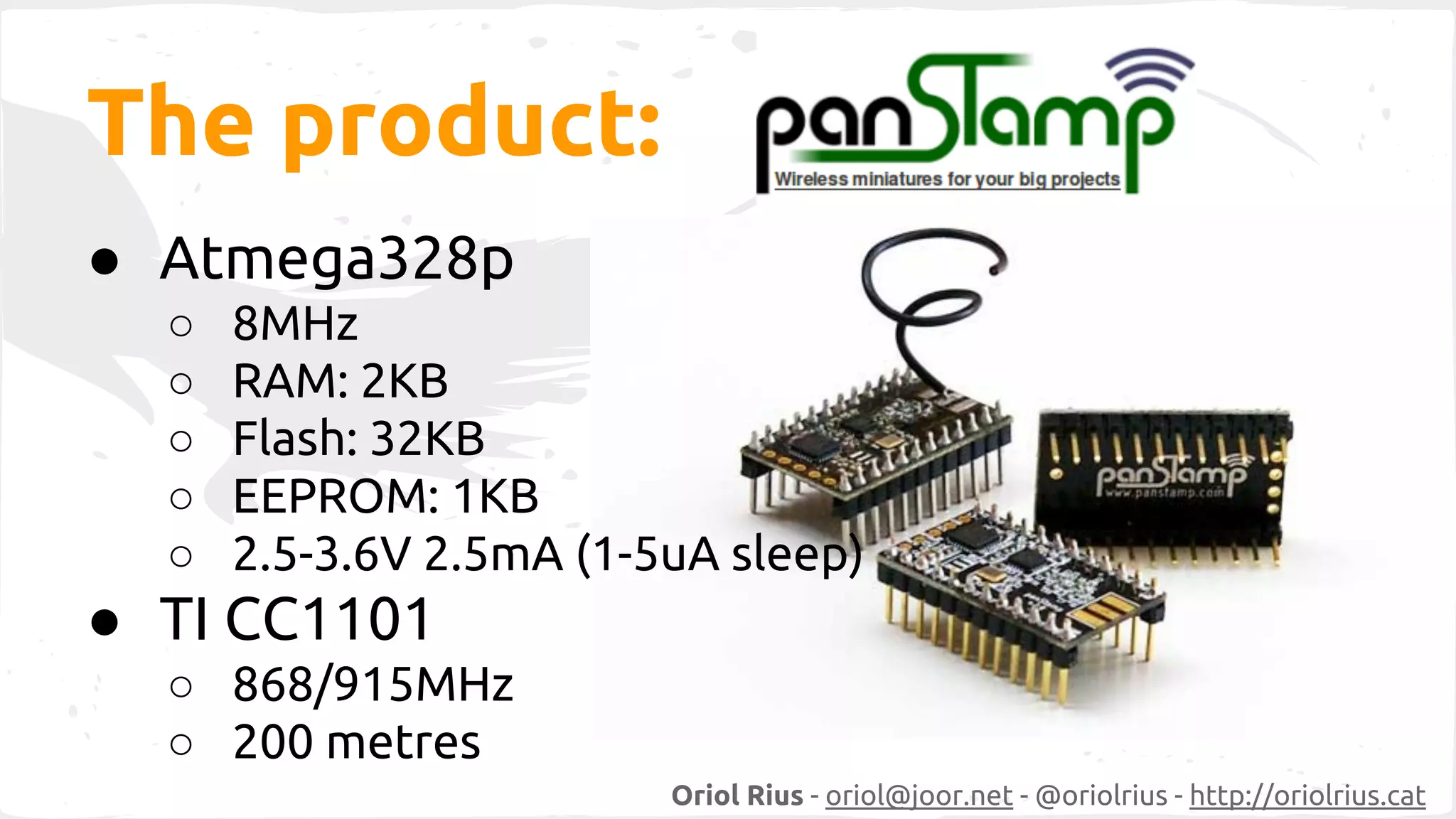

The product:
● Atmega328p
○ 8MHz
○ RAM: 2KB
○ Flash: 32KB
○ EEPROM: 1KB
○ 2.5-3.6V 2.5mA (1-5uA sleep)
● TI CC1101
○ 868/915MHz
○ 200 metres

New heater electronics
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

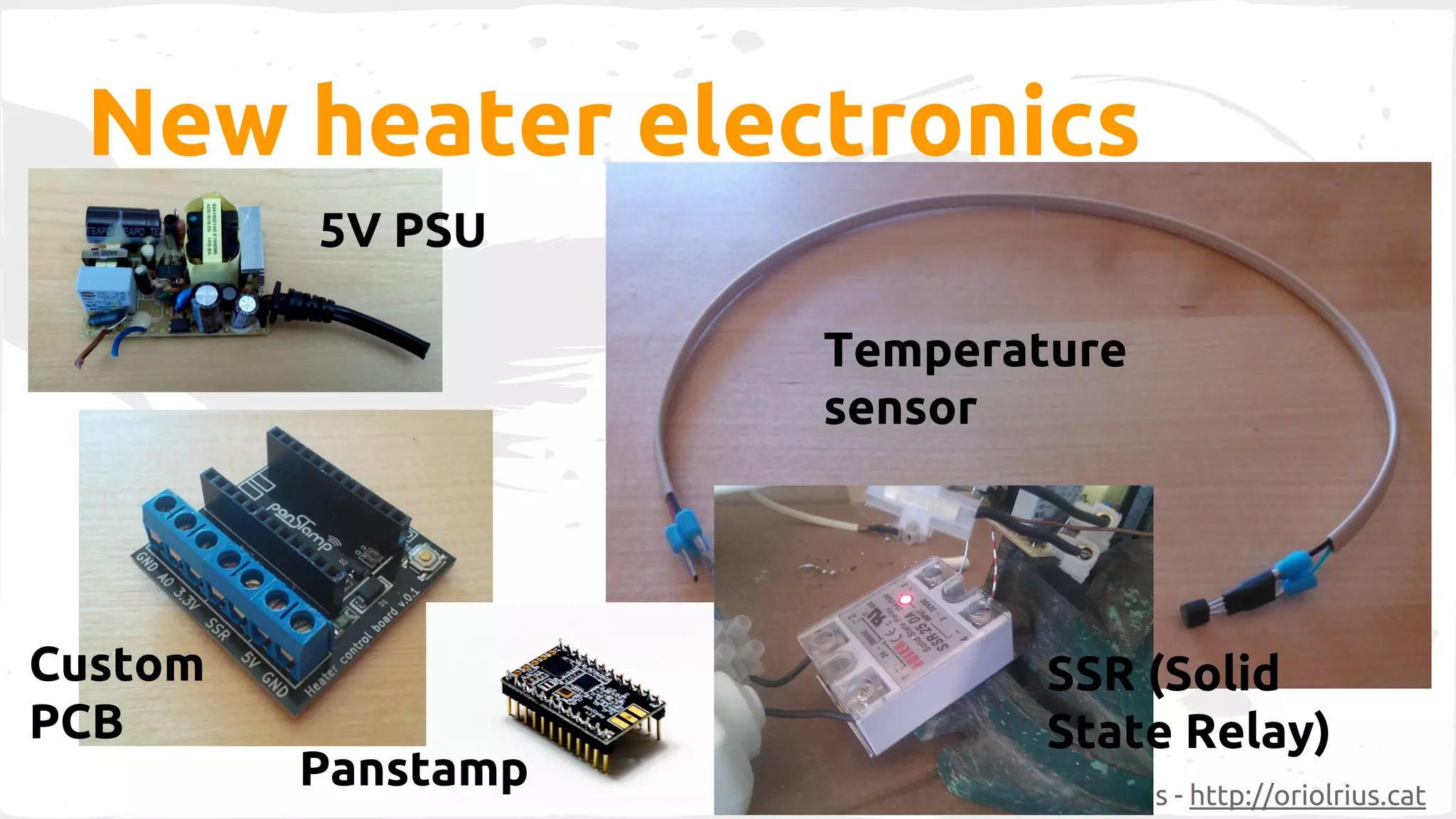

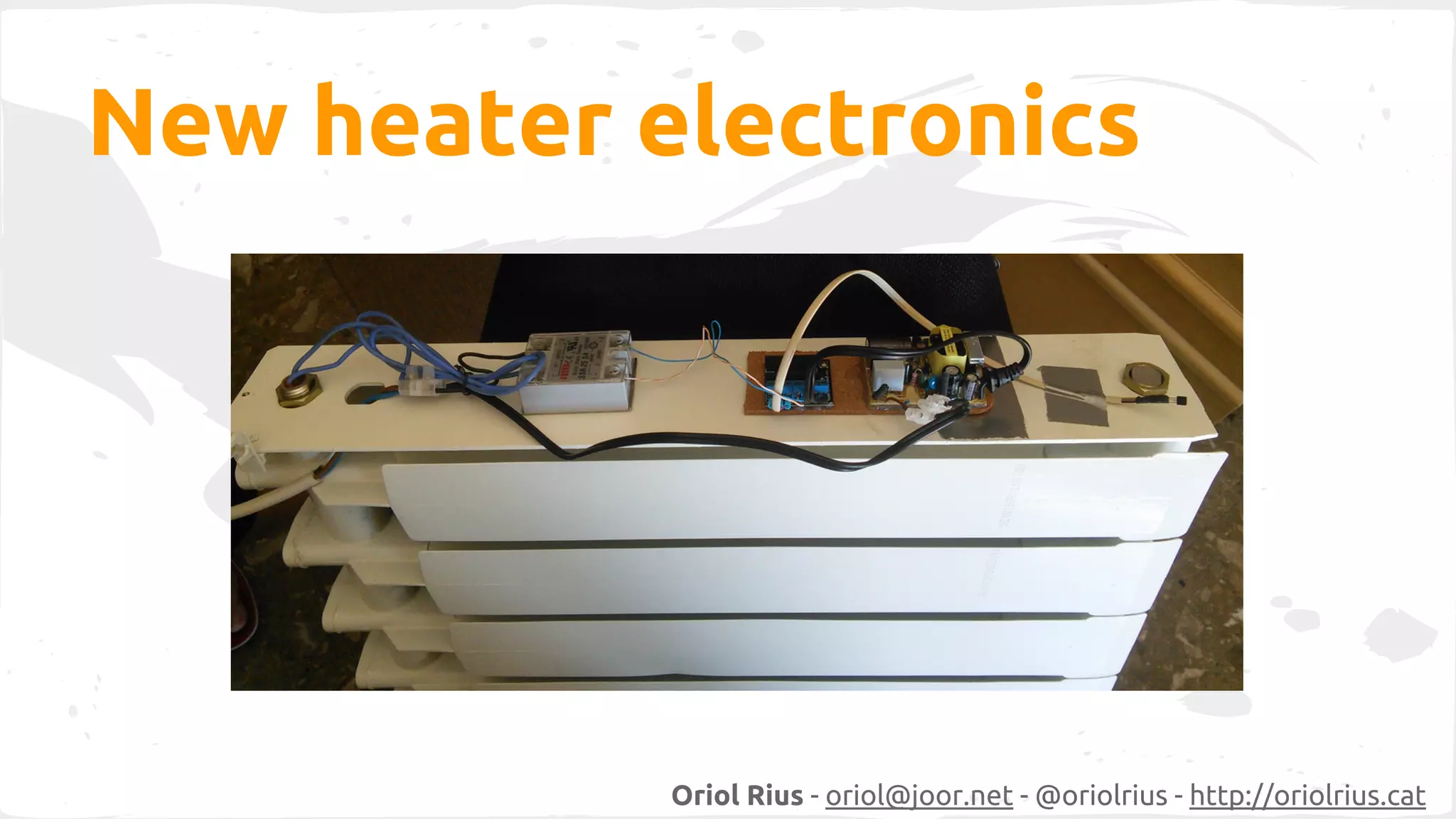

New heater electronics
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat
5V PSU
Temperature
sensor
Custom
PCB
Panstamp
SSR (Solid
State Relay)

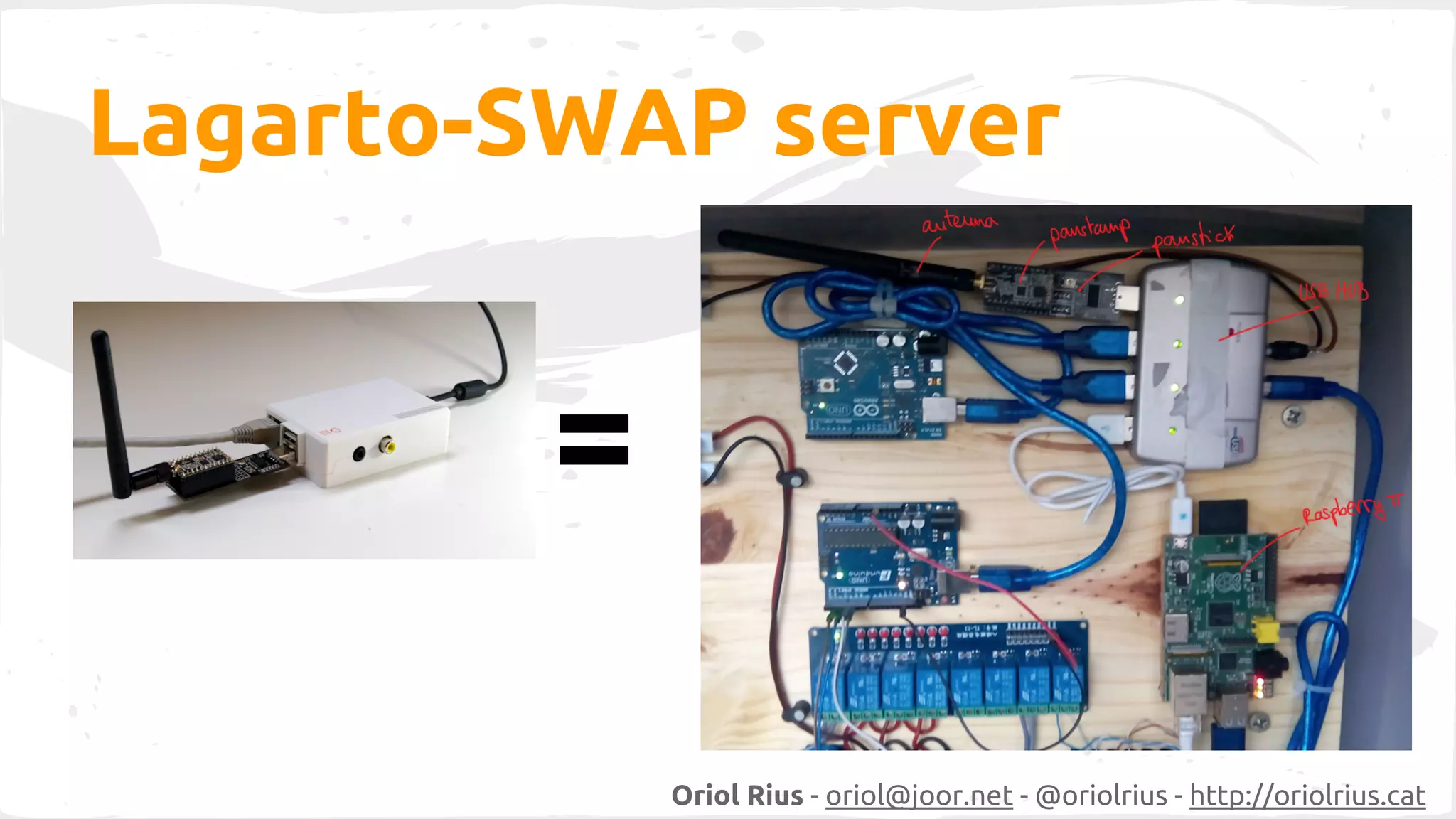

Lagarto-SWAP server
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat
=

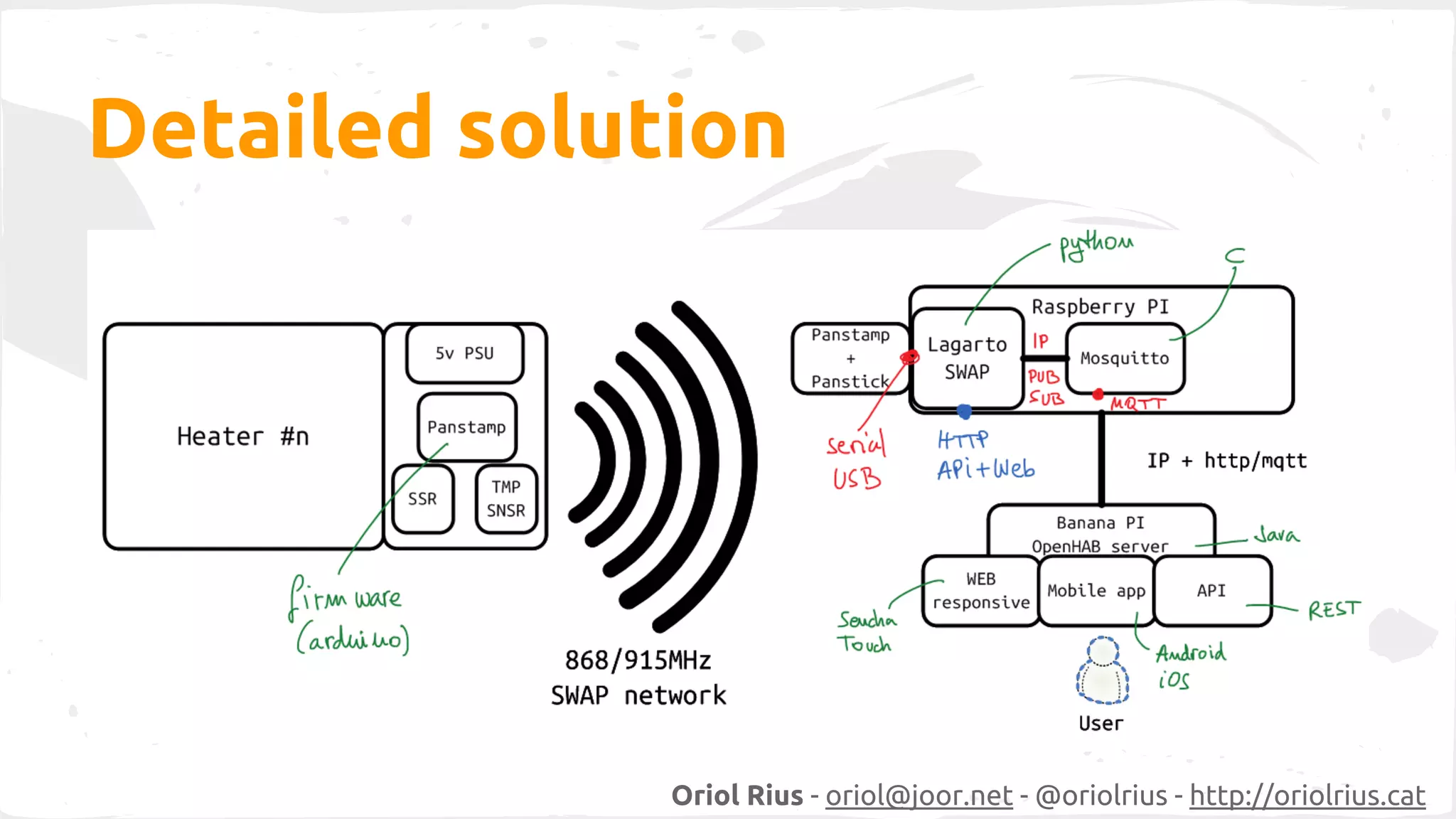

Detailed solution
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

The user interface - panstamp
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

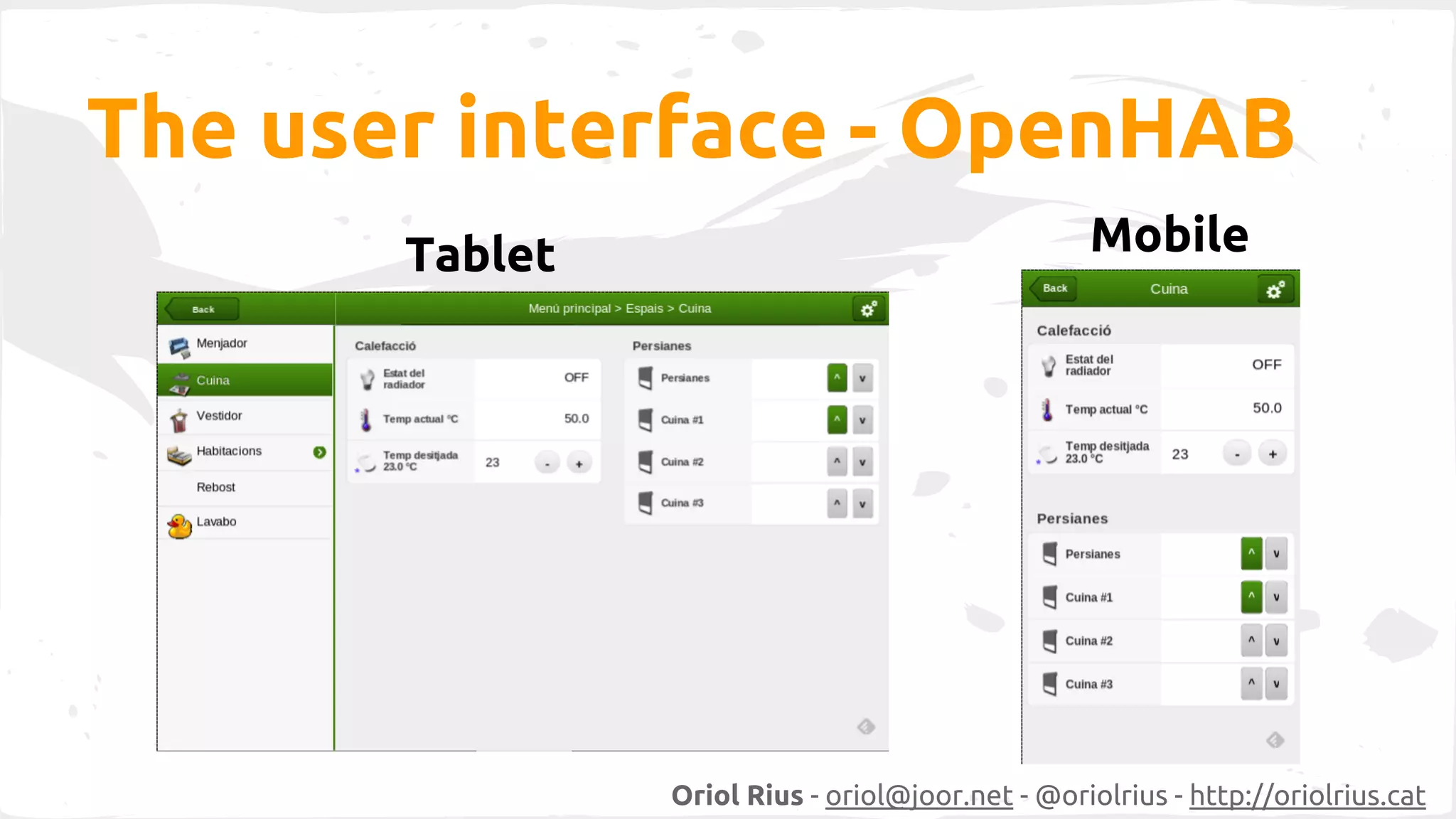

The user interface - OpenHAB
Tablet Mobile
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

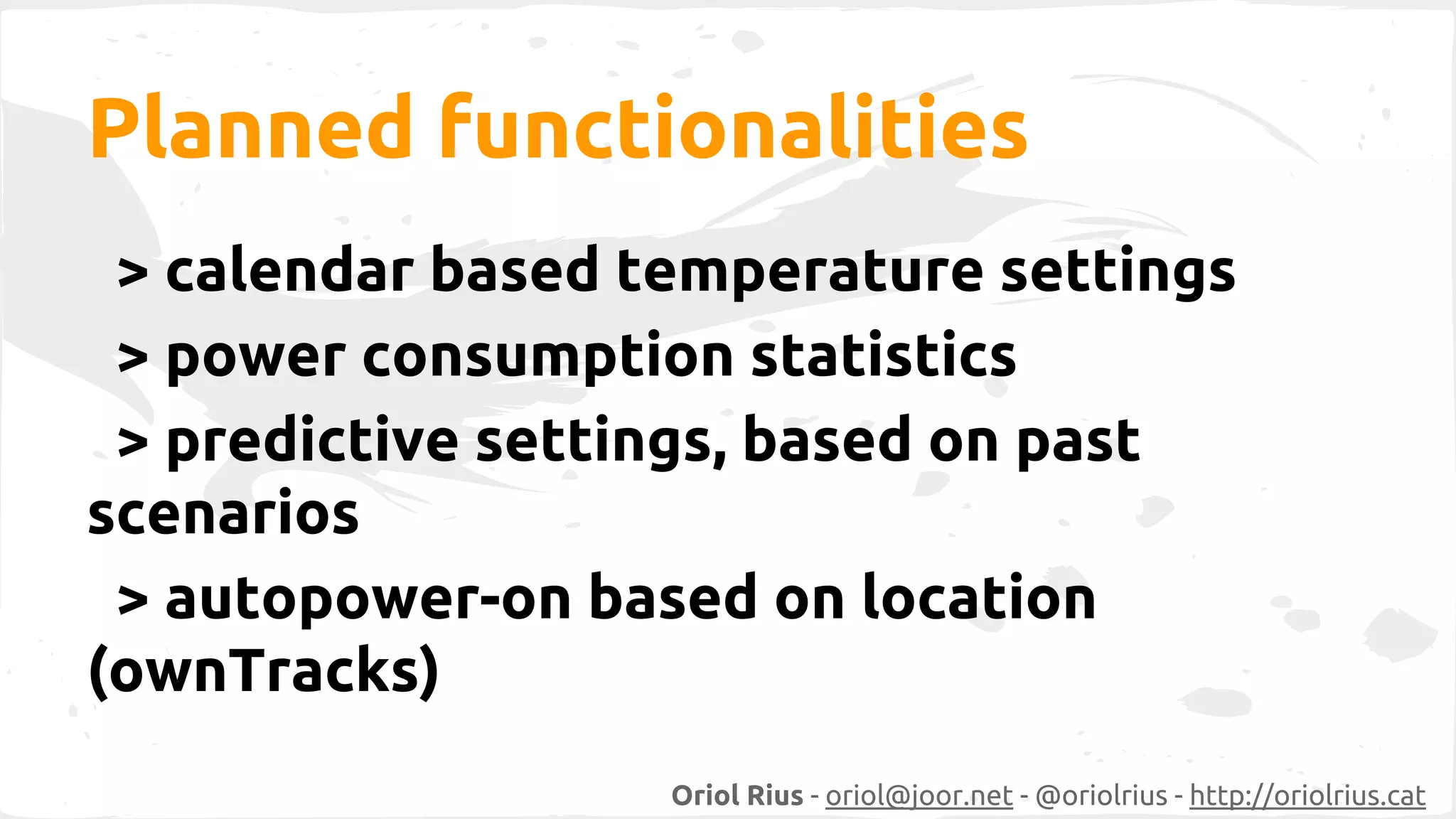

Planned functionalities
> calendar based temperature settings
> power consumption statistics
> predictive settings, based on past
scenarios
> autopower-on based on location
(ownTracks)
Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

Oriol Rius - oriol@joor.net - @oriolrius - http://oriolrius.cat

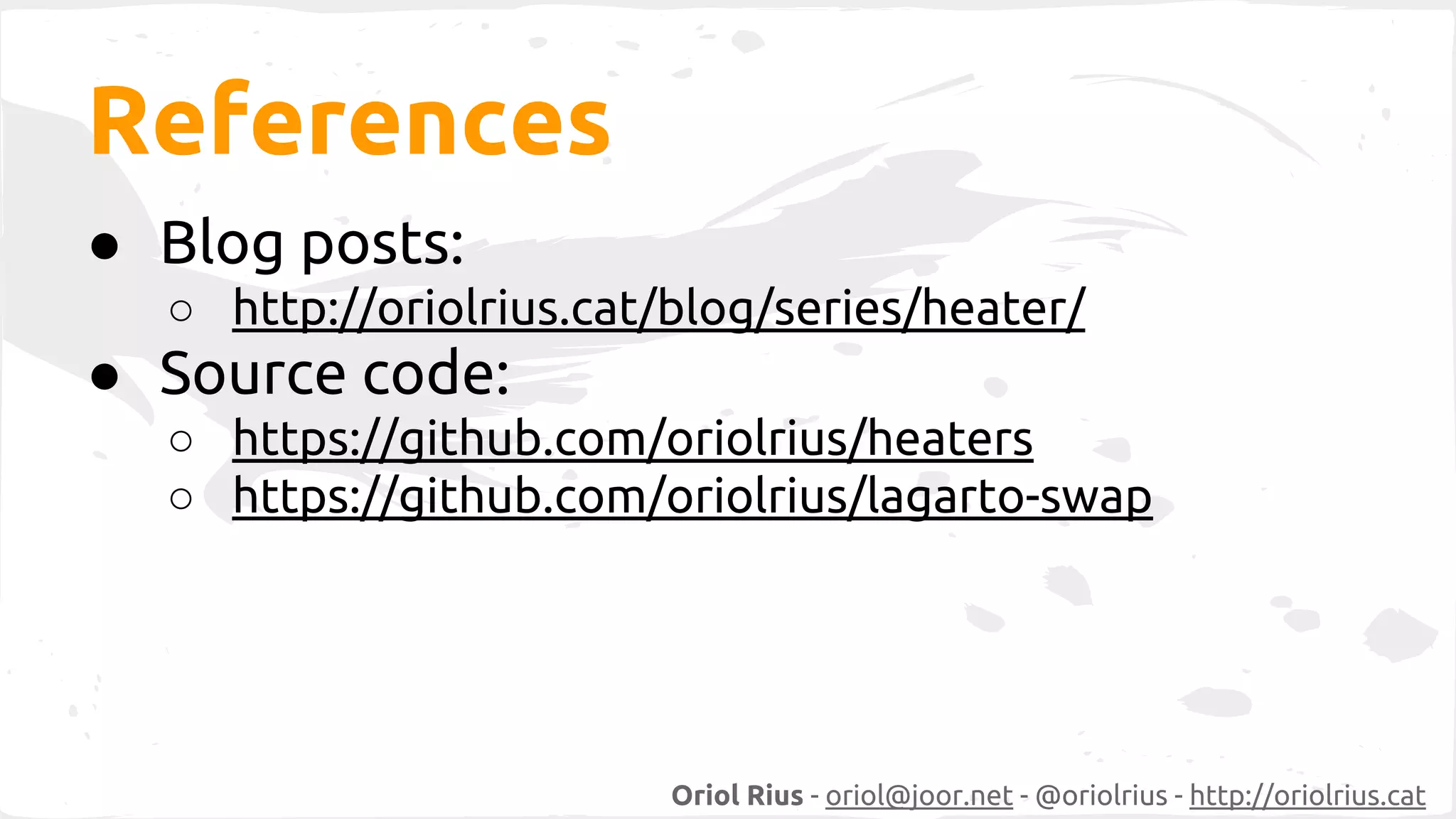

References
● Blog posts:
○ http://oriolrius.cat/blog/series/heater/
● Source code:
○ https://github.com/oriolrius/heaters
○ https://github.com/oriolrius/lagarto-swap

Thank you!
Comments?
Doubts?
Questions?
Oriol Rius
@oriolrius
oriol@joor.net
http://oriolrius.cat
