databases:
- db:
storage: postgresql
transaction_strategy: resolve
dsn:
scheme: postgres
dbname: guillotina
user: postgres
host: localhost
password: ''
port: 5432
pool_size: 40
read_only: false
host: 127.0.0.1
port: 8080
static:
- favicon.ico: static/favicon.ico
root_user:
password: root
cors:
allow_origin:
- "*"
allow_methods:
- GET
- POST
- DELETE
- HEAD
- PATCH
allow_headers:
- "*"
expose_headers:
- "*"
allow_credentials: true
max_age: 3660
utilities: []](https://image.slidesharecdn.com/guillotina-171026202228/75/Guillotina-The-Asyncio-REST-Resource-API-47-2048.jpg)
![from guillotina import configure
from guillotina.content import Item
from guillotina.interfaces import IItem
from guillotina import schema
class ICustomType(IItem):
foo = schema.Text()
@configure.contenttype(
type_name="CustomType",
schema=ICustomType,
behaviors=[
"guillotina.behaviors.dublincore.IDublinCore",
"example.behaviors.ICustomBehavior",
])
class CustomType(Item):
pass](https://image.slidesharecdn.com/guillotina-171026202228/75/Guillotina-The-Asyncio-REST-Resource-API-50-2048.jpg)
![from guillotina.traversal import traverse
async def my_task(task_info, root, request):
data = task_info.data
path = data['path']
ob, end_path = await traverse(request, root, path.lstrip('/').split('/'))
assert len(end_path) == 0
from guillotina.component import getUtility
from guillotina_hive.interfaces import IHiveUtility
hive = getUtility(IHiveUtility)
task_info = TaskInfo('my_task', {'foo': 'bar'})
await hive.push_task(task_info)](https://image.slidesharecdn.com/guillotina-171026202228/75/Guillotina-The-Asyncio-REST-Resource-API-56-2048.jpg)
More Related Content
Similar to Guillotina: The Asyncio REST Resource API
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
Guillotina: The Asyncio REST Resource API
- 1. GUILLOTINA Async REST ResourceAPI to manage millions of objects
- 2. Full Stack EngineerOnna - BCN Connect and search all knowledge inside an enterprise with ML Nathan Van Gheem Plone Software Foundation, FWT Member, UITEAM, SecurityTeam

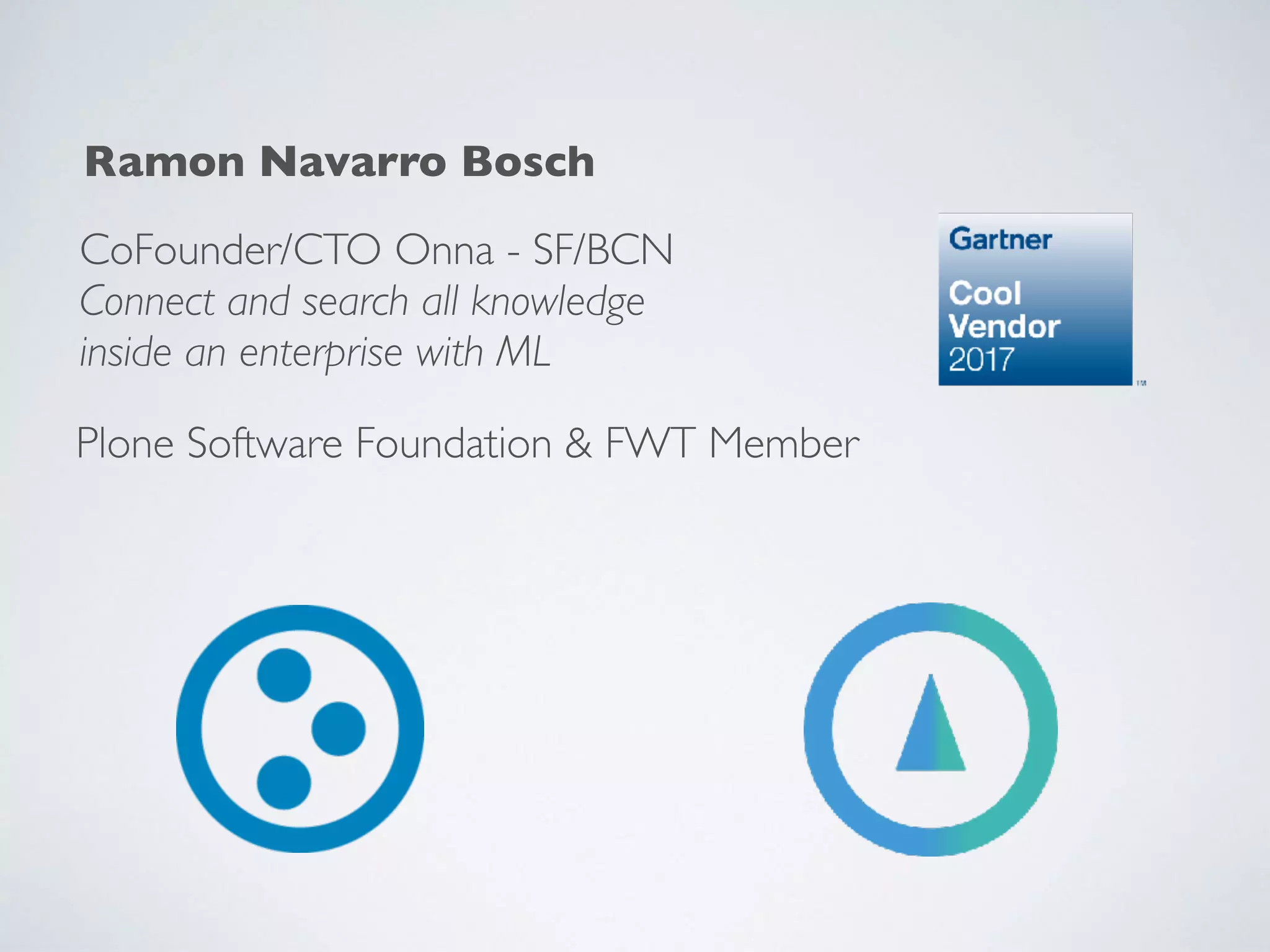

- 3. CoFounder/CTO Onna -SF/BCN Connect and search all knowledge inside an enterprise with ML Ramon Navarro Bosch Plone Software Foundation & FWT Member
- 4.

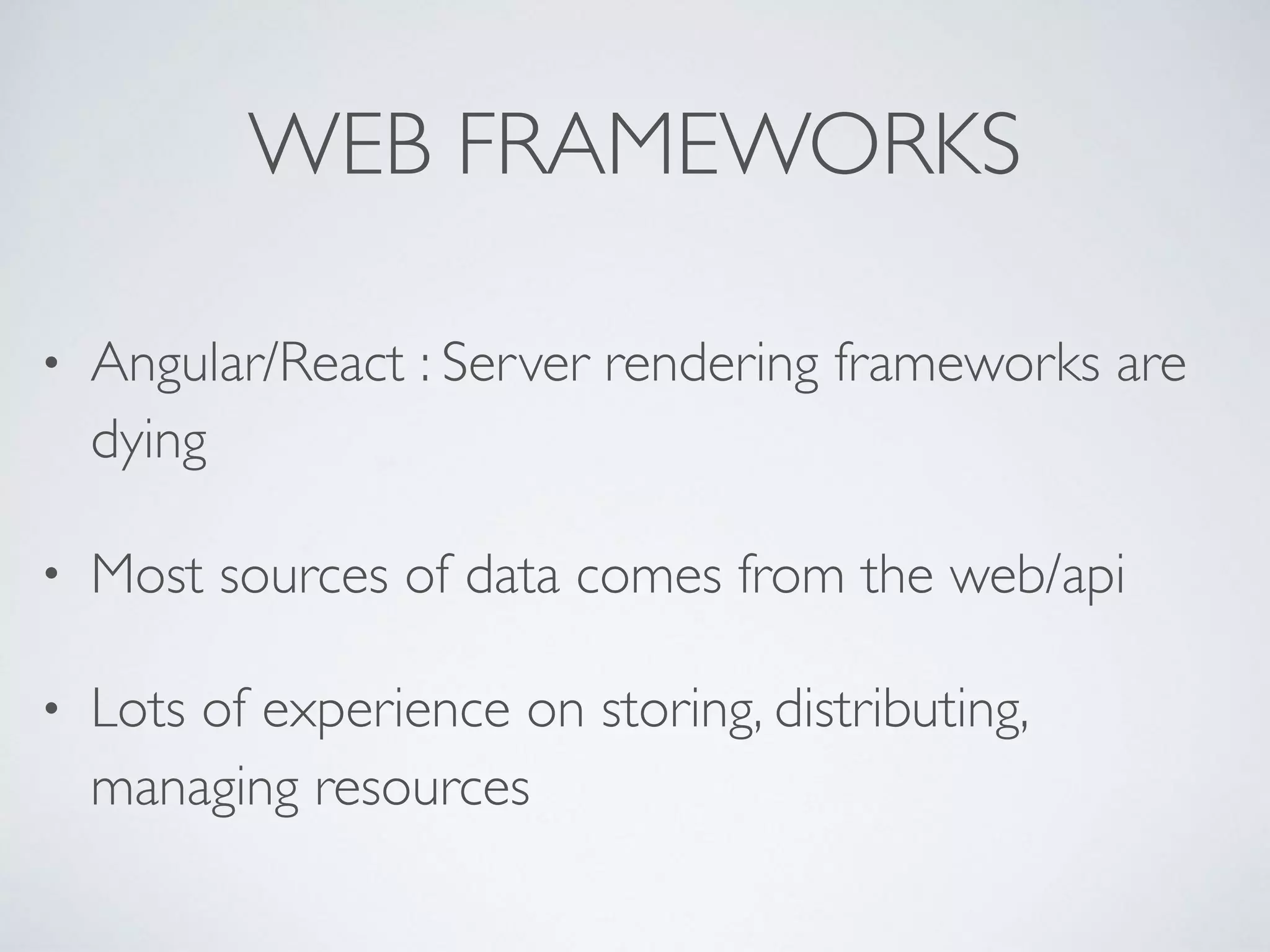

- 5. WEB FRAMEWORKS • Angular/React: Server rendering frameworks are dying • Most sources of data comes from the web/api • Lots of experience on storing, distributing, managing resources
- 6. LOVE We love Plonebut wanted to be able to use it in high performant situations with modern web technologies

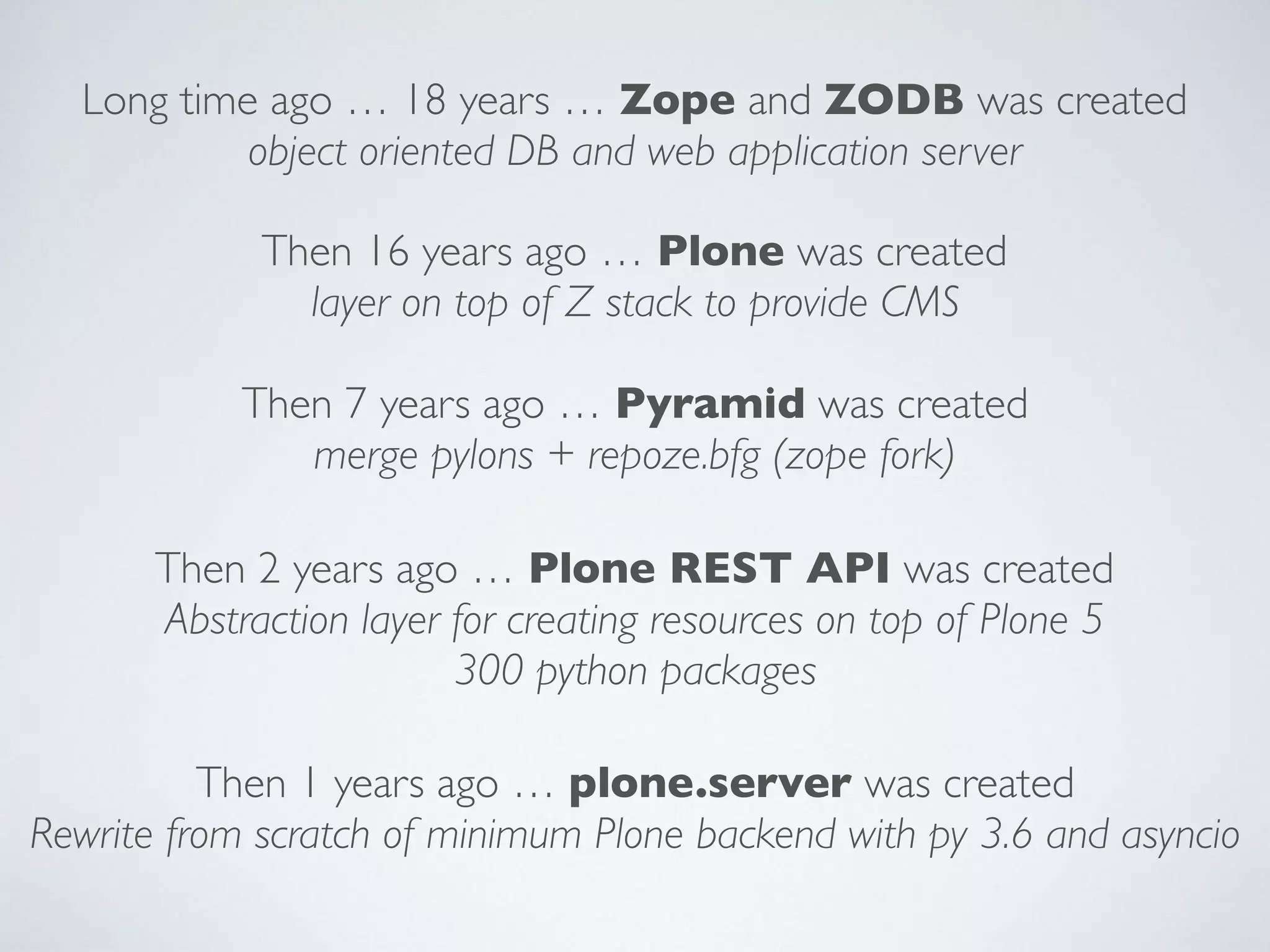

- 7. Long time ago… 18 years … Zope and ZODB was created object oriented DB and web application server Then 16 years ago … Plone was created layer on top of Z stack to provide CMS Then 7 years ago … Pyramid was created merge pylons + repoze.bfg (zope fork) Then 2 years ago … Plone REST API was created Abstraction layer for creating resources on top of Plone 5 300 python packages Then 1 years ago … plone.server was created Rewrite from scratch of minimum Plone backend with py 3.6 and asyncio
- 9. EVOLUTION The spirit ofPlone lives
- 10. LESSONS Taking lessons learnedfrom Plone, simplify and apply to an AsyncIO context
- 11. INSPIRATION Plone/Zope’s hierarchical datamodel Pyramid’s decorator-based configuration Django’s global application settings ZCA pluggability Plone/Zope’s security model JSON Schema
- 12. FORKS parts of zodbdata model plone.behavior zope.security zope.schema zope.component/zope.configuration zope.dublincore zope.i18n zope.lifecycleevent zope.location zope.event

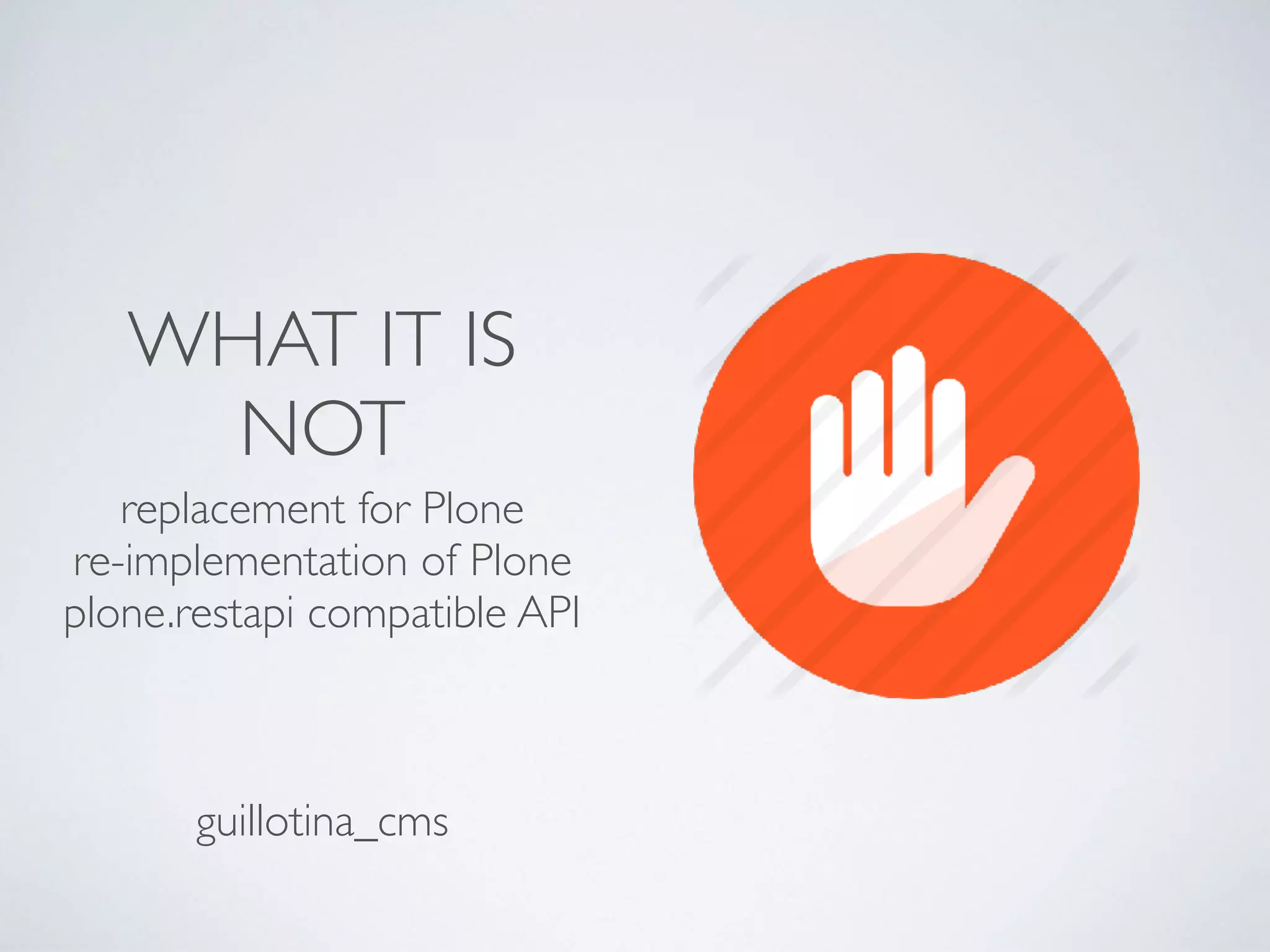

- 13. WHAT IT IS NOT replacementfor Plone re-implementation of Plone plone.restapi compatible API guillotina_cms
- 14.

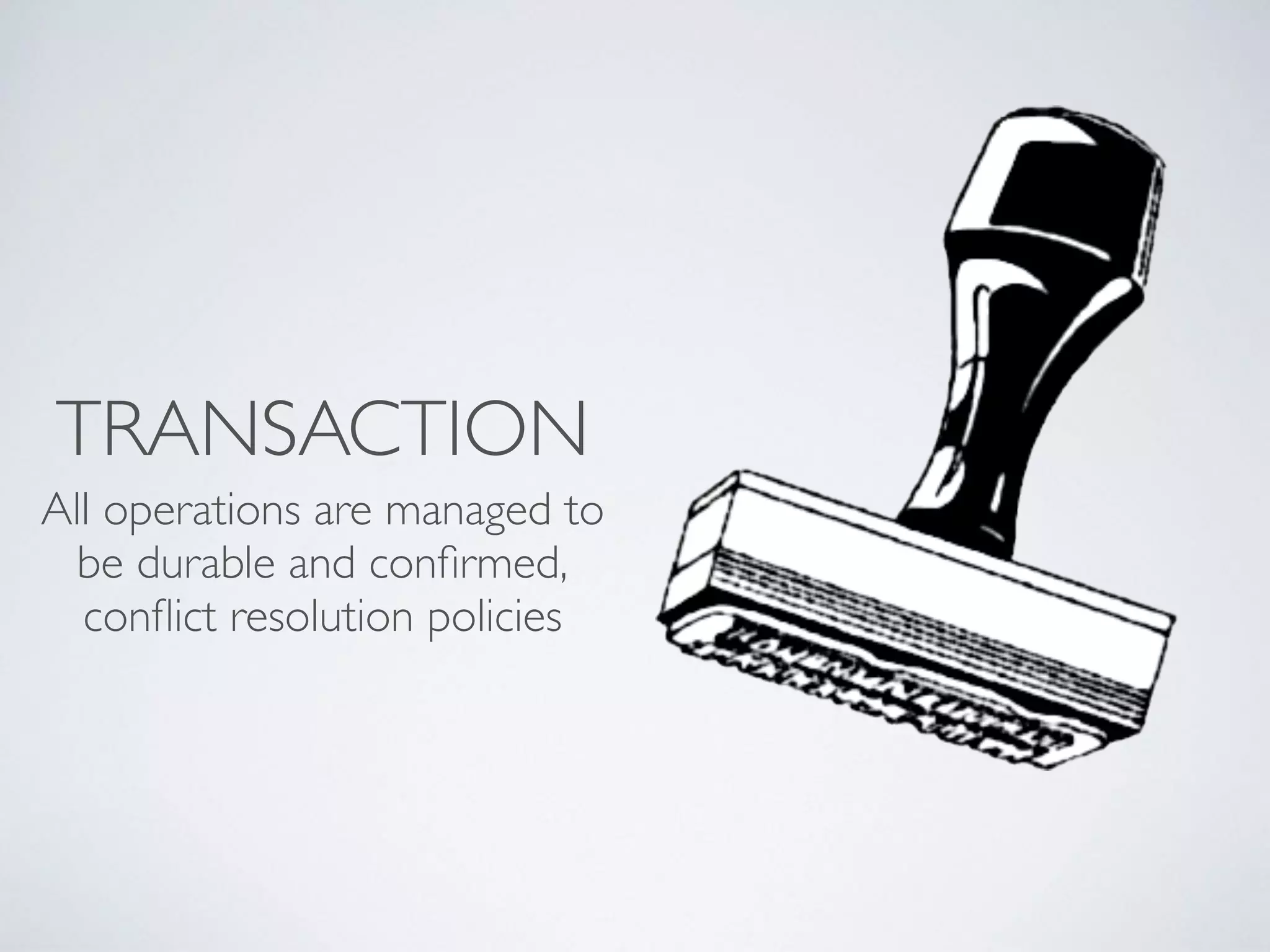

- 15. TRANSACTION All operations aremanaged to be durable and confirmed, conflict resolution policies
- 16. CONSCIENTIOUS WRITER Reduce conflict errors,better performance
- 17. RELATIONAL DATABASES Use the bestdatabase systems available PostgreSQL CockroachDB
- 18. TREE Information is organized in treesof objects

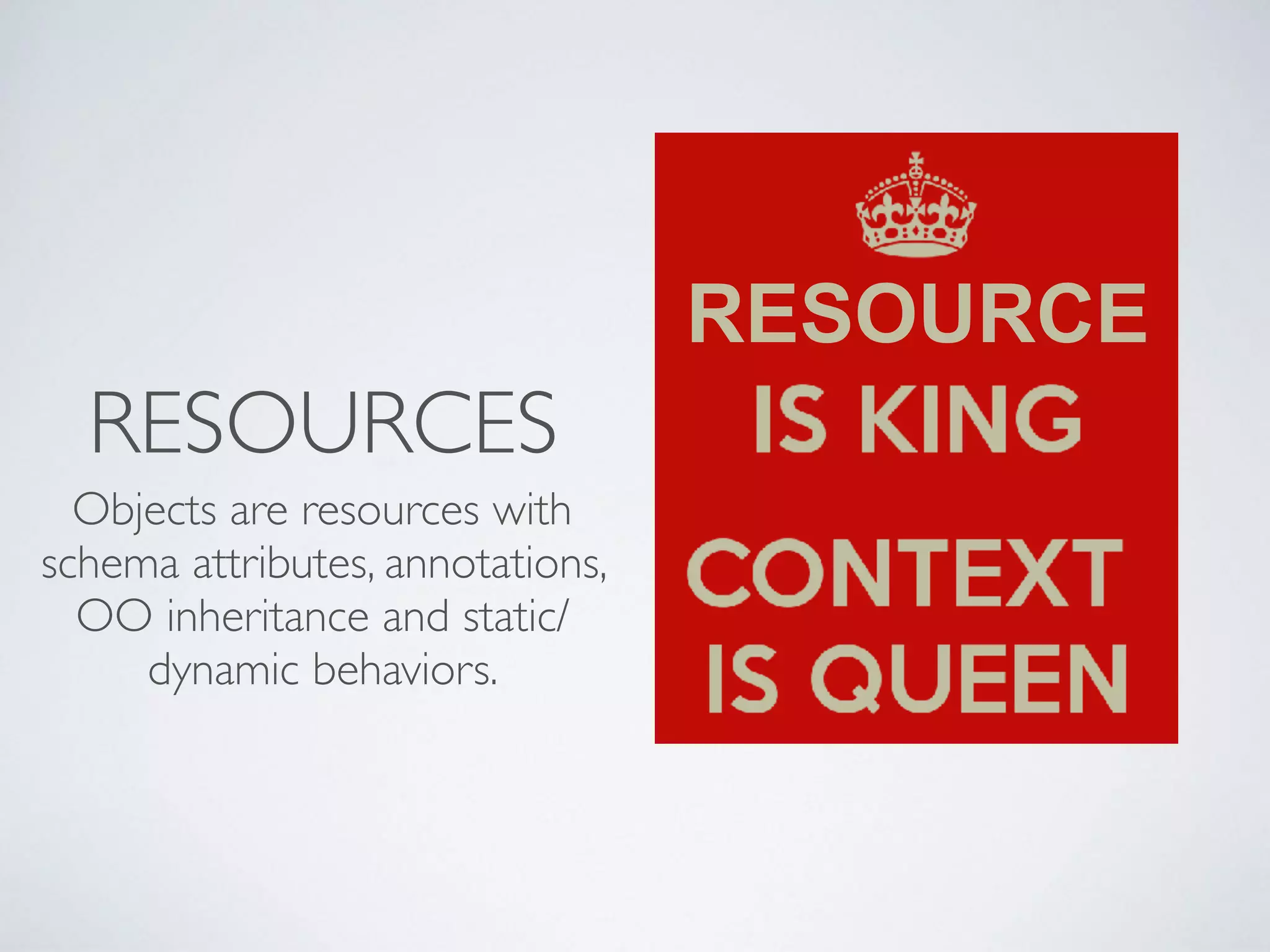

- 19. RESOURCES Objects are resourceswith schema attributes, annotations, OO inheritance and static/ dynamic behaviors. RESOURCE

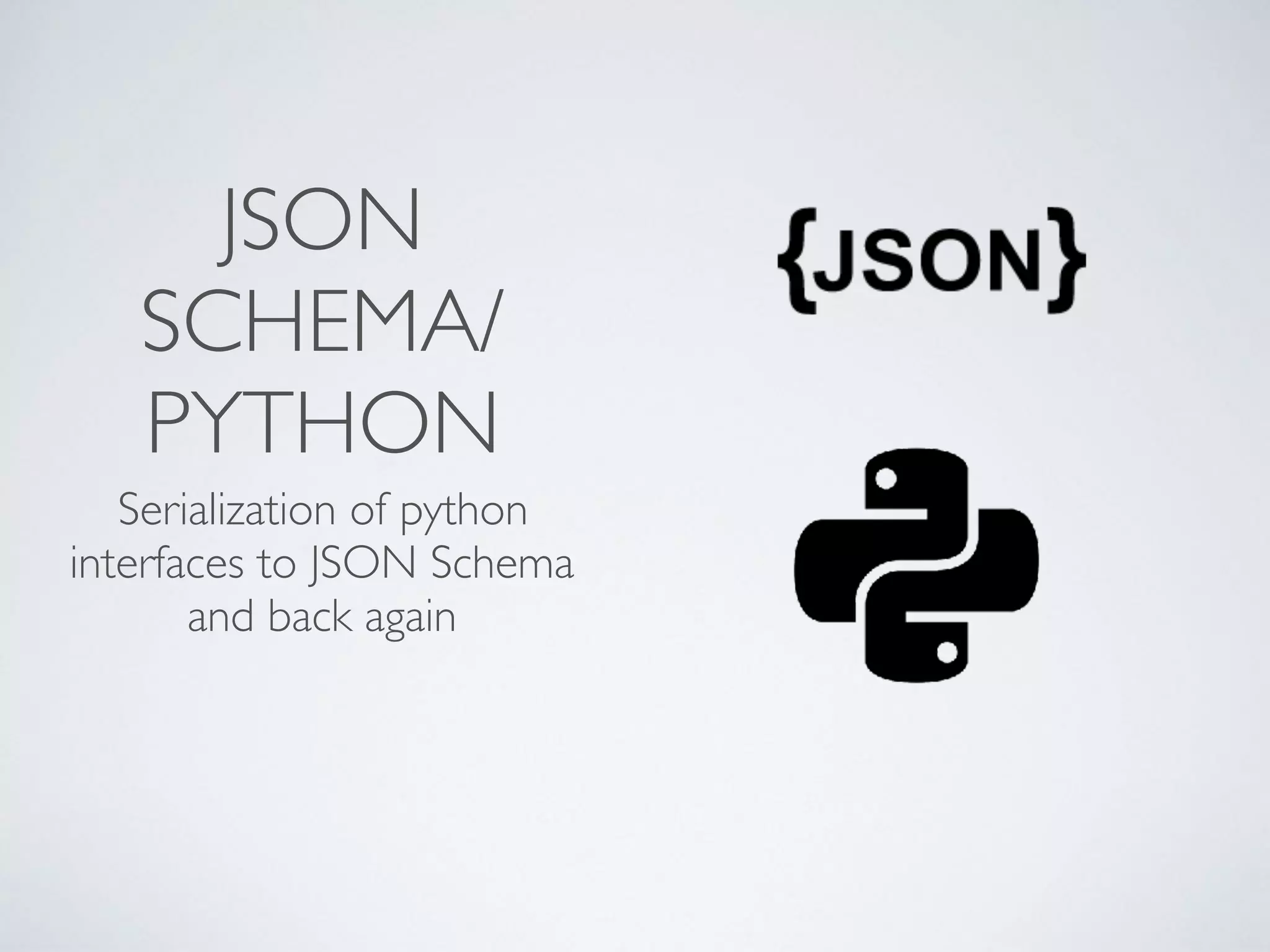

- 20. JSON SCHEMA/ PYTHON Serialization of python interfacesto JSON Schema and back again
- 21. SECURITY Full definition ofpermissions / roles / principals with global and local inheritance of permissions on the tree.Allow, Deny, Unset,AllowSingle (no inheritance)

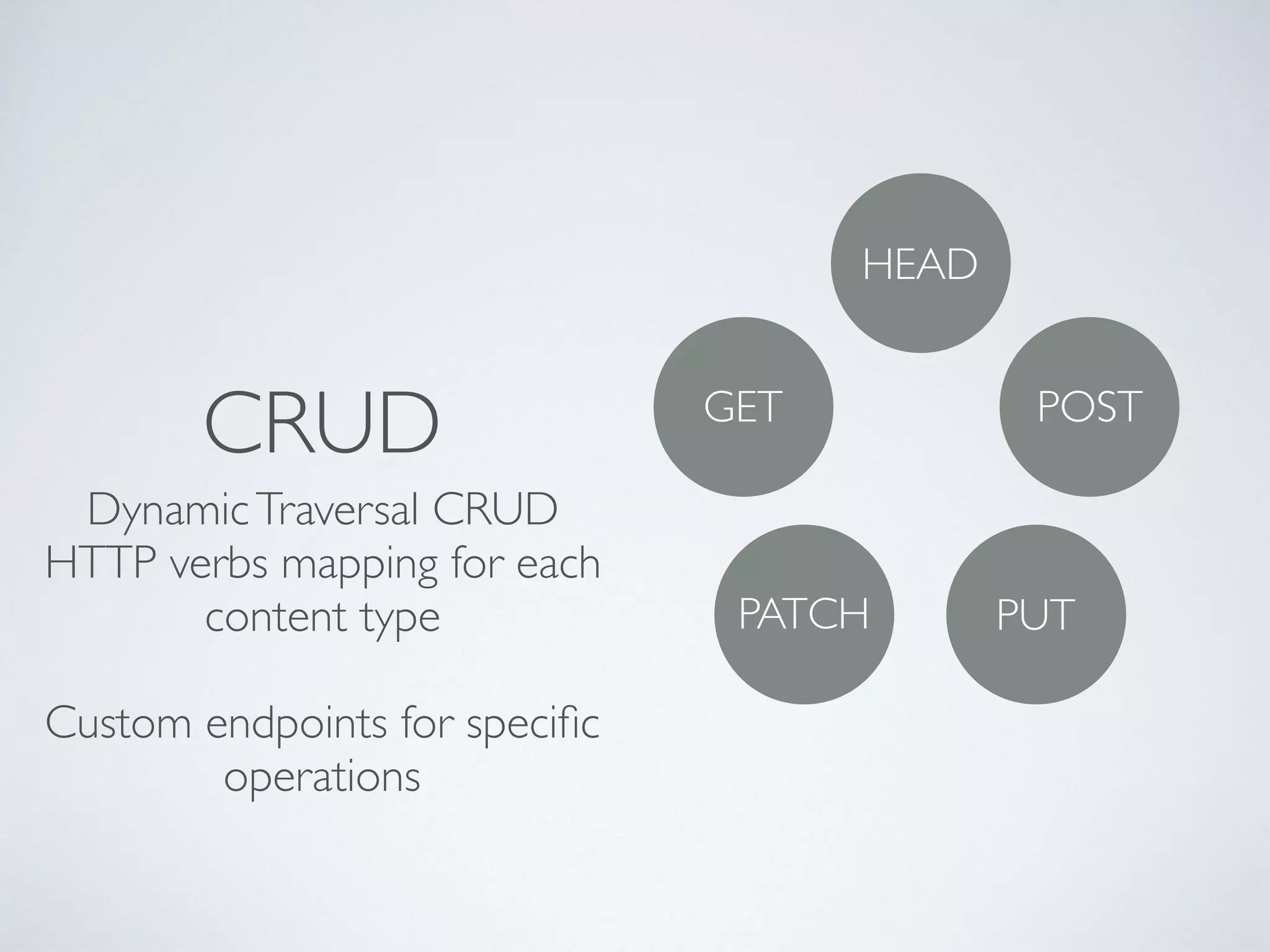

- 22. CRUD DynamicTraversal CRUD HTTP verbsmapping for each content type Custom endpoints for specific operations GET HEAD POST PUTPATCH

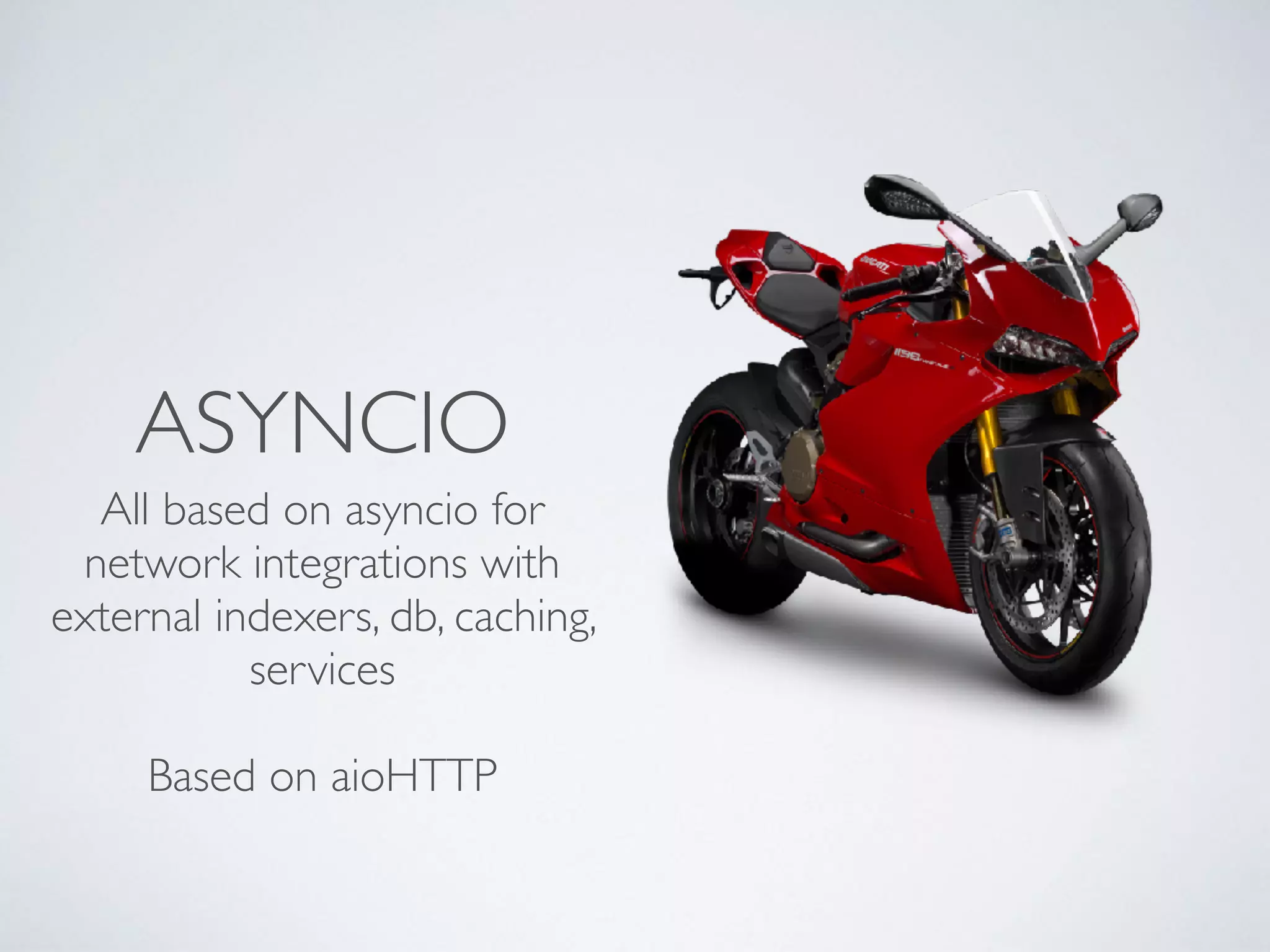

- 23. ASYNCIO All based onasyncio for network integrations with external indexers, db, caching, services Based on aioHTTP
- 24. SIMPLE Easy to install, Easyto develop pip install guillotina docker run guillotina/guillotina
- 25. CORS Cors configured globallyand enabled by default
- 26. WEBSOCKET Websocket connection to applyoperations through frames. Mapping of REST API on aTCP async channel.
- 27.
- 28. TUS Binary resumable fileupload

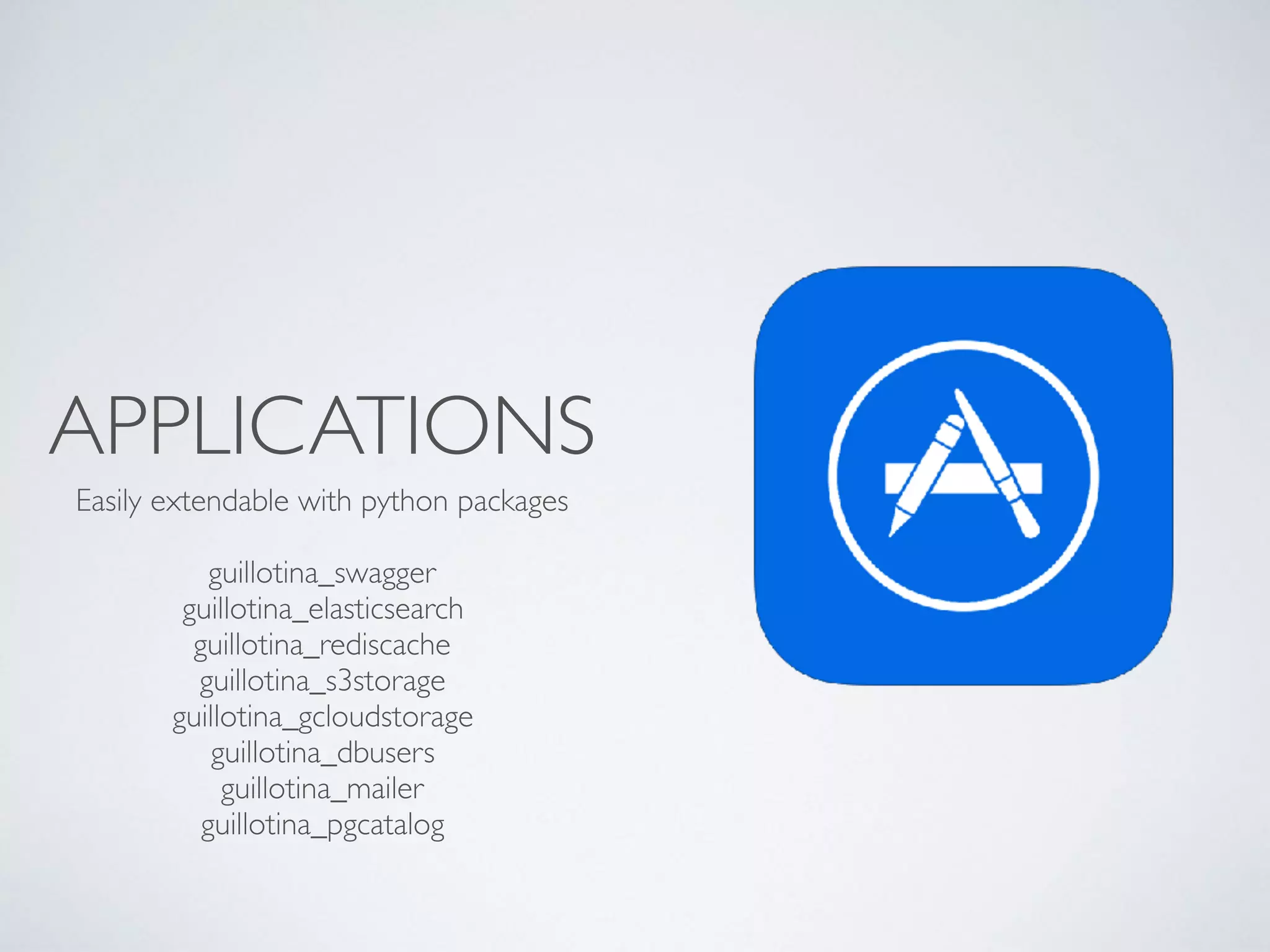

- 29. APPLICATIONS Easily extendable withpython packages guillotina_swagger guillotina_elasticsearch guillotina_rediscache guillotina_s3storage guillotina_gcloudstorage guillotina_dbusers guillotina_mailer guillotina_pgcatalog
- 30. EXTENSIBLE Uses zope.interface andbased on zope.component utilities and adapters!Yay!
- 31. COOKIE CUTTER Cookie cutter templatesfor configuration and applications
- 32. QUEUE Operational queue andafter response tasks
- 33. EVENT Async event basedsystem to trigger operations in code Async tasks
- 34.
- 35. STATIC FILES AND JSAPPS Support for serving JavaScript applications

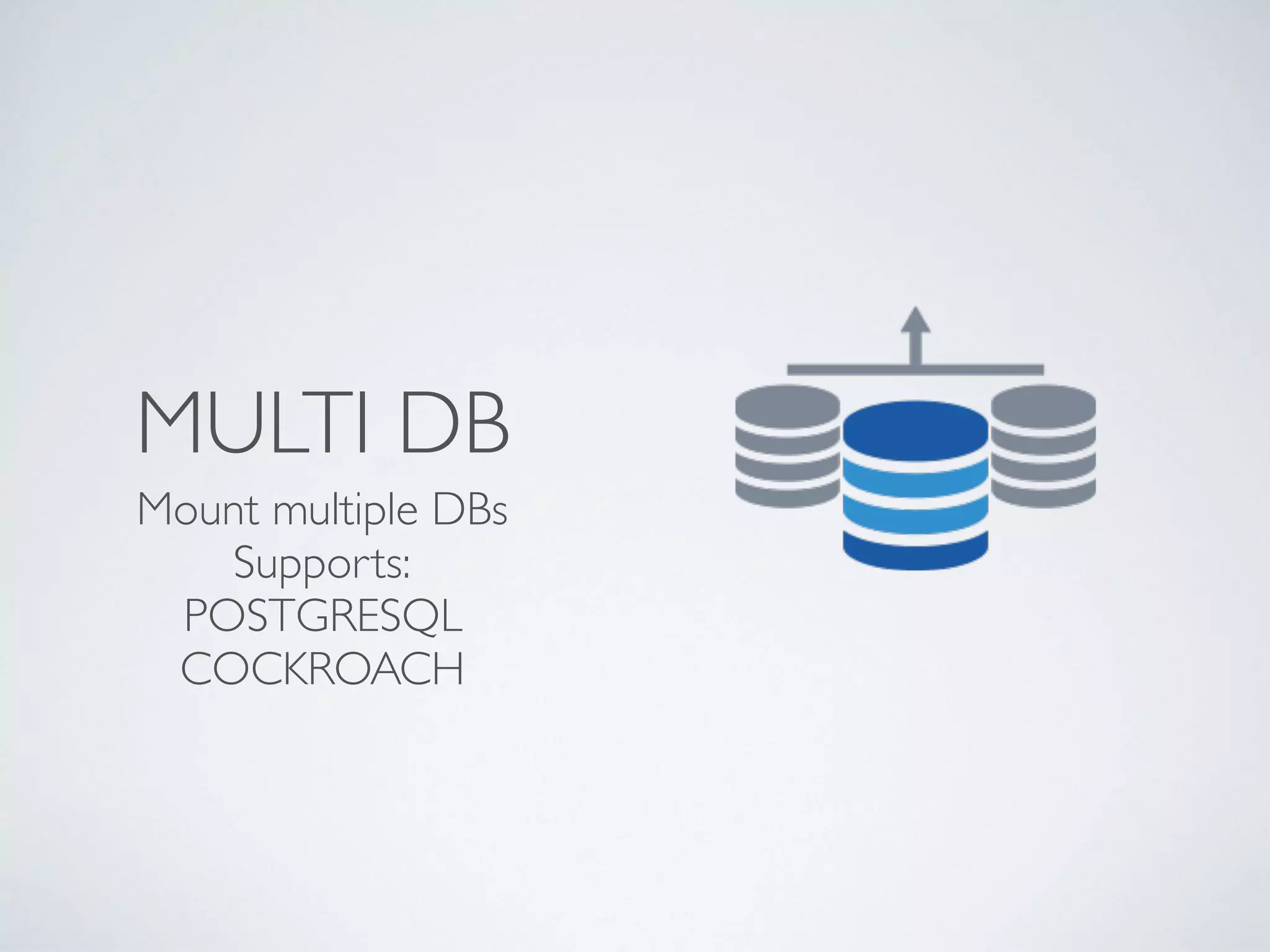

- 36. MULTI DB Mount multipleDBs Supports: POSTGRESQL COCKROACH
- 37. FILE CLOUD Support forS3/GCloud storage. Database blob storage otherwise
- 38.
- 39.
- 40.
- 41. CONTAINERS Docker / K8s/ Nomad out the box
- 42. EXPLICIT PY All configurationis defined on the code using decorators @configure.service()
- 43. guillotina(x) = argminZope/Plone(x) * zope.interface still used
- 44.

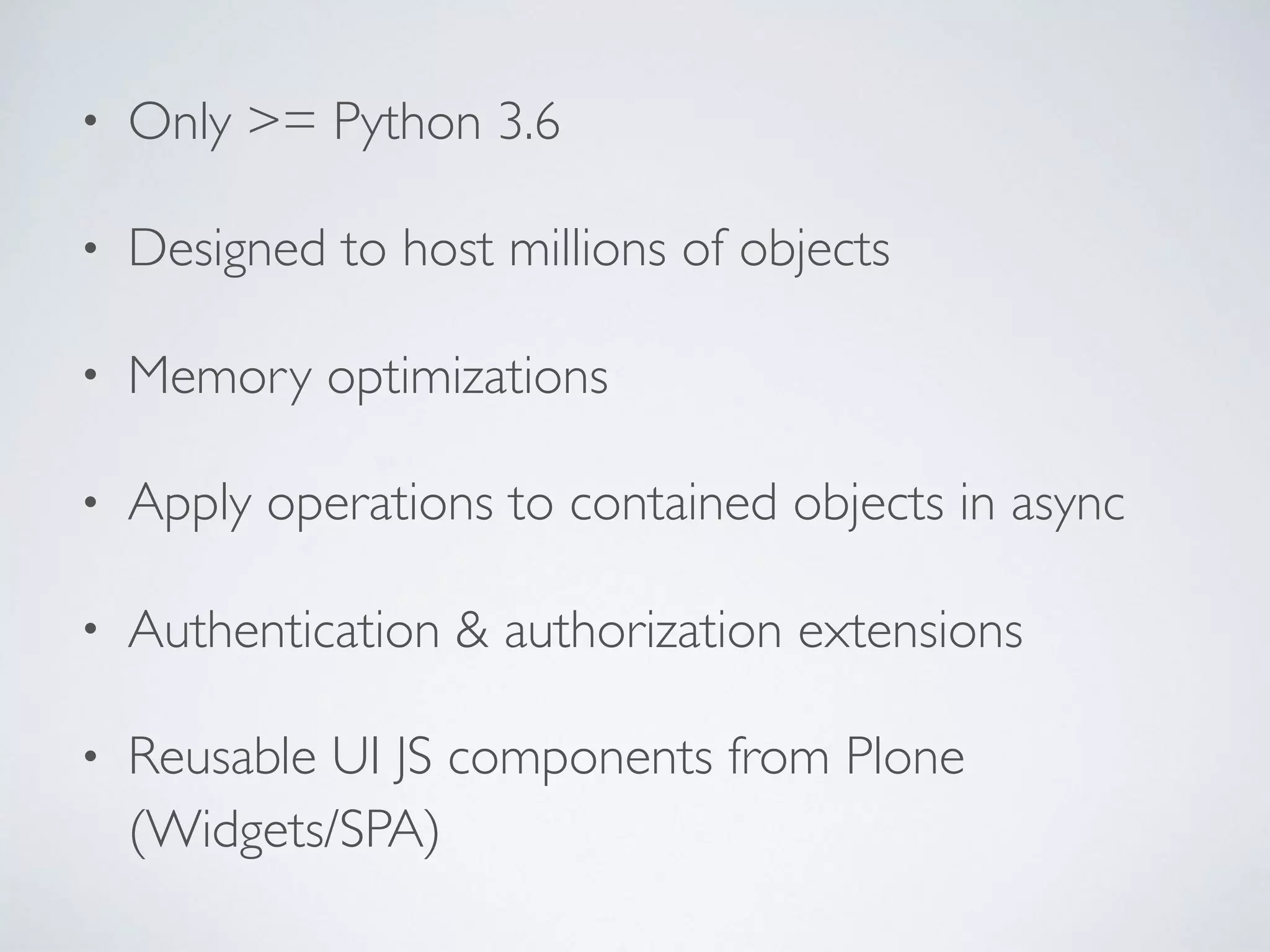

- 45. • Only >=Python 3.6 • Designed to host millions of objects • Memory optimizations • Apply operations to contained objects in async • Authentication & authorization extensions • Reusable UI JS components from Plone (Widgets/SPA)
- 46.

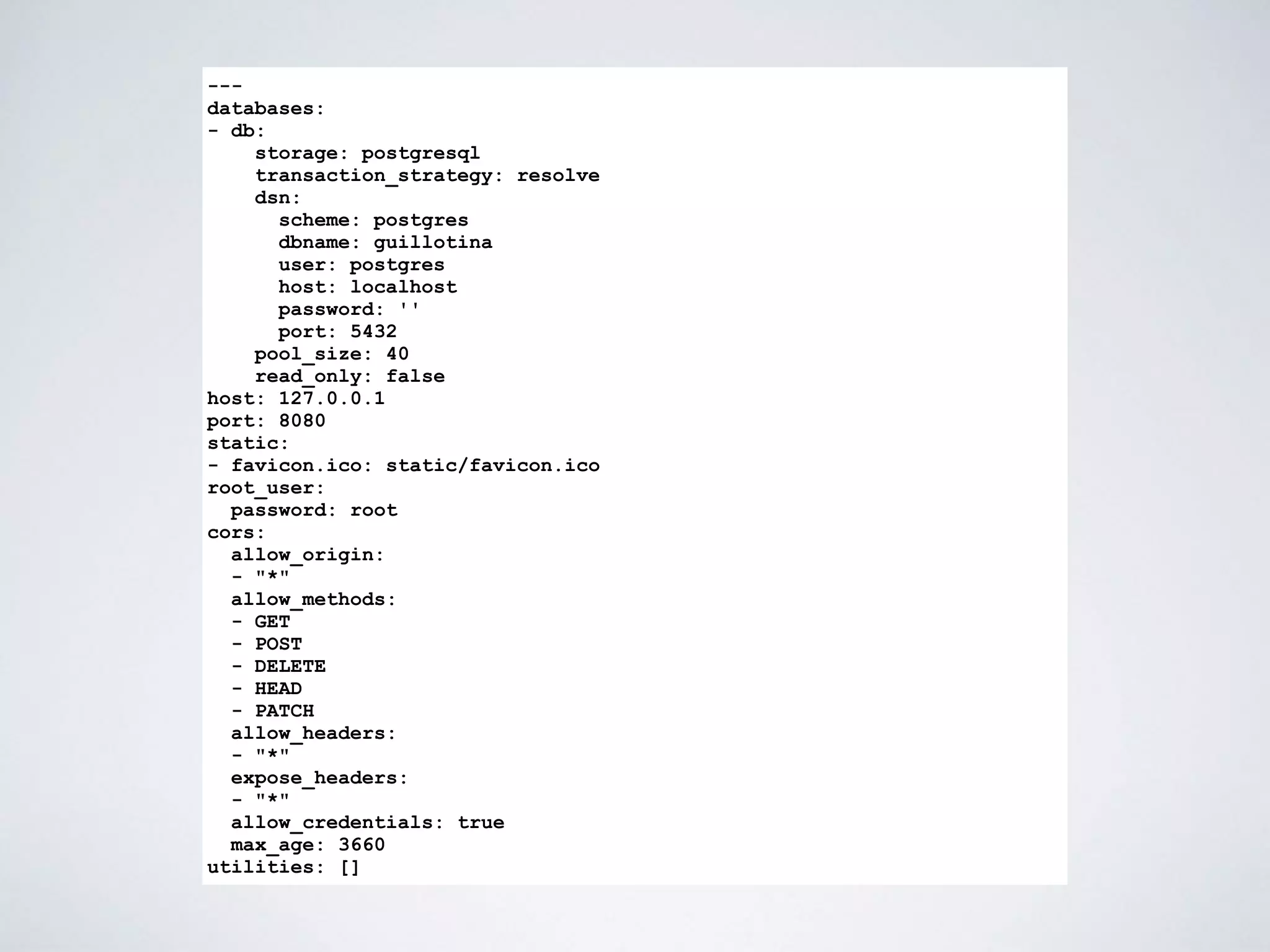

- 47. --- databases: - db: storage: postgresql transaction_strategy:resolve dsn: scheme: postgres dbname: guillotina user: postgres host: localhost password: '' port: 5432 pool_size: 40 read_only: false host: 127.0.0.1 port: 8080 static: - favicon.ico: static/favicon.ico root_user: password: root cors: allow_origin: - "*" allow_methods: - GET - POST - DELETE - HEAD - PATCH allow_headers: - "*" expose_headers: - "*" allow_credentials: true max_age: 3660 utilities: []

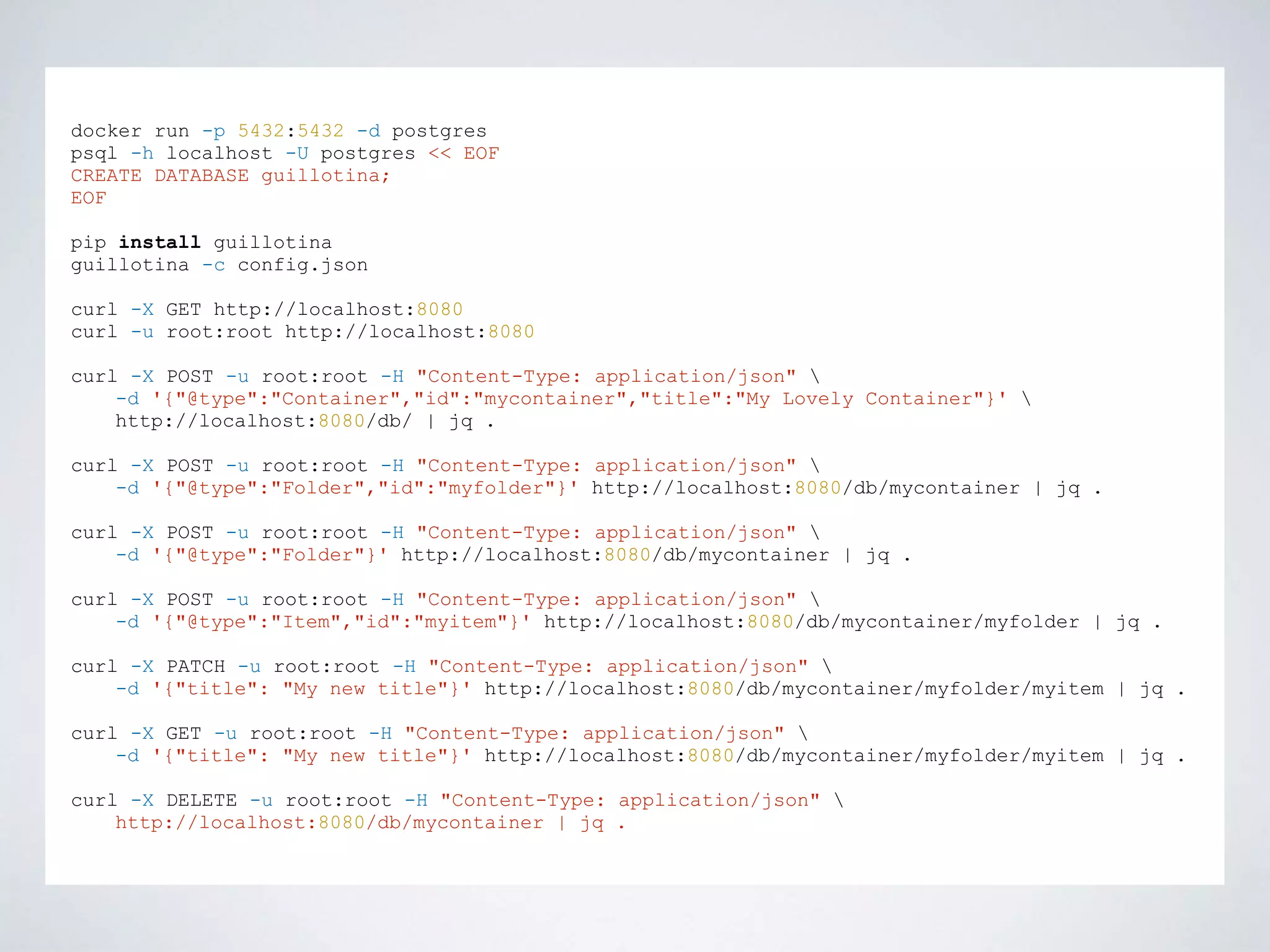

- 48. docker run -p5432:5432 -d postgres psql -h localhost -U postgres << EOF CREATE DATABASE guillotina; EOF pip install guillotina guillotina -c config.json curl -X GET http://localhost:8080 curl -u root:root http://localhost:8080 curl -X POST -u root:root -H "Content-Type: application/json" -d '{"@type":"Container","id":"mycontainer","title":"My Lovely Container"}' http://localhost:8080/db/ | jq . curl -X POST -u root:root -H "Content-Type: application/json" -d '{"@type":"Folder","id":"myfolder"}' http://localhost:8080/db/mycontainer | jq . curl -X POST -u root:root -H "Content-Type: application/json" -d '{"@type":"Folder"}' http://localhost:8080/db/mycontainer | jq . curl -X POST -u root:root -H "Content-Type: application/json" -d '{"@type":"Item","id":"myitem"}' http://localhost:8080/db/mycontainer/myfolder | jq . curl -X PATCH -u root:root -H "Content-Type: application/json" -d '{"title": "My new title"}' http://localhost:8080/db/mycontainer/myfolder/myitem | jq . curl -X GET -u root:root -H "Content-Type: application/json" -d '{"title": "My new title"}' http://localhost:8080/db/mycontainer/myfolder/myitem | jq . curl -X DELETE -u root:root -H "Content-Type: application/json" http://localhost:8080/db/mycontainer | jq .

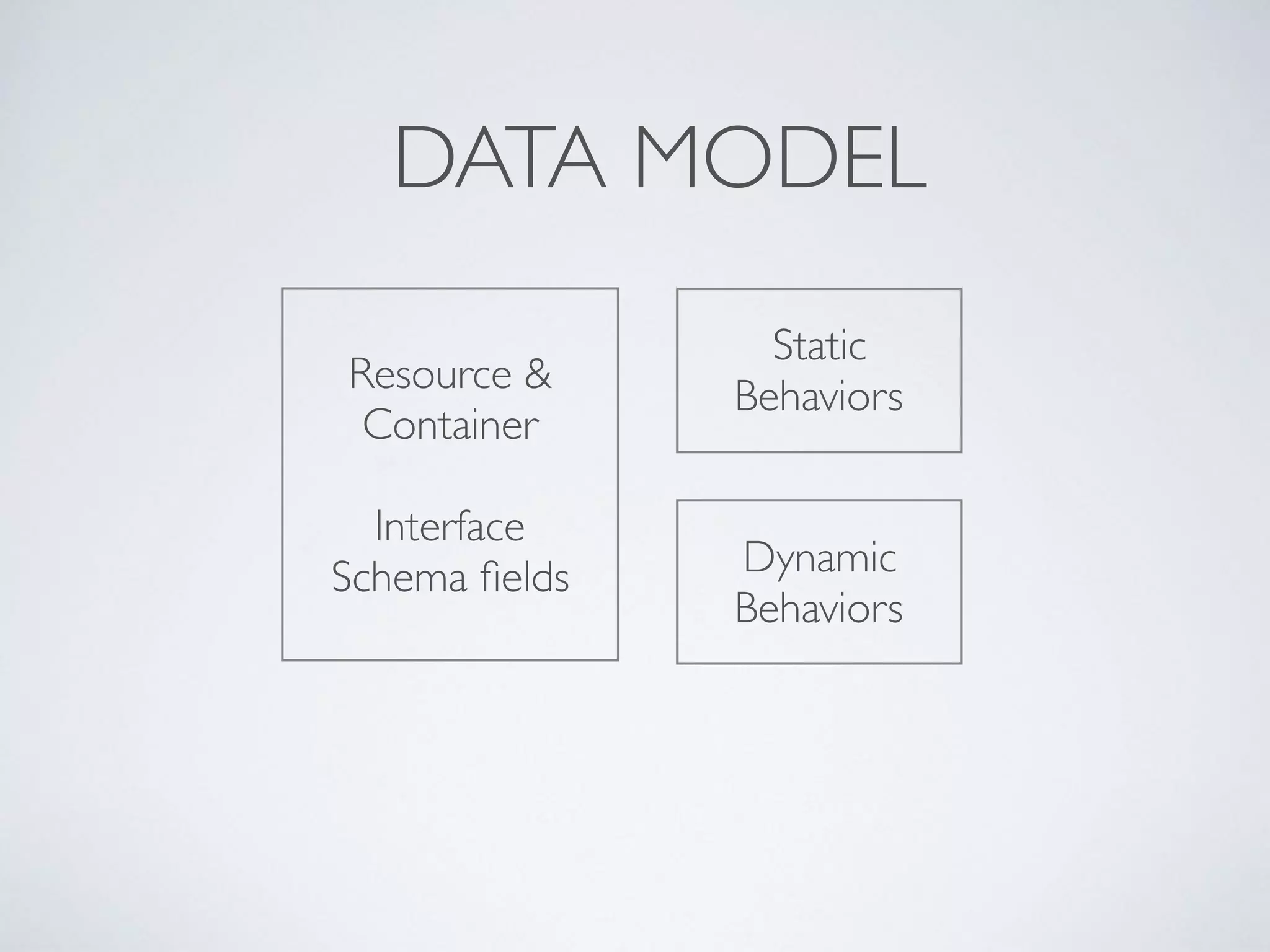

- 49. DATA MODEL Resource & Container Interface Schemafields Static Behaviors Dynamic Behaviors

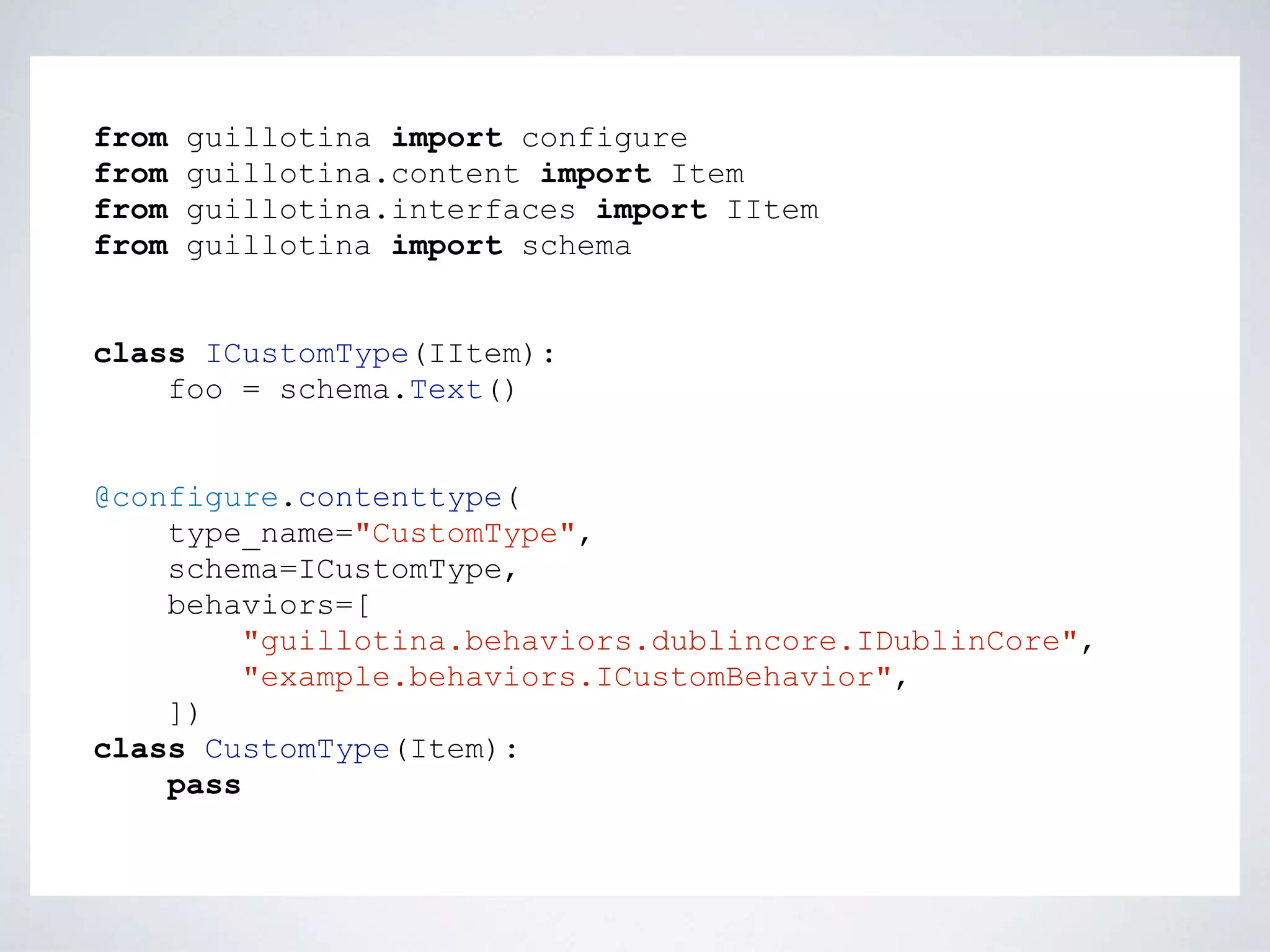

- 50. from guillotina importconfigure from guillotina.content import Item from guillotina.interfaces import IItem from guillotina import schema class ICustomType(IItem): foo = schema.Text() @configure.contenttype( type_name="CustomType", schema=ICustomType, behaviors=[ "guillotina.behaviors.dublincore.IDublinCore", "example.behaviors.ICustomBehavior", ]) class CustomType(Item): pass

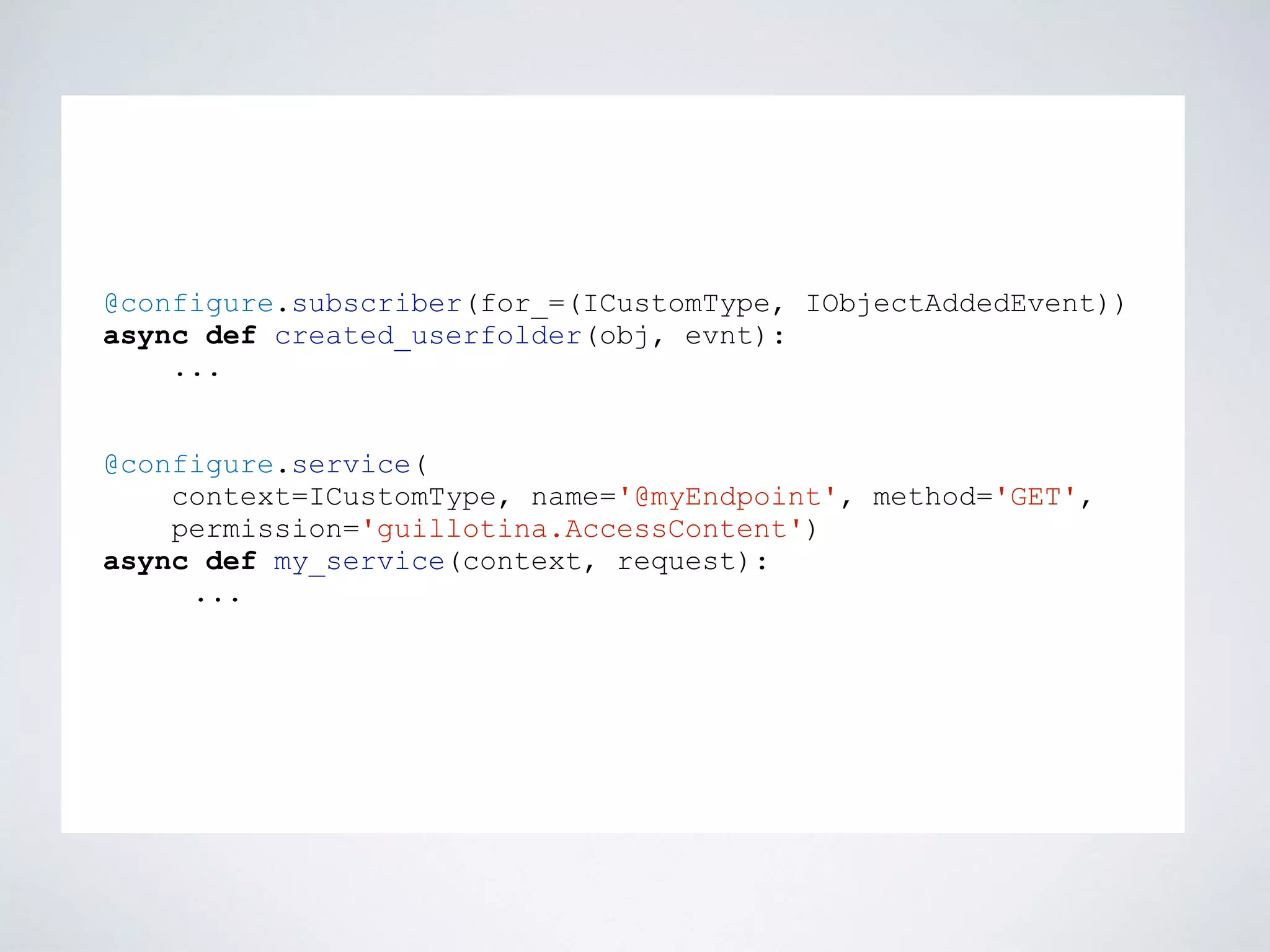

- 51. @configure.subscriber(for_=(ICustomType, IObjectAddedEvent)) async defcreated_userfolder(obj, evnt): ... @configure.service( context=ICustomType, name='@myEndpoint', method='GET', permission='guillotina.AccessContent') async def my_service(context, request): ...
- 52.
- 53. “Organizing data iswhere we spend more time and its boring.” Data Scientist Sysadmin / Engineers

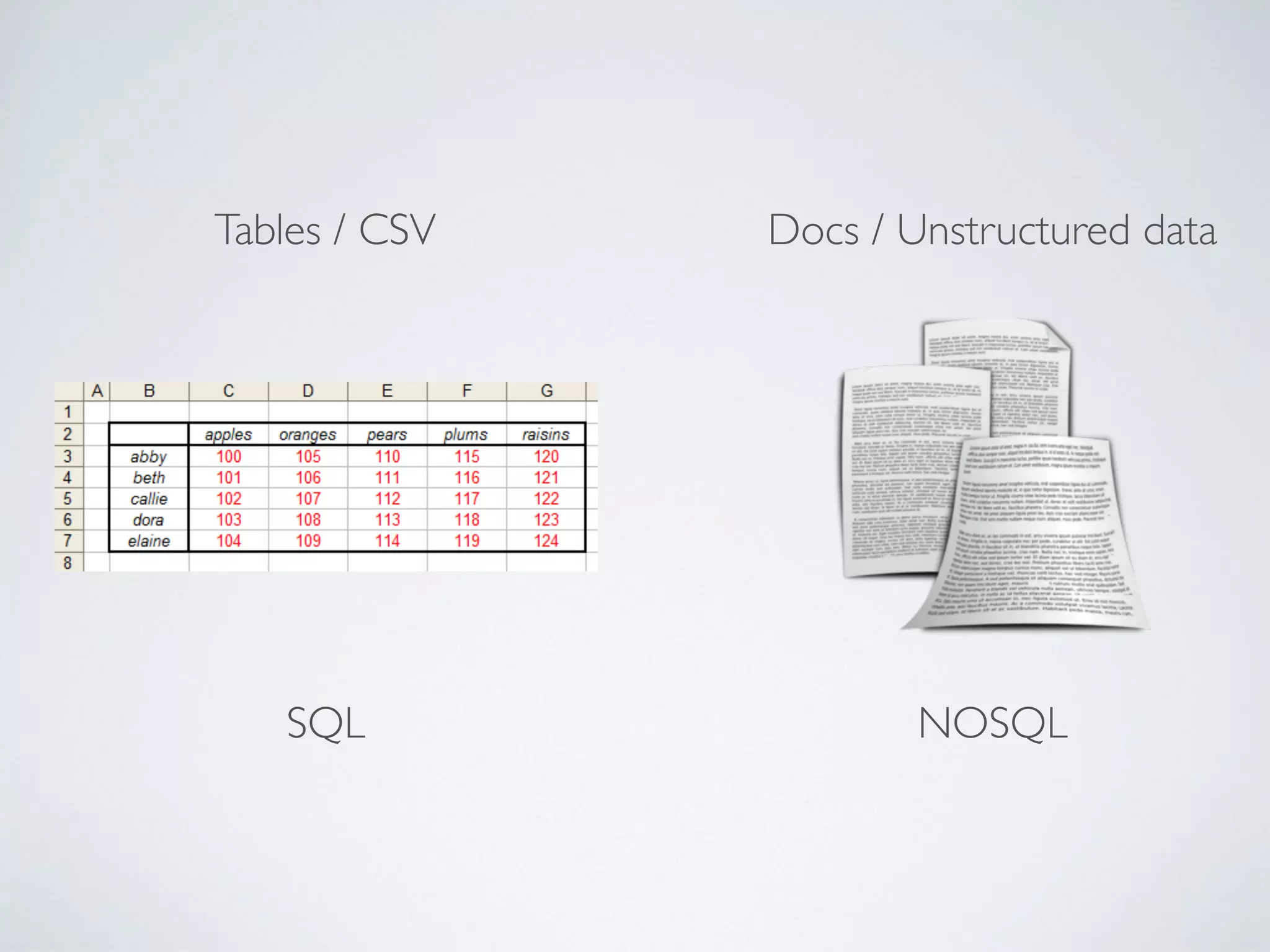

- 54. Tables / CSVDocs / Unstructured data NOSQLSQL

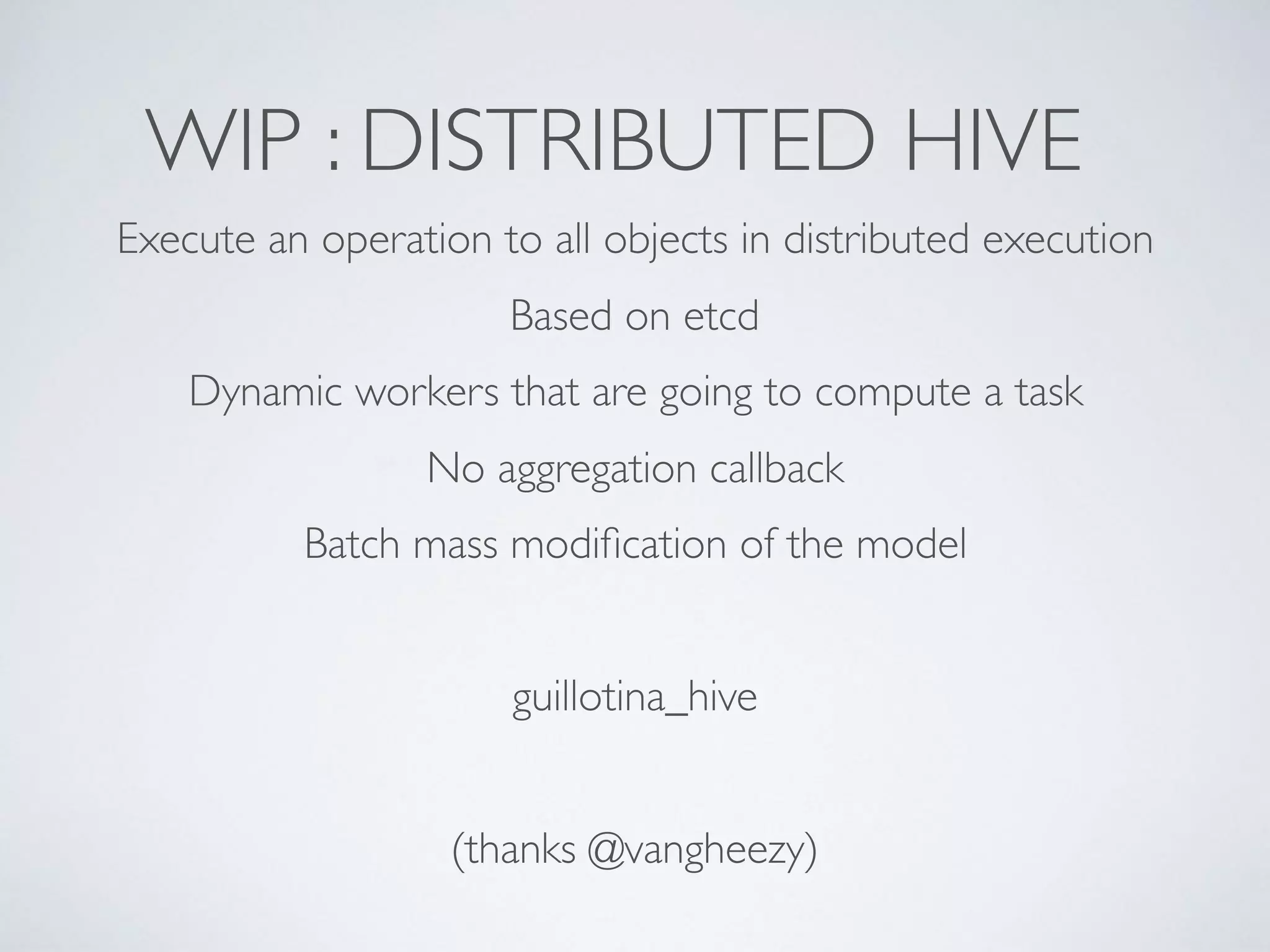

- 55. WIP : DISTRIBUTEDHIVE Execute an operation to all objects in distributed execution Based on etcd Dynamic workers that are going to compute a task No aggregation callback Batch mass modification of the model guillotina_hive (thanks @vangheezy)

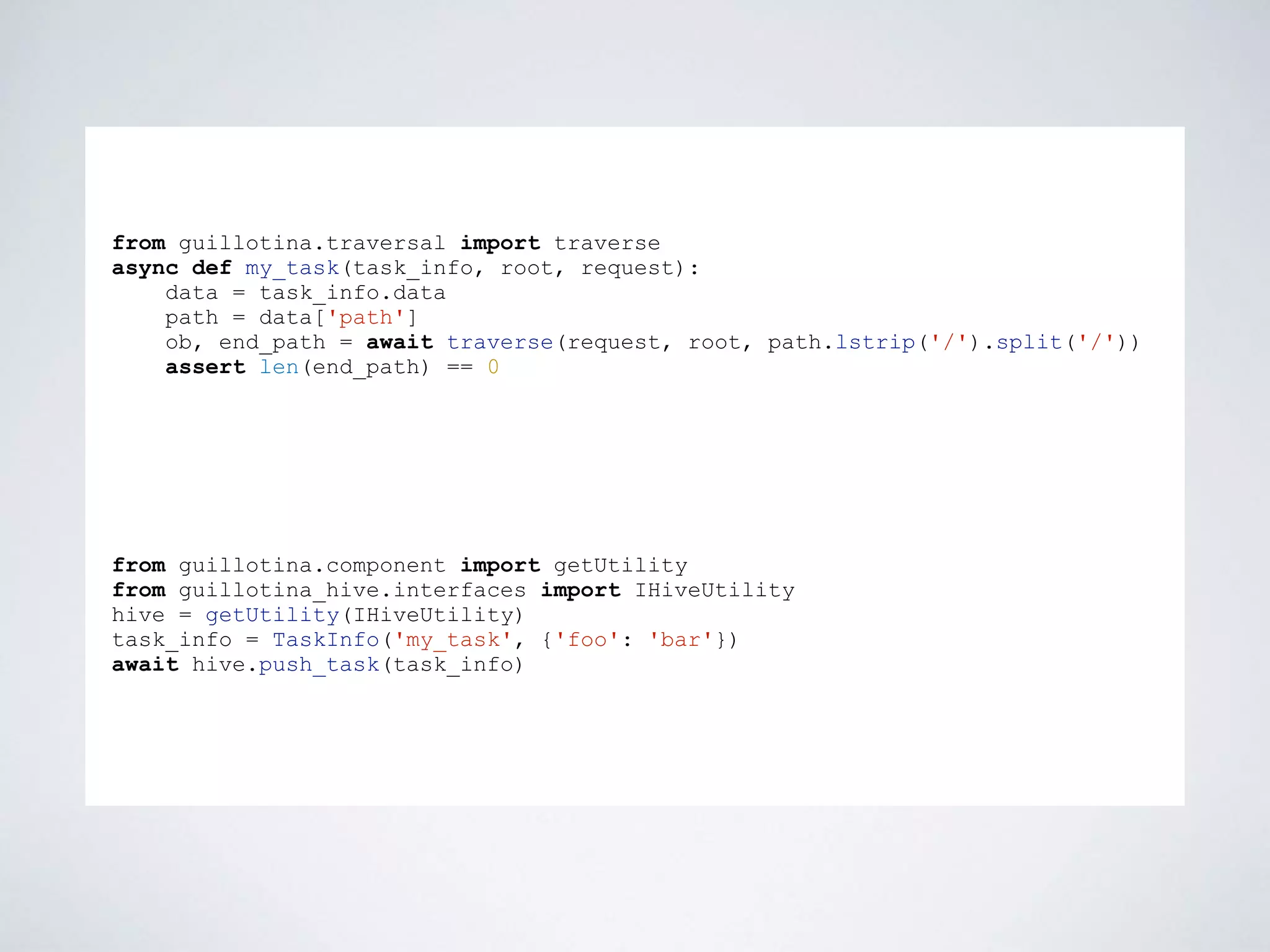

- 56. from guillotina.traversal importtraverse async def my_task(task_info, root, request): data = task_info.data path = data['path'] ob, end_path = await traverse(request, root, path.lstrip('/').split('/')) assert len(end_path) == 0 from guillotina.component import getUtility from guillotina_hive.interfaces import IHiveUtility hive = getUtility(IHiveUtility) task_info = TaskInfo('my_task', {'foo': 'bar'}) await hive.push_task(task_info)
- 57. Try it, createissues, contribute
- 58. Go to the“Introduction to AsyncIO” talk!

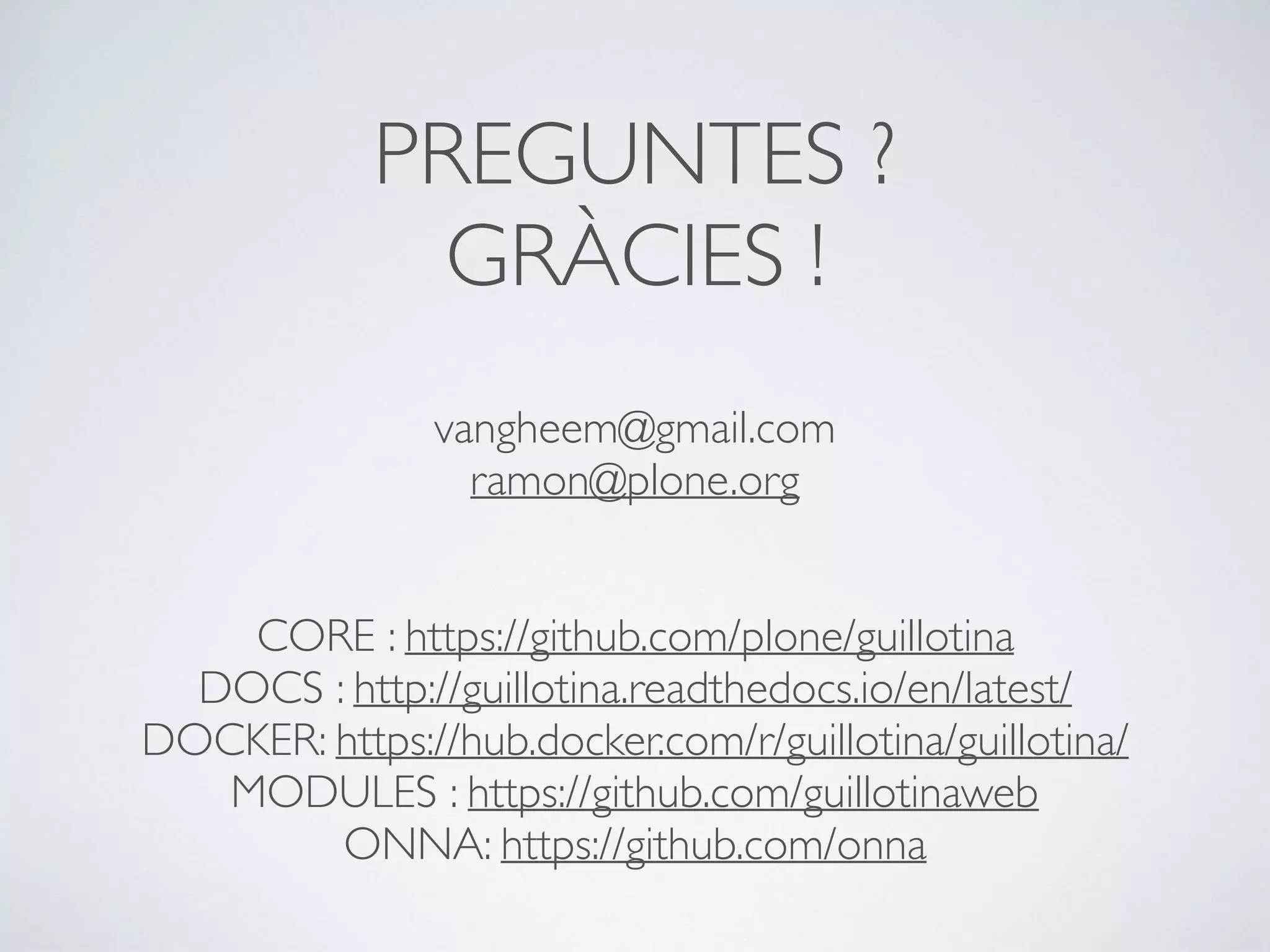

- 59. PREGUNTES ? GRÀCIES ! vangheem@gmail.com ramon@plone.org CORE: https://github.com/plone/guillotina DOCS : http://guillotina.readthedocs.io/en/latest/ DOCKER: https://hub.docker.com/r/guillotina/guillotina/ MODULES : https://github.com/guillotinaweb ONNA: https://github.com/onna
