1. Docker
Kamil y3ti Grabowski
UW@IT- 25.02.2015

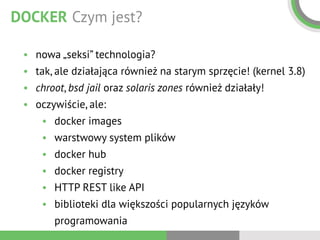

4. DOCKER Czym jest?
• nowa „seksi” technologia?
• tak, ale działająca również na starym sprzęcie! (kernel 3.8)
• chroot, bsd jail oraz solaris zones również działały!
• oczywiście, ale:
• docker images
• warstwowy system plików
• docker hub
• docker registry
• HTTP REST like API
• biblioteki dla większości popularnych języków
programowania

5. DOCKER vs VIRTUAL MACHINE
Hardware
Host OS
Hypervisor
Guest OS
Bin/Libs
APP
Guest OS
Bin/Libs
APP
Guest OS
Bin/Libs
DB
Hardware
Host OS
Bin/Libs
APP APP
Bin/Libs
DB
Docker
Virtual Machine

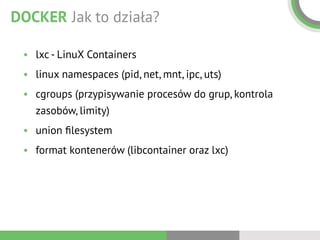

6. DOCKER Jak to działa?
• lxc - LinuX Containers
• linux namespaces (pid, net, mnt, ipc, uts)
• cgroups (przypisywanie procesów do grup, kontrola
zasobów, limity)
• union filesystem
• format kontenerów (libcontainer oraz lxc)

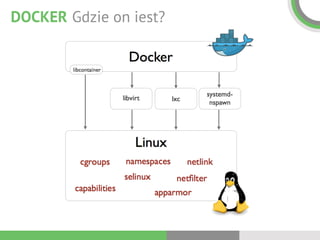

7. DOCKER Gdzie on jest?

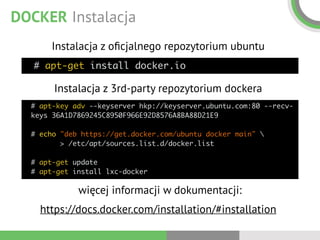

8. DOCKER Instalacja
# apt-get install docker.io
Instalacja z oficjalnego repozytorium ubuntu
# apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-
keys 36A1D7869245C8950F966E92D8576A8BA88D21E9
# echo "deb https://get.docker.com/ubuntu docker main"
> /etc/apt/sources.list.d/docker.list
# apt-get update
# apt-get install lxc-docker
Instalacja z 3rd-party repozytorium dockera
więcej informacji w dokumentacji:
https://docs.docker.com/installation/#installation

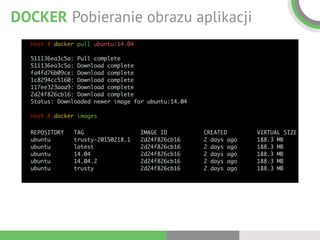

9. DOCKER Pobieranie obrazu aplikacji
host # docker pull ubuntu:14.04
511136ea3c5a: Pull complete
511136ea3c5a: Download complete
fa4fd76b09ce: Download complete
1c8294cc5160: Download complete
117ee323aaa9: Download complete
2d24f826cb16: Download complete
Status: Downloaded newer image for ubuntu:14.04
host # docker images
REPOSITORY TAG IMAGE ID CREATED VIRTUAL SIZE
ubuntu trusty-20150218.1 2d24f826cb16 2 days ago 188.3 MB
ubuntu latest 2d24f826cb16 2 days ago 188.3 MB
ubuntu 14.04 2d24f826cb16 2 days ago 188.3 MB
ubuntu 14.04.2 2d24f826cb16 2 days ago 188.3 MB
ubuntu trusty 2d24f826cb16 2 days ago 188.3 MB

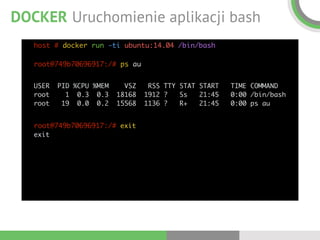

10. DOCKER Uruchomienie aplikacji bash
host # docker run -ti ubuntu:14.04 /bin/bash
root@749b70696917:/# ps au
USER PID %CPU %MEM VSZ RSS TTY STAT START TIME COMMAND
root 1 0.3 0.3 18168 1912 ? Ss 21:45 0:00 /bin/bash
root 19 0.0 0.2 15568 1136 ? R+ 21:45 0:00 ps au
root@749b70696917:/# exit
exit

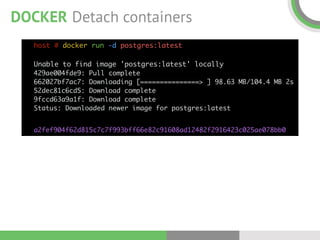

11. DOCKER Detach containers
host # docker run -d postgres:latest
Unable to find image 'postgres:latest' locally
429ae004fde9: Pull complete
662027bf7ac7: Downloading [===============> ] 98.63 MB/104.4 MB 2s
52dec81c6cd5: Download complete
9fccd63a9a1f: Download complete
Status: Downloaded newer image for postgres:latest
a2fef904f62d815c7c7f993bff66e82c91608ad12482f2916423c025ae078bb0

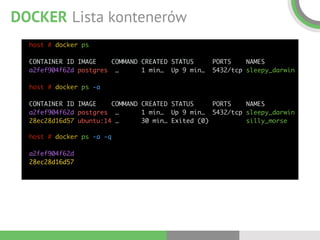

12. DOCKER Lista kontenerów
host # docker ps
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
a2fef904f62d postgres … 1 min… Up 9 min… 5432/tcp sleepy_darwin
host # docker ps -a
CONTAINER ID IMAGE COMMAND CREATED STATUS PORTS NAMES
a2fef904f62d postgres … 1 min… Up 9 min… 5432/tcp sleepy_darwin
28ec28d16d57 ubuntu:14 … 30 min… Exited (0) silly_morse
host # docker ps -a -q
a2fef904f62d
28ec28d16d57

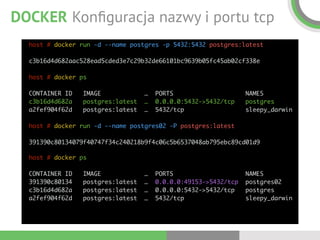

13. DOCKER Konfiguracja nazwy i portu tcp
host # docker run -d --name postgres -p 5432:5432 postgres:latest
c3b16d4d682aac528ead5cded3e7c29b32de66101bc9639b05fc45ab02cf338e
host # docker ps
CONTAINER ID IMAGE … PORTS NAMES
c3b16d4d682a postgres:latest … 0.0.0.0:5432->5432/tcp postgres
a2fef904f62d postgres:latest … 5432/tcp sleepy_darwin
host # docker run -d --name postgres02 -P postgres:latest
391390c80134079f40747f34c240218b9f4c06c5b6537048ab795ebc89cd01d9
host # docker ps
CONTAINER ID IMAGE … PORTS NAMES
391390c80134 postgres:latest … 0.0.0.0:49153->5432/tcp postgres02
c3b16d4d682a postgres:latest … 0.0.0.0:5432->5432/tcp postgres
a2fef904f62d postgres:latest … 5432/tcp sleepy_darwin

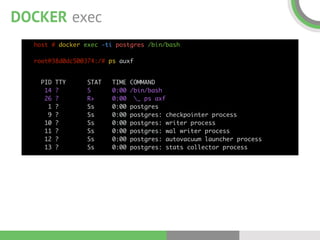

14. DOCKER exec
host # docker exec -ti postgres /bin/bash
root@38d0dc500374:/# ps auxf
PID TTY STAT TIME COMMAND
14 ? S 0:00 /bin/bash
26 ? R+ 0:00 _ ps axf
1 ? Ss 0:00 postgres
9 ? Ss 0:00 postgres: checkpointer process
10 ? Ss 0:00 postgres: writer process
11 ? Ss 0:00 postgres: wal writer process
12 ? Ss 0:00 postgres: autovacuum launcher process
13 ? Ss 0:00 postgres: stats collector process

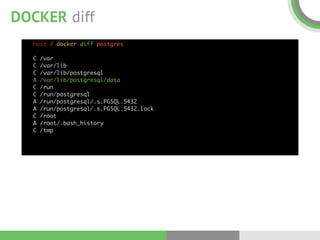

15. DOCKER diff
host # docker diff postgres
C /var
C /var/lib
C /var/lib/postgresql
A /var/lib/postgresql/data
C /run
C /run/postgresql
A /run/postgresql/.s.PGSQL.5432
A /run/postgresql/.s.PGSQL.5432.lock
C /root
A /root/.bash_history
C /tmp

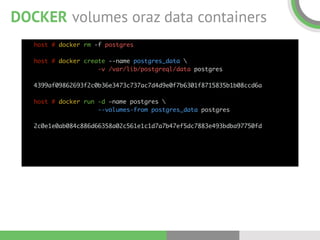

16. DOCKER volumes oraz data containers
host # docker rm -f postgres
host # docker create --name postgres_data
-v /var/lib/postgreql/data postgres
4399af09862693f2c0b36e3473c737ac7d4d9e0f7b6301f8715835b1b08ccd6a
host # docker run -d —name postgres
--volumes-from postgres_data postgres
2c0e1e0ab084c886d66358a02c561e1c1d7a7b47ef5dc7883e493bdba97750fd

17. DOCKER bind volumes
host # docker rm -f postgres
host # docker run -d —name postgres
-v /data/postgresql:/var/lib/postgreql/data postgres
79da06295d684b5b5120e6eddd24d0af38309590ef264b39c741781bdf7a58c4
host # ls /data/postgresql/
base pg_clog pg_hba.conf pg_logical pg_notify
pg_serial pg_stat pg_subtrans pg_twophase pg_xlog
postgresql.conf postmaster.pid global pg_dynshmem
pg_ident.conf pg_multixact pg_replslot pg_snapshots
pg_stat_tmp pg_tblspc PG_VERSION postgresql.auto.conf
postmaster.opts

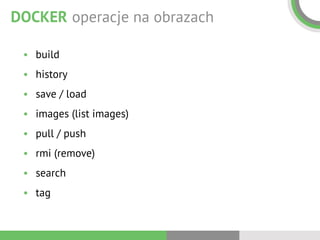

18. DOCKER operacje na obrazach
• build
• history
• save / load
• images (list images)
• pull / push
• rmi (remove)
• search
• tag

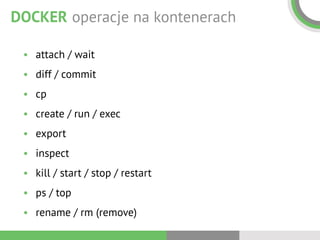

19. DOCKER operacje na kontenerach
• attach / wait
• diff / commit
• cp
• create / run / exec
• export
• inspect
• kill / start / stop / restart
• ps / top
• rename / rm (remove)

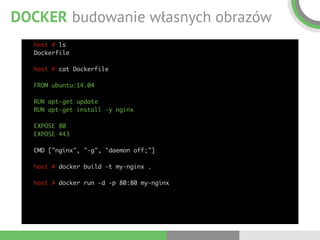

20. DOCKER budowanie własnych obrazów
host # ls
Dockerfile
host # cat Dockerfile
FROM ubuntu:14.04
RUN apt-get update
RUN apt-get install -y nginx
EXPOSE 80
EXPOSE 443
CMD ["nginx", "-g", "daemon off;"]
host # docker build -t my-nginx .
host # docker run -d -p 80:80 my-nginx

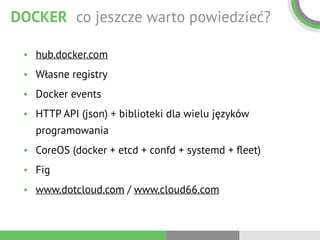

21. DOCKER co jeszcze warto powiedzieć?
• hub.docker.com
• Własne registry
• Docker events
• HTTP API (json) + biblioteki dla wielu języków
programowania
• CoreOS (docker + etcd + confd + systemd + fleet)
• Fig
• www.dotcloud.com / www.cloud66.com

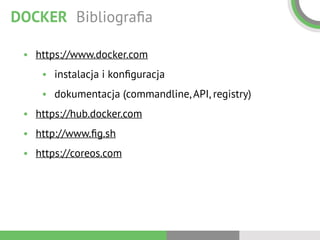

22. DOCKER Bibliografia
• https://www.docker.com
• instalacja i konfiguracja
• dokumentacja (commandline, API, registry)
• https://hub.docker.com
• http://www.fig.sh
• https://coreos.com

23. Pytania?

24. Dziękuję za uwagę
Kamil y3ti Grabowski
