1. Gradle 2.
Write once, build everywhere.
Sergey Morenes, morenets@mail.ru
March, 26 2015

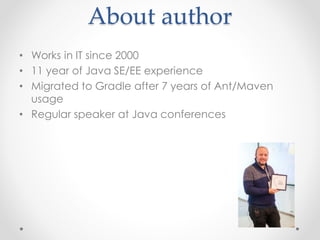

2. About author
• Works in IT since 2000
• 11 year of Java SE/EE experience
• Migrated to Gradle after 7 years of Ant/Maven
usage
• Regular speaker at Java conferences

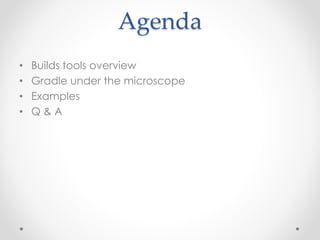

3. Agenda
• Builds tools overview
• Gradle under the microscope
• Examples
• Q & A

4. Lost in selection

5. Magic pill

6. Apache Ant
• Offers extreme flexibility
• Imposes no convention
• Lightweight dependency management

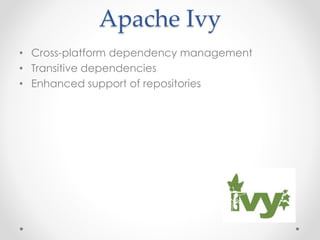

7. Apache Ivy
• Cross-platform dependency management
• Transitive dependencies
• Enhanced support of repositories

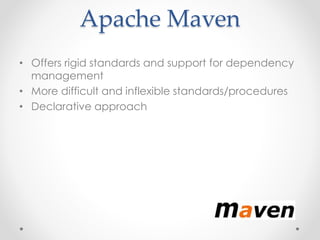

8. Apache Maven
• Offers rigid standards and support for dependency
management
• More difficult and inflexible standards/procedures
• Declarative approach

9. Issue #1. XML
• Large and complex files are hard to understand
• Hierarchical structure limits the expressiveness
of the format
• Good format for the data and complex for the flow

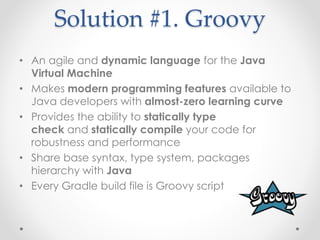

10. Solution #1. Groovy
• An agile and dynamic language for the Java
Virtual Machine
• Makes modern programming features available to
Java developers with almost-zero learning curve
• Provides the ability to statically type
check and statically compile your code for
robustness and performance
• Share base syntax, type system, packages
hierarchy with Java
• Every Gradle build file is Groovy script

11. Gradle
• Flexible yet model-driven JVM-based build tool
• Acknowledges and improves on the very best ideas
from Make, Ant, Ivy, Maven, Rake, Gant, Scons, SBT,
Leinengen, and Buildr

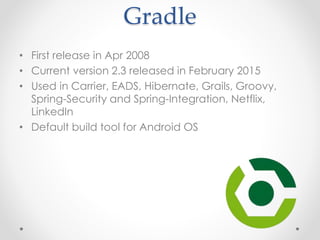

12. Gradle
• First release in Apr 2008
• Current version 2.3 released in February 2015
• Used in Carrier, EADS, Hibernate, Grails, Groovy,
Spring-Security and Spring-Integration, Netflix,
LinkedIn
• Default build tool for Android OS

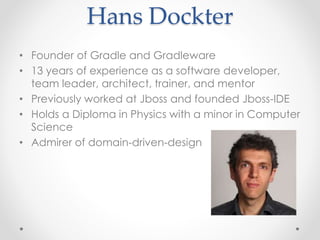

13. Hans Dockter
• Founder of Gradle and Gradleware
• 13 years of experience as a software developer,
team leader, architect, trainer, and mentor
• Previously worked at Jboss and founded Jboss-IDE
• Holds a Diploma in Physics with a minor in Computer
Science
• Admirer of domain-driven-design

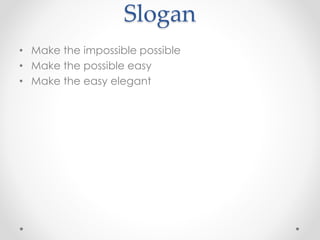

14. Slogan
• Make the impossible possible
• Make the possible easy
• Make the easy elegant

15. Gradle overview
• A flexible general purpose build tool
• Declarative builds and build-by-convention plugins
on top
• Multi-project support
• Powerful dependency management based on Ivy
• Gradle is written in Java with a Groovy DSL layer on
top
• Programming tool
• Based on Groovy

16. Development
Version Release date
Maven 1.0 2004
Maven 2.0 2005
Maven 3.0 2010
Maven 3.1 2013
Maven 3.3 2015

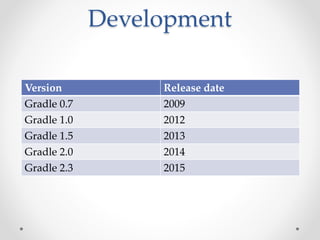

17. Development
Version Release date
Gradle 0.7 2009
Gradle 1.0 2012
Gradle 1.5 2013
Gradle 2.0 2014
Gradle 2.3 2015

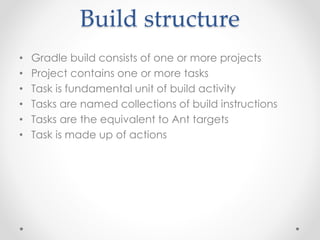

18. Build structure
• Gradle build consists of one or more projects
• Project contains one or more tasks
• Task is fundamental unit of build activity
• Tasks are named collections of build instructions
• Tasks are the equivalent to Ant targets
• Task is made up of actions

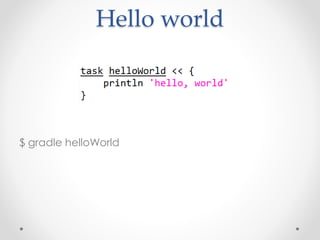

19. Hello world
$ gradle helloWorld

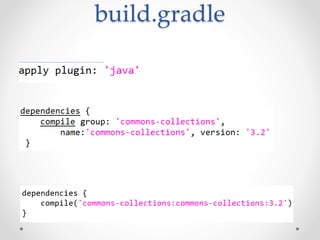

20. build.gradle

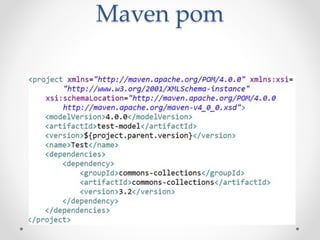

21. Maven pom

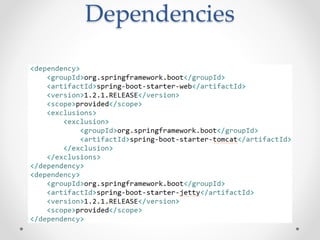

22. Dependencies

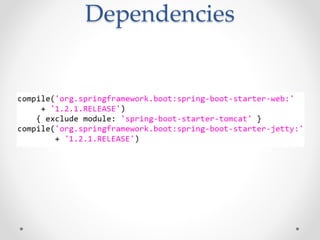

23. Dependencies

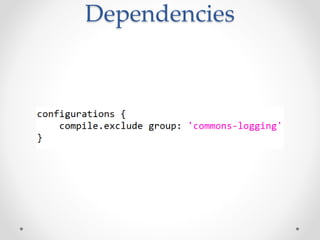

24. Dependencies

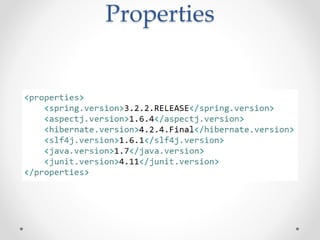

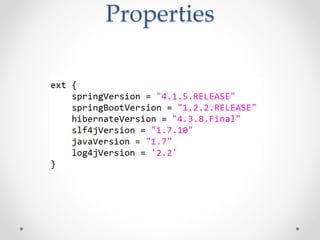

25. Properties

26. Properties

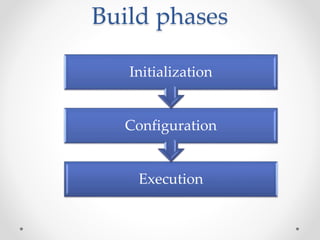

27. Build phases
Execution
Configuration
Initialization

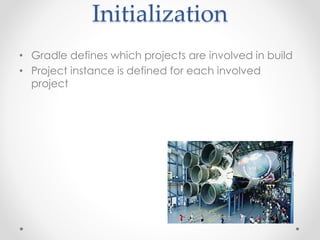

28. Initialization
• Gradle defines which projects are involved in build
• Project instance is defined for each involved
project

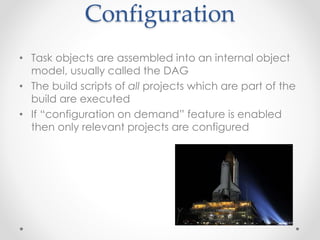

29. Configuration
• Task objects are assembled into an internal object
model, usually called the DAG
• The build scripts of all projects which are part of the
build are executed
• If “configuration on demand” feature is enabled
then only relevant projects are configured

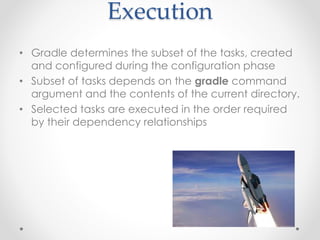

30. Execution
• Gradle determines the subset of the tasks, created
and configured during the configuration phase
• Subset of tasks depends on the gradle command
argument and the contents of the current directory.
• Selected tasks are executed in the order required
by their dependency relationships

31. DefaultTask
• dependsOn(task)
• doFirst(closure)
• doLast(closure)
• onlyIf(closure)

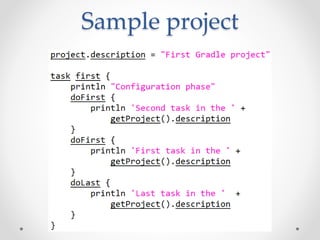

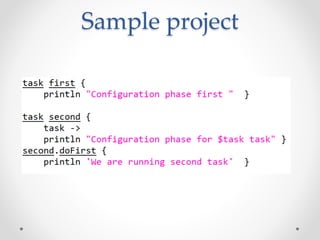

32. Sample project

33. Sample project

34. Dependent tasks

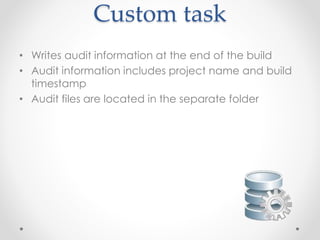

35. Custom task
• Writes audit information at the end of the build
• Audit information includes project name and build
timestamp
• Audit files are located in the separate folder

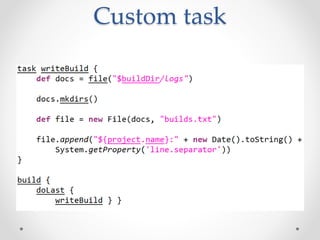

36. Custom task

37. Custom task

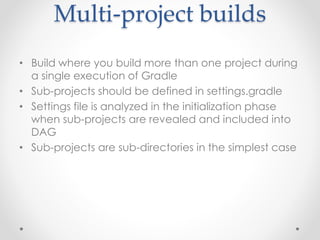

38. Multi-project builds
• Build where you build more than one project during
a single execution of Gradle
• Sub-projects should be defined in settings.gradle
• Settings file is analyzed in the initialization phase
when sub-projects are revealed and included into
DAG
• Sub-projects are sub-directories in the simplest case

39. settings.gradle

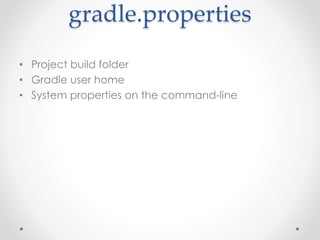

40. gradle.properties
• Project build folder
• Gradle user home
• System properties on the command-line

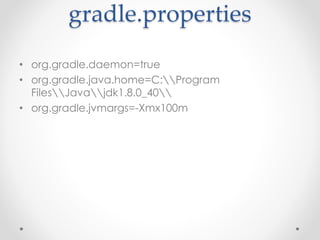

41. gradle.properties
• org.gradle.daemon=true
• org.gradle.java.home=C:Program
FilesJavajdk1.8.0_40
• org.gradle.jvmargs=-Xmx100m

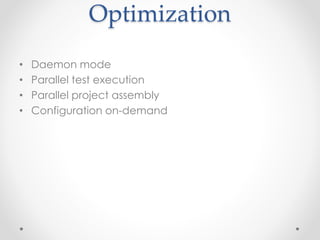

42. Optimization
• Daemon mode
• Parallel test execution
• Parallel project assembly
• Configuration on-demand

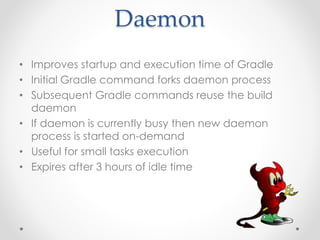

43. Daemon
• Improves startup and execution time of Gradle
• Initial Gradle command forks daemon process
• Subsequent Gradle commands reuse the build
daemon
• If daemon is currently busy then new daemon
process is started on-demand
• Useful for small tasks execution
• Expires after 3 hours of idle time

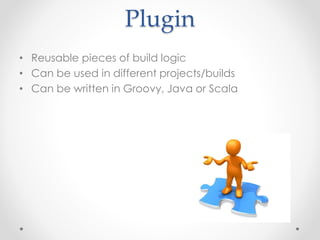

44. Plugin
• Reusable pieces of build logic
• Can be used in different projects/builds
• Can be written in Groovy, Java or Scala

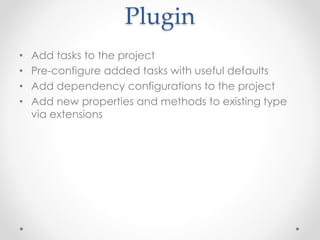

45. Plugin
• Add tasks to the project
• Pre-configure added tasks with useful defaults
• Add dependency configurations to the project
• Add new properties and methods to existing type
via extensions

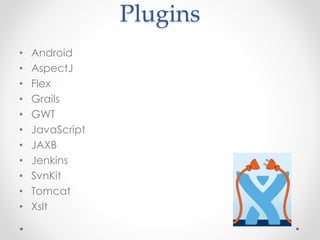

46. Plugins
• Android
• AspectJ
• Flex
• Grails
• GWT
• JavaScript
• JAXB
• Jenkins
• SvnKit
• Tomcat
• Xslt

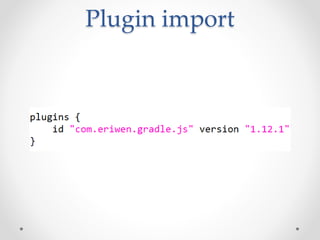

47. Plugin import

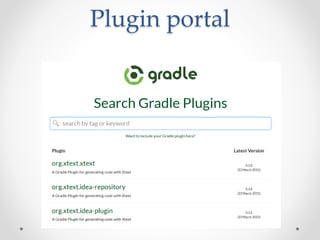

48. Plugin portal

49. Plugin import

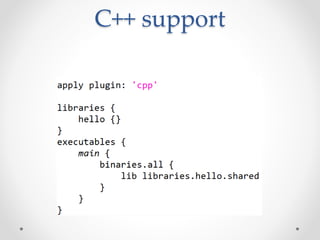

50. C++ support

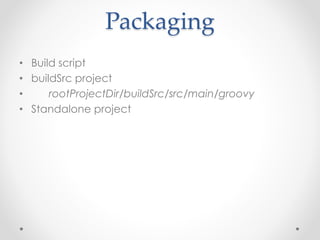

51. Packaging
• Build script
• buildSrc project
• rootProjectDir/buildSrc/src/main/groovy
• Standalone project

52. Integration
• Ant
• Maven
• Ivy

53. Gradle and Ant
• Gradle is often described as Groovy-based Ant.
• Competitor of Gant(Groovy Ant scripting)
• Share DAG concept
• Gradle tasks are similar to Ant targrets
• Gradle variables(typeless) are close to Ant
properties

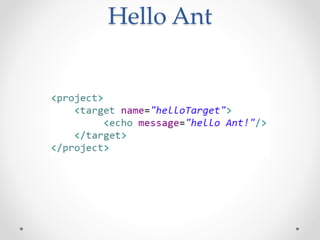

54. Hello Ant

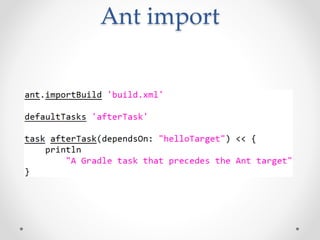

55. Ant import

56. Gradle and Maven

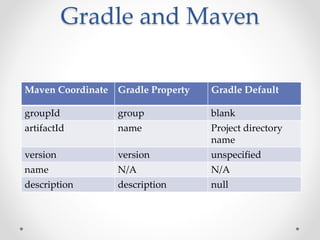

57. Gradle and Maven
Maven Coordinate Gradle Property Gradle Default
groupId group blank
artifactId name Project directory
name
version version unspecified
name N/A N/A
description description null

58. Comparison
• Maven 3.3.1
• Gradle 2.3
• Optimized and default modes

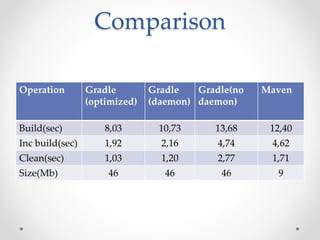

59. Comparison
Operation Gradle
(optimized)
Gradle
(daemon)
Gradle(no
daemon)
Maven
Build(sec) 8,03 10,73 13,68 12,40
Inc build(sec) 1,92 2,16 4,74 4,62
Clean(sec) 1,03 1,20 2,77 1,71
Size(Mb) 46 46 46 9

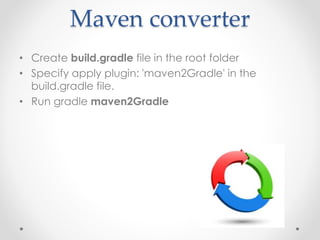

60. Maven converter
• Create build.gradle file in the root folder
• Specify apply plugin: 'maven2Gradle' in the
build.gradle file.
• Run gradle maven2Gradle

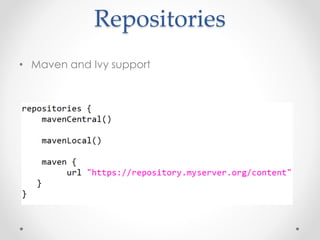

61. Repositories
• Maven and Ivy support

62. Maven Scope

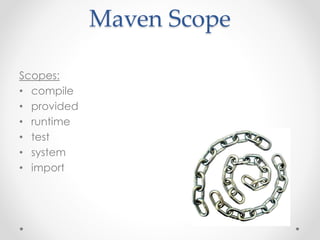

63. Maven Scope
Scopes:
• compile
• provided
• runtime
• test
• system
• import

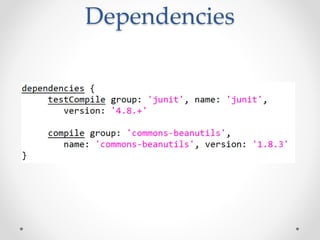

64. Dependencies

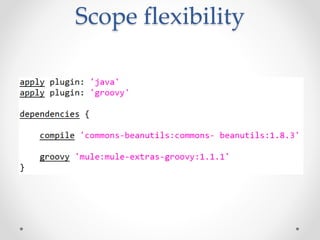

65. Scope flexibility

66. Profiles
• build.gradle
• dev-profile.gradle
• test-profile.gradle
• $ gradle –Pprofile=dev build

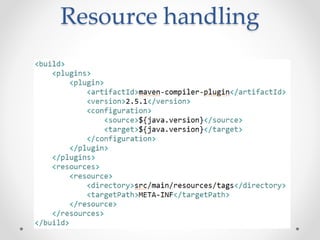

67. Resource handling

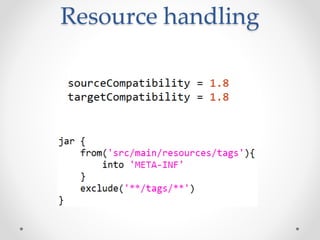

68. Resource handling

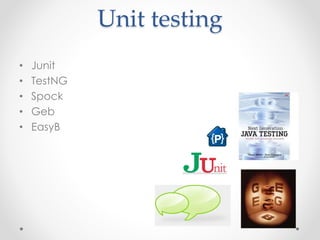

69. Unit testing
• Junit
• TestNG
• Spock
• Geb
• EasyB

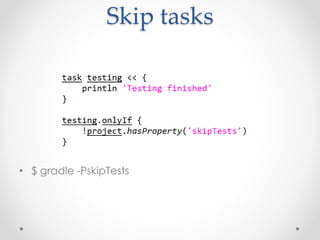

70. Skip tasks
• $ gradle -PskipTests

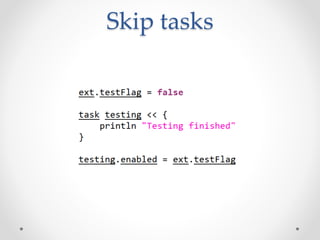

71. Skip tasks

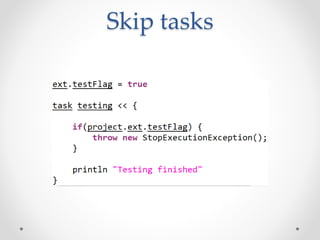

72. Skip tasks

73. Caching
• Gradle caches all compiles scripts by default
• Compiled scripts are put into .gradle folder
• Gradle uses compiled version if the script hasn’t
changed
• --recompile-scripts option discards cache

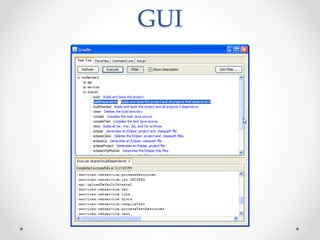

74. GUI

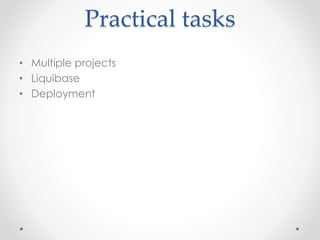

75. Practical tasks
• Multiple projects
• Liquibase
• Deployment

76. Multiple projects
• Huge project
• Multiple sub-projects/pom.xml files
• Complicated maintenance

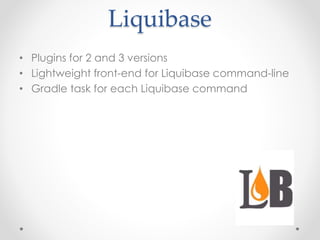

77. Liquibase
• Plugins for 2 and 3 versions
• Lightweight front-end for Liquibase command-line
• Gradle task for each Liquibase command

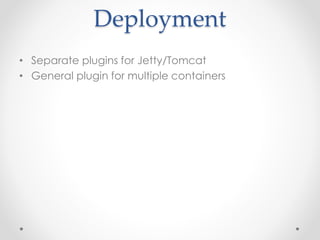

78. Deployment
• Separate plugins for Jetty/Tomcat
• General plugin for multiple containers

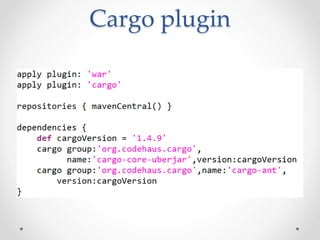

79. Cargo plugin

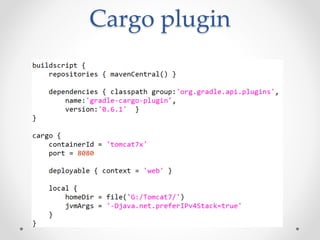

80. Cargo plugin

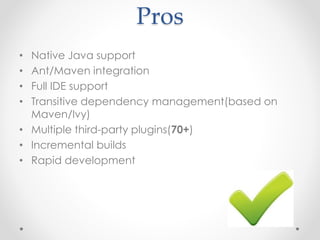

81. Pros
• Native Java support
• Ant/Maven integration
• Full IDE support
• Transitive dependency management(based on
Maven/Ivy)
• Multiple third-party plugins(70+)
• Incremental builds
• Rapid development

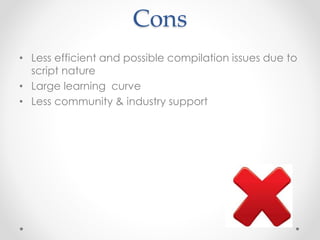

82. Cons
• Less efficient and possible compilation issues due to
script nature
• Large learning curve
• Less community & industry support

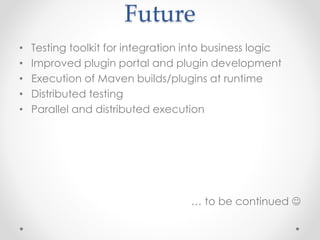

83. Future
• Testing toolkit for integration into business logic
• Improved plugin portal and plugin development
• Execution of Maven builds/plugins at runtime
• Distributed testing
• Parallel and distributed execution
… to be continued 

84. Resources

85. Resources

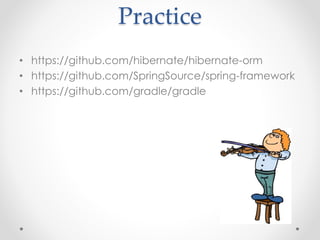

86. Practice
• https://github.com/hibernate/hibernate-orm
• https://github.com/SpringSource/spring-framework
• https://github.com/gradle/gradle

87. Q&A
• Сергей Моренец, morenets@mail.ru
