The document describes a new streaming media player called Nexus Q. It can stream music, movies, TV shows, and YouTube videos from Android phones and tablets to a TV or speakers. It has built-in WiFi and Bluetooth to connect to other devices. The LED lights on its surface change color and pulse to the beat of the music. It is designed to be an easy way to enjoy streaming media in the living room.

1. Phone Tablet Player

2. Phone Tablet Player

3. Phone Tablet Player

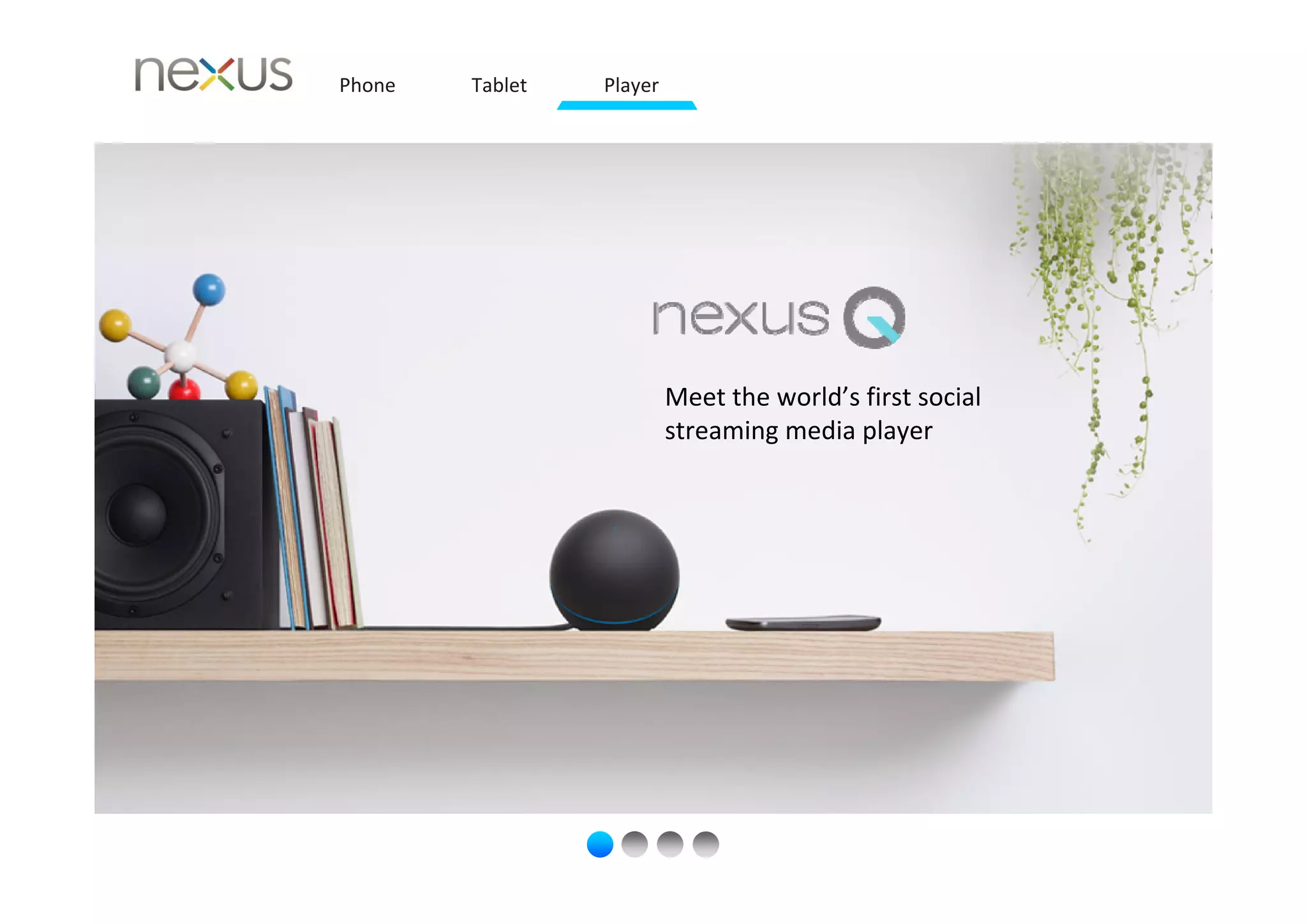

Meet the world’s first social
streaming media player

4. Phone Tablet Player

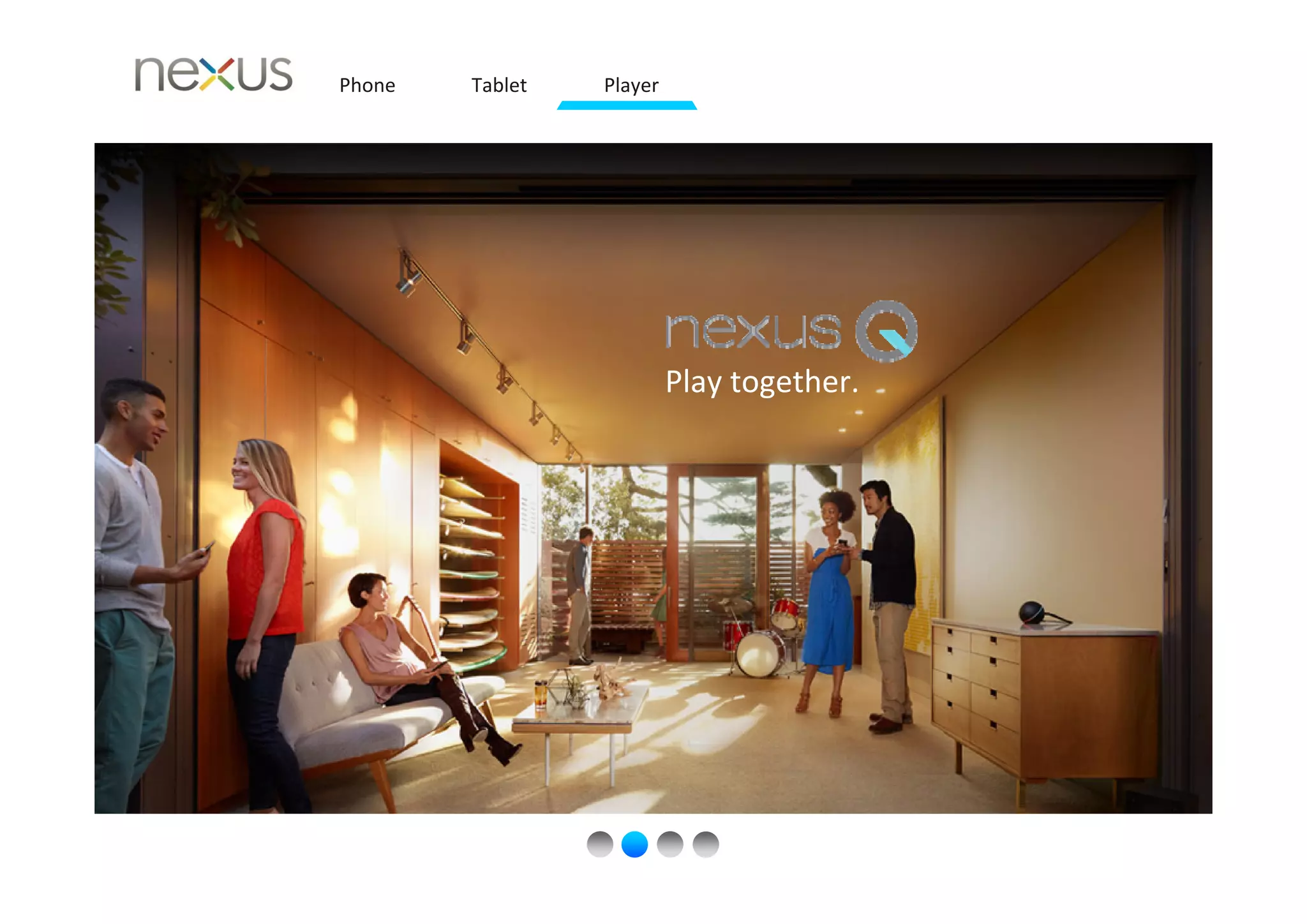

Play together.

5. Phone Tablet Player

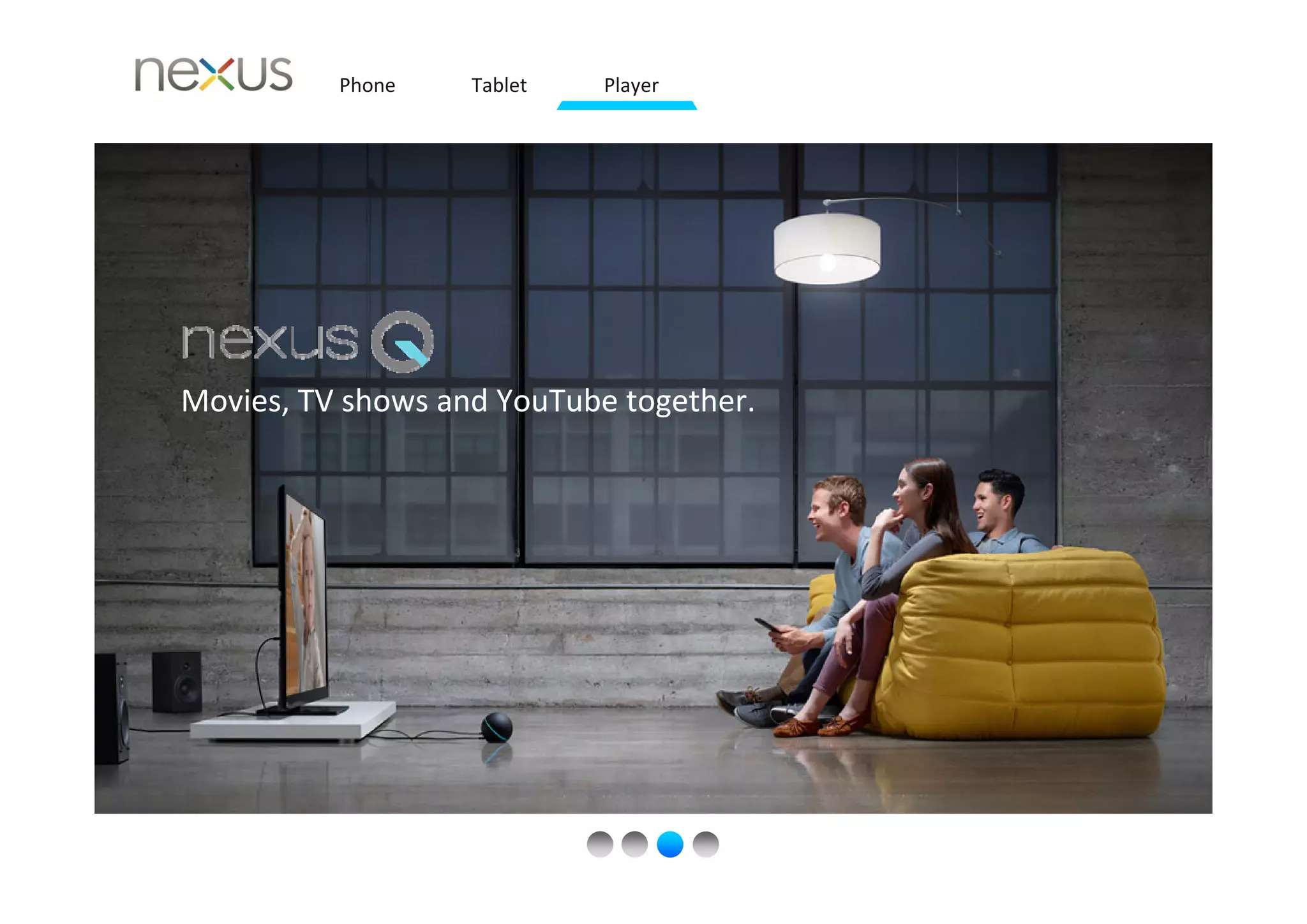

Movies, TV shows and YouTube together.

6. Phone Tablet Player

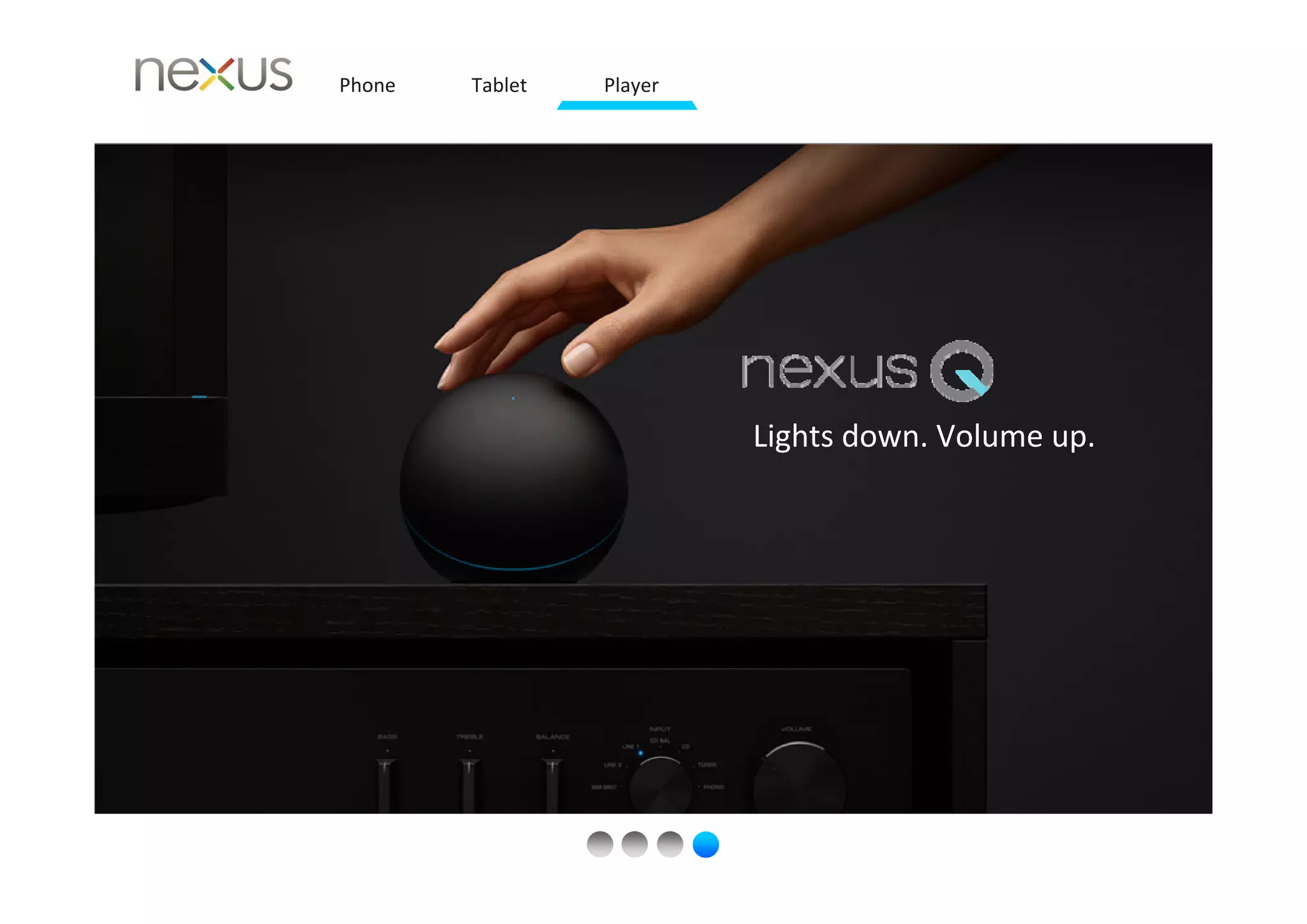

Lights down. Volume up.

7. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

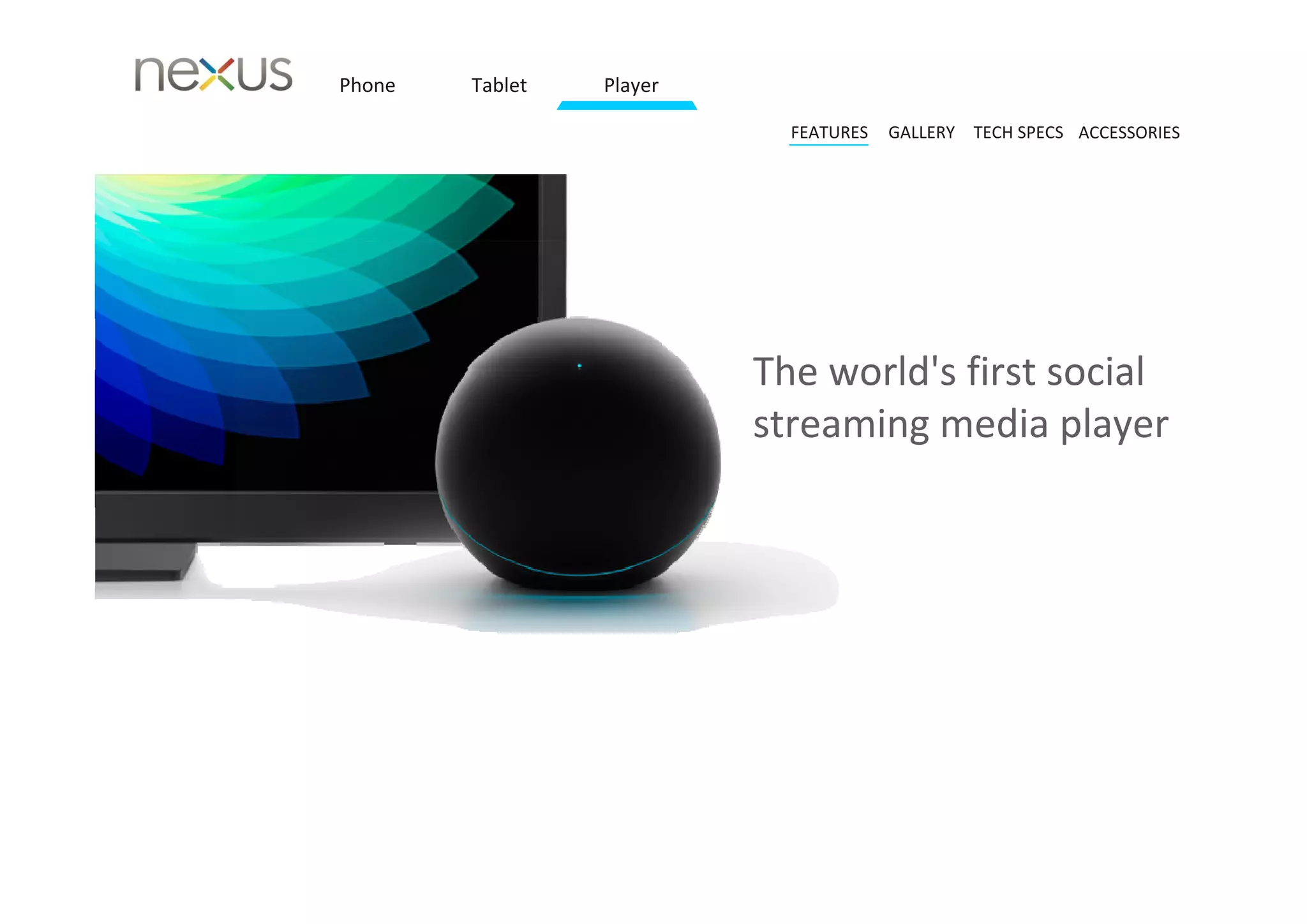

The world's first social
streaming media player

8. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

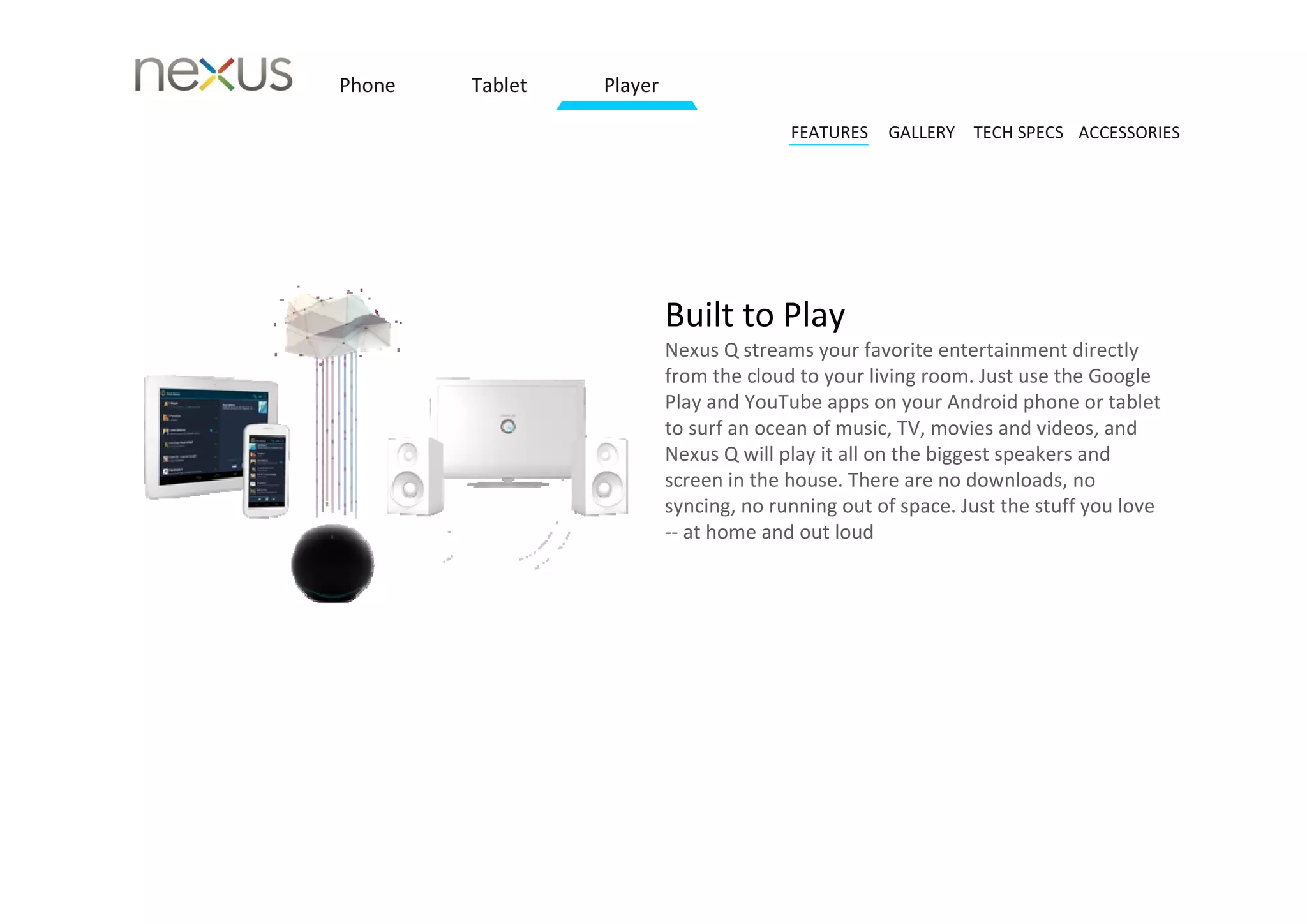

Built to Play
Nexus Q streams your favorite entertainment directly
from the cloud to your living room. Just use the Google
Play and YouTube apps on your Android phone or tablet
to surf an ocean of music, TV, movies and videos, and
Nexus Q will play it all on the biggest speakers and
screen in the house. There are no downloads, no
syncing, no running out of space. Just the stuff you love
‐‐ at home and out loud

9. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

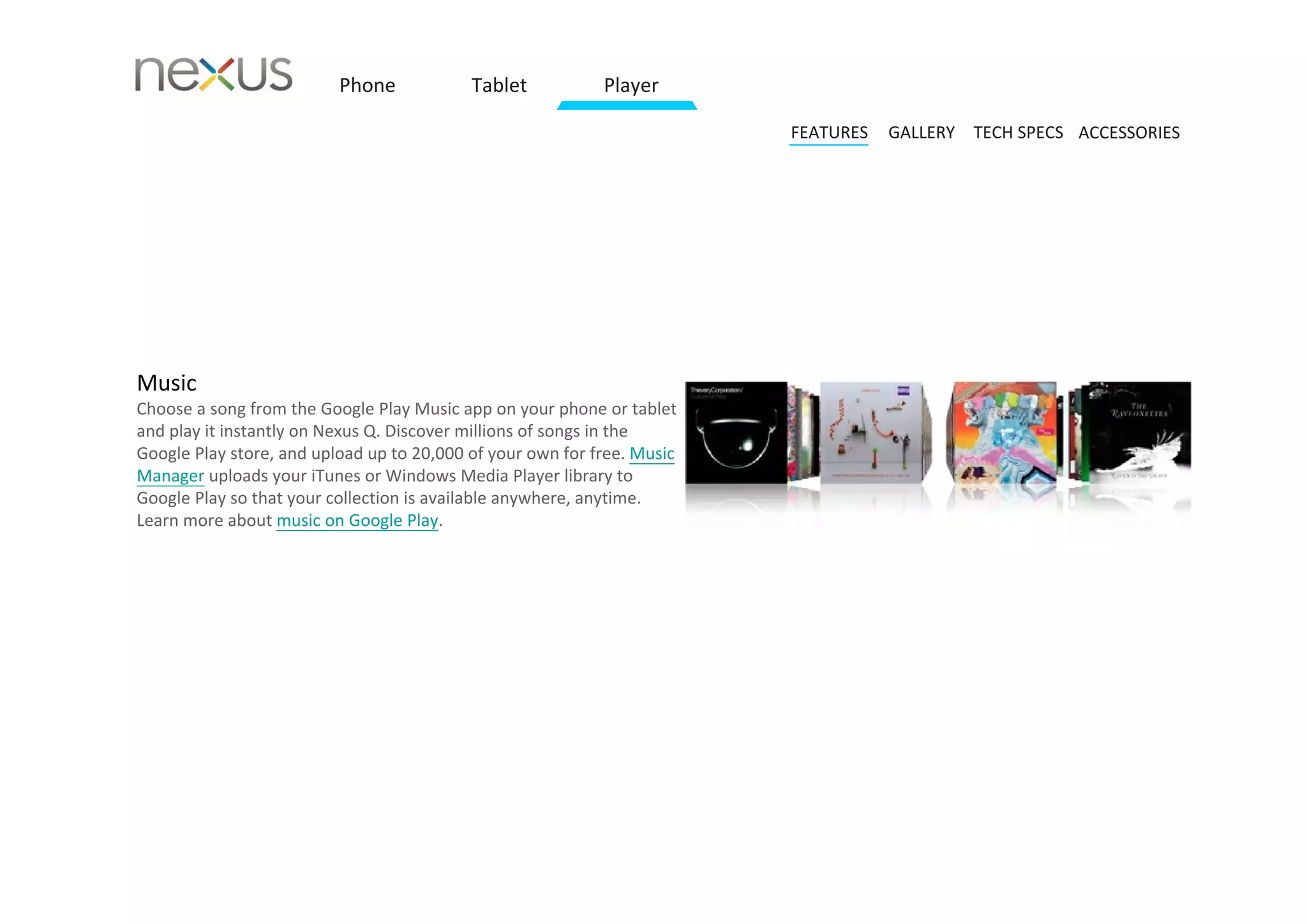

Music
Choose a song from the Google Play Music app on your phone or tablet
and play it instantly on Nexus Q. Discover millions of songs in the
Google Play store, and upload up to 20,000 of your own for free. Music
Manager uploads your iTunes or Windows Media Player library to
Google Play so that your collection is available anywhere, anytime.
Learn more about music on Google Play.

10. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

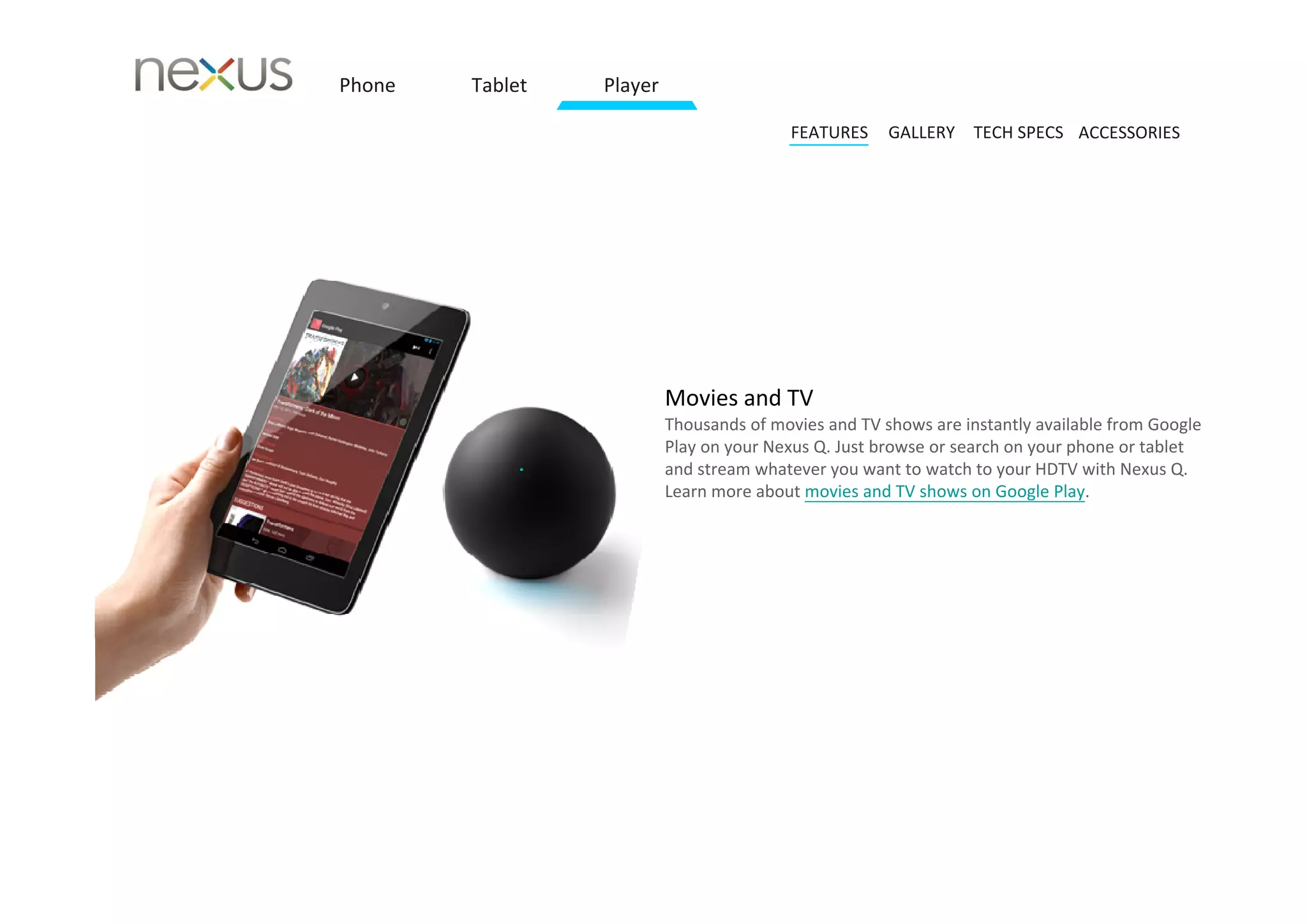

Movies and TV
Thousands of movies and TV shows are instantly available from Google
Play on your Nexus Q. Just browse or search on your phone or tablet
and stream whatever you want to watch to your HDTV with Nexus Q.
Learn more about movies and TV shows on Google Play.

11. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

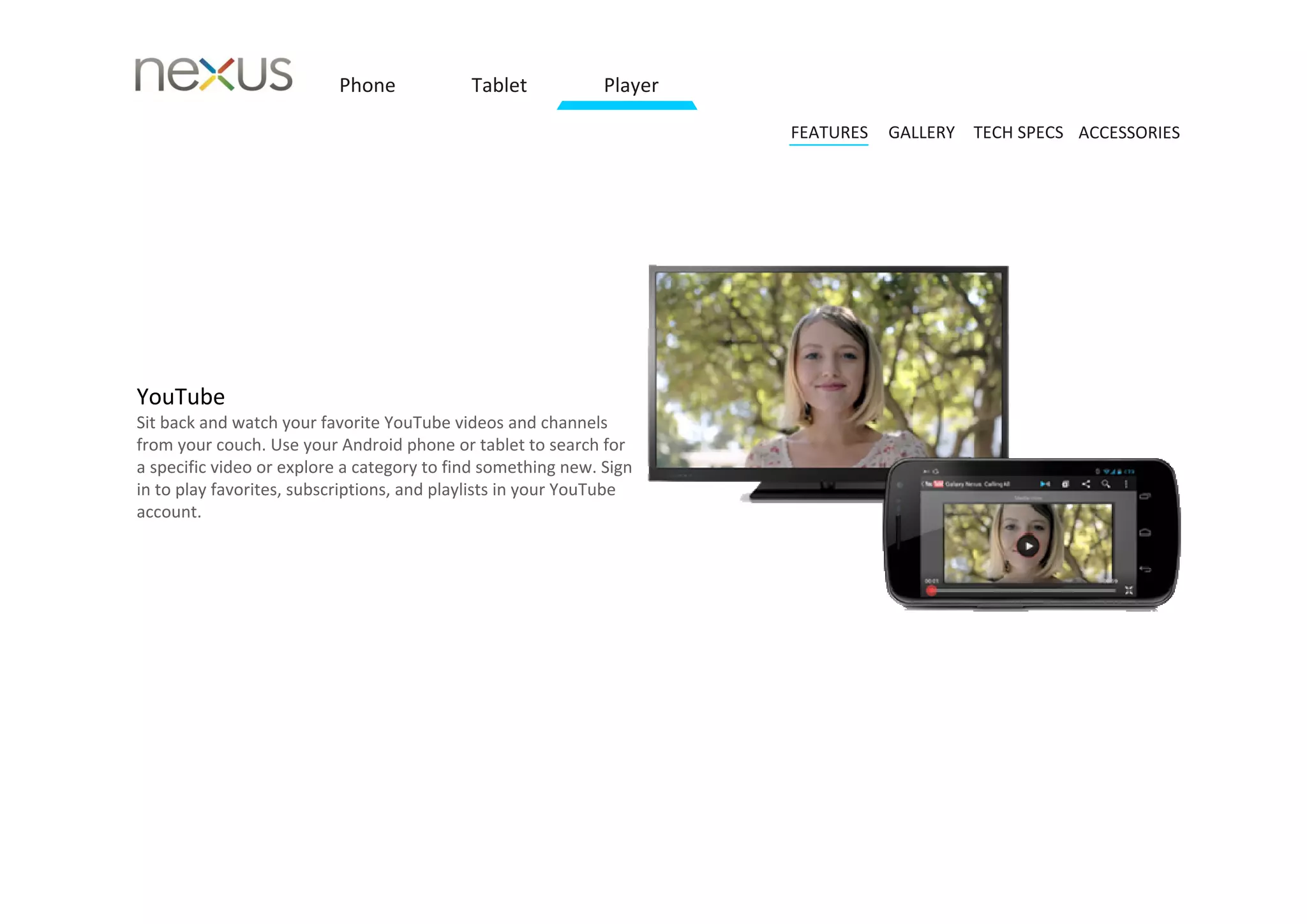

YouTube
Sit back and watch your favorite YouTube videos and channels
from your couch. Use your Android phone or tablet to search for
a specific video or explore a category to find something new. Sign
in to play favorites, subscriptions, and playlists in your YouTube
account.

12. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

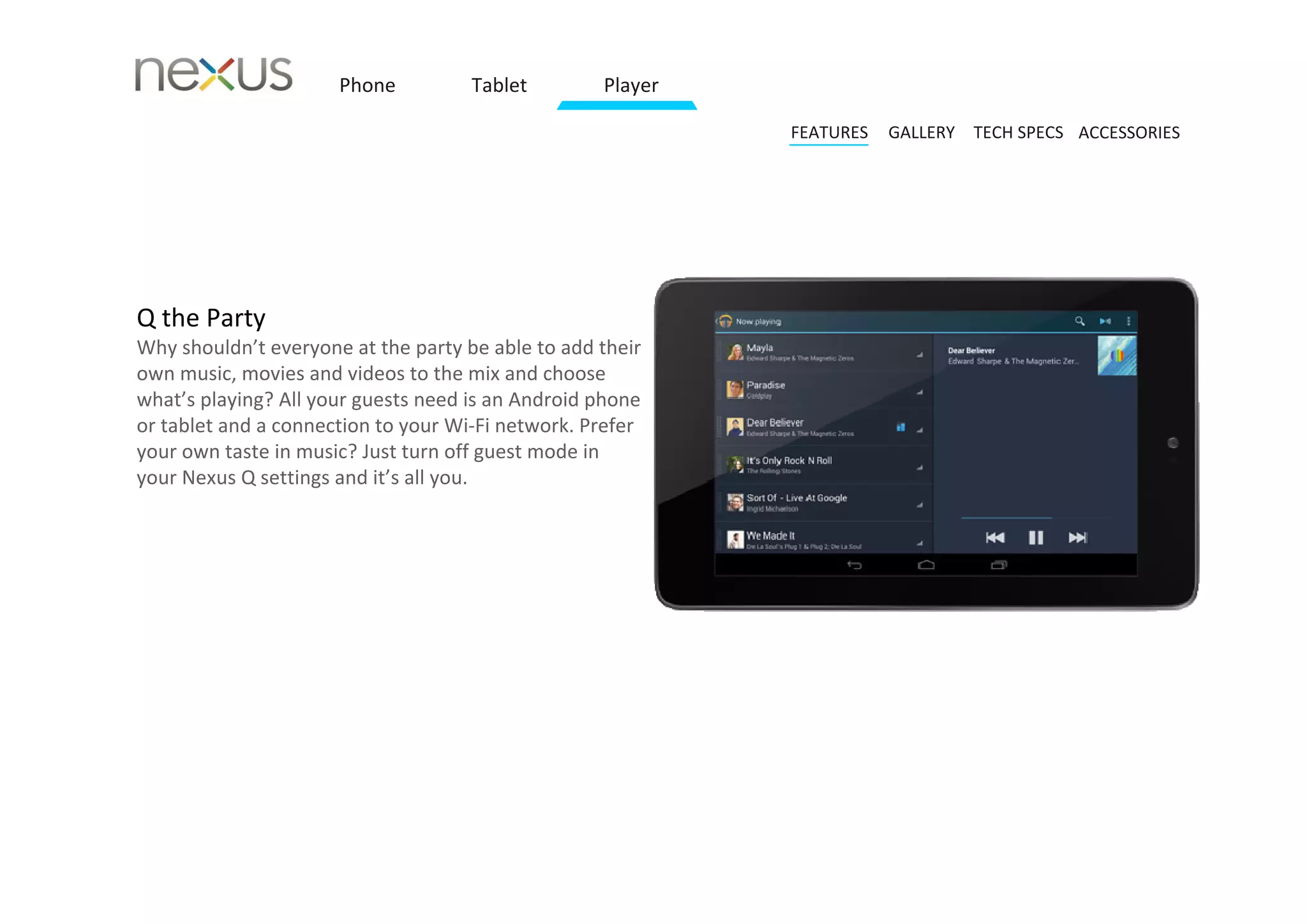

Q the Party
Why shouldn’t everyone at the party be able to add their
own music, movies and videos to the mix and choose
what’s playing? All your guests need is an Android phone
or tablet and a connection to your Wi‐Fi network. Prefer
your own taste in music? Just turn off guest mode in
your Nexus Q settings and it’s all you.

13. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

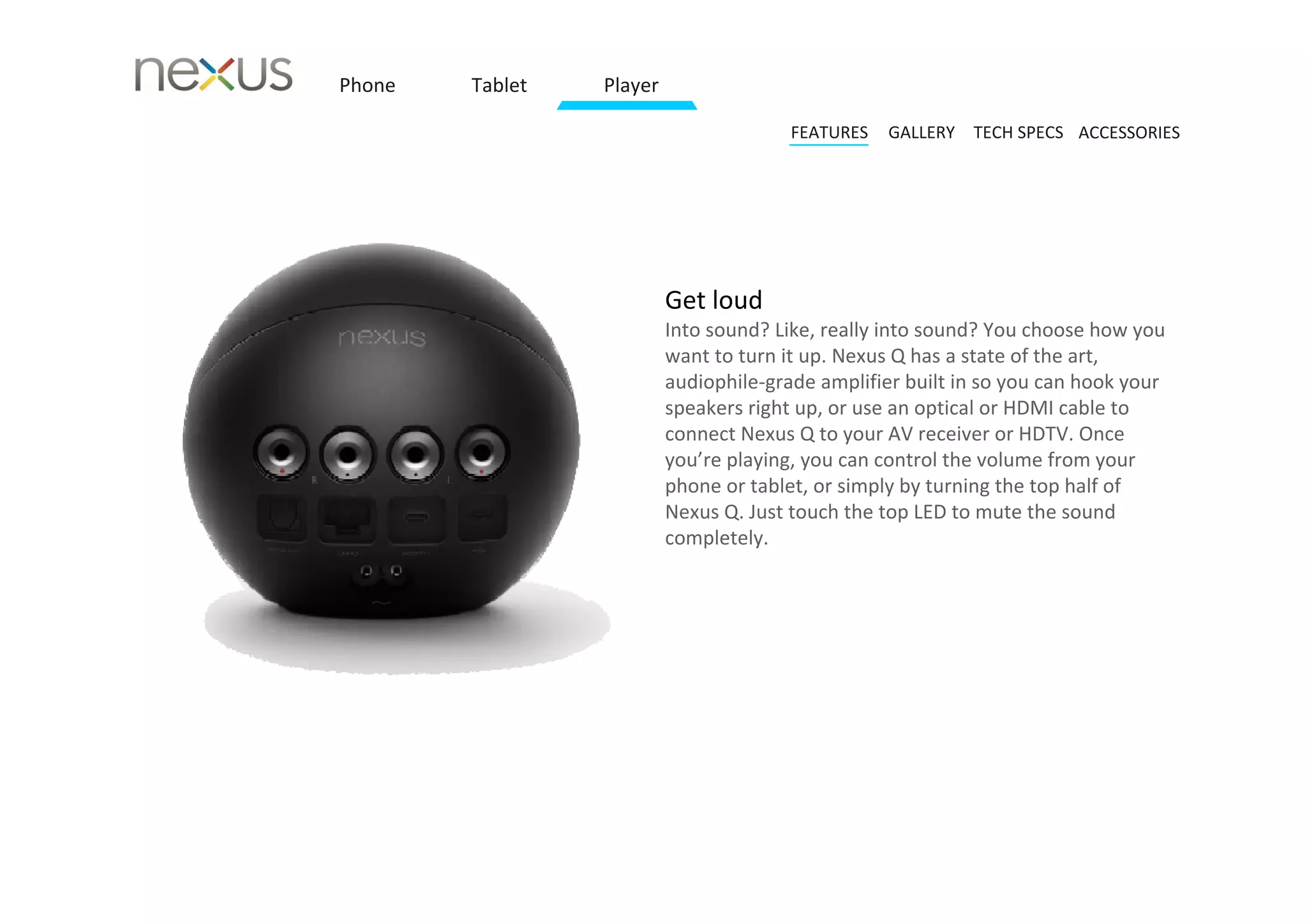

Get loud
Into sound? Like, really into sound? You choose how you
want to turn it up. Nexus Q has a state of the art,
audiophile‐grade amplifier built in so you can hook your
speakers right up, or use an optical or HDMI cable to
connect Nexus Q to your AV receiver or HDTV. Once
you’re playing, you can control the volume from your
phone or tablet, or simply by turning the top half of
Nexus Q. Just touch the top LED to mute the sound
completely.

14. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

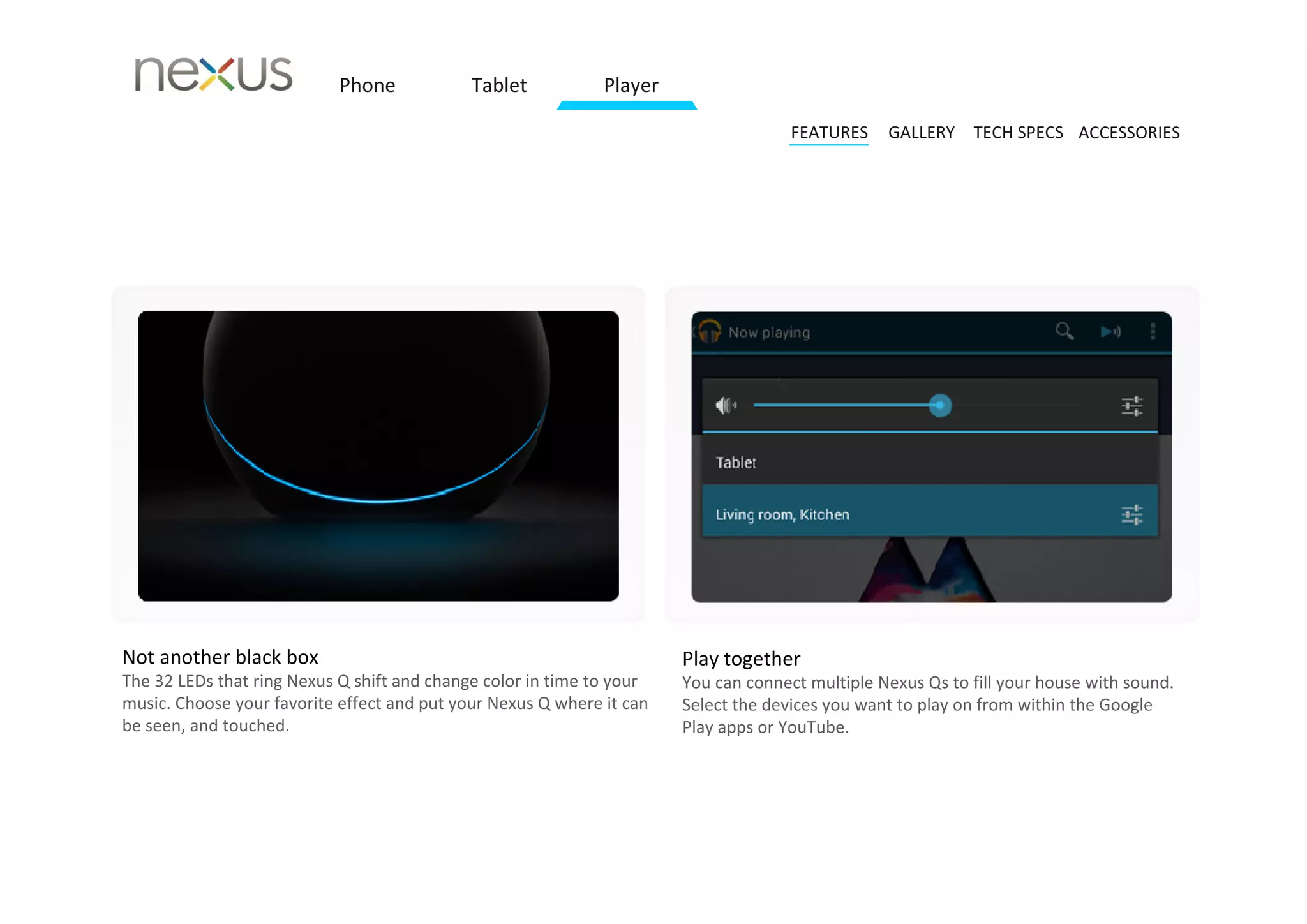

Not another black box Play together
The 32 LEDs that ring Nexus Q shift and change color in time to your You can connect multiple Nexus Qs to fill your house with sound.
music. Choose your favorite effect and put your Nexus Q where it can Select the devices you want to play on from within the Google
be seen, and touched. Play apps or YouTube.

15. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

16. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

17. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

18. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

19. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

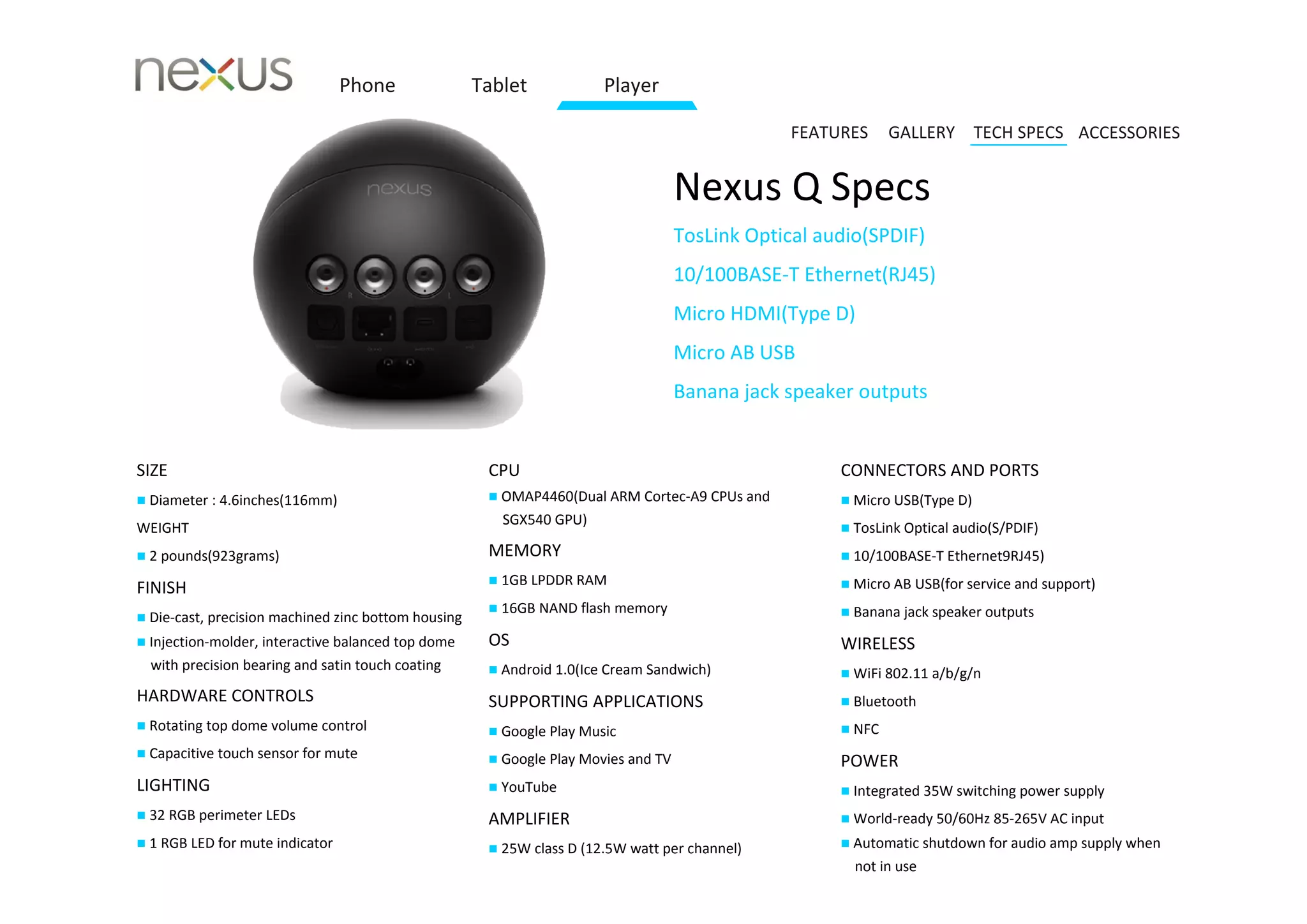

Nexus Q Specs
TosLink Optical audio(SPDIF)
10/100BASE‐T Ethernet(RJ45)
Micro HDMI(Type D)
Micro AB USB
Banana jack speaker outputs
SIZE CPU CONNECTORS AND PORTS
 Diameter : 4.6inches(116mm)  OMAP4460(Dual ARM Cortex‐A9 CPUs and  Micro USB(Type D)
SGX540 GPU)
WEIGHT  TosLink Optical audio(S/PDIF)
 2 pounds(923grams) MEMORY  10/100BASE‐T Ethernet9RJ45)
 1GB LPDDR RAM  Micro AB USB(for service and support)
FINISH
 16GB NAND flash memory  Banana jack speaker outputs
 Die‐cast, precision machined zinc bottom housing
 Injection‐molder, interactive balanced top dome OS WIRELESS
with precision bearing and satin touch coating  Android 4.0(Ice Cream Sandwich)  WiFi 802.11 a/b/g/n
HARDWARE CONTROLS SUPPORTING APPLICATIONS  Bluetooth
 Rotating top dome volume control  Google Play Music  NFC
 Capacitive touch sensor for mute  Google Play Movies and TV POWER
LIGHTING  YouTube  Integrated 35W switching power supply
 32 RGB perimeter LEDs AMPLIFIER  World‐ready 50/60Hz 85‐265V AC input
 1 RGB LED for mute indicator  25W class D (12.5W watt per channel)  Automatic shutdown for audio amp supply when
not in use

20. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

21. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

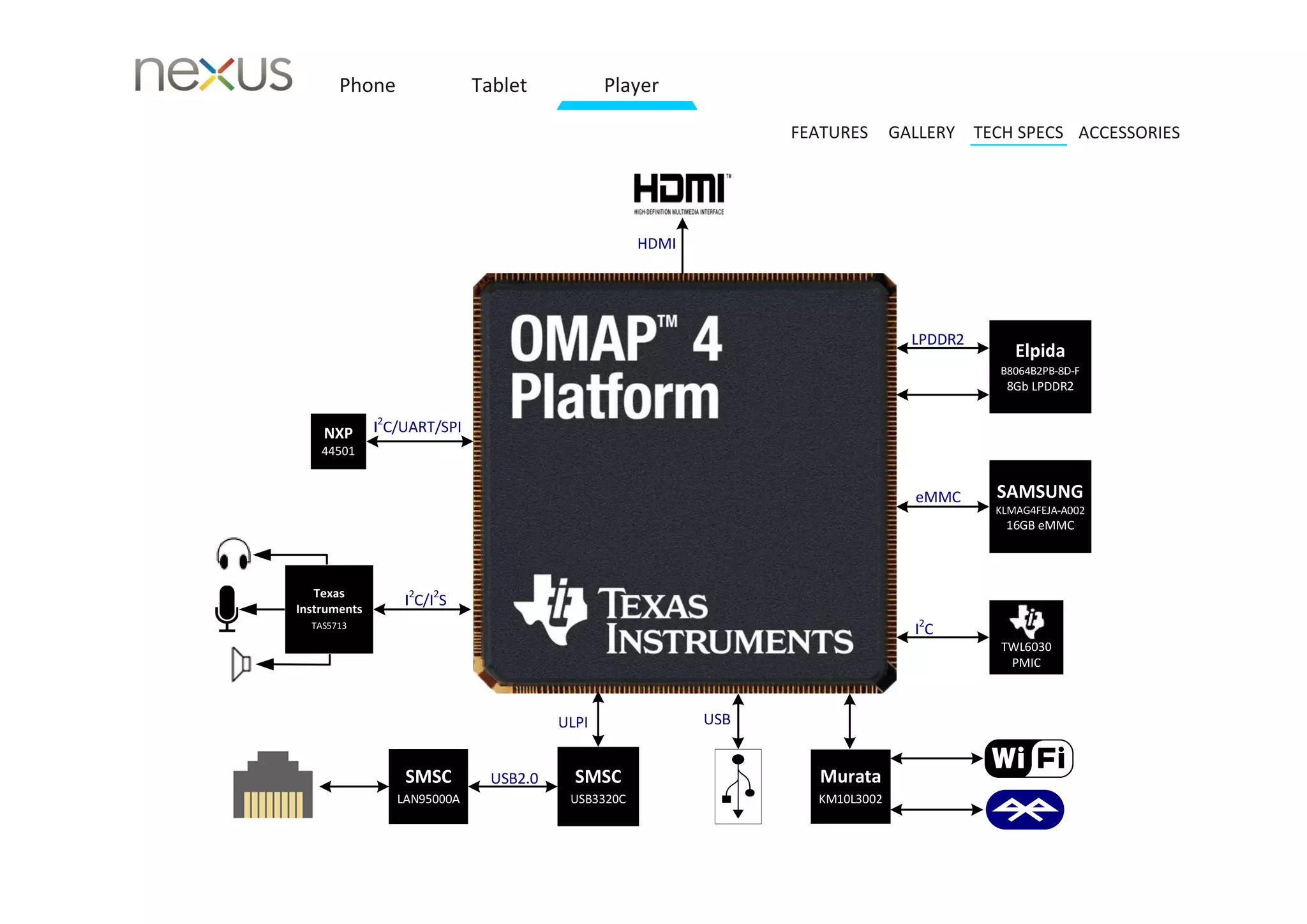

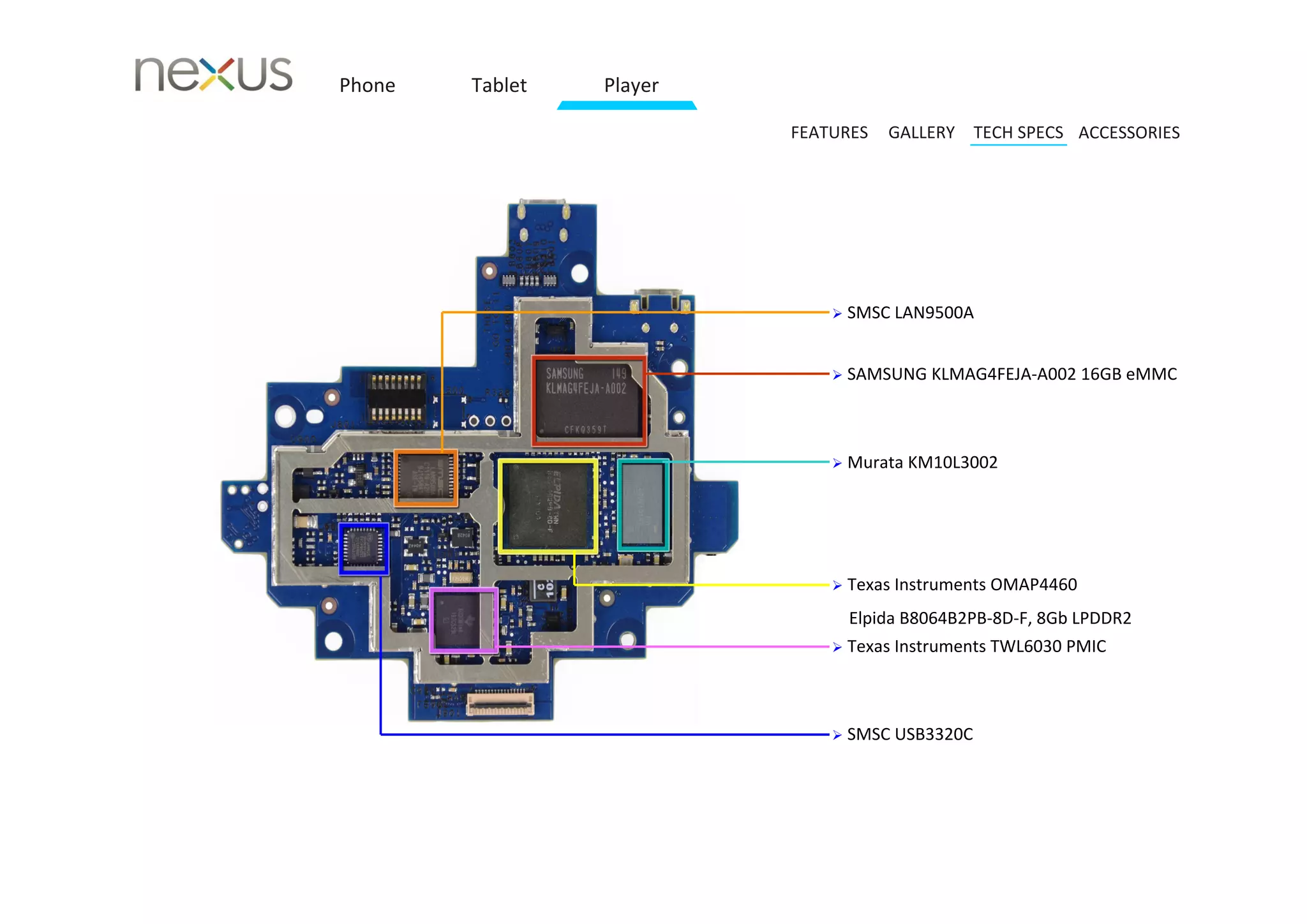

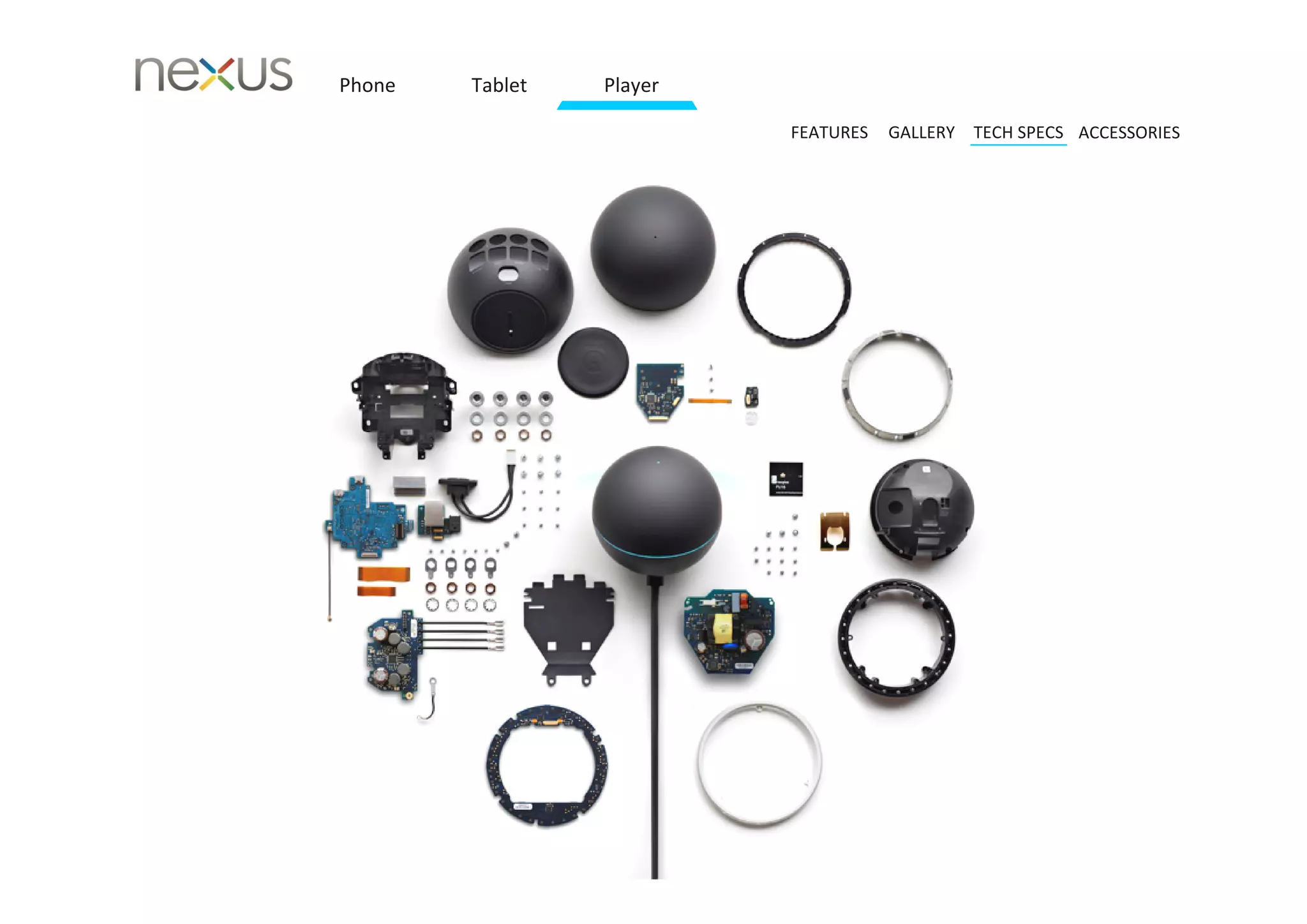

 SMSC LAN9500A
 SAMSUNG KLMAG4FEJA‐A002 16GB eMMC
 Murata KM10L3002
 Texas Instruments OMAP4460
Elpida B8064B2PB‐8D‐F, 8Gb LPDDR2
 Texas Instruments TWL6030 PMIC
 SMSC USB3320C

22. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

23. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

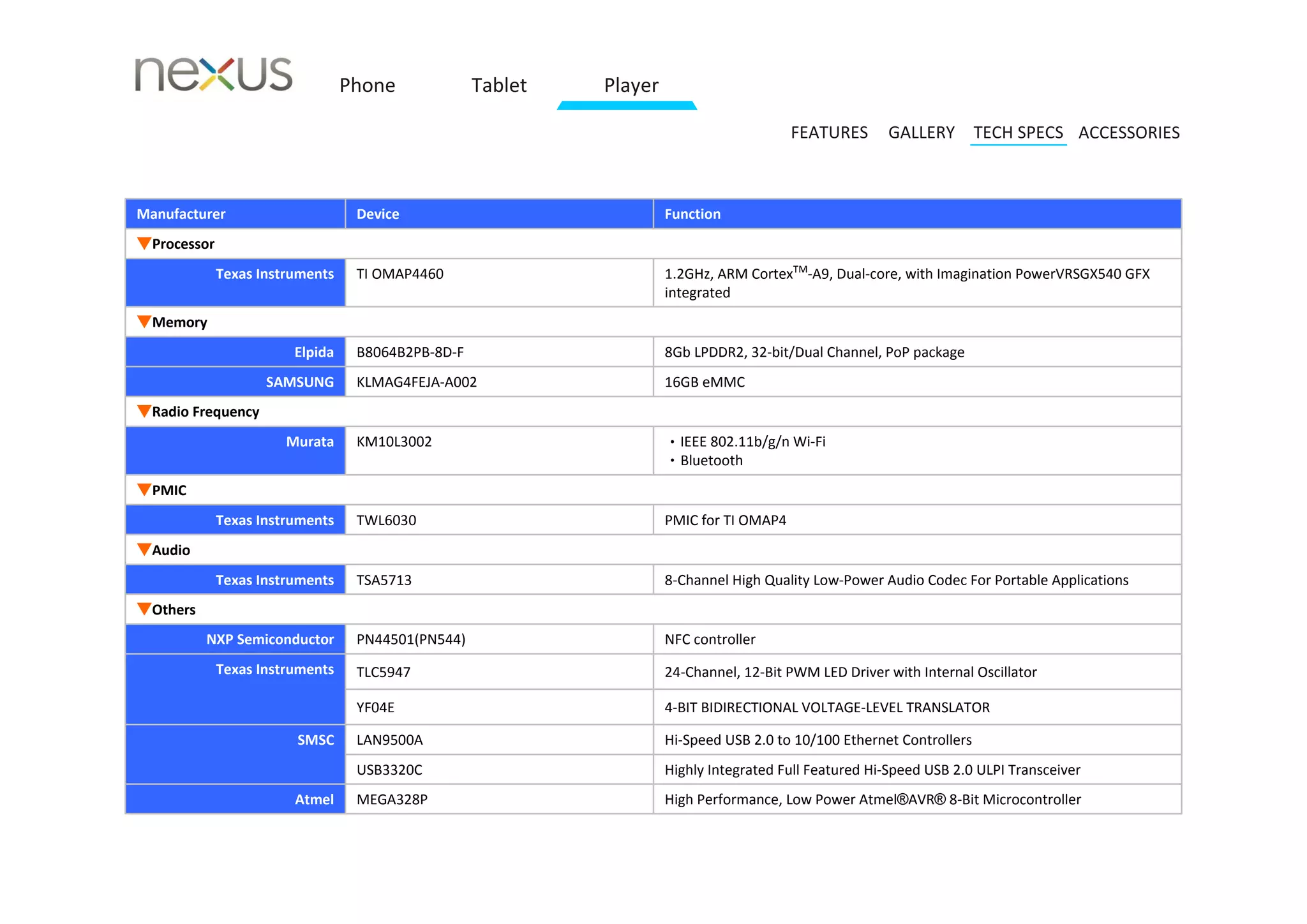

Manufacturer Device Function
▼Processor
Texas Instruments TI OMAP4460 1.2GHz, ARM CortexTM‐A9, Dual‐core, with Imagination PowerVRSGX540 GFX
integrated
▼Memory
Elpida B8064B2PB‐8D‐F 8Gb LPDDR2, 32‐bit/Dual Channel, PoP package
SAMSUNG KLMAG4FEJA‐A002 16GB eMMC
▼Radio Frequency
Murata KM10L3002 ‧IEEE 802.11b/g/n Wi‐Fi
‧Bluetooth
▼PMIC
Texas Instruments TWL6030 PMIC for TI OMAP4
▼Audio
Texas Instruments TSA5713 8‐Channel High Quality Low‐Power Audio Codec For Portable Applications
▼Others
NXP Semiconductor PN44501(PN544) NFC controller
Texas Instruments TLC5947 24‐Channel, 12‐Bit PWM LED Driver with Internal Oscillator
YF04E 4‐BIT BIDIRECTIONAL VOLTAGE‐LEVEL TRANSLATOR
SMSC LAN9500A Hi‐Speed USB 2.0 to 10/100 Ethernet Controllers
USB3320C Highly Integrated Full Featured Hi‐Speed USB 2.0 ULPI Transceiver
Atmel MEGA328P High Performance, Low Power Atmel®AVR® 8‐Bit Microcontroller

24. Phone Tablet Player
FEATURES GALLERY TECH SPECS ACCESSORIES

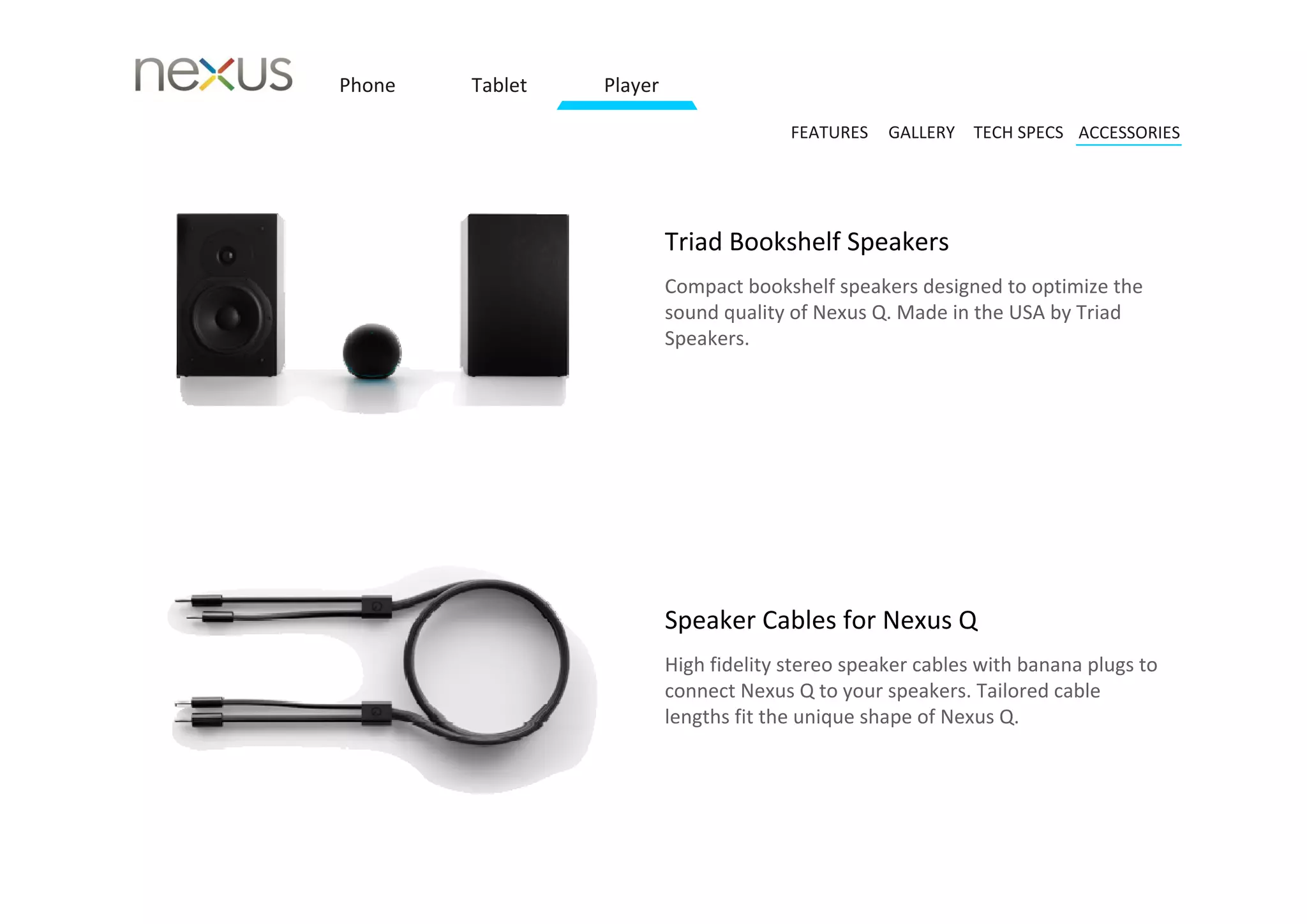

Triad Bookshelf Speakers
Compact bookshelf speakers designed to optimize the
sound quality of Nexus Q. Made in the USA by Triad
Speakers.
Speaker Cables for Nexus Q
High fidelity stereo speaker cables with banana plugs to
connect Nexus Q to your speakers. Tailored cable
lengths fit the unique shape of Nexus Q.
