- 1. GHI Deck Aluminum SlabFormwork Perfection made in Germany

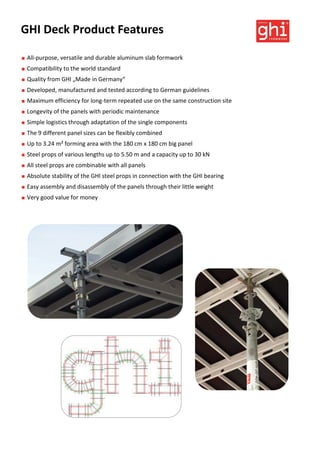

- 2. GHI Deck ProductFeatures All-purpose, versatile and durable aluminum slab formwork Compatibility to the world standard Quality from GHI „Made in Germany“ Developed, manufactured and tested according to German guidelines Maximum efficiency for long-term repeated use on the same construction site Longevity of the panels with periodic maintenance Simple logistics through adaptation of the single components The 9 different panel sizes can be flexibly combined Up to 3.24 m² forming area with the 180 cm x 180 cm big panel Steel props of various lengths up to 5.50 m and a capacity up to 30 kN All steel props are combinable with all panels Absolute stability of the GHI steel props in connection with the GHI bearing Easy assembly and disassembly of the panels through their little weight Very good value for money

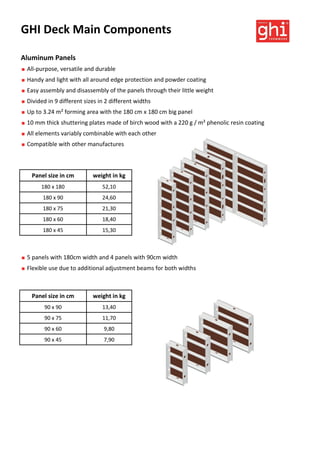

- 3. GHI Deck MainComponents Panel size in cm weight in kg 180 x 180 52,10 180 x 90 24,60 180 x 75 21,30 180 x 60 18,40 180 x 45 15,30 Panel size in cm weight in kg 90 x 90 13,40 90 x 75 11,70 90 x 60 9,80 90 x 45 7,90 5 panels with 180cm width and 4 panels with 90cm width Flexible use due to additional adjustment beams for both widths Aluminum Panels All-purpose, versatile and durable Handy and light with all around edge protection and powder coating Easy assembly and disassembly of the panels through their little weight Divided in 9 different sizes in 2 different widths Up to 3.24 m² forming area with the 180 cm x 180 cm big panel 10 mm thick shuttering plates made of birch wood with a 220 g / m² phenolic resin coating All elements variably combinable with each other Compatible with other manufactures
- 4. GHI Deck MainComponents Steel Props Flexible through various extension lengths up to 5.50 m Different load capacities up to 30 kN Low weight despite high load capacity Galvanized Absolute stability All steel props are combinable with all panels Including fail safe and squeeze protection Length in m Load capacity Weight in kg 1,46 - 2,50 20 kN 13,00 1,80 - 3,00 20 kN 15,50 2,00 - 3,50 20 kN 20,50 2,24 - 4,00 20 kN 23,50 3,00 - 5,50 20 kN 31,00 Length in m Load capacity Weight in kg 1,80 - 3,00 30 kN 19,01 2,00 - 3,50 30 kN 22,20 30 kN load capacity for massive slabs One universal tripod for all steel props

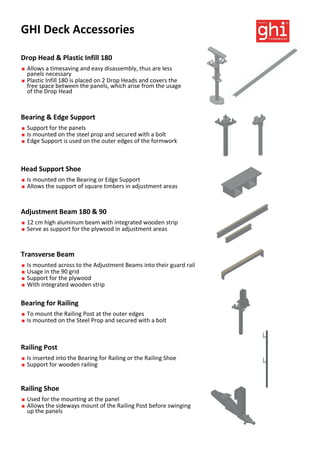

- 5. GHI Deck Accessories DropHead & Plastic Infill 180 Allows a timesaving and easy disassembly, thus are less panels necessary Plastic Infill 180 is placed on 2 Drop Heads and covers the free space between the panels, which arise from the usage of the Drop Head Railing Post Is inserted into the Bearing for Railing or the Railing Shoe Support for wooden railing Bearing for Railing To mount the Railing Post at the outer edges Is mounted on the Steel Prop and secured with a bolt Transverse Beam Is mounted across to the Adjustment Beams into their guard rail Usage in the 90 grid Support for the plywood With integrated wooden strip Railing Shoe Used for the mounting at the panel Allows the sideways mount of the Railing Post before swinging up the panels Adjustment Beam 180 & 90 12 cm high aluminum beam with integrated wooden strip Serve as support for the plywood in adjustment areas Head Support Shoe Is mounted on the Bearing or Edge Support Allows the support of square timbers in adjustment areas Bearing & Edge Support Support for the panels Is mounted on the steel prop and secured with a bolt Edge Support is used on the outer edges of the formwork

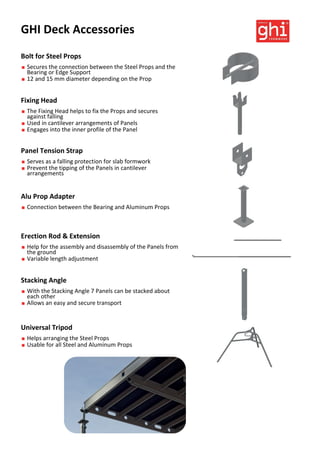

- 6. GHI Deck Accessories Boltfor Steel Props Secures the connection between the Steel Props and the Bearing or Edge Support 12 and 15 mm diameter depending on the Prop Universal Tripod Helps arranging the Steel Props Usable for all Steel and Aluminum Props Stacking Angle With the Stacking Angle 7 Panels can be stacked about each other Allows an easy and secure transport Erection Rod & Extension Help for the assembly and disassembly of the Panels from the ground Variable length adjustment Panel Tension Strap Serves as a falling protection for slab formwork Prevent the tipping of the Panels in cantilever arrangements Alu Prop Adapter Connection between the Bearing and Aluminum Props Fixing Head The Fixing Head helps to fix the Props and secures against falling Used in cantilever arrangements of Panels Engages into the inner profile of the Panel

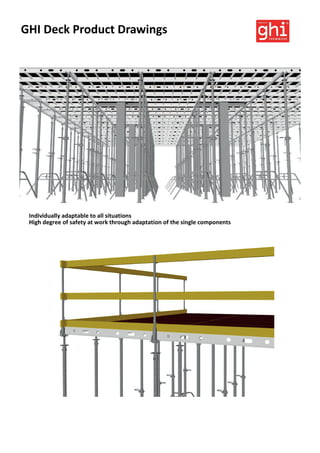

- 7. GHI Deck ProductDrawings Individually adaptable to all situations High degree of safety at work through adaptation of the single components

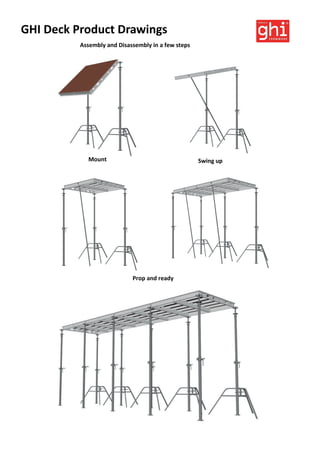

- 8. GHI Deck ProductDrawings Mount Swing up Prop and ready Assembly and Disassembly in a few steps

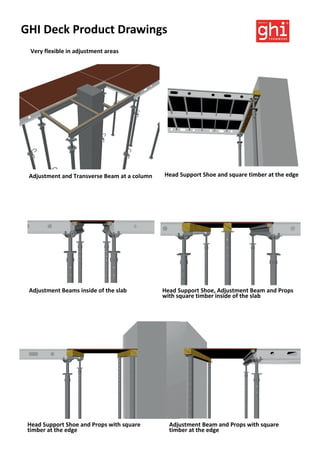

- 9. GHI Deck ProductDrawings Very flexible in adjustment areas Adjustment and Transverse Beam at a column Head Support Shoe and square timber at the edge Adjustment Beams inside of the slab Head Support Shoe, Adjustment Beam and Props with square timber inside of the slab Head Support Shoe and Props with square timber at the edge Adjustment Beam and Props with square timber at the edge

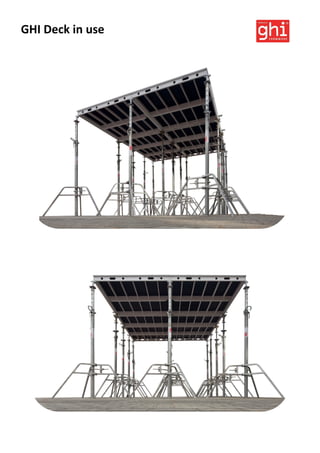

- 10. GHI Deck inuse

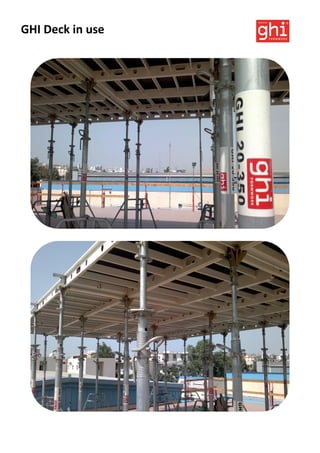

- 11. GHI Deck inuse
- 12. Planning ▪ Logistic▪ Service Prompt quotations and comprehensive advice CAD planning, production of formwork plans Swift, on-time, reliable delivery - worldwide We take complete charge of logistics and storage Training and instructing your employees on site Cleaning, maintenance and repairs using new original parts Contact / Manufacturer
