Getting-Started-With-Openstack
- 1. Getting Started WithOpenStack Course: Cloud Computing in Tarbiat Modares University Instructor: Farhad Fathi Teacher: Sadegh Dorri N. Spring 2018 Presentation Date: 17-April-2018

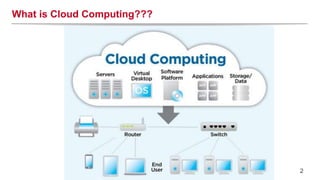

- 2. What is CloudComputing??? 2
- 3.
- 4.
- 5. VM Creation inVMware 5
- 6. 6 What is OpenStack? Introductionto OpenStack …

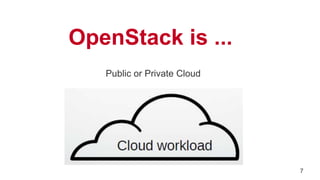

- 7. OpenStack is ... Publicor Private Cloud 7

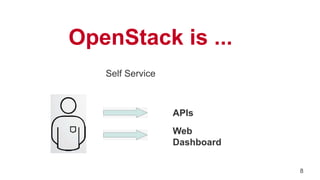

- 8. OpenStack is ... SelfService APIs Web Dashboard 8
- 9. OpenStack is ... Buildingblocks 9

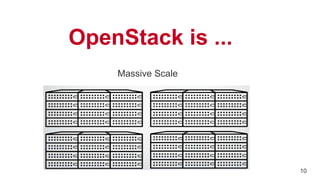

- 10. OpenStack is ... MassiveScale 10

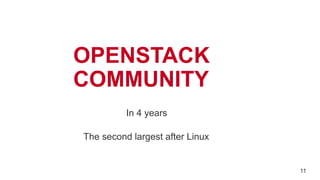

- 11. OPENSTACK COMMUNITY In 4 years Thesecond largest after Linux 11
- 12.
- 13.
- 14.

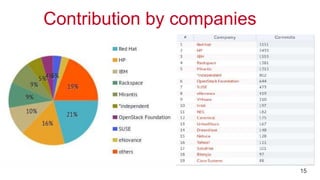

- 15.
- 16. OpenStack History andVersions Queens-Latest Version in 2018-02-28
- 17. “I need adifferent VM placement policy” “I’ll build in a way to share revenue with my customer’s” “I want to report on my customers SLAs” “My UI will be easier to use” “I have a much better way to snapshot machine images” “I let my customers span multiple clouds” Why OpenStack??? 17
- 18. 1 What is OpenStack? OpenStackArchitecture …

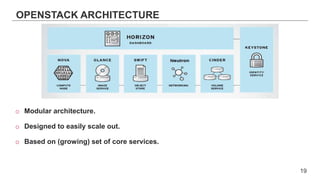

- 19. OPENSTACK ARCHITECTURE o Modulararchitecture. o Designed to easily scale out. o Based on (growing) set of core services. 19

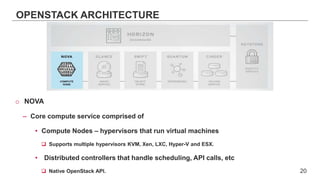

- 20. OPENSTACK ARCHITECTURE o NOVA –Core compute service comprised of • Compute Nodes – hypervisors that run virtual machines Supports multiple hypervisors KVM, Xen, LXC, Hyper-V and ESX. • Distributed controllers that handle scheduling, API calls, etc Native OpenStack API. 20

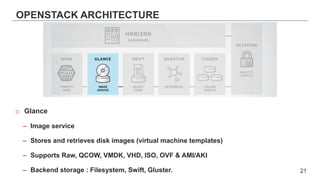

- 21. OPENSTACK ARCHITECTURE o Glance –Image service – Stores and retrieves disk images (virtual machine templates) – Supports Raw, QCOW, VMDK, VHD, ISO, OVF & AMI/AKI – Backend storage : Filesystem, Swift, Gluster. 21

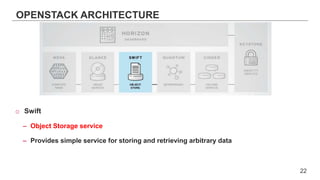

- 22. OPENSTACK ARCHITECTURE o Swift –Object Storage service – Provides simple service for storing and retrieving arbitrary data 22

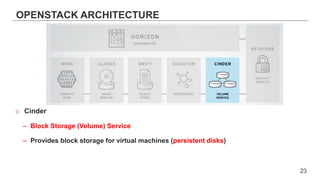

- 23. OPENSTACK ARCHITECTURE o Cinder –Block Storage (Volume) Service – Provides block storage for virtual machines (persistent disks) 23

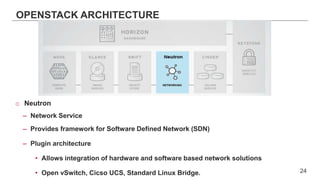

- 24. OPENSTACK ARCHITECTURE o Neutron –Network Service – Provides framework for Software Defined Network (SDN) – Plugin architecture • Allows integration of hardware and software based network solutions • Open vSwitch, Cicso UCS, Standard Linux Bridge. 24

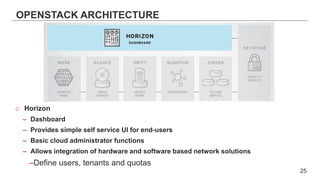

- 25. OPENSTACK ARCHITECTURE o Horizon –Dashboard – Provides simple self service UI for end-users – Basic cloud administrator functions – Allows integration of hardware and software based network solutions –Define users, tenants and quotas 25

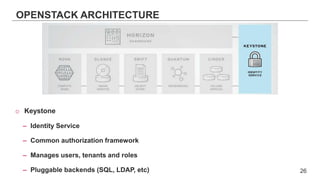

- 26. OPENSTACK ARCHITECTURE o Keystone –Identity Service – Common authorization framework – Manages users, tenants and roles – Pluggable backends (SQL, LDAP, etc) 26

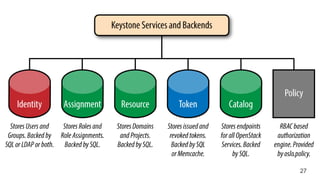

- 27.

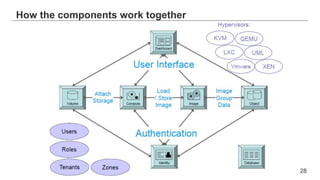

- 28. How the componentswork together 28

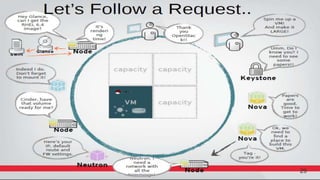

- 29.

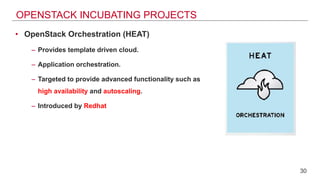

- 30. OPENSTACK INCUBATING PROJECTS •OpenStack Orchestration (HEAT) – Provides template driven cloud. – Application orchestration. – Targeted to provide advanced functionality such as high availability and autoscaling. – Introduced by Redhat 30

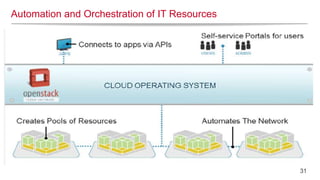

- 31. Automation and Orchestrationof IT Resources 31
- 32. OPENSTACK INCUBATING PROJECTS •OpenStack Monitoring and Metering (CEILOMETER) – Goal: • Provide a single infrastructure to collect measurements from an entire OpenStack infrastructure. • Eliminate need for multiple agents attaching to multiple OpenStack projects. 32

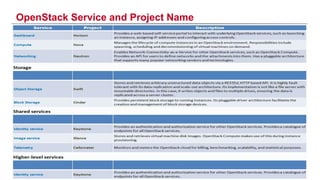

- 33. OpenStack Service andProject Name 33
- 34. 34 Reading About OpenStack TheOpenStack Foundation http://www.openstack.org/ Official OpenStack Documentation http://docs.openstack.org/ The OpenStack Cloud Computing Cookbook (Second Edition) http://www.amazon.com/OpenStack-Cloud-Computing-Cookbook- Jackson/dp/1782167587/ref=sr_1_1?s=books&ie=UTF8&qid=1382033707&sr=1-1

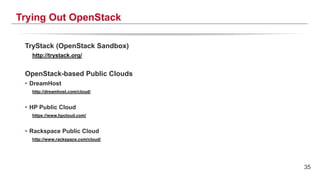

- 35. 35 Trying Out OpenStack TryStack(OpenStack Sandbox) http://trystack.org/ OpenStack-based Public Clouds • DreamHost http://dreamhost.com/cloud/ • HP Public Cloud https://www.hpcloud.com/ • Rackspace Public Cloud http://www.rackspace.com/cloud/

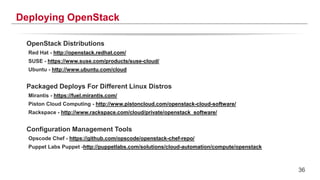

- 36. 36 Deploying OpenStack OpenStack Distributions RedHat - http://openstack.redhat.com/ SUSE - https://www.suse.com/products/suse-cloud/ Ubuntu - http://www.ubuntu.com/cloud Packaged Deploys For Different Linux Distros Mirantis - https://fuel.mirantis.com/ Piston Cloud Computing - http://www.pistoncloud.com/openstack-cloud-software/ Rackspace - http://www.rackspace.com/cloud/private/openstack_software/ Configuration Management Tools Opscode Chef - https://github.com/opscode/openstack-chef-repo/ Puppet Labs Puppet -http://puppetlabs.com/solutions/cloud-automation/compute/openstack
- 37.
- 38.
Editor's Notes
- #3 A Cloud Computing platform sits above the virtual data center and provides both a control plane over and resource access to the virtualized data center. OpenStack, as a Cloud Computing platform, manages virtualized resources, such as virtual machines exported by a hypervisor, network overlays created by Software-Defined Network devices, and volumes exported by virtual storage arrays. OpenStack takes these data center resources and automates and orchestrates them so they can be accessed on demand and be scaled up and down as needed, turning these resources into consumable services.

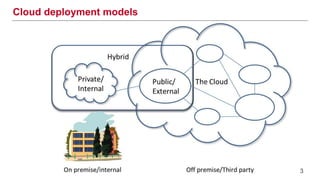

- #4 مفاهیم اولیه سرویس ها و مدل های مشخصی وجود دارند که رایانش ابری را برای کاربران نهایی امکان پذیر و قابل دسترس می¬نمایند. مدل های رایانش ابری عبارتند از: • مدل های توسعه (Deployment Models) • مدل های سرویس (Service Models) مدل های توسعه مدل های توسعه نوع دسترسی به ابر را مشخص می¬کنند. به عبارت دیگر ابر برای استفاده چه کسانی طراحی شده است. ابر می¬تواند هر یک از چهار مدل دسترسی را داشته باشد: عمومی(Public)، خصوصی (Private)، ترکیبی (Hybrid) و انجمنی (Community) ابر عمومی (Public) ابر عمومی اجازه می دهد که سیستم ها و سرویس هایش به سادگی در دسترس عموم قرار بگیرد. به دلیل باز بودن ممکن است امنیت کمتری داشته باشد. ابر اختصاصی (Private) سیستم ها و سرویس های ابر اختصاصی تنها در دسترس یک سازمان بخصوص قرار دارد. به دلیل ماهیت خصوصی بودن، امنیت بیشتری دارند. ابر ترکیبی (Hybrid) ابر ترکیبی، آمیزشی از ابر اختصاصی و عمومی است که در آن فعالیت های حساس و محرمانه با استفاده از ابر اختصاصی و فعالیت های غیر حساس با استفاده از ابر عمومی انجام می گیرد. ابر انجمنی (Community) سیستم ها و سرویس های ابر انجمنی قابل دسترسی در مجموعه ای از سازمان ها هستند. مدل های سرویس: رایانش ابری بر اساس مدل های سرویس استوار است. مدل های سرویس به صورت پایه به سه دسته تقسیم می شوند: زیرساخت به عنوان سرویس (IaaS) Infrastructure-as-a-Service بستر به عنوان سرویس (PaaS) Platform-as-a-Service نرم افزار به عنوان سرویس (SaaS) Software-as-a-Service البته سرویس دیگری با عنوان هر چیز به عنوان سرویس یا (XaaS) Anything as a Service وجود دارد که شامل شبکه به عنوان سرویس (Network-as-a-service)، کسب و کار به عنوان سرویس (Business-as-a-service)، نهاد به عنوان سرویس (Identity-as-a-service)، پایگاه داده به عنوان سرویس (Database-as-a-service) و یا استراتژی به عنوان سرویس (Strategy-as-a-service) می شود. زیرساخت به عنوان سرویس (IaaS) ساده ترین مدل سرویس است. هریک از مدل های سرویس مکانیزم مدیریت امنیت خود را از مدل های پایین تر خود به ارث می برد. همانطور که در شکل زیر نشان داده شده است. زیرساخت به عنوان سرویس (IaaS) IaaS دسترسی به منایع پایه نظیر کامپیوترهای فیزیکی، ماشین های مجازی، فضای ذخیره سازی مجازی و از این قبیل را فراهم می سازد. بستر به عنوان سرویس (PaaS) PaaS محیطی اجرایی برای برنامه های کاربردی و ابزارهای گسترش و توسعه فراهم می کند. نرم افزار به عنوان سرویس (SaaS) مدل SaaS امکان استفاده از نرم افزارهای کاربردی را به صورت یک سرویس برای کاربران نهایی فراهم می آورد. تاریخچه رایانش ابری مفهوم رایانش ابری در سال 1950 با پیاده سازی کامیپیوترهای Mainframe که دسترسی به آنها از طریق Thin/Static Client انجام میشد، مطرح گردید. از آن به بعد رایانش ابری از کلانیتهای ایستا به پویا و از نرم افزار به سرویس تکامل یافته است. دیاگرام زیر تکامل رایانش ابری را نشان میدهد.
- #5 A Cloud Computing platform sits above the virtual data center and provides both a control plane over and resource access to the virtualized data center. OpenStack, as a Cloud Computing platform, manages virtualized resources, such as virtual machines exported by a hypervisor, network overlays created by Software-Defined Network devices, and volumes exported by virtual storage arrays. OpenStack takes these data center resources and automates and orchestrates them so they can be accessed on demand and be scaled up and down as needed, turning these resources into consumable services.
- #13 RackSpace
- #27 In OpenStack a “tenant” is also called a “project.” I’ve always found the second name to be a clearer term and it appears that this is now the proper name going forward. From the OpenStack website glossary a tenant is “A group of users; used to isolate access to Compute resources. An alternative term for a project.” or a tenant/project is a set of any resources (compute, network, storage, etc.) assigned to an isolated group of users.
- #32 A Cloud Computing platform sits above the virtual data center and provides both a control plane over and resource access to the virtualized data center. OpenStack, as a Cloud Computing platform, manages virtualized resources, such as virtual machines exported by a hypervisor, network overlays created by Software-Defined Network devices, and volumes exported by virtual storage arrays. OpenStack takes these data center resources and automates and orchestrates them so they can be accessed on demand and be scaled up and down as needed, turning these resources into consumable services.
- #34 The OpenStack platform is actually composed of multiple components, called projects. Each project is managed by a technical committee and the OpenStack Foundation decides which projects are ready to be included in the OpenStack core. These projects work together to provide the services required to deliver the Cloud. Nova – The compute project responsible for on-demand creation and termination of compute instances. Nova leverage a number of hypervisors, including KVM, Xen, Hyper-V, and vSphere. Glance – The OS image management project responsible for storage and management of images used to create compute instances with OSes installed, such as Windows and Linux. Quantum – The network project that provides network access and security services to compute instances. Quantum uses plugins to leverage virtual switches and SDN-enabled devices. Swift – The object storage project that provides a scalable repository for storing large quantities of objects such as files and media content. It can also be used as an repository for Glance images. Cinder – The block storage project that provides a virtual storage array that can export out iSCSI volumes. A Cinder/virtual storage array server can be a server with local storage or a server using an external storage array. Horizon – The interactive dashboard project that provides users and admins provisioning and management access to the OpenStack Cloud via a web GUI. Keystone – The identity management project that provides authorization and access security control for all the other OpenStack projects. New projects are being added with each release and as the OpenStack community calls for them. New projects underway include metering, application orchestration, and database-as-a-service.
