The document provides information about a proposed site plan for a new primary health care centre in Carlow, Ireland including: - The location is in Carlow and will be located on the same site as St. Dymphna's Hospital. - The site orientation is due south to maximize sun exposure. - The intention is to centralize primary care facilities for Carlow town while complementing in-patient facilities at St. Luke's Hospital in Kilkenny. - The site plan shows features like vehicle and pedestrian entrances, a fire assembly point, disabled parking, and surrounding buildings.

1. St. Dymphna Hospital
North
500mm Earth ducts
AP
56000
56000
55536
56000
56000
55165
56000
H
23510
31396
86749
23491
Ground Floor Level
55750
First Floor Level
59350
Basement Level
51600
Second Floor Level
62950
Roof Level 2
66550
3600360036004150
www.autodesk.com/revit
Scale
LECTURER
Drawn by
Date
Project number
Institute of Technology Carlow
BSc. in Architectural Technology
Year 3 2015-2016
As indicated
25/04/201620:41:02

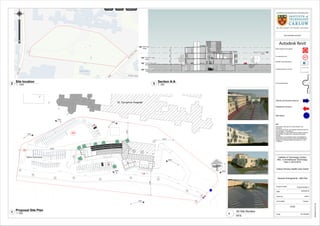

General Arrangments - Site Plan
Project Number 3
Carlow Primary Health Care Centre
22/04/2016
Author
Checker
A103
1 : 500
Proposal Site Plan
1
1 : 1000
Site location
2 1 : 250
Section A-A
3
AP
Fire assembly point
Water Hydrant for fire fighters
Disabled carparking spaces
Carparking spaces 2.4x4.8m
Surrounding Building
SITE:
The location of the site is in Carlow Ireland. Site
orientation
is set out at due South, and perfectly achieving maximum
sun orientation. The building is
to be located on a site shared with a number of existing
HSE facilities in Carlow town, including St Dympna’s
hospital.
The intention is to centralise primary care facilities for
Carlow town and its environs, while complementing the
in-patient and hospital facilities provided by St. Luke’s
in Kilkenny.
4
3D Site Renders
NTS
Vehicle and bycicle entrance
Pedestrian entrance
Site Notice
