The document describes the Gen-Pro line of portable generators produced by Gillette. It highlights several key features: 1) Gen-Pro generators produce power that is 6% cleaner than competitors' models, with lower harmonic distortions, making them safe to use with sensitive electronics. 2) They use overhead valve engines that meet strict emissions standards, reducing exhaust pollution to produce truly "clean power." 3) Models include features like protective frames, fuel tanks, mufflers, and ground fault interrupters, packaged into compact and durable units powered by top brands like Honda, Robin, and Kohler.

2. GEN-PRO® GENERATORS BY GILLETTE
CHANGE, BOTH RAPID AND CONSTANT, IS NOR- GEN-PRO® PRODUCES ELECTRIC POWER SO CLEAN
MAL IN TODAY’S ADVANCING TECHNOLOGY, NEW THAT IT HAS ONLY AN AVERAGE 6% OF THESE
AND IMPROVED METHODS ARE BEING DEVELOPED HARMFUL HARMONIC DISTORTIONS.
AT A RECORD PACE.
THIS FEATURE ALONE, MAKES GEN-PRO® UNIQUE,
®
NOT ONLY HAS GEN-PRO KEPT UP WITH THESE APART FROM OTHER PORTABLE GENERATORS
NEW AND IMPROVED METHODS, WE HAVE ALSO THAT CURRENTLY PRODUCE ELECTRIC POWER
LEAPED FORWARD WITH OUR OWN UNIQUE AND WITH AS MUCH AS 10% TO 40% HARMFUL HAR-
EXCLUSIVE DESIGNS. MONIC SINE-WAVE DISTORTIONS.
FOR EXAMPLE, OUR EXCLUSIVE KLEEN-POWER® THE GASOLINE ENGINE HAS BEEN ANOTHER
DESIGN, GENERATES ELECTRIC POWER SO CLEAN SOURCE OF HARMFUL POWER. NEW DESIGNS IN
AND PURE THAT IT IS SAFE TO USE ON ANY VOLT- ENGINE CARBURETORS AND EXHAUST MUFFLERS
AGE SENSITIVE ELECTRIC LOADS. HAVE DRAMATICALLY REDUCED ENGINE EX-
HAUST POLLUTIONS. GEN-PRO® USES ONLY OVER-
AMPLIFIERS, TV SETS, DVD PLAYERS, COMPUTERS, HEAD VALVE ENGINES THAT MEET OR EXCEED
OR ANY OF THE VAST MICROPROCESSOR BASED C.A.R.B. (CALIFORNIA AIR RESOURCES BOARD)
ELECTRONIC PRODUCTS, ALL REQUIRE CLEAN AND EPA CERTIFICATION FOR CLEANER AND
ELECTRICITY BELOW 10% HARMONIC DISTOR- LOWER EXHAUST POLLUTION LEVELS.
TIONS OF POWER SINE-WAVE. THERE IS NO FEAR
OF ELECTRONIC EQUIPMENT DAMAGE WHEN YOU THIS MAKES GEN-PRO® A TRULY KLEEN-POWER®
PLUG YOUR EQUIPMENT INTO THE CLEAN POWER GENERATOR SET TO USE IN VIRTUALLY ANY AP-
SOURCE OF GEN-PRO® , AND HERE IS WHY: PLICATION.
GPE-55, 5500 WATTS WITH HONDA 9 HP GASOLINE
ENGINES, HAVING ROPE/RECOIL START OR ROPE/
RECOIL START PLUS ELECTRIC START WITH 12
VDC BATTERY MOUNTING PROVISIONS.
LIGHTWEIGHT, COMPACT, AND HEAVY DUTY
WILL BEST DESCRIBE THESE PORTABLE GENERA-
TORS. THEY ARE POWERED BY THE VERY BEST OF
LONG LIFE, HEAVY DUTY, QUIET TYPE HONDA,
OVERHEAD VALVE ENGINES. PLENTY OF ELECTRI-
CAL POWER IS AVAILABLE IN THIS SMALL PACK-
AGE, AND THE POPULAR, EXTENDED RUN FUEL
TANK ALLOWS UP TO 6 HOURS CONTINUOUS USE.
USE THESE GENERATORS IN THE AREAS WHERE
EXTREME PORTABILITY, LIGHT WEIGHT, AND RE-
LIABILITY IS YOUR MAIN CONCERN.
MODEL GPE-55, 5.5 KW GEN-SET
WITH OPTIONAL 2-WHEEL DOLLY KIT & LIFTING HOOK
GPE-65, 6500 WATTS AND GPE-75, 7500 WATTS
WITH HONDA ENGINES, HAVING ROPE/RECOIL
START OR ROPE/RECOIL START PLUS ELECTRIC
START WITH 12 VDC BATTERY MOUNTING PROVI-
SIONS.
RUGGED, RELIABLE HONDA ENGINES KEEP OUR
PROMISE TO USE ONLY THE VERY BEST HEAVY
DUTY ENGINE AND COMPONENTS IN ALL GEN-
PRO® GENERATOR SETS, BY GILLETTE. THIS
GIVES YOU A VERY QUIET AND SMOOTH OPERA-
TION PLUS THE ENTIRE GENERATOR SET IS COM-
PACT WITH SIMPLE OPERATIONS. A CHOICE OF
ELECTRIC START OR EASY TO PULL, COMPRESSION
RELEASE ROPE START IS AVAILABLE. ALSO
AVAILABLE IN THIS FRAME, IS THE GPED-65EK, 6.5
KW, KOHLER 9.8 HP AIR COOLED DIESEL ENGINE
HAVING THE SAME 4 GALLON FUEL TANK, PRO-
TECTIVE ENGINE COVER, AND RECEPTACLE
COVER AS 5.5, 6.5, AND 7.5 KW GASOLINE FUELED
MODEL GPE-65, 6.5 KW THRU GPE-75, 7.5 KW GEN-SET GENERATOR SETS.

3. HEAVY DUTY, LONG LIFE GEN-PRO® GENERATORS
GPE-95E, 9500 WATTS WITH HONDA OR B & S ENGINES
GPE-105E, 10500 WATTS WITH B & S ENGINE
GPE-125E, 12500 WATTS WITH HONDA ENGINE
GPE-135E, 13500 WATTS WITH HONDA OR KOHLER
GPE-150E, 15000 WATTS WITH ROBIN ENGINES
A FANTASTIC SUCCESS STORY IS THE BEST DESCRIP-
TION FOR YOUR CHOICE OF HONDA, ROBIN, B & S, OR
KOHLER V-TWIN ELECTRIC START GASOLINE EN-
GINES, CONNECTED TO THE GEN-PRO® BRUSHLESS
GENERATOR. A QUIET VIBRATION FREE OPERATION
IS COMMON PLACE WITH THESE 2 CYLINDER HEAVY
DUTY ENGINES. THIS IS THE GEN-SET TO CHOOSE
WHEN YOU NEED MORE ELECTRICAL POWER IN A
SMALL COMPACT PACKAGE.
ALL V-TWIN MODELS 9.5 KW THRU 15 KW ARE
EQUIPPED WITH PROTECTIVE ROLL FRAME, ENGINE
PROTECTIVE COVER, EPA CERTIFIED FUEL TANKS,
EXTRA-QUIET MUFFLERS, AND NEW GILLETTE EX-
CLUSIVE GROUND FAULT INTERRUPTERS, PROTECT-
MODEL GPE-95, 9.5 KW THRU GPE-150, 15 KW GEN-SET ING OPERATOR AGAINST ALL 120 AND 240 VOLT
SHOCK HAZARDS.
WHY IS GEN-PRO® UNIQUE AND DIFFERENT FROM THE REST?
Weather/Sound Covers Optional Lifting Hook (4) Gallon Fuel Tank (5.5-7.5 KW)
(All Models) (7) Gallon Fuel Tank (9.5-15 KW)
Full 1¼” Metal Tube Frame
(All Models)
Optional 2-Wheel Dolly Kit with Heavy Duty Receptacle Panel with Run
“Fold-Away” Handles and Time/Hour Meter and Magnetic Circuit
“Never Go Flat” Semi- Breakers with “Exclusive” GFCI Operator
Pneumatic, 10” Rubber Tires Protection
Voltage Regulating Capacitor Rotor with built-in KLEEN-POWER® Large Stator with 27% More Copper and Electrical
replacing old style brushes and filtering and Fail-Proof rotating diodes with Grade Steel than our closest rival, allowing more
slip rings. (All Models) exclusive Life-Time Warranty (All Models) electrical motor load starting power. (All Models)
THESE HEAVY DUTY GENERATOR FEATURES ARE PACKED INTO EVERY GEN-PRO® AND ARE NOT EQUALED
OR AVAILABLE IN ANY OTHER GENERATOR. OUR UNIQUE AND EXCLUSIVE NEW WINDING DESIGN, KLEEN-
POWER® ALLOWS YOU TO PLUG IN ANY TYPE OF VOLTAGE SENSITIVE, MICROPROCESSOR BASED EQUIP-
MENT. ALL ELECTRONIC SOLID-STATE LOADS CAN SAFELY OPERATE WITHOUT FEAR OF DAMAGE WITH
GILLETTE’S KLEEN-POWER® SYSTEM.

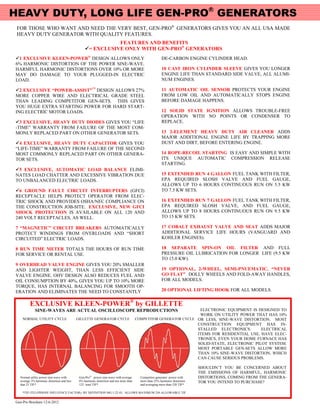

4. HEAVY DUTY, LONG LIFE GEN-PRO® GENERATORS
FOR THOSE WHO WANT AND NEED THE VERY BEST, GEN-PRO® GENERATORS GIVES YOU AN ALL USA MADE
HEAVY DUTY GENERATOR WITH QUALITY FEATURES.
FEATURES AND BENEFITS
= EXCLUSIVE ONLY WITH GEN-PRO® GENERATORS
1 EXCLUSIVE KLEEN-POWER® DESIGN ALLOWS ONLY DE-CARBON ENGINE CYLINDER HEAD.
6% HARMONIC DISTORTION OF THE POWER SINE-WAVE.
HARMFUL HARMONIC DISTORTIONS OVER 10% OR MORE 10 CAST IRON CYLINDER SLEEVE GIVES YOU LONGER
MAY DO DAMAGE TO YOUR PLUGGED-IN ELECTRIC ENGINE LIFE THAN STANDARD SIDE VALVE, ALL ALUMI-
LOAD. NUM ENGINES.
2 EXCLUSIVE “POWER-ASSIST”™ DESIGN ALLOWS 27% 11 AUTOMATIC OIL SENSOR PROTECTS YOUR ENGINE
MORE COPPER WIRE AND ELECTRICAL GRADE STEEL FROM LOW OIL AND AUTOMATICALLY STOPS ENGINE
THAN LEADING COMPETITOR GEN-SETS. THIS GIVES BEFORE DAMAGE HAPPENS.
YOU HUGE EXTRA STARTING POWER FOR HARD START-
ING ELECTRIC MOTOR LOADS. 12 SOLID STATE IGNITION ALLOWS TROUBLE-FREE
OPERATION WITH NO POINTS OR CONDENSER TO
3 EXCLUSIVE, HEAVY DUTY DIODES GIVES YOU “LIFE REPLACE.
-TIME” WARRANTY FROM FAILURE OF THE MOST COM-
MONLY REPLACED PART ON OTHER GENERATOR SETS. 13 2-ELEMENT HEAVY DUTY AIR CLEANER ADDS
MAJOR ADDITIONAL ENGINE LIFE BY TRAPPING MORE
4 EXCLUSIVE, HEAVY DUTY CAPACITOR GIVES YOU DUST AND DIRT, BEFORE ENTERING ENGINE.
“LIFE-TIME” WARRANTY FROM FAILURE OF THE SECOND
MOST COMMONLY REPLACED PART ON OTHER GENERA- 14 ROPE-RECOIL STARTING IS EASY AND SIMPLE WITH
TOR SETS. ITS UNIQUE AUTOMATIC COMPRESSION RELEASE
STARTING.
5 EXCLUSIVE, AUTOMATIC LOAD BALANCE ELIMI-
NATES LOAD CHATTER AND EXCESSIVE VIBRATION DUE 15 EXTENDED RUN 4 GALLON FUEL TANK WITH FILTER,
TO UNBALANCED ELECTRIC LOADS. EPA REQUIRED SLOSH VALVE AND FUEL GAUGE,
ALLOWS UP TO 6 HOURS CONTINUOUS RUN ON 5.5 KW
6 GROUND FAULT CIRCUIT INTERRUPTERS (GFCI) TO 7.5 KW SETS.
RECEPTACLE HELPS PROTECT OPERATOR FROM ELEC-
TRIC SHOCK AND PROVIDES OSHA/NEC COMPLIANCE ON 16 EXTENDED RUN 7 GALLON FUEL TANK WITH FILTER,
THE CONSTRUCTION JOB-SITE. EXCLUSIVE, NEW GFCI EPA REQUIRED SLOSH VALVE, AND FUEL GAUGE,
SHOCK PROTECTION IS AVAILABLE ON ALL 120 AND ALLOWS UP TO 8 HOURS CONTINUOUS RUN ON 9.5 KW
240 VOLT RECEPTACLES, AS WELL. TO 15 KW SETS.
7 “MAGNETIC” CIRCUIT BREAKERS AUTOMATICALLY 17 COBALT EXHAUST VALVE AND SEAT ADDS MAJOR
PROTECT WINDINGS FROM OVERLOADS AND “SHORT ADDITIONAL SERVICE LIFE HOURS (VANGUARD AND
CIRCUITED” ELECTRIC LOADS. KOHLER ENGINES).
8 RUN TIME METER TOTALS THE HOURS OF RUN TIME 18 SEPARATE SPIN-ON OIL FILTER AND FULL
FOR SERVICE OR RENTAL USE. PRESSURE OIL LUBRICATION FOR LONGER LIFE (9.5 KW
TO 15.0 KW).
9 OVERHEAD VALVE ENGINE GIVES YOU 20% SMALLER
AND LIGHTER WEIGHT, THAN LESS EFFICIENT SIDE 19 OPTIONAL, 2-WHEEL, SEMI-PNUEMATIC, “NEVER
VALVE ENGINE. OHV DESIGN ALSO REDUCES FUEL AND GO FLAT” DOLLY WHEELS AND FOLD-AWAY HANDLES,
OIL CONSUMPTION BY 40%, GIVES YOU UP TO 10% MORE FOR ALL MODELS.
TORQUE, HAS INTERNAL BALANCING FOR SMOOTH OP-
ERATION AND ELIMINATES THE NEED TO CONSTANTLY 20 OPTIONAL LIFTING HOOK FOR ALL MODELS.
EXCLUSIVE KLEEN-POWER® by GILLETTE
SINE-WAVES ARE ACTUAL OSCILLOSCOPE REPRODUCTIONS ELECTRONIC EQUIPMENT IS DESIGNED TO
WORK ON UTILITY POWER THAT HAS 10%
NORMAL UTILITY CYCLE GILLETTE GENERATOR CYCLE COMPETITOR GENERATOR CYCLE OR LESS, SINE-WAVE DISTORTION. MOST
CONSTRUCTION EQUIPMENT HAS IN-
STALLED ELECTRONICS. ELECTRICAL
ITEMS FOR RESIDENTIAL USE, HAVE ELEC-
TRONICS, EVEN YOUR HOME FURNACE HAS
SOLID-STATE, ELECTRONIC PILOT SYSTEM.
MOST PORTABLE GEN-SETS ALLOW MORE
THAN 10% SINE-WAVE DISTORTION, WHICH
CAN CAUSE SERIOUS PROBLEMS.
SHOULDN’T YOU BE CONCERNED ABOUT
THE EMISSIONS OF HARMFUL, HARMONIC
Normal utility power sine-wave with Gen-Pro® power sine-wave with average Competitor generator power with DISTORTIONS, COMING FROM THE GENERA-
average 3% harmonic distortion and less 6% harmonic distortion and not more than more than 25% harmonic distortion TOR YOU INTEND TO PURCHASE?
that 25 TIF* 125 total TIF* and averaging more than 520 TIF*
*TIF (TELEPHONE INFLUENCE FACTOR): BY DEFINITION MG 1-22.43, ALLOWS MAXIMUM 250 ALLOWABLE TIF.
Gen-Pro Brochure 12-6-2012
