Gear up for Continuous Integration with Salesforce DX, Circle CI and Clayton
- 1. #ForceAcademyLA Gear up forContinuous Integration with Salesforce DX, Circle CI and Clayton
- 2. #ForceAcademyLA Thank you Sponsors! ABig shout out to our sponsors, without them these events would not be possible:
- 3. #ForceAcademyLA#ForceAcademyLA Hello! DANIEL STANGE Technical Architect die.interaktivenGmbH & Co. KG Found Salesforce boring in the dark ages - Changed my mind. Frankfurt, Germany User Group Leader You can find me at: @stangomat https://www.linkedin.com/in/daniel-stange- 08474a49 https://trailhead.com/me/stangomat Blog: blog.danielstange.de
- 4. #ForceAcademyLA Let’s start CIfrom scratch!

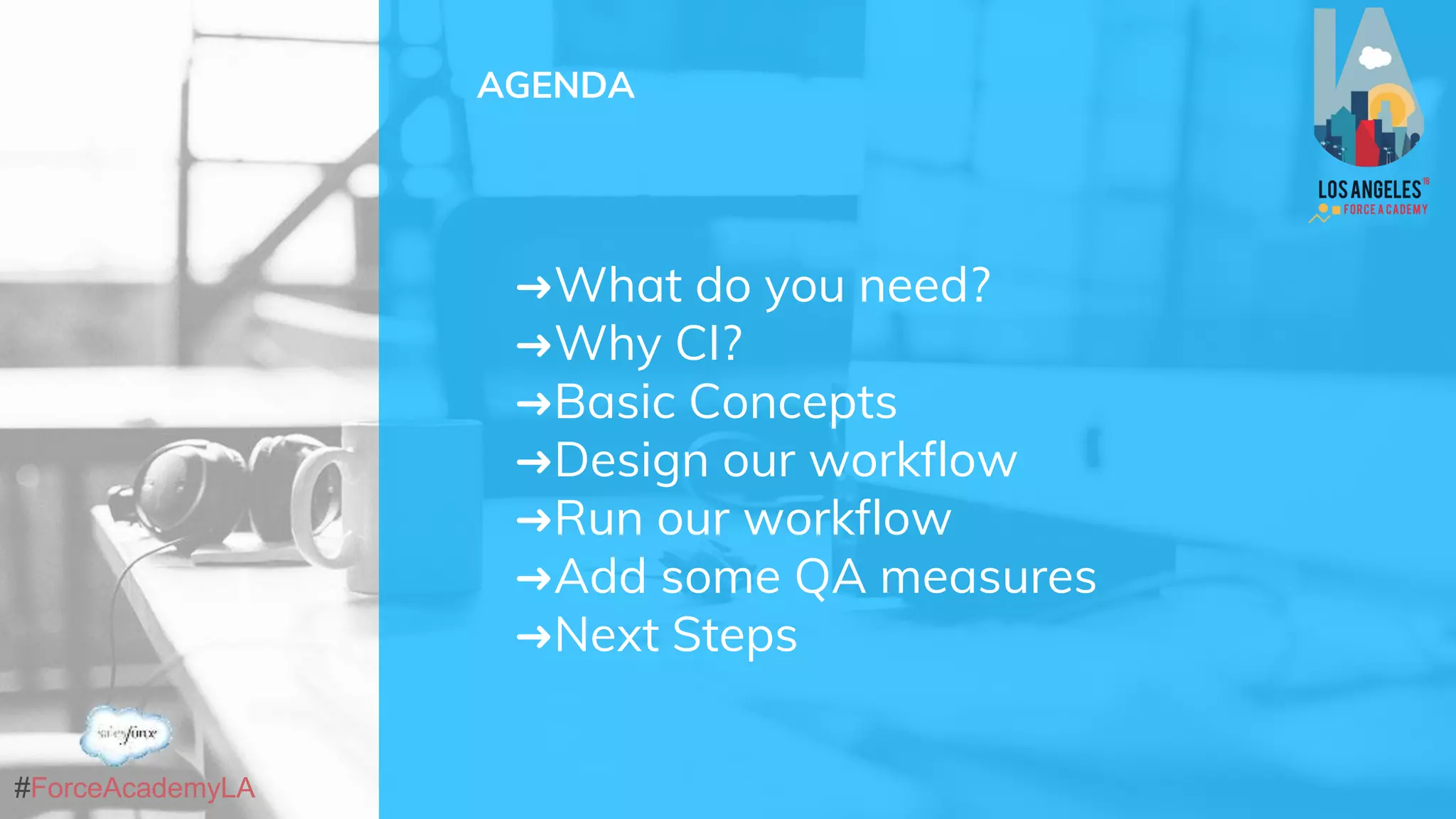

- 5. #ForceAcademyLA ➜What do youneed? ➜Why CI? ➜Basic Concepts ➜Design our workflow ➜Run our workflow ➜Add some QA measures ➜Next Steps AGENDA
- 6. #ForceAcademyLA Clone my demorepo if you want to work along github.com/dstdia/ForceAcademy18
- 7.

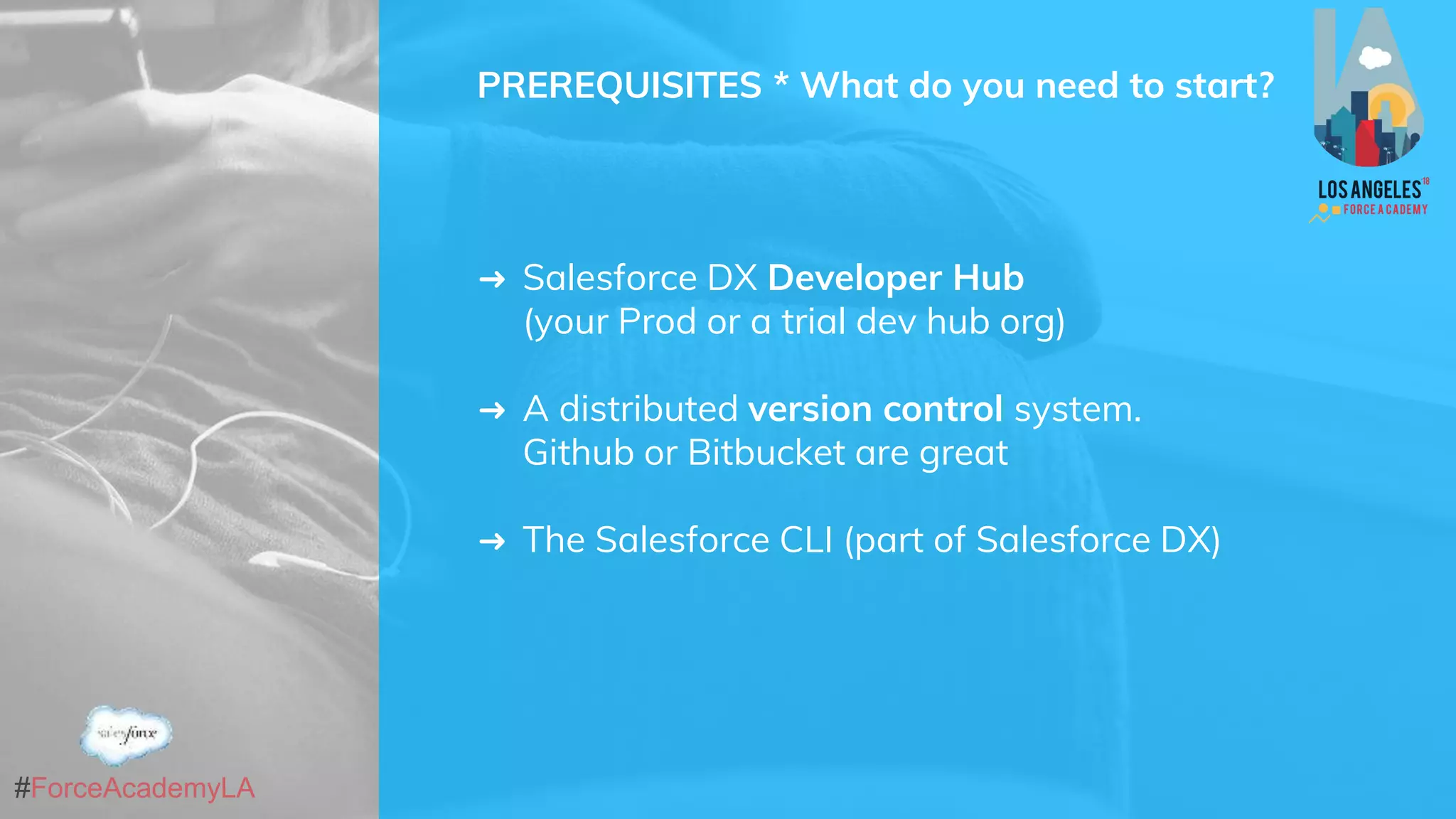

- 8. #ForceAcademyLA PREREQUISITES * Whatdo you need to start? ➜ Salesforce DX Developer Hub (your Prod or a trial dev hub org) ➜ A distributed version control system. Github or Bitbucket are great ➜ The Salesforce CLI (part of Salesforce DX)
- 9.

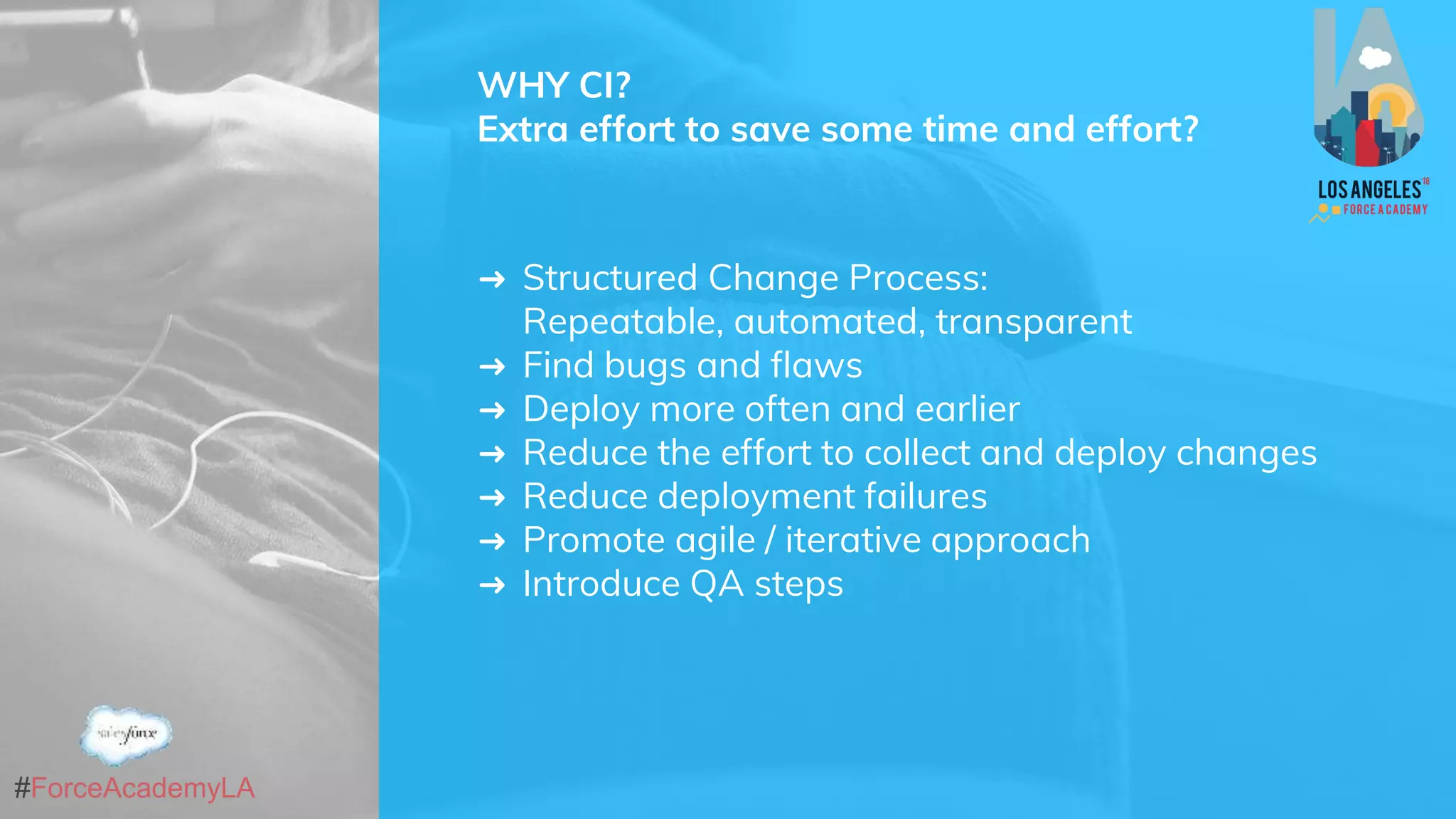

- 10. #ForceAcademyLA WHY CI? Extra effortto save some time and effort? ➜ Structured Change Process: Repeatable, automated, transparent ➜ Find bugs and flaws ➜ Deploy more often and earlier ➜ Reduce the effort to collect and deploy changes ➜ Reduce deployment failures ➜ Promote agile / iterative approach ➜ Introduce QA steps

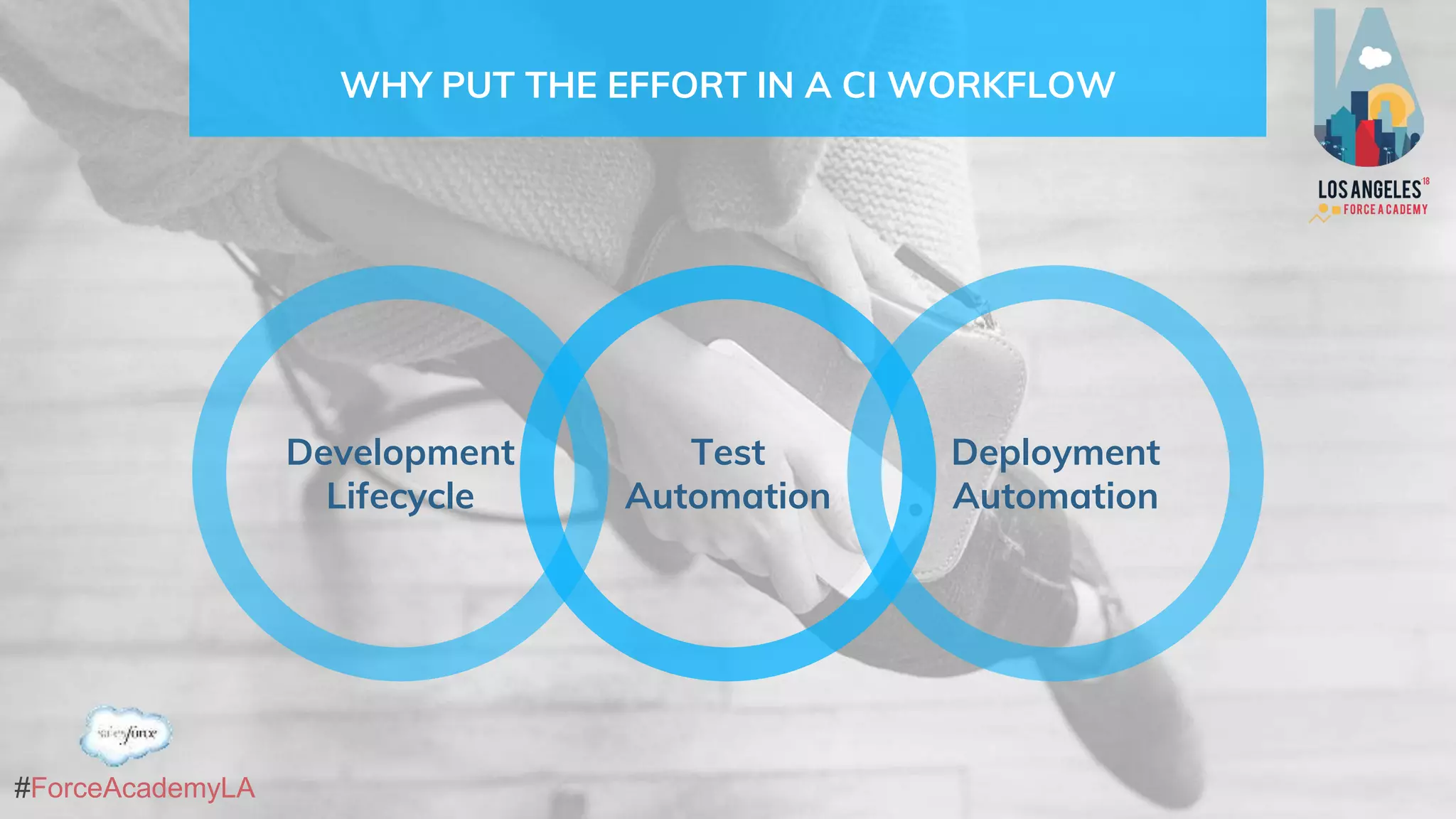

- 11. #ForceAcademyLA WHY PUT THEEFFORT IN A CI WORKFLOW Test Automation Deployment Automation Development Lifecycle

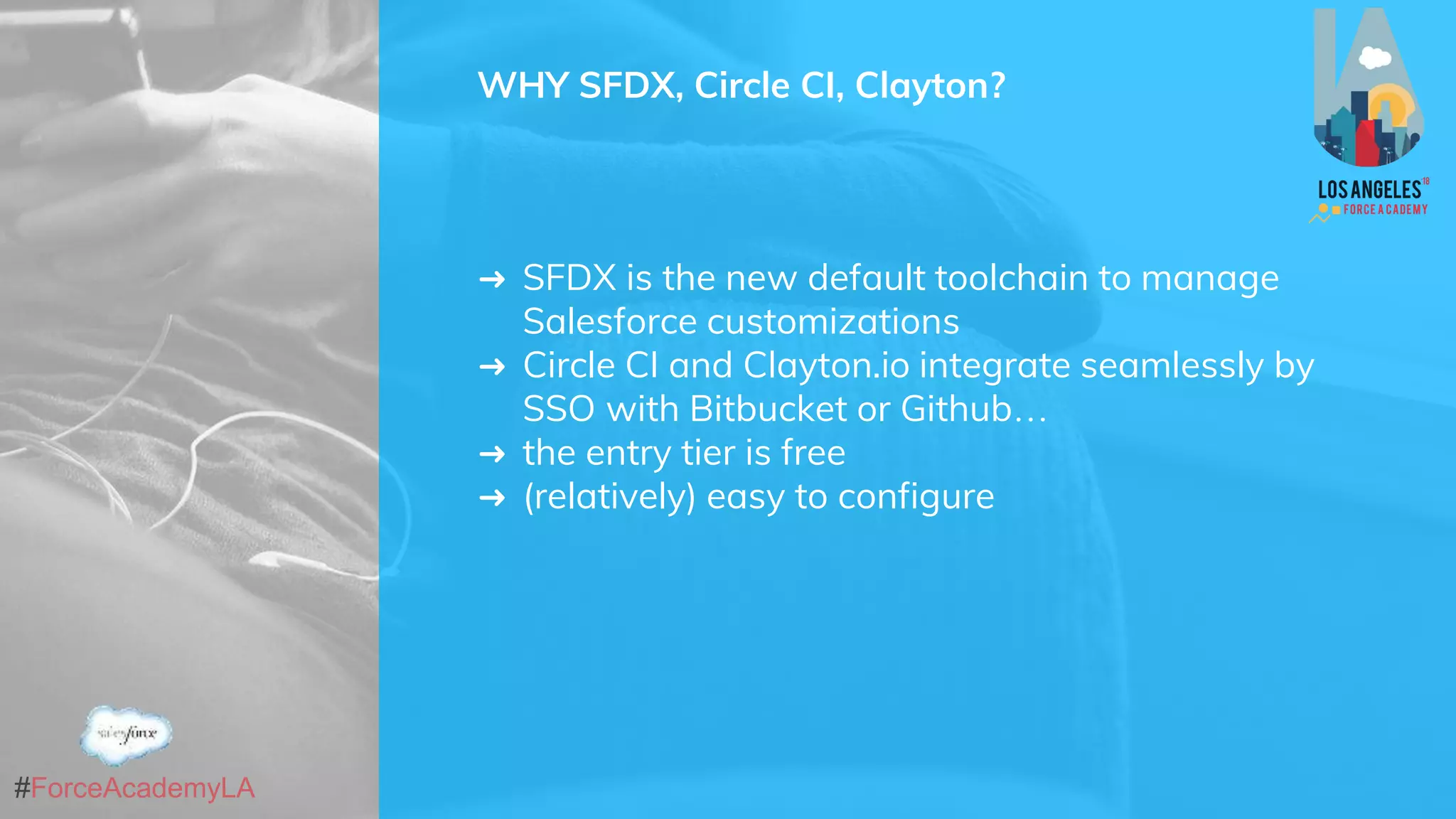

- 12. #ForceAcademyLA WHY SFDX, CircleCI, Clayton? ➜ SFDX is the new default toolchain to manage Salesforce customizations ➜ Circle CI and Clayton.io integrate seamlessly by SSO with Bitbucket or Github… ➜ the entry tier is free ➜ (relatively) easy to configure
- 13.
- 14.

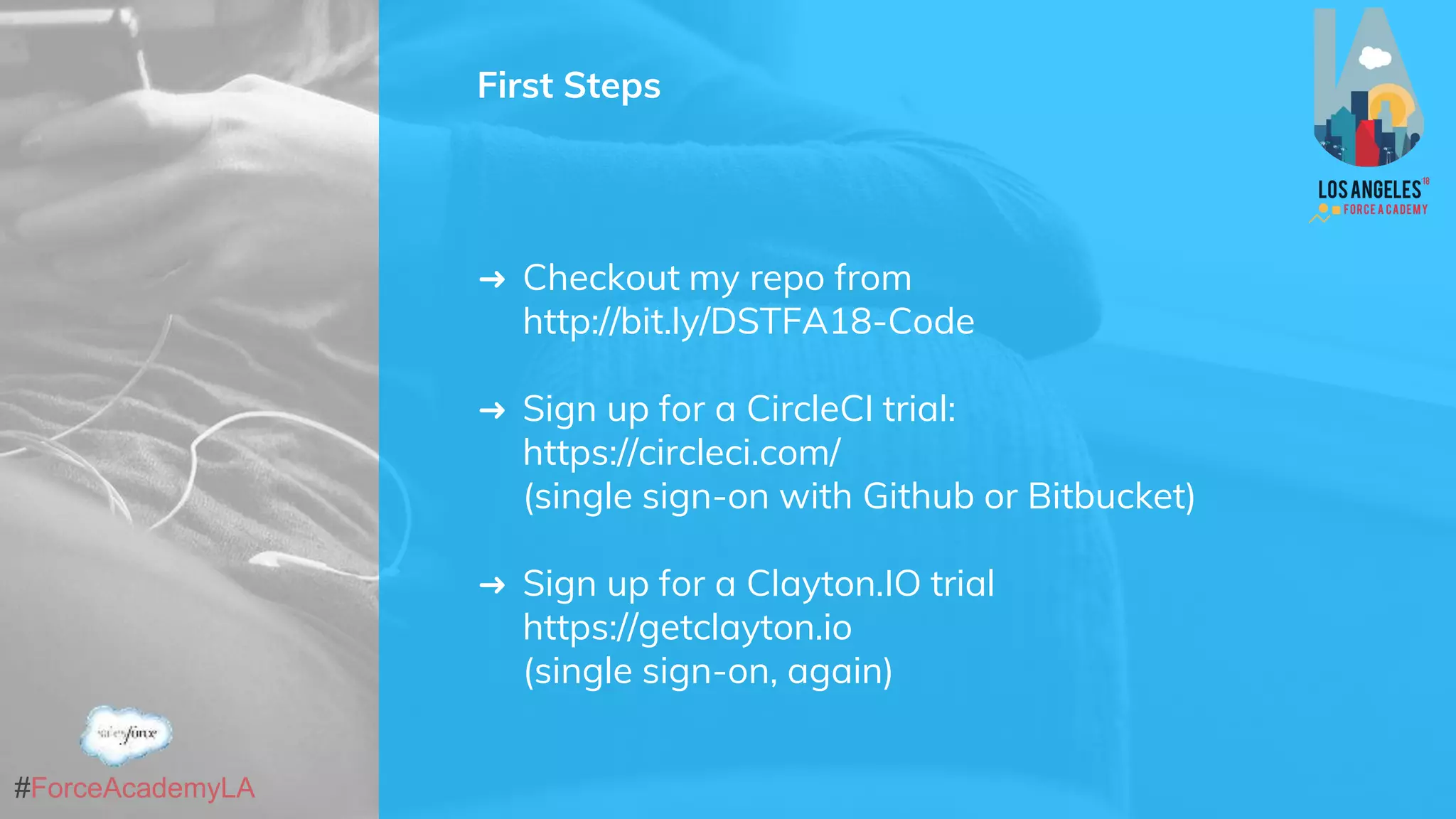

- 15. #ForceAcademyLA First Steps ➜ Checkoutmy repo from http://bit.ly/DSTFA18-Code ➜ Sign up for a CircleCI trial: https://circleci.com/ (single sign-on with Github or Bitbucket) ➜ Sign up for a Clayton.IO trial https://getclayton.io (single sign-on, again)

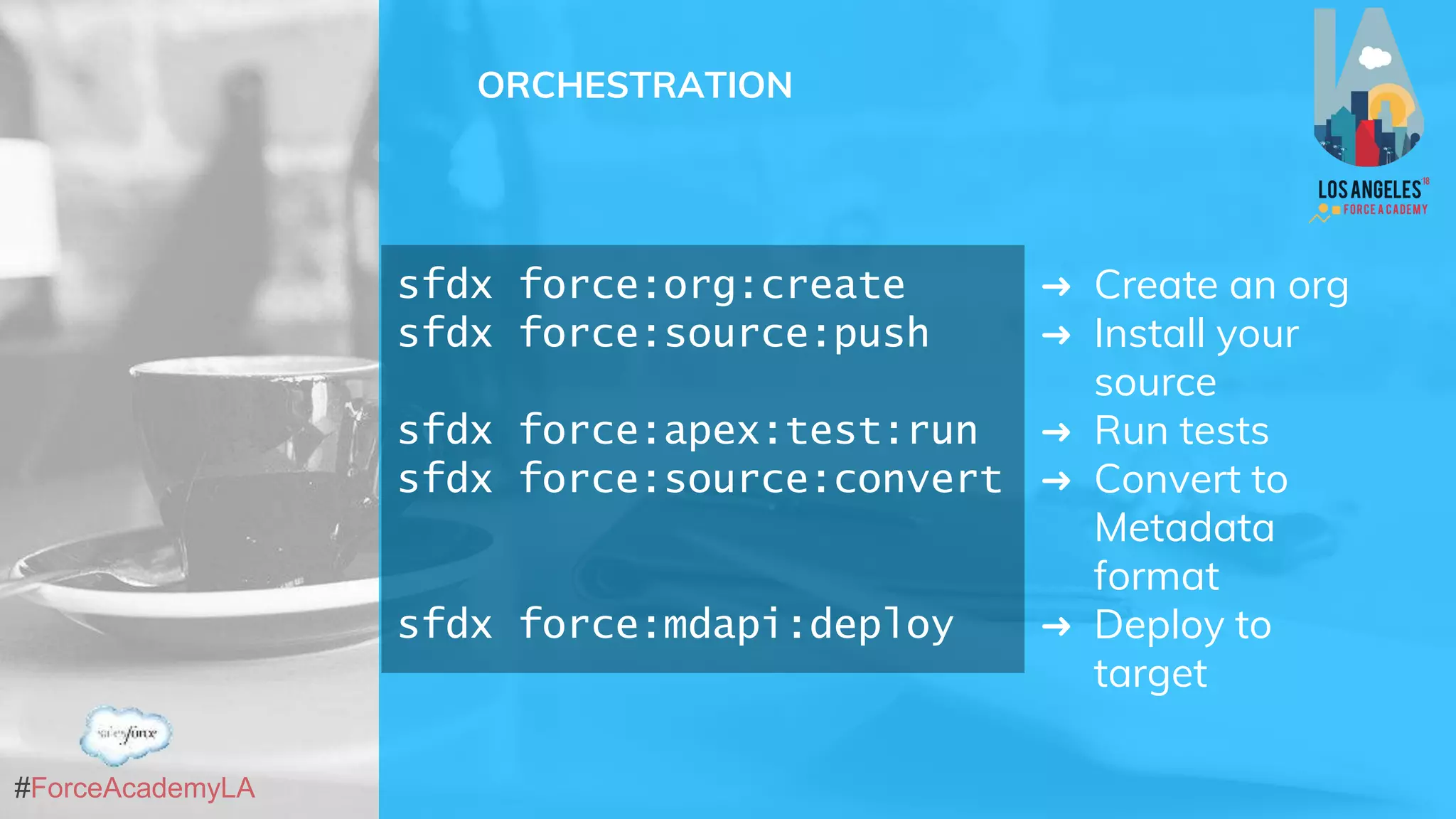

- 16. #ForceAcademyLA ORCHESTRATION sfdx force:org:create sfdx force:source:push sfdxforce:apex:test:run sfdx force:source:convert sfdx force:mdapi:deploy ➜ Create an org ➜ Install your source ➜ Run tests ➜ Convert to Metadata format ➜ Deploy to target
- 17.
- 18.
- 19. #ForceAcademyLA SLEEVES UP! We’re gettingour hands dirty

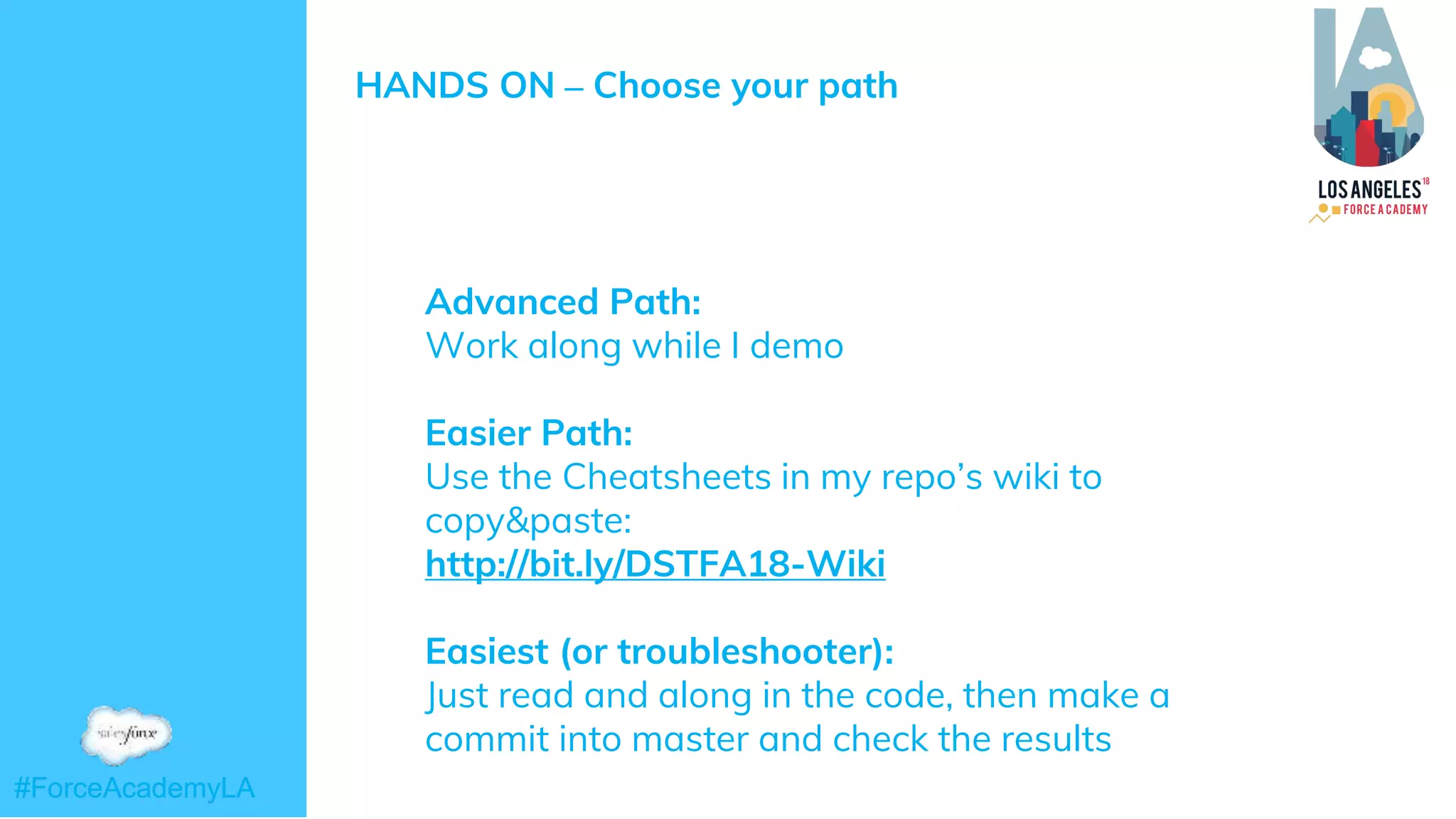

- 20. #ForceAcademyLA#ForceAcademyLA HANDS ON –Choose your path ➜ Advanced Path: Work along while I demo ➜ Easier Path: Use the Cheatsheets in my repo’s wiki to copy&paste: http://bit.ly/DSTFA18-Wiki ➜ Easiest (or troubleshooter): ➜ Just read and along in the code, then make a commit into master and check the results

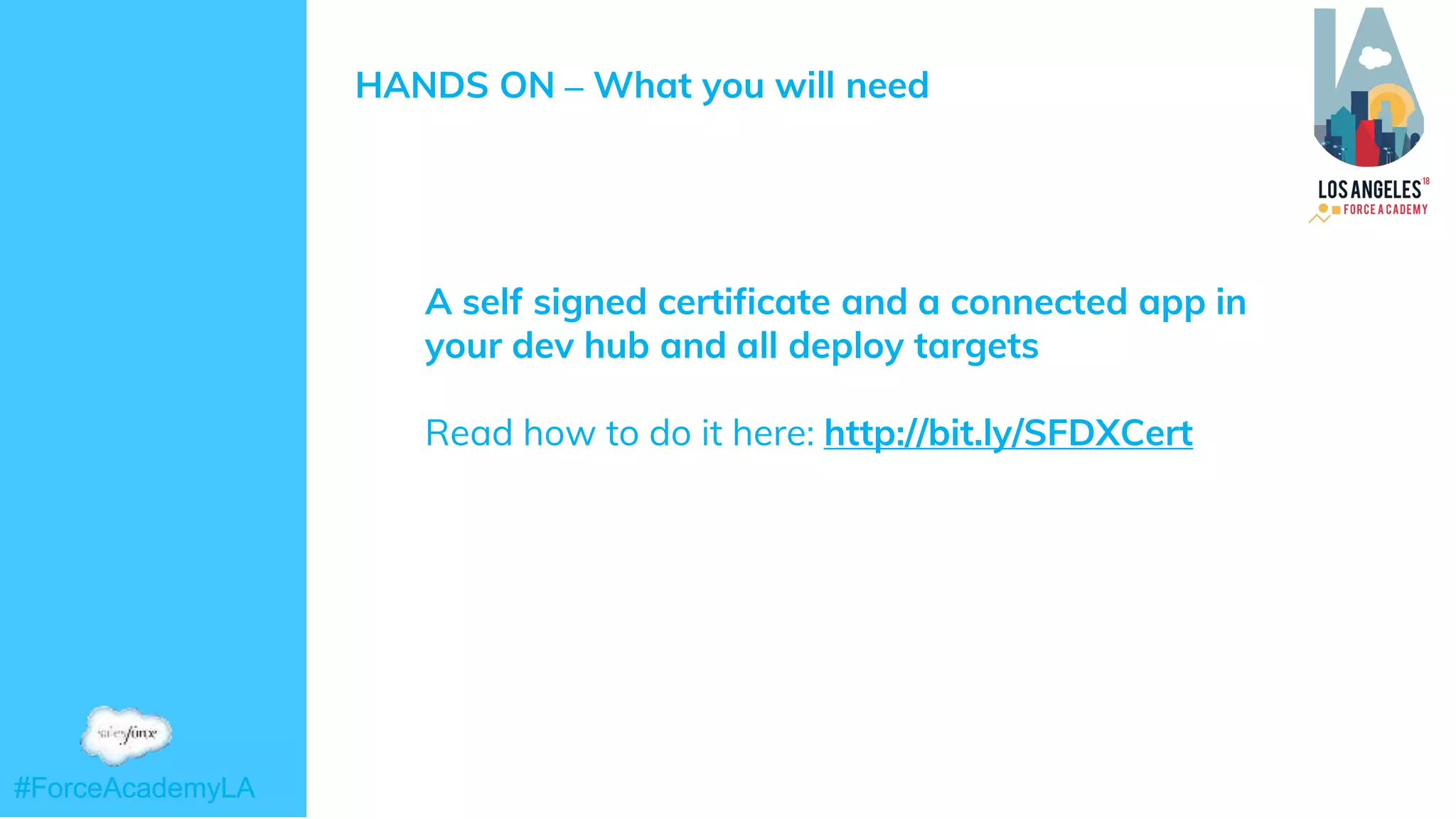

- 21. #ForceAcademyLA#ForceAcademyLA HANDS ON –What you will need ➜ A self signed certificate and a connected app in your dev hub and all deploy targets ➜ Read how to do it here: http://bit.ly/SFDXCert
- 22.

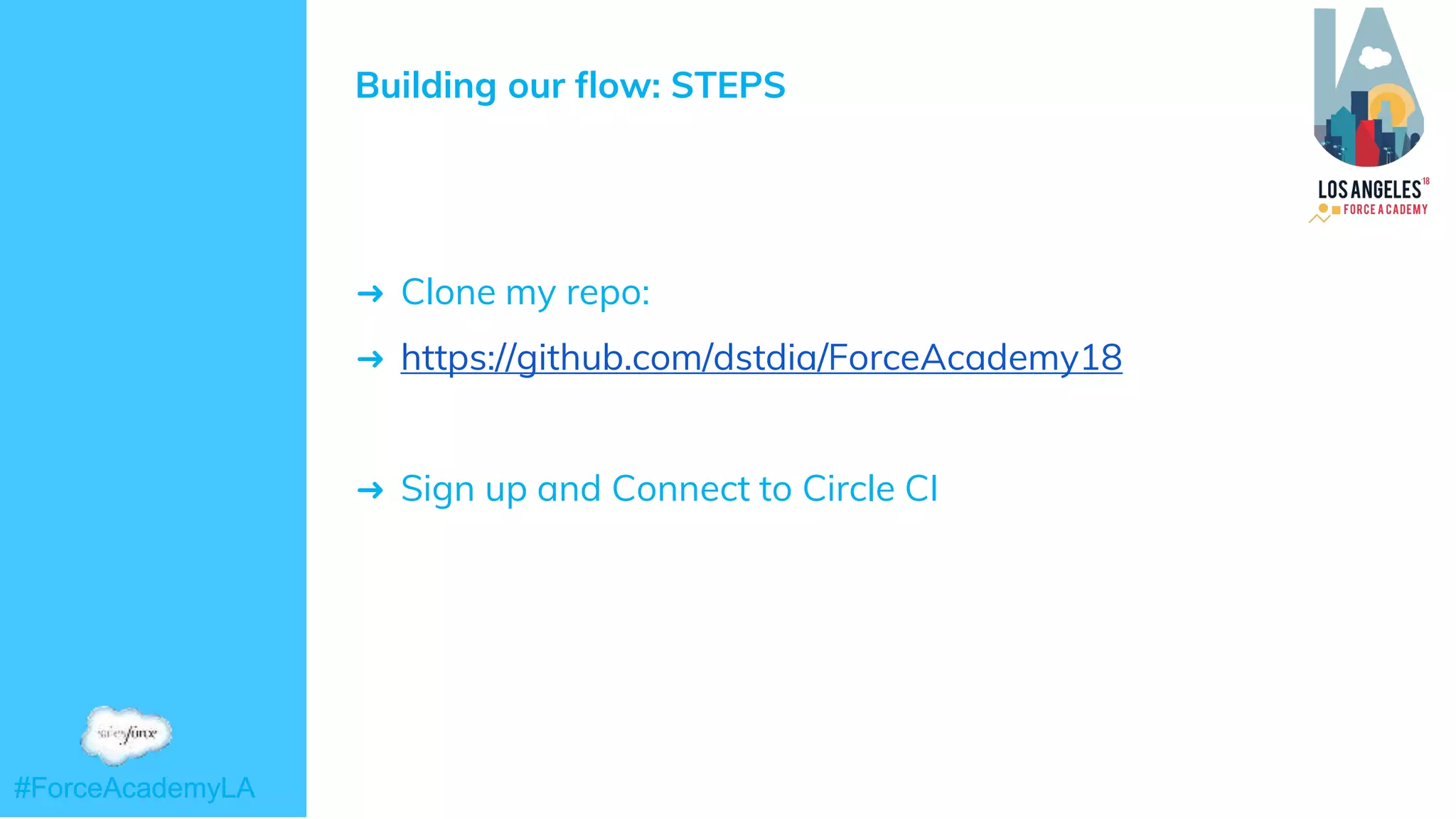

- 23. #ForceAcademyLA#ForceAcademyLA Building our flow:STEPS ➜ Clone my repo: ➜ https://github.com/dstdia/ForceAcademy18 ➜ Sign up and Connect to Circle CI

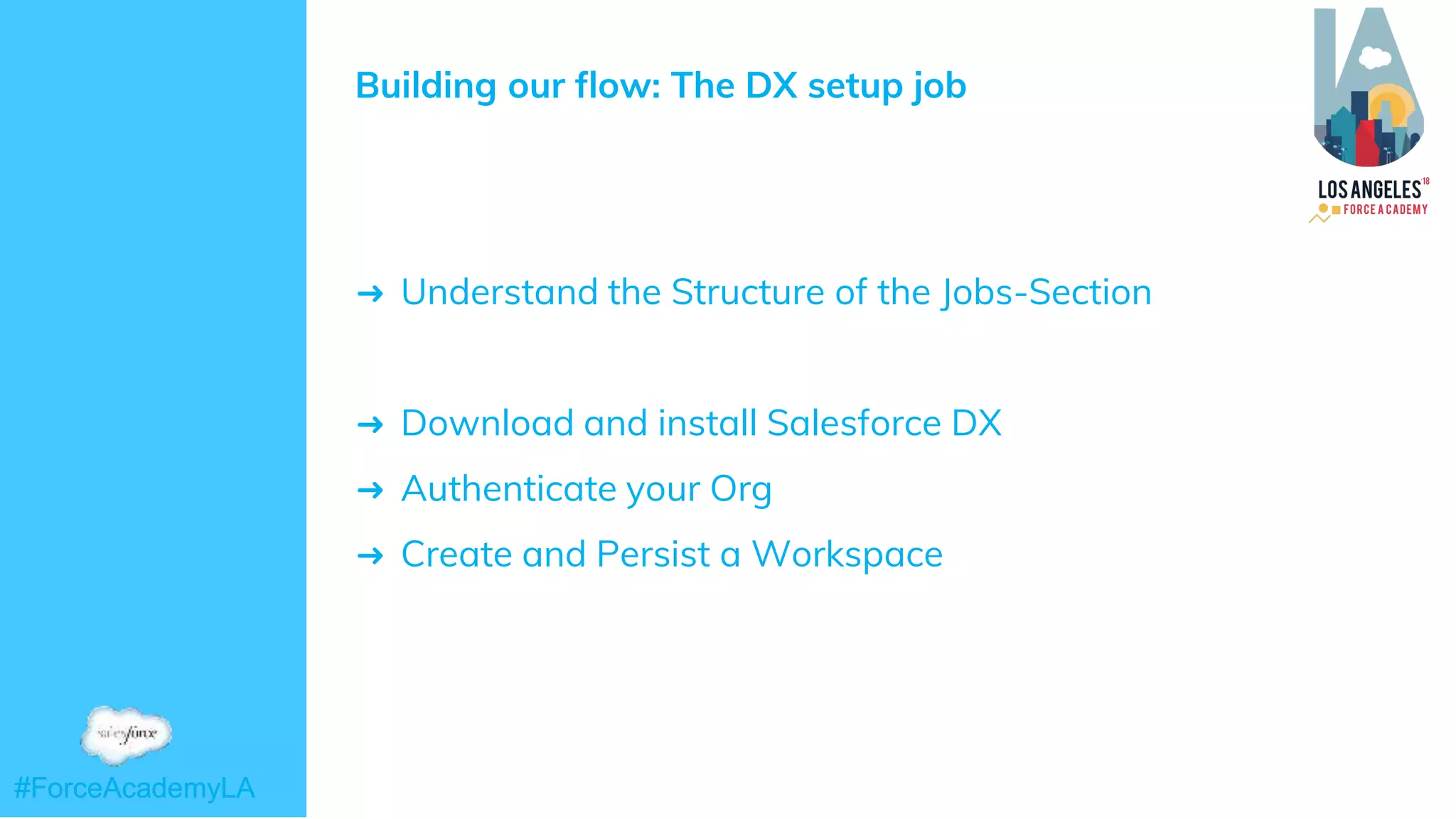

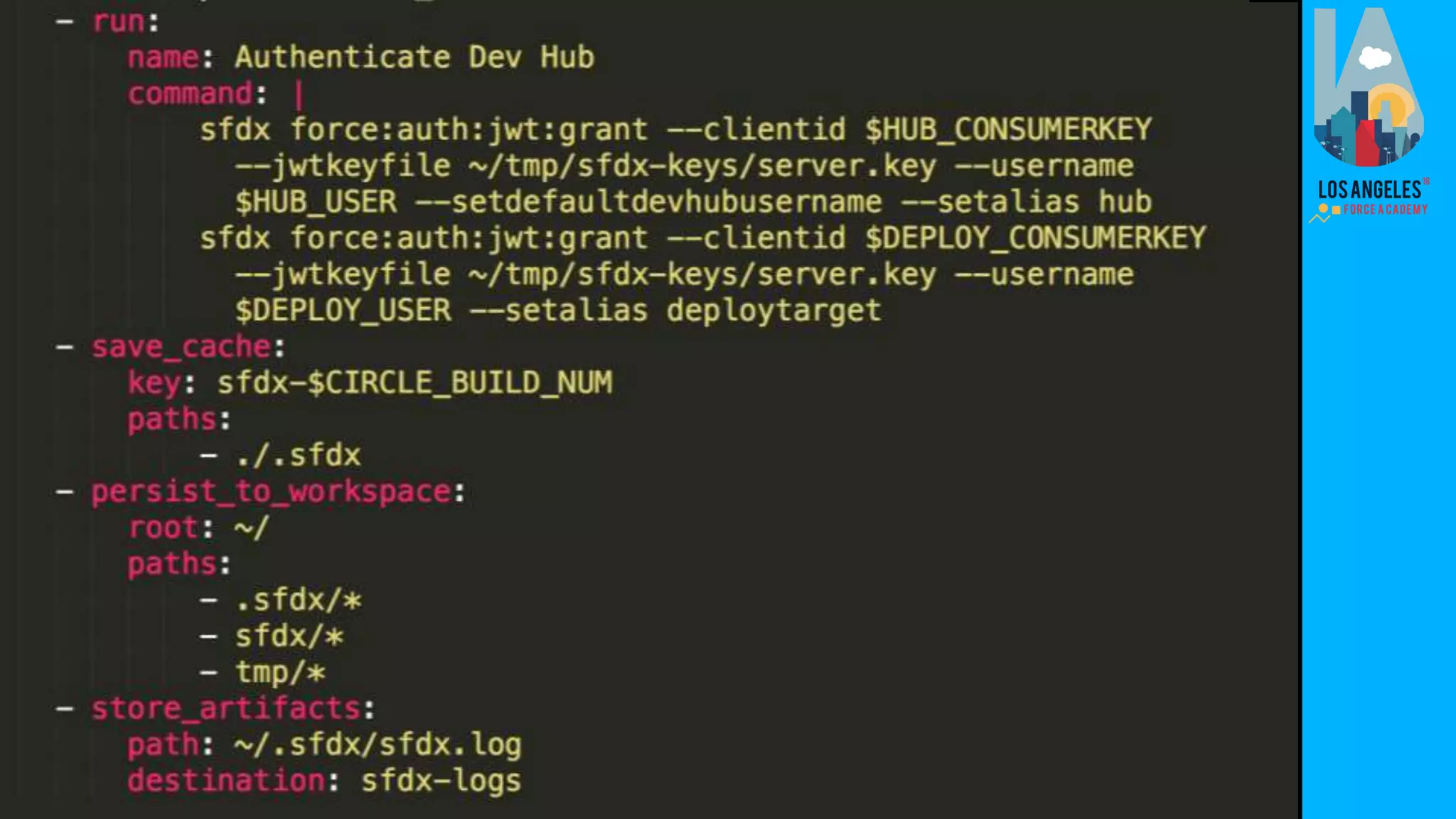

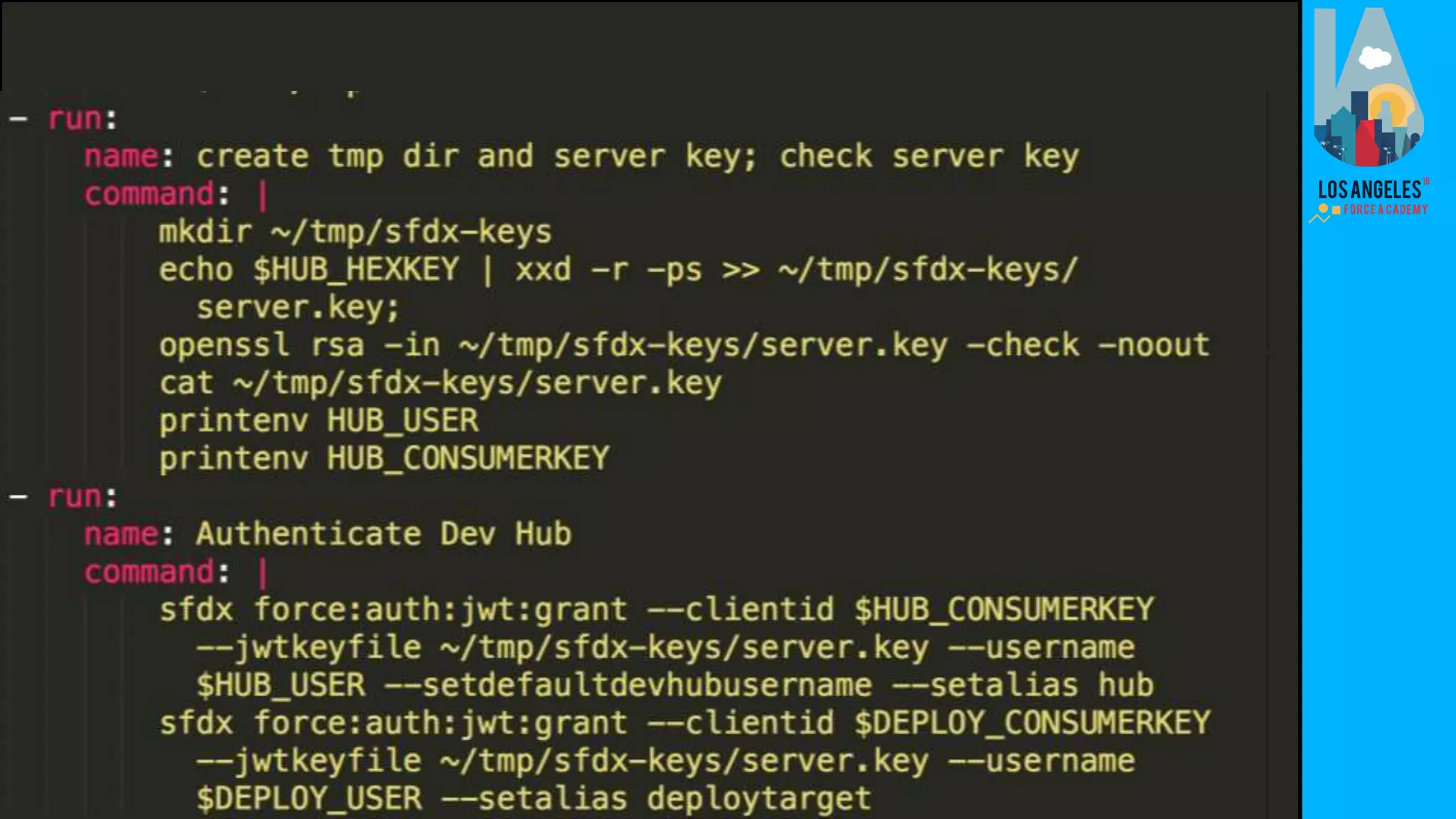

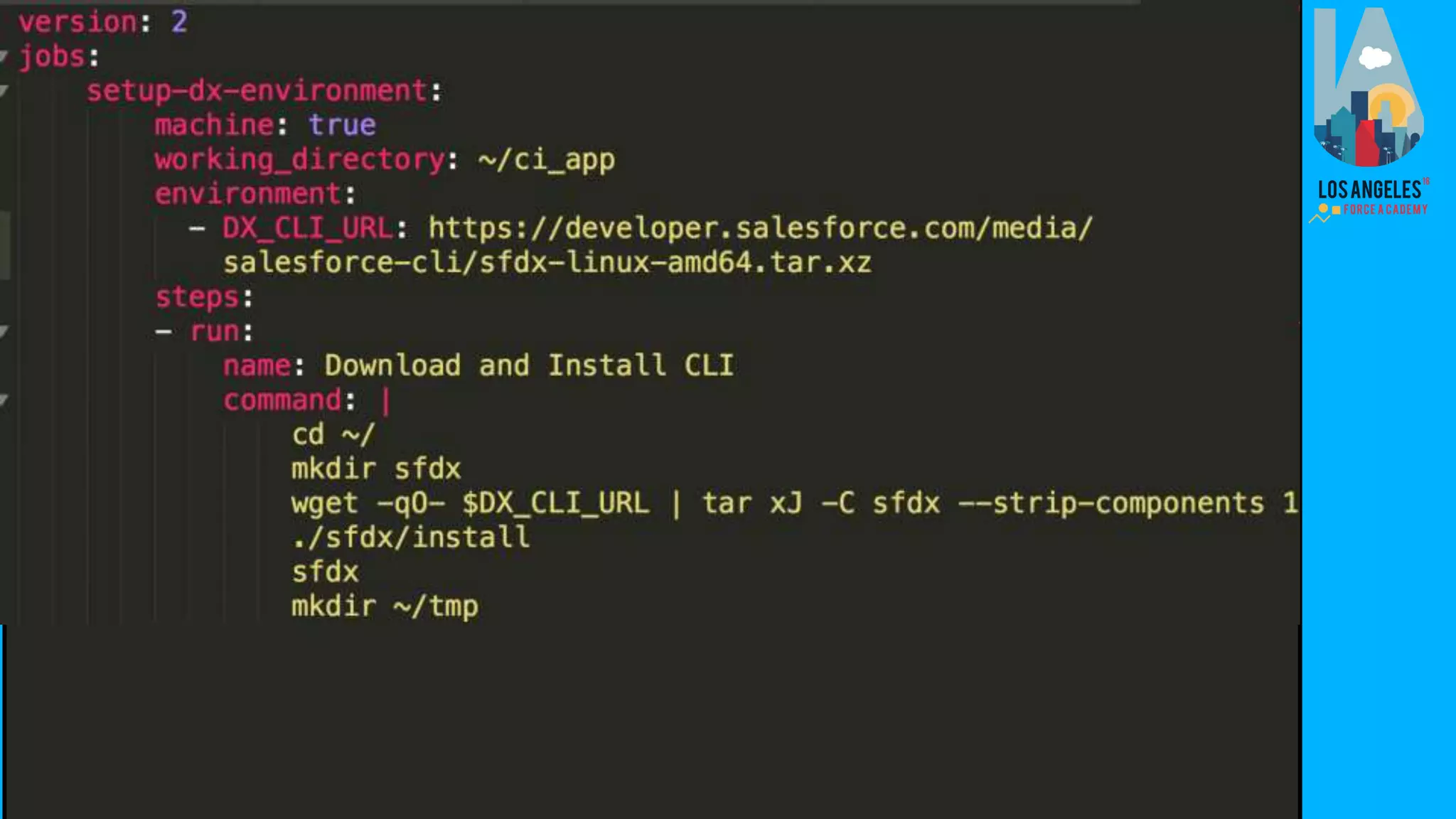

- 24. #ForceAcademyLA#ForceAcademyLA Building our flow:The DX setup job ➜ Understand the Structure of the Jobs-Section ➜ Download and install Salesforce DX ➜ Authenticate your Org ➜ Create and Persist a Workspace
- 25.
- 26.
- 27.

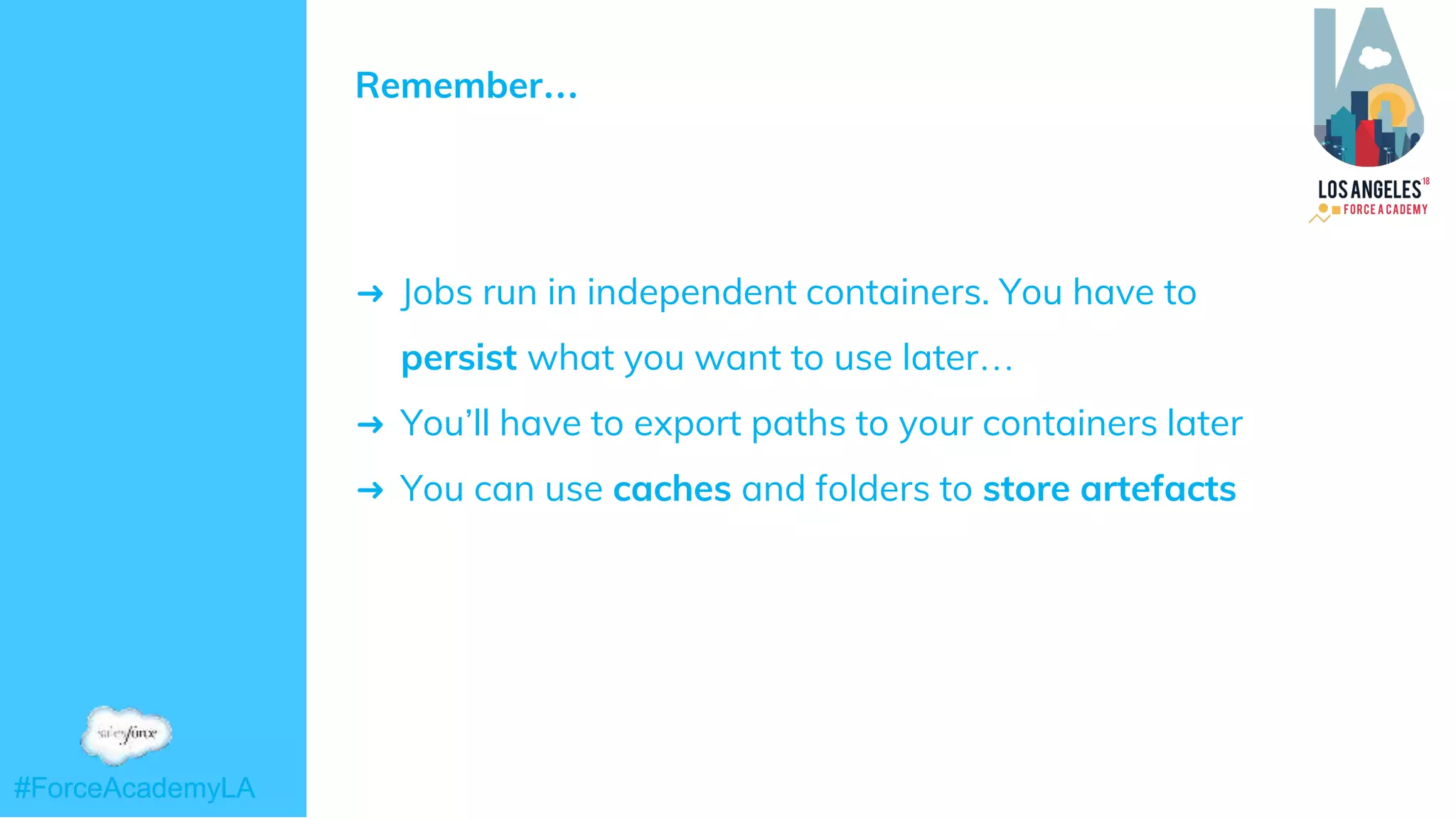

- 28. #ForceAcademyLA#ForceAcademyLA Remember… ➜ Jobs runin independent containers. You have to persist what you want to use later… ➜ You’ll have to export paths to your containers later ➜ You can use caches and folders to store artefacts

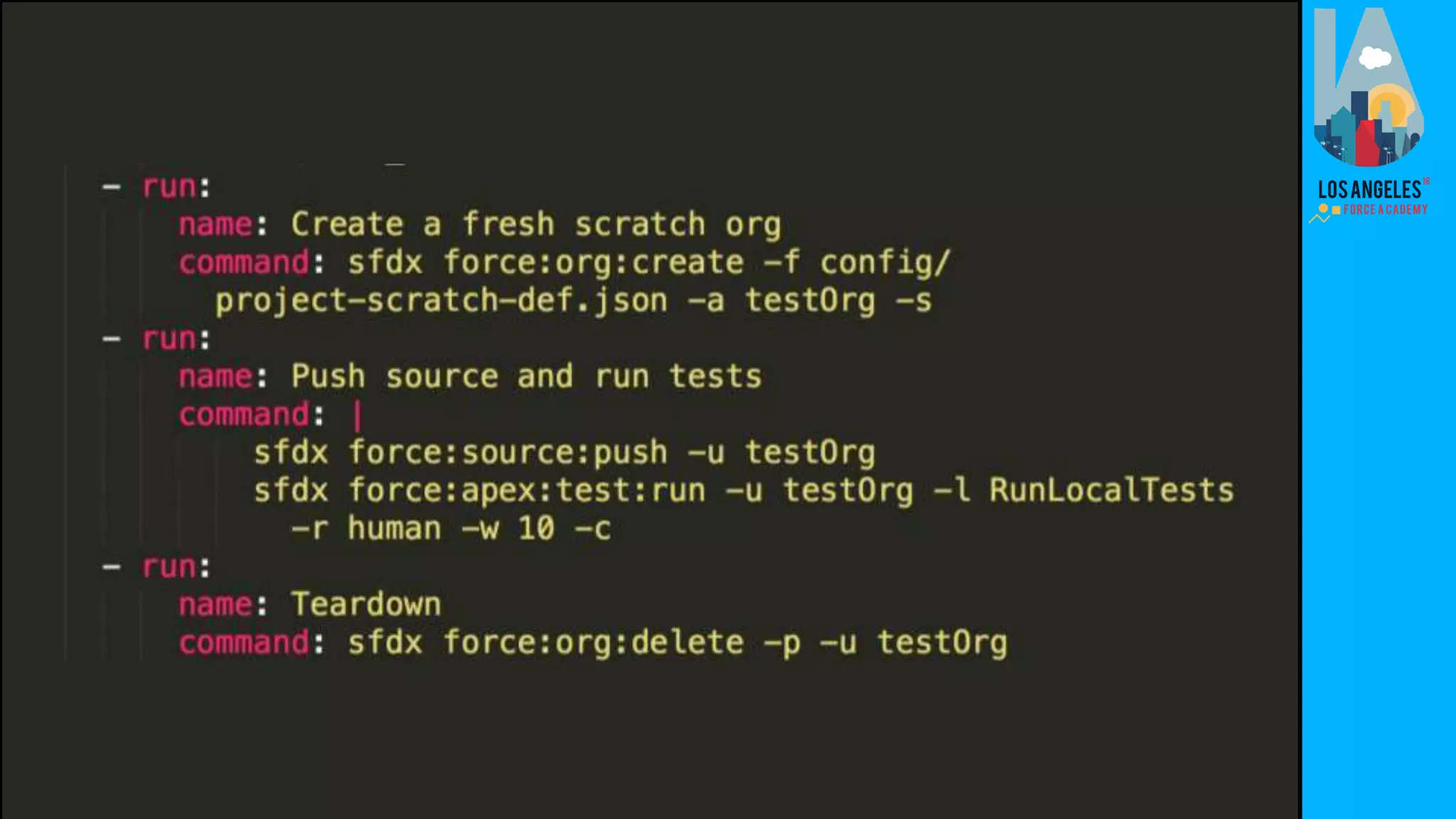

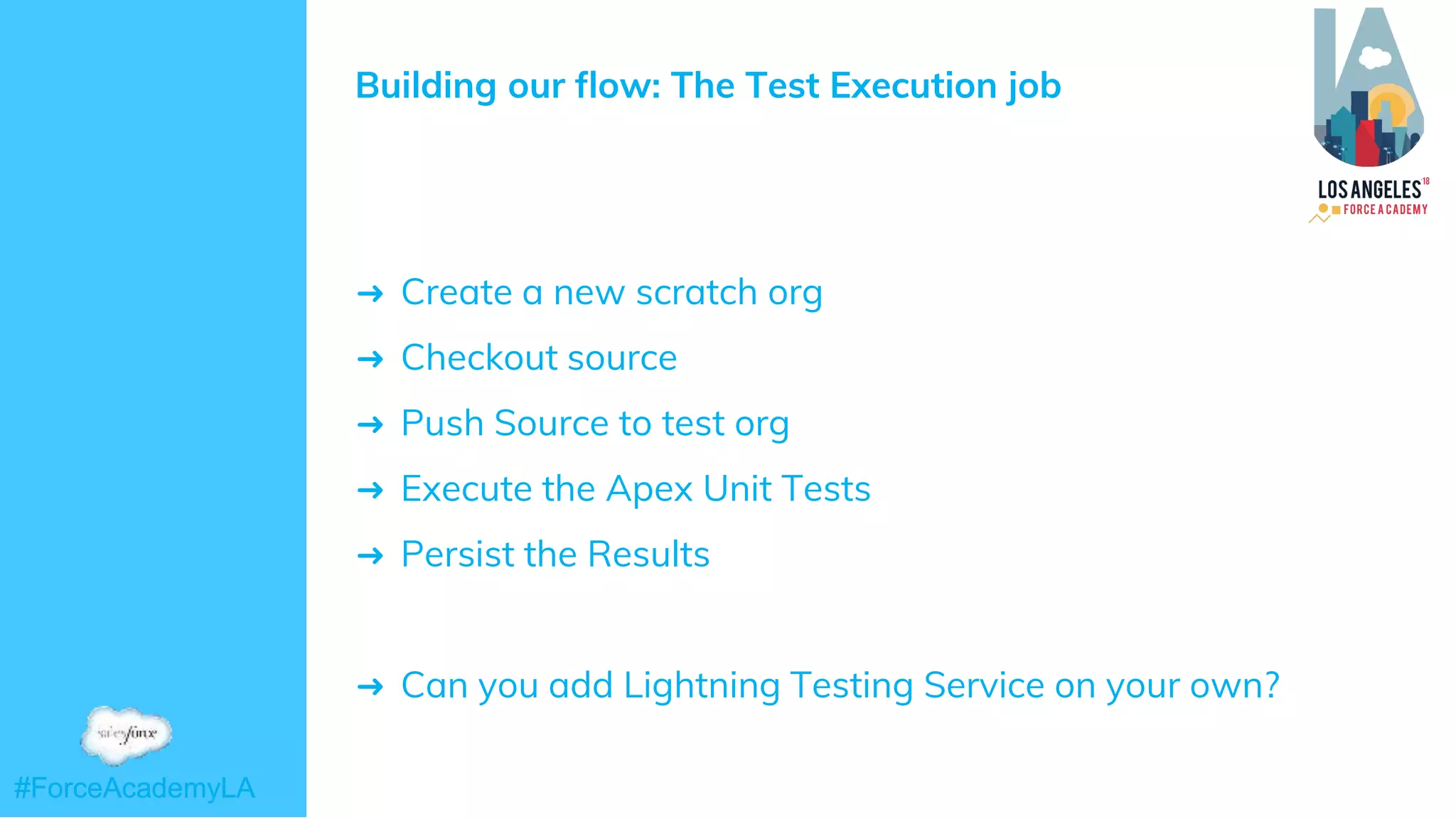

- 29. #ForceAcademyLA#ForceAcademyLA Building our flow:The Test Execution job ➜ Create a new scratch org ➜ Checkout source ➜ Push Source to test org ➜ Execute the Apex Unit Tests ➜ Persist the Results ➜ Can you add Lightning Testing Service on your own?
- 30.
- 31.

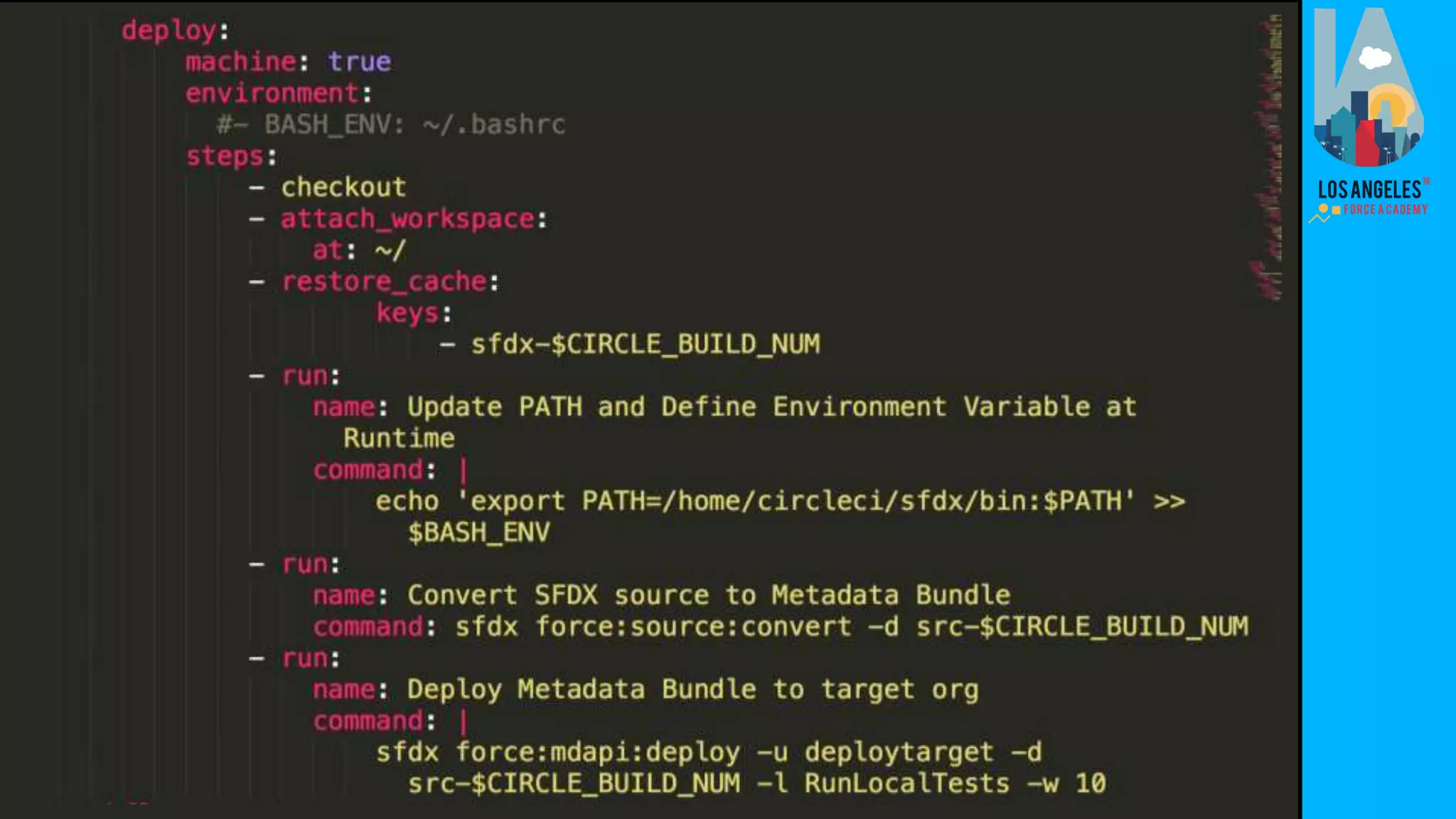

- 32. #ForceAcademyLA#ForceAcademyLA Building our flow:The Deployment job Typically you will need a Sandbox or Production Org to deploy to. We can use a scratch org here. Feel free to use an existing DE or Sandbox instead. ➜ Convert Source to Metadata API format ➜ Deploy Metadata
- 33.

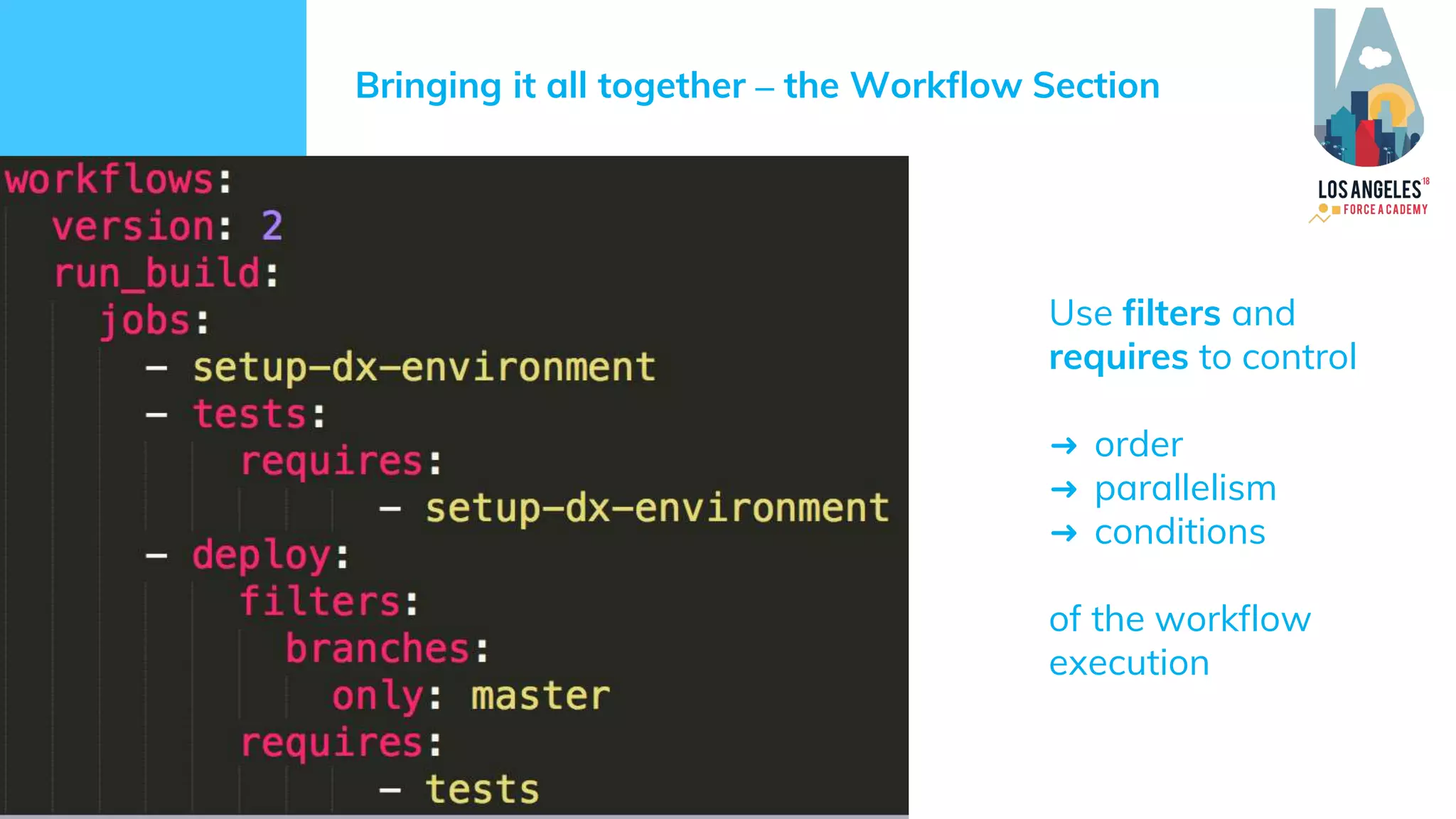

- 34. #ForceAcademyLA#ForceAcademyLA Bringing it alltogether – the Workflow Section Use filters and requires to control ➜ order ➜ parallelism ➜ conditions of the workflow execution

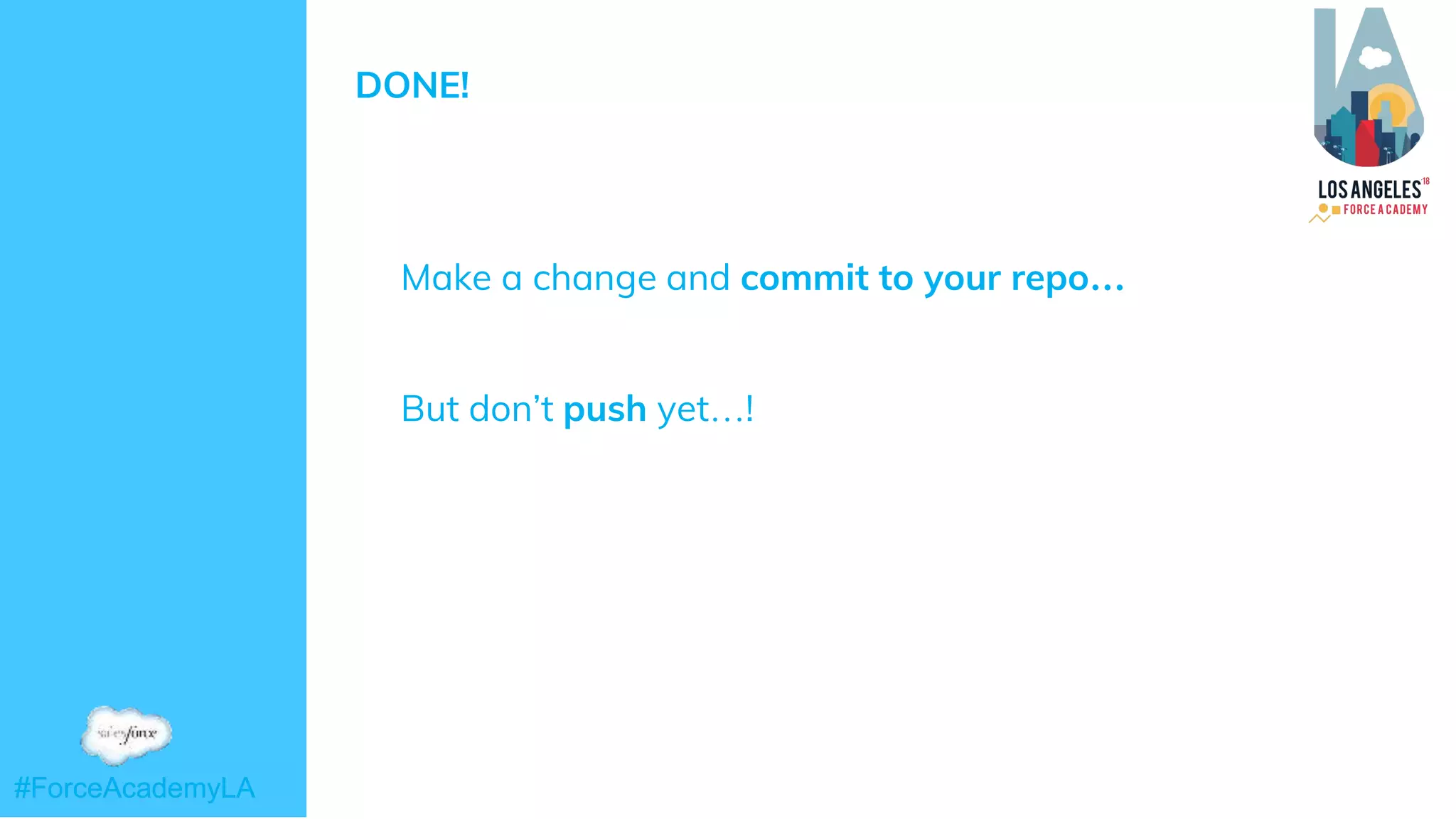

- 35. #ForceAcademyLA#ForceAcademyLA DONE! ➜ Make achange and commit to your repo… ➜ But don’t push yet…!
- 36.

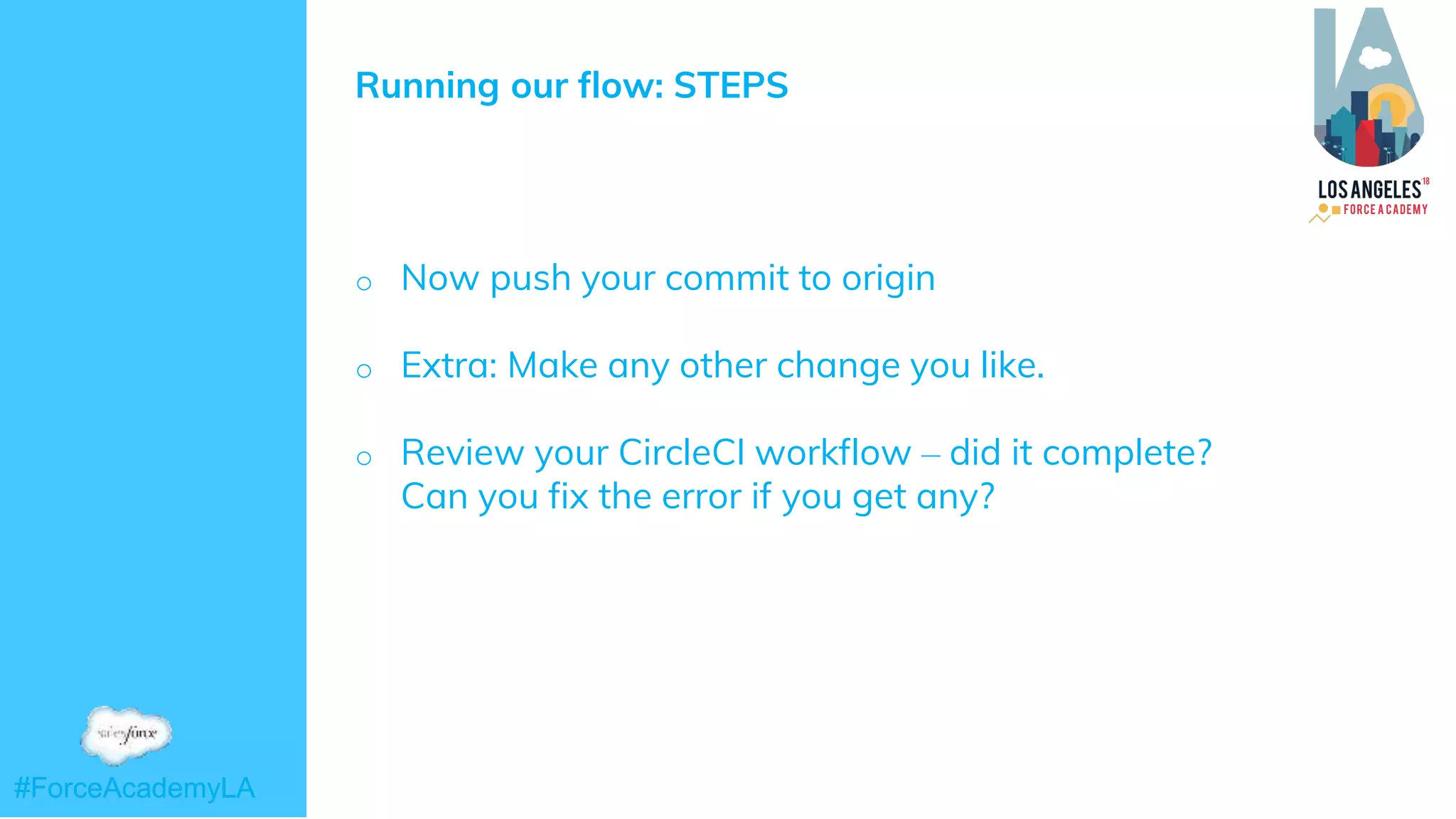

- 37. #ForceAcademyLA#ForceAcademyLA Running our flow:STEPS o Now push your commit to origin o Extra: Make any other change you like. o Review your CircleCI workflow – did it complete? Can you fix the error if you get any?
- 38.

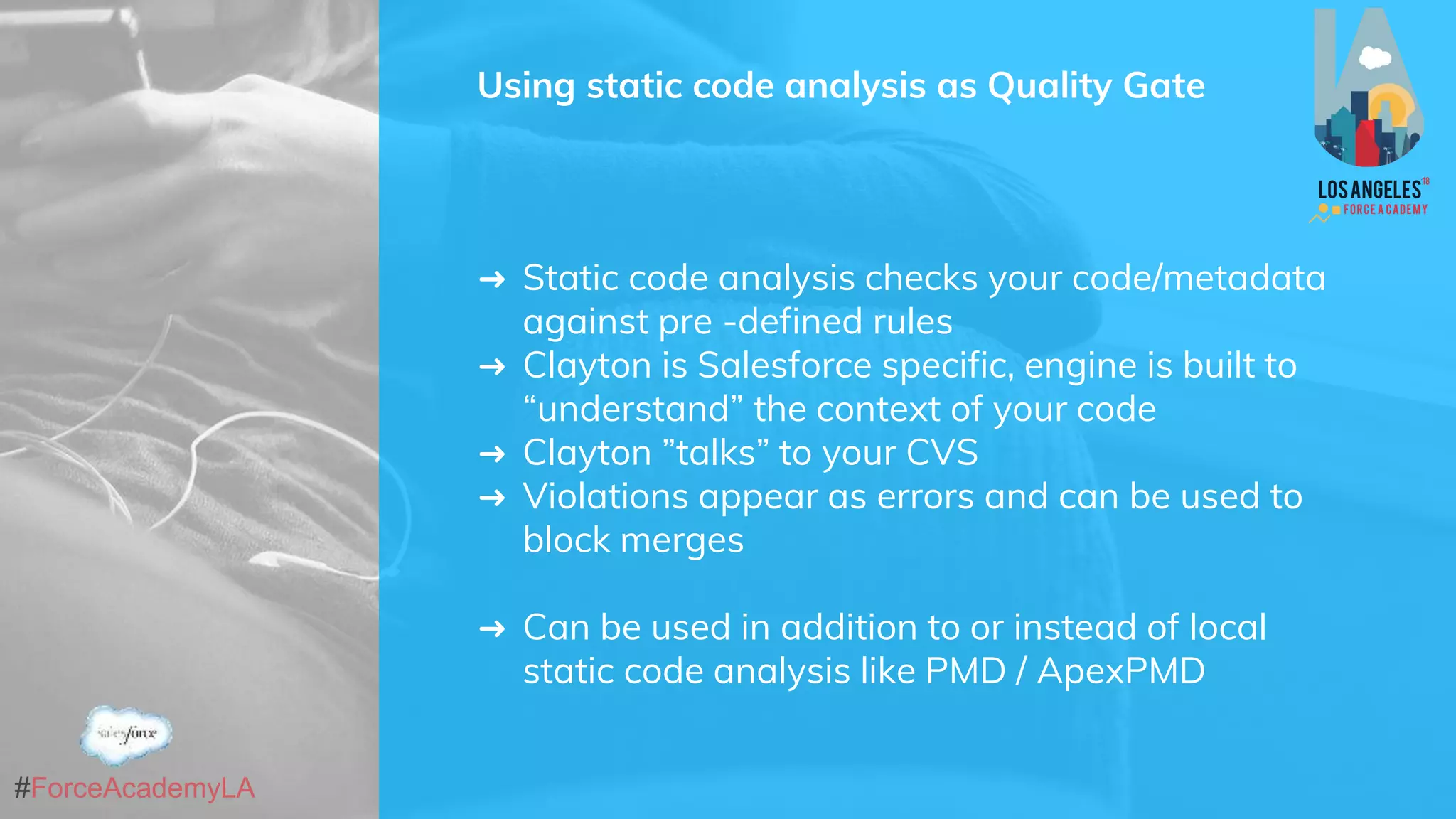

- 39. #ForceAcademyLA Using static codeanalysis as Quality Gate ➜ Static code analysis checks your code/metadata against pre -defined rules ➜ Clayton is Salesforce specific, engine is built to “understand” the context of your code ➜ Clayton ”talks” to your CVS ➜ Violations appear as errors and can be used to block merges ➜ Can be used in addition to or instead of local static code analysis like PMD / ApexPMD

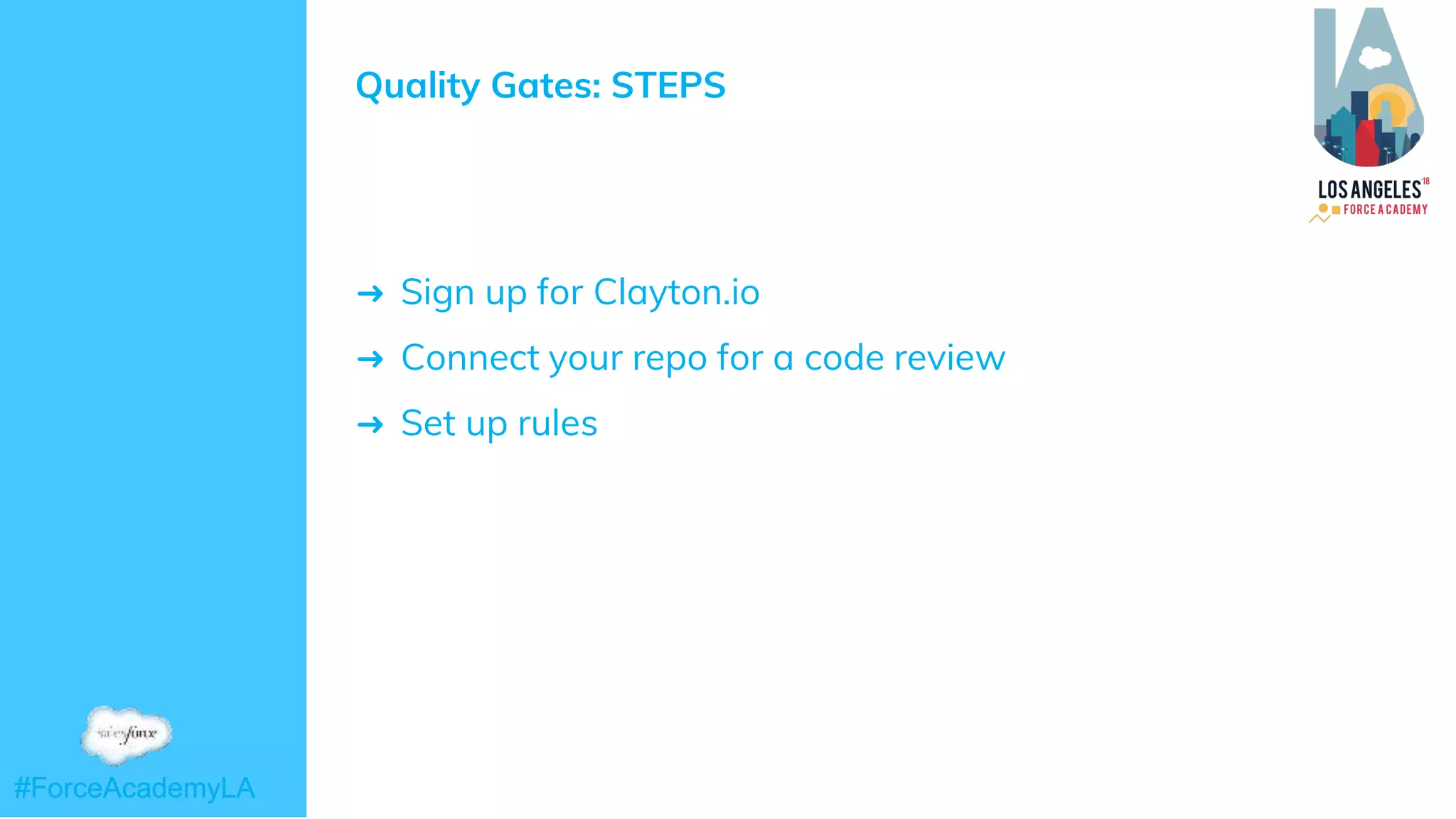

- 40. #ForceAcademyLA#ForceAcademyLA Quality Gates: STEPS ➜Sign up for Clayton.io ➜ Connect your repo for a code review ➜ Set up rules

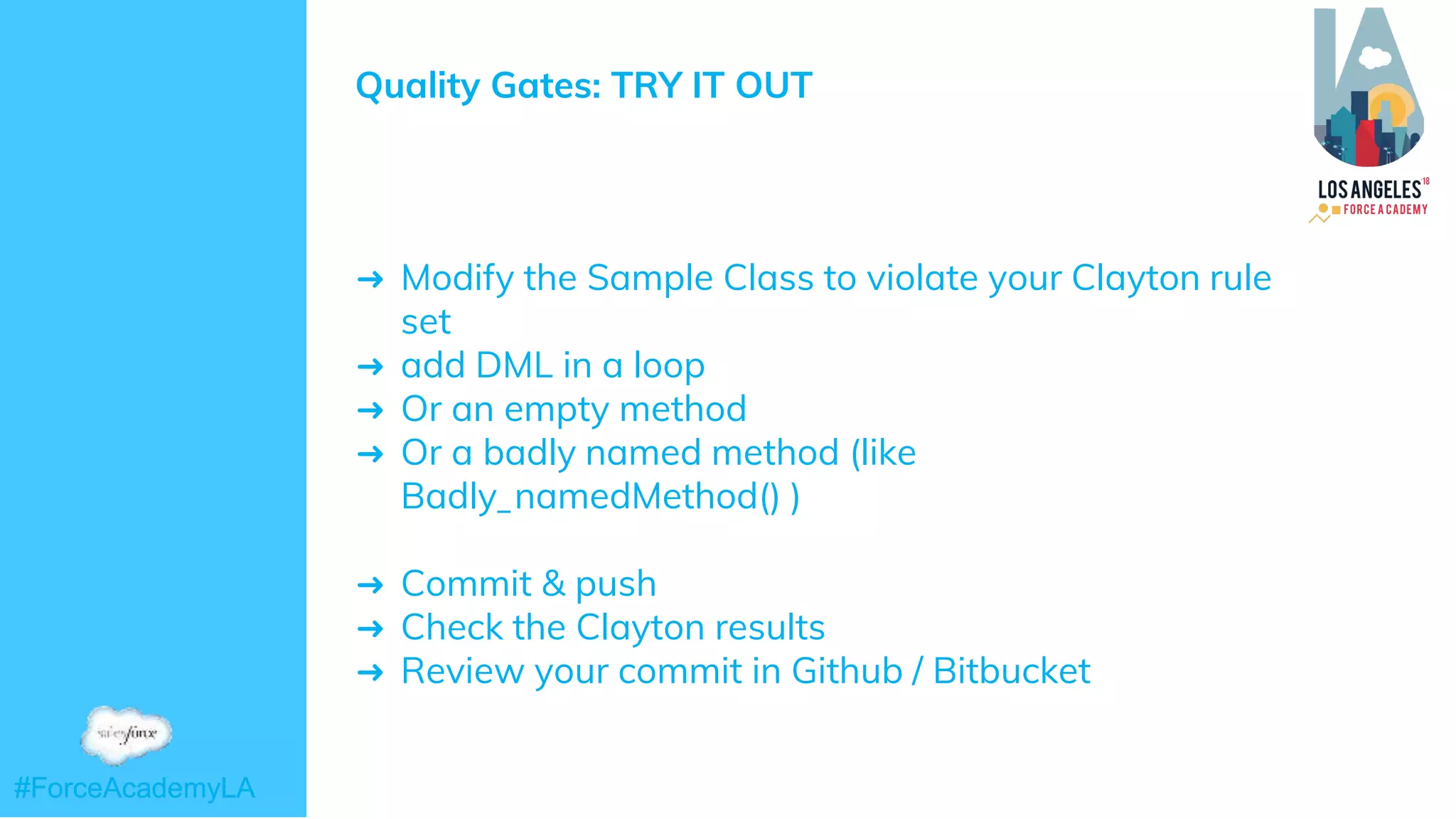

- 41. #ForceAcademyLA#ForceAcademyLA Quality Gates: TRYIT OUT ➜ Modify the Sample Class to violate your Clayton rule set ➜ add DML in a loop ➜ Or an empty method ➜ Or a badly named method (like Badly_namedMethod() ) ➜ Commit & push ➜ Check the Clayton results ➜ Review your commit in Github / Bitbucket
- 42.

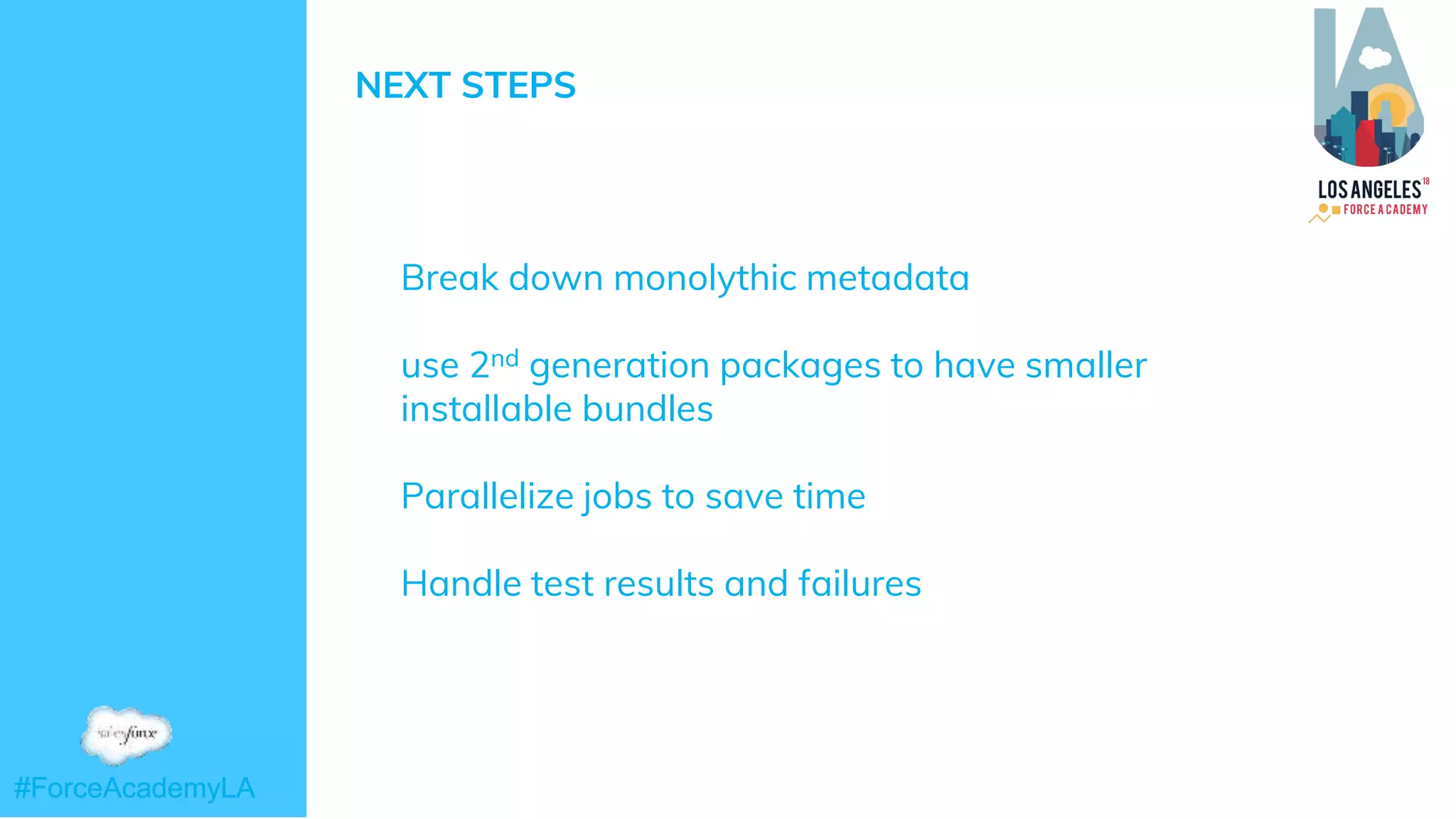

- 43. #ForceAcademyLA#ForceAcademyLA NEXT STEPS ➜ Breakdown monolythic metadata ➜ use 2nd generation packages to have smaller installable bundles ➜ Parallelize jobs to save time ➜ Handle test results and failures
- 44. #ForceAcademyLA#ForceAcademyLA Thank Y u! Anyquestions? You can find me at: @stangomat Daniel.stange@die-interaktiven.de Code at github.com/dstdia/ForceAcademy18
