1. LECTURE
PRESENTATION ON
ANOVA

2. Presenter
 Kololi Gellause

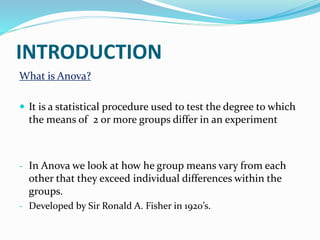

3. INTRODUCTION
What is Anova?
 It is a statistical procedure used to test the degree to which
the means of 2 or more groups differ in an experiment
- In Anova we look at how he group means vary from each
other that they exceed individual differences within the
groups.
- Developed by Sir Ronald A. Fisher in 1920’s.

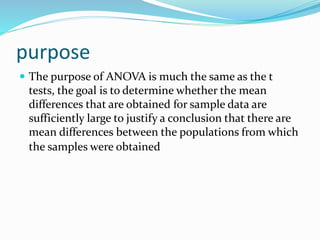

4. purpose
 The purpose of ANOVA is much the same as the t
tests, the goal is to determine whether the mean
differences that are obtained for sample data are
sufficiently large to justify a conclusion that there are
mean differences between the populations from which
the samples were obtained.

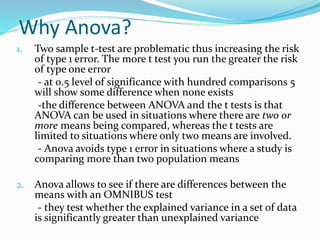

5. Why Anova?
1. Two sample t-test are problematic thus increasing the risk
of type 1 error. The more t test you run the greater the risk
of type one error
- at 0.5 level of significance with hundred comparisons 5
will show some difference when none exists
-the difference between ANOVA and the t tests is that
ANOVA can be used in situations where there are two or
more means being compared, whereas the t tests are
limited to situations where only two means are involved.
- Anova avoids type 1 error in situations where a study is
comparing more than two population means
2. Anova allows to see if there are differences between the
means with an OMNIBUS test
- they test whether the explained variance in a set of data
is significantly greater than unexplained variance

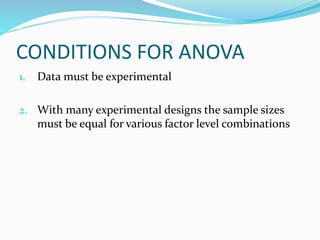

6. CONDITIONS FOR ANOVA
1. Data must be experimental
2. With many experimental designs the sample sizes
must be equal for various factor level combinations

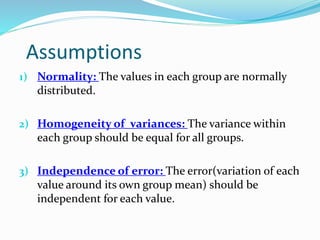

7. Assumptions
1) Normality: The values in each group are normally
distributed.
2) Homogeneity of variances: The variance within
each group should be equal for all groups.
3) Independence of error: The error(variation of each
value around its own group mean) should be
independent for each value.

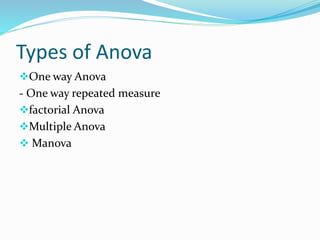

8. Types of Anova
One way Anova
- One way repeated measure
factorial Anova
Multiple Anova
 Manova

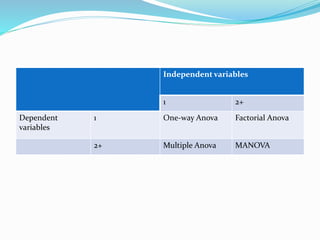

9. Independent variables
1 2+
Dependent
variables
1 One-way Anova Factorial Anova
2+ Multiple Anova MANOVA

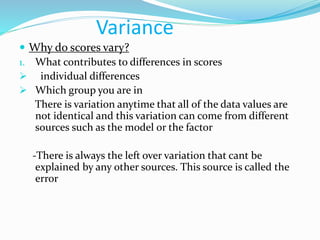

10. Variance
 Why do scores vary?
1. What contributes to differences in scores
 individual differences
 Which group you are in
There is variation anytime that all of the data values are
not identical and this variation can come from different
sources such as the model or the factor
-There is always the left over variation that cant be
explained by any other sources. This source is called the
error

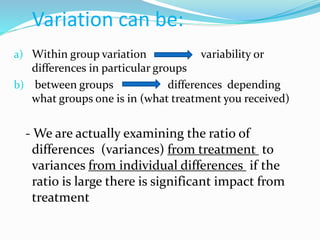

11. Variation can be:
a) Within group variation variability or
differences in particular groups
b) between groups differences depending
what groups one is in (what treatment you received)
- We are actually examining the ratio of
differences (variances) from treatment to
variances from individual differences if the
ratio is large there is significant impact from
treatment

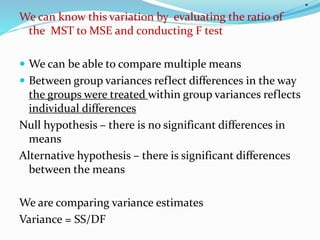

12. .
We can know this variation by evaluating the ratio of
the MST to MSE and conducting F test
 We can be able to compare multiple means
 Between group variances reflect differences in the way
the groups were treated within group variances reflects
individual differences
Null hypothesis – there is no significant differences in
means
Alternative hypothesis – there is significant differences
between the means
We are comparing variance estimates
Variance = SS/DF

13. Degrees of freedom
This are the number of values that are free to vary once
certain parameters have been established
Usually this is one less than the sample size but in
general its the number of values minus the number of
parameters being estimated abbreviated as (df)

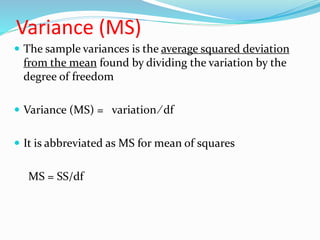

14. Variance (MS)
 The sample variances is the average squared deviation
from the mean found by dividing the variation by the
degree of freedom
 Variance (MS) = variation ∕ df
 It is abbreviated as MS for mean of squares
MS = SS/df

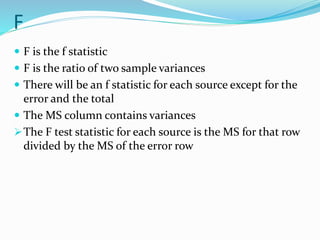

15. F
 F is the f statistic
 F is the ratio of two sample variances
 There will be an f statistic for each source except for the
error and the total
 The MS column contains variances
The F test statistic for each source is the MS for that row
divided by the MS of the error row

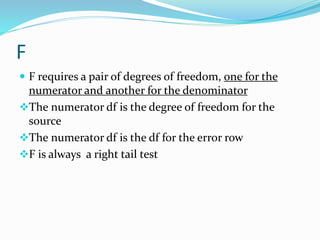

16. F
 F requires a pair of degrees of freedom, one for the
numerator and another for the denominator
The numerator df is the degree of freedom for the
source
The numerator df is the df for the error row
F is always a right tail test

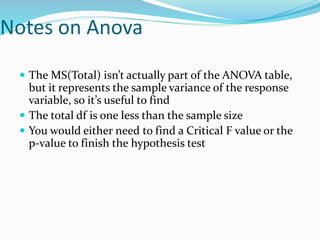

17. Notes on Anova
 The MS(Total) isn’t actually part of the ANOVA table,
but it represents the sample variance of the response
variable, so it’s useful to find
 The total df is one less than the sample size
 You would either need to find a Critical F value or the
p-value to finish the hypothesis test

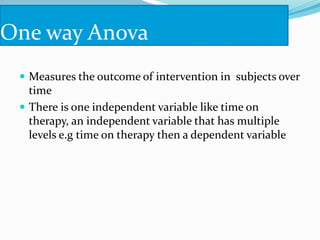

18. One way Anova
 Measures the outcome of intervention in subjects over
time
 There is one independent variable like time on
therapy, an independent variable that has multiple
levels e.g time on therapy then a dependent variable

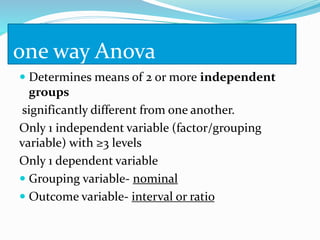

19. one way Anova
 Determines means of 2 or more independent
groups
significantly different from one another.
Only 1 independent variable (factor/grouping
variable) with ≥3 levels
Only 1 dependent variable
 Grouping variable- nominal
 Outcome variable- interval or ratio

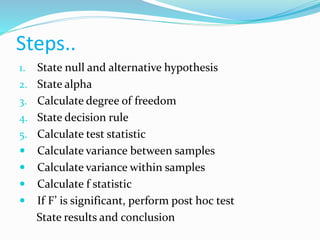

20. Steps..
1. State null and alternative hypothesis
2. State alpha
3. Calculate degree of freedom
4. State decision rule
5. Calculate test statistic
 Calculate variance between samples
 Calculate variance within samples
 Calculate f statistic
 If F’ is significant, perform post hoc test
State results and conclusion

21. Steps..
1. State the null and alternative hypothesis
 H0 = U1 = U2------ Uj
Ho = all sample means are equal
 Ha = not all of the Uj are equal at least one of the sample has different
means
2. State alpha 0.05
3. Calculate degrees of freedom (n-k) and (n-1)
k - No of samples
n – Total number of observation
4. State decision rule
if calculated f value > table value of F, reject H0
Calculate test statistic

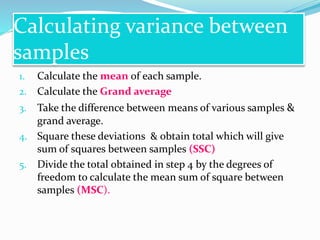

22. Calculating variance between
samples
1. Calculate the mean of each sample.
2. Calculate the Grand average
3. Take the difference between means of various samples &
grand average.
4. Square these deviations & obtain total which will give
sum of squares between samples (SSC)
5. Divide the total obtained in step 4 by the degrees of
freedom to calculate the mean sum of square between
samples (MSC).

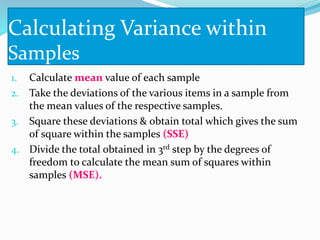

23. Calculating Variance within
Samples
1. Calculate mean value of each sample
2. Take the deviations of the various items in a sample from
the mean values of the respective samples.
3. Square these deviations & obtain total which gives the sum
of square within the samples (SSE)
4. Divide the total obtained in 3rd step by the degrees of
freedom to calculate the mean sum of squares within
samples (MSE).

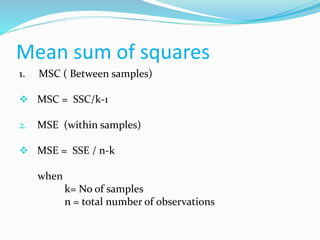

24. Mean sum of squares
1. MSC ( Between samples)
 MSC = SSC/k-1
2. MSE (within samples)
 MSE = SSE / n-k
when
k= No of samples
n = total number of observations

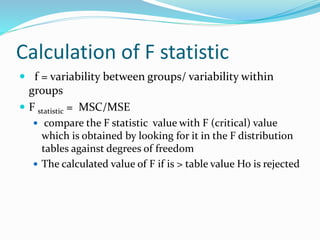

25. Calculation of F statistic
 f = variability between groups/ variability within
groups
 F statistic = MSC/MSE
 compare the F statistic value with F (critical) value
which is obtained by looking for it in the F distribution
tables against degrees of freedom
 The calculated value of F if is > table value Ho is rejected

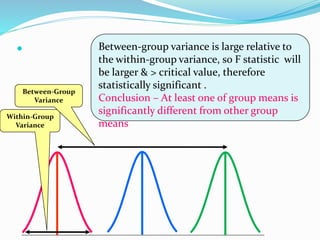

26. 
Within-Group
Variance
Between-Group
Variance
Between-group variance is large relative to
the within-group variance, so F statistic will
be larger & > critical value, therefore
statistically significant .
Conclusion – At least one of group means is
significantly different from other group
means

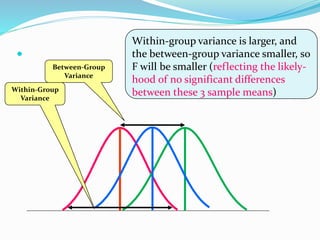

27. 
Within-Group
Variance
Between-Group
Variance
Within-group variance is larger, and
the between-group variance smaller, so
F will be smaller (reflecting the likely-
hood of no significant differences
between these 3 sample means)

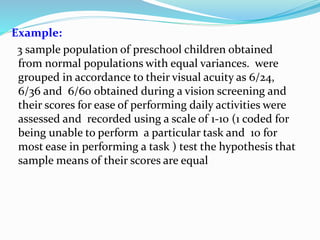

28. Example:
3 sample population of preschool children obtained
from normal populations with equal variances. were
grouped in accordance to their visual acuity as 6/24,
6/36 and 6/60 obtained during a vision screening and
their scores for ease of performing daily activities were
assessed and recorded using a scale of 1-10 (1 coded for
being unable to perform a particular task and 10 for
most ease in performing a task ) test the hypothesis that
sample means of their scores are equal

29. 9+ 6.8 + 4.2
3
Grand average = = 6.67
Visual
acuity
6/24 6/36 6/60
Ease of
doing
daily
activity
8 5 3
10 5 3
8 8 5
9 7 4
10 9 6
total 45 34 21
M1=9 m2-=6.8 M3=4.2

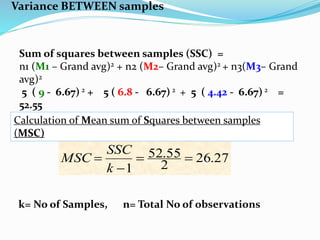

30. Variance BETWEEN samples
Sum of squares between samples (SSC) =
n1 (M1 – Grand avg)2 + n2 (M2– Grand avg)2 + n3(M3– Grand
avg)2
5 ( 9 - 6.67) 2 + 5 ( 6.8 - 6.67) 2 + 5 ( 4.42 - 6.67) 2 =
52.55
27
.
26
2
55
.
52
1




k
SSC
MSC
Calculation of Mean sum of Squares between samples
(MSC)
k= No of Samples, n= Total No of observations

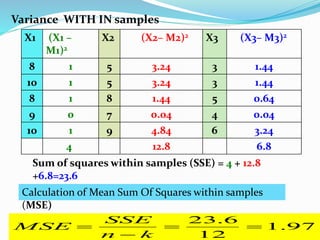

31. Variance WITH IN samples
X1 (X1 –
M1)2
X2 (X2– M2)2 X3 (X3– M3)2
8 1 5 3.24 3 1.44
10 1 5 3.24 3 1.44
8 1 8 1.44 5 0.64
9 0 7 0.04 4 0.04
10 1 9 4.84 6 3.24
4 12.8 6.8
Sum of squares within samples (SSE) = 4 + 12.8
+6.8=23.6
97
.
1
12
6
.
23




k
n
SSE
MSE
Calculation of Mean Sum Of Squares within samples
(MSE)

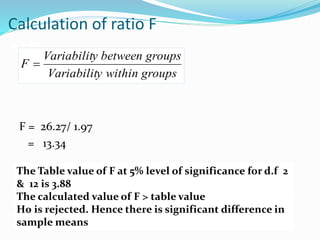

32. Calculation of ratio F
sss
F = 26.27/ 1.97
= 13.34
groups
within
y
Variabilit
groups
between
y
Variabilit
F 
The Table value of F at 5% level of significance for d.f 2
& 12 is 3.88
The calculated value of F > table value
H0 is rejected. Hence there is significant difference in
sample means

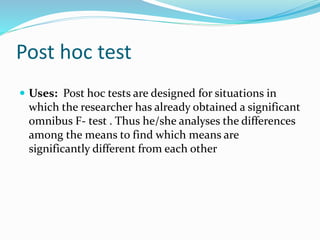

33. Post hoc test
 Uses: Post hoc tests are designed for situations in
which the researcher has already obtained a significant
omnibus F- test . Thus he/she analyses the differences
among the means to find which means are
significantly different from each other

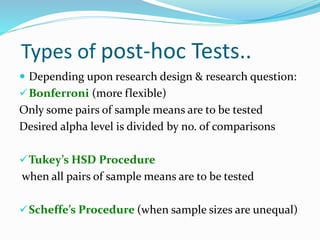

34. Types of post-hoc Tests..
 Depending upon research design & research question:
Bonferroni (more flexible)
Only some pairs of sample means are to be tested
Desired alpha level is divided by no. of comparisons
Tukey’s HSD Procedure
when all pairs of sample means are to be tested
Scheffe’s Procedure (when sample sizes are unequal)

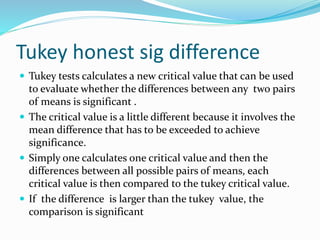

35. Tukey honest sig difference
 Tukey tests calculates a new critical value that can be used
to evaluate whether the differences between any two pairs
of means is significant .
 The critical value is a little different because it involves the
mean difference that has to be exceeded to achieve
significance.
 Simply one calculates one critical value and then the
differences between all possible pairs of means, each
critical value is then compared to the tukey critical value.
 If the difference is larger than the tukey value, the
comparison is significant

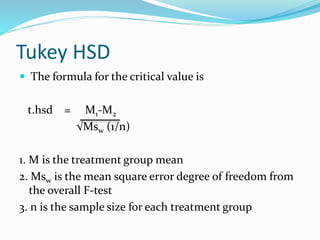

36. Tukey HSD
 The formula for the critical value is
t.hsd = M1-M2
√Msw (1/n)
1. M is the treatment group mean
2. Msw is the mean square error degree of freedom from
the overall F-test
3. n is the sample size for each treatment group

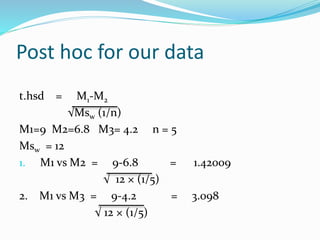

37. Post hoc for our data
t.hsd = M1-M2
√Msw (1/n)
M1=9 M2=6.8 M3= 4.2 n = 5
Msw = 12
1. M1 vs M2 = 9-6.8 = 1.42009
√ 12 × (1/5)
2. M1 vs M3 = 9-4.2 = 3.098
√ 12 × (1/5)

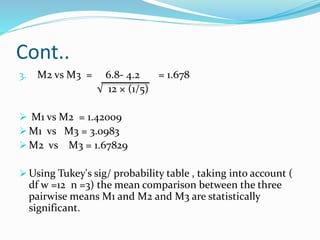

38. Cont..
3. M2 vs M3 = 6.8- 4.2 = 1.678
√ 12 × (1/5)
 M1 vs M2 = 1.42009
 M1 vs M3 = 3.0983
 M2 vs M3 = 1.67829
 Using Tukey's sig/ probability table , taking into account (
df w =12 n =3) the mean comparison between the three
pairwise means M1 and M2 and M3 are statistically
significant.

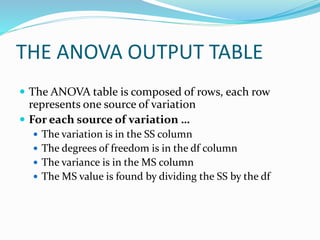

39. THE ANOVA OUTPUT TABLE
 The ANOVA table is composed of rows, each row
represents one source of variation
 For each source of variation …
 The variation is in the SS column
 The degrees of freedom is in the df column
 The variance is in the MS column
 The MS value is found by dividing the SS by the df

40. .
The ANOVA OUTPUT Table
Source SS
(variation)
df MS
(variance)
F
Explained*
Error
Total

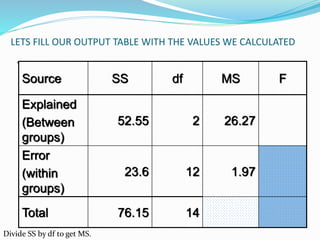

41. LETS FILL OUR OUTPUT TABLE WITH THE VALUES WE CALCULATED
.
Source SS df MS F
Explained
(Between
groups)
52.55 2 26.27
Error
(within
groups)
23.6 12 1.97
Total 76.15 14
Divide SS by df to get MS.

42. Find F
.
Source SS df MS F
Explained 52.55 2 26.27 13.34
Error 23.6 12 1.97
Total 76.15 14
F = / =

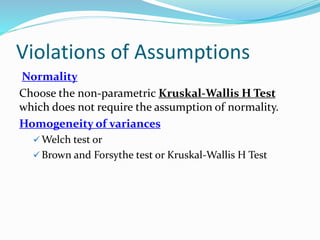

43. Violations of Assumptions
Normality
Choose the non-parametric Kruskal-Wallis H Test
which does not require the assumption of normality.
Homogeneity of variances
 Welch test or
 Brown and Forsythe test or Kruskal-Wallis H Test

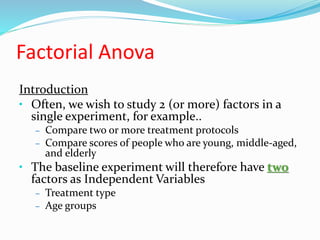

45. Factorial Anova
Introduction
• Often, we wish to study 2 (or more) factors in a
single experiment, for example..
– Compare two or more treatment protocols
– Compare scores of people who are young, middle-aged,
and elderly
• The baseline experiment will therefore have two
factors as Independent Variables
– Treatment type
– Age groups

46. Two-Way ANOVA
 Factorial ANOVA has
 One dependent variable
 interval or ratio with a normal distribution
 Two independent variables
 nominal (define groups), and independent of each other
 Three hypothesis tests:
 Test effect of each independent variable controlling for
the effects of the other independent variable
 One: H0: factor A has no impact on Outcome (no relationship)
 Two: H0: factor B has no impact on Outcome
 Three: Test interaction effect for combinations of categories
H0: there is no relationship between the interaction effect of factors
A and B on the Outcome

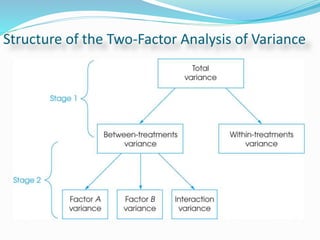

47. Structure of the Two-Factor Analysis of Variance

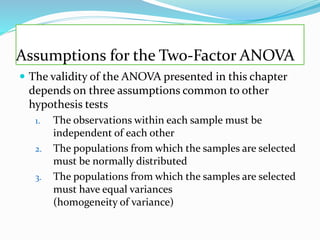

48. Assumptions for the Two-Factor ANOVA
 The validity of the ANOVA presented in this chapter
depends on three assumptions common to other
hypothesis tests
1. The observations within each sample must be
independent of each other
2. The populations from which the samples are selected
must be normally distributed
3. The populations from which the samples are selected
must have equal variances
(homogeneity of variance)

49. Factorial ANOVA asks three questions
and tests three null hypotheses
• First:
• Does Factor 1 have any
impact on the Outcome?
• Null: The groups defined by Factor 1 will have the same Mean
Outcome.
• Second:
• Does Factor 2 have any impact on the Outcome?
• Null: The groups defined by Factor 2 will have the same
Mean Outcome.
• Third:
• Do Factor 1 and Factor 2 interact in influencing Outcome?
• Null: No combination of Factor 1 and Factor 2 produces
unusually high or unusually low mean Outcome scores.

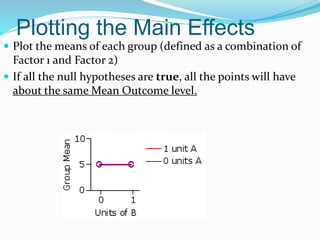

50. Plotting the Main Effects
 Plot the means of each group (defined as a combination of
Factor 1 and Factor 2)
 If all the null hypotheses are true, all the points will have
about the same Mean Outcome level.

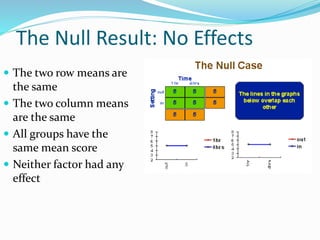

51. The Null Result: No Effects
 The two row means are
the same
 The two column means
are the same
 All groups have the
same mean score
 Neither factor had any
effect

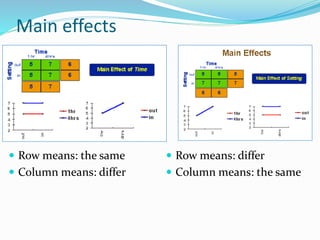

52. Main effects
 Row means: the same
 Column means: differ
 Row means: differ
 Column means: the same

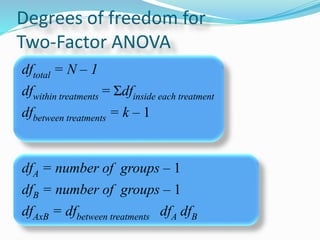

53. Degrees of freedom for
Two-Factor ANOVA
dftotal = N – 1
dfwithin treatments = Σdfinside each treatment
dfbetween treatments = k – 1
dfA = number of groups – 1
dfB = number of groups – 1
dfAxB = dfbetween treatments dfA dfB

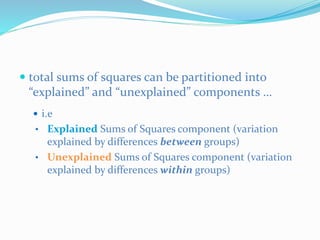

54.  total sums of squares can be partitioned into
“explained” and “unexplained” components …
 i.e
• Explained Sums of Squares component (variation
explained by differences between groups)
• Unexplained Sums of Squares component (variation
explained by differences within groups)

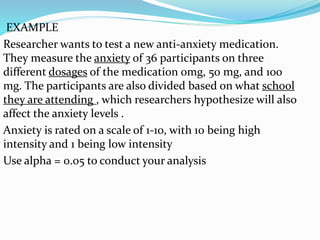

55. EXAMPLE
Researcher wants to test a new anti-anxiety medication.
They measure the anxiety of 36 participants on three
different dosages of the medication 0mg, 50 mg, and 100
mg. The participants are also divided based on what school
they are attending , which researchers hypothesize will also
affect the anxiety levels .
Anxiety is rated on a scale of 1-10, with 10 being high
intensity and 1 being low intensity
Use alpha = 0.05 to conduct your analysis

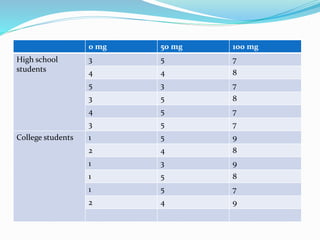

56. example0 mg 50 mg 100 mg
High school
students
3 5 7
4 4 8
5 3 7
3 5 8
4 5 7
3 5 7
College students 1 5 9
2 4 8
1 3 9
1 5 8
1 5 7
2 4 9

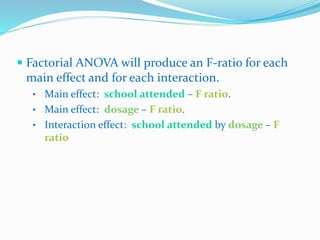

57.  Factorial ANOVA will produce an F-ratio for each
main effect and for each interaction.
• Main effect: school attended – F ratio.
• Main effect: dosage – F ratio.
• Interaction effect: school attended by dosage – F
ratio

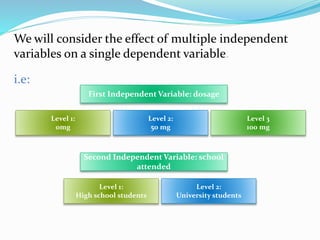

58. We will consider the effect of multiple independent
variables on a single dependent variable.
i.e:
First Independent Variable: dosage
Level 1:
0mg
Level 2:
50 mg
Level 3
100 mg
Second Independent Variable: school
attended
Level 1:
High school students
Level 2:
University students

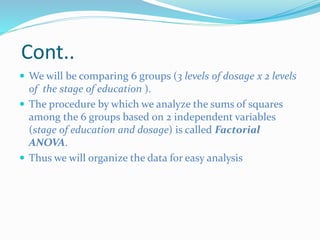

59. Cont..
 We will be comparing 6 groups (3 levels of dosage x 2 levels
of the stage of education ).
 The procedure by which we analyze the sums of squares
among the 6 groups based on 2 independent variables
(stage of education and dosage) is called Factorial
ANOVA.
 Thus we will organize the data for easy analysis

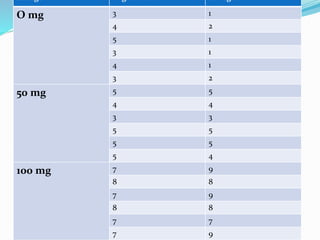

60. dosage High school college
O mg 3 1
4 2
5 1
3 1
4 1
3 2
50 mg 5 5
4 4
3 3
5 5
5 5
5 4
100 mg 7 9
8 8
7 9
8 8
7 7
7 9

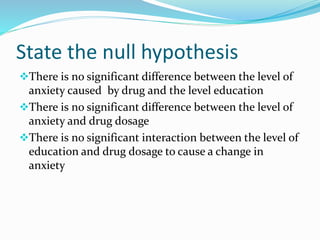

61. State the null hypothesis
There is no significant difference between the level of
anxiety caused by drug and the level education
There is no significant difference between the level of
anxiety and drug dosage
There is no significant interaction between the level of
education and drug dosage to cause a change in
anxiety

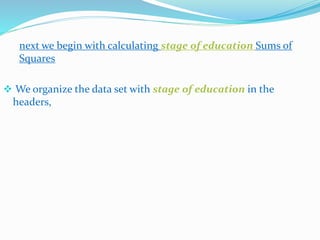

62. next we begin with calculating stage of education Sums of
Squares
 We organize the data set with stage of education in the
headers,

63. High school college students
3 1
4 2
5 1
3 1
4 1
3 2
5 5
4 4
3 3
5 5
5 5
5 4
7 9
8 8
7 9
8 8
7 7

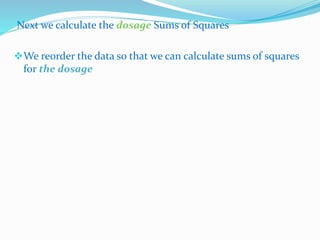

64. Next we calculate the dosage Sums of Squares
We reorder the data so that we can calculate sums of squares
for the dosage

65. we will compute the between group sums of squares for dosage Group
0mg 50mg 100mg
3 5 7
4 4 8
5 3 7
3 5 8
4 5 7
3 5 7
1 5 9
2 4 8
1 3 9
1 5 8
1 5 7
2 4 9
2.5 4.42 7.83
4.92 4.92 4.92
5.86 0.25 8.47
70.32 3 101.64
n
17

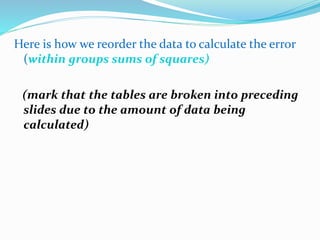

66. Here is how we reorder the data to calculate the error
(within groups sums of squares)
(mark that the tables are broken into preceding
slides due to the amount of data being
calculated)

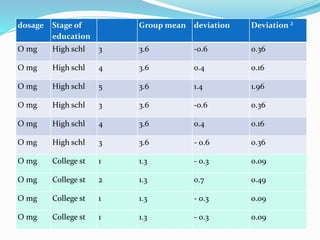

67. dosage Stage of
education
Group mean deviation Deviation ²
O mg High schl 3 3.6 -0.6 0.36
O mg High schl 4 3.6 0.4 0.16
O mg High schl 5 3.6 1.4 1.96
O mg High schl 3 3.6 -0.6 0.36
O mg High schl 4 3.6 0.4 0.16
O mg High schl 3 3.6 - 0.6 0.36
O mg College st 1 1.3 - 0.3 0.09
O mg College st 2 1.3 0.7 0.49
O mg College st 1 1.3 - 0.3 0.09
O mg College st 1 1.3 - 0.3 0.09

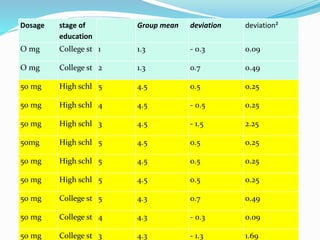

68. Dosage stage of
education
Group mean deviation deviation²
O mg College st 1 1.3 - 0.3 0.09
O mg College st 2 1.3 0.7 0.49
50 mg High schl 5 4.5 0.5 0.25
50 mg High schl 4 4.5 - 0.5 0.25
50 mg High schl 3 4.5 - 1.5 2.25
50mg High schl 5 4.5 0.5 0.25
50 mg High schl 5 4.5 0.5 0.25
50 mg High schl 5 4.5 0.5 0.25
50 mg College st 5 4.3 0.7 0.49
50 mg College st 4 4.3 - 0.3 0.09
50 mg College st 3 4.3 - 1.3 1.69

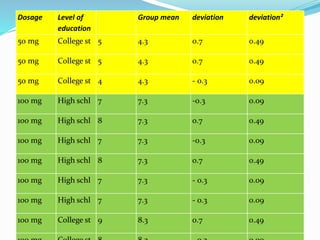

69. Dosage Level of
education
Group mean deviation deviation²
50 mg College st 5 4.3 0.7 0.49
50 mg College st 5 4.3 0.7 0.49
50 mg College st 4 4.3 - 0.3 0.09
100 mg High schl 7 7.3 -0.3 0.09
100 mg High schl 8 7.3 0.7 0.49
100 mg High schl 7 7.3 -0.3 0.09
100 mg High schl 8 7.3 0.7 0.49
100 mg High schl 7 7.3 - 0.3 0.09
100 mg High schl 7 7.3 - 0.3 0.09
100 mg College st 9 8.3 0.7 0.49

70. Dosag
e
Stage of
education
Group
mean
deviation Deviation²
100 mg College st 9 8.3 0.7 0.49
100 mg College st 8 8.3 - 0.3 0.09
100 mg College st 7 8.3 - 1.3 1.69
100 mg College st 9 8.3 0.7 0.49
TOTAL SUM OF SQUARES=16.22

71. Here is a simple way we go about calculating sums of squares for
the interaction between dosage and stage of education
Dependent variable : anxiety
source sum of sq df ms f Sig level
Level of education 2.25 1
dosage 174.96 2
Level of education×
dosage
error 16.22 30
Total SS

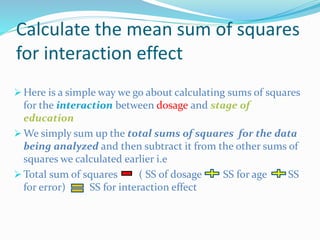

72. Calculate the mean sum of squares
for interaction effect
 Here is a simple way we go about calculating sums of squares
for the interaction between dosage and stage of
education
 We simply sum up the total sums of squares for the data
being analyzed and then subtract it from the other sums of
squares we calculated earlier i.e
 Total sum of squares ( SS of dosage SS for age SS
for error) SS for interaction effect

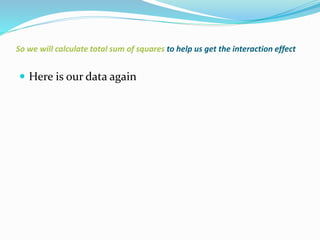

73. So we will calculate total sum of squares to help us get the interaction effect
 Here is our data again

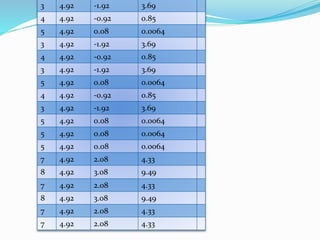

74. 3 4.92 -1.92 3.69
4 4.92 -0.92 0.85
5 4.92 0.08 0.0064
3 4.92 -1.92 3.69
4 4.92 -0.92 0.85
3 4.92 -1.92 3.69
5 4.92 0.08 0.0064
4 4.92 -0.92 0.85
3 4.92 -1.92 3.69
5 4.92 0.08 0.0064
5 4.92 0.08 0.0064
5 4.92 0.08 0.0064
7 4.92 2.08 4.33
8 4.92 3.08 9.49
7 4.92 2.08 4.33
8 4.92 3.08 9.49
7 4.92 2.08 4.33
7 4.92 2.08 4.33

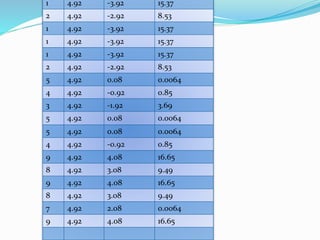

75. 1 4.92 -3.92 15.37
2 4.92 -2.92 8.53
1 4.92 -3.92 15.37
1 4.92 -3.92 15.37
1 4.92 -3.92 15.37
2 4.92 -2.92 8.53
5 4.92 0.08 0.0064
4 4.92 -0.92 0.85
3 4.92 -1.92 3.69
5 4.92 0.08 0.0064
5 4.92 0.08 0.0064
4 4.92 -0.92 0.85
9 4.92 4.08 16.65
8 4.92 3.08 9.49
9 4.92 4.08 16.65
8 4.92 3.08 9.49
7 4.92 2.08 0.0064
9 4.92 4.08 16.65

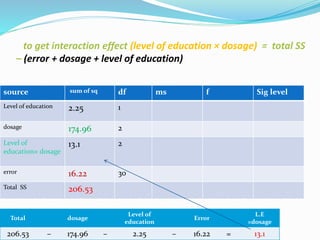

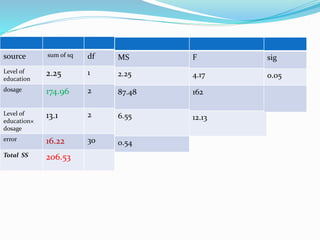

76. to get interaction effect (level of education × dosage) = total SS
– (error + dosage + level of education)
source sum of sq df ms f Sig level
Level of education 2.25 1
dosage 174.96 2
Level of
education× dosage
13.1 2
error 16.22 30
Total SS 206.53
Total dosage
Level of
education
Error
L.E
×dosage
206.53 – 174.96 – 2.25 – 16.22 = 13.1

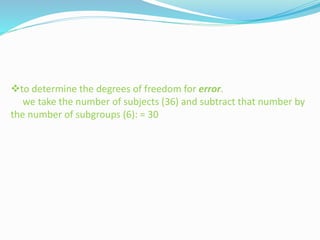

77. to determine the degrees of freedom for error.
we take the number of subjects (36) and subtract that number by
the number of subgroups (6): = 30

78. source sum of sq df
Level of
education
2.25 1
dosage 174.96 2
Level of
education×
dosage
13.1 2
error 16.22 3o
Total SS 206.53
MS
2.25
87.48
6.55
0.54
F
4.17
162
12.13
sig
0.05

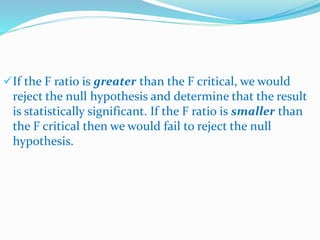

79. If the F ratio is greater than the F critical, we would
reject the null hypothesis and determine that the result
is statistically significant. If the F ratio is smaller than
the F critical then we would fail to reject the null
hypothesis.

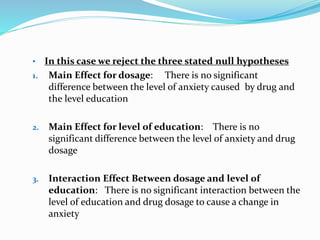

80. • In this case we reject the three stated null hypotheses
1. Main Effect for dosage: There is no significant
difference between the level of anxiety caused by drug and
the level education
2. Main Effect for level of education: There is no
significant difference between the level of anxiety and drug
dosage
3. Interaction Effect Between dosage and level of
education: There is no significant interaction between the
level of education and drug dosage to cause a change in
anxiety

81. .
 Having rejected the three null hypothesis the
researcher goes ahead to carry out post hoc test using
either tukey hsd, bonferroni or Scheffe's procedure
 In this case you can use tukey honest significant
difference by using the formula and procedure
discussed in the previous slides..

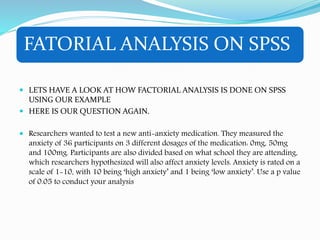

82. FATORIAL ANALYSIS ON SPSS
 LETS HAVE A LOOK AT HOW FACTORIAL ANALYSIS IS DONE ON SPSS
USING OUR EXAMPLE
 HERE IS OUR QUESTION AGAIN.
 Researchers wanted to test a new anti-anxiety medication. They measured the
anxiety of 36 participants on 3 different dosages of the medication: 0mg, 50mg
and 100mg. Participants are also divided based on what school they are attending,
which researchers hypothesized will also affect anxiety levels. Anxiety is rated on a
scale of 1-10, with 10 being ‘high anxiety’ and 1 being ‘low anxiety’. Use a p value
of 0.05 to conduct your analysis

83. 0 mg 50mg 100mg
High school
students
3
4
5
3
4
3
5
4
3
5
5
5
7
8
7
8
7
7
College students 1
2
1
1
1
2
5
4
3
5
5
4
9
8
9
8
7
9
We have 2 independent variable: school and dosage and 1 dependent variable:
anxiety level.

84. State the null hypothesis
There is no significant difference between the level of
anxiety caused by drug and the level education
There is no significant difference between the level of
anxiety and drug dosage
There is no significant interaction between the level of
education and drug dosage to cause a change in
anxiety

85. Next we go to SPSS, starting with variable view
* Remember to properly code the variables

86. The data view will look like this;

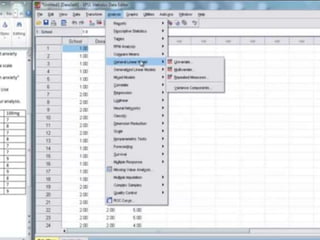

87. Moving on… Analyze- general linear model

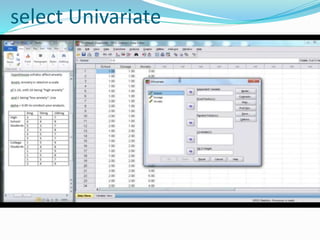

88. select Univariate

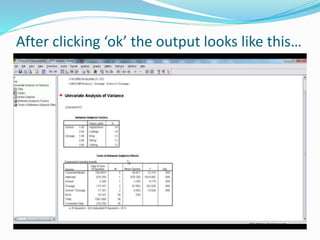

89. After clicking ‘ok’ the output looks like this…

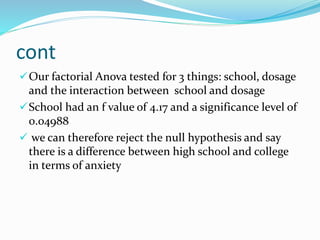

90. cont
Our factorial Anova tested for 3 things: school, dosage
and the interaction between school and dosage
School had an f value of 4.17 and a significance level of
0.04988
 we can therefore reject the null hypothesis and say
there is a difference between high school and college
in terms of anxiety

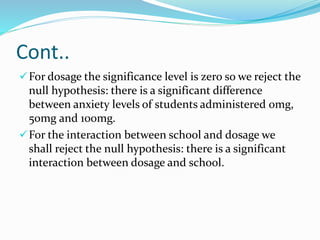

91. Cont..
For dosage the significance level is zero so we reject the
null hypothesis: there is a significant difference
between anxiety levels of students administered 0mg,
50mg and 100mg.
For the interaction between school and dosage we
shall reject the null hypothesis: there is a significant
interaction between dosage and school.

92. SUMMARY OF FACTORIAL ANALYSIS ON SPSS
1) Select Analyze → General Linear Model →
2) Univariate →
3) Add dependent and fixed factor(s) →
4) Click on PLOTS →
5) Transfer independent variables from factors into
horizontal and separate lines →
6) Add →
7) Continue

93. FATORIAL ANALYSIS ON SPSS
8) Click the POST HOC button to get Univariate: Post Hoc
multiple comparisons for observed means
9) Transfer the Independent variable (IV) from factors to Post
Hoc tests, then select Tukey Hsd, bonferroni, scheffes
10) Click CONTINUE button to return to Univariate dialogue
box.
11) Click OPTIONS button

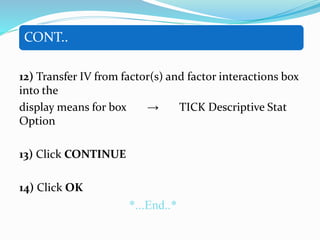

94. CONT..
12) Transfer IV from factor(s) and factor interactions box
into the
display means for box → TICK Descriptive Stat
Option
13) Click CONTINUE
14) Click OK
*...End..*

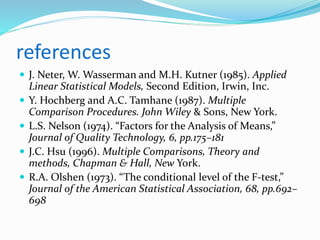

95. references
 J. Neter, W. Wasserman and M.H. Kutner (1985). Applied
Linear Statistical Models, Second Edition, Irwin, Inc.
 Y. Hochberg and A.C. Tamhane (1987). Multiple
Comparison Procedures. John Wiley & Sons, New York.
 L.S. Nelson (1974). “Factors for the Analysis of Means,”
Journal of Quality Technology, 6, pp.175–181
 J.C. Hsu (1996). Multiple Comparisons, Theory and
methods, Chapman & Hall, New York.
 R.A. Olshen (1973). “The conditional level of the F-test,”
Journal of the American Statistical Association, 68, pp.692–
698
