- 1. FTTX FTTH CablingSystem By SUN Telecom FTTx FTTH Solutions 2013-05-23 1
- 2.

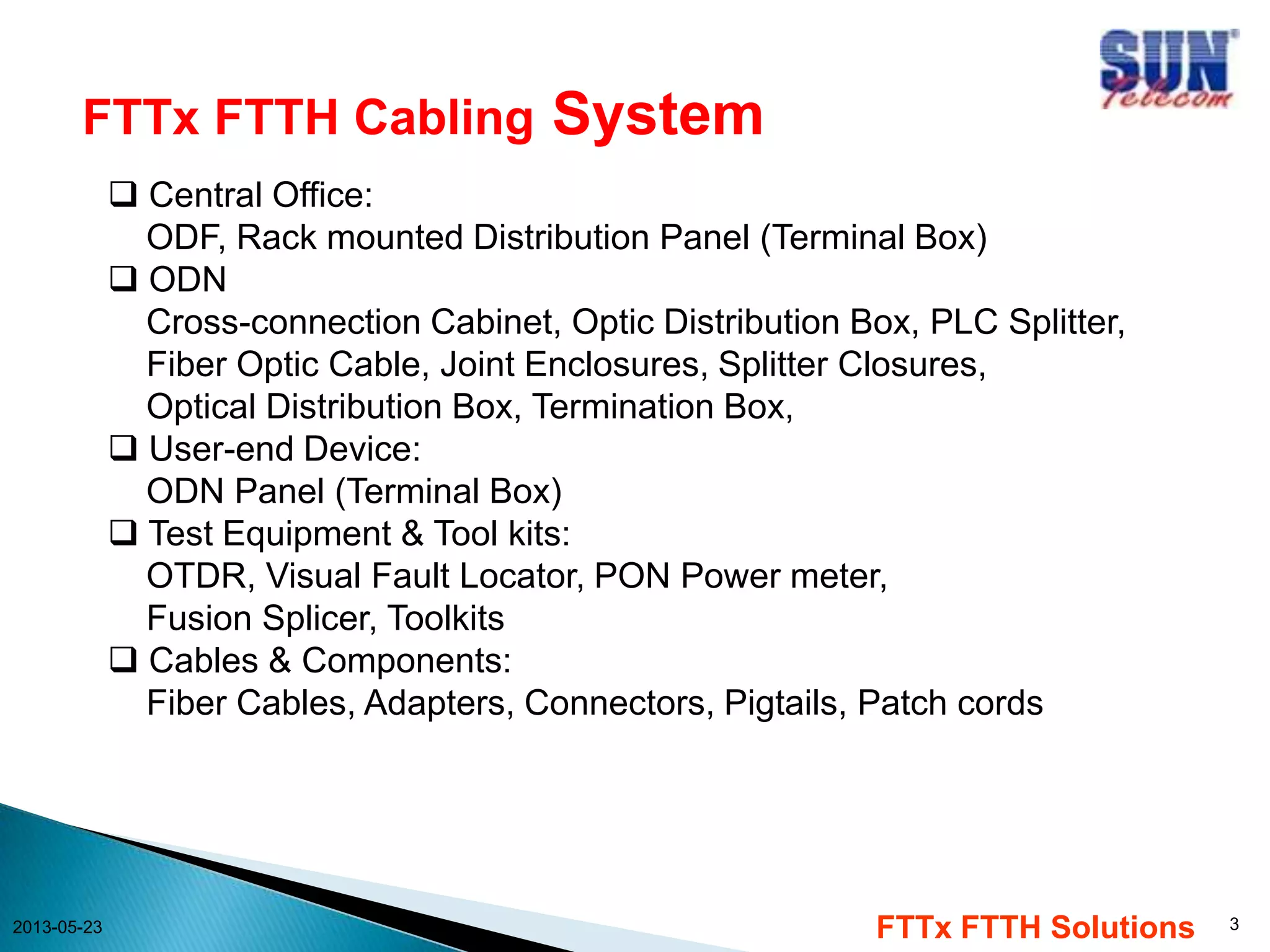

- 3. FTTx FTTH Cabling System Central Office: ODF, Rack mounted Distribution Panel (Terminal Box) ODN Cross-connection Cabinet, Optic Distribution Box, PLC Splitter, Fiber Optic Cable, Joint Enclosures, Splitter Closures, Optical Distribution Box, Termination Box, User-end Device: ODN Panel (Terminal Box) Test Equipment & Tool kits: OTDR, Visual Fault Locator, PON Power meter, Fusion Splicer, Toolkits Cables & Components: Fiber Cables, Adapters, Connectors, Pigtails, Patch cords 2013-05-23 FTTx FTTH Solutions 3
- 4.

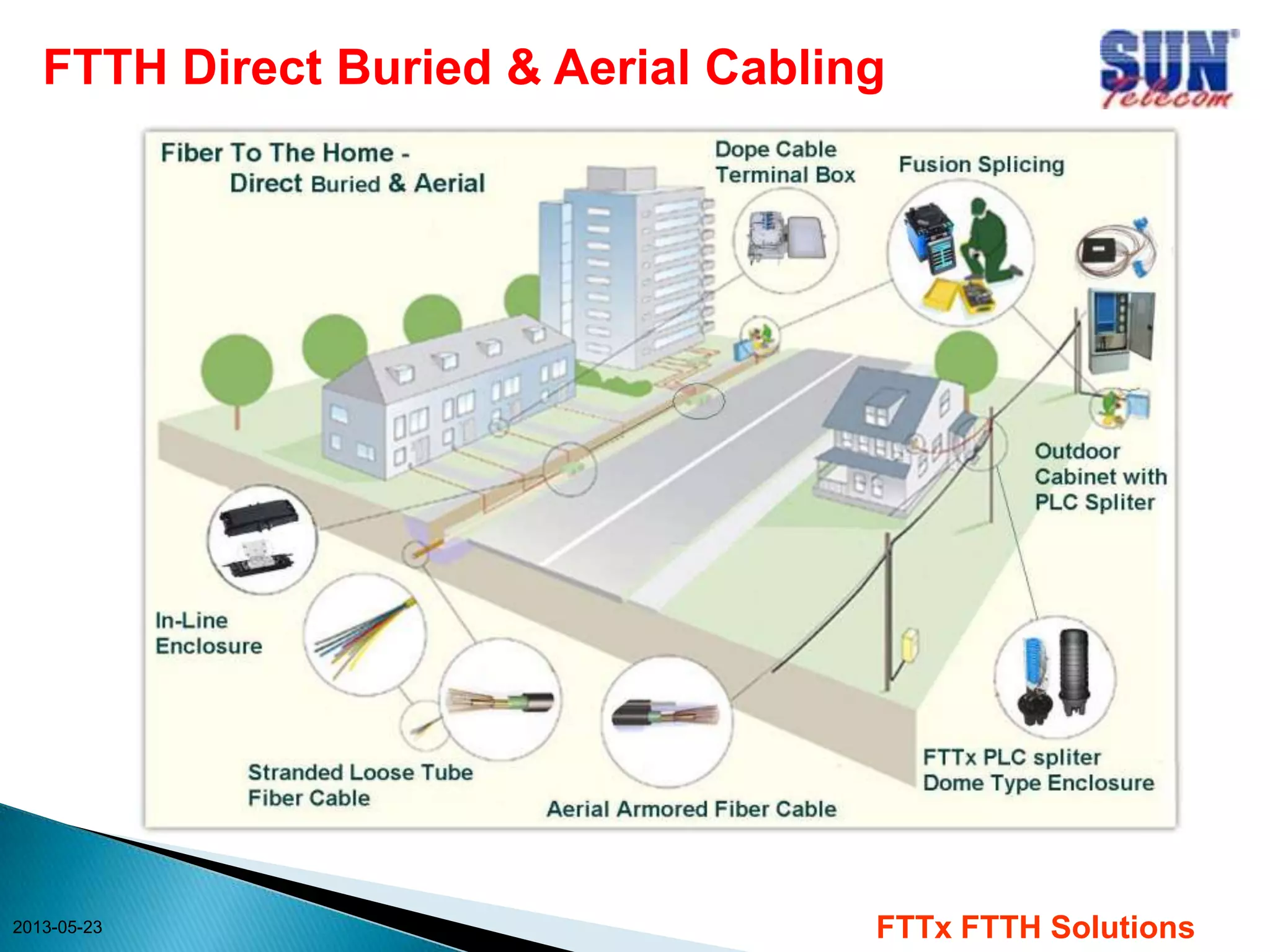

- 5. FTTH Direct Buried& Aerial Cabling 2013-05-23 FTTx FTTH Solutions

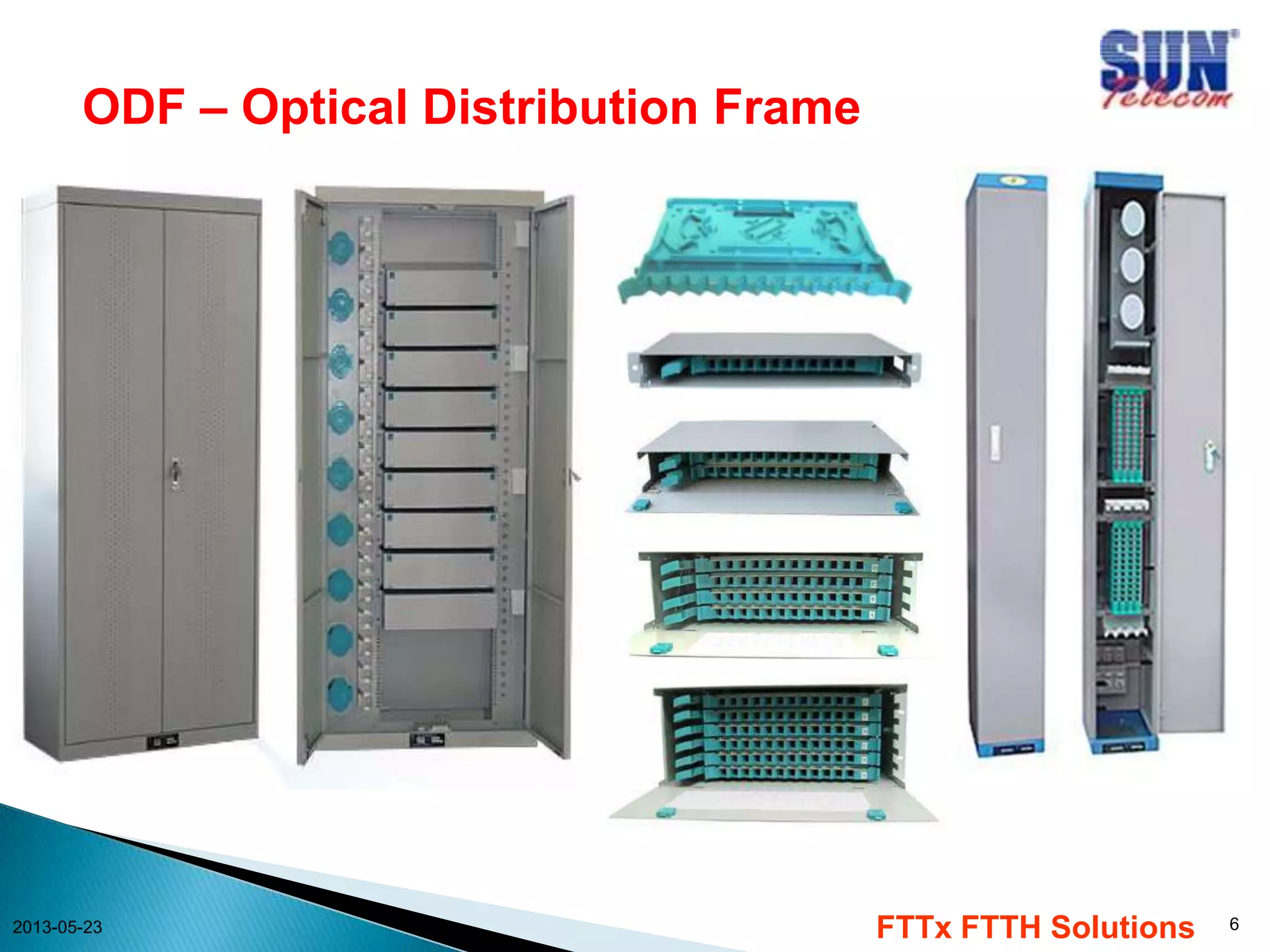

- 6. ODF – OpticalDistribution Frame 2013-05-23 FTTx FTTH Solutions 6

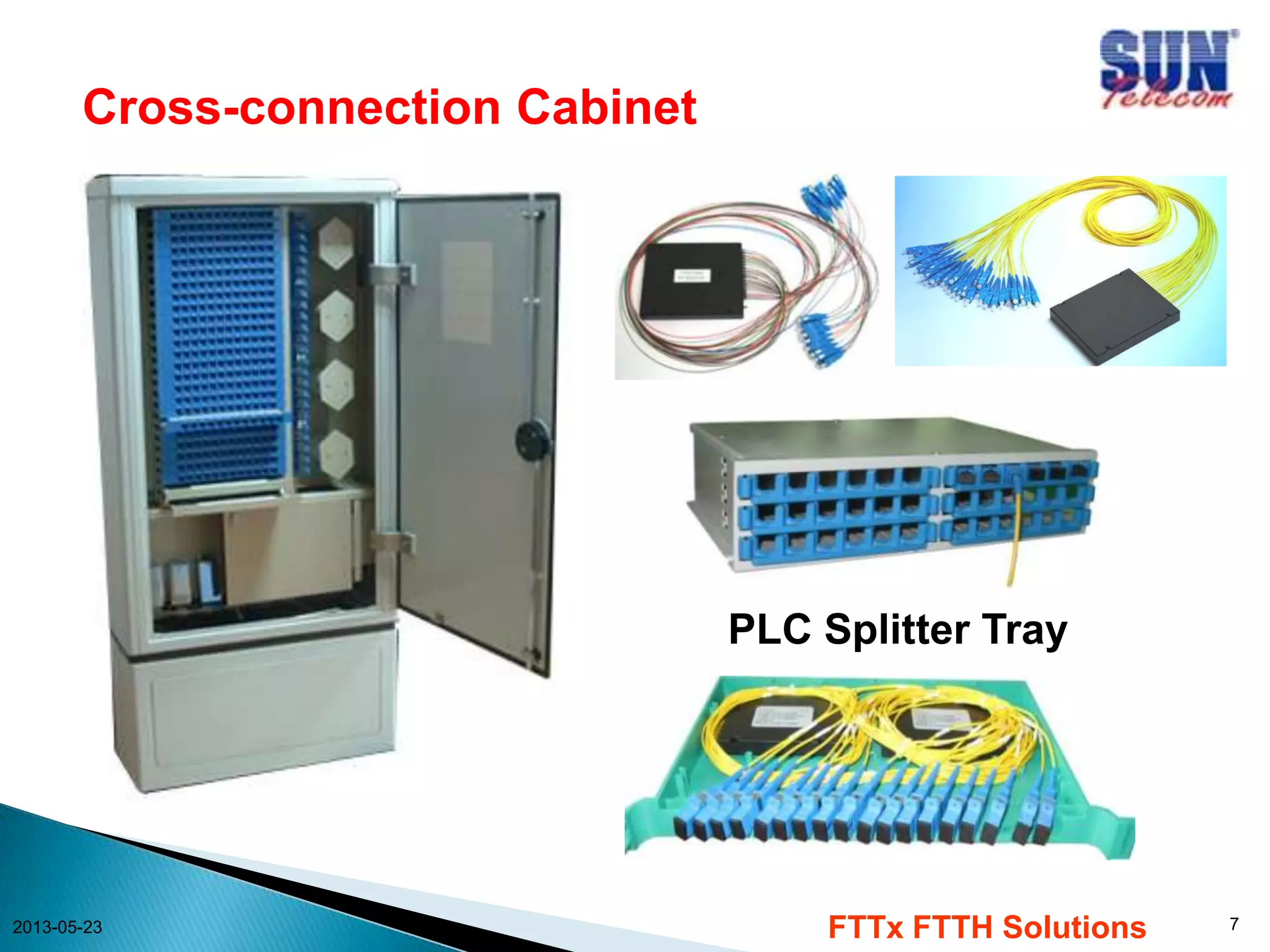

- 7. Cross-connection Cabinet PLC SplitterTray 2013-05-23 FTTx FTTH Solutions 7

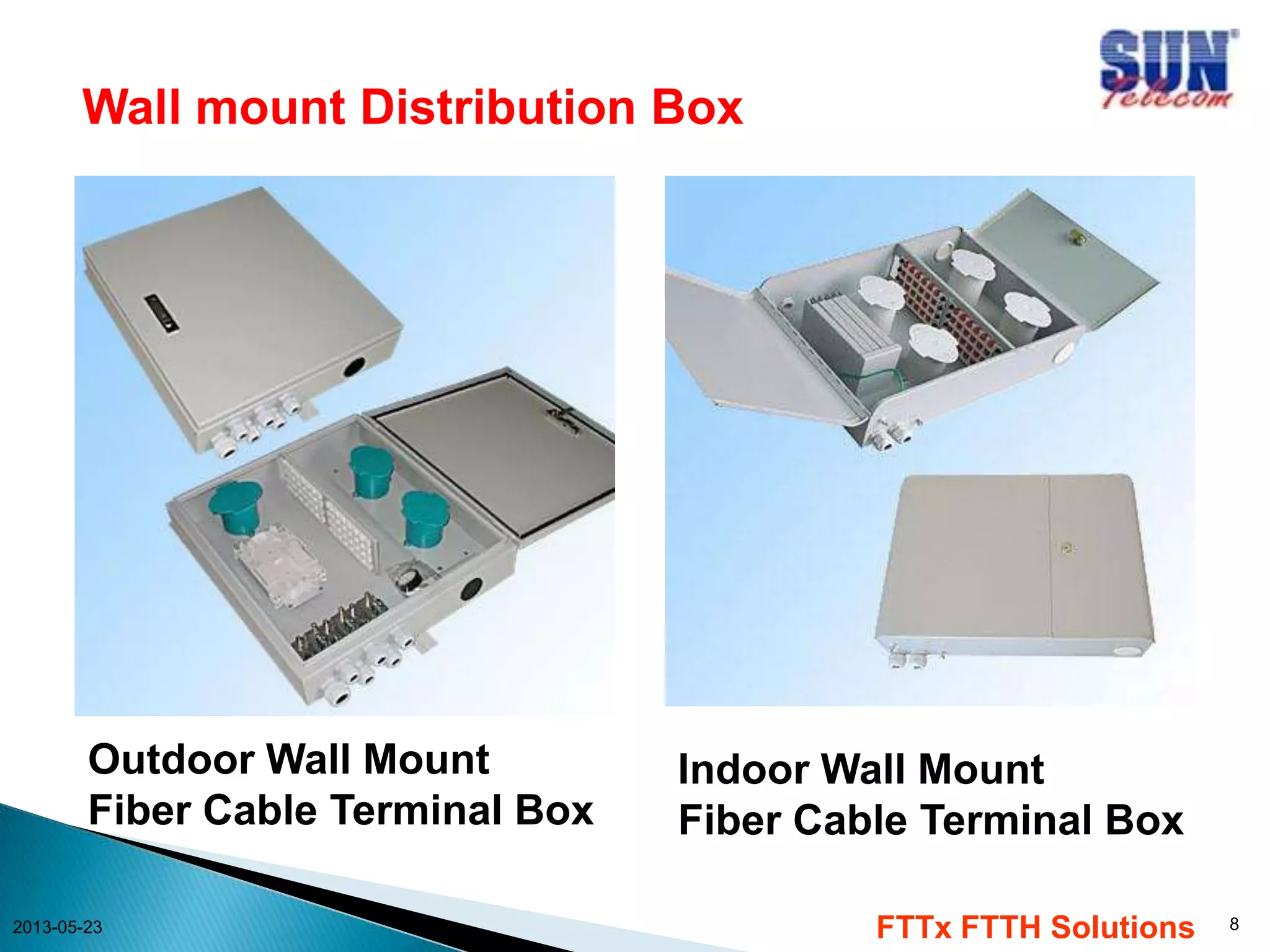

- 8. Wall mount DistributionBox Outdoor Wall Mount Fiber Cable Terminal Box 2013-05-23 Indoor Wall Mount Fiber Cable Terminal Box FTTx FTTH Solutions 8

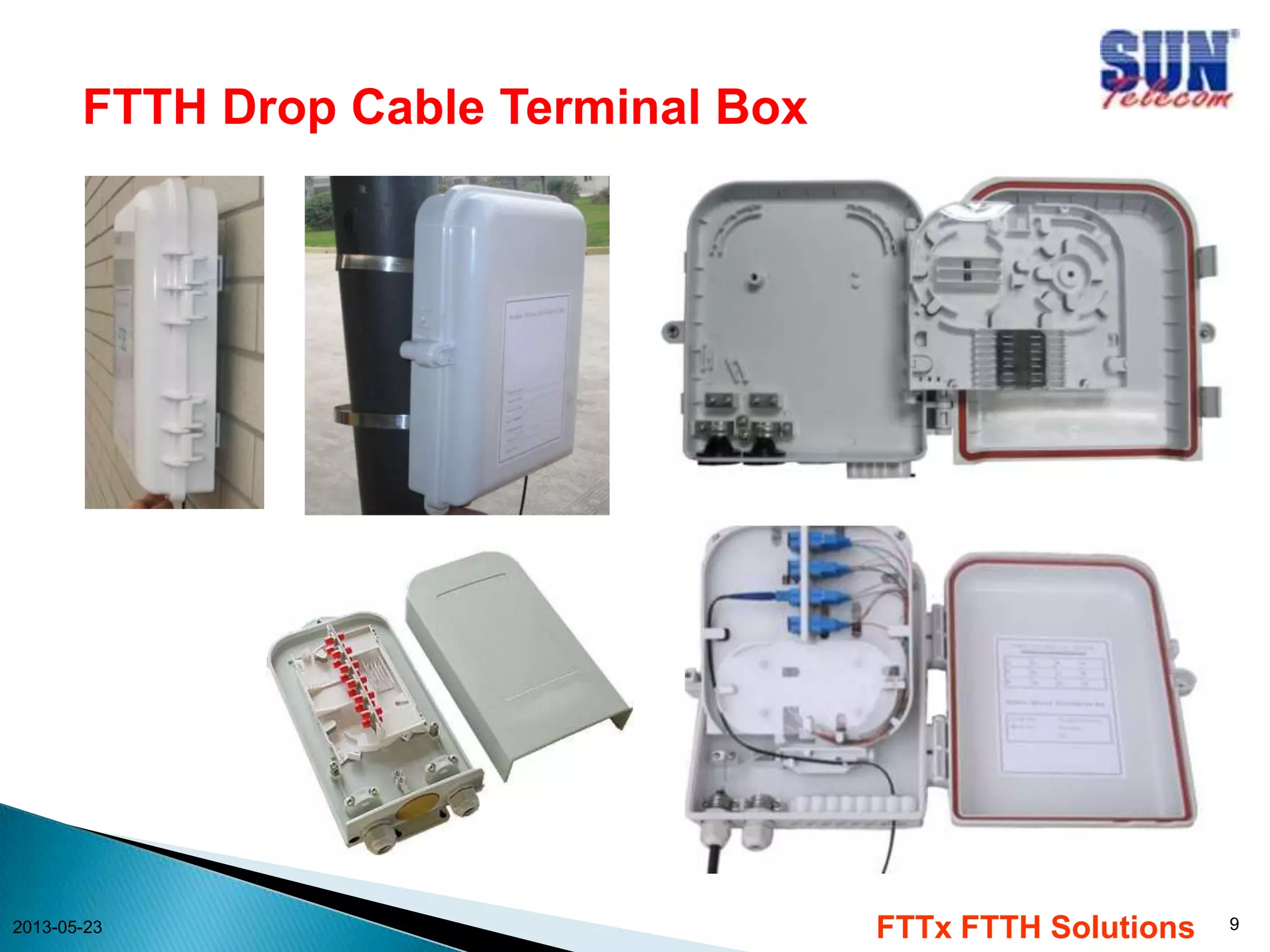

- 9. FTTH Drop CableTerminal Box 2013-05-23 FTTx FTTH Solutions 9

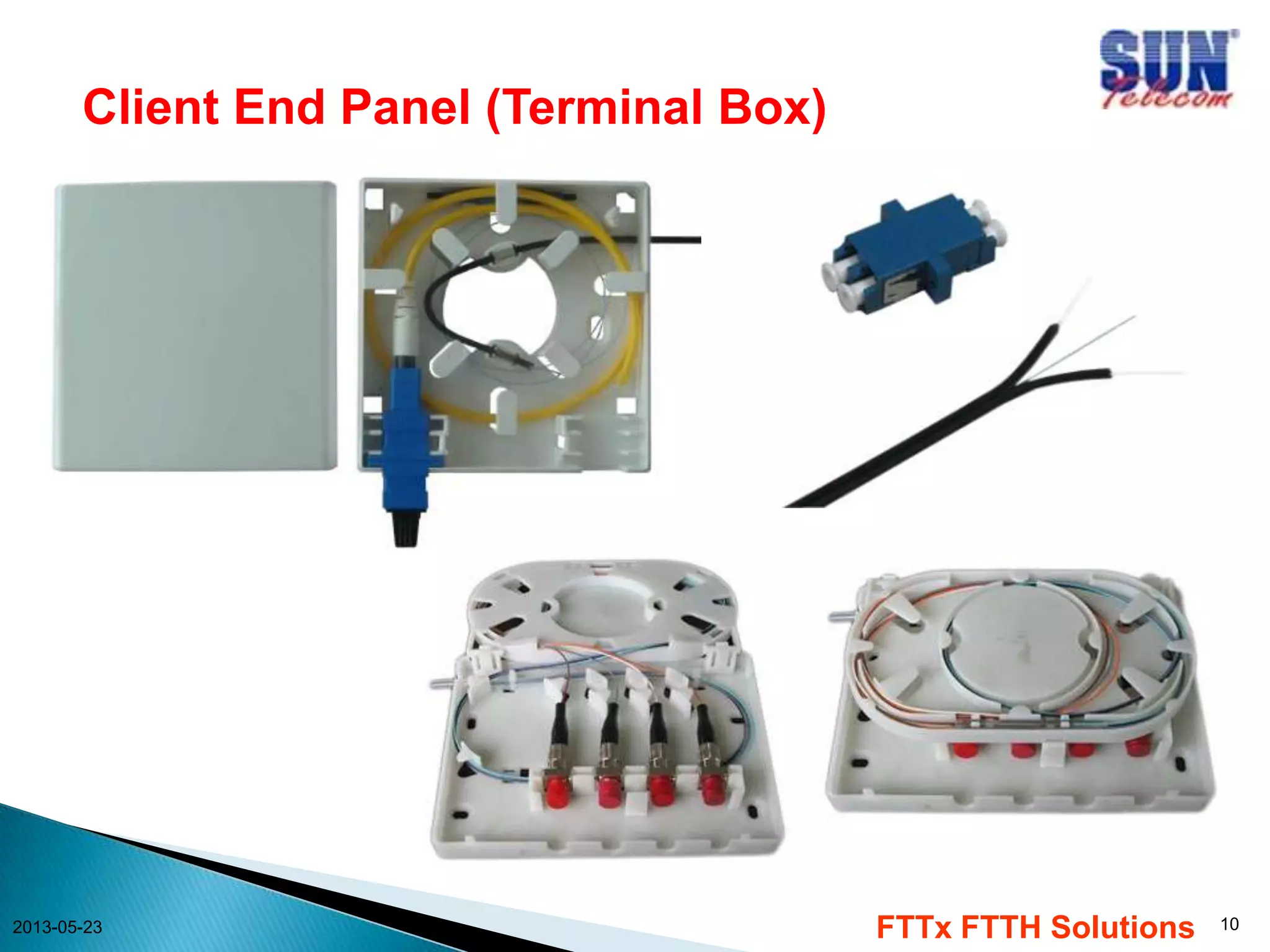

- 10. Client End Panel(Terminal Box) 2013-05-23 FTTx FTTH Solutions 10

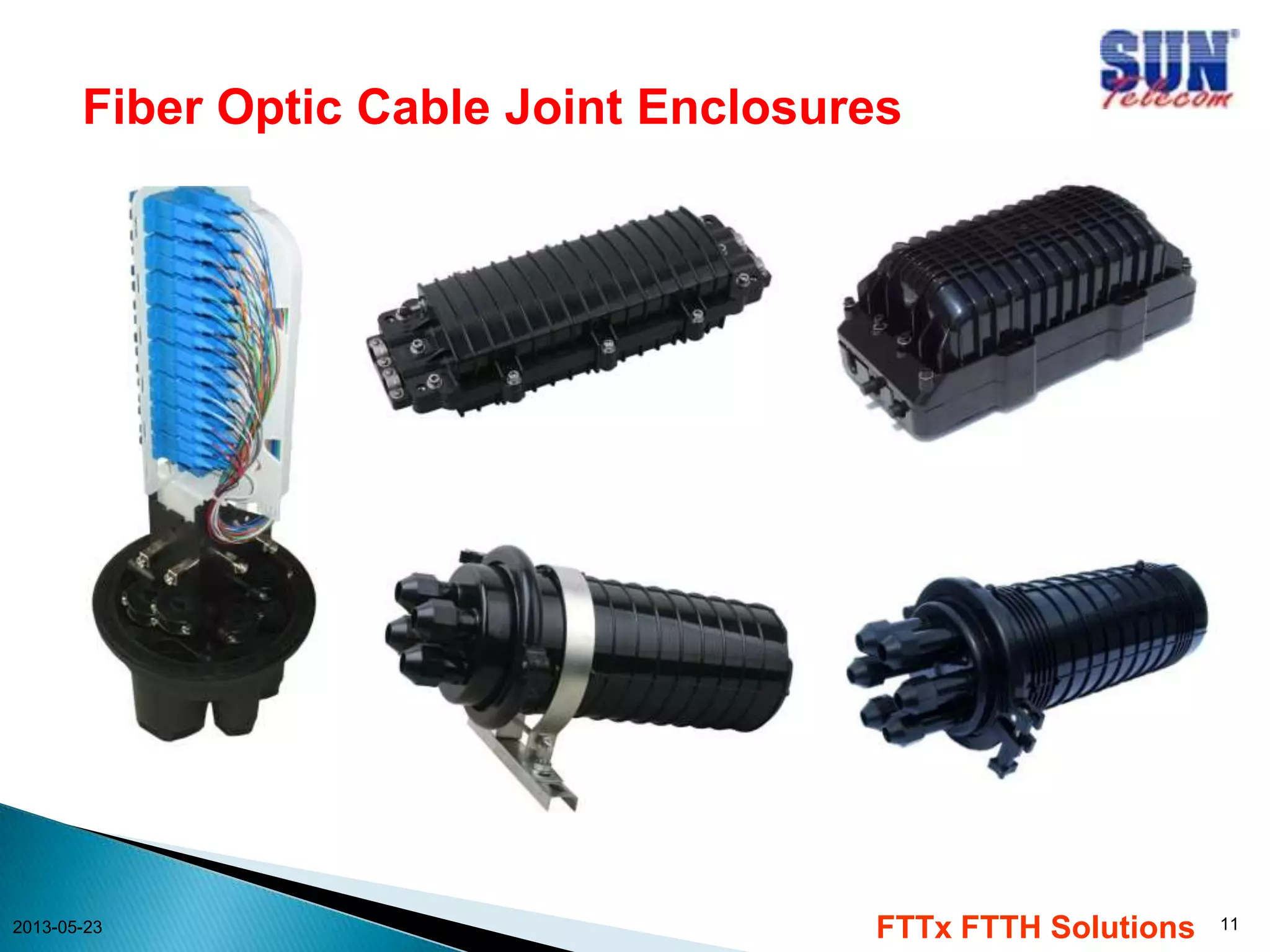

- 11. Fiber Optic CableJoint Enclosures 2013-05-23 FTTx FTTH Solutions 11

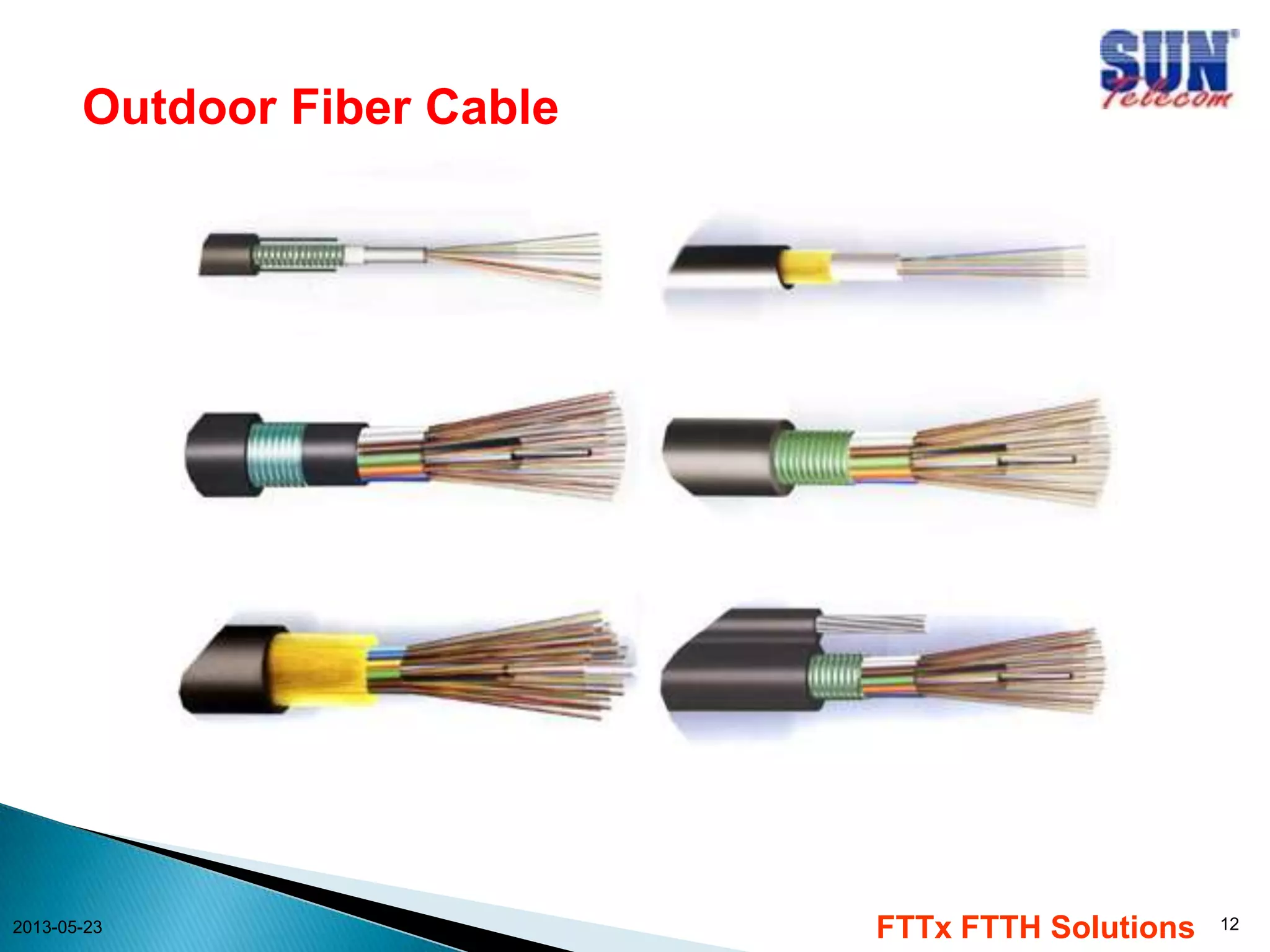

- 12. Outdoor Fiber Cable 2013-05-23 FTTxFTTH Solutions 12

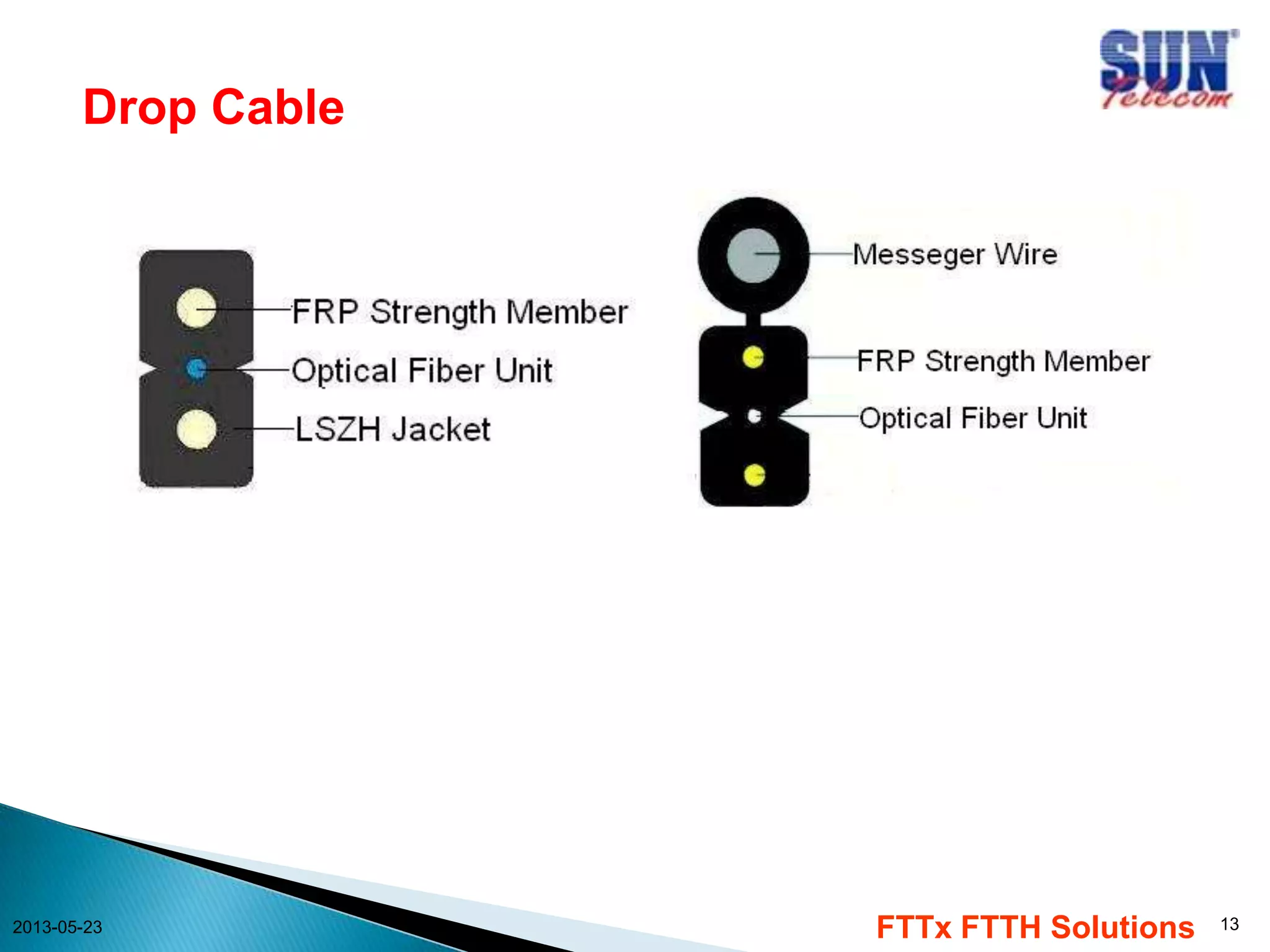

- 13. Drop Cable 2013-05-23 FTTx FTTHSolutions 13

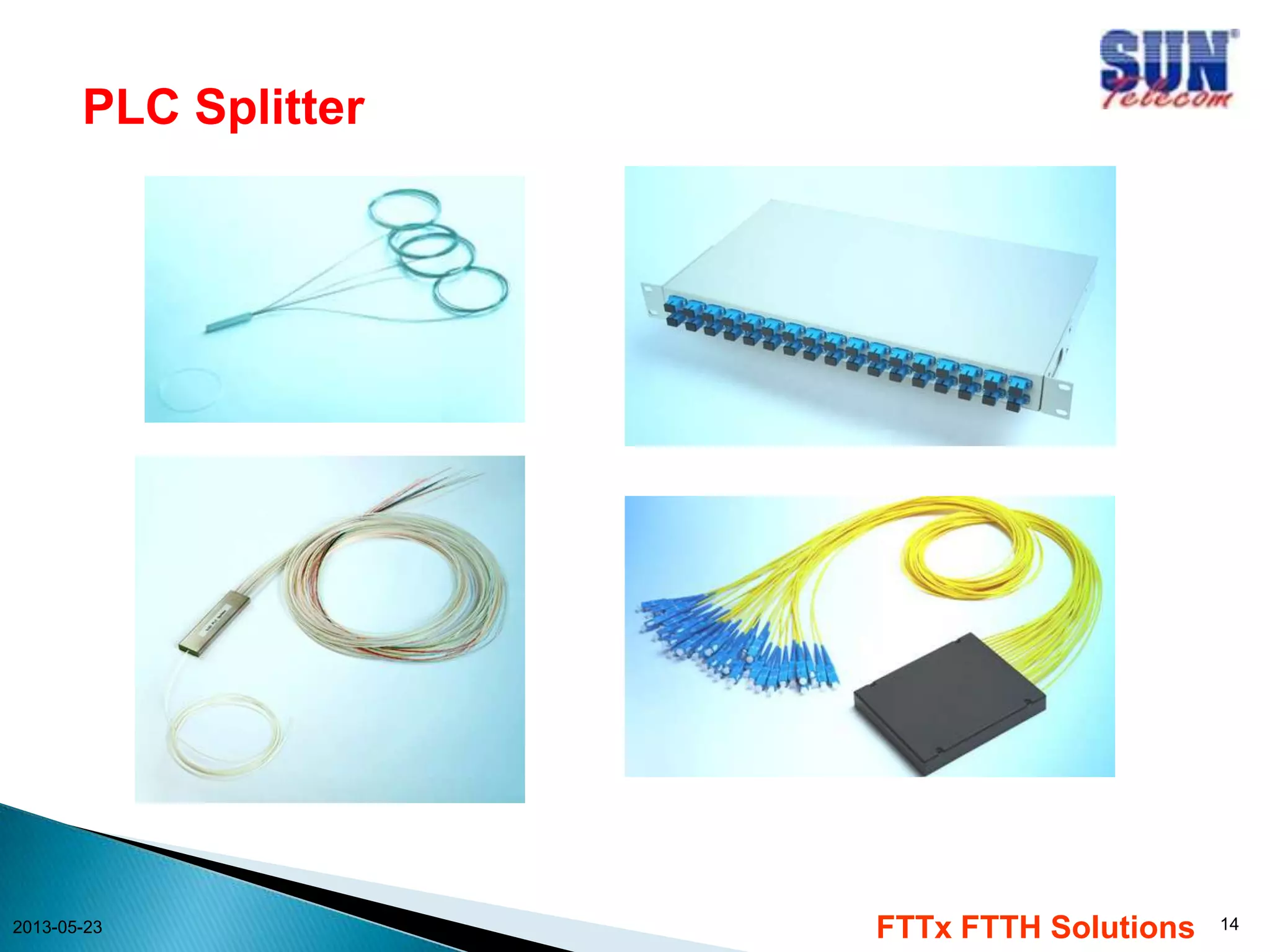

- 14. PLC Splitter 2013-05-23 FTTx FTTHSolutions 14

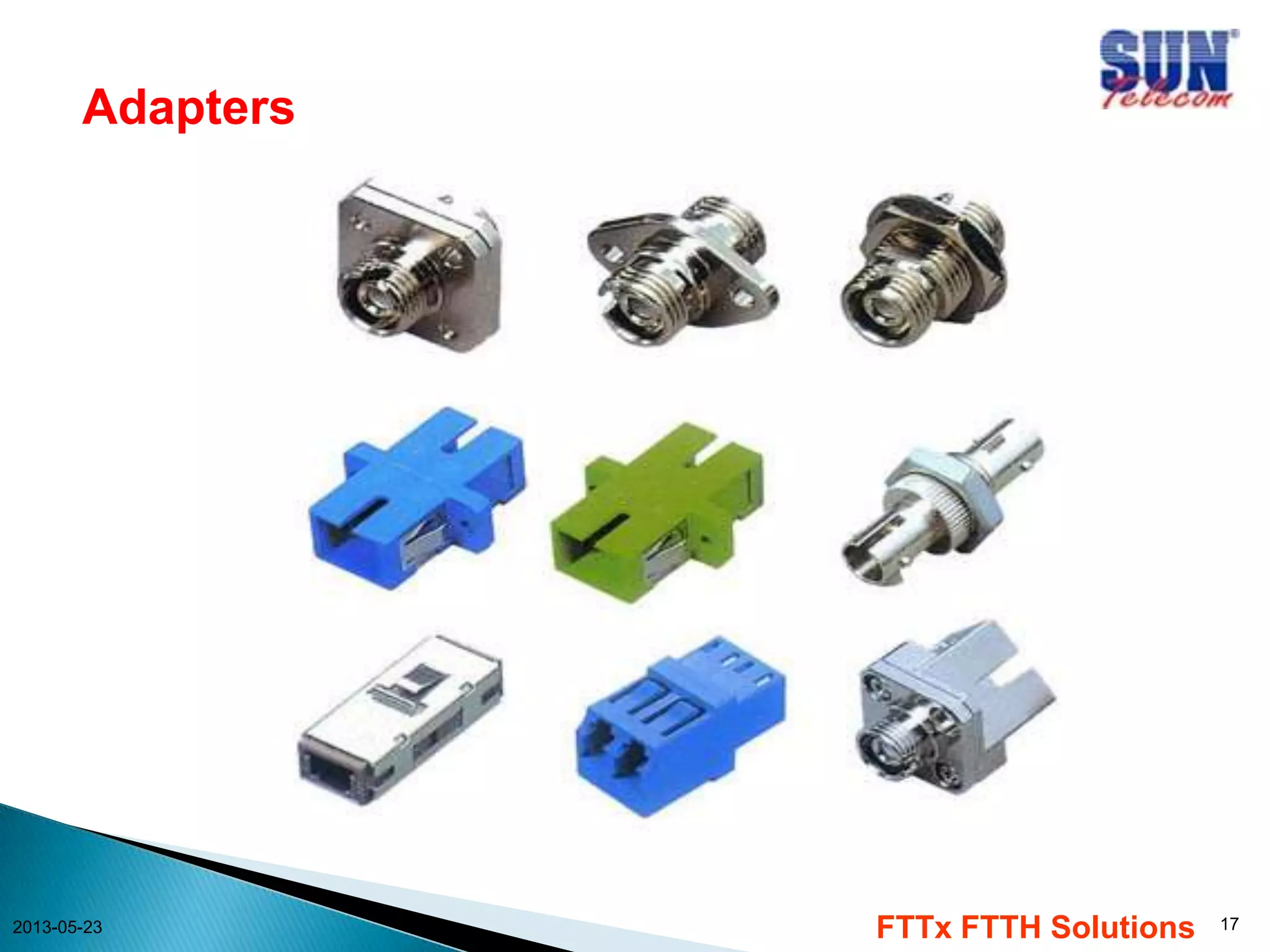

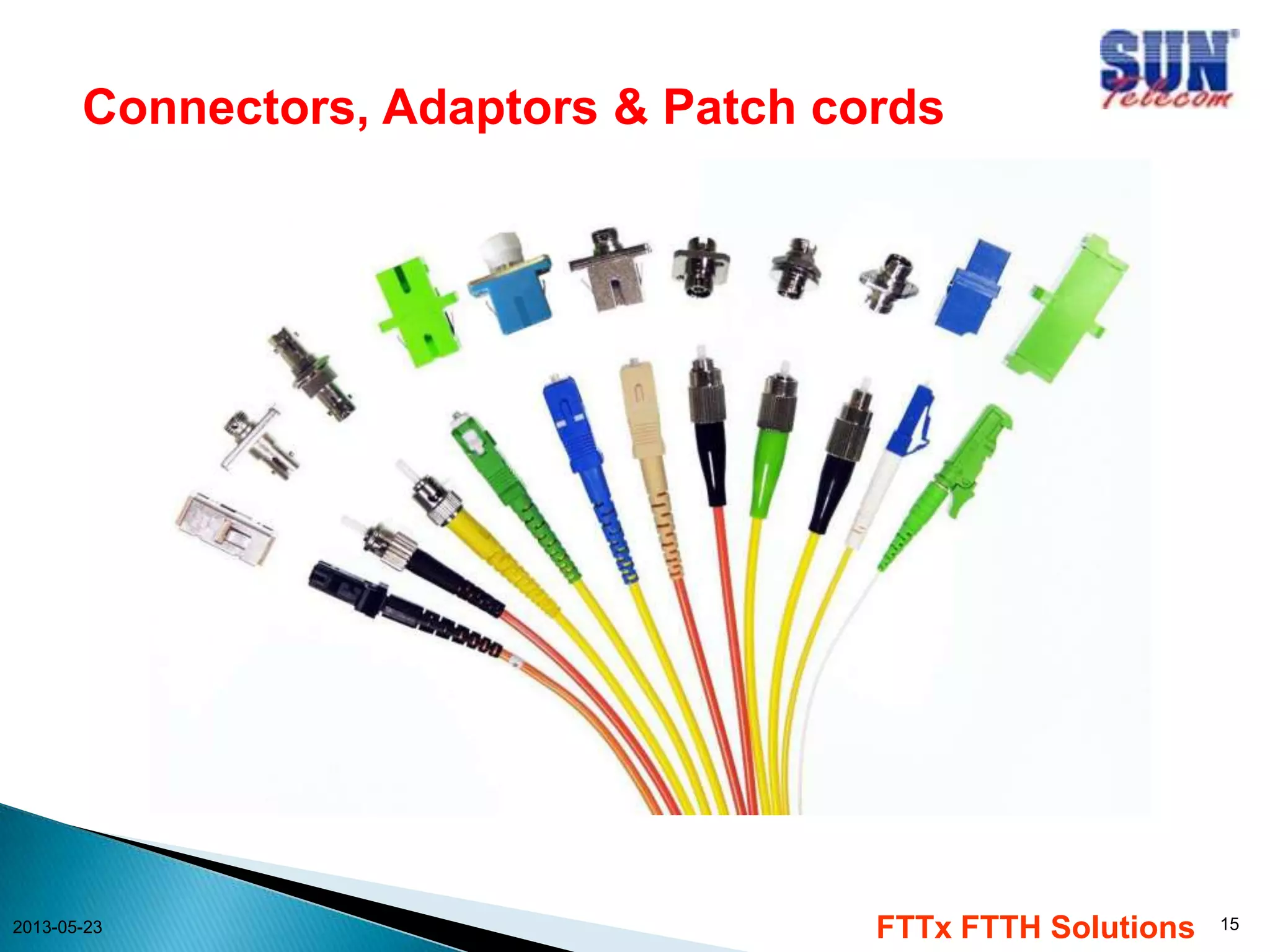

- 15. Connectors, Adaptors &Patch cords 2013-05-23 FTTx FTTH Solutions 15

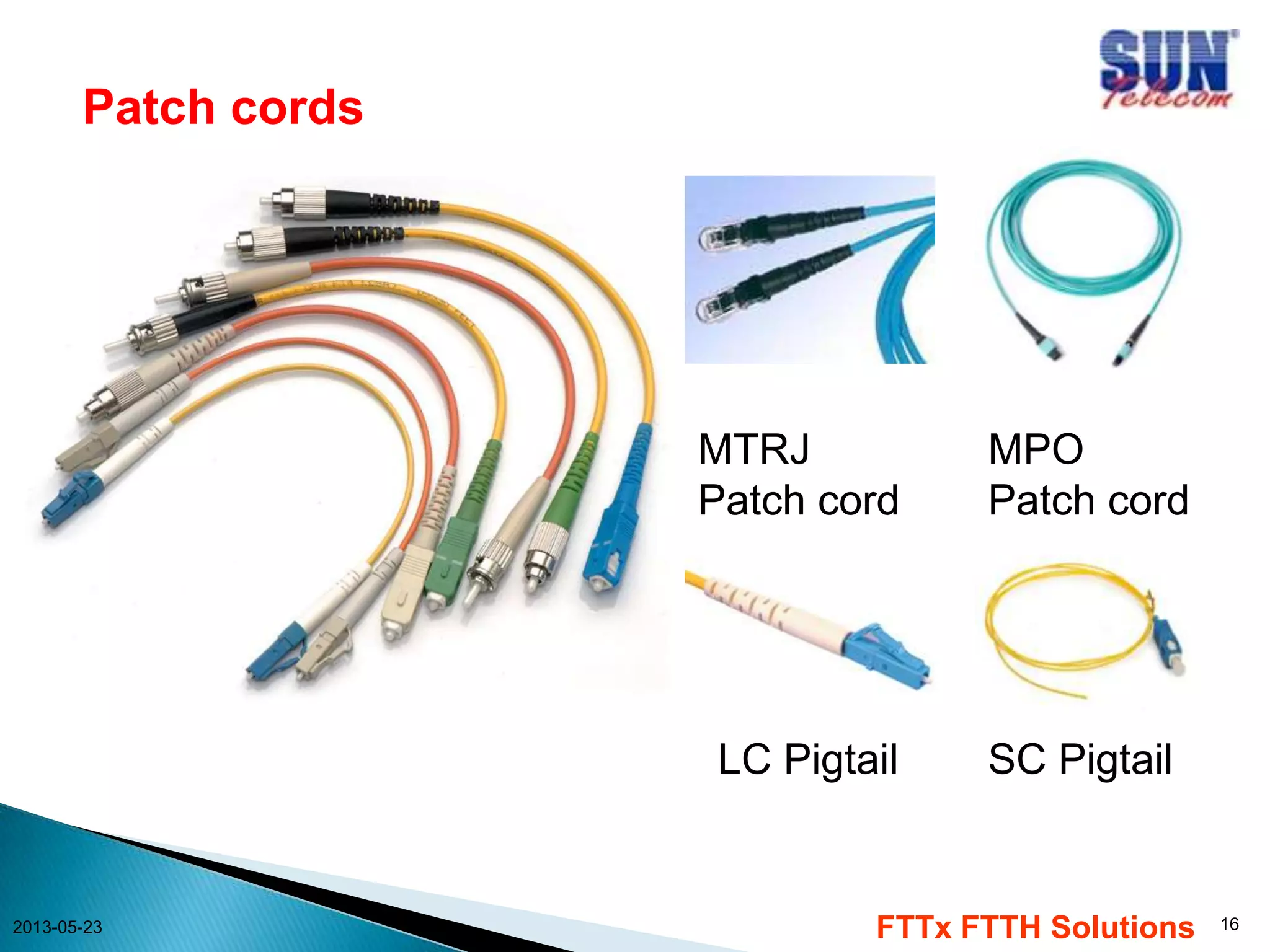

- 16. Patch cords MTRJ Patch cord LCPigtail 2013-05-23 MPO Patch cord SC Pigtail FTTx FTTH Solutions 16
- 17.

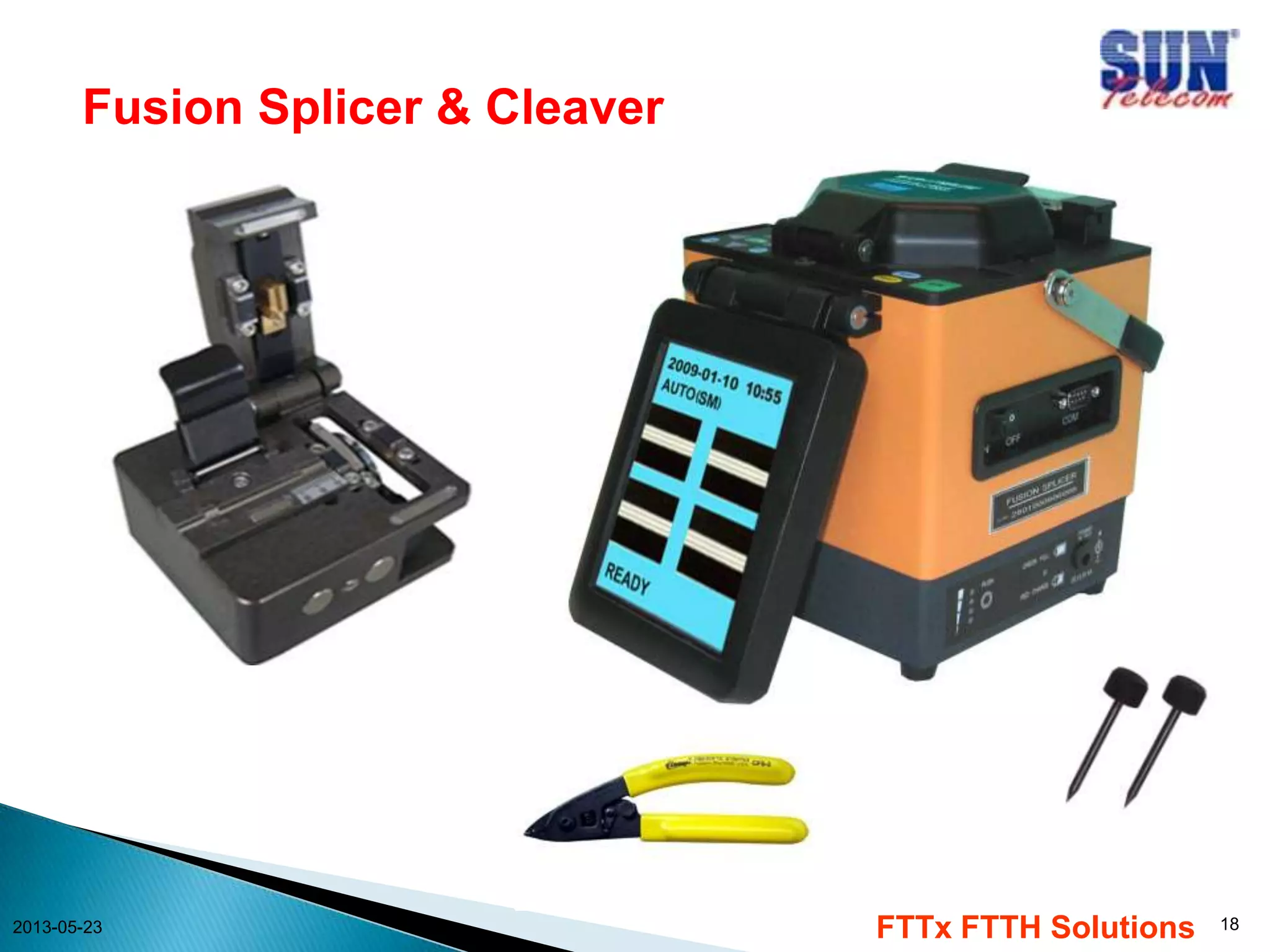

- 18. Fusion Splicer &Cleaver 2013-05-23 FTTx FTTH Solutions 18

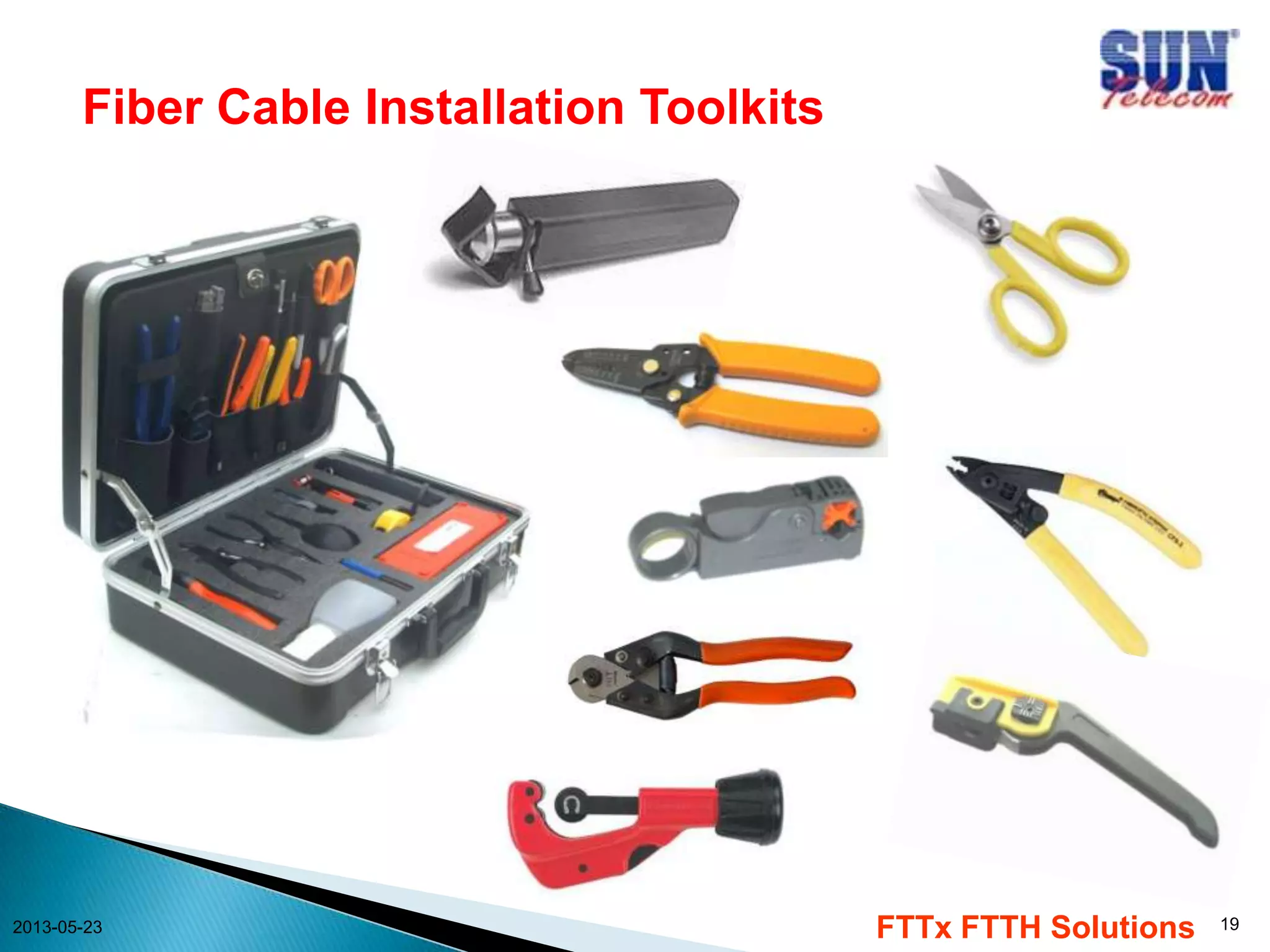

- 19. Fiber Cable InstallationToolkits 2013-05-23 FTTx FTTH Solutions 19

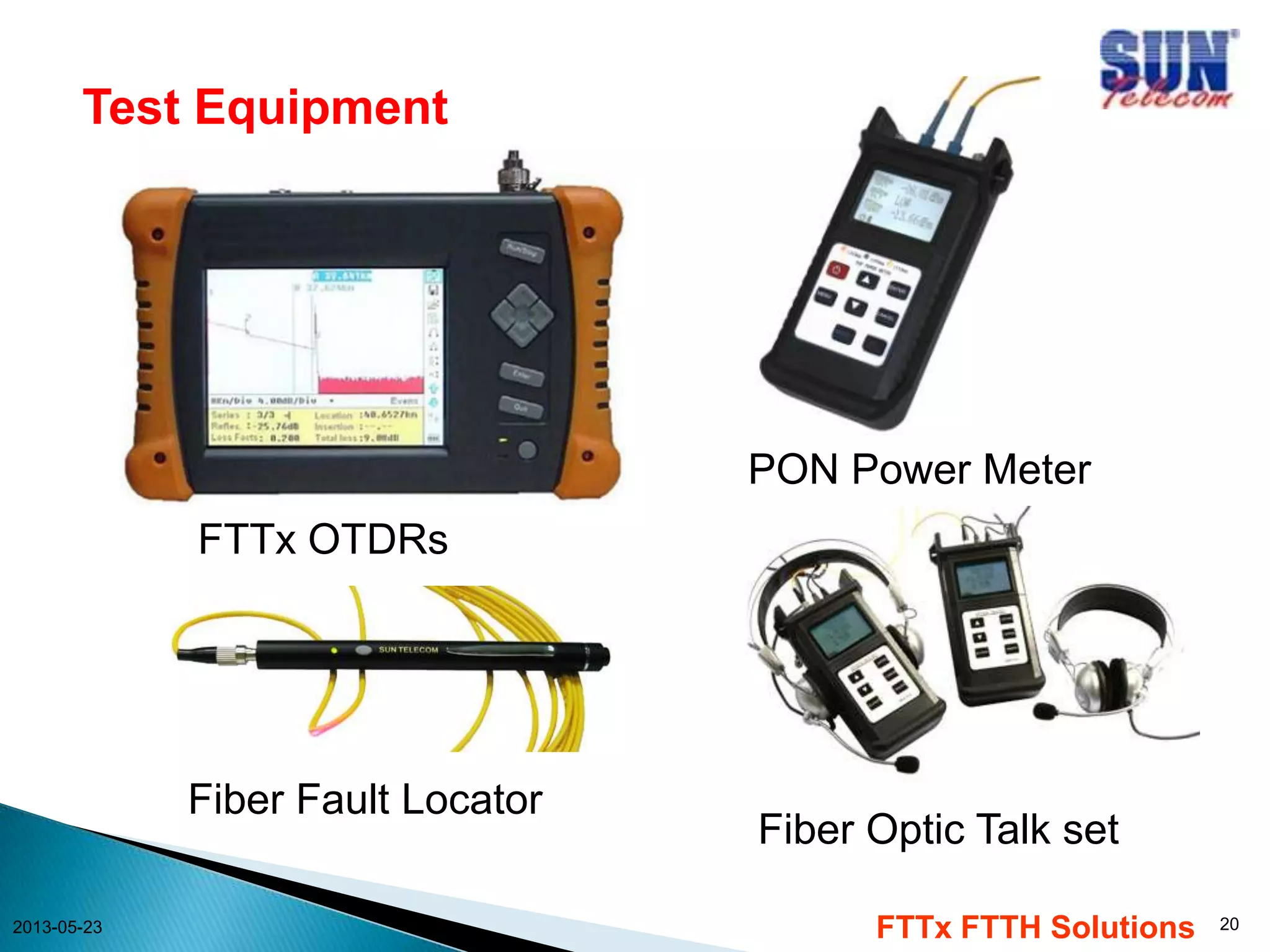

- 20. Test Equipment PON PowerMeter FTTx OTDRs Fiber Fault Locator 2013-05-23 Fiber Optic Talk set FTTx FTTH Solutions 20
