This document summarizes the new features of FreeNAS 9.1.0. Some key updates include improved ZFS volume management with easier ways to extend pools and add devices, an integrated AppCafe to browse and install plugins, more flexible jail configuration for advanced users, IPv6 support, improved shell functionality, and the ability to configure replication users and init/shutdown scripts. FreeNAS is an open source network attached storage application that utilizes ZFS and is focused on enterprise-grade functionality and stability.

1. Introducing
FreeNAS 9.1.0
Dru Lavigne
Documentation Lead, iXsystems
FOSSCON, August 10, 2013

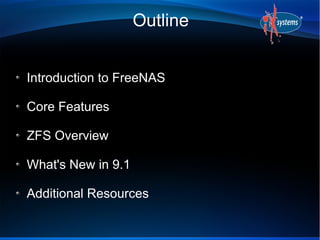

2. Outline
Introduction to FreeNAS
Core Features
ZFS Overview
What's New in 9.1
Additional Resources

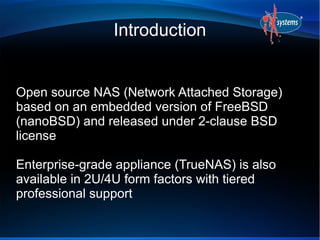

3. Introduction
Open source NAS (Network Attached Storage)
based on an embedded version of FreeBSD
(nanoBSD) and released under 2-clause BSD
license
Enterprise-grade appliance (TrueNAS) is also
available in 2U/4U form factors with tiered
professional support

4. Releases
8.0 was released in May, 2011 with a focus on
NAS core functionality (redesign of .7x which was
EOL'd in 2011)
8.2.0 introduced the original Plugins architecture
for installing additional software (July 20, 2012)
8.3.0 introduced ZFSv28 (October 26, 2012)
8.3.1 introduced full disk encryption (March 20,
2013)
9.1.0 is latest release (August 1, 2013)

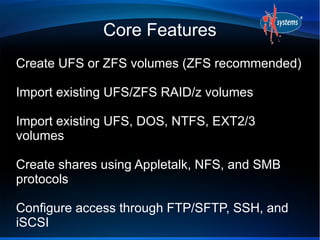

5. Core Features
Create UFS or ZFS volumes (ZFS recommended)
Import existing UFS/ZFS RAID/z volumes
Import existing UFS, DOS, NTFS, EXT2/3
volumes
Create shares using Appletalk, NFS, and SMB
protocols
Configure access through FTP/SFTP, SSH, and
iSCSI

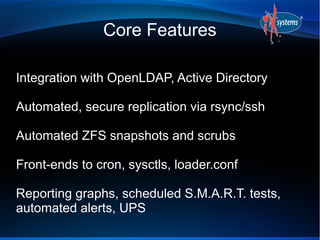

6. Core Features
Integration with OpenLDAP, Active Directory
Automated, secure replication via rsync/ssh
Automated ZFS snapshots and scrubs
Front-ends to cron, sysctls, loader.conf
Reporting graphs, scheduled S.M.A.R.T. tests,
automated alerts, UPS

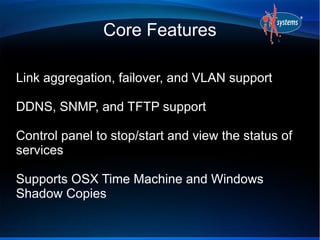

7. Core Features
Link aggregation, failover, and VLAN support
DDNS, SNMP, and TFTP support
Control panel to stop/start and view the status of
services
Supports OSX Time Machine and Windows
Shadow Copies

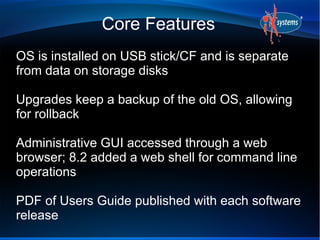

8. Core Features
OS is installed on USB stick/CF and is separate
from data on storage disks
Upgrades keep a backup of the old OS, allowing
for rollback
Administrative GUI accessed through a web
browser; 8.2 added a web shell for command line
operations
PDF of Users Guide published with each software
release

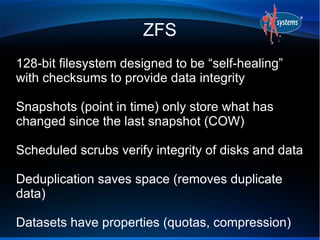

9. ZFS
128-bit filesystem designed to be “self-healing”
with checksums to provide data integrity
Snapshots (point in time) only store what has
changed since the last snapshot (COW)
Scheduled scrubs verify integrity of disks and data
Deduplication saves space (removes duplicate
data)
Datasets have properties (quotas, compression)

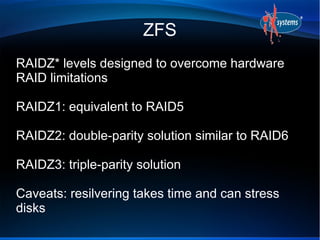

10. ZFS
RAIDZ* levels designed to overcome hardware
RAID limitations
RAIDZ1: equivalent to RAID5
RAIDZ2: double-parity solution similar to RAID6
RAIDZ3: triple-parity solution
Caveats: resilvering takes time and can stress
disks

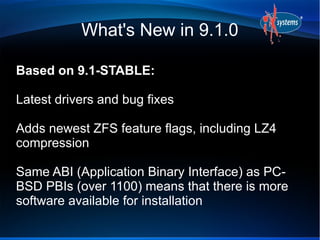

11. What's New in 9.1.0
Based on 9.1-STABLE:
Latest drivers and bug fixes
Adds newest ZFS feature flags, including LZ4
compression
Same ABI (Application Binary Interface) as PC-
BSD PBIs (over 1100) means that there is more
software available for installation

12. What's New in 9.1.0
Volume Manager:
UFS and ZFS now have separate managers
How to extend a ZFS pool or add log/cache
devices is more intuitive
Easier to manage a large amount of disks
Estimated size of ZFS pool is displayed for
selected RAIDZ* layout and GUI will not let you
create an unsupported layout

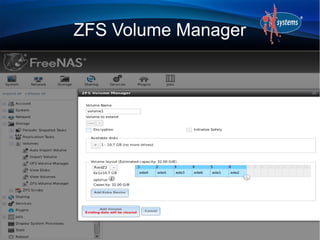

13. ZFS Volume Manager

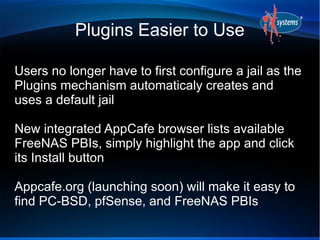

14. Plugins Easier to Use
Users no longer have to first configure a jail as the
Plugins mechanism automaticaly creates and
uses a default jail
New integrated AppCafe browser lists available
FreeNAS PBIs, simply highlight the app and click
its Install button
Appcafe.org (launching soon) will make it easy to
find PC-BSD, pfSense, and FreeNAS PBIs

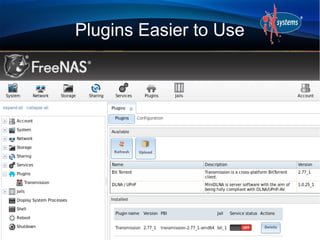

15. Plugins Easier to Use

16. Jails for Advanced Users
Users who want more control over software
installations now have a choice of what type and
how many jails to create and can install software
using FreeNAS PBIs, PC-BSD PBIs, FreeBSD
pkgng packages, or FreeBSD ports
The only required parameter when creating a jail
is the name, however users can choose to
configure other items such as the IPv4 and/or
IPv6 address(es), MAC address, and whether or
not to use vimage

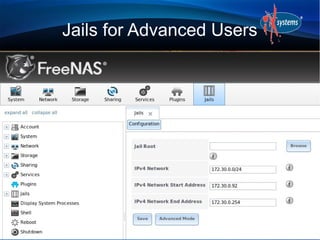

17. Jails for Advanced Users

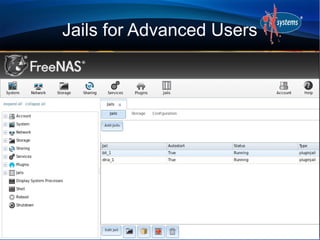

18. Jails for Advanced Users

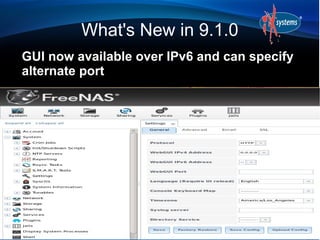

19. What's New in 9.1.0
GUI now available over IPv6 and can specify
alternate port

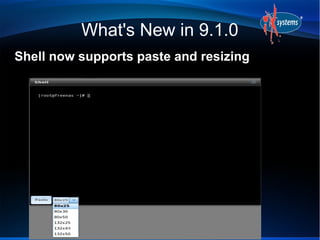

20. What's New in 9.1.0
Shell now supports paste and resizing

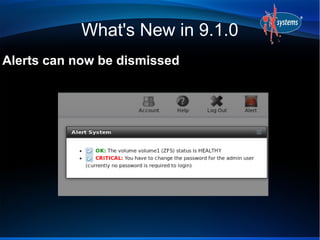

21. What's New in 9.1.0
Alerts can now be dismissed

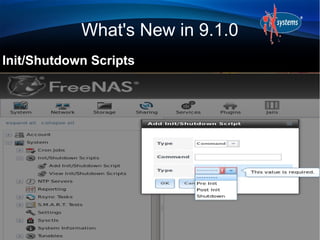

22. What's New in 9.1.0
Init/Shutdown Scripts

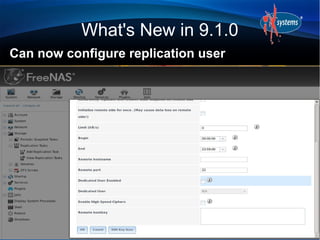

23. What's New in 9.1.0
Can now configure replication user

24. What's New in 9.1.0
Can now change SFTP logging level/facility

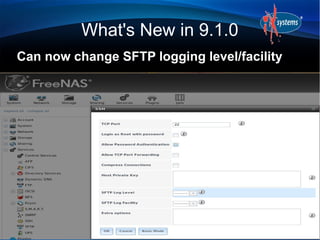

25. What's New in 9.1.0
Can now change SFTP logging level/facility

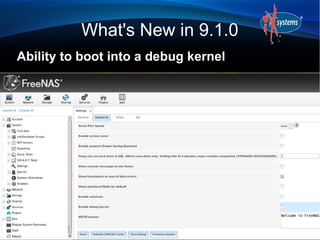

26. What's New in 9.1.0
Ability to boot into a debug kernel

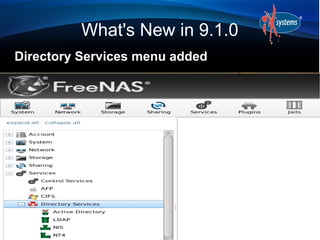

27. What's New in 9.1.0
Directory Services menu added

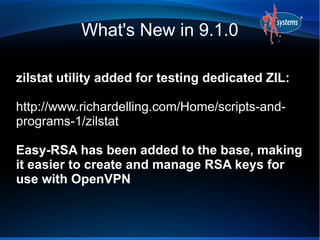

28. What's New in 9.1.0
zilstat utility added for testing dedicated ZIL:
http://www.richardelling.com/Home/scripts-and-
programs-1/zilstat
Easy-RSA has been added to the base, making
it easier to create and manage RSA keys for
use with OpenVPN

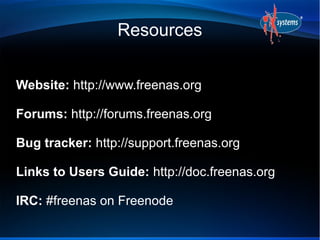

29. Resources
Website: http://www.freenas.org
Forums: http://forums.freenas.org
Bug tracker: http://support.freenas.org
Links to Users Guide: http://doc.freenas.org
IRC: #freenas on Freenode

30. Questions?
Contact:
dru@freebsd.org
URL to Slides:
http://slideshare.net/dlavigne/fosscon2013
