1. iView LED Camera and Light System
2016 Rev. 2.0
Flight Dental Systems

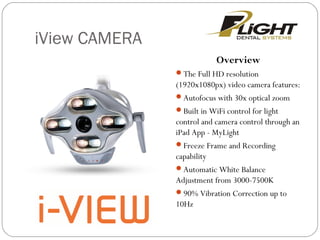

2. iView CAMERA
Overview
The Full HD resolution
(1920x1080px) video camera features:
Autofocus with 30x optical zoom
Built in WiFi control for light
control and camera control through an
iPad App - MyLight
Freeze Frame and Recording
capability
Automatic White Balance
Adjustment from 3000-7500K
90% Vibration Correction up to
10Hz

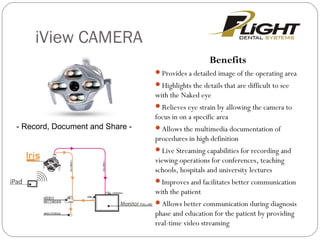

3. iView CAMERA
Benefits
Provides a detailed image of the operating area
Highlights the details that are difficult to see
with the Naked eye
Relieves eye strain by allowing the camera to
focus in on a specific area
Allows the multimedia documentation of
procedures in high definition
Live Streaming capabilities for recording and
viewing operations for conferences, teaching
schools, hospitals and university lectures
Improves and facilitates better communication
with the patient
Allows better communication during diagnosis
phase and education for the patient by providing
real-time video streaming
- Record, Document and Share -

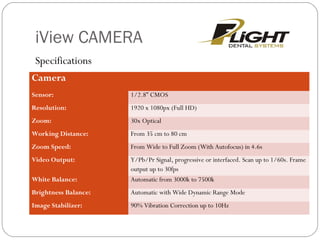

4. iView CAMERA
Specifications
Camera
Sensor: 1/2.8” CMOS
Resolution: 1920 x 1080px (Full HD)
Zoom: 30x Optical
Working Distance: From 35 cm to 80 cm
Zoom Speed: From Wide to Full Zoom (With Autofocus) in 4.6s
Video Output: Y/Pb/Pr Signal, progressive or interfaced. Scan up to 1/60s. Frame
output up to 30fps
White Balance: Automatic from 3000k to 7500k
Brightness Balance: Automatic with Wide Dynamic Range Mode
Image Stabilizer: 90% Vibration Correction up to 10Hz

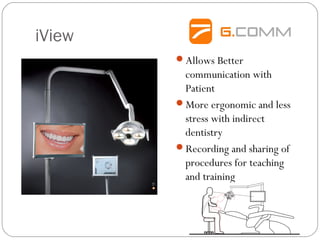

5. iView
Allows Better
communication with
Patient
More ergonomic and less
stress with indirect
dentistry
Recording and sharing of
procedures for teaching
and training

6. iView Features
Camera Features
Pause/Play
Zoom in/out
Flip/Reverse Video
Live Streaming, Recording to DVR, Integration to Computer for Recording
and Editing
LED Light Features:
Touchpad Control – 3 Presets (Cure Safe, Natural Daylight, Surgical Mode)
>90CRI
5 Step Intensity Control (8,000 Lux – 35,000 Lux)
5 Step Color Temperature Control (4,200 – 6000 K)
8 Indirect Reflective Technology LED Bulbs

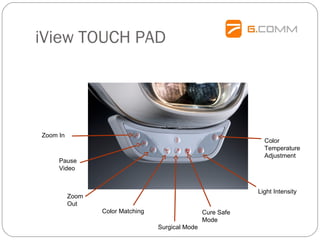

7. iView TOUCH PAD
Zoom In
Pause
Video
Zoom
Out
Color Matching
Surgical Mode
Cure Safe
Mode
Color
Temperature
Adjustment
Light Intensity

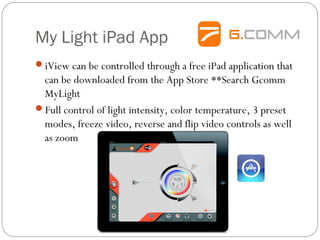

8. My Light iPad App
iView can be controlled through a free iPad application that
can be downloaded from the App Store **Search Gcomm
MyLight
Full control of light intensity, color temperature, 3 preset
modes, freeze video, reverse and flip video controls as well
as zoom

9. Comparison
Naked Eye Loupes Microscopes iView
Magnification 1x 4.5x 22x 30x Optical
Digital No No Available at
additional Cost
Yes. Full HD.
1080p
Autofocus - No No Yes. 4.6s
Image Enhancement No No No Yes
Eye Strain Yes Yes Yes Minimal
Documentation No No Available at
additional Cost
Yes

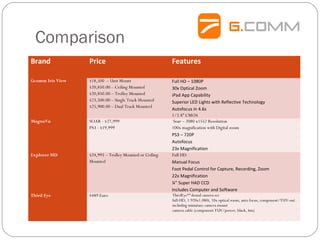

10. Comparison
Brand Price Features
Gcomm Iris View $18,500 – Unit Mount
$20,850.00 – Ceiling Mounted
$20,850.00 – Trolley Mounted
$23,500.00 – Single Track Mounted
$25,900.00 – Dual Track Mounted
Full HD – 1080P
30x Optical Zoom
iPad App Capability
Superior LED Lights with Reflective Technology
Autofocus in 4.6s
1/2.8” CMOS
MagnaVu SOAR - $27,999
PS3 - $19,999
Soar – 2080 x1552 Resolution
100x magnification with Digital zoom
PS3 – 720P
Autofocus
23x Magnification
Explorer HD $24,995 – Trolley Mounted or Ceiling
Mounted
Full HD
Manual Focus
Foot Pedal Control for Capture, Recording, Zoom
22x Magnification
¼” Super HAD CCD
Includes Computer and Software
Third Eye 4489 Euro ThirdEyeHD
dental camera set
full-HD, 1.920x1.080i, 10x optical zoom, auto focus, component/YUV-out
including miniature camera mount
camera cable (component YUV/power, black, 6m)

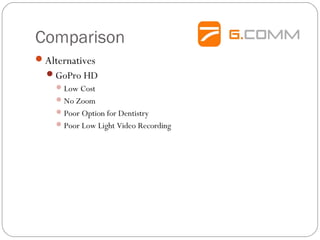

11. Comparison
Alternatives
GoPro HD
Low Cost
No Zoom
Poor Option for Dentistry
Poor Low Light Video Recording

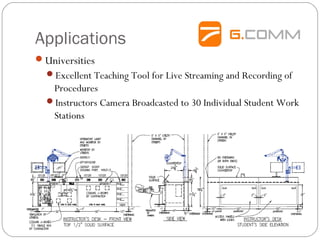

12. Applications
Universities
Excellent Teaching Tool for Live Streaming and Recording of
Procedures
Instructors Camera Broadcasted to 30 Individual Student Work
Stations

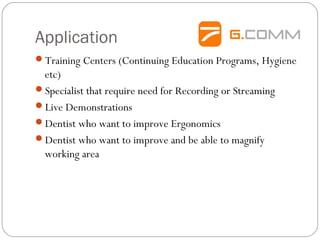

13. Application
Training Centers (Continuing Education Programs, Hygiene
etc)
Specialist that require need for Recording or Streaming
Live Demonstrations
Dentist who want to improve Ergonomics
Dentist who want to improve and be able to magnify
working area

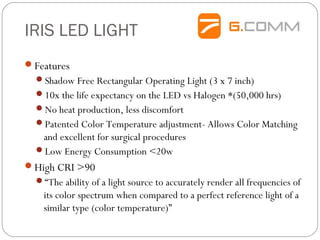

14. IRIS LED LIGHT
Features
Shadow Free Rectangular Operating Light (3 x 7 inch)
10x the life expectancy on the LED vs Halogen *(50,000 hrs)
No heat production, less discomfort
Patented Color Temperature adjustment- Allows Color Matching
and excellent for surgical procedures
Low Energy Consumption <20w
High CRI >90
“The ability of a light source to accurately render all frequencies of
its color spectrum when compared to a perfect reference light of a
similar type (color temperature)”

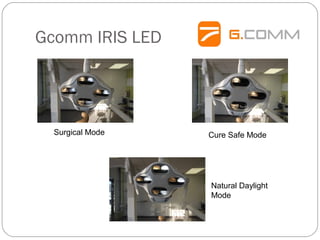

15. Gcomm IRIS LED
Surgical Mode Cure Safe Mode
Natural Daylight
Mode

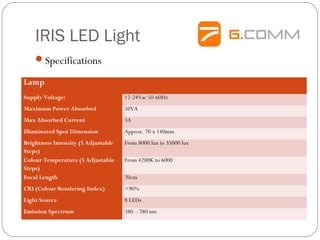

16. IRIS LED Light
Specifications
Lamp
Supply Voltage: 12-24Vac 50-60Hz
Maximum Power Absorbed 50VA
Max Absorbed Current 3A
Illuminated Spot Dimension Approx. 70 x 140mm
Brightness Intensity (5 Adjustable
Steps)
From 8000 lux to 35000 lux
Colour Temperature (5 Adjustable
Steps)
From 4200K to 6000
Focal Length 70cm
CRI (Colour Rendering Index) >90%
Light Source 8 LEDs
Emission Spectrum 380 – 780 nm

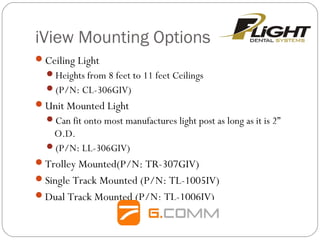

17. iView Mounting Options
Ceiling Light
Heights from 8 feet to 11 feet Ceilings
(P/N: CL-306GIV)
Unit Mounted Light
Can fit onto most manufactures light post as long as it is 2”
O.D.
(P/N: LL-306GIV)
Trolley Mounted(P/N: TR-307GIV)
Single Track Mounted (P/N: TL-1005IV)
Dual Track Mounted (P/N: TL-1006IV)

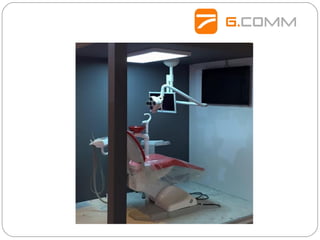

18. Mounting Options
Ceiling Mounted Option
- Specify height from 8’ to 11’ high

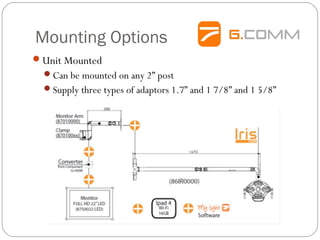

20. Mounting Options
Unit Mounted
Can be mounted on any 2” post
Supply three types of adaptors 1.7” and 1 7/8” and 1 5/8”

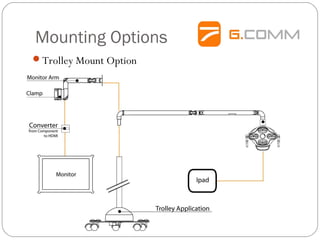

21. Mounting Options
Trolley Mount Option

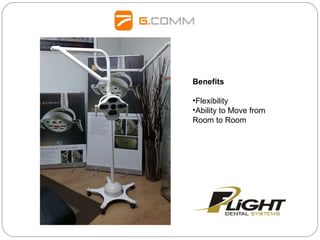

22. Benefits
•Flexibility
•Ability to Move from
Room to Room

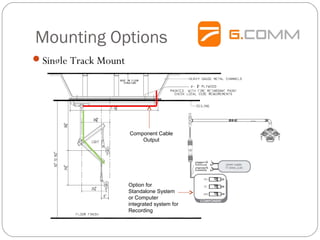

23. Mounting Options
Single Track Mount
Component Cable
Output
Option for
Standalone System
or Computer
integrated system for
Recording

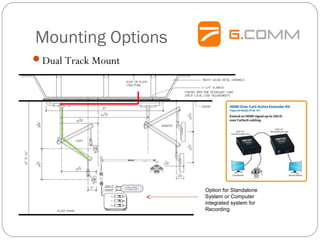

24. Mounting Options
Dual Track Mount
Option for Standalone
System or Computer
integrated system for
Recording

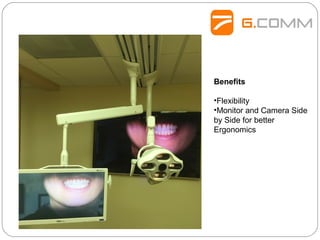

25. Benefits
•Flexibility
•Monitor and Camera Side
by Side for better
Ergonomics

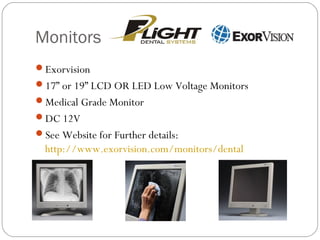

26. Monitors
Exorvision
17” or 19” LCD OR LED Low Voltage Monitors
Medical Grade Monitor
DC 12V
See Website for Further details:
http://www.exorvision.com/monitors/dental

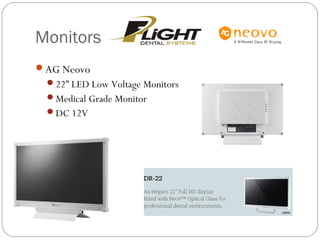

27. Monitors
AG Neovo
22” LED Low Voltage Monitors
Medical Grade Monitor
DC 12V

28. References
Professor Dr. Paolo Pera - University of Turin
Prof. Ugo Covani - Pisa University
Professor Antonio Barone DDS MSc PhD
Dott. Casentini Milano University
Prof. Rolando Crippa, Genova University, Istituto
Stomatologico Hospital Milano, NY University
