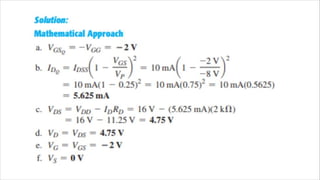

This document provides sample calculations for determining the gate-source voltage (VGS), drain current (ID), and drain-source voltage (VDS) for a fixed bias configuration of a JFET transistor. The document uses example values in calculations to solve for the key voltages and current in the JFET circuit.

1. FIXED BIAS CONFIGURATION (JFET)

2. SAMPLE CALCULATIONS FOR FET

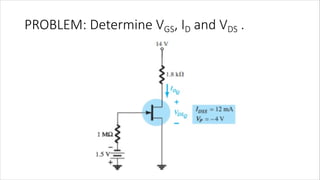

4. PROBLEM: Determine VGS, ID and VDS .
