The document describes various CNC machine tools from FEMCO, Inc including horizontal lathes, vertical lathes, boring mills, wheel turning lathes, and wheel drilling machines. Specifications are provided for models such as the HL-25 horizontal lathe, BMC-110R2 boring mill, VL-25 vertical lathe, WHL-55SP wheel lathe, and WVL-24 vertical wheel drilling center. Contact information is provided to inquire further about FEMCO machine tools.

1. Horizontal Lathes, Vertical Lathes, Boring Mills, Wheel Turning & Drilling Machines
FEMCO, Inc.
(714)898-2066 www.femcousa.com
CNC MachineTools

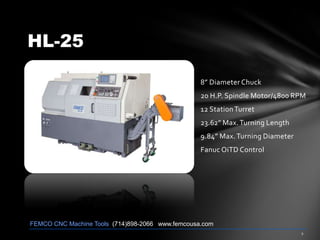

2. HL-25
8” Diameter Chuck
20 H.P. Spindle Motor/4800 RPM
12 StationTurret
23.62” Max.Turning Length
9.84” Max.Turning Diameter
Fanuc OiTD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

3. HL-25 Durga
8” Diameter Chuck
20 H.P. Spindle Motor/4800 RPM
23 StationTurret
23.62” Max.Turning Length
9.84” Max.Turning Diameter
Fanuc OiTD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

4. HL-35
10” Diameter Chuck
25 H.P. Spindle Motor/4000 RPM
12 StationTurret
26.57” Max. Turning Length
14.17” Max. Turning Diameter
Fanuc OiTD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

5. HL-55/1250
15” Diameter Chuck
35 H.P. Spindle Motor/2500 RPM
Two Speed Gear Box
Box Way Construction
12 Station Turret
42.12” Max. Turning Length
24.21” Max. Turning Diameter
Fanuc OiTD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

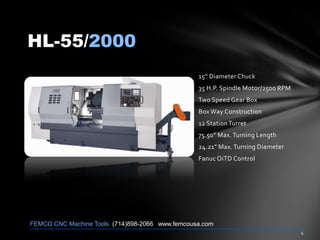

6. HL-55/2000
15” Diameter Chuck
35 H.P. Spindle Motor/2500 RPM
Two Speed Gear Box
Box Way Construction
12 Station Turret
75.50” Max. Turning Length
24.21” Max. Turning Diameter
Fanuc OiTD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

7. HL-55/2500
15” Diameter Chuck
35 H.P. Spindle Motor/2500 RPM
Two Speed Gear Box
Box Way Construction
12 Station Turret
91.33” Max. Turning Length
24.21” Max. Turning Diameter
Fanuc OiTD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

8. BMC-110R2
78.74” x 70.87” x 66.93” (XYZ Travels)
35 H.P. Spindle Motor/2500 RPM
4.33” Diameter Spindle
13,889 LBS. Max. Table Weight Capacity
60 Station AutomaticTool Changer
Full B Axis Rotary Table
Through Spindle Coolant System
Linear Scales on X,Y & Z Axis
Fanuc 32iMB Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

9. BMC-110T2
78.74” x 82.67” x 66.93” (XYZ Travels)
35 H.P. Spindle Motor/2500 RPM
4.33” Diameter Spindle
17,600 LBS. Max. Table Weight Capacity
60 Station AutomaticTool Changer
Full B Axis Rotary Table
Through Spindle Coolant System
Linear Scales on X,Y & Z Axes
Fanuc 32iMB Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

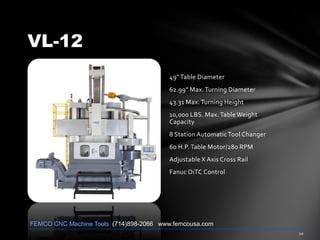

10. VL-12
49”Table Diameter
62.99” Max. Turning Diameter
43.31 Max. Turning Height
10,000 LBS. Max. Table Weight
Capacity
8 Station Automatic Tool Changer
60 H.P. Table Motor/280 RPM
Adjustable X Axis Cross Rail
Fanuc OiTC Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

11. VL-25
106.3”Table Diameter
118.1” Max. Turning Diameter
70.87” Max. Turning Height
40,000 LBS. Max. Table Weight
Capacity
8 Station Automatic Tool Changer
60 H.P. Table Motor/280 RPM
Adjustable X Axis Cross Rail
Fanuc OiTC Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

12. WHL-55SP Super Finish Wheel Lathe
22” Maximum Wheel Turning
Diameter
12” Maximum Width
40-2500 RPM Spindle Speed
50/60 HP Spindle Motor
12 Station Turret
Granite Headstock to better
absorb vibration
Fanuc OiTD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

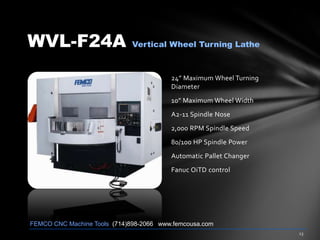

13. WVL-F24A Vertical Wheel Turning Lathe
24” Maximum Wheel Turning
Diameter
10” Maximum Wheel Width
A2-11 Spindle Nose
2,000 RPM Spindle Speed
80/100 HP Spindle Power
Automatic Pallet Changer
Fanuc OiTD control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com

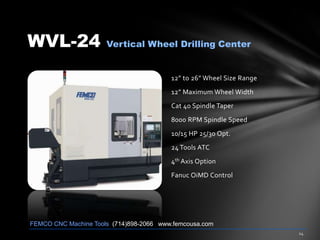

14. WVL-24 Vertical Wheel Drilling Center
12” to 26” Wheel Size Range
12” Maximum Wheel Width
Cat 40 Spindle Taper
8000 RPM Spindle Speed
10/15 HP 25/30 Opt.
24 Tools ATC
4th Axis Option
Fanuc OiMD Control
FEMCO CNC Machine Tools (714)898-2066 www.femcousa.com
