This document provides specifications for the Henan Acontrol Remote Electronic Co. F24-60-TX-V-(E) transmitter and F24-60-RX-V-(E) receiver. The transmitter operates on 4 AA batteries, has 5 single speed buttons and 2 joysticks, and transmits on frequencies between 310.0325-331.165 MHz. The receiver can be powered by various AC and DC voltages, controls up to 40 functions via relays, and has an operating range of over 110 meters.

1. Henan Acontrol Remote Electronic Co., LTD
Model F24-60-TX-V-(E)
TX Size About 21.5x10.7x9.6cm
TX Weight About 1137g
Housing Materail Glass fiber-reinforced nylon-6
Protection Degree IP65
Temperature Rating -35°C ~ +85°C
TX power Supply Four 1.5 volts Batteries(AA Size)
Number of buttons 5 single speed buttons，1 START button
Button Marking English + number
Joystick Two 5-steps Joysticks
switch 4 selector switch
I.D.Code 4.3 billion
Voltage Warning TX Red LED will flash slowly when the volts under 4.8V
Operating Frequency 310.0325-331.165MHz
Channel Spacing 0.2675MHz
Channel 80CH
RF Power ≦12DBm
Fault Detection
TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries
Cel(Whatsapp): +86-15136229290 Email:lilyji@acontrolremote.com Web:www.acontrolremote.com
Add: 2403, Floor 24, Building 2th ,North 4th Ring Road South, Park North Road West,Huiji District,Zhengzhou,Henan
F24-60 Specification

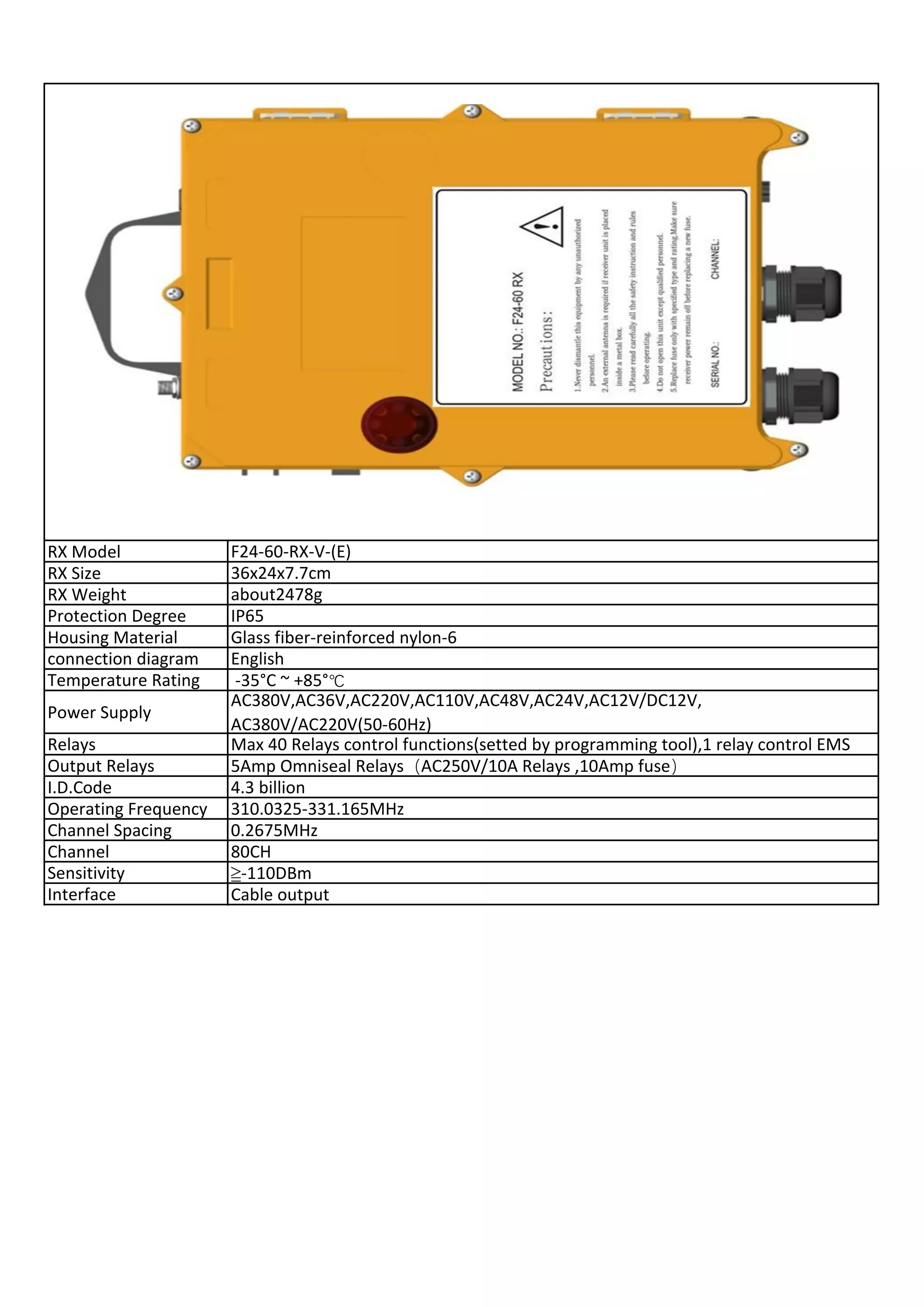

2. RX Model F24-60-RX-V-(E)
RX Size 36x24x7.7cm
RX Weight about2478g
Protection Degree IP65
Housing Material Glass fiber-reinforced nylon-6
connection diagram English
Temperature Rating -35°C ~ +85°℃
Power Supply
AC380V,AC36V,AC220V,AC110V,AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz)
Relays Max 40 Relays control functions(setted by programming tool),1 relay control EMS
Output Relays 5Amp Omniseal Relays（AC250V/10A Relays ,10Amp fuse）
I.D.Code 4.3 billion
Operating Frequency 310.0325-331.165MHz
Channel Spacing 0.2675MHz
Channel 80CH
Sensitivity ≧-110DBm
Interface Cable output
