The document discusses accessibility solutions for public spaces and buildings provided by Dinac, including outdoor solutions like pedotactile nails, guiding rails, and stair nosing profiles, as well as indoor solutions like entrance mats, guiding rails, access ramps, and pedotactile slabs. It emphasizes that accessibility is a fundamental right and requires additional devices to ensure security, autonomy, and understanding for disabled or special needs individuals in transportation and information, as outlined in French regulation. Dinac is committed to developing accessibility solutions that promote social equality.
Exe a5 accessibilite en
- 1. www.dinac.com Finishing solutions forgrounds and walls V i g i l a n c e c a t c h i n g t h a n k s t o v i s u a l a n d t a c t i l e c o n t r a s t in Public Access Building (french circular DGUHC 2007-53 of 30 november 2007) range Outdoor Pedotactile nails Guiding rails Stair nosing profiles Flat profiles Pedotactile slabs Indoor Entrance mats Guiding rails Access ramps Pedotactile slabs Signaling tapes Stair nosing profiles Handrails

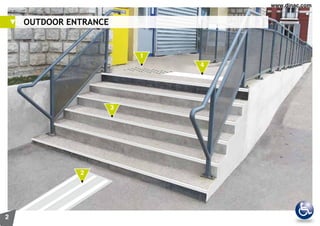

- 2.
- 3. Installation template forpedotactile nails Notcontractualpictures 1 DINACLOU To be sealed with chemical sealant. In accordance with AFNOR NFP 98-351. Round 350 pieces per sqm. • Material : zinc-plated steel, stainless steel or aluminium • Ø 25 mm x 16/18 mm CLASSICO CALYPSO ALUNEO 516à18 Ø25 2 Methacrylate rails and slabs fixation with MTA glue DINAGUIDE Guiding rail to be glued. For supports such as : concrete, asphalt... • Material : methacrylate • Colour : white • L x l : 175 x 1000 mm 4 4 PEDOTACTILE SLABS DV10 METAL Metallic slabs with studs. To screw down. • Material : stainless steel, alu • 4 finishes • L x l x H : 440 x 478 x 6,5 mm 5 mm 1.5 mm 5 mm 2.2 mm PEDOTACTILE SLABS METHACRYLATE Methacrylate slabs with studs. In accordance with AFNOR NFP 98-351. To be glued with MTA glue • Material : methacrylate • Colour : white • L x l x H : 420 x 840 x 7,2 mm 3 3 NON SLIP FLAT PROFILE B5 Stainless steel profile with quartz sprayed in methacrylate resin. • Material : methacrylate + quartz • Colour : cream, grey • L x l : 3000 x 63 mm Methacrylate resin Quartz Methacrylate resin Quartz NON SLIP STAIR NOSING B4, B11-Q, 40V-Q Stainless steel or aluminium profiles with insert in quartz sprayed in methacrylate resin. • Material : methacrylate + quartz • Colour : cream, grey • L : 3000 mm Refer to our DInaBOOK Stainless steel or aluminium Stainless steel

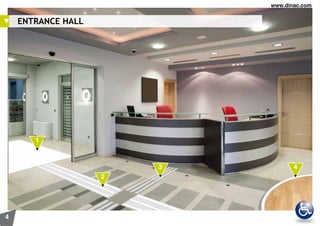

- 4.

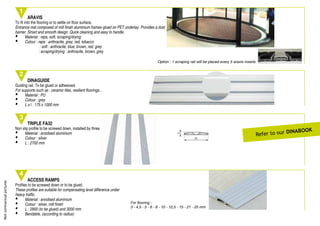

- 5. Notcontractualpictures 1 2 DINAGUIDE Guiding rail. Tobe glued or adhesived. For supports such as : ceramic tiles, resilient floorings... • Material : PU • Colour : grey • L x l : 175 x 1000 mm 4 3 ARAVIS To fit into the flooring or to settle on floor surface. Entrance mat composed of mill finish aluminium frames glued on PET underlay. Provides a dust barrier. Smart and smooth design. Quick cleaning and easy to handle. • Material : reps, soft, scraping/drying • Colour : reps : anthracite, grey, red, tobacco : soft : anthracite, blue, brown, red, grey : scraping/drying : anthracite, brown, grey TRIPLE FA32 Non slip profile to be screwed down, installed by three. • Material : anodised aluminium • Colour : silver • L : 2700 mm ACCESS RAMPS Profiles to be screwed down or to be glued. These profiles are suitable for compensating level difference under heavy traffic. • Material : anodised aluminium • Colour : silver, mill finish • L : 2900 (to be glued) and 3000 mm • Bendable, (according to radius) Option : 1 scraping rail will be placed every 5 aravis inserts For flooring : 3 - 4,5 - 5 - 6 - 8 - 10 - 12,5 - 15 - 21 - 25 mm 3 24 Non slip profile to be screwed down, installed by three. Refer to our DInaBOOK

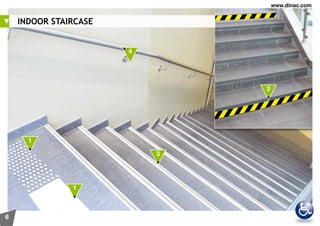

- 6.

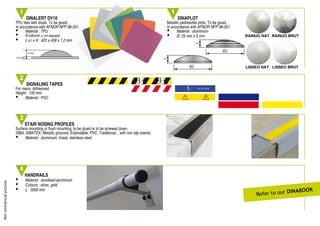

- 7. Notcontractualpictures STAIR NOSING PROFILES Surfacemounting or flush mounting, to be glued or to be screwed down. ISBA, ISBATEX, Metallic grooved, Extendable, PVC, Traditional... with non slip inserts. • Material : aluminium, brass, stainless steel 3 4 HANDRAILS • Material : anodised aluminium • Colours : silver, gold • L : 3000 mm SIGNALING TAPES For risers. Adhesived Height : 100 mm. • Material : PVC 2 Refer to our DInaBOOK Ø25 5 Ø25 5 Ø25 5 Ø25 5 DINALERT DV10 TPU tiles with studs. To be glued. In accordance with AFNOR NFP 98-351. • Material : TPU • 9 colours (+ on request) • L x l x H : 420 x 458 x 7,2 mm DINAPLOT Metallic pedotactile plots. To be glued. In accordance with AFNOR NFP 98-351. • Material : aluminium • Ø 25 mm x 5 mm 1 1 5 mm 2.2 mm RAINUO NAT LISSEO NAT RAINUO BRUT LISSEO BRUT TPU tiles with studs. To be glued. In accordance with AFNOR NFP 98-351. H : 420 x 458 x 7,2 mm Metallic pedotactile plots. To be glued. In accordance with AFNOR NFP 98-351. • •
- 8. 3M France Companies DINACSAS - Z.I. des Marais BP 29 - 38350 La Mure - France Tél. +33 4 76 81 14 22 - Fax +33 4 76 30 93 03 - gdp.contact@mmm.com SAS au capital de 1 352 640 euros - RCS de Grenoble B 403 348 972 - SIRET 403 348 972 00049 Code APE 2512Z - N° identification TVA : FR 58403348972 - Gencod 323356 Code:908689-04/2013-pictures:Dinac-Shutterstock Accessibility is a fondamental right to security and autonomy in transportations and informations understanding for disabled or with a specific needs people. It requires the implementation of additional devices in the streets and in public access building (french circular DGUHC 2007-53 of 30 november 2007). «The society following this approach upgrades the quality of life of all of its members.» In its commitment for accessibility, Dinac does everything in its power to develop solutions in accordance with the right to social equality. range
