This document describes an Excel VBA macro that expedites the processing of light logging data. The macro allows users to click a button, select a data file, and answer a few questions. It then automatically distinguishes between Hobo and Dent logger data files, extracting useful information without four hours of manual engineering time per site logged. Currently, the macro generates a site's annual operating hours, control factor, coincidence factor, and other data. Future additions will include a summary tab that automatically populates information from multiple loggers at a single site. The macro provides an easy-to-use tool that saves significant time in processing light logging performance data.

1. DNV GL © 2014
Ungraded
17 September 2015 SAFER, SMARTER, GREENERDNV GL © 2014
Ungraded
17 September 2015
ENERGY

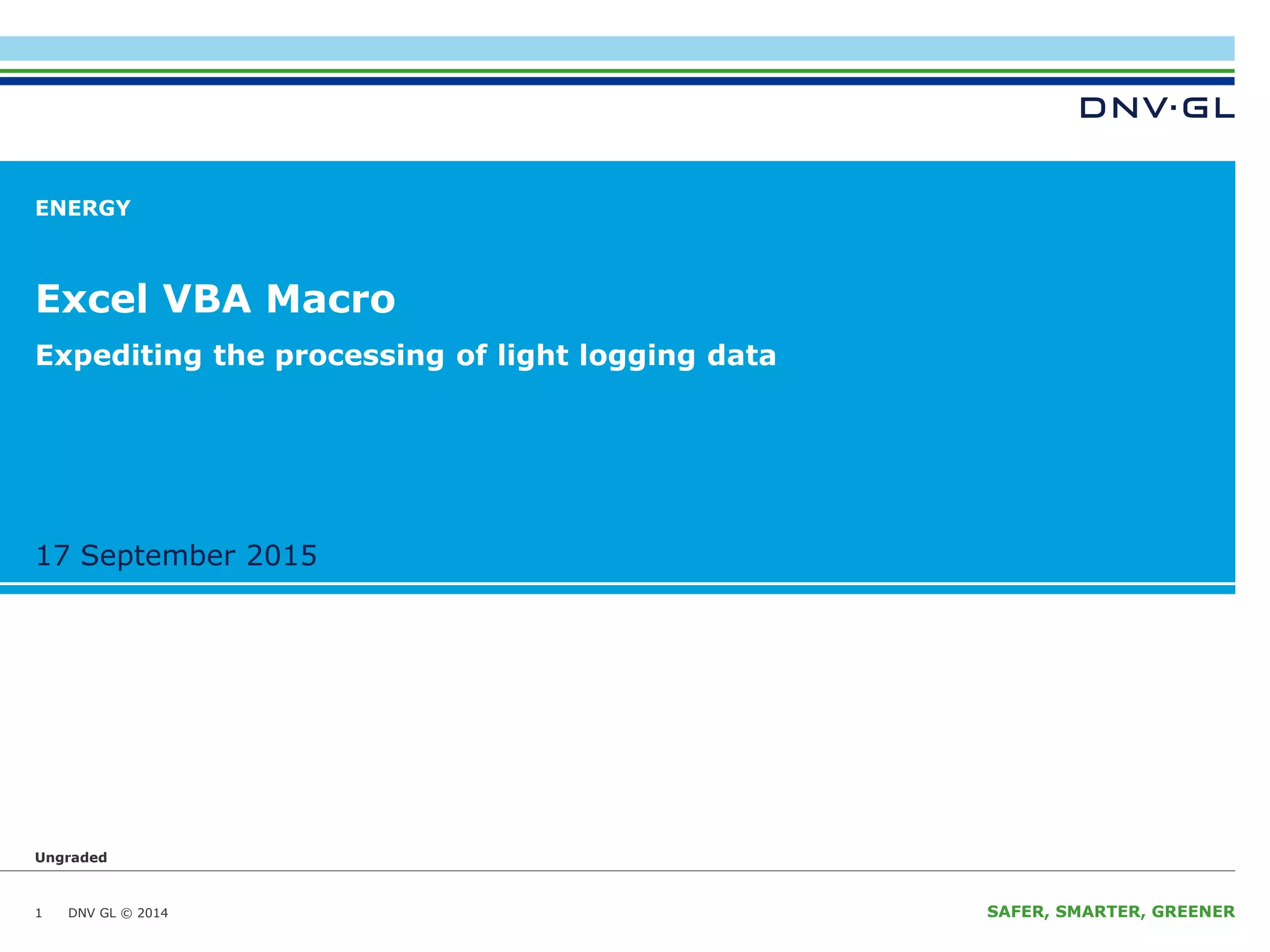

Excel VBA Macro
1
Expediting the processing of light logging data

2. DNV GL © 2014
Ungraded
17 September 2015

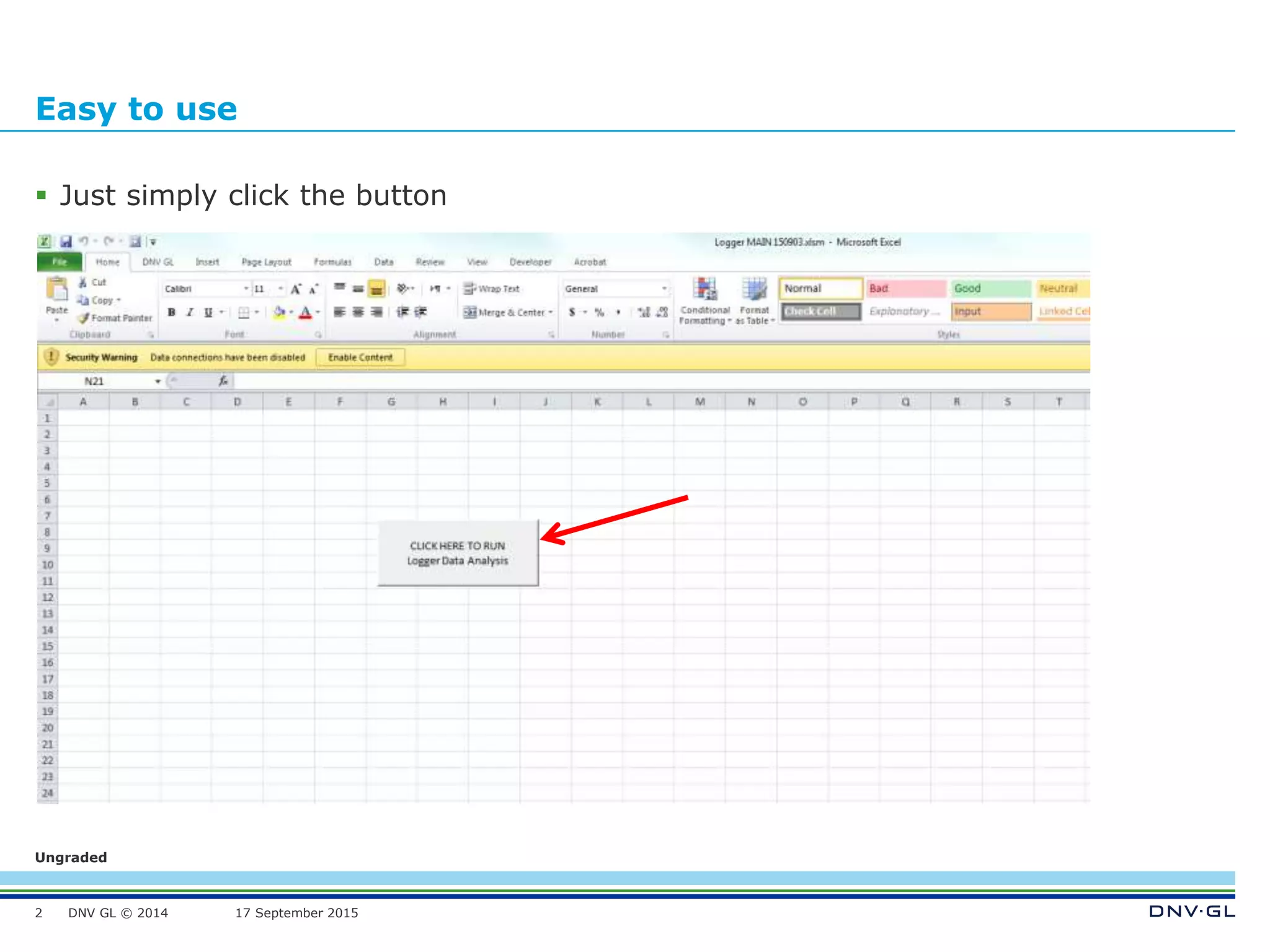

Easy to use
 Just simply click the button
2

3. DNV GL © 2014
Ungraded
17 September 2015
Enter in Variables
 Answer a few questions
3

4. DNV GL © 2014
Ungraded
17 September 2015
Before the macro runs. (Dent logger file)
 Screen shot of the data before the macro runs.
4

5. DNV GL © 2014
Ungraded
17 September 2015
Before the macro runs. (Hobo logger file)
 The data could also look like this:
5

6. DNV GL © 2014
Ungraded
17 September 2015
What the Macro Does
 Currently the macro can automatically distinguish between Hobo and Dent logger
data seen in the previous slides.
 Here is what the current final product looks like; with usable information.
6

7. DNV GL © 2014
Ungraded
17 September 2015
Future Additions to Come
 Here is what the data will look like when I am finished with the macro.
7

8. DNV GL © 2014
Ungraded
17 September 2015
Summary
 Easy to use.
– User presses start, selects data file and answers a few basic questions.
 Saves at least four hours of engineering time per site logged.
 Currently automatically distinguishes between Hobo and Dent data files.
– Dent logs ON/OFF events
– Hobo logs Amperes
 Can be scaled to add additional types of loggers.
 Currently the macro generates the following useful data:
– Site’s annual operating hours
– SVG (Control factor for occupancy and other sensor types)
– Coincidence factor (% on during peak demand as per PA PUC 2pm – 6pm, M-F)
– Other (see slide six)
 Future addition
– Summary tab for multiple loggers from same site will be auto populated.
8

9. DNV GL © 2014
Ungraded
17 September 2015
SAFER, SMARTER, GREENER
www.dnvgl.com
Thank You.
9
