Guillermo Polito discusses the development and application of Mutalk, a mutation testing tool for Pharo, which helps improve automated test suites by measuring their effectiveness against artificial bugs. The presentation highlights the importance of mutation coverage, the optimization of mutation analysis for improved runtime efficiency, and the integration of advanced features into GitHub actions. Polito invites collaboration and contributions to Mutalk as it evolves from Pharo 9 to 12.

1. Guillermo Polito - ESUG’24
Testing the tests with
Mutalk in 2024
guillermo.polito@inria.fr
Evref
fervE

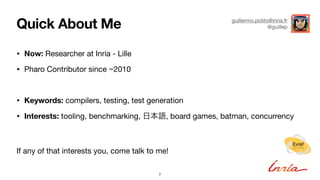

2. Quick About Me
2
Evref
fervE
• Now: Researcher at Inria - Lille
• Pharo Contributor since ~2010
• Keywords: compilers, testing, test generation
• Interests: tooling, benchmarking, 日本語, board games, batman, concurrency
If any of that interests you, come talk to me!
guillermo.polito@inria.fr
@guillep

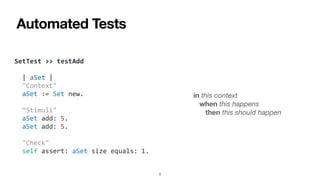

3. Automated Tests
in this context
when this happens
then this should happen
SetTest >> testAdd
| aSet |
"Context"
aSet := Set new.
“Stimuli"
aSet add: 5.
aSet add: 5.
"Check"
self assert: aSet size equals: 1.
3

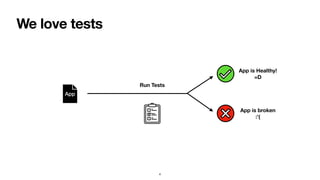

4. We love tests
4
App
Run Tests
App is Healthy!
=D
App is broken
:’(

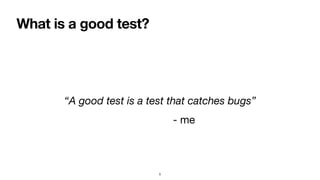

5. What is a good test?
“A good test is a test that catches bugs”
- me
5

6. Who watches the Watchmen tests?
6
TESTS

7. 7

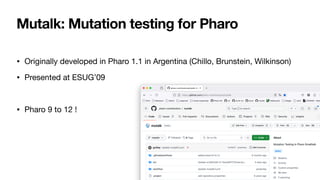

8. Mutalk: Mutation testing for Pharo
• Originally developed in Pharo 1.1 in Argentina (Chillo, Brunstein, Wilkinson)
• Presented at ESUG’09
• Pharo 9 to 12 !
8

9. Coverage vs Mutations
9
30%
Code
Coverage
4%
Mutation
Coverage

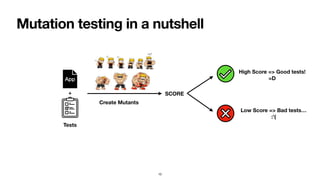

10. Mutation testing in a nutshell
10
App
Tests
High Score => Good tests!
=D
Low Score => Bad tests…
:’(
+
Create Mutants
SCORE

11. 11

12. 12

13. These kind of mutant
13
• Introduce arti
fi
cial bugs
• See if the test suite detects them
• What kind of bugs?

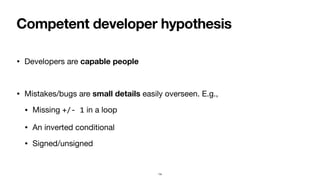

14. Competent developer hypothesis
• Developers are capable people
• Mistakes/bugs are small details easily overseen. E.g.,
• Missing +/- 1 in a loop
• An inverted conditional
• Signed/unsigned
14

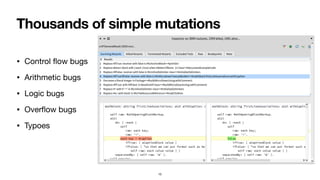

15. Thousands of simple mutations
• Control
fl
ow bugs
• Arithmetic bugs
• Logic bugs
• Over
fl
ow bugs
• Typoes
15

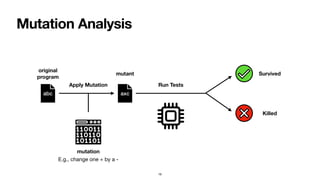

16. Mutation Analysis
16
abc
Apply Mutation
original
program
mutant
Run Tests
mutation
axc
Survived
Killed
E.g., change one + by a -

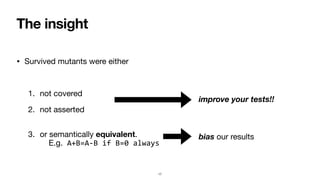

17. The insight
• Survived mutants were either
1. not covered
2. not asserted
3. or semantically equivalent.
E.g. A+B=A-B if B=0 always
17
improve your tests!!
bias our results

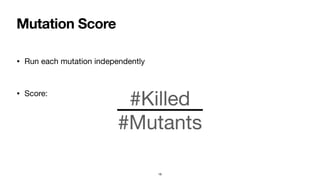

18. Mutation Score
• Run each mutation independently
• Score:
18
#Killed
#Mutants

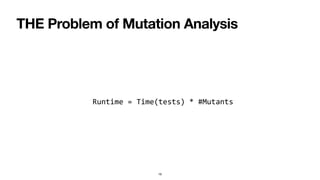

19. THE Problem of Mutation Analysis
19
Runtime = Time(tests) * #Mutants

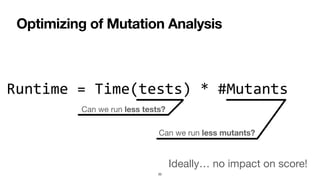

20. Can we run less mutants?
Can we run less tests?
Optimizing of Mutation Analysis
20
Runtime = Time(tests) * #Mutants
Ideally… no impact on score!

21. • Run only tests covering mutants
• Only mutate covered code
• What if lots of mutants remain?
Selecting Mutants and Tests from Coverage
21
Test1
Test2
Test3
?

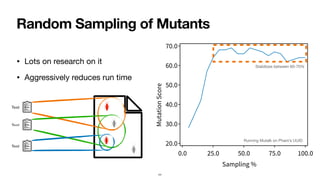

22. • Lots on research on it
• Aggressively reduces run time
Random Sampling of Mutants
22
Test
Test
Test
Running Mutalk on Pharo’s UUID
Stabilizes between 60-70%

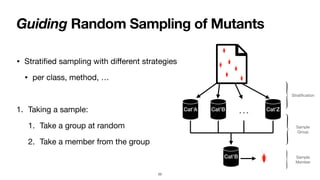

23. • Strati
fi
ed sampling with di
ff
erent strategies
• per class, method, …
1. Taking a sample:
1. Take a group at random
2. Take a member from the group
Guiding Random Sampling of Mutants
23
Cat’A Cat’B Cat’Z
…
Cat’B
Strati
fi
cation
Sample
Group
Sample
Member

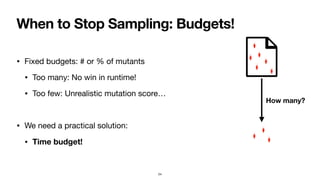

24. When to Stop Sampling: Budgets!
• Fixed budgets: # or % of mutants
• Too many: No win in runtime!
• Too few: Unrealistic mutation score…
• We need a practical solution:
• Time budget!
24
How many?

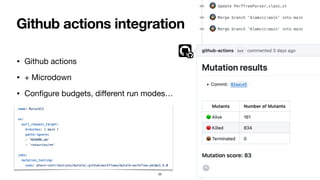

25. • Github actions
• + Microdown
• Con
fi
gure budgets, di
ff
erent run modes…
25
Github actions integration

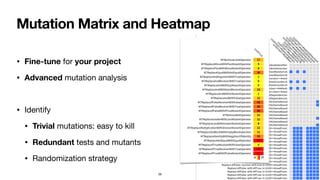

26. • Fine-tune for your project
• Advanced mutation analysis
• Identify
• Trivial mutations: easy to kill
• Redundant tests and mutants
• Randomization strategy
Mutation Matrix and Heatmap
26

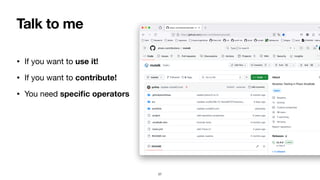

27. Talk to me
• If you want to use it!
• If you want to contribute!
• You need speci
fi
c operators
27

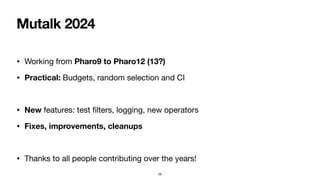

28. Mutalk 2024
• Working from Pharo9 to Pharo12 (13?)
• Practical: Budgets, random selection and CI
• New features: test
fi
lters, logging, new operators
• Fixes, improvements, cleanups
• Thanks to all people contributing over the years!
28

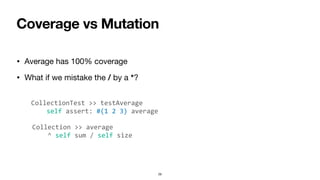

29. Coverage vs Mutation
• Average has 100% coverage
• What if we mistake the / by a *?
29
CollectionTest >> testAverage
self assert: #(1 2 3) average
Collection >> average
^ self sum / self size
