ENGEMASA
Engenharia e Materiais
1/16
APRESENTAÇÃO
Outubro 2016

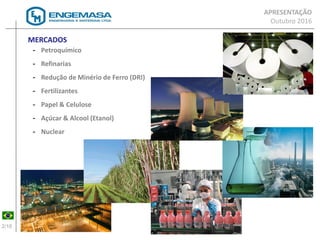

2/16
MERCADOS
- Petroquímico
- Refinarias
- Redução de Minério de Ferro (DRI)
- Fertilizantes
- Papel & Celulose
- Açúcar & Alcool (Etanol)
- Nuclear
APRESENTAÇÃO
Outubro 2016
754,000
ft²
300
Employees
$68mi
Revenue
Est.
1976
3/16
CEO
CFO
100%
Brasileira
• PhD Materials Science4
• Master Engineers2
• Engineers4
STEAM CRACKERS
REFORMER TUBES
SPUN & STATIC CASTINGS
NICKEL BASED ALLOYS
STAINLESS & CARBON STEEL
APRESENTAÇÃO
Outubro 2016
4/16
86.000
m²
2 Rows
ENGEMASA – Plant II
Leisure
Sport 8.000 m² Fabrication Shop
APRESENTAÇÃO
Outubro 2016
OUR LOCATION
5/16
BRAZIL
SÃO CARLOS
São Paulo
Santos
·
*
*
·
·
São Carlos City
São Paulo State
Brazil
International airport (São Paulo): 240 Km (150 mi)
Seaport (Santos, São Paulo): 335 Km (208 mi)
APRESENTAÇÃO
Outubro 2016
6/16
CENTRIFUGALLY CAST TUBES
FOR REFORMER FURNACES
APRESENTAÇÃO
Outubro 2016
7/16
(15 Sites by ENGEMASA)
REFINERY &
FERTILIZER PLANTS
Catalyst tube
Outlet collector / manifold
Forged flange
Cast cone / reducer
Pigtail
Weldolet / sockolet
Cast supports/ tube sheet
MAJOR
CUSTOMER
DESIGNERS
APRESENTAÇÃO
Outubro 2016
8/16
STEAM CRACKERS
PYROLYSIS HEATERS
APRESENTAÇÃO
Outubro 2016
9/16 (72 furnaces by ENGEMASA)
STEAM CRACKERS
Petrochemical coils
Cone / reducer
Tube hanger
Cast return bend
Cast fitting
Manifold
Other castings
DESIGNERS
MAJOR
CUSTOMER
APRESENTAÇÃO
Outubro 2016
10/16
STATIC CAST PARTS
APRESENTAÇÃO
Outubro 2016

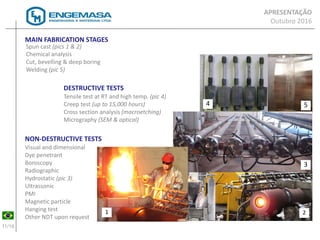

MAIN FABRICATION STAGES
54
3
11/16
Spun cast (pics 1 & 2)
Chemical analysis
Cut, bevelling & deep boring
Welding (pic 5)
DESTRUCTIVE TESTS
Tensile test at RT and high temp. (pic 4)
Creep test (up to 15,000 hours)
Cross section analysis (macroetching)
Micrography (SEM & optical)
NON-DESTRUCTIVE TESTS
Visual and dimensional
Dye penetrant
Boroscopy
Radiographic
Hydrostatic (pic 3)
Ultrassonic
PMI
Magnetic particle
Hanging test
Other NDT upon request
21
APRESENTAÇÃO
Outubro 2016
Carbon and Low Alloy Steel
WCA, WCB, WCC, LCB, LCC
WC1, WC6, WC9, C5, C12, C12A
Stainless Steel
CA15, CA40
CF3, CF3M, CF8, CF8M
CG3M, CG8M, CF8C
CA6NM, CN7M, CK3MCuN
Duplex Stainless Steel
1A, 1B, 2A, 3A, 4A
Ni and Co based alloy
- CZ100, M25S, M35, N7M
- CW2M, CW6MC, CW12MW CX2MW
- Stellite family (1, 6, …)
Superduplex Stainless Steel
5A, 6A, 7A
Heat Resistant Alloy
CT15C
HF, HK, HP, HT, HV, HX
12/16
ASTM, DIN, BS, EN, ...
STANDARD ALLOYS (400+)
APRESENTAÇÃO
Outubro 2016

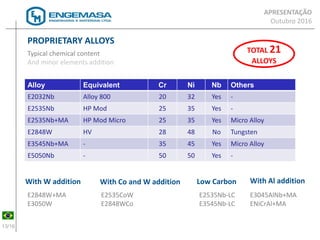

13/16
Alloy Equivalent Cr Ni Nb Others
E2032Nb Alloy 800 20 32 Yes -
E2535Nb HP Mod 25 35 Yes -
E2535Nb+MA HP Mod Micro 25 35 Yes Micro Alloy
E2848W HV 28 48 No Tungsten
E3545Nb+MA - 35 45 Yes Micro Alloy
E5050Nb - 50 50 Yes -
PROPRIETARY ALLOYS
Typical chemical content
And minor elements addition
With W addition
E2848W+MA
E3050W
With Co and W addition
E2535CoW
E2848WCo
Low Carbon
E2535Nb-LC
E3545Nb-LC
With Al addition
E3045AlNb+MA
ENiCrAl+MA
TOTAL 21
ALLOYS
APRESENTAÇÃO
Outubro 2016

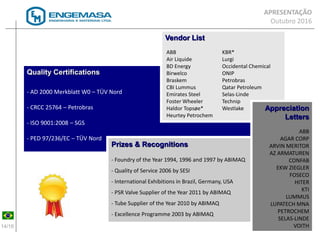

14/16
Quality Certifications
- AD 2000 Merkblatt W0 – TÜV Nord
- CRCC 25764 – Petrobras
- ISO 9001:2008 – SGS
- PED 97/236/EC – TÜV Nord
Vendor List
ABB KBR*
Air Liquide Lurgi
BD Energy Occidental Chemical
Birwelco ONIP
Braskem Petrobras
CBI Lummus Qatar Petroleum
Emirates Steel Selas-Linde
Foster Wheeler Technip
Haldor Topsøe* Westlake
Heurtey Petrochem
Prizes & Recognitions
- Foundry of the Year 1994, 1996 and 1997 by ABIMAQ
- Quality of Service 2006 by SESI
- International Exhibitions in Brazil, Germany, USA
- PSR Valve Supplier of the Year 2011 by ABIMAQ
- Tube Supplier of the Year 2010 by ABIMAQ
- Excellence Programme 2003 by ABIMAQ
Appreciation
Letters
ABB
AGAR CORP
ARVIN MERITOR
AZ ARMATUREN
CONFAB
EKW ZIEGLER
FOSECO
HITER
KTI
LUMMUS
LUPATECH MNA
PETROCHEM
SELAS-LINDE
VOITH
APRESENTAÇÃO
Outubro 2016
From ENGEMASA to the WORLD
15/16
BRAZIL
USA
CANADA
CHINA
INDIASAU
EGY
ARG
BOL
COL
VEN
GER
THA
SPA
UK
JAP
UAE
QATAR
Headquarter
Exports
ITA
KOR
ECU
CHI
MEX
FRA
HON
AUSTRALIA
APRESENTAÇÃO
Outubro 2016
16/16
Production Site
Rua Ernesto Cardinalli 333
São Carlos, Brazil
Phone: +55 16 3363 1500
engemasa@engemasa.com.br
Overseas Agent
Co-operation Agency
Europe
Dr. Gianluca Mazzone
Rome, Italy
Phone: +39 393 7912580
europe@engemasa.com.br
North America
Mr. David Kassekert
Pittsburgh, USA
Phone: +1 412 855 0266
davewk9@gmail.com
Middle East
Dr. Abdollah Ezazi
Dubai, UAE
Phone: +98 912 527 0485
ezazi@apec-co.com
www.engemasa.com.br
APRESENTAÇÃO
Outubro 2016
