18 Invaluable Lessons About ADF Faces Page
Lifecycle
Steven Davelaar
twitter:@stevendavelaar
blogs:...

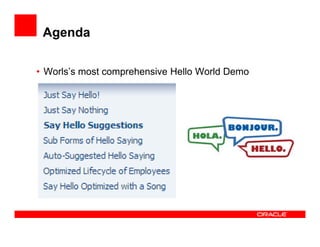

Agenda
• Worls’s most comprehensive Hello World Demo

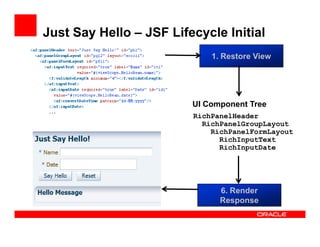

Just Say Hello – JSF Lifecycle Initial
1. Restore View

UI Component Tree
RichPanelHeader
RichPanelGroupLayout
RichPanelFo...

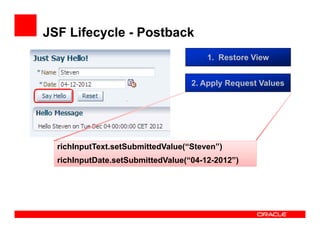

JSF Lifecycle - Postback
1. Restore View
2. Apply Request Values

richInputText.setSubmittedValue(“Steven”)
richInputDate....

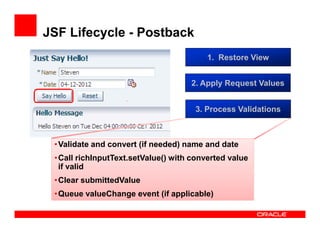

JSF Lifecycle - Postback
1. Restore View
2. Apply Request Values
3. Process Validations

• Validate and convert (if needed...

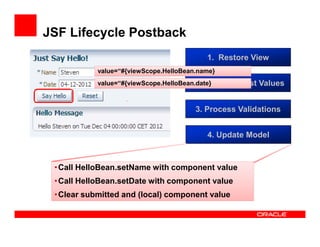

JSF Lifecycle Postback
1. Restore View
value=“#{viewScope.HelloBean.name}
value=“#{viewScope.HelloBean.date}
2. Apply

Req...

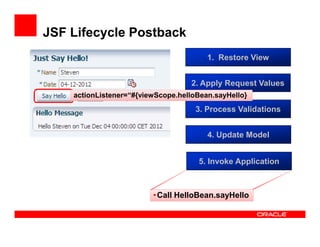

JSF Lifecycle Postback
1. Restore View
2. Apply Request Values
actionListener=“#{viewScope.helloBean.sayHello}

3. Process...

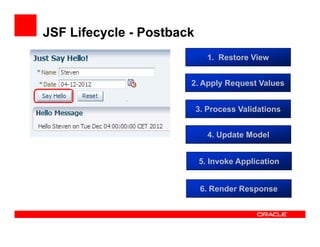

JSF Lifecycle - Postback
1. Restore View
2. Apply Request Values
3. Process Validations
4. Update Model
5. Invoke Applicat...

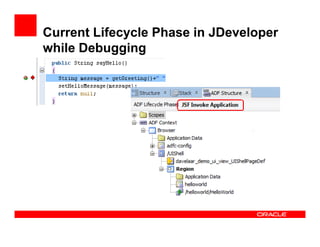

Current Lifecycle Phase in JDeveloper
while Debugging

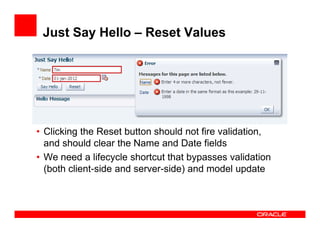

Just Say Hello – Reset Values

• Clicking the Reset button should not fire validation,
and should clear the Name and Date ...

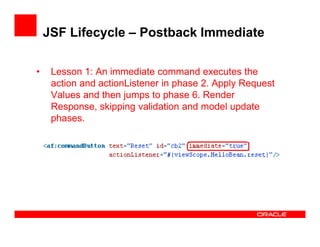

JSF Lifecycle – Postback Immediate
•

Lesson 1: An immediate command executes the
action and actionListener in phase 2. Ap...

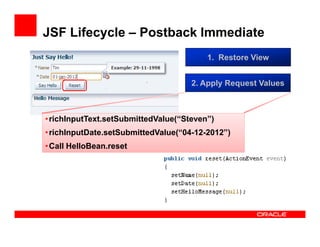

JSF Lifecycle – Postback Immediate
1. Restore View
2. Apply Request Values

• richInputText.setSubmittedValue(“Steven”)
• ...

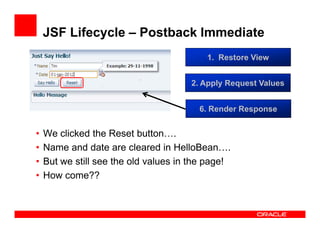

JSF Lifecycle – Postback Immediate
1. Restore View
2. Apply Request Values
6. Render Response

•
•
•
•

We clicked the Res...

JSF Lifecycle – Postback Immediate
• Lesson 2: When executing an immediate command, the
UI components do NOT re-evaluate t...

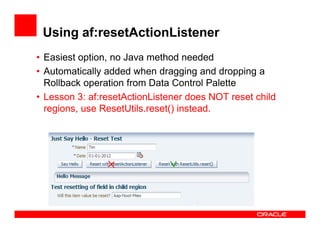

Using af:resetActionListener
• Easiest option, no Java method needed
• Automatically added when dragging and dropping a
Ro...

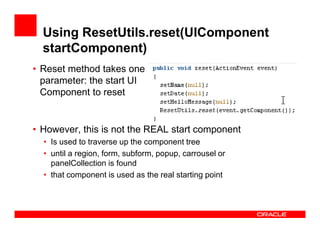

Using ResetUtils.reset(UIComponent
startComponent)
• Reset method takes one
parameter: the start UI
Component to reset

• ...

Agenda
• Worls’s most comprehensive Hello World Demo

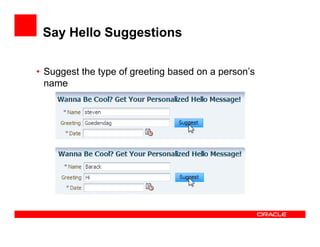

Say Hello Suggestions
• Suggest the type of greeting based on a person’s
name

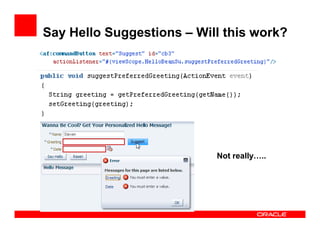

Say Hello Suggestions – Will this work?

Not really ..

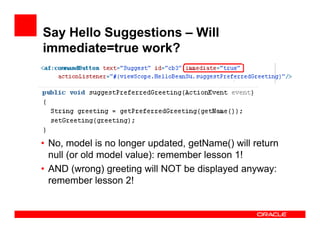

Say Hello Suggestions – Will
immediate=true work?

• No, model is no longer updated, getName() will return
null (or old mo...

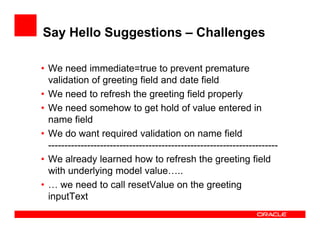

Say Hello Suggestions – Challenges
• We need immediate=true to prevent premature
validation of greeting field and date fie...

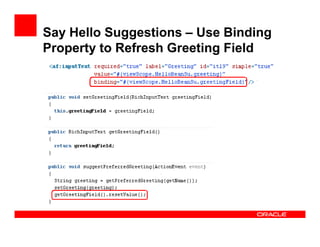

Say Hello Suggestions – Use Binding
Property to Refresh Greeting Field

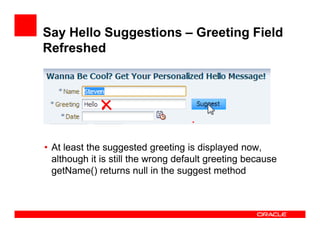

Say Hello Suggestions – Greeting Field
Refreshed

• At least the suggested greeting is displayed now,
although it is still...

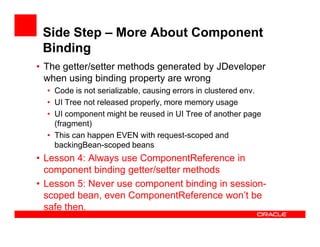

Side Step – More About Component
Binding
• The getter/setter methods generated by JDeveloper
when using binding property a...

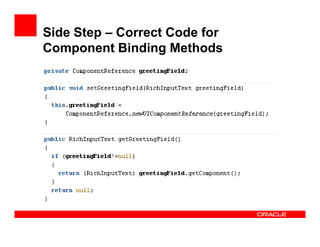

Side Step – Correct Code for
Component Binding Methods

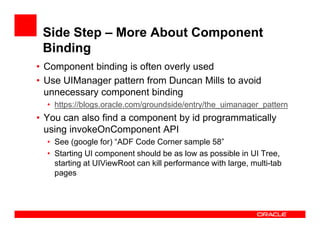

Side Step – More About Component
Binding
• Component binding is often overly used
• Use UIManager pattern from Duncan Mill...

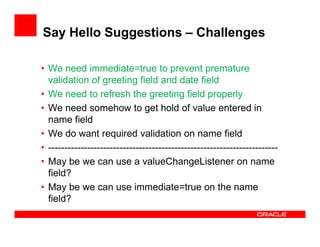

Say Hello Suggestions – Challenges
• We need immediate=true to prevent premature
validation of greeting field and date fie...

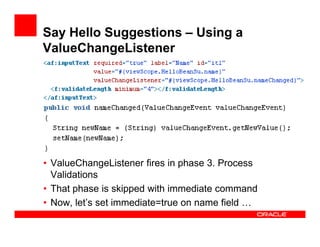

Say Hello Suggestions – Using a
ValueChangeListener

• ValueChangeListener fires in phase 3. Process
Validations
• That ph...

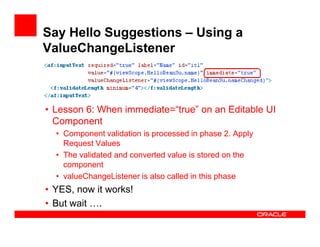

Say Hello Suggestions – Using a
ValueChangeListener

• Lesson 6: When immediate=“true” on an Editable UI
Component
• Compo...

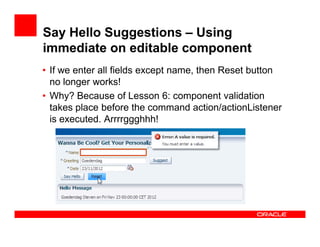

Say Hello Suggestions – Using
immediate on editable component
• If we enter all fields except name, then Reset button
no l...

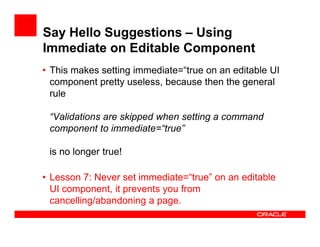

Say Hello Suggestions – Using
Immediate on Editable Component
• This makes setting immediate=“true on an editable UI
compo...

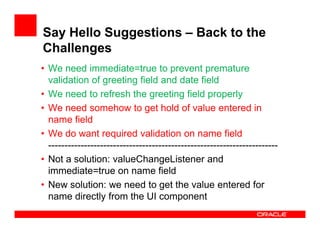

Say Hello Suggestions – Back to the
Challenges
• We need immediate=true to prevent premature
validation of greeting field ...

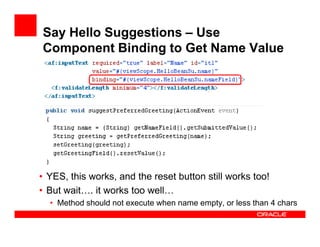

Say Hello Suggestions – Use
Component Binding to Get Name Value

• YES, this works, and the reset button still works too!
...

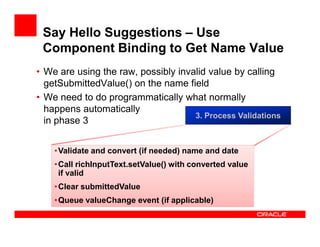

Say Hello Suggestions – Use
Component Binding to Get Name Value
• We are using the raw, possibly invalid value by calling
...

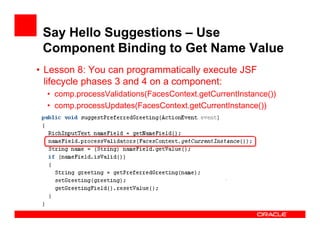

Say Hello Suggestions – Use
Component Binding to Get Name Value
• Lesson 8: You can programmatically execute JSF
lifecycle...

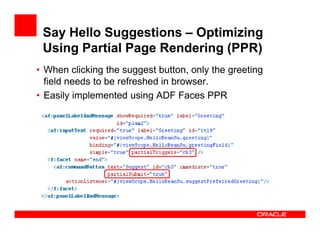

Say Hello Suggestions – Optimizing
Using Partial Page Rendering (PPR)
• When clicking the suggest button, only the greetin...

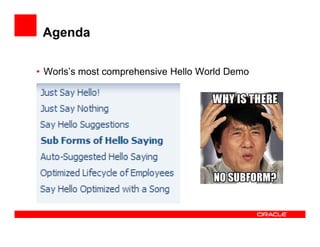

Agenda
• Worls’s most comprehensive Hello World Demo

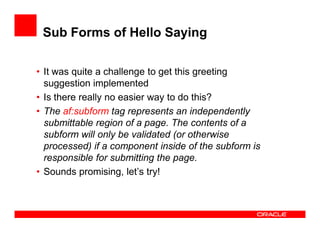

Sub Forms of Hello Saying
• It was quite a challenge to get this greeting
suggestion implemented
• Is there really no easi...

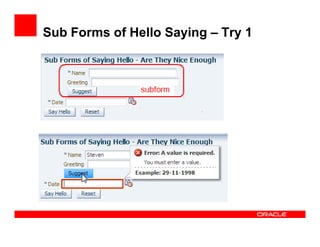

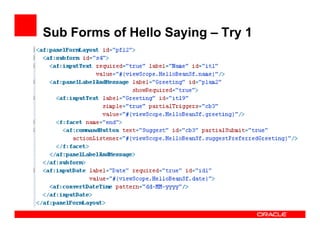

Sub Forms of Hello Saying – Try 1

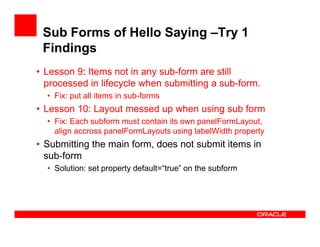

Sub Forms of Hello Saying – Try 1

Sub Forms of Hello Saying –Try 1
Findings
• Lesson 9: Items not in any sub-form are still
processed in lifecycle when subm...

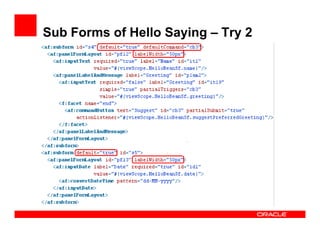

Sub Forms of Hello Saying – Try 2

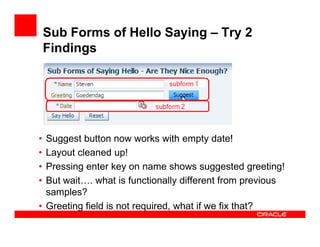

Sub Forms of Hello Saying – Try 2
Findings

•
•
•
•

Suggest button now works with empty date!
Layout cleaned up!
Pressing...

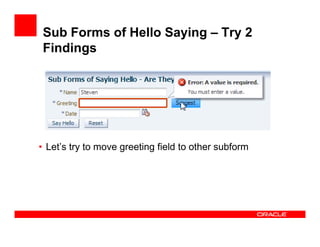

Sub Forms of Hello Saying – Try 2
Findings

• Let’s try to move greeting field to other subform

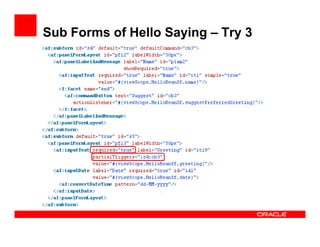

Sub Forms of Hello Saying – Try 3

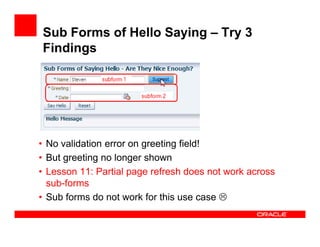

Sub Forms of Hello Saying – Try 3
Findings

• No validation error on greeting field!
• But greeting no longer shown
• Less...

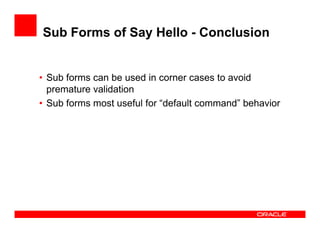

Sub Forms of Say Hello - Conclusion

• Sub forms can be used in corner cases to avoid
premature validation
• Sub forms mos...

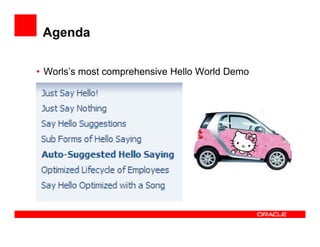

Agenda
• Worls’s most comprehensive Hello World Demo

Auto-Suggested Hello Saying
• Auto-suggest the type of greeting when tabbing out
the name field

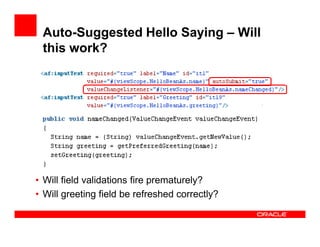

Auto-Suggested Hello Saying – Will
this work?

• Will field validations fire prematurely?
• Will greeting field be refresh...

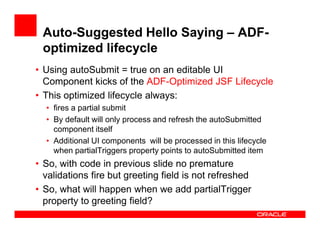

Auto-Suggested Hello Saying – ADFoptimized lifecycle
• Using autoSubmit = true on an editable UI
Component kicks of the AD...

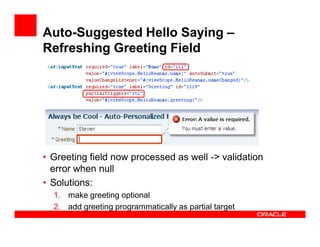

Auto-Suggested Hello Saying –
Refreshing Greeting Field

• Greeting field now processed as well -> validation
error when n...

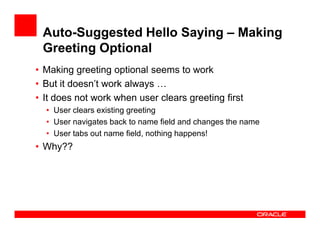

Auto-Suggested Hello Saying – Making
Greeting Optional
• Making greeting optional seems to work
• But it doesn’t work alwa...

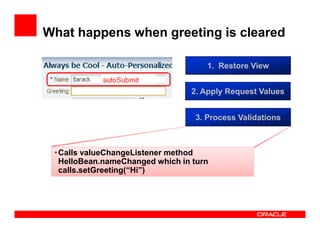

What happens when greeting is cleared
1. Restore View
2. Apply Request Values
3. Process Validations

• Calls valueChangeL...

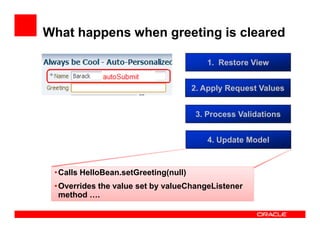

What happens when greeting is cleared
1. Restore View
2. Apply Request Values
3. Process Validations
4. Update Model

• Ca...

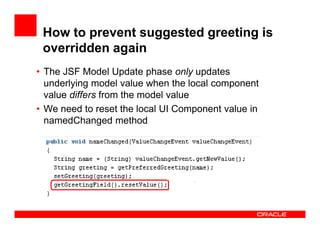

How to prevent suggested greeting is
overridden again
• The JSF Model Update phase only updates
underlying model value whe...

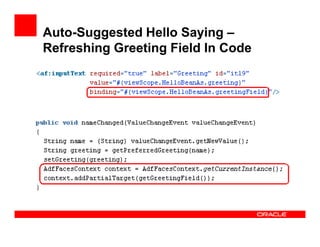

Auto-Suggested Hello Saying –
Refreshing Greeting Field In Code

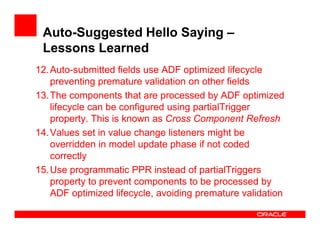

Auto-Suggested Hello Saying –
Lessons Learned
12. Auto-submitted fields use ADF optimized lifecycle
preventing premature v...

New in JDeveloper 12c: the af:target
tag!
• Provides a declarative way to allow a component to
specify the list of targets...

JSF Lifecycle – Postback Immediate
1. Restore View
2. Apply Request Values
6. Render Response

•
•
•
•

We clicked the Res...

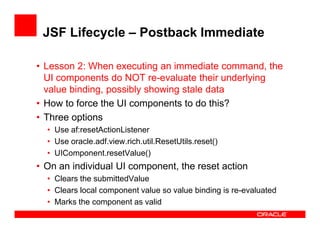

JSF Lifecycle – Postback Immediate
• Lesson 2: When executing an immediate command, the
UI components do NOT re-evaluate t...

Implementing Reset/Cancel
Functionality using af:target tag!

• No need to set immediate=true on the button
• No issues wi...

Say Hello Suggestions
• Suggest the type of greeting based on a person’s
name

Say Hello Suggestions – Challenges
• We need(ed) immediate=true to prevent premature
validation of greeting field and date...

Suggest Greeting Using af:target tag

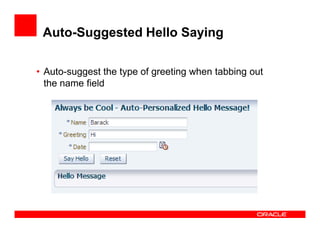

Auto-Suggested Hello Saying
• Auto-suggest the type of greeting when tabbing out
the name field

Auto-Suggest Greeting Using af:target
tag

The af:target tag is your friend!
• Lesson 16: When using JDeveloper 12c, use the
af:target tag to easily define which com...

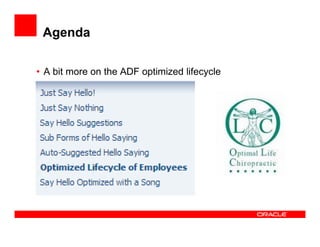

Agenda
• A bit more on the ADF optimized lifecycle

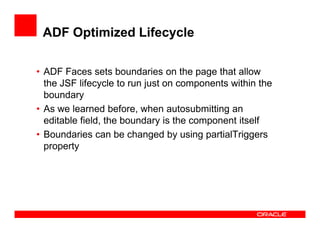

ADF Optimized Lifecycle
• ADF Faces sets boundaries on the page that allow
the JSF lifecycle to run just on components wit...

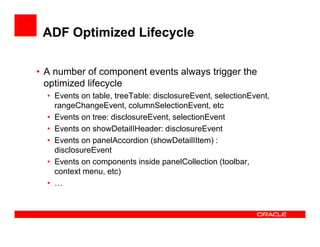

ADF Optimized Lifecycle
• A number of component events always trigger the
optimized lifecycle
• Events on table, treeTable...

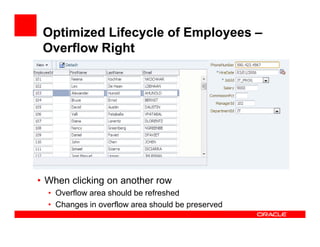

Optimized Lifecycle of Employees –
Overflow Right

• When clicking on another row
• Overflow area should be refreshed
• Ch...

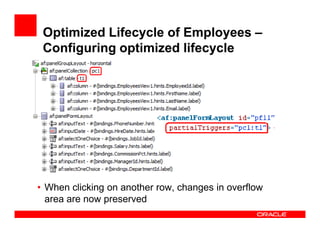

Optimized Lifecycle of Employees –
Configuring optimized lifecycle

• When clicking on another row, changes in overflow
ar...

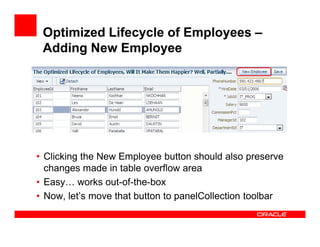

Optimized Lifecycle of Employees –
Adding New Employee

• Clicking the New Employee button should also preserve
changes ma...

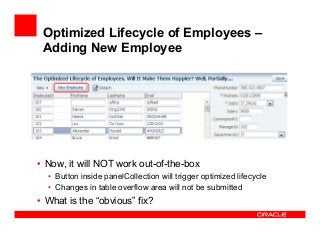

Optimized Lifecycle of Employees –
Adding New Employee

• Now, it will NOT work out-of-the-box
• Button inside panelCollec...

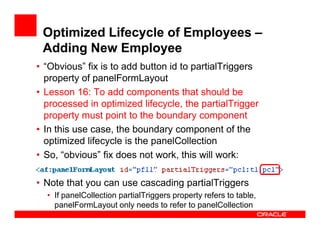

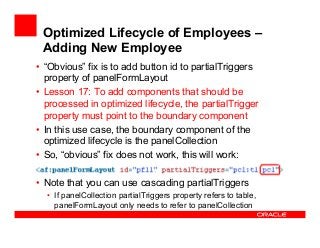

Optimized Lifecycle of Employees –
Adding New Employee
• “Obvious” fix is to add button id to partialTriggers

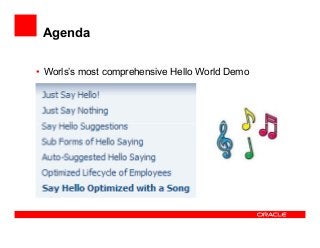

property of ...

Agenda
• Worls’s most comprehensive Hello World Demo

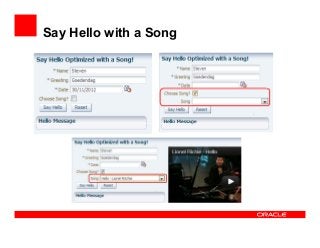

Say Hello with a Song

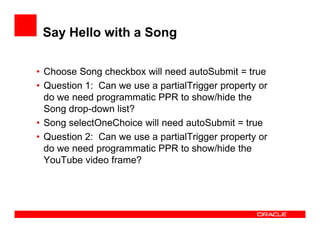

Say Hello with a Song
• Choose Song checkbox will need autoSubmit = true
• Question 1: Can we use a partialTrigger propert...

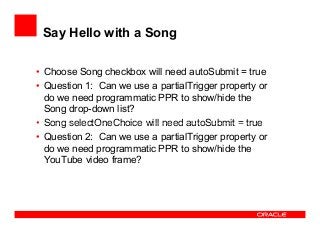

Say Hello with a Song
• Choose Song checkbox will need autoSubmit = true
• Question 1: Can we use a partialTrigger propert...

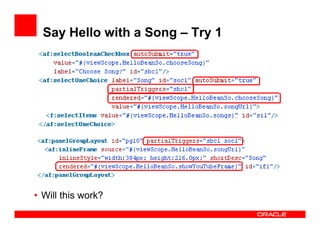

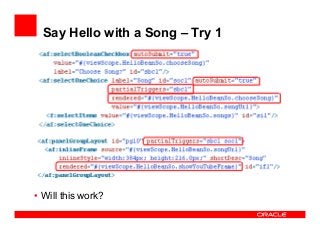

Say Hello with a Song – Try 1

• Will this work?

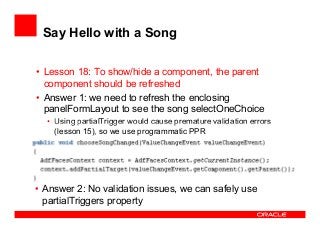

Say Hello with a Song
• Lesson 18: To show/hide a component, the parent
component should be refreshed
• Answer 1: we need ...

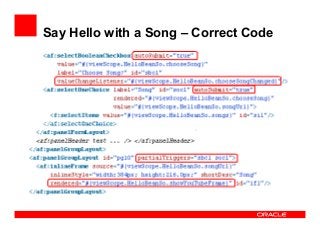

Say Hello with a Song – Correct Code

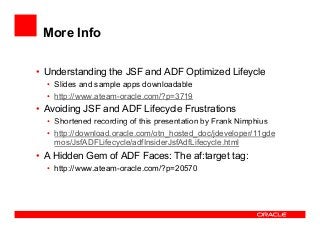

More Info
• Understanding the JSF and ADF Optimized Lifeycle
• Slides and sample apps downloadable
• http://www.ateam-orac...

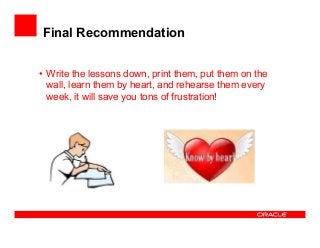

Final Recommendation
• Write the lessons down, print them, put them on the
wall, learn them by heart, and rehearse them ev...
