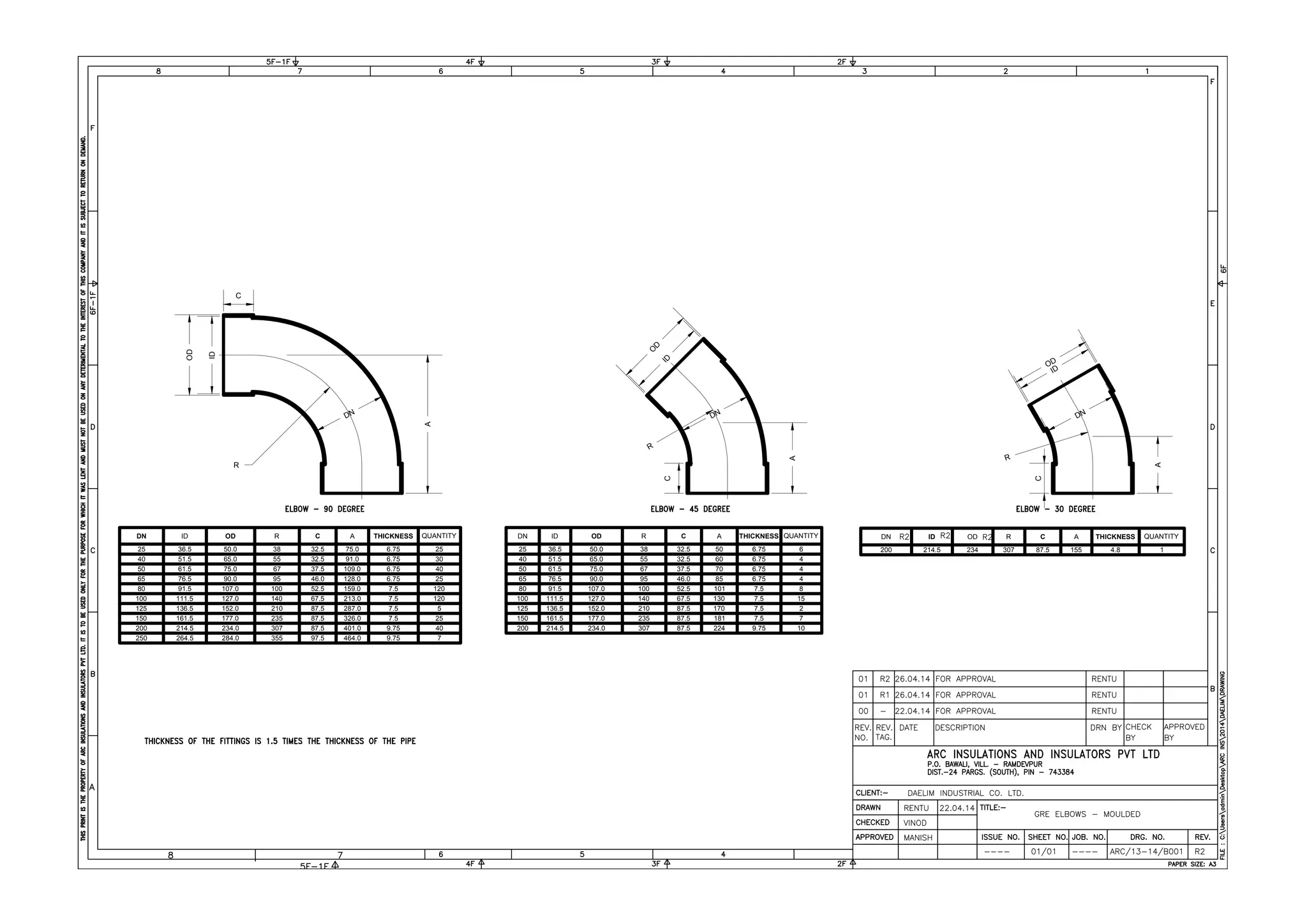

This document contains technical specifications for pipes including their internal diameter (ID), outer diameter (OD), radius (R), circumference (C), average thickness, and quantity. The pipes are grouped into different sizes ranging from ID of 25 to 250 in increments of 25. The thickness ranges from 4.8 to 9.75 and quantities range from 1 to 120 per size.

1. ID
R
A
C
OD
DN ID OD R C A THICKNESS QUANTITY
25 36.5 50.0 38 32.5 75.0 6.75 25
40 51.5 65.0 55 32.5 91.0 6.75 30
50 61.5 75.0 67 37.5 109.0 6.75 40
65 76.5 90.0 95 46.0 128.0 6.75 25
80 91.5 107.0 100 52.5 159.0 7.5 120
100 111.5 127.0 140 67.5 213.0 7.5 120
125 136.5 152.0 210 87.5 287.0 7.5 5
150 161.5 177.0 235 87.5 326.0 7.5 25
200 214.5 234.0 307 87.5 401.0 9.75 40
250 264.5 284.0 355 97.5 464.0 9.75 7
A
O
D
ID
R
C
DN ID OD R C A THICKNESS QUANTITY
25 36.5 50.0 38 32.5 50 6.75 6
40 51.5 65.0 55 32.5 60 6.75 4
50 61.5 75.0 67 37.5 70 6.75 4
65 76.5 90.0 95 46.0 85 6.75 4
80 91.5 107.0 100 52.5 101 7.5 8
100 111.5 127.0 140 67.5 130 7.5 15
125 136.5 152.0 210 87.5 170 7.5 2
150 161.5 177.0 235 87.5 181 7.5 7
200 214.5 234.0 307 87.5 224 9.75 10
A
C
OD
ID
R
DN ID OD R C A THICKNESS QUANTITY
200 214.5 234 307 87.5 155 4.8 1
DN DN DN
