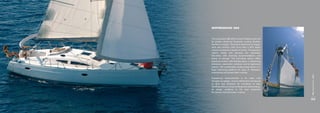

- 3. IMPRESSION 384 The Impression384 offers a host of features that will be greatly valued by bluewater cruising families, friends or couples. The boat is distinctive in design, style and comfort, with more than a 25% larger volume compared to boats of its size. The spacious cabins, heads and showers are absolutely first-class, with stunning accommodations and plenty of storage. The semi-deck saloon offers supreme comfort with flowing space, a welcoming ambience, panoramic windows and its lightwood interior. The comfortable cockpit leads down to a large swimming platform for days of relaxation, entertaining and pleasurable cruising. Exceptional seaworthiness in its class, well thought-out design, volume distribution and layout of deck and hardware all contribute to easy handling without compromising boat performance. Its design pedigree is the best testament for serious, fast bluewater cruising. 03
- 4. 04 05
- 5. 06 07

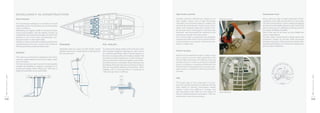

- 6. EXCELLENCY IN CONSTRUCTION High Quality materials Germanischer Lloyd Inner structure Carefully selected materials are subject to our Gelcoat spraying All our yacht are under constant supervision of Ger- strict quality control. Use of high technology manischer Lloyd. With its long history of more than The hull structural strength is a key factor in overall materials, from the latest research, enable us to 150 years Germanischer Lloyd is setting the highest boat safety, and in its resistance to ever-demanding optimise the laminate plan of each yacht. Quad- demands in boat building industry today. Each ELAN ocean conditions. riaxial- and multiaxial- glass fibre, Kevlar® rein- yacht is carrying a GL certificate as ultimate proof of Maintaining the highest profile of structural frames forcements at the mast support and bow area, her quality, durability and safety. among boat builders, and the highest number og Aramat® and Dyvinacell® all contribute to the Only in that way do we know we have fulfilled the longitudinal and transversal stringers, the Elan inner well known strength of an Elan yacht. owner’s expectations. structure is one of the most comprehensive rein- Use of Vinyl ester pre-laminate and Isophtalic The Elan range of performance cruising yachts and forced structure on the market today. polyester laminate which insures perfect antios- Impression cruisers are all built under permanent Adding a unique combination of gluing and laminat- mosis protection and superb mechanical prop- technical supervision of Germanischer Lloyd for Sail- ing techniques to the inner mould to the hull joint is Chainplates Hull – deck joint erties to weight ratio. ing Yacht specification on a hull structure designed to the final proof Elan yachts are build to last. give any sailor confidence. Chainplate loads are spred via High Quality marine To preserve the design shape of the hull prior to the stainless steel rods to metal plates incorporated into joint, specially designed metal jigs are used. Use of Gelcoat spraying Keel joint the inner structure. an in-turning wide flange offers a strong support for the deck an a large surface for bonding material. Hull Apart from the aesthetic function, a layer of gel The cast iron ore lead keel is attached to the hull by and deck are joined together by a 3-way technique: coat is used to prevent water penetration into premium grade stainless bolts that are highly resist- Gluing of the hull an deck parts together, use of stain- the laminate and preserve its stiffness over long ant to corrosion. less steel bolts for mechanical shear, fastening and periods of time. In order to achieve the highest The internal structure grid ensures the best possible laminating of the joint at the bow and transom area to level of consistency in quality and thickness, the strength and flexibility in beating to windward, or in allow for even greater stiffness and sturdiness. 100% HQ gel coat is being sprayed by computer-oper- severe groundings. Before fitting each Elan keel is reliability with no recorded failure in thousands of ated nozzle in a carefully monitored production sealed for protection and smooth finish. miles of tough ocean conditions. process. VAIL The proper goal in hull construction is to pro- duce the required strength and stiffness with the least weight of material. Unnecessary weight makes a yacht more difficult to manage, and less enjoyable to sail. With our own system of Inner structure Vacuum Assisted Infusion Lamination - VAIL the results were more than promising. 08 09

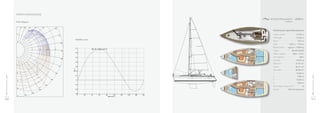

- 7. PERFORMANCE Polar diagram 10 20 30 40 50 60 Technical specifications 4 8 9 10 12 14 16 20 70 Lenght overall 11,55 m 7 25 Hull lenght 30 6 35 11,25 m Stability curve 2 Beam 3,91 m 80 Draft 1,80 m / 1,50 m 0.7 Displacement approx. 7.600 kg 4 6 8 10 Max GZ = 0.669 m at 61.8° 90 Engine 29 HP/40 HP 0.6 Water capacity 240 l / 512 l 2 0.5 Fuel capacity 165 l 100 Air draft 6 7 16,57 m 0.4 4 8 9 Main sail 37,91 m2 10 12 110 0.3 Genoa 38,11 m2 GZ m 14 0.2 Spinnaker 98,00 m2 16 6 20 120 I 13,96 m 0.1 25 J 3,90 m 8 130 0 P 13,00 m 30 E 4,86 m 140 -0.1 35 Boat design category CE A 10 150 -0.2 Design Rob Humphreys 160 -0.3 170 0 20 40 60 80 100 120 140 160 180 12 Heel to Port ° 10 11
