1. 1Samsung Open Source Group
Cedric Bail
Senior Open Source Engineer
Samsung Open Source Group
cedric@osg.samsung.com
Update on EFL performance

2. 2Samsung Open Source Group

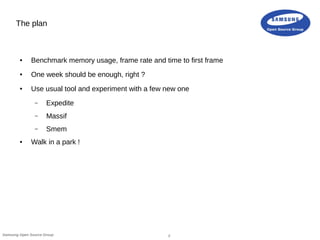

The plan
● Benchmark memory usage, frame rate and time to first frame
● One week should be enough, right ?
● Use usual tool and experiment with a few new one
– Expedite
– Massif
– Smem
● Walk in a park !

3. 3Samsung Open Source Group
:”(

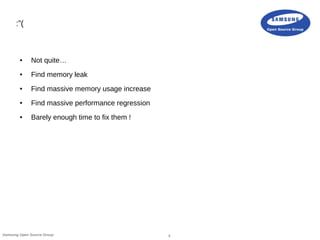

● Not quite…
● Find memory leak
● Find massive memory usage increase
● Find massive performance regression
● Barely enough time to fix them !

4. 4Samsung Open Source Group

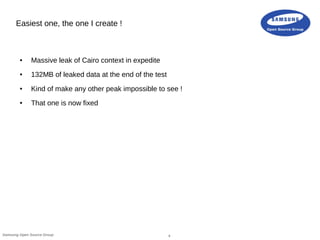

Easiest one, the one I create !
● Massive leak of Cairo context in expedite
● 132MB of leaked data at the end of the test
● Kind of make any other peak impossible to see !
● That one is now fixed

5. 5Samsung Open Source Group

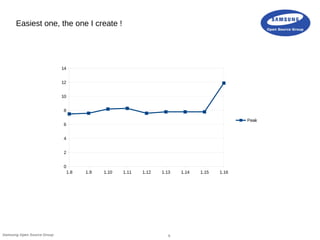

Easiest one, the one I create !
1.8 1.9 1.10 1.11 1.12 1.13 1.14 1.15 1.16
0
2
4
6
8
10
12
14
Peak

6. 6Samsung Open Source Group

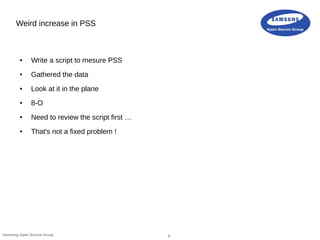

Weird increase in PSS
● Write a script to mesure PSS
● Gathered the data
● Look at it in the plane
● 8-O
● Need to review the script first …
● That's not a fixed problem !

7. 7Samsung Open Source Group
Weird increase in PSS
1.8 1.9 1.10 1.11 1.12 1.13 1.14 1.15 1.16
0
10000
20000
30000
40000
50000
60000
70000
80000
90000

8. 8Samsung Open Source Group

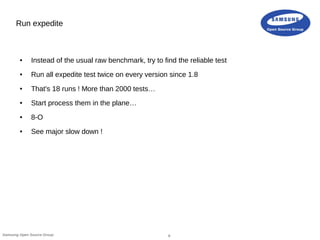

Run expedite
● Instead of the usual raw benchmark, try to find the reliable test
● Run all expedite test twice on every version since 1.8
● That's 18 runs ! More than 2000 tests…
● Start process them in the plane…
● 8-O
● See major slow down !

9. 9Samsung Open Source Group

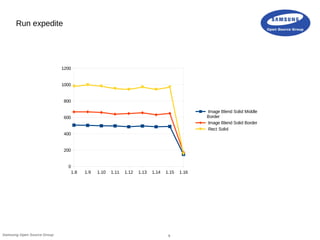

Run expedite
1.8 1.9 1.10 1.11 1.12 1.13 1.14 1.15 1.16
0
200
400
600
800
1000
1200
Image Blend Solid Middle
Border
Image Blend Solid Border
Rect Solid

10. 10Samsung Open Source Group

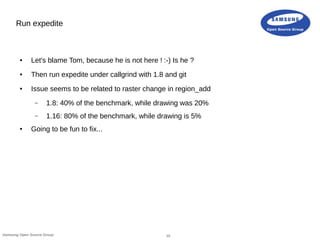

Run expedite
● Let's blame Tom, because he is not here ! :-) Is he ?
● Then run expedite under callgrind with 1.8 and git
● Issue seems to be related to raster change in region_add
– 1.8: 40% of the benchmark, while drawing was 20%
– 1.16: 80% of the benchmark, while drawing is 5%
● Going to be fun to fix...

11. 11Samsung Open Source Group
So what about the rest ?
● No time for time to first frame benchmarking !
● No time for power consumption benchmarking !
● Memory testing still need fixing

12. 12Samsung Open Source Group

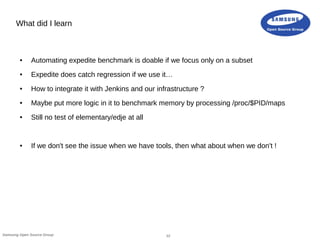

What did I learn
● Automating expedite benchmark is doable if we focus only on a subset
● Expedite does catch regression if we use it…
● How to integrate it with Jenkins and our infrastructure ?
● Maybe put more logic in it to benchmark memory by processing /proc/$PID/maps
● Still no test of elementary/edje at all
● If we don't see the issue when we have tools, then what about when we don't !

13. 13Samsung Open Source Group
Opinions ? Questions ?

14. Thank you.
14Samsung Open Source Group
