The Echo Housing System integrates automated control for home appliances through a Bluetooth-connected mobile application, allowing users to manage electrical devices remotely. It is designed as a solution for smart homes, utilizing components like Bluetooth modules and relay switches to facilitate low-power control and energy-saving features. This system offers practical benefits for users, including accessibility for physically challenged individuals and enhanced home automation capabilities.

1. Echo Housing
System

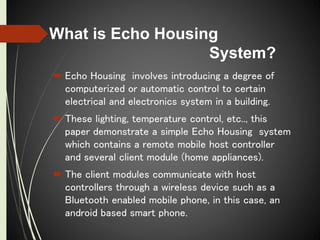

2. What is Echo Housing
System?
 Echo Housing involves introducing a degree of
computerized or automatic control to certain
electrical and electronics system in a building.
 These lighting, temperature control, etc.., this
paper demonstrate a simple Echo Housing system
which contains a remote mobile host controller
and several client module (home appliances).
 The client modules communicate with host
controllers through a wireless device such as a
Bluetooth enabled mobile phone, in this case, an
android based smart phone.

3. CONTENT:
I. Introduction
II. Components used
i. Bluetooth module
ii. Relays
III. Features
IV. Screen shots

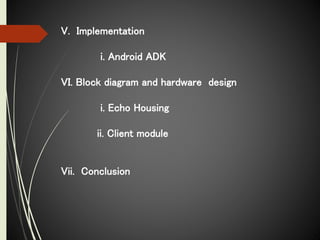

4. V. Implementation
i. Android ADK
VI. Block diagram and hardware design
i. Echo Housing
ii. Client module
Vii. Conclusion

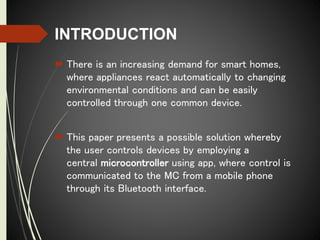

5. INTRODUCTION
 There is an increasing demand for smart homes,
where appliances react automatically to changing
environmental conditions and can be easily
controlled through one common device.
 This paper presents a possible solution whereby
the user controls devices by employing a
central microcontroller using app, where control is
communicated to the MC from a mobile phone
through its Bluetooth interface.

6. COMPONETNS USED
The Main components used in
Bluetooth module
Relay Switches
Bread Board
Microcontrollers
Mobile Application

7. Bluetooth Module:
 Arduino HC 05 is
a Bluetooth Smart module
targeted for low-power
sensors and accessories.
 It integrates all features
required for
a Bluetooth Smart
application.
 It is powered directly from a
standard 3V coin cell battery
or a pair of AAA batteries In
my case I’m gonna connect
it to MC directly.

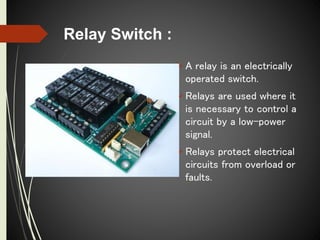

8. Relay Switch :
A relay is an electrically
operated switch.
Relays are used where it
is necessary to control a
circuit by a low-power
signal.
Relays protect electrical
circuits from overload or
faults.

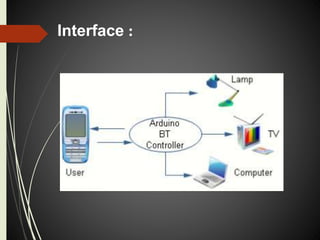

9. Interface :

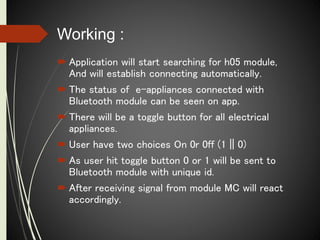

11. Working :
 Application will start searching for h05 module,
And will establish connecting automatically.
 The status of e-appliances connected with
Bluetooth module can be seen on app.
 There will be a toggle button for all electrical
appliances.
 User have two choices On 0r 0ff (1 || 0)
 As user hit toggle button 0 or 1 will be sent to
Bluetooth module with unique id.
 After receiving signal from module MC will react
accordingly.

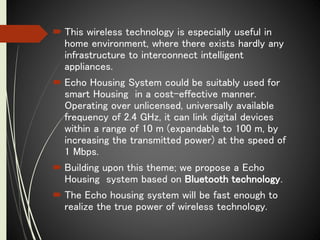

12.  This wireless technology is especially useful in
home environment, where there exists hardly any
infrastructure to interconnect intelligent
appliances.
 Echo Housing System could be suitably used for
smart Housing in a cost-effective manner.
Operating over unlicensed, universally available
frequency of 2.4 GHz, it can link digital devices
within a range of 10 m (expandable to 100 m, by
increasing the transmitted power) at the speed of
1 Mbps.
 Building upon this theme; we propose a Echo
Housing system based on Bluetooth technology.
 The Echo housing system will be fast enough to
realize the true power of wireless technology.

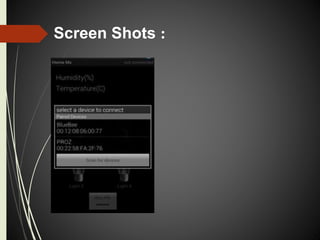

13. Screen Shots :

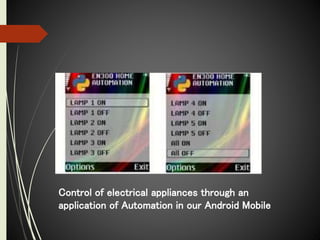

14. Control of electrical appliances through an
application of Automation in our Android Mobile

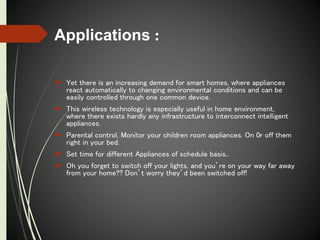

15. Applications :
 Yet there is an increasing demand for smart homes, where appliances
react automatically to changing environmental conditions and can be
easily controlled through one common device.
 This wireless technology is especially useful in home environment,
where there exists hardly any infrastructure to interconnect intelligent
appliances.
 Parental control, Monitor your children room appliances. On 0r off them
right in your bed.
 Set time for different Appliances of schedule basis..
 Oh you forget to switch off your lights, and you’re on your way far away
from your home?? Don’t worry they’d been switched off!

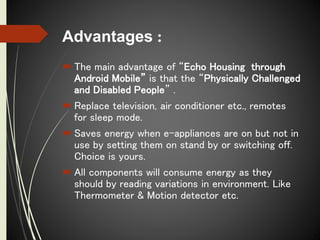

16. Advantages :
 The main advantage of “Echo Housing through
Android Mobile” is that the “Physically Challenged
and Disabled People” .
 Replace television, air conditioner etc., remotes
for sleep mode.
 Saves energy when e-appliances are on but not in
use by setting them on stand by or switching off.
Choice is yours.
 All components will consume energy as they
should by reading variations in environment. Like
Thermometer & Motion detector etc.

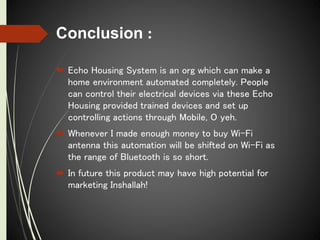

17. Conclusion :
 Echo Housing System is an org which can make a
home environment automated completely. People
can control their electrical devices via these Echo
Housing provided trained devices and set up
controlling actions through Mobile, O yeh.
 Whenever I made enough money to buy Wi-Fi
antenna this automation will be shifted on Wi-Fi as
the range of Bluetooth is so short.
 In future this product may have high potential for
marketing Inshallah!
