- 1. Delft3D 4 Suitevs. Delft3D FM Suite (D-Morphology) Modeling the evolution of tidal inlet systems Abdel Nnafie Luitze Perk
- 2.
- 3. Test case: Tidalinlets Source: EMODnet, 2014 𝐖𝐚𝐝𝐝𝐞𝐧 𝐒𝐞𝐚 𝐍𝐨𝐫𝐭𝐡 𝐒𝐞𝐚 𝐕𝐥𝐢𝐞𝐥𝐚𝐧𝐝 𝐓𝐞𝐱𝐞𝐥 𝐓𝐞𝐫𝐬𝐜𝐡𝐞𝐥𝐥𝐢𝐧𝐠 𝐀𝐦𝐞𝐥𝐚𝐧𝐝 𝐏𝐢𝐧𝐤𝐠𝐚𝐭 𝐋𝐚𝐮𝐰𝐞𝐫𝐬 𝐒𝐜𝐡𝐢𝐥𝐝 𝐓𝐞𝐫𝐬𝐜𝐡𝐞𝐥𝐥𝐢𝐧𝐠, 𝐳𝐨𝐨𝐦𝐞𝐝 𝐢𝐧 Nether- lands North Sea

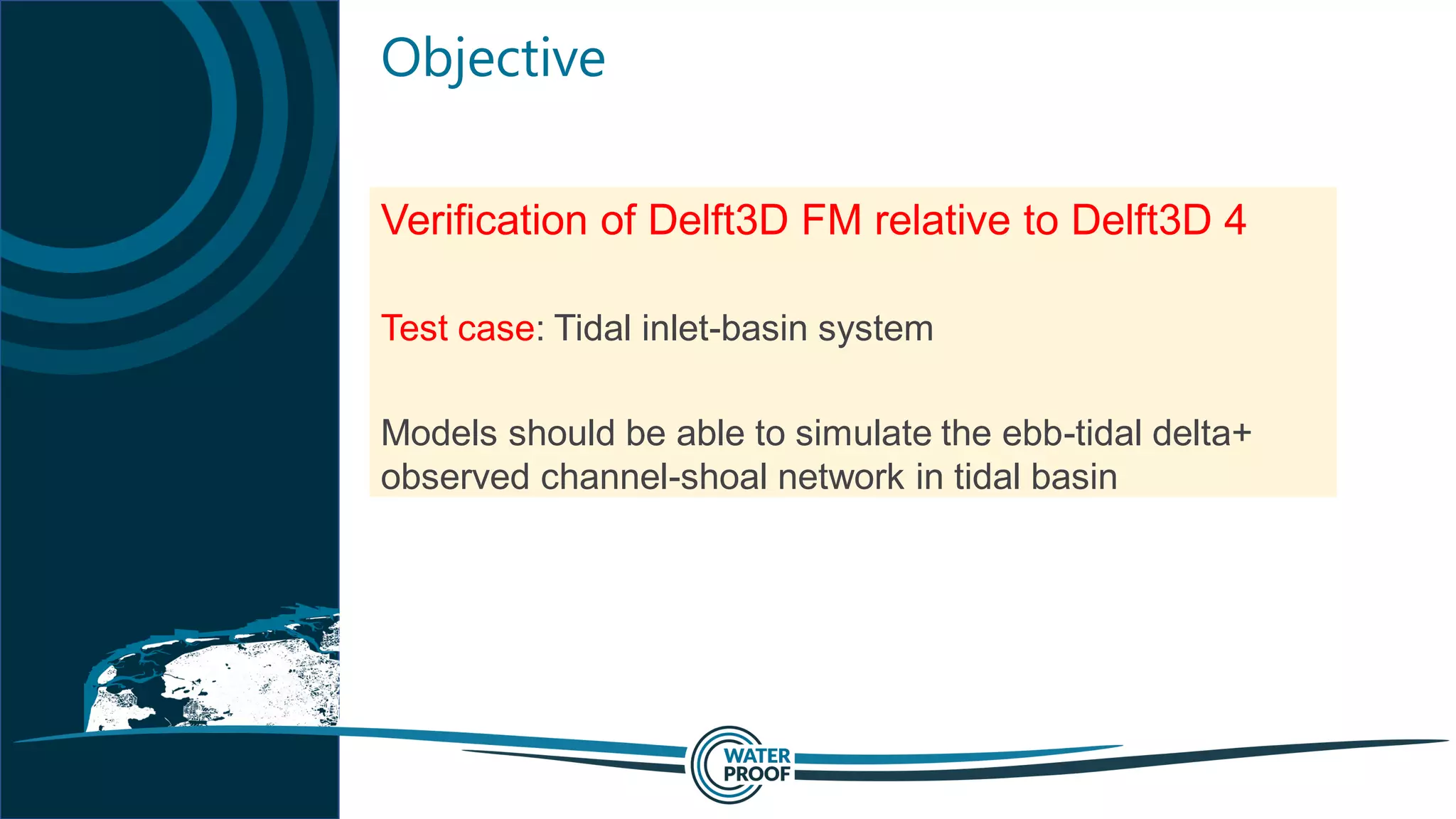

- 4. Objective Verification of Delft3DFM relative to Delft3D 4 Test case: Tidal inlet-basin system Models should be able to simulate the ebb-tidal delta+ observed channel-shoal network in tidal basin

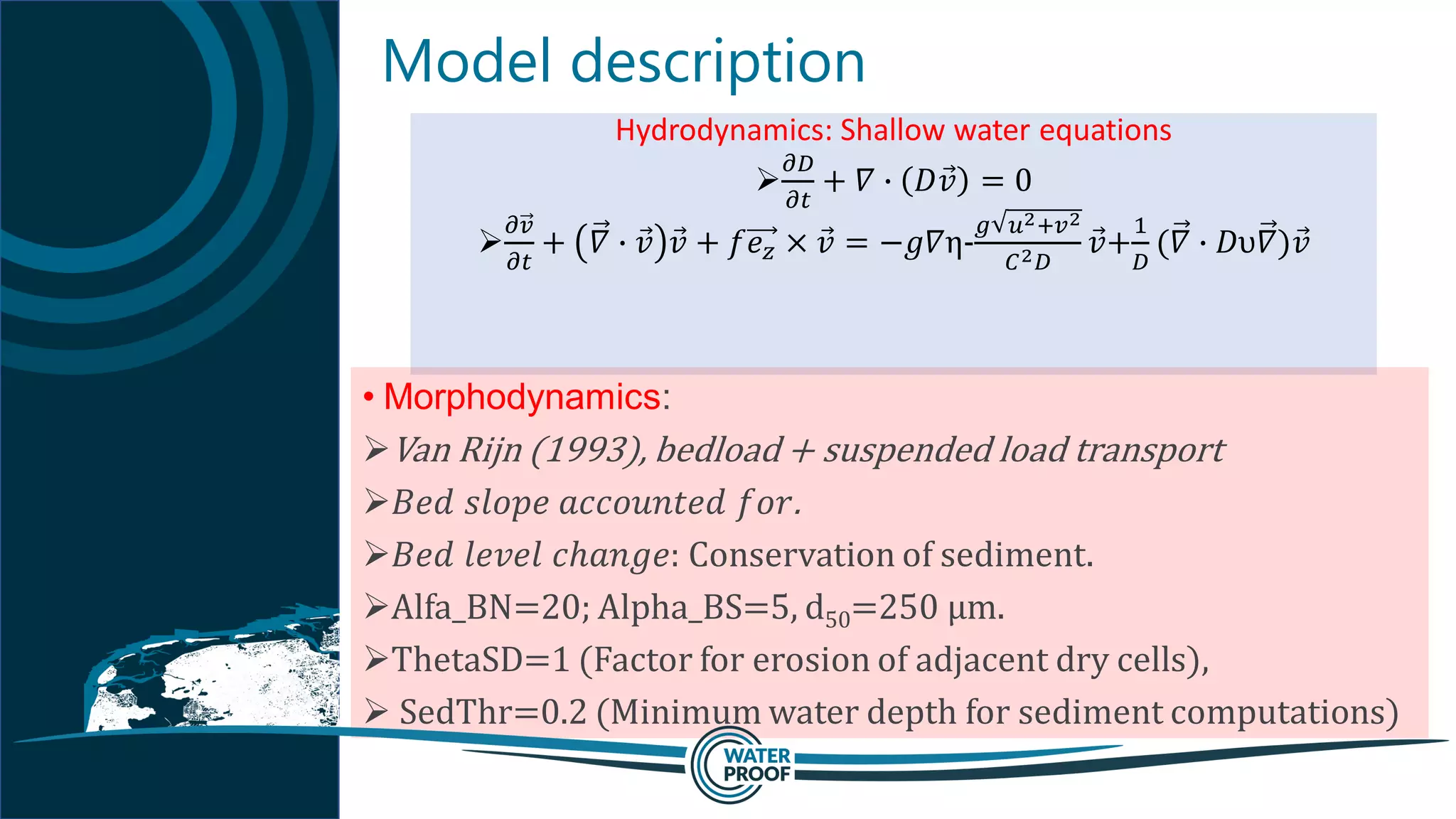

- 5. Model description Hydrodynamics: Shallowwater equations ➢ 𝜕𝐷 𝜕𝑡 + 𝛻 ∙ 𝐷 Ԧ𝑣 = 0 ➢ 𝜕𝑣 𝜕𝑡 + 𝛻 ∙ Ԧ𝑣 Ԧ𝑣 + 𝑓𝑒 𝑧 × Ԧ𝑣 = −𝑔𝛻η- 𝑔 𝑢2+𝑣2 𝐶2 𝐷 Ԧ𝑣+ 1 𝐷 (𝛻 ∙ 𝐷υ𝛻) Ԧ𝑣 • Morphodynamics: ➢Van Rijn (1993), bedload + suspended load transport ➢𝐵𝑒𝑑 𝑠𝑙𝑜𝑝𝑒 𝑎𝑐𝑐𝑜𝑢𝑛𝑡𝑒𝑑 𝑓𝑜𝑟. ➢𝐵𝑒𝑑 𝑙𝑒𝑣𝑒𝑙 𝑐ℎ𝑎𝑛𝑔𝑒: Conservation of sediment. ➢Alfa_BN=20; Alpha_BS=5, d50=250 µm. ➢ThetaSD=1 (Factor for erosion of adjacent dry cells), ➢ SedThr=0.2 (Minimum water depth for sediment computations)

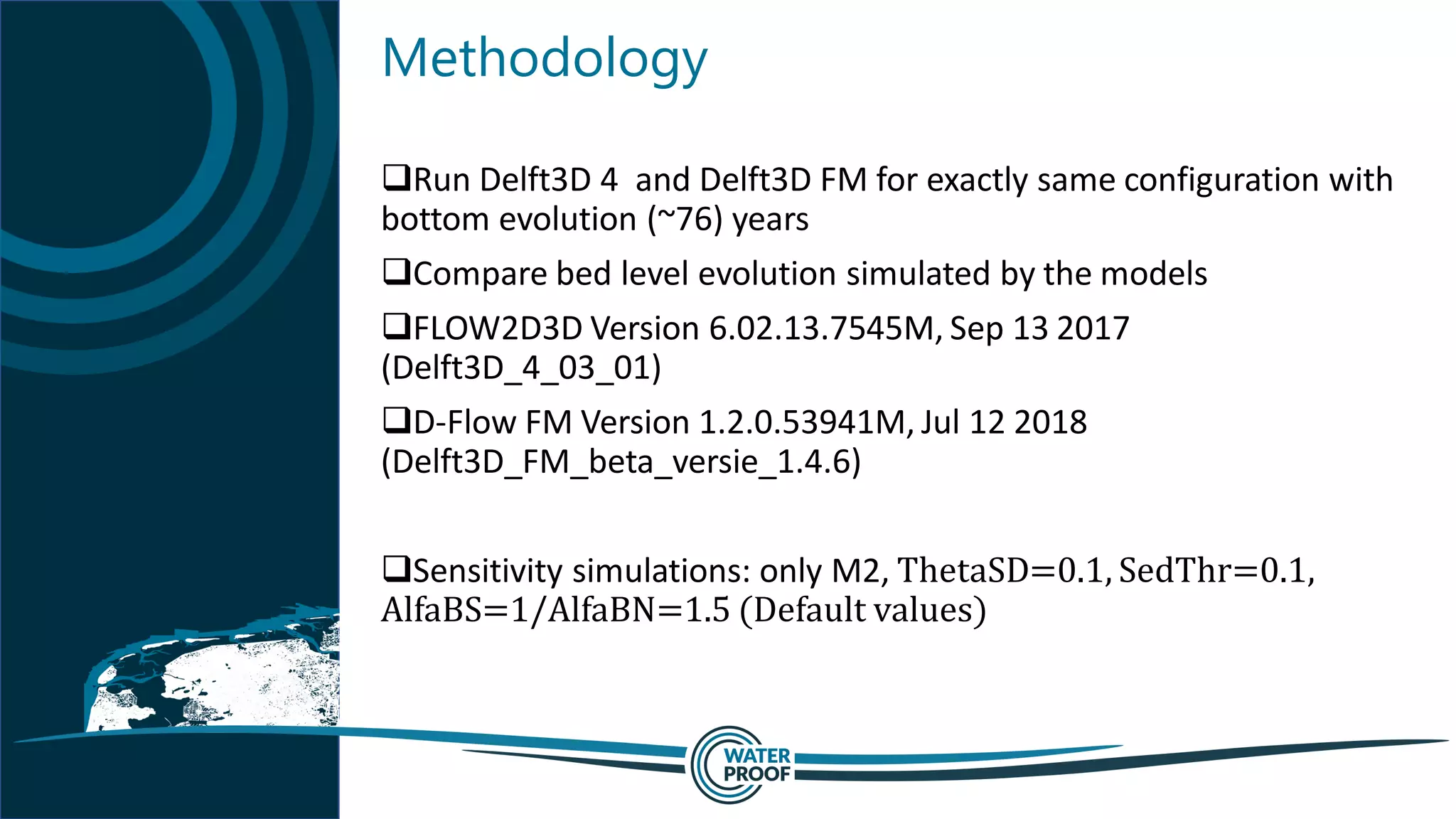

- 6. Methodology Run Delft3D 4and Delft3D FM for exactly same configuration with bottom evolution (~76) years Compare bed level evolution simulated by the models FLOW2D3D Version 6.02.13.7545M, Sep 13 2017 (Delft3D_4_03_01) D-Flow FM Version 1.2.0.53941M, Jul 12 2018 (Delft3D_FM_beta_versie_1.4.6) Sensitivity simulations: only M2, ThetaSD=0.1, SedThr=0.1, AlfaBS=1/AlfaBN=1.5 (Default values)
- 7. Model domain 𝒚 𝒙 𝐨𝐩𝐞𝐧 𝐬𝐞𝐚 𝐛𝐚𝐬𝐢𝐧𝐢𝐧𝐥𝐞𝐭 𝑧𝑏 m 𝐒𝐨𝐮𝐭𝐡 𝐖𝐞𝐬𝐭 −𝟏/𝟐𝑳 𝑺,𝒚 𝟎 𝐍𝐨𝐫𝐭𝐡 𝟏 2 3 𝟒 𝑻𝒊𝒅𝒂𝒍 𝑭𝒐𝒓𝒄𝒊𝒏𝒈: 𝐌𝟐 + 𝐌𝟒 + 𝐌𝟔 Northward propagation

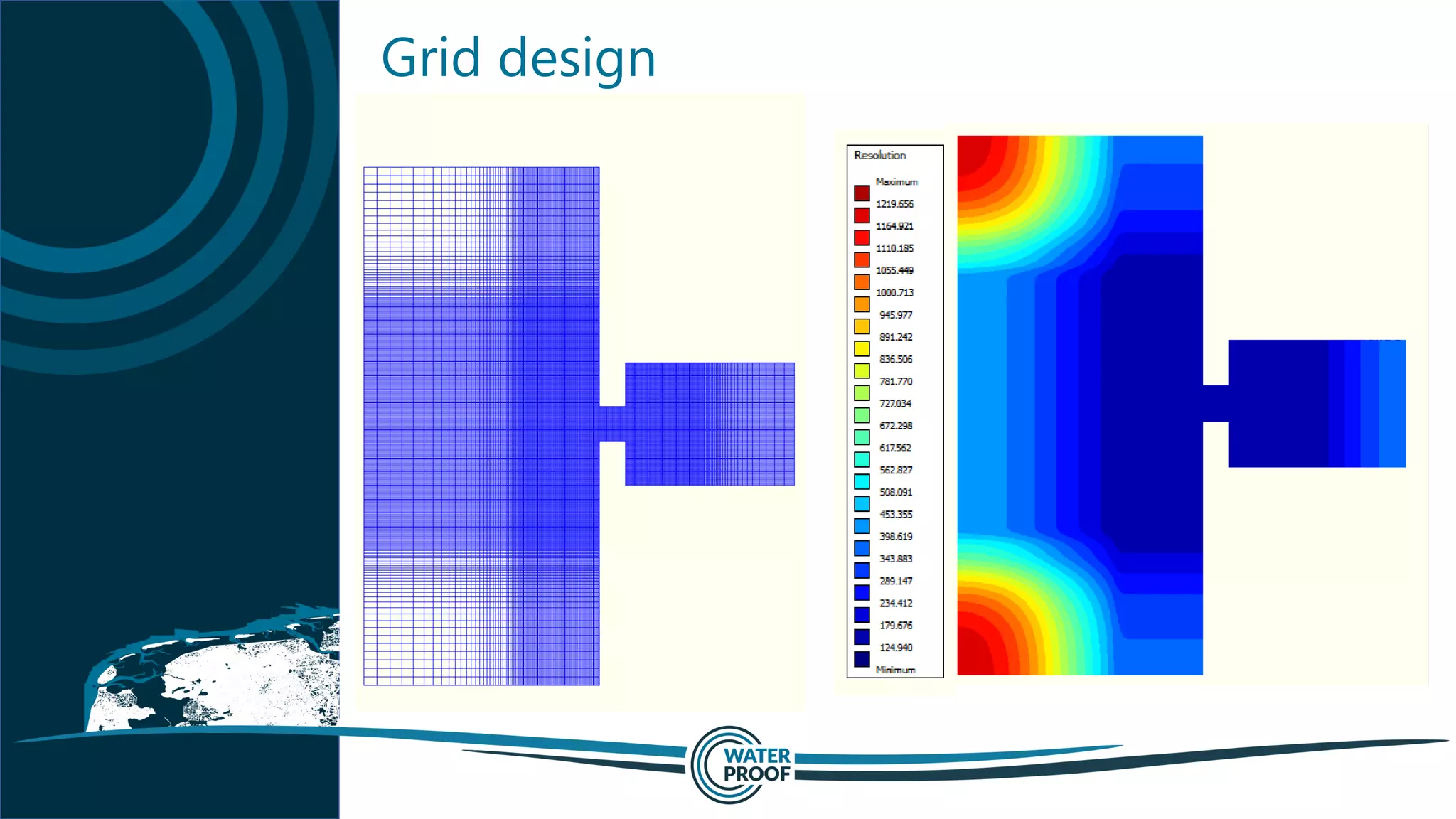

- 8.

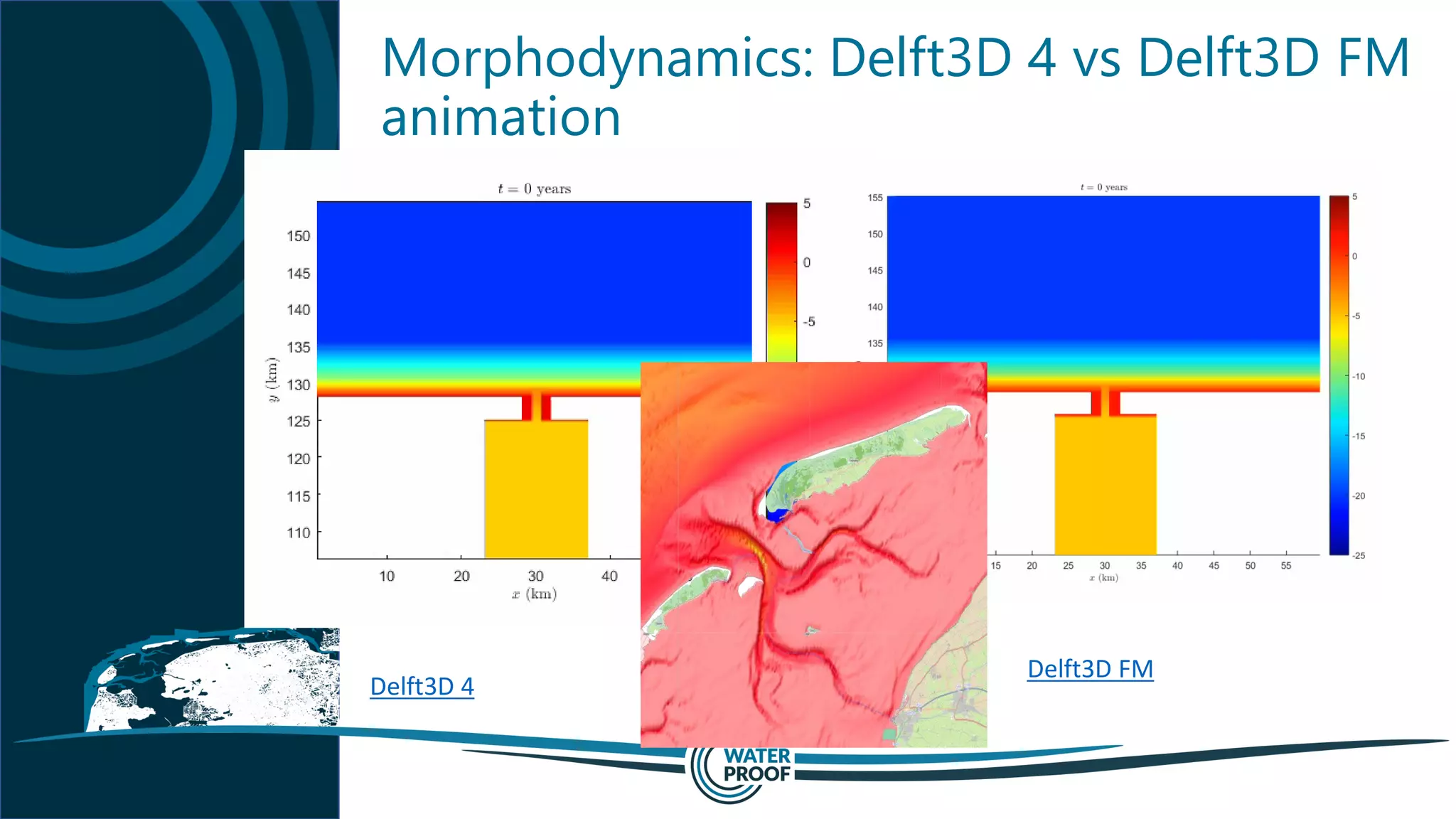

- 9. Morphodynamics: Delft3D 4vs Delft3D FM animation Delft3D 4 Delft3D FM
- 10. Snapshots t = 0yrDelft3D 4 Delft3D FM

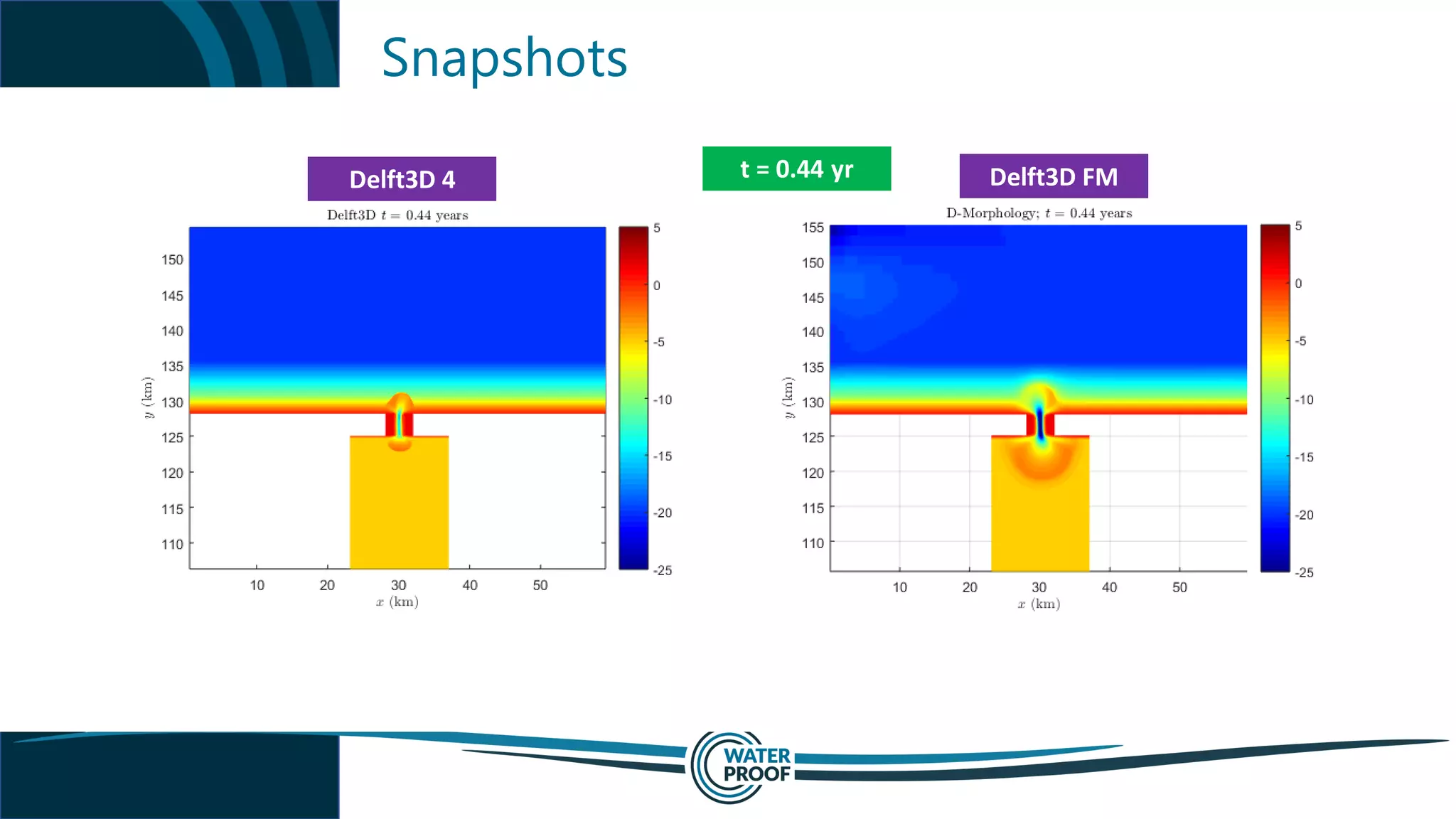

- 11. Snapshots t = 0.44yrDelft3D 4 Delft3D FM

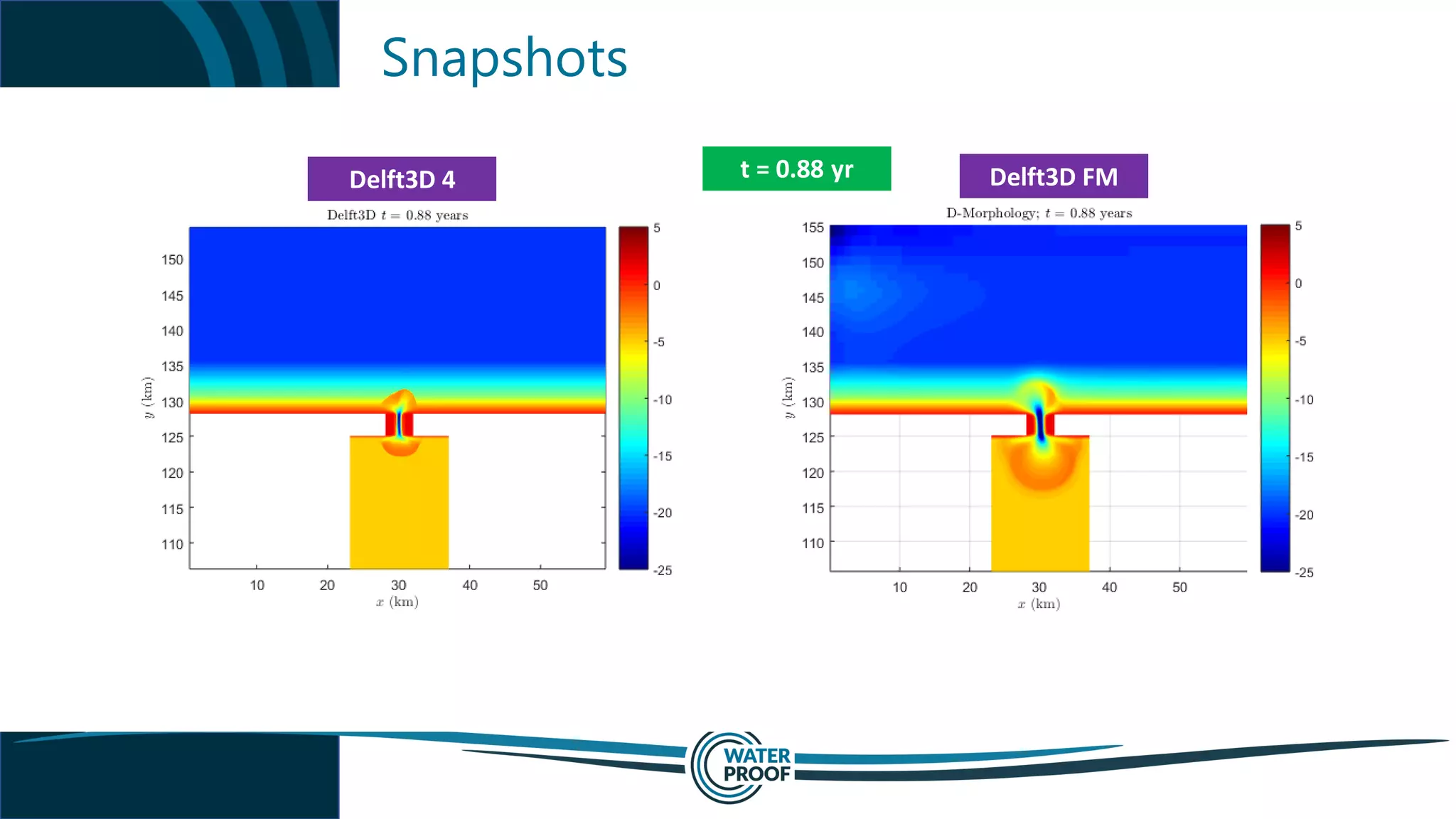

- 12. Snapshots t = 0.88yrDelft3D 4 Delft3D FM
- 13. Snapshots t = 1.32yrDelft3D 4 Delft3D FM

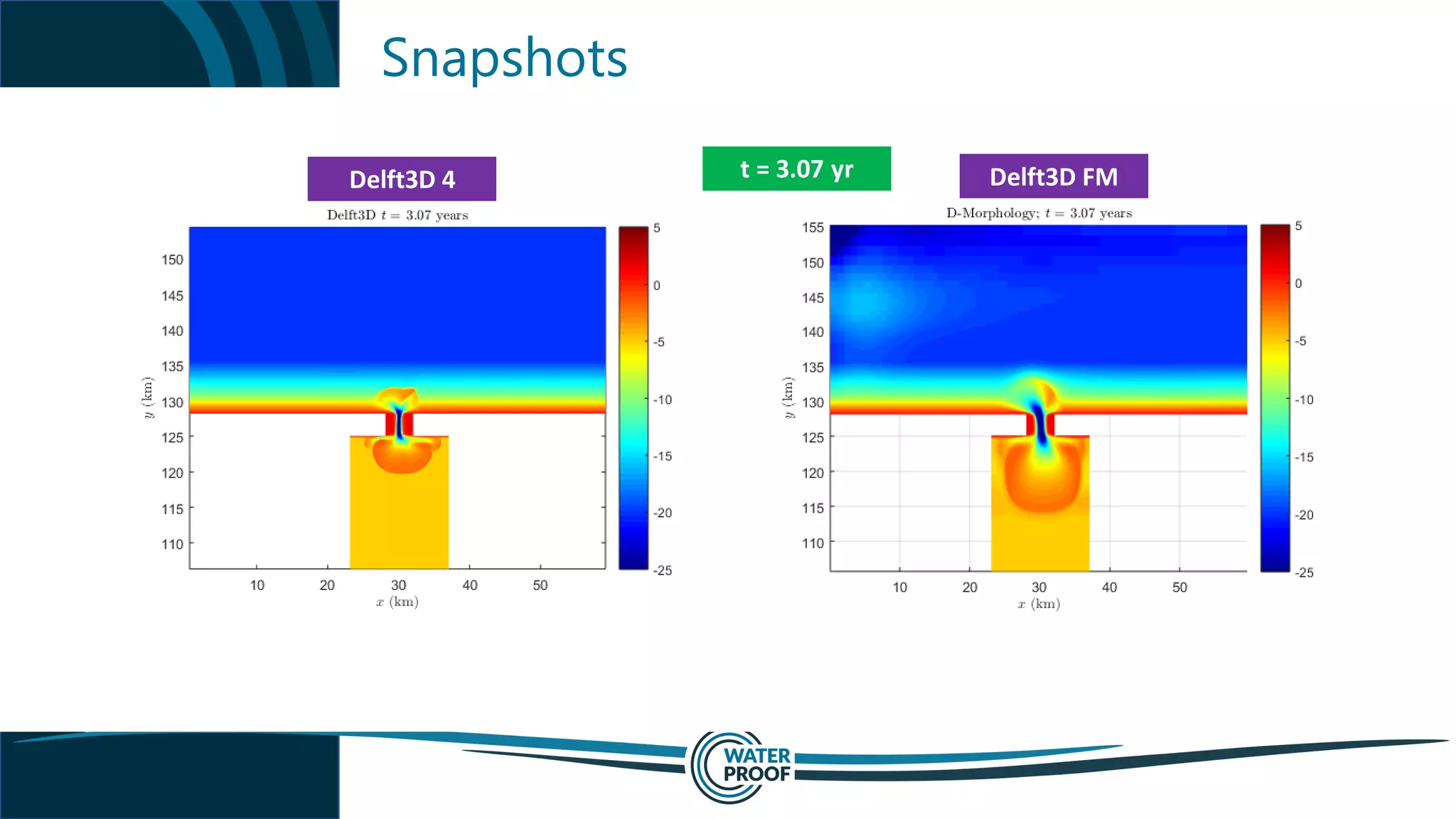

- 14. Snapshots t = 3.07yrDelft3D 4 Delft3D FM

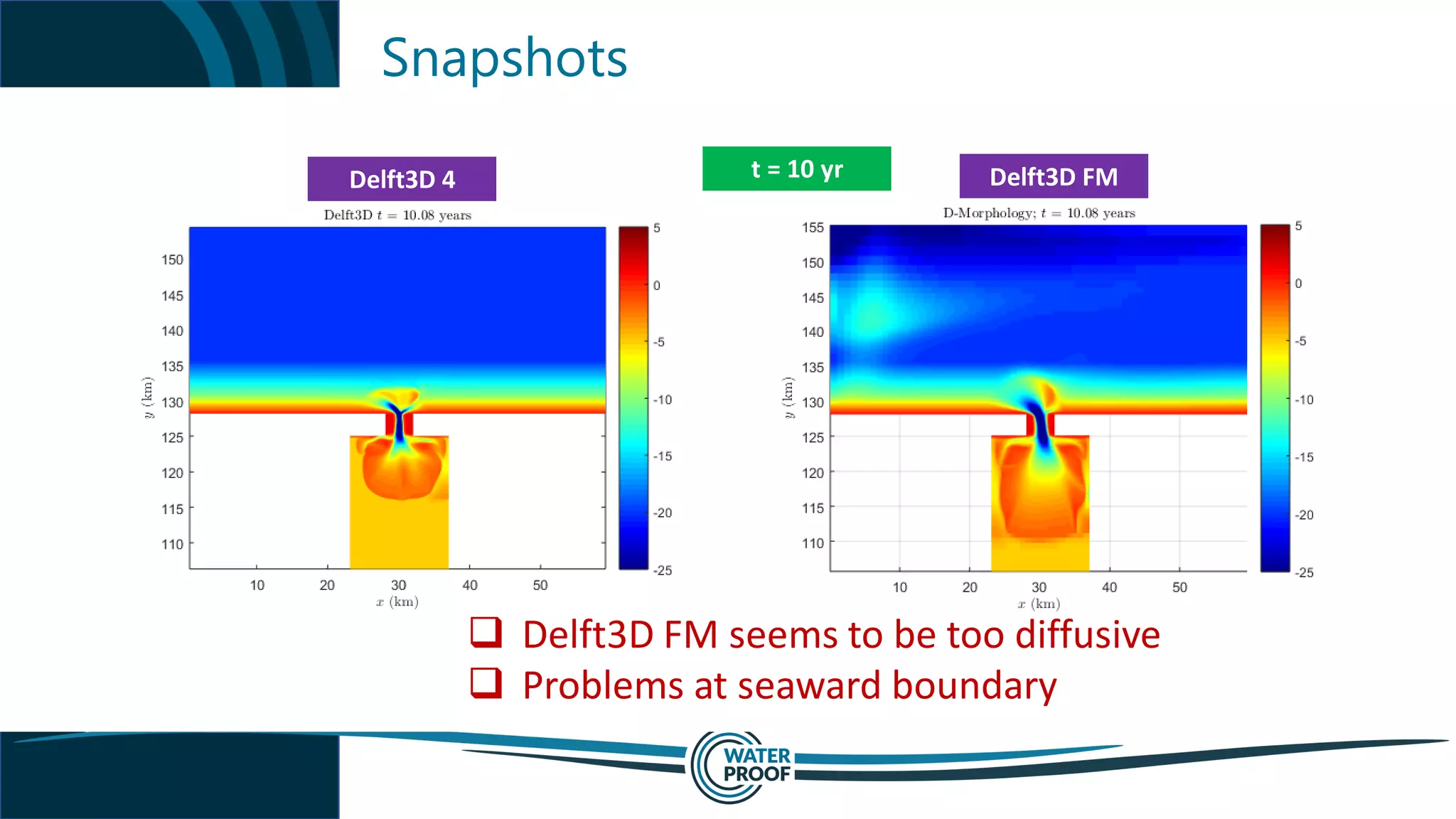

- 15. Snapshots t = 10yrDelft3D 4 Delft3D FM Delft3D FM seems to be too diffusive Problems at seaward boundary

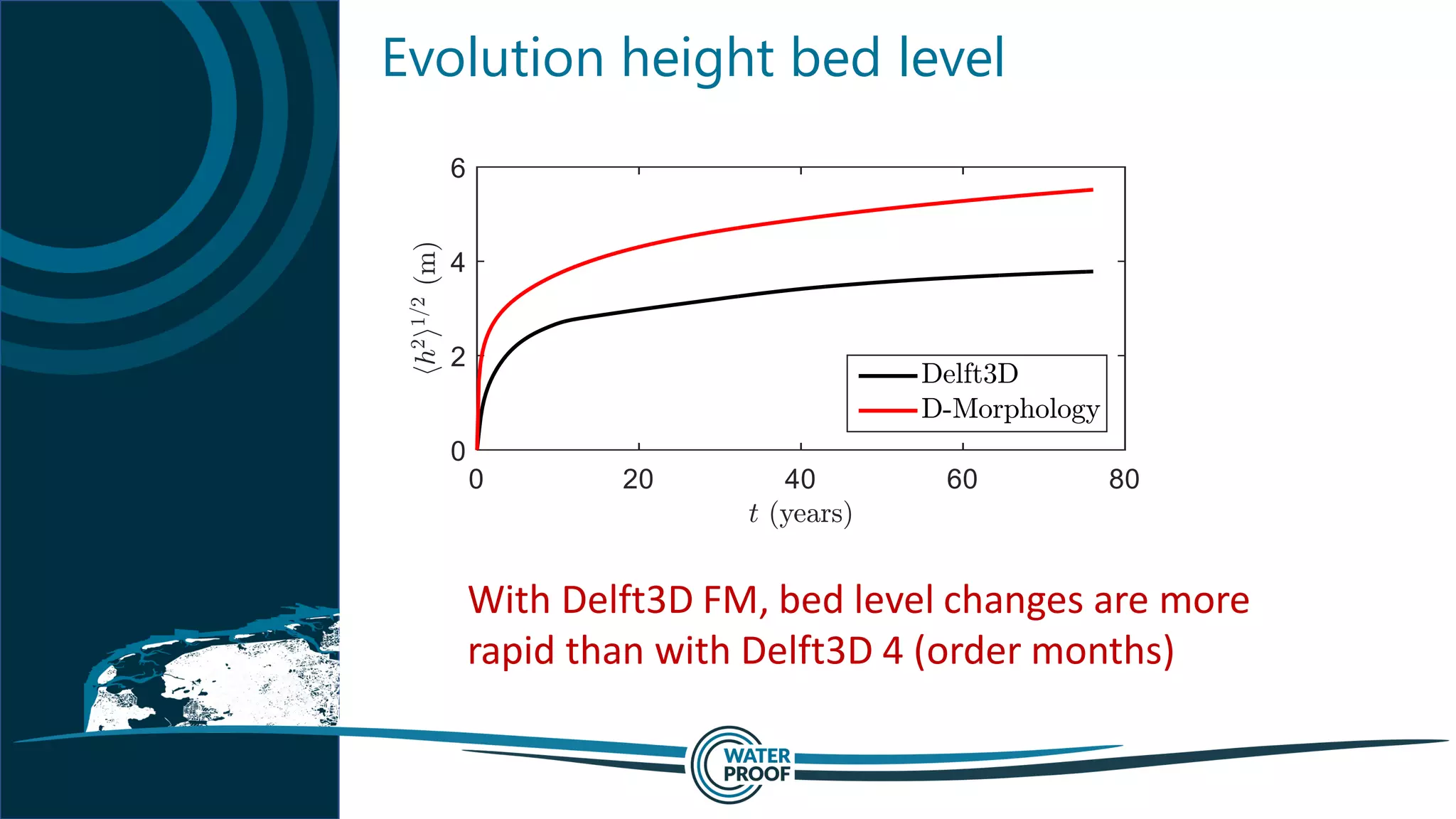

- 16. Evolution height bedlevel With Delft3D FM, bed level changes are more rapid than with Delft3D 4 (order months)
- 17.

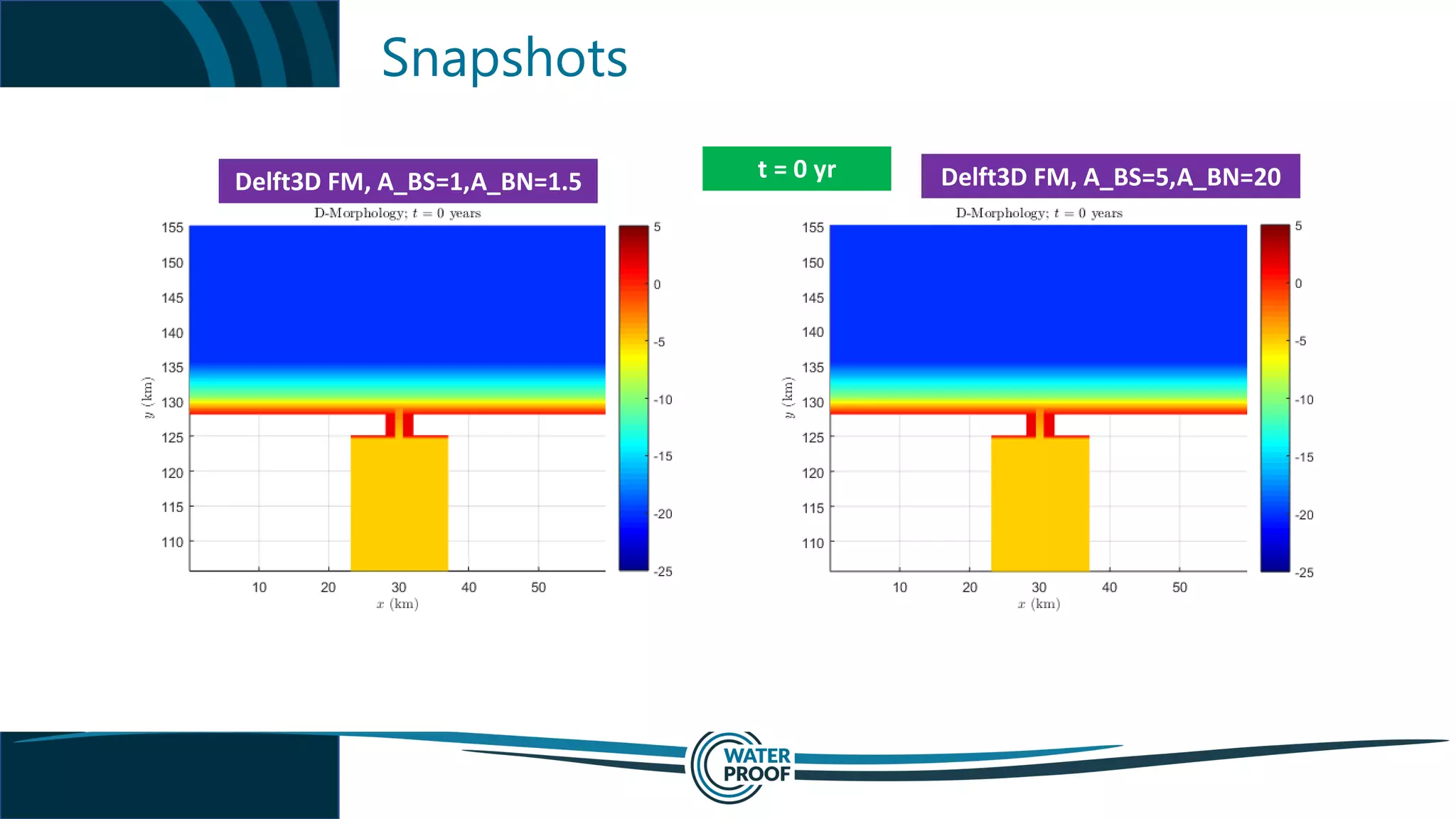

- 18. Snapshots t = 0yr Delft3D FM, A_BS=5,A_BN=20Delft3D FM, A_BS=1,A_BN=1.5

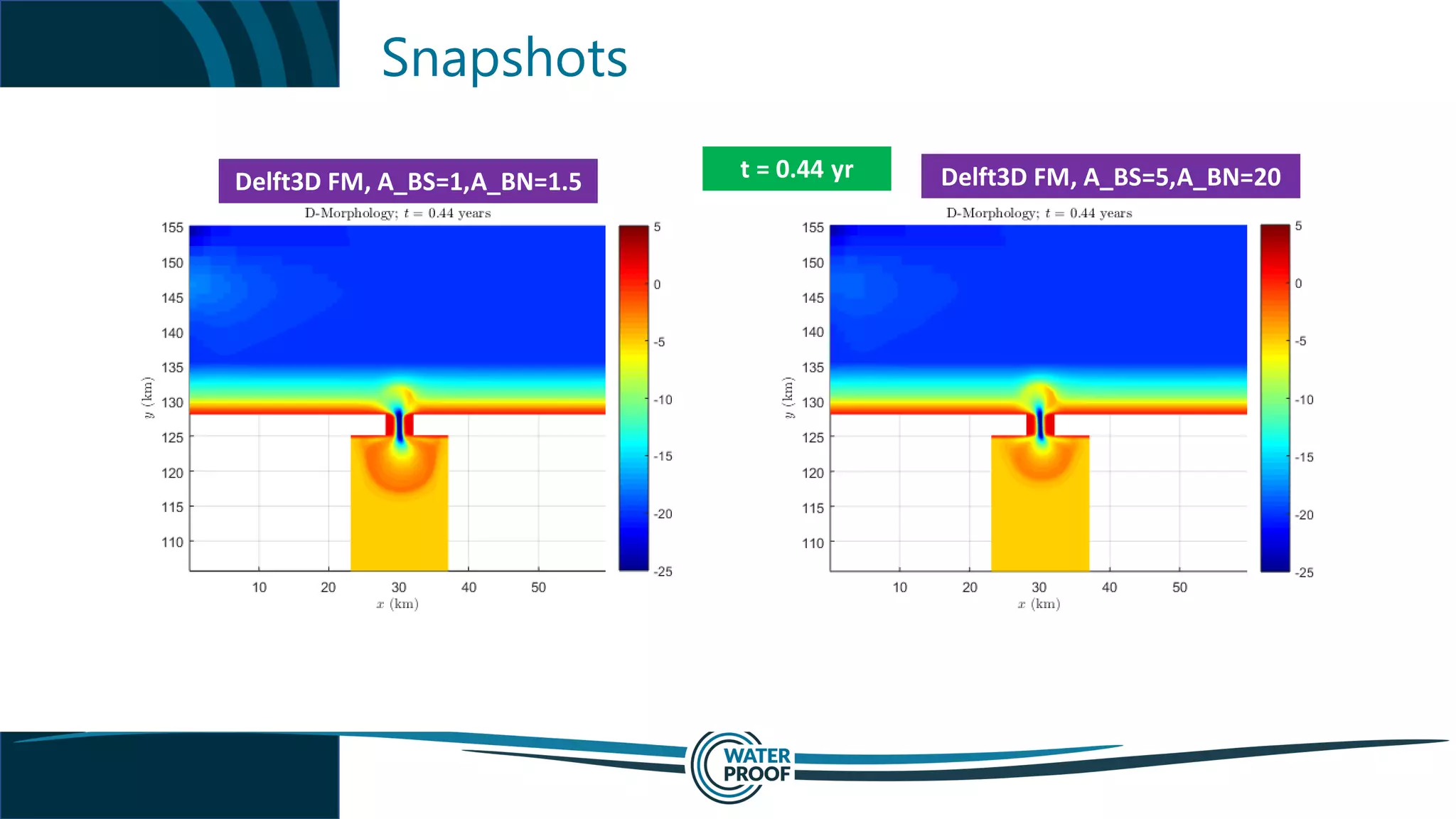

- 19. Snapshots t = 0.44yr Delft3D FM, A_BS=5,A_BN=20Delft3D FM, A_BS=1,A_BN=1.5
- 20. Snapshots t = 0.88yr Delft3D FM, A_BS=5,A_BN=20Delft3D FM, A_BS=1,A_BN=1.5
- 21. Snapshots t = 1.32yr Delft3D FM, A_BS=5,A_BN=20Delft3D FM, A_BS=1,A_BN=1.5

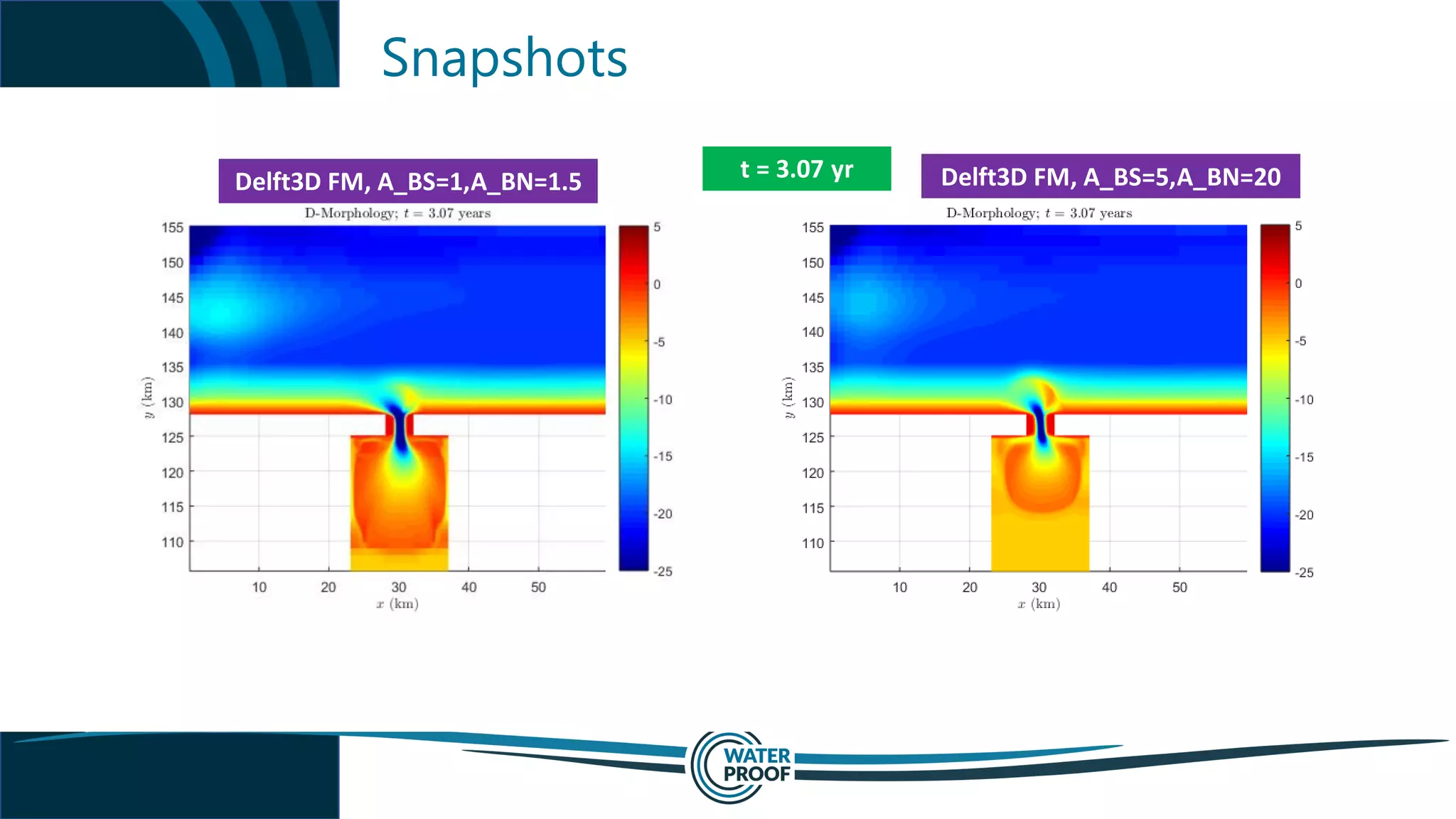

- 22. Snapshots t = 3.07yr Delft3D FM, A_BS=5,A_BN=20Delft3D FM, A_BS=1,A_BN=1.5

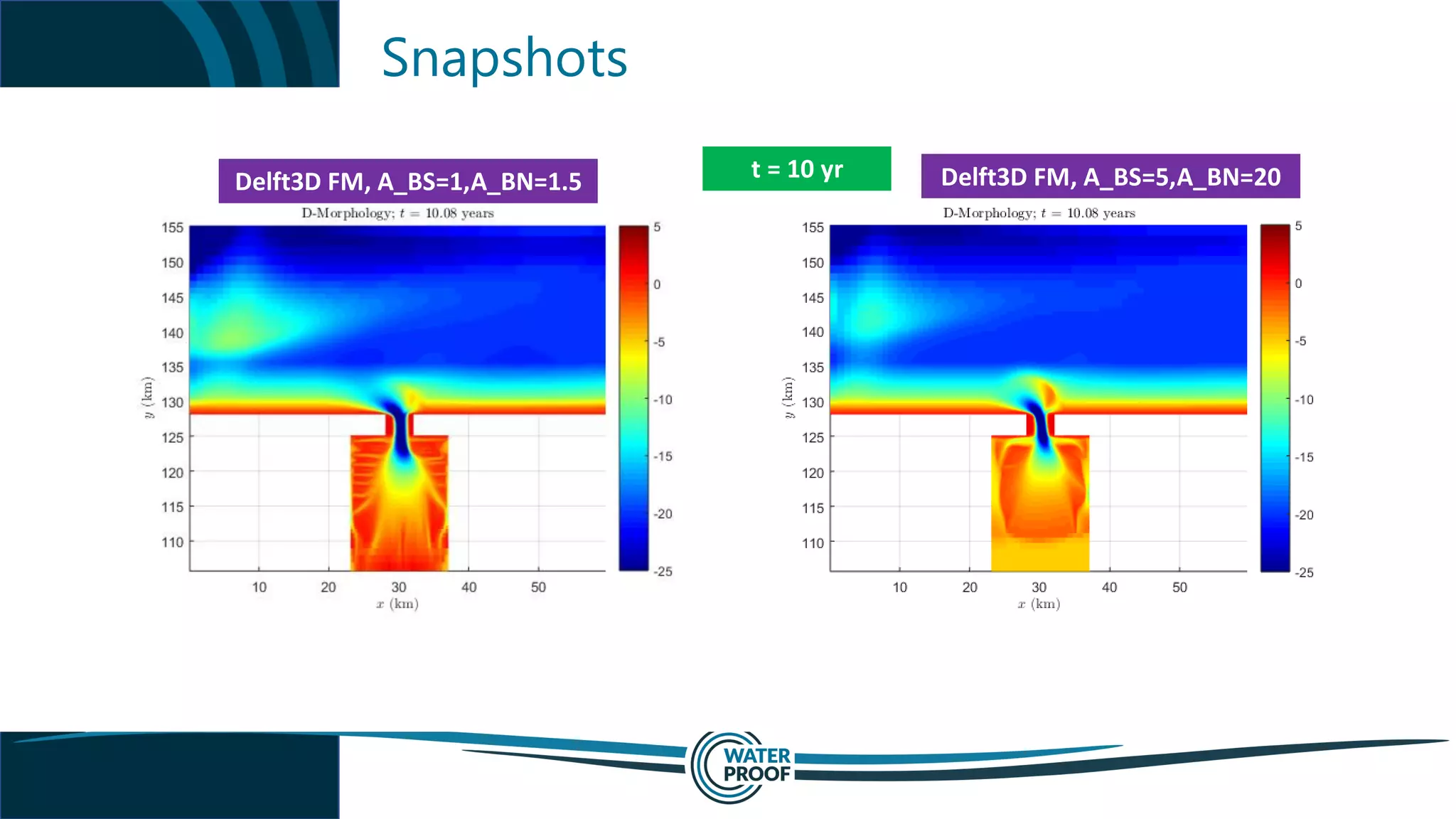

- 23. Snapshots t = 10yr Delft3D FM, A_BS=5,A_BN=20Delft3D FM, A_BS=1,A_BN=1.5

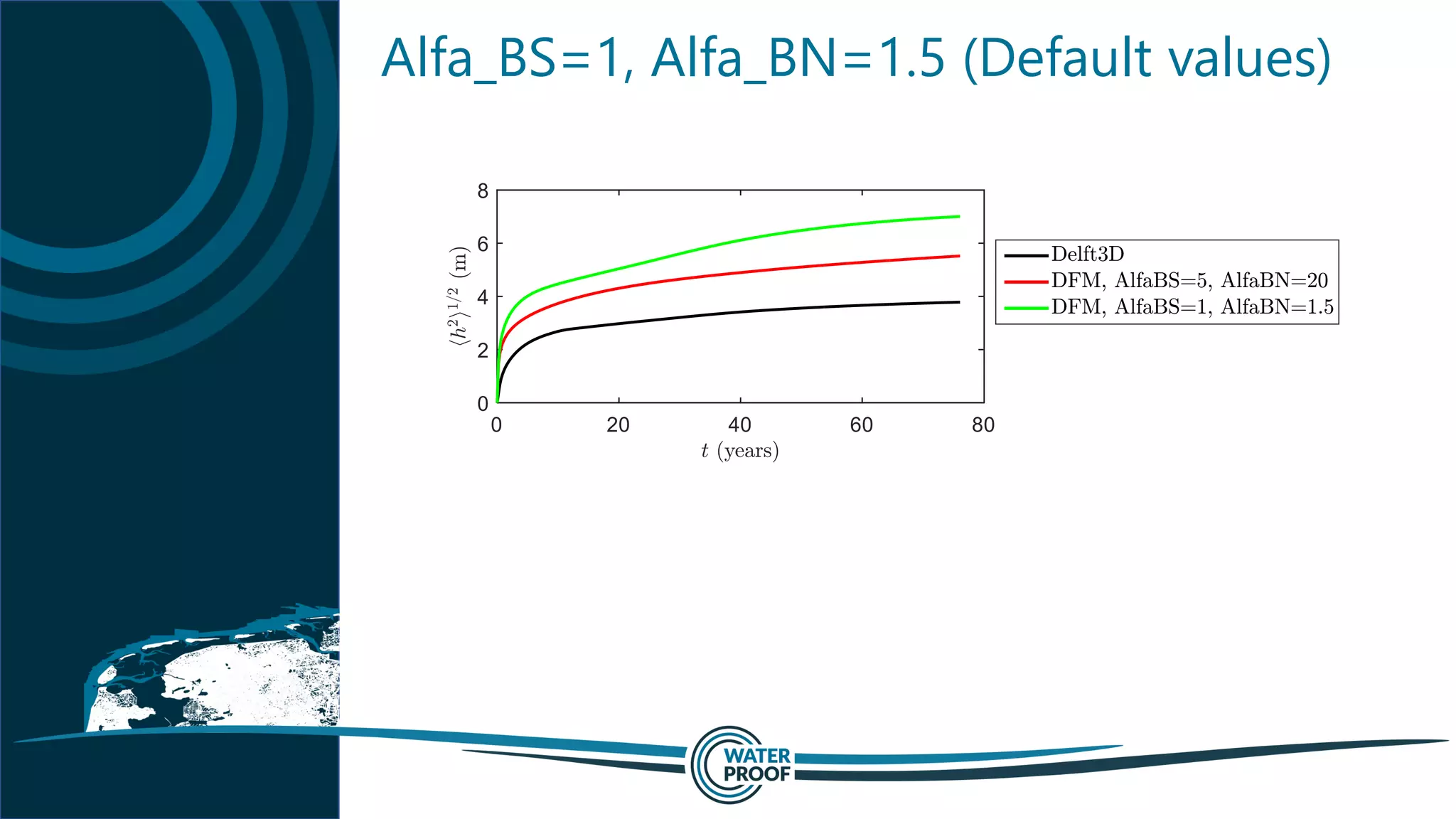

- 24.

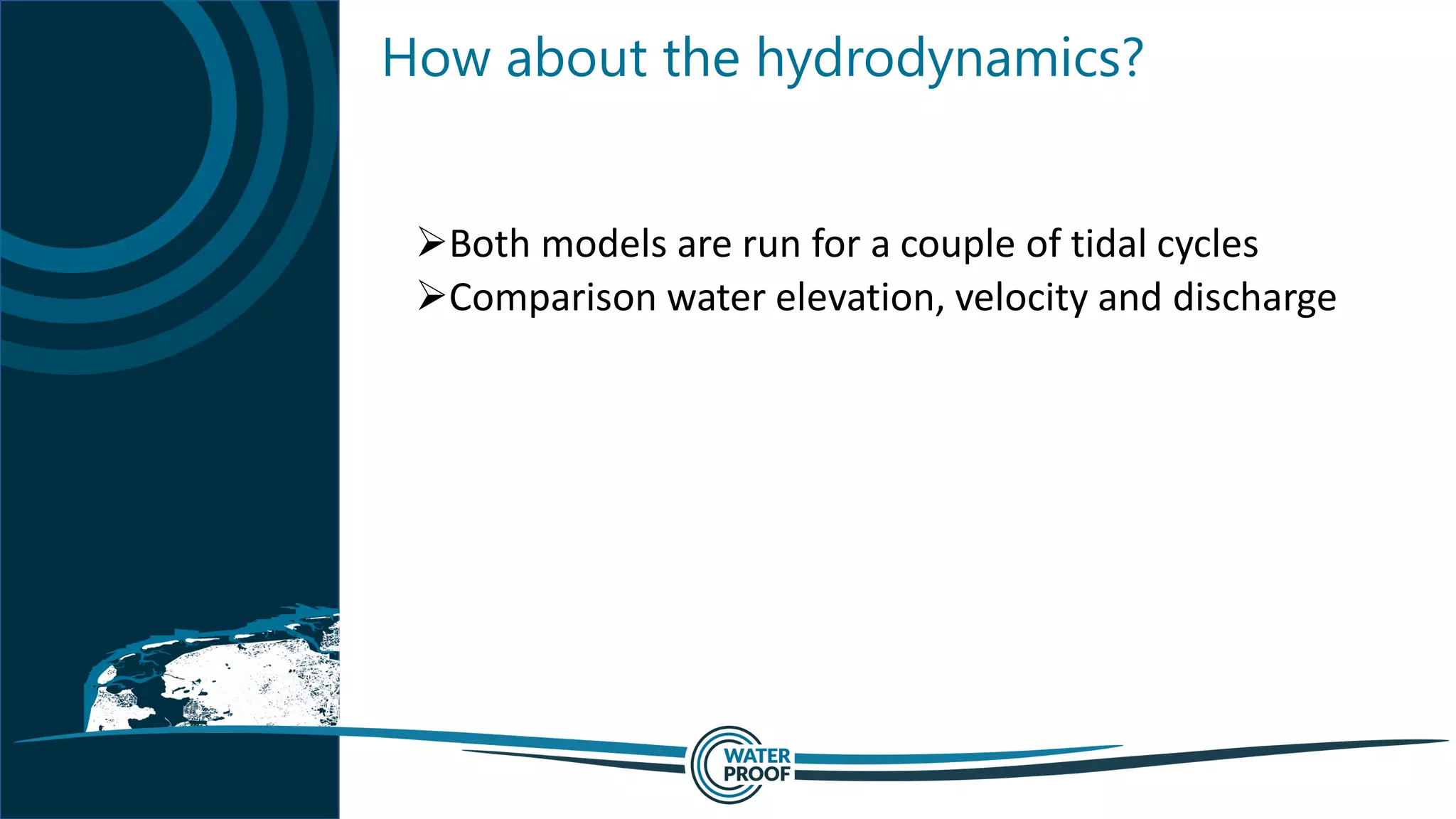

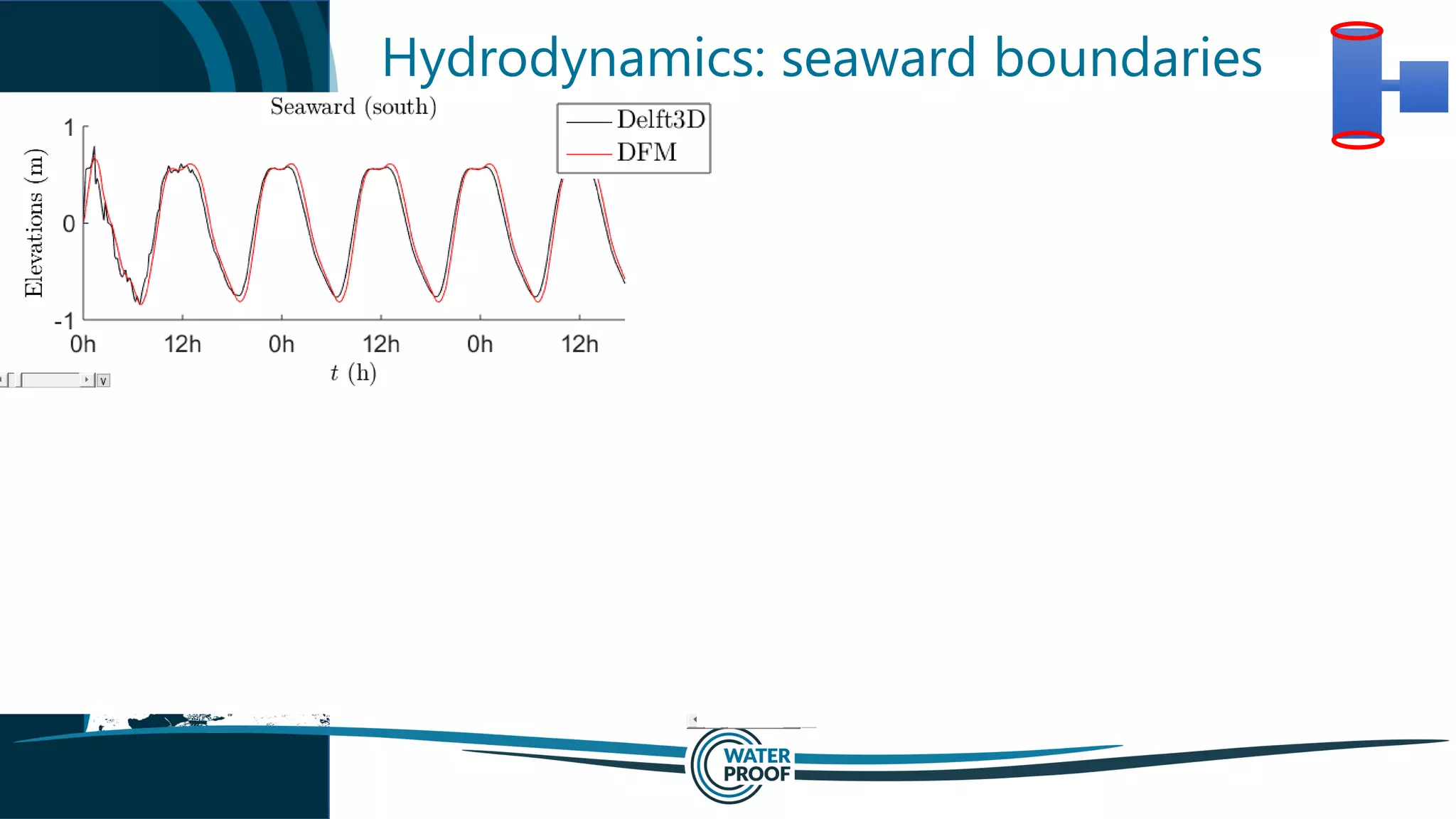

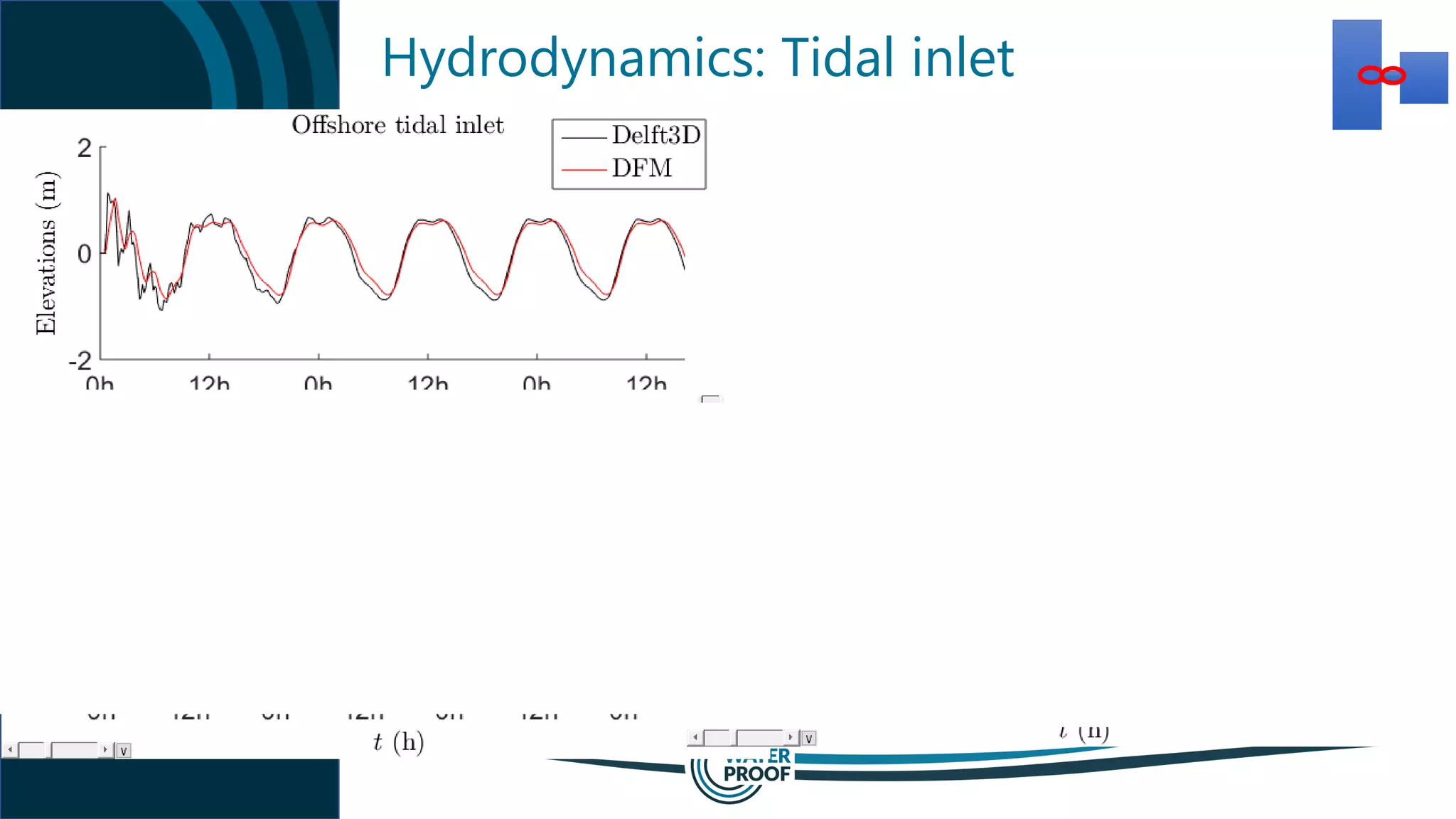

- 25. How about thehydrodynamics? ➢Both models are run for a couple of tidal cycles ➢Comparison water elevation, velocity and discharge
- 26.
- 27.

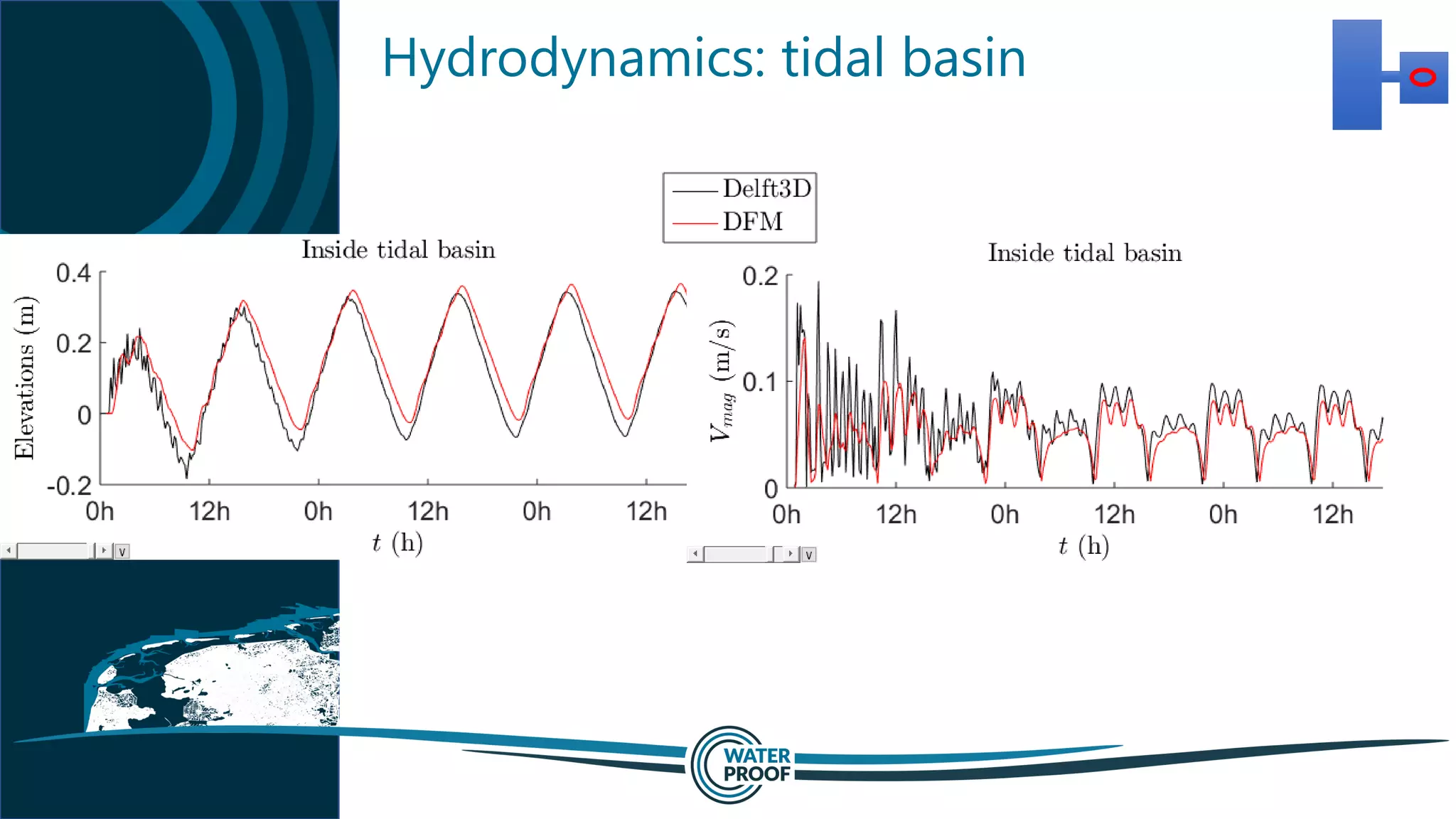

- 28.

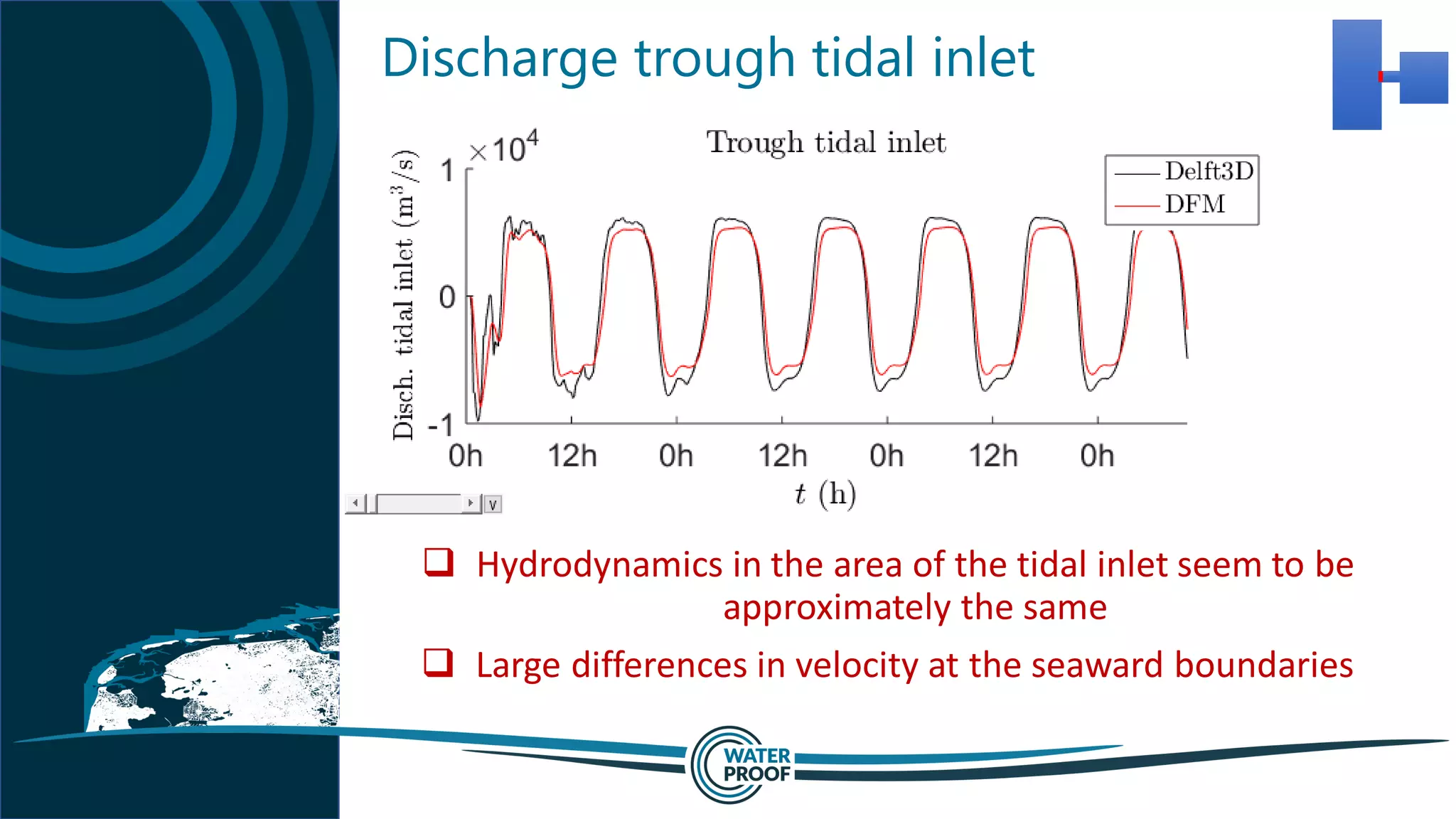

- 29. Discharge trough tidalinlet Hydrodynamics in the area of the tidal inlet seem to be approximately the same Large differences in velocity at the seaward boundaries

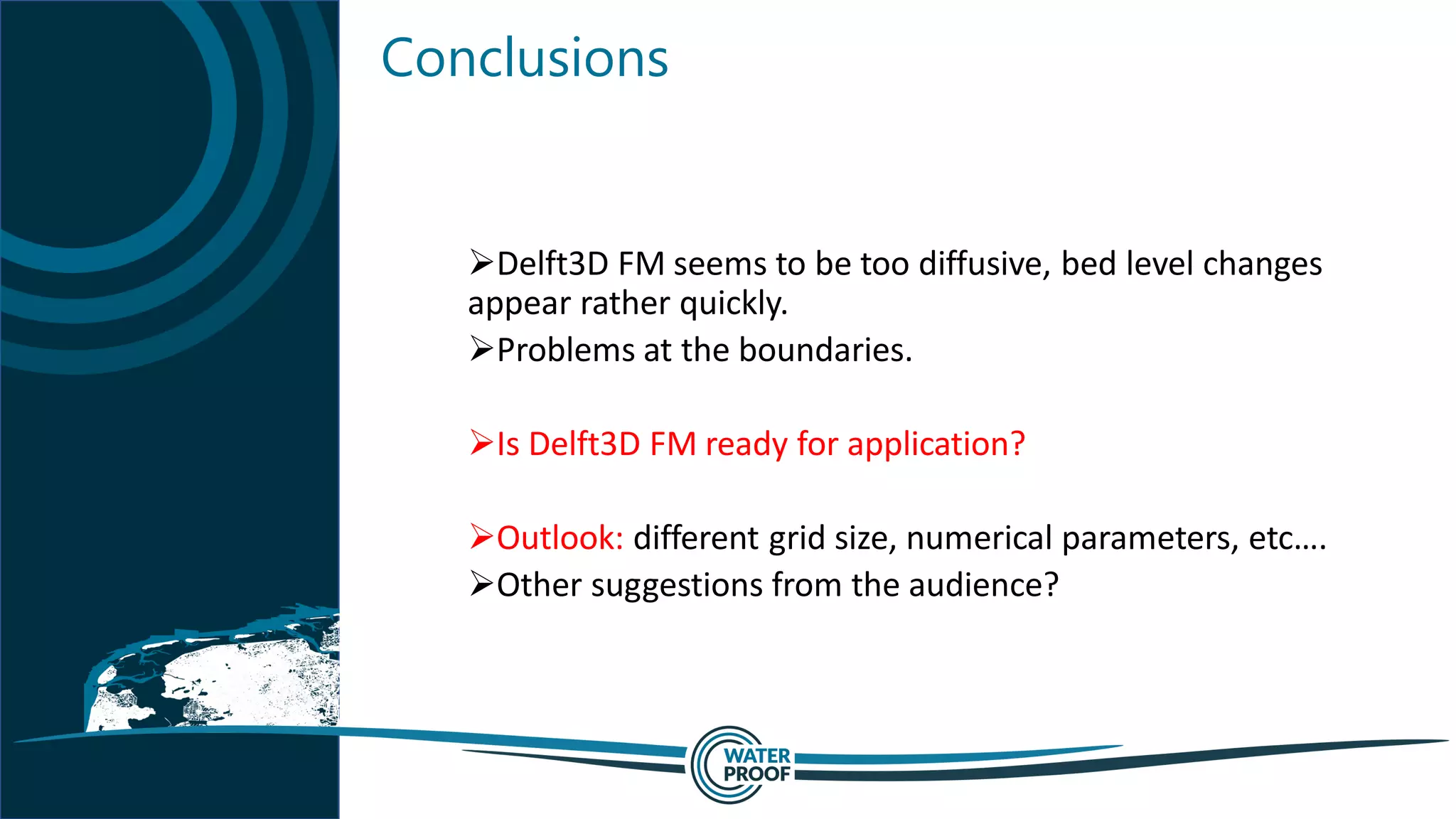

- 30. Conclusions ➢Delft3D FM seemsto be too diffusive, bed level changes appear rather quickly. ➢Problems at the boundaries. ➢Is Delft3D FM ready for application? ➢Outlook: different grid size, numerical parameters, etc…. ➢Other suggestions from the audience?

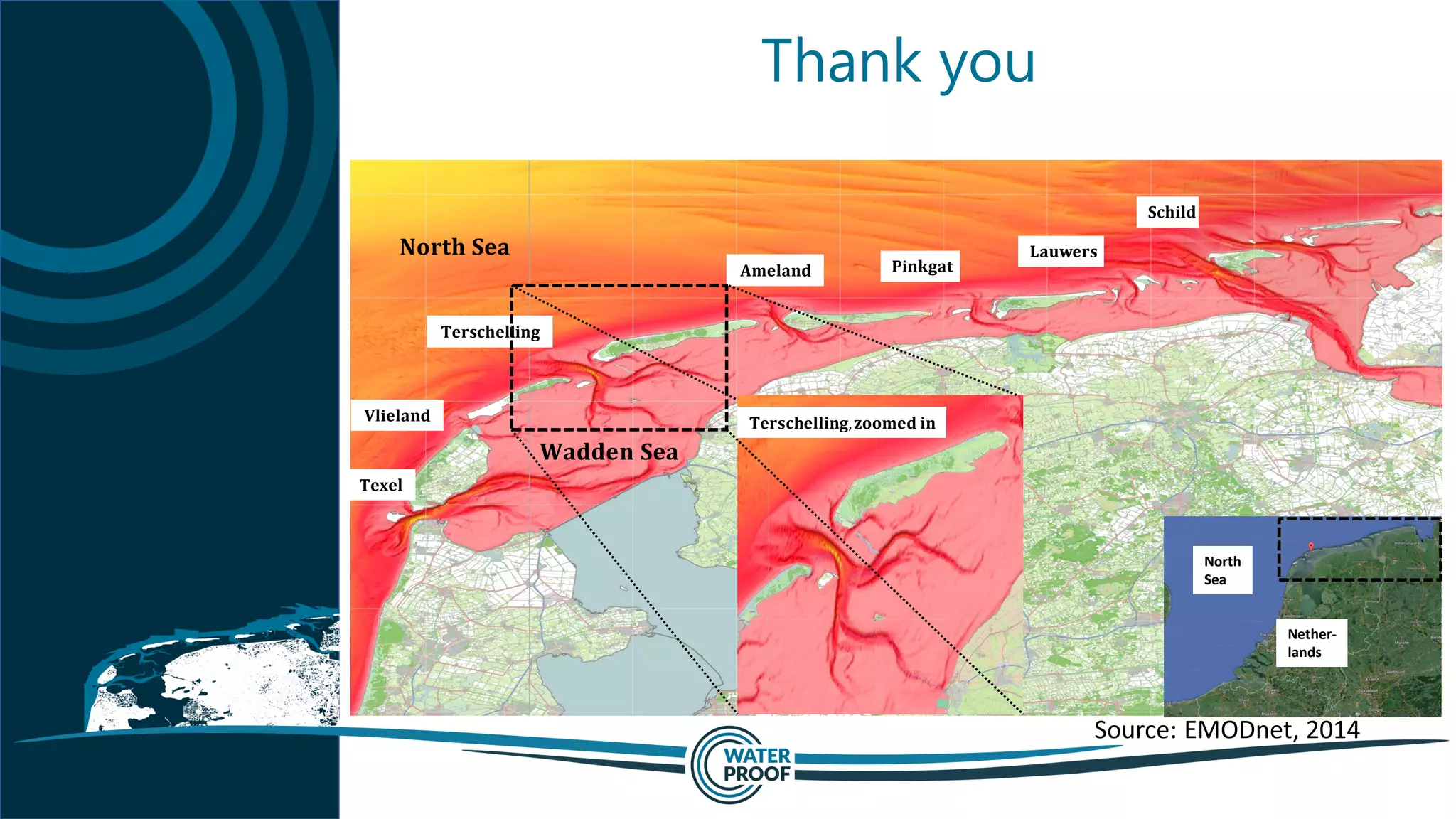

- 31. Thank you Source: EMODnet,2014 𝐖𝐚𝐝𝐝𝐞𝐧 𝐒𝐞𝐚 𝐍𝐨𝐫𝐭𝐡 𝐒𝐞𝐚 𝐕𝐥𝐢𝐞𝐥𝐚𝐧𝐝 𝐓𝐞𝐱𝐞𝐥 𝐓𝐞𝐫𝐬𝐜𝐡𝐞𝐥𝐥𝐢𝐧𝐠 𝐀𝐦𝐞𝐥𝐚𝐧𝐝 𝐏𝐢𝐧𝐤𝐠𝐚𝐭 𝐋𝐚𝐮𝐰𝐞𝐫𝐬 𝐒𝐜𝐡𝐢𝐥𝐝 𝐓𝐞𝐫𝐬𝐜𝐡𝐞𝐥𝐥𝐢𝐧𝐠, 𝐳𝐨𝐨𝐦𝐞𝐝 𝐢𝐧 Nether- lands North Sea
