1. SINCE 1976
PRODUCT CATALOGUE
LED DRIVER
PRODUCT CATALOGUE
LED DRIVER
ªOUTDOOR CISPR SERIES
ªOUTDOOR DRIVERS WITH DUSK TO DAWN
ªOUTDOOR DRIVERS
ªINDOOR DRIVERS
ªDIMMABLE DRIVERS
ªLINEAR DRIVERS
ªCONSTANT VOLTAGE
ªSPECIAL PRODUCTS
ªSENSORS
We are one of the leading manufacturer
of LED Drivers and Power Supplies Since 2007.
LED | Controls | Light Sources | Emergency

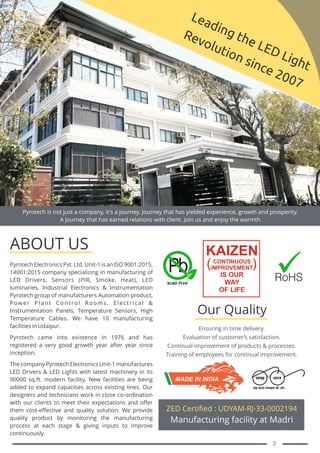

2. Pyrotech is not just a company, it's a journey. Journey that has yielded experience, growth and prosperity.
A journey that has earned relations with client. Join us and enjoy the warmth
Leading the LED Light
Revolution since 2007
Pyrotech Electronics Pvt. Ltd. Unit-1
14001:2015 company specializing in manufacturing of
LED Drivers, Sensors (PIR, Smoke, Heat), LED
luminaries, Industrial Electronics & Instrumentation
Pyrotech group of manufacturers Automation product,
Power Plant Control Rooms, Electrical &
Instrumentation Panels, Temperature Sensors, High
Temperature Cables. We have 10 manufacturing
facilities in Udaipur.
Pyrotech came into existence in 1976 and has
registered a very good growth year after year since
inception.
The company Pyrotech Electronics Unit-1 manufactures
LED Drivers & LED Lights with latest machinery in its
90000 sq.ft. modern facility. New facilities are being
added to expand capacities across existing lines. Our
designers and technicians work in close co-ordination
with our clients to meet their expectations and offer
them cost-effective and quality solution. We provide
quality product by monitoring the manufacturing
process at each stage & giving inputs to improve
continuously.
is an ISO 9001:2015,
ABOUT US
Ensuring in time delivery.
Evaluation of customer’s satisfaction.
Continual improvement of products & processes.
Training of employees for continual improvement.
Our Quality
ZED Certified : UDYAM-RJ-33-0002194
Manufacturing facility at Madri
MADE IN INDIA
KAIZEN
CONTINUOUS
IMPROVEMENT
IS OUR
WAY
OF LIFE
( )
2

3. MANUFACTURING INFRASTRUCTURE
Pyrotech’s Group
3
ALL LOCATED IN UDAIPUR
§ Total Land Area: 2,000,000 SqFt.
§ Total Built Up Area : 2.5 Million SqFt.
Pyrotech Electronics Pvt. Ltd. Unit-1
Pyrotech Electronics Pvt. Ltd. - Anexe
Pyrotech Electronics Pvt. Ltd. Unit-2
Pyrotech Electronics Pvt. Ltd. Unit-4
Pyrotech Workspace Pvt. Ltd.
Tempsens Instruments Pvt. Ltd. Unit-1
Tempsens Instruments Pvt. Ltd. Unit-2
Tempsens Instruments Pvt. Ltd. Unit-3
Tempsens Instruments Pvt. Ltd. Unit-4
AST & Marathon
UNIT 2 & 4
Accurate Sensors Technologies

4. Pyrotech as a Complete Solution Provider
We provide complete solution for LED light industries LED drivers and complete LED luminaries as per international
standards. To provide you with high quality products/services we have the world class machinery. The drivers are
inhouse designed to take care of the extremities. We have designed more than 200 complicated instruments in last
47 years & we have the necessary expertise to design reliable products. Majority of drivers we produce are used by
us in our LED Lighting Products. Thus we get the opportunity to test the reliability of our products in different field
conditions.
PYROTECH AWARDS
OUR CLIENT
SPECIFICATIONS
THD <10%.
4
440V AC protection (* )
4
EN 55015 compliant(* )
1
Surge protection >4kV(* )
High efficiency.
2
Built in PFC Function(* )
Open & short ( ) circuit protection.
3
Over temperature & Over voltage protection(* )
Withstand voltage: I/P – O/P : Min 2kV for isolated drivers.
Isolation resistance: I/P – O/P >500 MΩ / 1000 VDC.
Independent lamp control gear .
2
Wire termination 0.5-2.5 mm
Voltage & current Tolerance : ± 5%.
Max. Case temperature .
Ambient temperature(Ta) : -10°C to +55°C.
1
(* ) Surge protection 4kV for outdoor drivers & some indoor drivers.
2
(* ) Is applicable only for 230V AC-DC LED drivers.
PF >0.6 for 5W isolated driver.
PF > 0.9 for power >6W for isolated driver and >3W for non isolated
drivers.
3
(* ) Not applicable for Non Iso. drivers
4
(* ) Selected models
<
90
ELCINA AWARD
for excellence in innovation
AWARD for EXCELLENCE
in electronics - 1992
UCCI AWARD
2018
EXCELLENCE
INDEX
ØOutdoor CISPR Drivers ................ 6
§
Dusk to Dawn Series .................... 6
ØOutdoor Drivers ........................... 7
ØIndoor Drivers ......................... 8-10
ØDimmable Drivers ................ 11-12
ØLinear Drivers ............................. 13
§
Emergency KIT ............................. 13
§
Light Control Switch ....................13
ØConstant Voltage ........................14
ØSpecial Product ...........................15
§
SPD ...............................................15
§
AC - DC Drivers ........................... 15
§
DC - DC Drivers ............................ 15
ØSensors .................................. 16-18
ØDriver Features ...........................19
4
APPRECIATION LETTER
of Income Tax Department
CERTIFICATION OF REGISTRATION
Ministry of RND Department

5. Pyrotech’s Certification
BIS Registration
No R-84000027
ZED Certified
UDYAM-RJ-33-0002194
IEC Certifications (SAMEER, MSME, ERDA, YMPL, ITC)
61000-3-2, 61000-3-3, 61000-4-2 Level 4, 61000-4-3 Level 3, 61000-4-4 Level 4, 61000-4-5 Level 3, 61000-4-6
Level 3, 61000-4-8 Level 4, 61000-4-11, 61347-2-13, 60529, CISPER 15 / En55015 (Available on Request)
Harmonic Emission as per IEC 61000-3-2 Surge As Per IEC 61000-4-5 Electrical Fast Transient As Per IEC 61000-4-4
Report No.- KLPL/BTG/15/03-14
SUMMARY OF INGRESS PROTECTION TESTS ACCORDING TO IS/IEC 60529:2001
Conclusion of the IP 67-test: PASS.
The results of the tests were in compliance with the requirements in the standard IS/IEC 60529:2001
UUT= Unit Under Test
Picture: Pyrotech PY-206
END OF REPORT
Karadikar Laboratories Pvt. Ltd.: Head Office: B-101, Ansa Industrial Estate, Saki Vihar Road, Saki Naka, Andheri (E), Mumbai-400072 ,
Maharashtra, INDIA Ph: (022) 28471395 Laboratory: Gat # 142, Boisar Chilhar Road, Opp. Union Park, Betegaon, Boisar (E),
Tal-Dist. – Palghar. Maharshtra, INDIA Phone: (02525) 284881 / 931
E-mail: sales@karandikarlab.com Website: www.karandikarlab.com
CISPR 15 /EN55015 = CISPER 15 /EN55015 Ingress Protection IP67 as per IEC 60529 Performance Test as per IEC 62384
5
AUTHORIZATION TO MARK
Applicant: Manufacturer:
Address: Address:
Country: Country:
1613633 1
Standard(s):
Product:
Brand Name:
Models:
INDIA INDIA
PYROTECH ELECTRONICS PVT. LTD. PYROTECH ELECTRONICS PVT. LTD.
F-16A, Road No. 3, MIA, UDAIPUR
(RAJASTHAN), 313003
F-16A, Road No. 3, MIA, UDAIPUR
(RAJASTHAN), 313003
Party Authorized To Apply Mark: Same as Manufacturer
Report Issuing Office: Intertek Testing Services Shanghai Limited
PIR-201HB-8A
Control Number: 5024721 Authorized by:
for L. Matthew Snyder, Certification Manager
This document supersedes all previous Authorizations to Mark for the noted Report Number.
This Authorization to Mark is for the exclusive use of Intertek's Client and is provided pursuant to the Certification agreem ent between Intertek and its Client. Intertek's responsibility and liability are
limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned
by the use of this Authorization to Mark. Only the Client is authorized to perm it copying or distribution of this Authorization to Mark and then only in its entirety. Use of Intertek’s Certification mark is
restricted to the conditions laid out in the agreem ent and in this Authorization to Mark. Any further use of the Intertek name for the sale or advertisement of the tested material, product or service must
first be approved in writing by Intertek. Initial Factory Assessments and Follow up Services are for the purpose of assuring appropriate usage of the Certification m ark in accordance with the agreement,
they are not for the purposes of production quality control and do not relieve the Client of their obligations in this respect.
Intertek Testing Services NA Inc.
545 East Algonquin Road, Arlington Heights, IL 60005
Telephone 800-345-3851 or 847-439-5667 Fax 312-283-1672
Nonindustrial Photoelectric Switches For Lighting Control [UL 773A:2016 Ed.6+R:26Jun2020]
Nonindustrial Photoelectric Switches For Lighting Control [CSA C22.2#284:2016 Ed.1]
360° HI-BAY PIR FIXTURE MOUNT PLUG-IN OCCUPANCY SENSOR
image only
This authorizes the application of the Certification Mark(s) shown below to the models described in the Product(s)
Covered section when made in accordance with the conditions set forth in the Certification Agreement and Listing
Report. This authorization also applies to multiple listee model(s) identified on the correlation page of the Listing
Report.
This document is the property of Intertek Testing Services and is not transferable. The certification mark(s) may be
applied only at the location of the Party Authorized To Apply Mark.
Page 1 of 1
ATM for Report 220801105SHA-001 ATM Issued: 12-May-2023
ED 16.3.15 (1-Jul-2022) Mandatory
ETL Certified
5024721

6. LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing
6

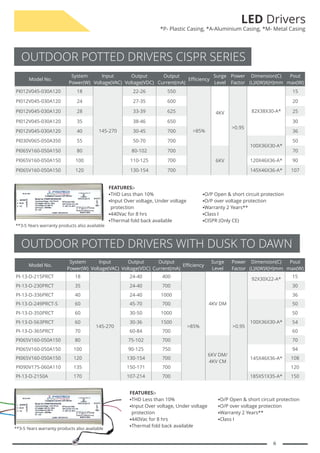

OUTDOOR POTTED DRIVERS CISPR SERIES
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI012V045-030A120 18
145-270
22-26 550
>85%
4KV
>0.95
82X38X30-A*
15
PI012V045-030A120 24 27-35 600 20
PI012V045-030A120 28 33-39 625 25
PI012V045-030A120 35 38-46 650 30
PI012V045-030A120 40 30-45 700 36
PI030V065-050A350 55 50-70 700
100X36X30-A*
50
PI065V160-050A150 80 80-102 700
6KV
70
PI065V160-050A150 100 110-125 700 120X46X36-A* 90
PI065V160-050A150 120 130-154 700 145X46X36-A* 107
FEATURES:-
§
THD Less than 10%
§
Input Over voltage, Under voltage
protection
§
440Vac for 8 hrs
§
Thermal fold back available
§
O/P Open & short circuit protection
§
O/P over voltage protection
§
Warranty 2 Years**
§
Class I
§
CISPR (Only CE)
**3-5 Years warranty products also available
OUTDOOR POTTED DRIVERS WITH DUSK TO DAWN
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-D-215PRCT 18
145-270
24-40 400
>85%
4KV DM
>0.95
92X30X22-A*
15
PI-13-D-230PRCT 35 24-40 700 30
PI-13-D-336PRCT 40 24-40 1000 36
PI-13-D-249PRCT-S 60 45-70 700
100X36X30-A*
50
PI-13-D-350PRCT 60 30-50 1000 50
PI-13-D-563PRCT 60 30-36 1500 54
PI-13-D-365PRCT 70 60-84 700 60
PI065V160-050A150 80 75-102 700
6KV DM/
4KV CM
70
PI065V160-050A150 100 90-125 750
145X46X36-A*
94
PI065V160-050A150 120 130-154 700 108
PI090V175-060A110 135 150-171 700 120
PI-13-D-2150A 170 107-214 700 185X51X35-A* 150
FEATURES:-
§
THD Less than 10%
§
Input Over voltage, Under voltage
protection
§
440Vac for 8 hrs
§
Thermal fold back available
§
O/P Open & short circuit protection
§
O/P over voltage protection
§
Warranty 2 Years**
§
Class I
**3-5 Years warranty products also available

7. LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing
7

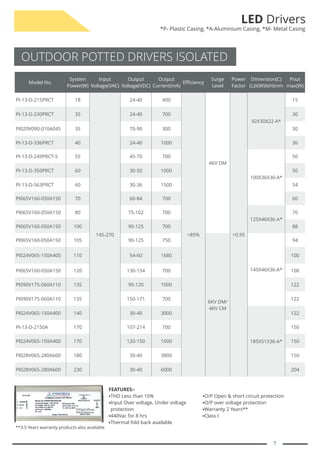

OUTDOOR POTTED DRIVERS ISOLATED
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-D-215PRCT 18
145-270
24-40 400
>85%
4KV DM
>0.95
92X30X22-A*
15
PI-13-D-230PRCT 35 24-40 700 30
PI020V090-010A045 35 70-90 300 30
PI-13-D-336PRCT 40 24-40 1000 36
PI-13-D-249PRCT-S 55 45-70 700
100X36X30-A*
50
PI-13-D-350PRCT 60 30-50 1000 50
PI-13-D-563PRCT 60 30-36 1500 54
PI065V160-050A150 70 60-84 700 60
PI065V160-050A150 80 75-102 700
125X46X36-A*
70
PI065V160-050A150 100 90-125 700 88
PI065V160-050A150 105 90-125 750
6KV DM/
4KV CM
145X46X36-A*
94
PI024V065-150A400 110 54-60 1680 100
PI065V160-050A150 120 130-154 700 108
PI090V175-060A110 135 90-120 1000 122
PI090V175-060A110 135 150-171 700 122
PI024V065-150A400 140 30-40 3000
185X51X36-A*
122
PI-13-D-2150A 170 107-214 700 150
PI024V065-150A400 170 120-150 1000 150
PI028V065-280A600 180 30-40 3800 150
PI028V065-280A600 230 30-40 6000 204
FEATURES:-
§
THD Less than 10%
§
Input Over voltage, Under voltage
protection
§
440Vac for 8 hrs
§
Thermal fold back available
§
O/P Open & short circuit protection
§
O/P over voltage protection
§
Warranty 2 Years**
§
Class I
**3-5 Years warranty products also available

8. Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-D-102AC 1.5
145-270
5-7 350 >70% 2KV
>0.9 43X21X24-P*
1.2
PI-13-D-203AC 4 3-3.6 700 >60% 2.5KV 3
PI-13-D-005AC 5 30-50 100 >70% 2.5KV 4
PI-13-D-106AC 10 6-17 350 >60% 2.5KV 6
FEATURES:-
§
CLASS II
§
O/P Open & short circuit protection
§
O/P over voltage protection
§
Warranty 2 Years.
Dia - 20X44mm
8

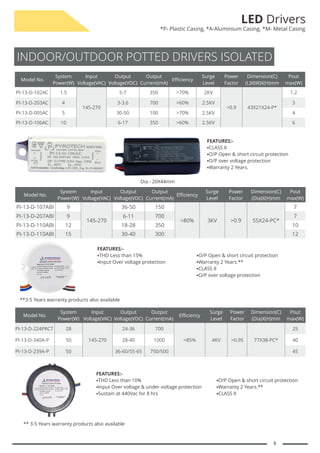

INDOOR/OUTDOOR POTTED DRIVERS ISOLATED
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing
FEATURES:-
§
THD Less than 15%
§
Input Over voltage protection
§
O/P Open & short circuit protection
§
Warranty 2 Years.**
§
CLASS II
§
O/P over voltage protection
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(Dia)X(H)mm
Pout
max(W)
PI-13-D-107ABI 9
145-270
36-50 150
>80% 3KV >0.9 55X24-PC*
7
PI-13-D-207ABI 9 6-11 700 7
PI-13-D-110ABI 12 18-28 350 10
PI-13-D-110ABI 15 30-40 300 12
FEATURES:-
§
THD Less than 10%
§
Input Over voltage & under voltage protection
§
Sustain at 440Vac for 8 hrs
§
O/P Open & short circuit protection
§
Warranty 2 Years.**
§
CLASS II
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(Dia)X(H)mm
Pout
max(W)
PI-13-D-224PRCT 28
145-270
24-36 700
>85% 4KV >0.95 77X38-PC*
25
PI-13-D-340A-P 50 28-40 1000 40
PI-13-D-239A-P 50 36-60/55-65 750/500 45
**3-5 Years warranty products also available
** 3-5 Years warranty products also available

9. 9
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing

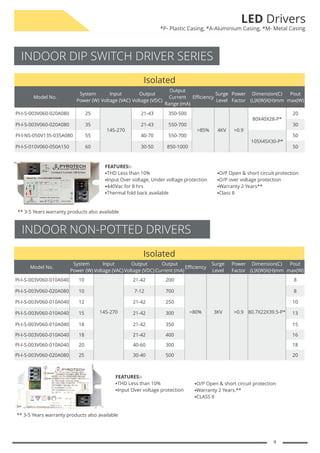

INDOOR DIP SWITCH DRIVER SERIES
** 3-5 Years warranty products also available
Isolated
Model No.
System
Power (W)
Input
Voltage (VAC)
Output
Voltage (VDC)
Output
Current
Range (mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-I-S-003V060-020A080 25
145-270
21-43 350-500
>85% 4KV >0.9
80X40X28-P*
20
PI-I-S-003V060-020A080 35 21-43 550-700 30
PI-I-NS-050V135-035A080 55 40-70 550-700
105X45X30-P*
50
PI-I-S-010V060-050A150 60 30-50 850-1000 50
FEATURES:-
§
O/P Open & short circuit protection §
Warranty 2 Years.
§
CLASS II
INDOOR NON-POTTED DRIVERS
FEATURES:-
§
THD Less than 10%
§
Input Over voltage protection
§
O/P Open & short circuit protection
§
Warranty 2 Years.**
§
CLASS II
Isolated
Model No.
System
Power (W)
Input
Voltage (VAC)
Output
Voltage (VDC)
Output
Current (mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-I-S-003V060-010A040 10
145-270
21-42 200
>80% 3KV >0.9 80.7X22X39.5-P*
8
PI-I-S-003V060-020A080 10 7-12 700 8
PI-I-S-003V060-010A040 12 21-42 250 10
PI-I-S-003V060-010A040 15 21-42 300 13
PI-I-S-003V060-010A040 18 21-42 350 15
PI-I-S-003V060-010A040 18 21-42 400 16
PI-I-S-003V060-010A040 20 40-60 300 18
PI-I-S-003V060-020A080 25 30-40 500 20
** 3-5 Years warranty products also available
FEATURES:-
§
THD Less than 10%
§
Input Over voltage, Under voltage protection
§
440Vac for 8 hrs
§
Thermal fold back available
§
O/P Open & short circuit protection
§
O/P over voltage protection
§
Warranty 2 Years**
§
Class II

10. 10
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing

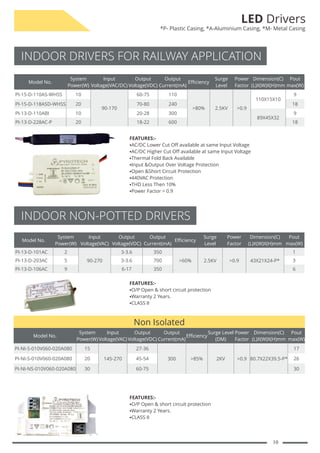

INDOOR DRIVERS FOR RAILWAY APPLICATION
Model No.
System
Power(W)
Input
Voltage(VAC/DC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-15-D-110AS-WHSS 10
90-170
60-75 110
>80% 2.5KV >0.9
110 15 10
X X
9
PI-15-D-118ASD-WHSS 20 70-80 240 18
PI-13-D-110ABI 10 20-28 300
89X45X32
9
PI-13-D-228AC-P 20 18-22 600 18
FEATURES:-
§
AC/DC Lower Cut Off available at same Input Voltage
§
AC/DC Higher Cut Off available at same Input Voltage
§
Thermal Fold Back Available
§
Input &Output Over Voltage Protection
§
Open &Short Circuit Protection
§
440VAC Protection
§
THD Less Then 10%
§
Power Factor > 0.9
INDOOR NON-POTTED DRIVERS
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-D-101AC 2
90-270
3-3.6 350
>60% 2.5KV >0.9 43 21 24
X X -P*
1
PI-13-D-203AC 5 3-3.6 700 3
PI-13-D-106AC 9 6-17 350 6
Non Isolated
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge Level
(DM)
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-NI-S-010V060-020A080 15
145-270
27-36
300 >85% 2KV >0.9 80.7X22X39.5-P*
17
PI-NI-S-010V060-020A080 20 45-54 26
PI-NI-NS-010V060-020A080 30 60-75 30
FEATURES:-
§
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS II
FEATURES:-
§
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS II

11. 11
TRIAC : Constant Current
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Dim
Mode
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-FD-004A 5
145-270
32-42 80
>80%
3KV
FD
90X43X24-P*
4
PI-13-FD-006A 9 32-42 150 6
PI-13-FD-009A 12 32-42 220 9
PI-13-FD-209A 20 28-50 350 17
PI-13-FD-109A 25 28-50 400 20
PI-13-FD-110A 25 28-50 450 22
PI-13-FD-120A 30 28-50 500 25
PI-13-FD-114A 20 27-42 350 17
PI-13-FD-215A 18 14-21 700 15
PI-13-FD-222A 30 24-50 550 27
PI-13-FD-227A 30 25-42 650
4KV 103X67X31-P*
28
PI-13-FD-128A 35 43-70 400 28
PI-13-FD-336A 45 25-36 1000 36

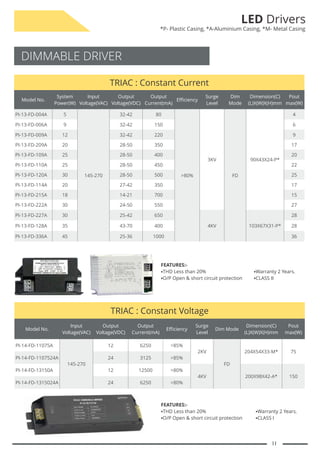

DIMMABLE DRIVER
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing
TRIAC : Constant Voltage
Model No.
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Dim Mode
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-14-FD-11075A
145-270
12 6250 >85%
2KV
FD
204X54X33-M* 75
PI-14-FD-1107524A 24 3125 >85%
PI-14-FD-13150A 12 12500 >80%
4KV 200X98X42-A* 150
PI-14-FD-1315024A 24 6250 >80%
FEATURES:-
§
THD Less than 20%
§
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS II
FEATURES:-
§
THD Less than 20%
§
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS I

12. 12
DIMMABLE DRIVER
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing
FEATURES:-
§
THD Less than 20%
§
O/P Open & short circuit protection
§
Warranty 2 Years.**
§
CLASS I, II
Analog / DALI : Constant Current
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge Level
(DM)
Dim
Mode
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-XD-115A 18
145-270
28-42 350
>85% 4KV XD
115X45X28-P*
15
PI-13-XD-215A 21 14-24 700 17
PI-13-XD-125A 30 48-70 350
140X45X28-P*
22
PI-13-XD-225A 30 24-36 700 25
PI-13-XD-240A 40 40-56 700
192X54X46-P*
34
PI-13-XD-340A 50 30-40 1000 43
PI030V110-020A200 70 27-42 1400 204X54X33-A* 60
PI030V110-020A200 60 60-70 700
120X60X46-A*
50
PI030V110-020A200 75 75-95 700 65
PI030V110-020A200 95 50-60 1400 84
PI-13-XD-395A 100 120-135 700
135X60X46-A*
95
PI-13-XD-3115A 120 145-165 700 115
Analog / DALI : Constant Current with 12VDC Auxiliary Supply
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current (mA)
Efficiency
Surge
Level
Dim
Mode
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI030V110-020A200-CWIP 45
145-270
48 850
>85% 4KV XD 112X63X35-A*
40
PI030V110-020A200-CWIP 50 36 1200 43
PI030V110-020A200-CWIP 50 96 450 45
PI030V110-020A200-CWIP 55 48 940 50
FEATURES:-
§
THD Less than 10%
§
O/P Open & short circuit protection
§
Warranty 2 Years.**
§
CLASS I
** 3-5 Years warranty products also available
** 3-5 Years warranty products also available
Analog / DALI : Constant Voltage
Model No.
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Dim
Mode
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-14-XD-11075A
145-270
12 6250
>87% 2KV
XD
204X54X33-M*
75
PI-14-XD-1107524A 24 3125 75
PI-14-XD-13150A 12 12500
>85% 4KV 200X98X42-A*
150
PI-14-XD-1315024A 24 6250 150
For Indoor Application For Outdoor Application

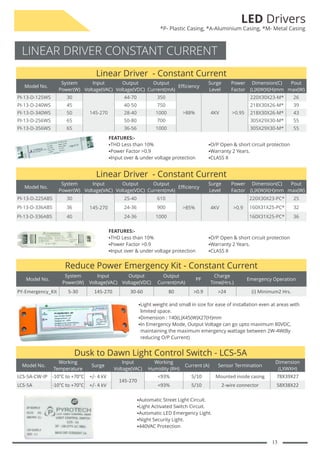

13. Reduce Power Emergency Kit - Constant Current
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
PF
Charge
Time(Hrs.)
Emergency Operation
PY-Emergency_Kit 5-30 145-270 30-60 80 >0.9 >24 (i) Minimum2 Hrs.
§
Light weight and small in size for ease of installation even at areas with
limited space.
§
Dimension : 140(L)X45(W)X27(H)mm
§
In Emergency Mode, Output Voltage can go upto maximum 80VDC,
maintaining the maximum emergency wattage between 2W-4W(By
reducing O/P Current)
Dusk to Dawn Light Control Switch - LCS-5A
Model No.
Working
Temperature
Surge
Input
Voltage(VAC)
Working
Humidity (RH)
Current (A) Sensor Termination
Dimension
(LXWXH)
LCS-5A-CW-IP -10°C to +70°C +/- 4 kV
145-270
<93% 5/10 Mounted inside casing 78X39X27
LCS-5A -10°C to +70°C +/- 4 kV <93% 5/10 2-wire connector 58X38X22
§
Automatic Street Light Circuit.
§
Light Activated Switch Circuit.
§
Automatic LED Emergency Light.
§
Night Security Light.
§
440VAC Protection
Linear Driver - Constant Current
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-D-125WS 30
145-270
44-70 350
>88% 4KV >0.95
220X30X23-M* 26
PI-13-D-240WS 45 40-50 750 218X30X26-M* 39
PI-13-D-340WS 50 28-40 1000 218X30X26-M* 43
PI-13-D-256WS 65 50-80 700 305X29X30-M* 55
PI-13-D-356WS 65 36-56 1000 305X29X30-M* 55
FEATURES:-
§
THD Less than 10%
§
Power Factor >0.9
§
Input over & under voltage protection
§
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS II
FEATURES:-
§
THD Less than 10%
§
Power Factor >0.9
§
Input over & under voltage protection
§
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS II
Linear Driver - Constant Current
Model No.
System
Power(W)
Input
Voltage(VAC)
Output
Voltage(VDC)
Output
Current(mA)
Efficiency
Surge
Level
Power
Factor
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-13-D-225ABS 30
145-270
25-40 610
>85% 4KV >0.9
220X30X23-PC* 25
PI-13-D-336ABS 36 24-36 900 160X31X25-PC* 32
PI-13-D-336ABS 40 24-36 1000 160X31X25-PC* 36
13
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing
LINEAR DRIVER CONSTANT CURRENT

14. 14
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing

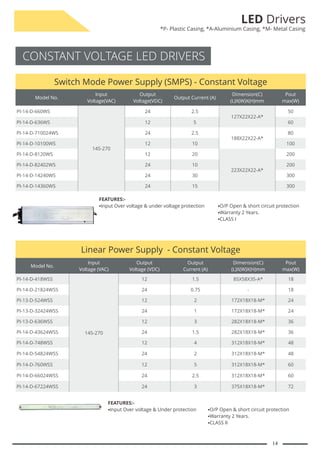

CONSTANT VOLTAGE LED DRIVERS
Switch Mode Power Supply (SMPS) - Constant Voltage
Model No.
Input
Voltage(VAC)
Output
Voltage(VDC)
Output Current (A)
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-14-D-660WS
145-270
24 2.5
127X22X22-A*
50
PI-14-D-636WS 12 5 60
PI-14-D-710024WS 24 2.5
188X22X22-A*
80
PI-14-D-10100WS 12 10 100
PI-14-D-8120WS 12 20
223X22X22-A*
200
PI-14-D-82402WS 24 10 200
PI-14-D-14240WS 24 30 300
PI-14-D-14360WS 24 15 300
FEATURES:-
§
Input Over voltage & under voltage protection §
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS I
Linear Power Supply - Constant Voltage
Model No.
Input
Voltage (VAC)
Output
Voltage (VDC)
Output
Current (A)
Dimension(C)
(L)X(W)X(H)mm
Pout
max(W)
PI-14-D-418WSS
145-270
12 1.5 85X58X35-A* 18
PI-14-D-21824WSS 24 0.75 - 18
PI-13-D-524WSS 12 2 172X18X18-M* 24
PI-13-D-32424WSS 24 1 172X18X18-M* 24
PI-13-D-636WSS 12 3 282X18X18-M* 36
PI-14-D-43624WSS 24 1.5 282X18X18-M* 36
PI-14-D-748WSS 12 4 312X18X18-M* 48
PI-14-D-54824WSS 24 2 312X18X18-M* 48
PI-14-D-760WSS 12 5 312X18X18-M* 60
PI-14-D-66024WSS 24 2.5 312X18X18-M* 60
PI-14-D-67224WSS 24 3 375X18X18-M* 72
FEATURES:-
§
Input Over voltage & Under protection §
O/P Open & short circuit protection
§
Warranty 2 Years.
§
CLASS II

15. 15
SPECIAL PRODUCTS
FEATURES:-
§
Series Connected
§
Compact Size
Surge Protection Device
Model No.
Input Voltage
(VAC)
Max Continuous
Operating VAC
Max. Surge
Current (KA)
Surge
Level (KV)
Dimension(C)
(L)X(W)X(H)mm (A/B)
IP Rating
PI-13-D-SPD-10KV-5KA
240
440 5 ±10 44X27X30 / 87X31.5X18 IP-65
PI-13-D-SPD-10KV-10KA 440 10 ±10 44X27X30 / 87X31.5X18 IP-65
PI-13-D-SPD-20KV-20KA 440 20 ±20 48X48X22 IP-65
LED Drivers
*P- Plastic Casing, *A-Aluminium Casing, *M- Metal Casing
Especially for LED applications with an existing DC current already available, Pyrotech offers DC-DC
LED drivers or DC-DC converters, to deliver the required DC voltage for powering LED. Mainly these
DC-DC LED drivers are of the Constant Current type, with wide input and output ranges and high
efficiency.
DC TO DC LED DRIVER
Model No.
System
Power (W)
Input
Voltage (VDC)
Output Voltage
(VDC)
Output Current
(mA)
Efficiency
Dimension(O)
(L)X(W)X(H)mm
Pout
max(W)
PI-17-A-110AS 12
12
16-30 350
>85%
39X20X18 10
PI-17-A-220A 23 14-28 700 39X20X18 20
PI-17-A-220A 30 16-36 700 64X36X29 25
PI-17-B-111AS 15
24
24-33 350 64X36X25 11
PI-17-B-180A 20 28-53 350 64X36X25 18
PI-17-B-225A 30 26-36 700 85X39X25 25
PI-17-B-360A 70 50-60 1000 85X39X25 60
PI-13-G-336A 40 48 20-36 1000 82X62X30 36
AC TO DC LED DRIVER
Model No.
System
Power (W)
Input
Voltage (VAC)
Output Voltage
(VDC)
Output Current
(mA)
Efficiency
Dimension(O)
(L)X(W)X(H)mm
Pout
max(W)
PI-17-E-106AS 8
24
12-18 350 >85% 39X20X18 6
PI-17-E-212A 15 15-18 700 >85% 39X20X18 12
PI-17-E-317A 20 12-17 1000 >80% 64X36X29 17
PI-17-E-120A 25 42-56 650 >80% 64X36X25 20
PI-17-E-250A 50 50-60 750 >80% 85X39X25 45
PI-17-E-370A 80 60-70 1000 >85% 85X39X25 70
AC to DC LED drivers are used to convert alternating current (AC) voltage from power sources into
direct current (DC) voltage required for powering LED lighting systems in various applications,
including residential, commercial, automotive, and industrial lighting.

16. Sensors

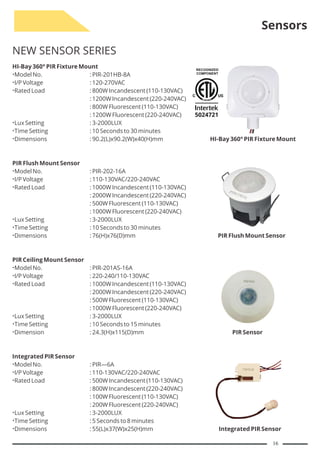

NEW SENSOR SERIES
HI-Bay 360° PIR Fixture Mount
Model No. : PIR-201HB-8A
I/P Voltage : 120-270VAC
Rated Load : 800W Incandescent (110-130VAC)
: 1200W Incandescent (220-240VAC)
: 800W Fluorescent (110-130VAC)
: 1200W Fluorescent (220-240VAC)
Lux Setting : 3-2000LUX
Time Setting : 10 Seconds to 30 minutes
Dimensions : 90.2(L)x90.2(W)x40(H)mm HI-Bay 360° PIR Fixture Mount
PIR Flush Mount Sensor
Model No. : PIR-202-16A
I/P Voltage : 110-130VAC/220-240VAC
Rated Load : 1000W Incandescent (110-130VAC)
: 2000W Incandescent (220-240VAC)
: 500W Fluorescent (110-130VAC)
: 1000W Fluorescent (220-240VAC)
Lux Setting : 3-2000LUX
Time Setting : 10 Seconds to 30 minutes
Dimensions : 76(H)x76(D)mm PIR Flush Mount Sensor
PIR Ceiling Mount Sensor
Model No. : PIR-201AS-16A
I/P Voltage : 220-240/110-130VAC
Rated Load : 1000W Incandescent (110-130VAC)
: 2000W Incandescent (220-240VAC)
: 500W Fluorescent (110-130VAC)
: 1000W Fluorescent (220-240VAC)
Lux Setting : 3-2000LUX
Time Setting : 10 Seconds to 15 minutes
Dimension : 24.3(H)x115(D)mm PIR Sensor
Integrated PIR Sensor
Model No. : PIR—6A
I/P Voltage : 110-130VAC/220-240VAC
Rated Load : 500W Incandescent (110-130VAC)
: 800W Incandescent (220-240VAC)
: 100W Fluorescent (110-130VAC)
: 200W Fluorescent (220-240VAC)
Lux Setting : 3-2000LUX
Time Setting : 5 Seconds to 8 minutes
Dimensions : 55(L)x37(W)x25(H)mm Integrated PIR Sensor
16

17. Sensors

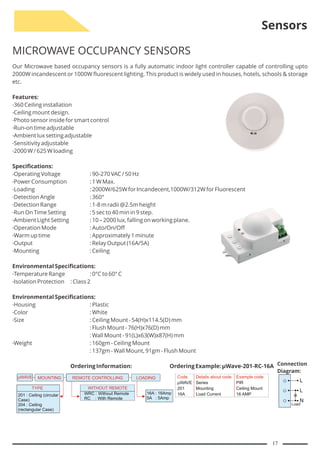

MICROWAVE OCCUPANCY SENSORS
Our Microwave based occupancy sensors is a fully automatic indoor light controller capable of controlling upto
2000W incandescent or 1000W fluorescent lighting. This product is widely used in houses, hotels, schools & storage
etc.
Features:
360 Ceiling installation
Ceiling mount design.
Photo sensor inside for smart control
Run-on time adjustable
Ambient lux setting adjustable
Sensitivity adjustable
2000 W / 625 W loading
Specifications:
Operating Voltage : 90-270 VAC / 50 Hz
Power Consumption : 1 W Max.
Loading : 2000W/625W for Incandecent,1000W/312W for Fluorescent
Detection Angle : 360°
Detection Range : 1-8 m radii @2.5m height
Run On Time Setting : 5 sec to 40 min in 9 step.
Ambient Light Setting : 10 – 2000 lux, falling on working plane.
Operation Mode : Auto/On/Off
Warm up time : Approximately 1 minute
Output : Relay Output (16A/5A)
Mounting : Ceiling
Environmental Specifications:
Temperature Range : 0°C to 60° C
Isolation Protection : Class 2
Environmental Specifications:
Housing : Plastic
Color : White
Size : Ceiling Mount - 54(H)x114.5(D) mm
: Flush Mount - 76(H)x76(D) mm
: Wall Mount - 91(L)x63(W)x87(H) mm
Weight : 160gm - Ceiling Mount
: 137gm - Wall Mount, 91gm - Flush Mount
Ordering Information: Ordering Example: µWave-201-RC-16A
µWAVE MOUNTING REMOTE CONTROLLING LOADING
WITHOUT REMOTE
WRC : Without Remote
RC : With Remote
Code Details about code Example code
µWAVE Series PIR
201 Mounting Ceiling Mount
16A Load Current 16 AMP
16A : 16Amp
5A : 5Amp
Connection
Diagram:
TYPE
201 : Ceiling (circular
Case)
204 : Ceiling
(rectangular Case)
L
L
N
Load
17

18. 18
Sensors

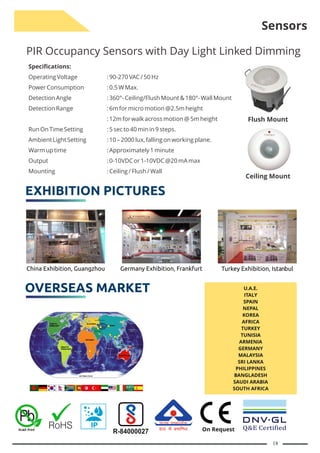

Specifications:
Operating Voltage : 90-270 VAC / 50 Hz
Power Consumption : 0.5 W Max.
Detection Angle : 360°- Ceiling/Flush Mount & 180°- Wall Mount
Detection Range : 6m for micro motion @2.5m height
: 12m for walk across motion @ 5m height
Run On Time Setting : 5 sec to 40 min in 9 steps.
Ambient Light Setting : 10 – 2000 lux, falling on working plane.
Warm up time : Approximately 1 minute
Output : 0-10VDC or 1-10VDC @20 mA max
Mounting : Ceiling / Flush / Wall
PIR Occupancy Sensors with Day Light Linked Dimming
Flush Mount
Ceiling Mount
U.A.E.
ITALY
SPAIN
NEPAL
KOREA
AFRICA
TURKEY
TUNISIA
ARMENIA
GERMANY
MALAYSIA
SRI LANKA
BANGLADESH
SAUDI ARABIA
SOUTH AFRICA
PHILIPPINES
On Request

19. §

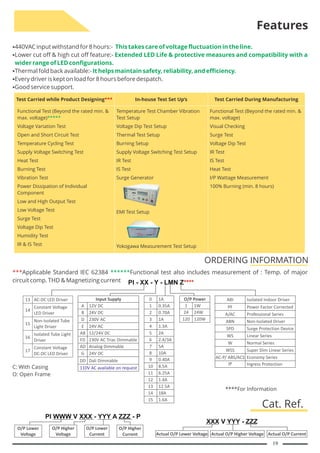

440VAC input withstand for 8 hours:-
§
Lower cut off & high cut off feature:-
§
Thermal fold back available:-
§
Every driver is kept on load for 8 hours before despatch.
§
Good service support.
Applicable Standard IEC 62384 Functional test also includes measurement of : Temp. of major
circuit comp. THD & Magnetizing current
C: With Casing
O: Open Frame
****For Information
This takes care of voltage fluctuation in the line.
Extended LED Life & protective measures and compatibility with a
wider range of LED configurations.
It helps maintain safety, reliability, and efficiency.
******
***
Features
Test Carried while Product Designing*** In-house Test Set Up’s Test Carried During Manufacturing
Functional Test (Beyond the rated min. &
max. voltage)
Voltage Variation Test
Open and Short Circuit Test
Temperature Cycling Test
Supply Voltage Switching Test
Heat Test
Burning Test
Vibration Test
Power Dissipation of Individual
Component
Low and High Output Test
Low Voltage Test
Surge Test
Voltage Dip Test
Humidity Test
IR & IS Test
*****
Temperature Test Chamber Vibration
Test Setup
Voltage Dip Test Setup
Thermal Test Setup
Burning Setup
Supply Voltage Switching Test Setup
IR Test
IS Test
Surge Generator
EMI Test Setup
Yokogawa Measurement Test Setup
Functional Test (Beyond the rated min. &
max. voltage)
Visual Checking
Surge Test
Voltage Dip Test
IR Test
IS Test
Heat Test
I/P Wattage Measurement
100% Burning (min. 8 hours)
ORDERING INFORMATION
PI - XX - Y - LMN Z****
0 1A
1 0.35A
2 0.70A
3 1A
4 1.3A
5 2A
6 2.4/3A
7 5A
8 10A
9 0.40A
10 8.5A
11 6.25A
12 1.4A
13 12.5A
14 18A
15 1.6A
ABI Isolated Indoor Driver
PF Power Factor Corrected
A/AC Professional Series
ABN Non-Isolated Driver
SPD Surge Protection Device
WS Linear Series
W Normal Series
WSS Super Slim Linear Series
AC-P/ ABS/ACS Economy Series
IP Ingress Protection
13 AC-DC LED Driver
14
Constant Voltage
LED Driver
15
Non-Isolated Tube
Light Driver
16
Isolated Tube Light
Driver
17
Constant Voltage
DC-DC LED Driver
Input Supply
A 12V DC
B 24V DC
D 230V AC
E 24V AC
AB 12/24V DC
FD 230V AC Triac Dimmable
AD Analog Dimmable
G 24V DC
DD Dali Dimmable
110V AC available on request
O/P Power
1 1W
24 24W
120 120W
Actual O/P Lower Voltage
XXX V YYY - ZZZ
Actual O/P Higher Voltage Actual O/P Current
Cat. Ref.
O/P Lower
Voltage
PI WWW V XXX - YYY A ZZZ - P
O/P Higher
Voltage
O/P Lower
Current
O/P Higher
Current
19

20. Manufactured By:
PYROTECH ELECTRONICS PVT. LTD. (UNIT-1)
F-16 A, Road No. 3, Mewar Industrial Area,
Udaipur - 313003, Rajasthan, India
Contact: +91-294-2492123/24, +91-93511-53710
Email:- leddriver@peplelectronics.com
Website: www.peplelectronics.com, www.pyrotechlighting.com
AN ISO 9001:2015, 14001:2015 CERTIFIED COMPANY
Since 1976
North India: +91-93516-88541, East-South-West India: +91-95297-77818, +91-93511-18101
