Voltga operates mobile entertainment and gaming apps and has a new data center located in the basement of a building. The data center uses an innovative liquid cooling system called the CarnotJet System that does not require raised floors or hot/cold aisles. It has 1000 sq ft of space, security features, servers, storage, networking equipment from Cisco and AT&T, and uses a Liebert UPS and Black Box PDUs. The CarnotJet System provides fast, energy efficient cooling and is easy to scale. It has a return on investment of under 3 years when factoring in power and cooling savings over 5 years.
Di_Yindatacenterfinal
- 1.
- 2. Mobile Entertainments • socialnetworking/dating && gaming • Currently using AWS • 5 million investment • 6 emplyees - Social Networking/ Dating /IM - Voltga 1 millionusers - 2 Gaming Apps (on the way)
- 3. Data Center Cool 1000 sq.ft basement of a building brand new extraordinary Green

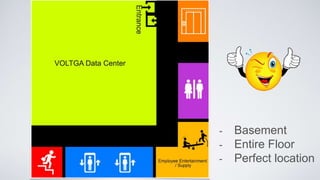

- 4. - Basement - EntireFloor - Perfect location
- 5. ELECTROSAFE LIQUID COOLANT The Most Innovative& Revolutionary THE CARNOTJET SYSTEM • Fast Deployment • Extremely Energy Efficien • No raised floor needed • No hot aisle or cold aisle • Modular

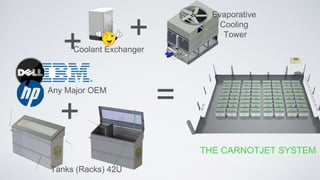

- 6. + + + Any MajorOEM = THE CARNOTJET SYSTEM Coolant Exchanger Evaporative Cooling Tower Tanks (Racks) 42U

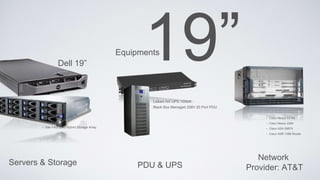

- 7. Equipments Servers & Storage •Liebert NX UPS 100kW • Black Box Managed 208V 20 Port PDU Dell 19” • San FAS 2543 Hybrid Storage Array PDU & UPS Network Provider: AT&T • Cisco Nexus 53160 • Cisco Nexus 2284 • Cisco ASA 5987X • Cisco ASR 1098 Router

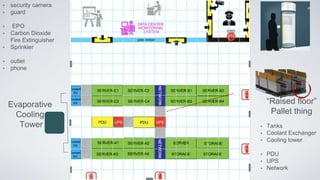

- 8. Evaporative Cooling Tower • security camera •guard • EPO • Carbon Dioxide Fire Extinguisher • Sprinkler • outlet • phone • Tanks • Coolant Exchanger • Cooling tower • PDU • UPS • Network “Raised floor” Pallet thing

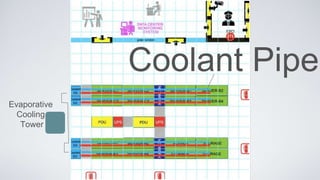

- 9.

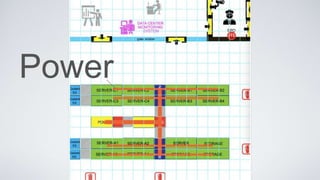

- 10.
- 11.

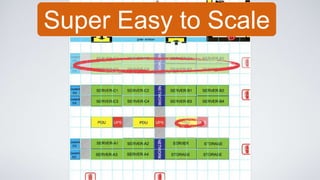

- 12. Super Easy toScale

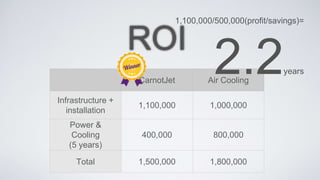

- 13. ROI CarnotJet Air Cooling Infrastructure+ installation 1,100,000 1,000,000 Power & Cooling (5 years) 400,000 800,000 Total 1,500,000 1,800,000 1,100,000/500,000(profit/savings)= years
- 14. Green Solution THE CARNOTJETSYSTEM Solar additional 350,000 + 1,450,000/500,000=2.9years ROI
- 15.
