2. All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
2 | Diamond Kote®
Product Guide

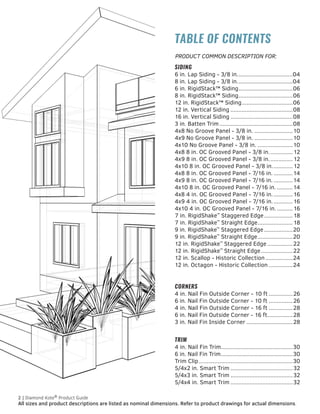

TABLE OF CONTENTS
SIDING

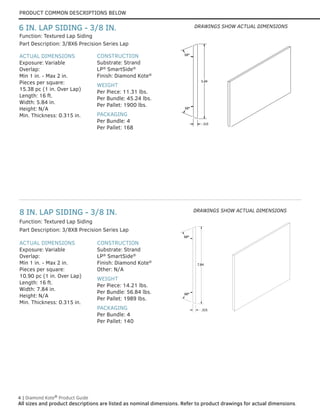

6 in. Lap Siding - 3/8 in....................................04
8 in. Lap Siding - 3/8 in....................................04
6 in. RigidStack™ Siding...................................06
8 in. RigidStack™ Siding...................................06
12 in. RigidStack™ Siding.................................06

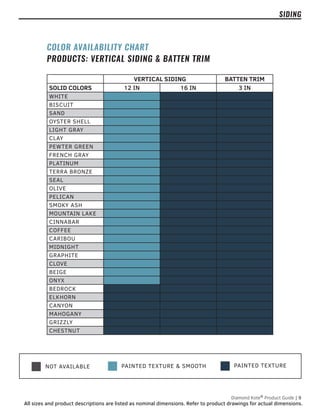

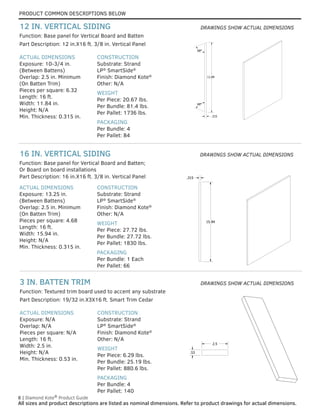

12 in. Vertical Siding........................................08
16 in. Vertical Siding........................................08
3 in. Batten Trim...............................................08

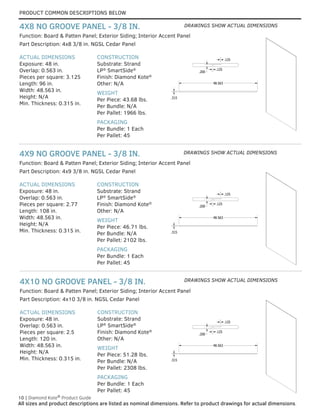

4x8 No Groove Panel - 3/8 in..........................10
4x9 No Groove Panel - 3/8 in..........................10
4x10 No Groove Panel - 3/8 in........................10

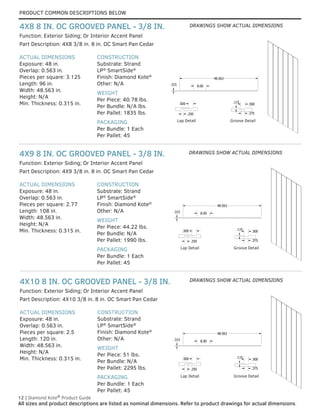

4x8 8 in. OC Grooved Panel - 3/8 in................12
4x9 8 in. OC Grooved Panel - 3/8 in................12
4x10 8 in. OC Grooved Panel - 3/8 in..............12

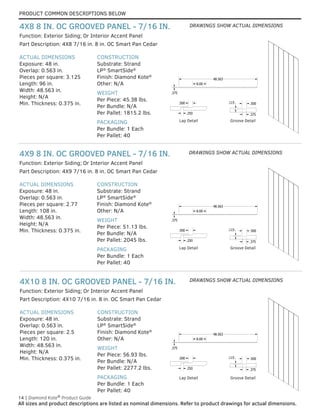

4x8 8 in. OC Grooved Panel - 7/16 in..............14
4x9 8 in. OC Grooved Panel - 7/16 in..............14
4x10 8 in. OC Grooved Panel - 7/16 in............14

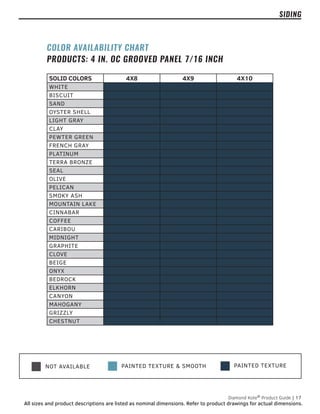

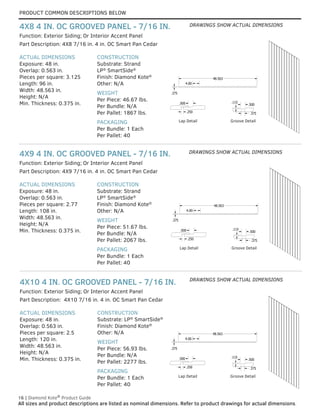

4x8 4 in. OC Grooved Panel - 7/16 in..............16
4x9 4 in. OC Grooved Panel - 7/16 in..............16
4x10 4 in. OC Grooved Panel - 7/16 in............16

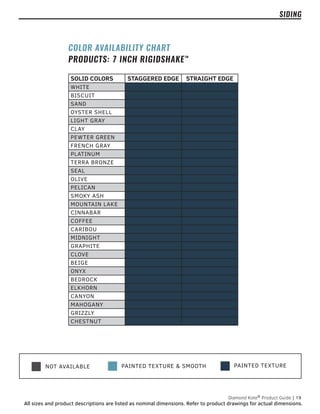

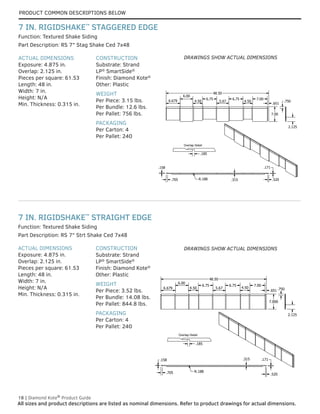

7 in. RigidShake™
Staggered Edge...................18
7 in. RigidShake™
Straight Edge.......................18

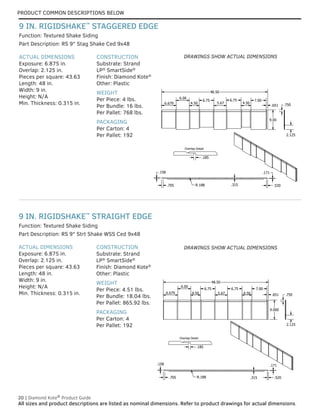

9 in. RigidShake™
Staggered Edge...................20
9 in. RigidShake™
Straight Edge.......................20

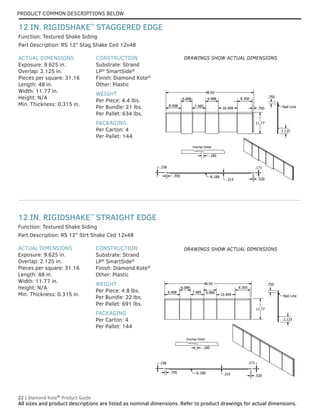

12 in. RigidShake™
Staggered Edge.................22
12 in. RigidShake™
Straight Edge.....................22

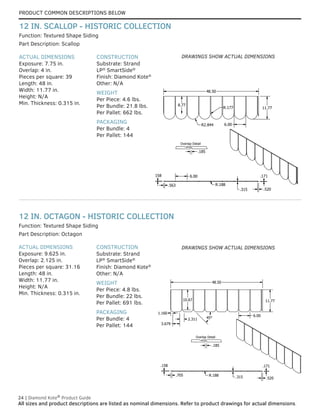

12 in. Scallop - Historic Collection..................24
12 in. Octagon - Historic Collection................24
CORNERS

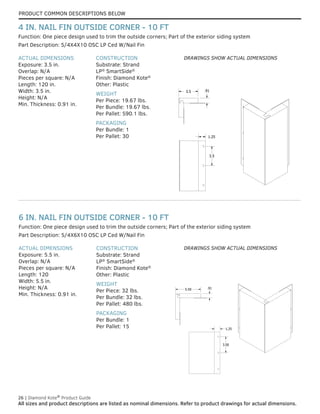

4 in. Nail Fin Outside Corner - 10 ft................26
6 in. Nail Fin Outside Corner - 10 ft................26

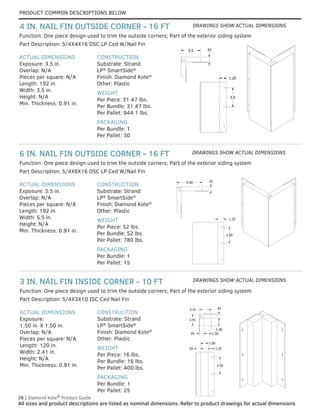

4 in. Nail Fin Outside Corner - 16 ft................28
6 in. Nail Fin Outside Corner - 16 ft.................28
3 in. Nail Fin Inside Corner..............................28
TRIM

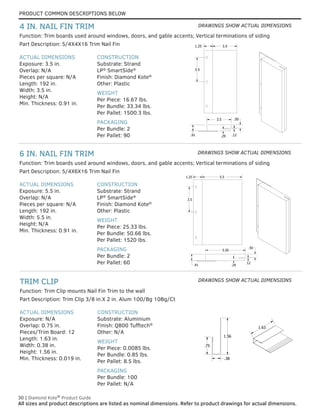

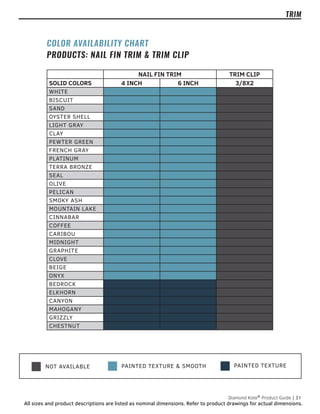

4 in. Nail Fin Trim..............................................30
6 in. Nail Fin Trim..............................................30
Trim Clip............................................................30

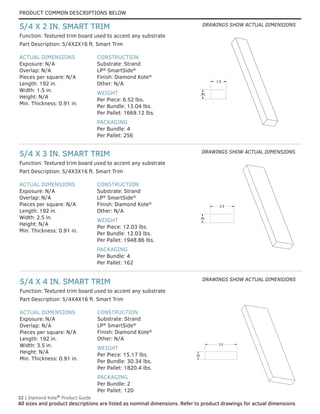

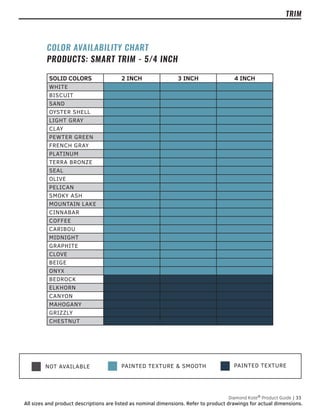

5/4x2 in. Smart Trim........................................32
5/4x3 in. Smart Trim........................................32
5/4x4 in. Smart Trim........................................32

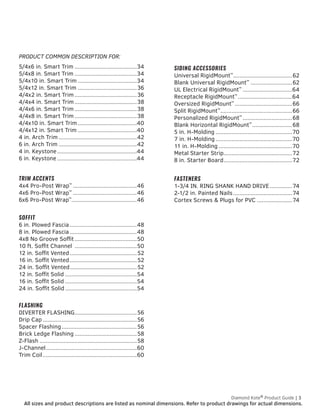

PRODUCT COMMON DESCRIPTION FOR:
3. All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Diamond Kote®
Product Guide | 3
5/4x6 in. Smart Trim........................................34
5/4x8 in. Smart Trim........................................34
5/4x10 in. Smart Trim......................................34

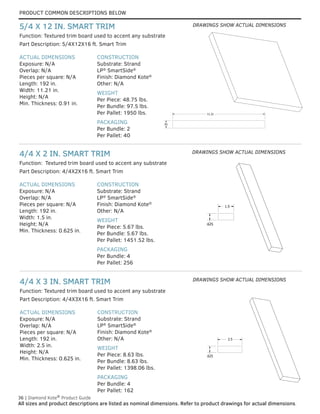

5/4x12 in. Smart Trim......................................36
4/4x2 in. Smart Trim........................................36
4/4x4 in. Smart Trim........................................38
4/4x6 in. Smart Trim........................................38
4/4x8 in. Smart Trim........................................38

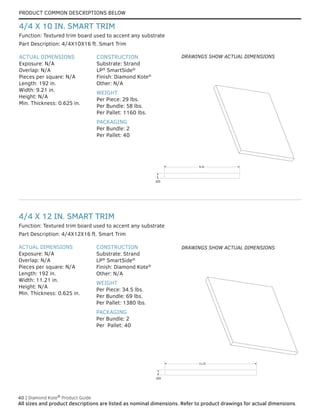

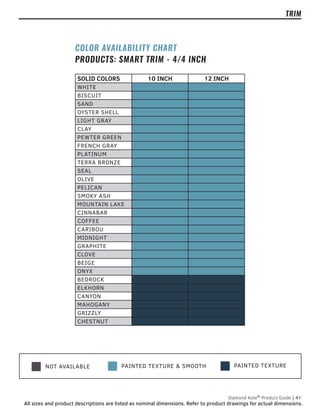

4/4x10 in. Smart Trim......................................40
4/4x12 in. Smart Trim......................................40

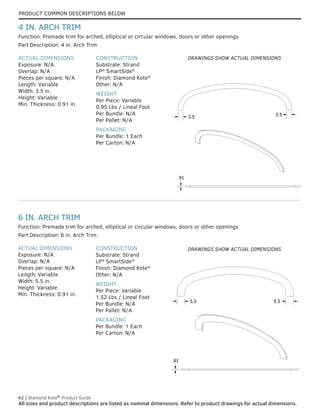

4 in. Arch Trim..................................................42
6 in. Arch Trim..................................................42

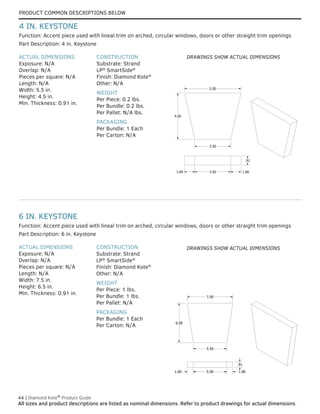

4 in. Keystone...................................................44
6 in. Keystone...................................................44
TRIM ACCENTS

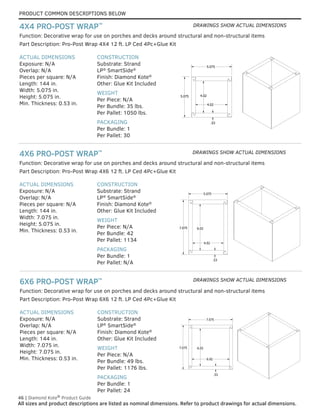

4x4 Pro-Post Wrap™
.........................................46
4x6 Pro-Post Wrap™
.........................................46
6x6 Pro-Post Wrap™
.........................................46
SOFFIT

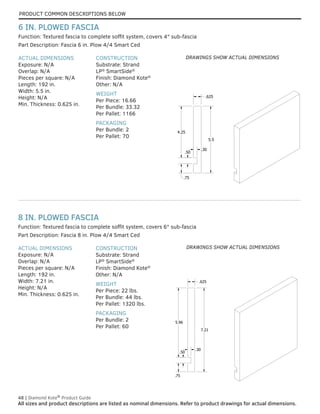

6 in. Plowed Fascia...........................................48
8 in. Plowed Fascia...........................................48

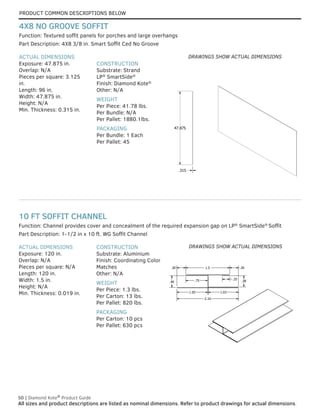

4x8 No Groove Soffit........................................50
10 ft. Soffit Channel ........................................50

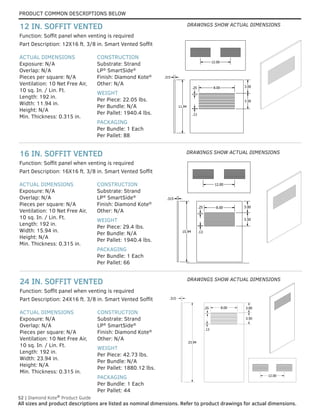

12 in. Soffit Vented...........................................52
16 in. Soffit Vented...........................................52
24 in. Soffit Vented...........................................52

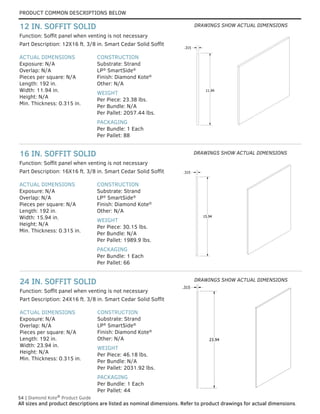

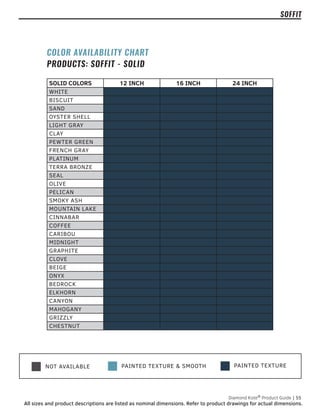

12 in. Soffit Solid..............................................54
16 in. Soffit Solid..............................................54
24 in. Soffit Solid..............................................54
FLASHING

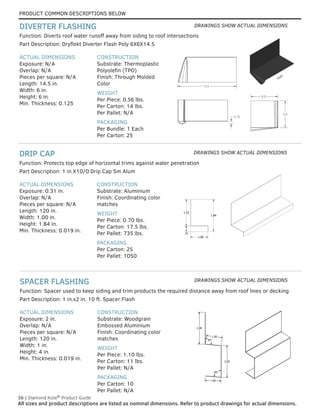

DIVERTER FLASHING........................................56
Drip Cap............................................................56
Spacer Flashing................................................56

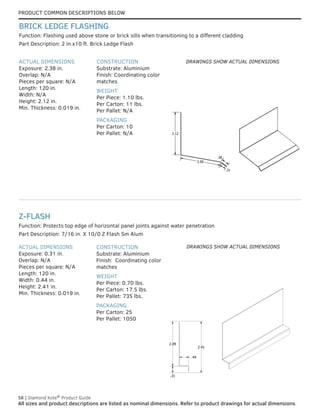

Brick Ledge Flashing........................................58
Z-Flash..............................................................58

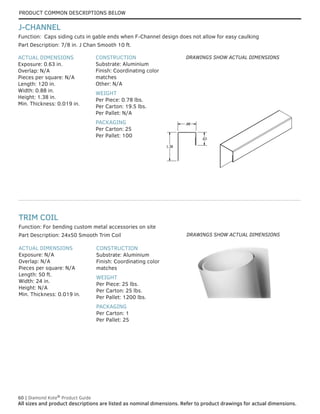

J-Channel..........................................................60
Trim Coil............................................................60
SIDING ACCESSORIES

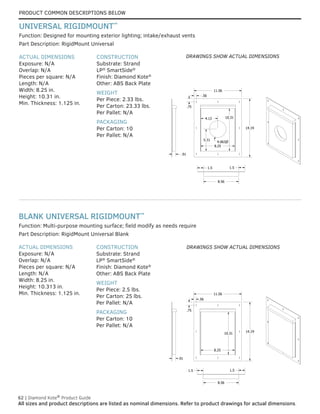

Universal RigidMount™
......................................62
Blank Universal RigidMount™
...........................62

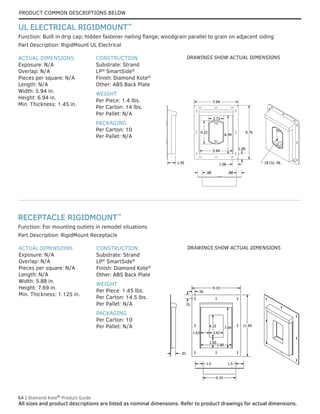

UL Electrical RigidMount™
................................64
Receptacle RigidMount™
...................................64

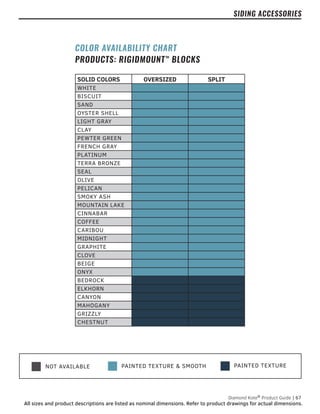

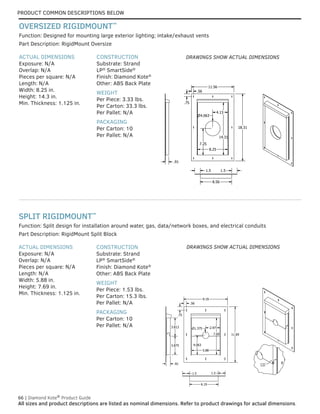

Oversized RigidMount™
.....................................66
Split RigidMount™
..............................................66

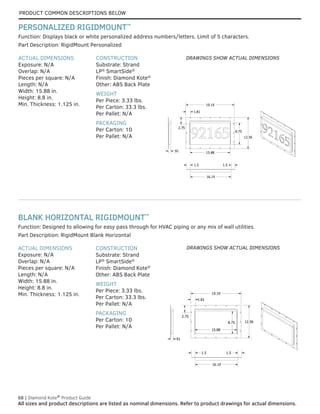

Personalized RigidMount™
................................68
Blank Horizontal RigidMount™
..........................68
5 in. H-Molding.................................................70
7 in. H-Molding.................................................70
11 in. H-Molding...............................................70

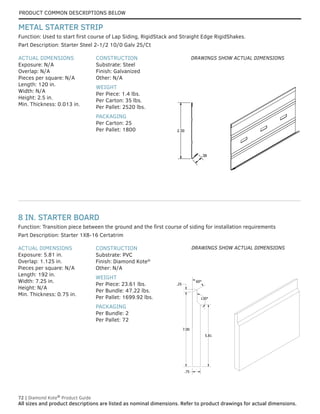

Metal Starter Strip...........................................72
8 in. Starter Board............................................72

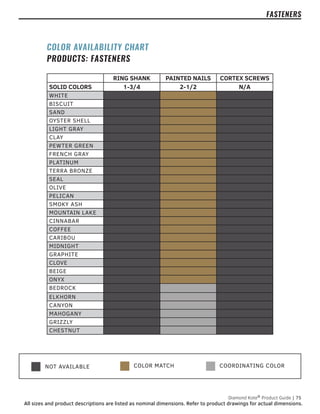

FASTENERS
1-3/4 IN. RING SHANK HAND DRIVE...............74
2-1/2 in. Painted Nails......................................74
Cortex Screws & Plugs for PVC.......................74
PRODUCT COMMON DESCRIPTION FOR:
4. PRODUCT COMMON DESCRIPTIONS BELOW
4 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
6 IN. LAP SIDING - 3/8 IN.
ACTUAL DIMENSIONS
Exposure: Variable
Overlap:
Min 1 in. - Max 2 in.
Pieces per square:
15.38 pc (1 in. Over Lap)
Length: 16 ft.
Width: 5.84 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
WEIGHT
Per Piece: 11.31 lbs.
Per Bundle: 45.24 lbs.
Per Pallet: 1900 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 168
Part Description: 3/8X6 Precision Series Lap
Function: Textured Lap Siding
5.84
.315
68°
68°
5.84
.315
68°
68°
DRAWINGS SHOW ACTUAL DIMENSIONS
.315
7.84
68°
68°
.315
7.84
68°
68°
8 IN. LAP SIDING - 3/8 IN.
ACTUAL DIMENSIONS
Exposure: Variable
Overlap:
Min 1 in. - Max 2 in.
Pieces per square:
10.90 pc (1 in. Over Lap)
Length: 16 ft.
Width: 7.84 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 14.21 lbs.
Per Bundle: 56.84 lbs.
Per Pallet: 1989 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 140
Part Description: 3/8X8 Precision Series Lap
Function: Textured Lap Siding
DRAWINGS SHOW ACTUAL DIMENSIONS

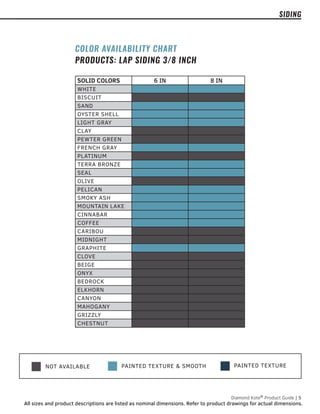

5. Diamond Kote®
Product Guide | 5
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS 6 IN 8 IN
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: LAP SIDING 3/8 INCH

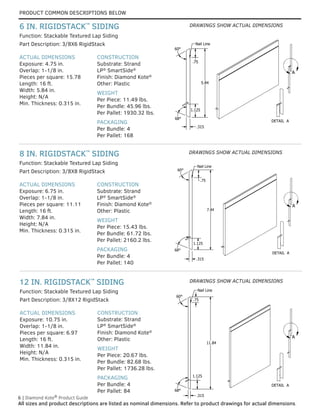

6. PRODUCT COMMON DESCRIPTIONS BELOW
6 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
DETAIL A
A
5.84
1.125
.315
60°
.75
Nail Line
68°
DETAIL A
A
5.84
1.125
.315
60°
.75
Nail Line
68°
ACTUAL DIMENSIONS
Exposure: 10.75 in.
Overlap: 1-1/8 in.
Pieces per square: 6.97
Length: 16 ft.
Width: 11.84 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 20.67 lbs.
Per Bundle: 82.68 lbs.
Per Pallet: 1736.28 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 84
Part Description: 3/8X12 RigidStack
Function: Stackable Textured Lap Siding
ACTUAL DIMENSIONS
Exposure: 6.75 in.
Overlap: 1-1/8 in.
Pieces per square: 11.11
Length: 16 ft.
Width: 7.84 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 15.43 lbs.
Per Bundle: 61.72 lbs.
Per Pallet: 2160.2 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 140
Part Description: 3/8X8 RigidStack
Function: Stackable Textured Lap Siding
ACTUAL DIMENSIONS
Exposure: 4.75 in.
Overlap: 1-1/8 in.
Pieces per square: 15.78
Length: 16 ft.
Width: 5.84 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 11.49 lbs.
Per Bundle: 45.96 lbs.
Per Pallet: 1930.32 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 168
Part Description: 3/8X6 RigidStack
Function: Stackable Textured Lap Siding
12 IN. RIGIDSTACK™
SIDING
8 IN. RIGIDSTACK™
SIDING
6 IN. RIGIDSTACK™
SIDING
DETAIL A
A
7.84
.75
1.125
Nail Line
.315
68°
60°
DETAIL A
A
7.84
.75
1.125
Nail Line
.315
68°
60°
DETAIL A
A
11.84
1.125
.315
.75
Nail Line
68°
60°
DETAIL A
A
11.84
1.125
.315
.75
Nail Line
68°
60°
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
7. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 7
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.

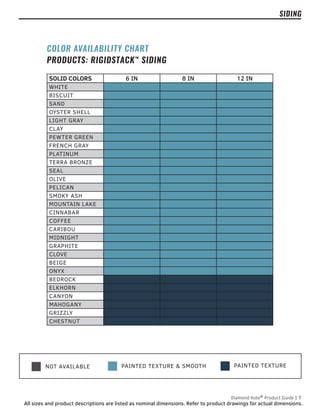

COLOR AVAILABILITY CHART
PRODUCTS: RIGIDSTACK™
SIDING
SOLID COLORS 6 IN 8 IN 12 IN
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
SIDING
8. PRODUCT COMMON DESCRIPTIONS BELOW
8 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
.315
11.84
68°
68°
.315
11.84
68°
68°
.53
2.5
.53
2.5
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 16 ft.
Width: 2.5 in.
Height: N/A
Min. Thickness: 0.53 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 6.29 lbs.
Per Bundle: 25.19 lbs.
Per Pallet: 880.6 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 140
Part Description: 19/32 in.X3X16 ft. Smart Trim Cedar
Function: Textured trim board used to accent any substrate
3 IN. BATTEN TRIM
ACTUAL DIMENSIONS
Exposure: 13.25 in.
(Between Battens)
Overlap: 2.5 in. Minimum
(On Batten Trim)
Pieces per square: 4.68
Length: 16 ft.
Width: 15.94 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 27.72 lbs.
Per Bundle: 27.72 lbs.
Per Pallet: 1830 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 66
Part Description: 16 in.X16 ft. 3/8 in. Vertical Panel
Function: Base panel for Vertical Board and Batten;
Or Board on board installations
16 IN. VERTICAL SIDING
ACTUAL DIMENSIONS
Exposure: 10-3/4 in.
(Between Battens)
Overlap: 2.5 in. Minimum
(On Batten Trim)
Pieces per square: 6.32
Length: 16 ft.
Width: 11.84 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 20.67 lbs.
Per Bundle: 81.4 lbs.
Per Pallet: 1736 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 84
Part Description: 12 in.X16 ft. 3/8 in. Vertical Panel
Function: Base panel for Vertical Board and Batten
12 IN. VERTICAL SIDING
15.94
.315
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
9. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 9
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SIDING
VERTICAL SIDING BATTEN TRIM
SOLID COLORS 12 IN 16 IN 3 IN
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: VERTICAL SIDING & BATTEN TRIM
10. PRODUCT COMMON DESCRIPTIONS BELOW
10 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.5
Length: 120 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 51.28 lbs.
Per Bundle: N/A
Per Pallet: 2308 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 45
Part Description: 4x10 3/8 in. NGSL Cedar Panel
Function: Board & Patten Panel; Exterior Siding; Interior Accent Panel
4X10 NO GROOVE PANEL - 3/8 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.77
Length: 108 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 46.71 lbs.
Per Bundle: N/A
Per Pallet: 2102 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 45
Part Description: 4x9 3/8 in. NGSL Cedar Panel
Function: Board & Patten Panel; Exterior Siding; Interior Accent Panel
4X9 NO GROOVE PANEL - 3/8 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 3.125
Length: 96 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 43.68 lbs.
Per Bundle: N/A
Per Pallet: 1966 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 45
Part Description: 4x8 3/8 in. NGSL Cedar Panel
Function: Board & Patten Panel; Exterior Siding; Interior Accent Panel
4X8 NO GROOVE PANEL - 3/8 IN.
LAP DETAIL
Lap Detail
.315
48.563
.200
.125
.125
LAP DETAIL
Lap Detail
.315
48.563
.200
.125
.125
LAP DETAIL
Lap Detail
.315
48.563
.200
.125
.125
LAP DETAIL
Lap Detail
.315
48.563
.200
.125
.125
LAP DETAIL
Lap Detail
.315
48.563
.200
.125
.125
LAP DETAIL
Lap Detail
.315
48.563
.200
.125
.125
LAP DETAIL
.315
48.563
.200
.125
.125
LAP DETAIL
.315
48.563
.200
.125
.125
LAP DETAIL
Lap Detail
.315
48.563
.200
.125
.125
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
11. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS 4X8 4X9 4X10
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: NO GROOVE PANEL 3/8 INCH
Diamond Kote®
Product Guide | 11
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
12. PRODUCT COMMON DESCRIPTIONS BELOW
12 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.5
Length: 120 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 51 lbs.
Per Bundle: N/A
Per Pallet: 2295 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 45
Part Description: 4X10 3/8 in. 8 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X10 8 IN. OC GROOVED PANEL - 3/8 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.77
Length: 108 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 44.22 lbs.
Per Bundle: N/A
Per Pallet: 1990 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 45
Part Description: 4X9 3/8 in. 8 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X9 8 IN. OC GROOVED PANEL - 3/8 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 3.125
Length: 96 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 40.78 lbs.
Per Bundle: N/A lbs.
Per Pallet: 1835 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 45
Part Description: 4X8 3/8 in. 8 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X8 8 IN. OC GROOVED PANEL - 3/8 IN.
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
Lap Detail GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
Groove Detail
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
Lap Detail GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
Groove Detail
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
GROOVE DETAIL
LAP DETAIL
.375
.115
.500
.315
48.563
8.00
.500
.250
Lap Detail Groove Detail
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
13. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS 4X8 4X9 4X10
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: 8 IN. OC GROOVED PANEL 3/8 INCH
Diamond Kote®
Product Guide | 13
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
14. PRODUCT COMMON DESCRIPTIONS BELOW
14 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.5
Length: 120 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.375 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 56.93 lbs.
Per Bundle: N/A
Per Pallet: 2277.2 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 40
Part Description: 4X10 7/16 in. 8 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X10 8 IN. OC GROOVED PANEL - 7/16 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.77
Length: 108 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.375 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 51.13 lbs.
Per Bundle: N/A
Per Pallet: 2045 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 40
Part Description: 4X9 7/16 in. 8 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X9 8 IN. OC GROOVED PANEL - 7/16 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 3.125
Length: 96 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.375 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 45.38 lbs.
Per Bundle: N/A
Per Pallet: 1815.2 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 40
Part Description: 4X8 7/16 in. 8 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X8 8 IN. OC GROOVED PANEL - 7/16 IN.
GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
Lap Detail GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
Groove Detail
GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
Lap Detail GROOVE DETAIL
LAP DETAIL
E
.375
.375
.500
.115
48.563
8.00
.250
.500
Groove Detail
GROOVE DETAIL
LAP DETAIL
.375
.375
.500
.115
48.563
8.00
.250
.500
GROOVE DETAIL
LAP DETAIL
.375
.375
.500
.115
48.563
8.00
.250
.500
GROOVE DETAIL
LAP DETAIL
.375
.375
.500
.115
48.563
8.00
.250
.500
Lap Detail GROOVE DETAIL
LAP DETAIL
.375
.375
.500
.115
48.563
8.00
.250
.500
Groove Detail
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
15. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS 4X8 4X9 4X10
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: 8 IN. OC GROOVED PANEL 7/16 INCH
Diamond Kote®
Product Guide | 15
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
16. PRODUCT COMMON DESCRIPTIONS BELOW
16 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.5
Length: 120 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.375 in.
CONSTRUCTION
Substrate: LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 56.93 lbs.
Per Bundle: N/A
Per Pallet: 2277 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 40
Part Description: 4X10 7/16 in. 4 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X10 4 IN. OC GROOVED PANEL - 7/16 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 2.77
Length: 108 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.375 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 51.67 lbs.
Per Bundle: N/A
Per Pallet: 2067 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 40
Part Description: 4X9 7/16 in. 4 in. OC Smart Pan Cedar
Function: Exterior Siding; Or Interior Accent Panel
4X9 4 IN. OC GROOVED PANEL - 7/16 IN.
ACTUAL DIMENSIONS
Exposure: 48 in.
Overlap: 0.563 in.
Pieces per square: 3.125
Length: 96 in.
Width: 48.563 in.
Height: N/A
Min. Thickness: 0.375 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 46.67 lbs.
Per Bundle: N/A
Per Pallet: 1867 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 40
Function: Exterior Siding; Or Interior Accent Panel
Part Description: 4X8 7/16 in. 4 in. OC Smart Pan Cedar
4X8 4 IN. OC GROOVED PANEL - 7/16 IN.
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
Lap Detail Groove Detail
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
G
48.563
.375
.375
.500
.115
.250
.500
4.00
Lap Detail Groove Detail
GROOVE DETAIL
LAP DETAIL
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
48.563
.375
.375
.500
.115
.250
.500
4.00
GROOVE DETAIL
LAP DETAIL
48.563
.375
.375
.500
.115
.250
.500
4.00
Lap Detail Groove Detail
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
17. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS 4X8 4X9 4X10
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: 4 IN. OC GROOVED PANEL 7/16 INCH
Diamond Kote®
Product Guide | 17
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
18. 18 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Overlap Detail
.185
.750
2.125
48.50
.520
.171
.315
R.188
.705
.158
7.00
6.679
6.00
4.50
6.75
5.67
6.75
4.50
7.00
.651
ACTUAL DIMENSIONS
Exposure: 4.875 in.
Overlap: 2.125 in.
Pieces per square: 61.53
Length: 48 in.
Width: 7 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 3.52 lbs.
Per Bundle: 14.08 lbs.
Per Pallet: 844.8 lbs.
PACKAGING
Per Carton: 4
Per Pallet: 240
Part Description: RS 7" Strt Shake Ced 7x48
Function: Textured Shake Siding
ACTUAL DIMENSIONS
Exposure: 4.875 in.
Overlap: 2.125 in.
Pieces per square: 61.53
Length: 48 in.
Width: 7 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 3.15 lbs.
Per Bundle: 12.6 lbs.
Per Pallet: 756 lbs.
PACKAGING
Per Carton: 4
Per Pallet: 240
Function: Textured Shake Siding
Part Description: RS 7" Stag Shake Ced 7x48
7 IN. RIGIDSHAKE™
STRAIGHT EDGE
7 IN. RIGIDSHAKE™
STAGGERED EDGE
Overlap Detail
.185
7.000
.750
2.125
48.50
.520
.171
.315
R.188
.705
.158
6.679
6.00
4.50
6.75
5.67
6.75
4.50
7.00
.651
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
PRODUCT COMMON DESCRIPTIONS BELOW
19. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 19
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SIDING
SOLID COLORS STAGGERED EDGE STRAIGHT EDGE
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: 7 INCH RIGIDSHAKE™
20. PRODUCT COMMON DESCRIPTIONS BELOW
20 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 6.875 in.
Overlap: 2.125 in.
Pieces per square: 43.63
Length: 48 in.
Width: 9 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 4.51 lbs.
Per Bundle: 18.04 lbs.
Per Pallet: 865.92 lbs.
PACKAGING
Per Carton: 4
Per Pallet: 192
ACTUAL DIMENSIONS
Exposure: 6.875 in.
Overlap: 2.125 in.
Pieces per square: 43.63
Length: 48 in.
Width: 9 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 4 lbs.
Per Bundle: 16 lbs.
Per Pallet: 768 lbs.
PACKAGING
Per Carton: 4
Per Pallet: 192
Part Description: RS 9" Strt Shake WSS Ced 9x48
Part Description: RS 9" Stag Shake Ced 9x48
Function: Textured Shake Siding
Function: Textured Shake Siding
9 IN. RIGIDSHAKE™
STRAIGHT EDGE
9 IN. RIGIDSHAKE™
STAGGERED EDGE
Overlap Detail
.185
48.50
.750
.158
.705 .315
.171
.520
R.188
6.679
6.00
4.50
6.75
5.67
6.75
4.50
7.00
.651
9.00
2.125
Overlap Detail
.185
48.50
9.000
.750
.158
.705 .315
.171
.520
R.188
6.679
6.00
4.50
6.75
5.67
6.75
4.50
7.00
.651
2.125
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
21. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS STAGGERED EDGE STRAIGHT EDGE
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: 9 INCH RIGIDSHAKE™
Diamond Kote®
Product Guide | 21
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Diamond Kote®
Product Guide | 21
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
22. PRODUCT COMMON DESCRIPTIONS BELOW
22 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 9.625 in.
Overlap: 2.125 in.
Pieces per square: 31.16
Length: 48 in.
Width: 11.77 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 4.8 lbs.
Per Bundle: 22 lbs.
Per Pallet: 691 lbs.
PACKAGING
Per Carton: 4
Per Pallet: 144
Function: Textured Shake Siding
ACTUAL DIMENSIONS
Exposure: 9.625 in.
Overlap: 2.125 in.
Pieces per square: 31.16
Length: 48 in.
Width: 11.77 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 4.4 lbs.
Per Bundle: 21 lbs.
Per Pallet: 634 lbs.
PACKAGING
Per Carton: 4
Per Pallet: 144
Part Description: RS 12" Strt Shake Ced 12x48
Part Description: RS 12" Stag Shake Ced 12x48
Function: Textured Shake Siding
12 IN. RIGIDSHAKE™
STRAIGHT EDGE
12 IN. RIGIDSHAKE™
STAGGERED EDGE
Overlap Detail
2.125
Nail Line
.750
.185
48.50
11.77
.700
.158
.705
.315 .520
.171
R.188
8.408
6.088
7.485
6.988
10.499
8.350
Overlap Detail
48.50
11.77
.520
.705 .315
.171
2.125
R.188
Nail Line
.750
.185
.158
8.408
6.088
7.485 6.988
10.499
8.350
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
23. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS STAGGERED EDGE STRAIGHT EDGE
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: 12 INCH RIGIDSHAKE™
Diamond Kote®
Product Guide | 23
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Diamond Kote®
Product Guide | 23
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
24. PRODUCT COMMON DESCRIPTIONS BELOW
24 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 9.625 in.
Overlap: 2.125 in.
Pieces per square: 31.16
Length: 48 in.
Width: 11.77 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 4.8 lbs.
Per Bundle: 22 lbs.
Per Pallet: 691 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 144
Part Description: Octagon
Function: Textured Shape Siding
12 IN. OCTAGON - HISTORIC COLLECTION
ACTUAL DIMENSIONS
Exposure: 7.75 in.
Overlap: 4 in.
Pieces per square: 39
Length: 48 in.
Width: 11.77 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 4.6 lbs.
Per Bundle: 21.8 lbs.
Per Pallet: 662 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 144
Part Description: Scallop
Function: Textured Shape Siding
12 IN. SCALLOP - HISTORIC COLLECTION
Overlap Detail
.185
48.50
6.00
R.188
R2.844
R.177
8.77
11.77
6.00
.315
.158 .171
.563
.520
Overlap Detail
.185
.158
.705
.171
.520
R.188
1.160
3.679
2.311
11.77
48.50
.315
6.00
45°
10.67
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS

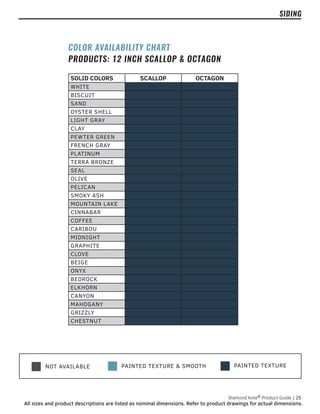

25. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SIDING
SOLID COLORS SCALLOP OCTAGON
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: 12 INCH SCALLOP & OCTAGON
Diamond Kote®
Product Guide | 25
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Diamond Kote®
Product Guide | 25
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
26. PRODUCT COMMON DESCRIPTIONS BELOW
26 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 5.5 in.
Overlap: N/A
Pieces per square: N/A
Length: 120
Width: 5.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 32 lbs.
Per Bundle: 32 lbs.
Per Pallet: 480 lbs.
PACKAGING
Per Bundle: 1
Per Pallet: 15
Part Description: 5/4X6X10 OSC LP Ced W/Nail Fin
Function: One piece design used to trim the outside corners; Part of the exterior siding system
6 IN. NAIL FIN OUTSIDE CORNER - 10 FT
ACTUAL DIMENSIONS
Exposure: 3.5 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: 3.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 19.67 lbs.
Per Bundle: 19.67 lbs.
Per Pallet: 590.1 lbs.
PACKAGING
Per Bundle: 1
Per Pallet: 30
Part Description: 5/4X4X10 OSC LP Ced W/Nail Fin
Function: One piece design used to trim the outside corners; Part of the exterior siding system
4 IN. NAIL FIN OUTSIDE CORNER - 10 FT
3.5 .91
3.5
1.25
3.5 .91
3.5
1.25
3.5 .91
3.5
1.25
5.50 .91
3.50
1.25
5.50 .91
3.50
1.25
5.50 .91
3.50
1.25
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
27. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
COLOR AVAILABILITY CHART
PRODUCTS: NAIL FIN OUTSIDE CORNER - 10 FT
Diamond Kote®
Product Guide | 27
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
CORNERS
SOLID COLORS 4 INCH 6 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
28. PRODUCT COMMON DESCRIPTIONS BELOW
28 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure:
1.50 in. X 1.50 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: 2.41 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 16 lbs.
Per Bundle: 16 lbs.
Per Pallet: 400 lbs.
PACKAGING
Per Bundle: 1
Per Pallet: 25
Part Description: 5/4X3X10 ISC Ced Nail Fin
Function: One piece design used to trim the outside corners; Part of the exterior siding system
3 IN. NAIL FIN INSIDE CORNER - 10 FT
ACTUAL DIMENSIONS
Exposure: 5.5 in.
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 5.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 52 lbs.
Per Bundle: 52 lbs.
Per Pallet: 780 lbs.
PACKAGING
Per Bundle: 1
Per Pallet: 15
Part Description: 5/4X6X16 OSC LP Ced W/Nail Fin
Function: One piece design used to trim the outside corners; Part of the exterior siding system
6 IN. NAIL FIN OUTSIDE CORNER - 16 FT
ACTUAL DIMENSIONS
Exposure: 3.5 in.
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 3.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 31.47 lbs.
Per Bundle: 31.47 lbs.
Per Pallet: 944.1 lbs.
PACKAGING
Per Bundle: 1
Per Pallet: 30
Part Description: 5/4X4X16 OSC LP Ced W/Nail Fin
Function: One piece design used to trim the outside corners; Part of the exterior siding system
4 IN. NAIL FIN OUTSIDE CORNER - 16 FT
.91
2.41
2.41
3.50
.91
1.50
1.25
.91
.91
1.50
2.41
2.41
1.50
3.50
.91
1.50
1.25
.91
.91
1.50
2.41
2.41
1.50
3.50
.91
1.50
1.25
3.5 .91
3.5
1.25
3.5 .91
3.5
1.25
3.5 .91
3.5
5.50 .91
3.50
1.25
5.50 .91
3.50
1.25
5.50 .91
3.50
1.25
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
29. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
OUTSIDE CORNER INSIDE CORNER
SOLID COLORS 4 INCH 6 INCH 3 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT

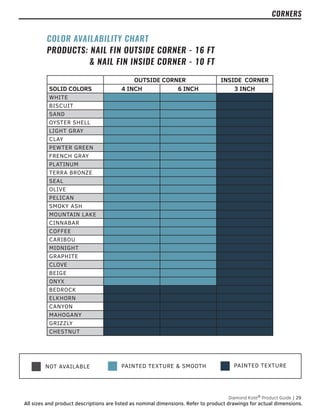

COLOR AVAILABILITY CHART
PRODUCTS: NAIL FIN OUTSIDE CORNER - 16 FT
& NAIL FIN INSIDE CORNER - 10 FT
Diamond Kote®
Product Guide | 29
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
CORNERS
30. PRODUCT COMMON DESCRIPTIONS BELOW
30 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: 0.75 in.
Pieces/Trim Board: 12
Length: 1.63 in.
Width: 0.38 in.
Height: 1.56 in.
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Q800 Tufftech®
Other: N/A
WEIGHT
Per Piece: 0.0085 lbs.
Per Bundle: 0.85 lbs.
Per Pallet: 8.5 lbs.
PACKAGING
Per Bundle: 100
Per Pallet: N/A
Part Description: Trim Clip 3/8 in.X 2 in. Alum 100/Bg 10Bg/Ct
Function: Trim Clip mounts Nail Fin Trim to the wall
TRIM CLIP
ACTUAL DIMENSIONS
Exposure: 5.5 in.
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 5.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 25.33 lbs.
Per Bundle: 50.66 lbs.
Per Pallet: 1520 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 60
Part Description: 5/4X6X16 Trim Nail Fin
Function: Trim boards used around windows, doors, and gable accents; Vertical terminations of siding
6 IN. NAIL FIN TRIM
.50
.12
.29
.91
3.5
Trim Clip For U
With Nail Fin T
3.5
3.5
1.25
1
.3
.75
1.63
ACTUAL DIMENSIONS
Exposure: 3.5 in.
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 3.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Plastic
WEIGHT
Per Piece: 16.67 lbs.
Per Bundle: 33.34 lbs.
Per Pallet: 1500.3 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 90
Part Description: 5/4X4X16 Trim Nail Fin
Function: Trim boards used around windows, doors, and gable accents; Vertical terminations of siding
4 IN. NAIL FIN TRIM
.50
.12
.29
.91
3.5
Trim Clip For Use
With Nail Fin Trim
3.5
3.5
1.25
1.56
.38
.75
1.63
.50
.12
.29
.91
3.5
Trim Clip For Use
With Nail Fin Trim
3.5
3.5
1.25
1.56
.38
.75
1.63
Trim Clip For U
With Nail Fin T
3.5
.29
.50
.12
.91
1
.
.75
1.63
1.25 5.5
5.5
Trim Clip For Use
With Nail Fin Trim
3.5
.29
.50
.12
.91
1.56
.38
.75
1.63
1.25 5.5
5.5
Trim Clip For Use
With Nail Fin Trim
3.50
3.50
.29
.50
.12
.91
1.56
.38
.75
1.63
1.25 5.50
5.50
Trim Clip For Use
With Nail Fin Trim
3.5
.50
.12
1.56
.38
.75
1.63
1.25 5.5
5.5
Trim Clip For Use
With Nail Fin Trim
3.5
.29
.50
.12
.91
1.56
.38
.75
1.63
1.25 5.5
5.5
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
31. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 31
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
NAIL FIN TRIM TRIM CLIP
SOLID COLORS 4 INCH 6 INCH 3/8X2
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: NAIL FIN TRIM & TRIM CLIP
TRIM
32. PRODUCT COMMON DESCRIPTIONS BELOW
32 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 3.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 15.17 lbs.
Per Bundle: 30.34 lbs.
Per Pallet: 1820.4 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 120
Part Description: 5/4X4X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
5/4 X 4 IN. SMART TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 2.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 12.03 lbs.
Per Bundle: 12.03 lbs.
Per Pallet: 1948.86 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 162
Part Description: 5/4X3X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
5/4 X 3 IN. SMART TRIM
.91
1.5
.91
1.5
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 1.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 6.52 lbs.
Per Bundle: 13.04 lbs.
Per Pallet: 1669.12 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 256
Part Description: 5/4X2X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
5/4 X 2 IN. SMART TRIM
.91
2.5
.91 2.5
.91
3.5
.91
3.5
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
33. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 33
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS 2 INCH 3 INCH 4 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: SMART TRIM - 5/4 INCH
TRIM
34. 34 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
PRODUCT COMMON DESCRIPTIONS BELOW
.91
9.21
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 9.21 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 41 lbs.
Per Bundle: 82 lbs.
Per Pallet: 1640 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 40
Part Description: 5/4X10X16 ft. Smart Trim
5/4 X 10 IN. SMART TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 7.21 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 32 lbs.
Per Bundle: 64 lbs.
Per Pallet: 1920 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 60
Part Description: 5/4X8X16 ft. Smart Trim
5/4 X 8 IN. SMART TRIM
Function: Textured trim board used to accent any substrate
Function: Textured trim board used to accent any substrate
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 5.5 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 24.43 lbs.
Per Bundle: 48.86 lbs.
Per Pallet: 1710.1 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 70
Part Description: 5/4X6X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
5/4 X 6 IN. SMART TRIM
5.5
.91
5.5
.91
.91
7.21
.91
7.21
.91
9.21
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
35. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 35
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS 6 INCH 8 INCH 10 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT

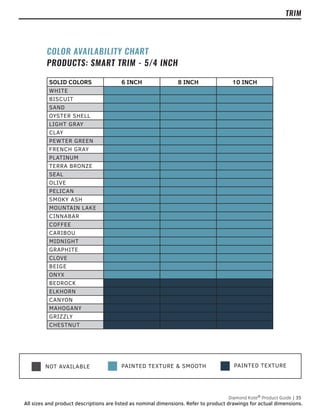

COLOR AVAILABILITY CHART
PRODUCTS: SMART TRIM - 5/4 INCH
TRIM
36. PRODUCT COMMON DESCRIPTIONS BELOW
36 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 2.5 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 8.63 lbs.
Per Bundle: 8.63 lbs.
Per Pallet: 1398.06 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 162
Part Description: 4/4X3X16 ft. Smart Trim
4/4 X 3 IN. SMART TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 1.5 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 5.67 lbs.
Per Bundle: 5.67 lbs.
Per Pallet: 1451.52 lbs.
PACKAGING
Per Bundle: 4
Per Pallet: 256
Part Description: 4/4X2X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
Function: Textured trim board used to accent any substrate
4/4 X 2 IN. SMART TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 11.21 in.
Height: N/A
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 48.75 lbs.
Per Bundle: 97.5 lbs.
Per Pallet: 1950 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 40
Part Description: 5/4X12X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
5/4 X 12 IN. SMART TRIM
.91
11.21
.91
11.21
1.5
.625
1.5
.625
2.5
.625
2.5
.625
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
37. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 37
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
TRIM
5/4 INCH 4/4 INCH
SOLID COLORS 12 INCH 2 INCH 3 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT

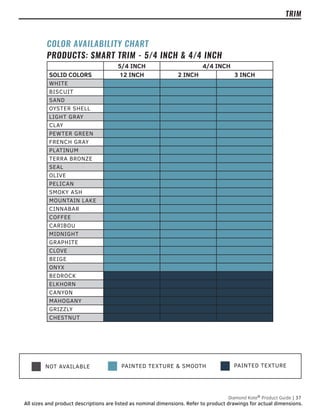

COLOR AVAILABILITY CHART
PRODUCTS: SMART TRIM - 5/4 INCH & 4/4 INCH

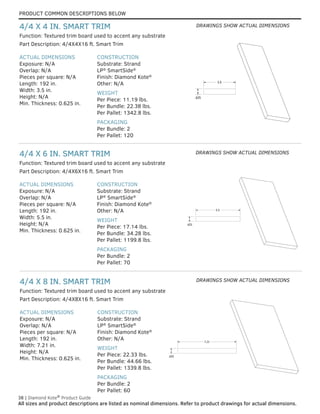

38. PRODUCT COMMON DESCRIPTIONS BELOW
38 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
5.5
.625
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 7.21 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 22.33 lbs.
Per Bundle: 44.66 lbs.
Per Pallet: 1339.8 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 60
Part Description: 4/4X8X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
4/4 X 8 IN. SMART TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 5.5 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 17.14 lbs.
Per Bundle: 34.28 lbs.
Per Pallet: 1199.8 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 70
Part Description: 4/4X6X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
4/4 X 6 IN. SMART TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 3.5 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 11.19 lbs.
Per Bundle: 22.38 lbs.
Per Pallet: 1342.8 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 120
Part Description: 4/4X4X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
4/4 X 4 IN. SMART TRIM
3.5
.625
3.5
.625
5.5
.625
7.21
.625
7.21
.625
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
39. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 39
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
TRIM
SOLID COLORS 4 INCH 6 INCH 8 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: SMART TRIM - 4/4 INCH
40. PRODUCT COMMON DESCRIPTIONS BELOW
40 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 11.21 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 34.5 lbs.
Per Bundle: 69 lbs.
Per Pallet: 1380 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 40
Part Description: 4/4X12X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
4/4 X 12 IN. SMART TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 9.21 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 29 lbs.
Per Bundle: 58 lbs.
Per Pallet: 1160 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 40
Part Description: 4/4X10X16 ft. Smart Trim
Function: Textured trim board used to accent any substrate
4/4 X 10 IN. SMART TRIM
.625
9.21
.625
9.21
.625
11.21
.625
11.21
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
41. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SOLID COLORS 10 INCH 12 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: SMART TRIM - 4/4 INCH
Diamond Kote®
Product Guide | 41
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
TRIM
42. PRODUCT COMMON DESCRIPTIONS BELOW
42 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: Variable
Width: 5.5 in.
Height: Variable
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: Variable
1.52 Lbs / Lineal Foot
Per Bundle: N/A
Per Pallet: N/A
PACKAGING
Per Bundle: 1 Each
Per Carton: N/A
Part Description: 6 in. Arch Trim
Function: Premade trim for arched, elliptical or circular windows, doors or other openings
6 IN. ARCH TRIM
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: Variable
Width: 3.5 in.
Height: Variable
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: Variable
0.95 Lbs / Lineal Foot
Per Bundle: N/A
Per Pallet: N/A
PACKAGING
Per Bundle: 1 Each
Per Carton: N/A
Part Description: 4 in. Arch Trim
Function: Premade trim for arched, elliptical or circular windows, doors or other openings
4 IN. ARCH TRIM
.91
5.5
5.5
.91
5.5 5.5
.91
5.5 5.5
.91
3.5
3.5
.91
3.5 3.5
.91
3.5 3.5
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
43. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
SOLID COLORS 4 INCH 6 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: ARCH TRIM
Diamond Kote®
Product Guide | 43
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
TRIM
44. PRODUCT COMMON DESCRIPTIONS BELOW
44 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
6 IN. KEYSTONE
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 7.5 in.
Height: 6.5 in.
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 1 lbs.
Per Bundle: 1 lbs.
Per Pallet: N/A
PACKAGING
Per Bundle: 1 Each
Per Carton: N/A
Part Description: 6 in. Keystone
Function: Accent piece used with lineal trim on arched, circular windows, doors or other straight trim openings
5.50
4.50
3.50
1.00 3.50 1.00
.91
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 5.5 in.
Height: 4.5 in.
Min. Thickness: 0.91 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 0.2 lbs.
Per Bundle: 0.2 lbs.
Per Pallet: N/A lbs.
PACKAGING
Per Bundle: 1 Each
Per Carton: N/A
Part Description: 4 in. Keystone
Function: Accent piece used with lineal trim on arched, circular windows, doors or other straight trim openings
4 IN. KEYSTONE
7.50
5.50
6.50
.91
1.00 5.50 1.00
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
45. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 45
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
TRIM ACCENTS
SOLID COLORS 4 INCH 6 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT

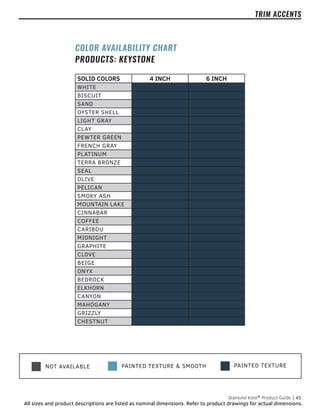

COLOR AVAILABILITY CHART
PRODUCTS: KEYSTONE
46. PRODUCT COMMON DESCRIPTIONS BELOW
46 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 144 in.
Width: 7.075 in.
Height: 7.075 in.
Min. Thickness: 0.53 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Glue Kit Included
WEIGHT
Per Piece: N/A
Per Bundle: 49 lbs.
Per Pallet: 1176 lbs.
PACKAGING
Per Bundle: 1
Per Pallet: 24
Part Description: Pro-Post Wrap 6X6 12 ft. LP Ced 4Pc+Glue Kit
Function: Decorative wrap for use on porches and decks around structural and non-structural items
6X6 PRO-POST WRAP™
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 144 in.
Width: 7.075 in.
Height: 5.075 in.
Min. Thickness: 0.53 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Glue Kit Included
WEIGHT
Per Piece: N/A
Per Bundle: 42
Per Pallet: 1134
PACKAGING
Per Bundle: 1
Per Pallet: N/A
Part Description: Pro-Post Wrap 4X6 12 ft. LP Ced 4Pc+Glue Kit
Function: Decorative wrap for use on porches and decks around structural and non-structural items
4X6 PRO-POST WRAP™
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 144 in.
Width: 5.075 in.
Height: 5.075 in.
Min. Thickness: 0.53 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: Glue Kit Included
WEIGHT
Per Piece: N/A
Per Bundle: 35 lbs.
Per Pallet: 1050 lbs.
PACKAGING
Per Bundle: 1
Per Pallet: 30
Part Description: Pro-Post Wrap 4X4 12 ft. LP Ced 4Pc+Glue Kit
Function: Decorative wrap for use on porches and decks around structural and non-structural items
4X4 PRO-POST WRAP™
5.075
5.075
.53
4.02
4.02
5.075
7.075
4.02
6.02
.53
7.075
7.075
6.02
6.02
.53
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
47. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 47
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS 4X4 4X6 6X6
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT

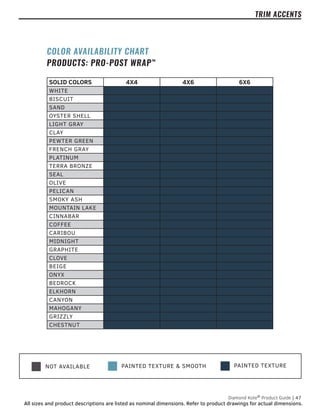

COLOR AVAILABILITY CHART
PRODUCTS: PRO-POST WRAP™
TRIM ACCENTS
48. PRODUCT COMMON DESCRIPTIONS BELOW
48 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
.75
5.96
7.21
.625
.50
.30
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 7.21 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 22 lbs.
Per Bundle: 44 lbs.
Per Pallet: 1320 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 60
Part Description: Fascia 8 in. Plow 4/4 Smart Ced
Function: Textured fascia to complete soffit system, covers 6" sub-fascia
8 IN. PLOWED FASCIA
.75
.50
4.25
.625
5.5
.30
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 5.5 in.
Height: N/A
Min. Thickness: 0.625 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 16.66
Per Bundle: 33.32
Per Pallet: 1166
PACKAGING
Per Bundle: 2
Per Pallet: 70
Part Description: Fascia 6 in. Plow 4/4 Smart Ced
Function: Textured fascia to complete soffit system, covers 4" sub-fascia
6 IN. PLOWED FASCIA
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
49. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 49
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS 6 INCH 8 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT

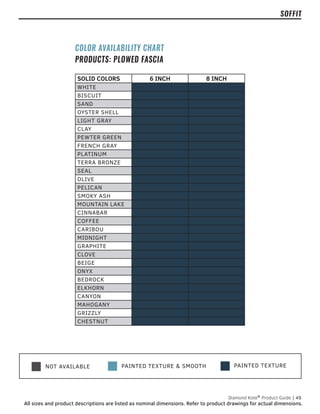

COLOR AVAILABILITY CHART
PRODUCTS: PLOWED FASCIA
SOFFIT
50. PRODUCT COMMON DESCRIPTIONS BELOW
50 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
2.10
1.05 1.03
.38
.40 .75
1.5
.25
.30
.30
ACTUAL DIMENSIONS
Exposure: 120 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: 1.5 in.
Height: N/A
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Coordinating Color
Matches
Other: N/A
WEIGHT
Per Piece: 1.3 lbs.
Per Carton: 13 lbs.
Per Pallet: 820 lbs.
PACKAGING
Per Carton: 10 pcs
Per Pallet: 630 pcs
Part Description: 1-1/2 in x 10 ft. WG Soffit Channel
Function: Channel provides cover and concealment of the required expansion gap on LP®
SmartSide®
Soffit
10 FT SOFFIT CHANNEL
47.875
.315
ACTUAL DIMENSIONS
Exposure: 47.875 in.
Overlap: N/A
Pieces per square: 3.125
in.
Length: 96 in.
Width: 47.875 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 41.78 lbs.
Per Bundle: N/A
Per Pallet: 1880.1lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 45
Part Description: 4X8 3/8 in. Smart Soffit Ced No Groove
Function: Textured soffit panels for porches and large overhangs
4X8 NO GROOVE SOFFIT
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
51. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
NO GROOVE SOF-
FIT
SOFFIT CHANNEL
SOLID COLORS 4X8 10 FT
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT

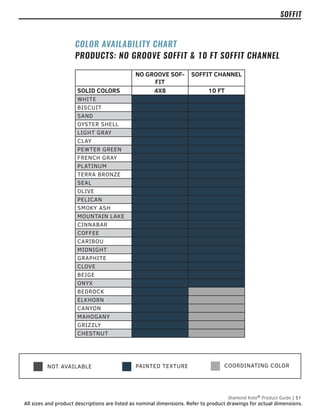

COLOR AVAILABILITY CHART
PRODUCTS: NO GROOVE SOFFIT & 10 FT SOFFIT CHANNEL
Diamond Kote®
Product Guide | 51
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOFFIT
COORDINATING COLOR
NOT AVAILABLE PAINTED TEXTURE
52. PRODUCT COMMON DESCRIPTIONS BELOW
52 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Ventilation: 10 Net Free Air,
10 sq. In. / Lin. Ft.
Length: 192 in.
Width: 23.94 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 42.73 lbs.
Per Bundle: N/A
Per Pallet: 1880.12 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 44
Part Description: 24X16 ft. 3/8 in. Smart Vented Soffit
Function: Soffit panel when venting is required
24 IN. SOFFIT VENTED
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Ventilation: 10 Net Free Air,
10 sq. In. / Lin. Ft.
Length: 192 in.
Width: 15.94 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 29.4 lbs.
Per Bundle: N/A
Per Pallet: 1940.4 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 66
Part Description: 16X16 ft. 3/8 in. Smart Vented Soffit
Function: Soffit panel when venting is required
16 IN. SOFFIT VENTED
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Ventilation: 10 Net Free Air,
10 sq. In. / Lin. Ft.
Length: 192 in.
Width: 11.94 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 22.05 lbs.
Per Bundle: N/A
Per Pallet: 1940.4 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 88
Function: Soffit panel when venting is required
Part Description: 12X16 ft. 3/8 in. Smart Vented Soffit
12 IN. SOFFIT VENTED
11.94
.315
8.00 3.00
3.50
.13
.25
12.00
11.94
.315
8.00 3.00
3.50
.13
.25
12.00
11.94
3.50
.13
12.00
15.94
3.00
3.50
.13
.25 8.00
12.00
.315
15.94
3.00
3.50
.13
.25 8.00
12.00
.315
15.94
3.00
3.50
.13
.25 8.00
12.00
.315
23.94
.315
3.00
3.50
.25
.13
8.00
12.00
23.94
.315
3.00
3.50
.25
.13
8.00
12.00
23.94
.315
3.00
3.50
.25
.13
8.00
12.00
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
53. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 53
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.

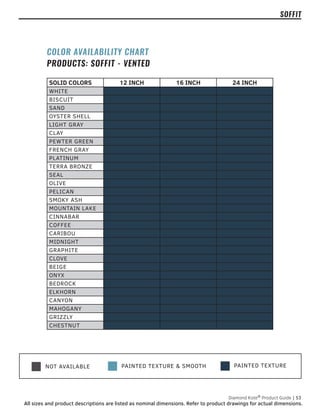

SOLID COLORS 12 INCH 16 INCH 24 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: SOFFIT - VENTED
SOFFIT
54. PRODUCT COMMON DESCRIPTIONS BELOW
54 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
23.94
.315
23.94
.315
15.94
.315
15.94
.315
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 23.94 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 46.18 lbs.
Per Bundle: N/A
Per Pallet: 2031.92 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 44
Part Description: 24X16 ft. 3/8 in. Smart Cedar Solid Soffit
24 IN. SOFFIT SOLID
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 15.94 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 30.15 lbs.
Per Bundle: N/A
Per Pallet: 1989.9 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 66
Part Description: 16X16 ft. 3/8 in. Smart Cedar Solid Soffit
16 IN. SOFFIT SOLID
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 192 in.
Width: 11.94 in.
Height: N/A
Min. Thickness: 0.315 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 23.38 lbs.
Per Bundle: N/A
Per Pallet: 2057.44 lbs.
PACKAGING
Per Bundle: 1 Each
Per Pallet: 88
Part Description: 12X16 ft. 3/8 in. Smart Cedar Solid Soffit
Function: Soffit panel when venting is not necessary
Function: Soffit panel when venting is not necessary
Function: Soffit panel when venting is not necessary
12 IN. SOFFIT SOLID
11.94
.315
11.94
.315
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
55. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 55
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOFFIT
SOLID COLORS 12 INCH 16 INCH 24 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: SOFFIT - SOLID
56. 56 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
PRODUCT COMMON DESCRIPTIONS BELOW
1.53
1.00
.31
1.84
1.53
1.00
.31
1.84
ACTUAL DIMENSIONS
Exposure: 2 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: 1 in.
Height: 4 in.
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Woodgrain
Embossed Aluminium
Finish: Coordinating color
matches
WEIGHT
Per Piece: 1.10 lbs.
Per Carton: 11 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
2.00
1.00
2.00
1.00
95°
85°
2.00
1.00
2.00
1.00
95°
85°
Function: Spacer used to keep siding and trim products the required distance away from roof lines or decking
Function: Protects top edge of horizontal trims against water penetration
Part Description: 1 in.x2 in. 10 ft. Spacer Flash
SPACER FLASHING
ACTUAL DIMENSIONS
Exposure: 0.31 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: 1.00 in.
Height: 1.84 in.
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Coordinating color
matches
WEIGHT
Per Piece: 0.70 lbs.
Per Carton: 17.5 lbs.
Per Pallet: 735 lbs.
PACKAGING
Per Carton: 25
Per Pallet: 1050
Part Description: 1 in.X10/0 Drip Cap Sm Alum
DRIP CAP
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 14.5 in.
Width: 6 in.
Height: 6 in.
Min. Thickness: 0.125
CONSTRUCTION
Substrate: Thermoplastic
Polyolefin (TPO)
Finish: Through Molded
Color
WEIGHT
Per Piece: 0.56 lbs.
Per Carton: 14 lbs.
Per Pallet: N/A
PACKAGING
Per Bundle: 1 Each
Per Carton: 25
Part Description: Dryflekt Diverter Flash Poly 6X6X14.5
Function: Diverts roof water runoff away from siding to roof intersections
DIVERTER FLASHING DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
57. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 57
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.

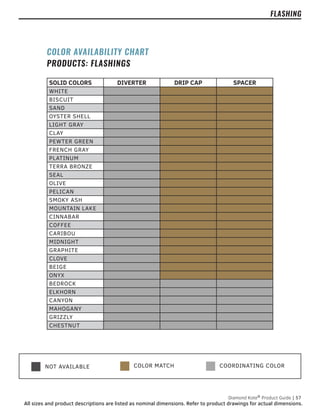

SOLID COLORS DIVERTER DRIP CAP SPACER
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: FLASHINGS
FLASHING
COLOR MATCH
NOT AVAILABLE COORDINATING COLOR
58. 58 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 0.31 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: 0.44 in.
Height: 2.41 in.
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Coordinating color
matches
WEIGHT
Per Piece: 0.70 lbs.
Per Carton: 17.5 lbs.
Per Pallet: 735 lbs.
PACKAGING
Per Carton: 25
Per Pallet: 1050
Part Description: 7/16 in. X 10/0 Z Flash Sm Alum
Function: Protects top edge of horizontal panel joints against water penetration
Z-FLASH
ACTUAL DIMENSIONS
Exposure: 2.38 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: N/A
Height: 2.12 in.
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Coordinating color
matches
WEIGHT
Per Piece: 1.10 lbs.
Per Carton: 11 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
Part Description: 2 in.x10 ft. Brick Ledge Flash
Function: Flashing used above stone or brick sills when transitioning to a different cladding
BRICK LEDGE FLASHING
2.00
2.12
.38
.31
2.00
2.12
.38
.31
2.09
.31
.44
2.41
2.09
.31
.44
2.41
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
PRODUCT COMMON DESCRIPTIONS BELOW
59. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
FLASHING
Diamond Kote®
Product Guide | 59
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.

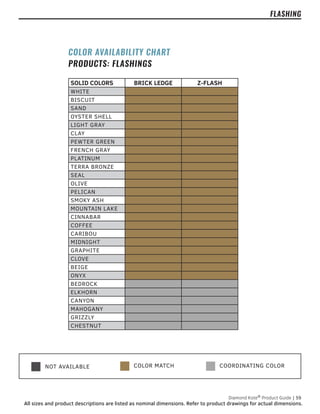

SOLID COLORS BRICK LEDGE Z-FLASH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: FLASHINGS
COLOR MATCH
NOT AVAILABLE COORDINATING COLOR
60. 60 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 50 ft.
Width: 24 in.
Height: N/A
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Coordinating color
matches
WEIGHT
Per Piece: 25 lbs.
Per Carton: 25 lbs.
Per Pallet: 1200 lbs.
PACKAGING
Per Carton: 1
Per Pallet: 25
Part Description: 24x50 Smooth Trim Coil
Function: For bending custom metal accessories on site
TRIM COIL
Part Description: 7/8 in. J Chan Smooth 10 ft.
ACTUAL DIMENSIONS
Exposure: 0.63 in.
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: 0.88 in.
Height: 1.38 in.
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Coordinating color
matches
Other: N/A
WEIGHT
Per Piece: 0.78 lbs.
Per Carton: 19.5 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 25
Per Pallet: 100
Function: Caps siding cuts in gable ends when F-Channel design does not allow for easy caulking
J-CHANNEL
.63
.88
1.38
.63
.88
1.38
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
PRODUCT COMMON DESCRIPTIONS BELOW
61. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
COLOR MATCH
NOT AVAILABLE COORDINATING COLOR
Diamond Kote®
Product Guide | 61
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.

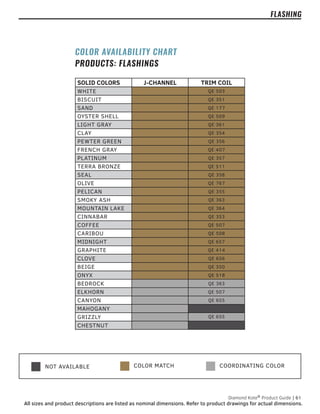

SOLID COLORS J-CHANNEL TRIM COIL
WHITE QE 503
BISCUIT QE 351
SAND QE 177
OYSTER SHELL QE 509
LIGHT GRAY QE 361
CLAY QE 354
PEWTER GREEN QE 356
FRENCH GRAY QE 407
PLATINUM QE 357
TERRA BRONZE QE 511
SEAL QE 358
OLIVE QE 767
PELICAN QE 355
SMOKY ASH QE 363
MOUNTAIN LAKE QE 364
CINNABAR QE 353
COFFEE QE 507
CARIBOU QE 508
MIDNIGHT QE 657
GRAPHITE QE 414
CLOVE QE 656
BEIGE QE 350
ONYX QE 518
BEDROCK QE 363
ELKHORN QE 507
CANYON QE 655
MAHOGANY
GRIZZLY QE 655
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: FLASHINGS
FLASHING
62. PRODUCT COMMON DESCRIPTIONS BELOW
62 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Function: Designed for mounting exterior lighting; intake/exhaust vents
Function: Multi-purpose mounting surface; field modify as needs require
Part Description: RigidMount Universal Blank
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 8.25 in.
Height: 10.313 in.
Min. Thickness: 1.125 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 2.5 lbs.
Per Carton: 25 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
Part Description: RigidMount Universal
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 8.25 in.
Height: 10.31 in.
Min. Thickness: 1.125 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 2.33 lbs.
Per Carton: 23.33 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
BLANK UNIVERSAL RIGIDMOUNT™
UNIVERSAL RIGIDMOUNT™
8.56
11.56
1.5
1.5
14.19
.56
.75
10.31
8.25
4.13
4.063
.91
5.31
8.56
11.56
1.5
1.5
14.19
.56
.75
10.31
8.25
4.13
4.063
.91
5.31
8.56
11.56
1.5
1.5
14.19
.56
.75
10.31
8.25
4.13
4.063
.91
5.31
.91
11.56
.56
.75
8.56
1.5 1.5
8.25
10.31
14.19
.91
11.56
.56
.75
8.56
1.5 1.5
8.25
10.31
14.19
11.56
.56
.75
8.56
1.5 1.5
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS

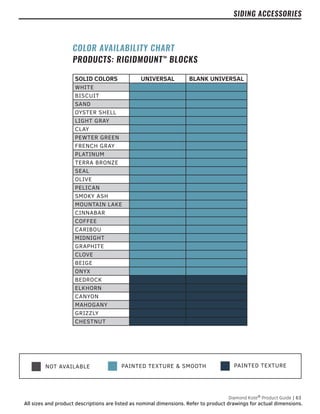

63. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 63
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS UNIVERSAL BLANK UNIVERSAL
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: RIGIDMOUNT™
BLOCKS
SIDING ACCESSORIES
64. 64 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Function: Built in drip cap; hidden fastener nailing flange; woodgrain parallel to grain on adjacent siding
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 5.88 in.
Height: 7.69 in.
Min. Thickness: 1.125 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 1.45 lbs.
Per Carton: 14.5 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
Function: For mounting outlets in remodel situations
Part Description: RigidMount Receptacle
Part Description: RigidMount UL Electrical
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 5.94 in.
Height: 6.94 in.
Min. Thickness: 1.45 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 1.4 lbs.
Per Carton: 14 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
RECEPTACLE RIGIDMOUNT™
UL ELECTRICAL RIGIDMOUNT™
1.45
.88 .88
6.19
7.94
9.75
5.94
6.94
2.72
4.22
1.06
1.00 18 CU. IN.
1.45
.88 .88
6.19
7.94
9.75
5.94
6.94
2.72
4.22
1.06
1.00 18 CU. IN.
1.45
.88 .88
6.19
7.94
9.75
5.94
6.94
2.72
4.22
1.06
1.00 18 CU. IN.
5.88
7.69
2.63
4.25
2.00
1.63
11.69
9.19
.56
.75
6.19
1.5 1.5
.91
5.88
7.69
2.63
4.25
2.00
1.63
11.69
9.19
.56
.75
6.19
1.5 1.5
.91
9.19
.56
.75
6.19
1.5 1.5
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
PRODUCT COMMON DESCRIPTIONS BELOW
65. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 65
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS ELECTRICAL RECEPTACLE
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: RIGIDMOUNT™
BLOCKS
SIDING ACCESSORIES
66. 66 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Part Description: RigidMount Oversize
Function: Designed for mounting large exterior lighting; intake/exhaust vents
Function: Split design for installation around water, gas, data/network boxes, and electrical conduits
Part Description: RigidMount Split Block
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 5.88 in.
Height: 7.69 in.
Min. Thickness: 1.125 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 1.53 lbs.
Per Carton: 15.3 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 8.25 in.
Height: 14.3 in.
Min. Thickness: 1.125 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 3.33 lbs.
Per Carton: 33.3 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
SPLIT RIGIDMOUNT™
OVERSIZED RIGIDMOUNT™
.91
18.31
11.56
14.31
8.25
4.063
.56
.75
1.5 1.5
8.56
7.25
4.13
.91
18.31
11.56
14.31
8.25
4.063
.56
.75
1.5 1.5
8.56
7.25
4.13
.91
18.31
11.56
14.31
8.25
4.063
.56
.75
1.5 1.5
8.56
7.25
4.13
.91
3.875
3.813
4.063
7.69
5.88
.75
.56
9.19
11.69
1.5 1.5
6.19
10 DEG
SLOPE
2.97
1.375
.91
3.875
3.813
4.063
7.69
5.88
.75
.56
9.19
11.69
1.5 1.5
6.19
10 DEG
SLOPE
2.97
1.375
.75
.56
9.19
1.5 1.5
6.19
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
PRODUCT COMMON DESCRIPTIONS BELOW
67. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 67
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SIDING ACCESSORIES
SOLID COLORS OVERSIZED SPLIT
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: RIGIDMOUNT™
BLOCKS
68. 68 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Function: Designed to allowing for easy pass through for HVAC piping or any mix of wall utilities.
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 15.88 in.
Height: 8.8 in.
Min. Thickness: 1.125 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 3.33 lbs.
Per Carton: 33.3 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
Part Description: RigidMount Blank Horizontal
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: N/A
Width: 15.88 in.
Height: 8.8 in.
Min. Thickness: 1.125 in.
CONSTRUCTION
Substrate: Strand
LP®
SmartSide®
Finish: Diamond Kote®
Other: ABS Back Plate
WEIGHT
Per Piece: 3.33 lbs.
Per Carton: 33.3 lbs.
Per Pallet: N/A
PACKAGING
Per Carton: 10
Per Pallet: N/A
Part Description: RigidMount Personalized
Function: Displays black or white personalized address numbers/letters. Limit of 5 characters.
BLANK HORIZONTAL RIGIDMOUNT™
PERSONALIZED RIGIDMOUNT™
12.563
19.188
1.813
16.188
1.500 1.500
.910
2.750
8.688
15.875
.0312500
.91
2.75
1.81
19.19
16.19
1.5 1.5
12.56
15.88
8.75
12.563
19.188
1.813
16.188
1.500 1.500
.910
2.750
8.688
15.875
.0312500
.91
2.75
1.81
19.19
16.19
1.5 1.5
12.56
15.88
8.75
12.563
19.188
1.813
16.188
1.500 1.500
.910
2.750
8.688
15.875
.0312500
.91
2.75
1.81
19.19
16.19
1.5 1.5
12.56
15.88
8.75
12.56
19.19
1.81
16.19
1.5 1.5
.91
2.75
8.75
15.88
12.56
19.19
1.81
16.19
1.5 1.5
.91
2.75
8.75
15.88
12.56
19.19
1.81
16.19
1.5 1.5
2.75
8.75
15.88
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
PRODUCT COMMON DESCRIPTIONS BELOW

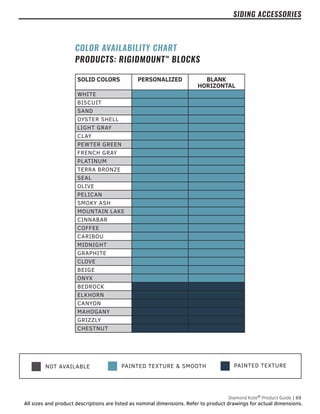

69. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 69
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SIDING ACCESSORIES
SOLID COLORS PERSONALIZED BLANK
HORIZONTAL
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: RIGIDMOUNT™
BLOCKS
70. PRODUCT COMMON DESCRIPTIONS BELOW
70 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
Part Description: 11 in. H-Molding WG 12X3/8 LP
1.63 2.99 .32
.98
4.94
.48
.25
.25
.48
.98
.43
45°
1.31 3.63
.43
4.94
1.31 3.63
.43
4.94
45°
Part Description: 7 in. H-Molding WG 8X3/8 LP
ACTUAL DIMENSIONS
Exposure: 10.94 in.
Overlap: N/A
Pieces per square: 7.2
(Long wall - no openings)
Length: 10.94 in.
Width: 0.48 in.
Height: N/A
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 0.04 lbs.
Per Bag: 1 lbs.
Per Pallet: N/A
PACKAGING
Per Bag: 25
Per Box: 100
ACTUAL DIMENSIONS
Exposure: 6.94 in.
Overlap: N/A
Pieces per square: 10.8
(Long wall - no openings)
Length: 6.94 in.
Width: 0.48 in.
Height: N/A
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 0.03 lbs.
Per Bag: 0.75 lbs.
Per Pallet: N/A
PACKAGING
Per Bag: 25
Per Box: 100
ACTUAL DIMENSIONS
Exposure: 4.94 in.
Overlap: N/A
Pieces per square: 15.6
(Long wall - no openings)
Length: 4.94 in.
Width: 0.48 in.
Height: N/A
Min. Thickness: 0.019 in.
CONSTRUCTION
Substrate: Aluminium
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 0.022 lbs.
Per Bag: 0.55 lbs.
Per Pallet: N/A
PACKAGING
Per Bag: 25
Per Box: 100
Part Description: 5 in. H-Molding WG 6X3/8 LP
Function: H-Moldings provide cover and concealment of the required expansion gap
Function: H-Moldings provide cover and concealment of the required expansion gap
Function: H-Moldings provide cover and concealment of the required expansion gap
11 IN. H-MOLDING
7 IN. H-MOLDING
5 IN. H-MOLDING
.25
.48
.98
.43
6.94
.98
1.63 4.99 .32
.48
.25
45°
1.31 5.63
.43
6.94
1.31 5.63 .43
6.94
45°
.25
.48
.98
.43
10.94
.98
1.63 8.99 .32
.48
.25
45°
1.31 9.63 .43
10.94
1.31 9.63
10.94
.43
45°
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS

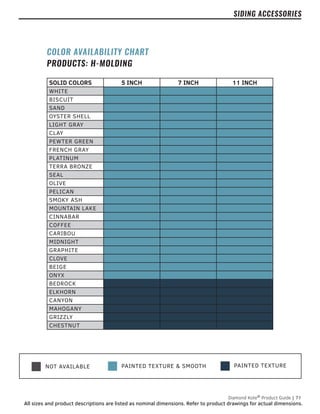

71. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 71
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS 5 INCH 7 INCH 11 INCH
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: H-MOLDING
SIDING ACCESSORIES
72. 72 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
ACTUAL DIMENSIONS
Exposure: 5.81 in.
Overlap: 1.125 in.
Pieces per square: N/A
Length: 192 in.
Width: 7.25 in.
Height: N/A
Min. Thickness: 0.75 in.
CONSTRUCTION
Substrate: PVC
Finish: Diamond Kote®
Other: N/A
WEIGHT
Per Piece: 23.61 lbs.
Per Bundle: 47.22 lbs.
Per Pallet: 1699.92 lbs.
PACKAGING
Per Bundle: 2
Per Pallet: 72
2.50
.38
.75
5.81
7.00
130°
.25
60°
Function: Used to start first course of Lap Siding, RigidStack and Straight Edge RigidShakes.
Function: Transition piece between the ground and the first course of siding for installation requirements
Part Description: Starter 1X8-16 Certatrim
ACTUAL DIMENSIONS
Exposure: N/A
Overlap: N/A
Pieces per square: N/A
Length: 120 in.
Width: N/A
Height: 2.5 in.
Min. Thickness: 0.013 in.
CONSTRUCTION
Substrate: Steel
Finish: Galvanized
Other: N/A
WEIGHT
Per Piece: 1.4 lbs.
Per Carton: 35 lbs.
Per Pallet: 2520 lbs.
PACKAGING
Per Carton: 25
Per Pallet: 1800
Part Description: Starter Steel 2-1/2 10/0 Galv 25/Ct
8 IN. STARTER BOARD
METAL STARTER STRIP
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
PRODUCT COMMON DESCRIPTIONS BELOW
73. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
Diamond Kote®
Product Guide | 73
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
SOLID COLORS METAL STARTER STARTER BOARD
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: STARTER OPTIONS
SIDING ACCESSORIES

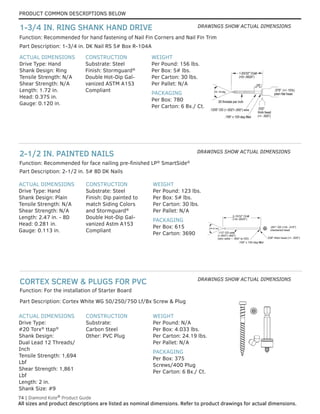

74. 74 | Diamond Kote®
Product Guide
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
PRODUCT COMMON DESCRIPTIONS BELOW
Part Description: Cortex White WG 50/250/750 Lf/Bx Screw & Plug
Function: For the installation of Starter Board
Function: Recommended for face nailing pre-finished LP®
SmartSide®
Part Description: 2-1/2 in. 5# 8D DK Nails
ACTUAL DIMENSIONS
Drive Type: Hand
Shank Design: Ring
Tensile Strength: N/A
Shear Strength: N/A
Length: 1.72 in.
Head: 0.375 in.
Gauge: 0.120 in.
CONSTRUCTION
Substrate: Steel
Finish: Stormguard®
Double Hot-Dip Gal-
vanized ASTM A153
Compliant
WEIGHT
Per Pound: 156 lbs.
Per Box: 5# lbs.
Per Carton: 30 lbs.
Per Pallet: N/A
PACKAGING
Per Box: 780
Per Carton: 6 Bx./ Ct.
Function: Recommended for hand fastening of Nail Fin Corners and Nail Fin Trim
Part Description: 1-3/4 in. DK Nail RS 5# Box R-104A
2-1/2 IN. PAINTED NAILS
CORTEX SCREW & PLUGS FOR PVC
1-3/4 IN. RING SHANK HAND DRIVE
ACTUAL DIMENSIONS
Drive Type: Hand
Shank Design: Plain
Tensile Strength: N/A
Shear Strength: N/A
Length: 2.47 in. - 8D
Head: 0.281 in.
Gauge: 0.113 in.
CONSTRUCTION
Substrate: Steel
Finish: Dip painted to
match Siding Colors
and Stormguard®
Double Hot-Dip Gal-
vanized Astm A153
Compliant
WEIGHT
Per Pound: 123 lbs.
Per Box: 5# lbs.
Per Carton: 30 lbs.
Per Pallet: N/A
PACKAGING
Per Box: 615
Per Carton: 3690
ACTUAL DIMENSIONS
Drive Type:
#20 Torx®
ttap®
Shank Design:
Dual Lead 12 Threads/
Inch
Tensile Strength: 1,694
Lbf
Shear Strength: 1,861
Lbf
Length: 2 in.
Shank Size: #9
CONSTRUCTION
Substrate:
Carbon Steel
Other: PVC Plug
WEIGHT
Per Pound: N/A
Per Box: 4.033 lbs.
Per Carton: 24.19 lbs.
Per Pallet: N/A
PACKAGING
Per Box: 375
Screws/400 Plug
Per Carton: 6 Bx./ Ct.
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
DRAWINGS SHOW ACTUAL DIMENSIONS
75. PAINTED TEXTURE
NOT AVAILABLE PAINTED TEXTURE & SMOOTH
RING SHANK PAINTED NAILS CORTEX SCREWS
SOLID COLORS 1-3/4 2-1/2 N/A
WHITE
BISCUIT
SAND
OYSTER SHELL
LIGHT GRAY
CLAY
PEWTER GREEN
FRENCH GRAY
PLATINUM
TERRA BRONZE
SEAL
OLIVE
PELICAN
SMOKY ASH
MOUNTAIN LAKE
CINNABAR
COFFEE
CARIBOU
MIDNIGHT
GRAPHITE
CLOVE
BEIGE
ONYX
BEDROCK
ELKHORN
CANYON
MAHOGANY
GRIZZLY
CHESTNUT
COLOR AVAILABILITY CHART
PRODUCTS: FASTENERS
Diamond Kote®
Product Guide | 75
All sizes and product descriptions are listed as nominal dimensions. Refer to product drawings for actual dimensions.
FASTENERS
COLOR MATCH
NOT AVAILABLE COORDINATING COLOR

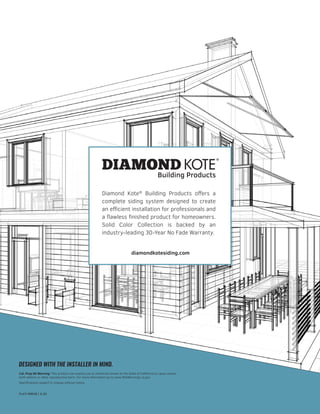

76. diamondkotesiding.com
Diamond Kote®
Building Products offers a
complete siding system designed to create
an efficient installation for professionals and
a flawless finished product for homeowners.
Solid Color Collection is backed by an
industry-leading 30-Year No Fade Warranty.
PL43199638 | 6.20
