DevOps Introduction @Cegeka
Patrick Debois gave an introduction to DevOps. He discussed how Agile development improved collaboration between developers and testers but neglected operations teams. Traditional continuous integration models separated development and operations. DevOps aims to bring development and operations teams together through practices like infrastructure as code, configuration management, continuous integration/delivery, and collaboration across roles. Culture and mindset shifts are also important for DevOps, prioritizing collaboration, craftsmanship, and trust between teams.
DevOps Introduction @Cegeka
- 1. devops an introduction Patrick Debois Monday 14 February 2011
- 2. My Background • Independent consultant • Have worked in different roles • Agile and Infrastructure • Just Enough Developed Infrastructure - http://jedi.be • Started organizing devopsdays • Recently joined Cutter Consortium Monday 14 February 2011

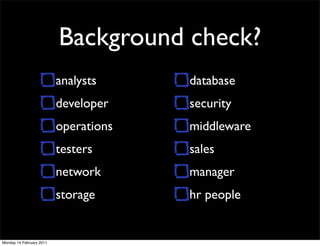

- 3. Background check? analysts database developer security operations middleware testers sales network manager storage hr people Monday 14 February 2011
- 4. DEV OPS The problem Monday 14 February 2011
- 5. Agile already dida great job Monday 14 February 2011

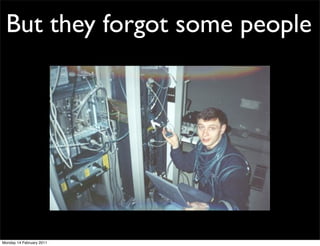

- 6. But they forgotsome people Monday 14 February 2011
- 7.

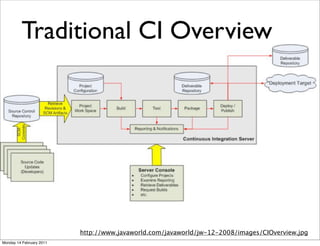

- 8. Traditional CI Overview http://www.javaworld.com/javaworld/jw-12-2008/images/CIOverview.jpg Monday 14 February 2011

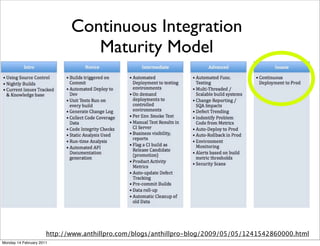

- 9. Continuous Integration Maturity Model http://www.anthillpro.com/blogs/anthillpro-blog/2009/05/05/1241542860000.html Monday 14 February 2011

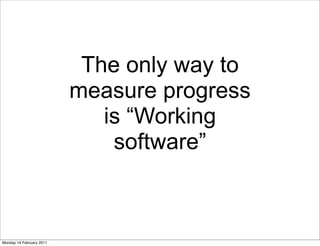

- 10. The only wayto measure progress is “Working software” Monday 14 February 2011
- 11. The only wayto measure progress is “Working software” In production Monday 14 February 2011
- 12.
- 13. Business Value Ordered by Ordered by the value the value gained protected Increase Change Avoid Change Monday 14 February 2011
- 14. IT Tooling ischanging Monday 14 February 2011
- 15. Virtualization • kvm • xen • solaris zones • vmware • virtualbox • ... Monday 14 February 2011
- 16. Cloud showed us how to scale Monday 14 February 2011
- 17. Abstraction API http://libvirt.org/ http://www.jclouds.org/ Adrian Cole @jclouds Monday 14 February 2011
- 18. Platform as aService Monday 14 February 2011
- 19. Hudson as Service http://www.cloudbees.com/ Monday 14 February 2011
- 20. But who will manage your IAAS platform? Monday 14 February 2011

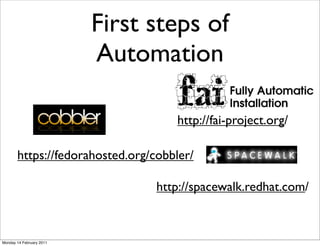

- 21. First steps of Automation http://fai-project.org/ https://fedorahosted.org/cobbler/ http://spacewalk.redhat.com/ Monday 14 February 2011
- 22.
- 23. Virtual Sprawl Monday 14February 2011

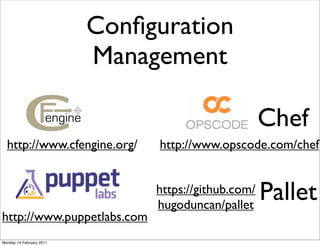

- 24. Configuration Management Chef http://www.cfengine.org/ http://www.opscode.com/chef https://github.com/ hugoduncan/pallet Pallet http://www.puppetlabs.com Monday 14 February 2011

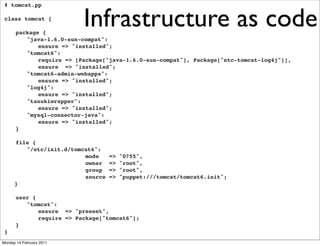

- 25. Infrastructure as code # tomcat.pp class tomcat { ! package { ! ! "java-1.6.0-sun-compat": ! ! ! ensure => "installed"; ! ! "tomcat6": ! ! ! require => [Package["java-1.6.0-sun-compat"], Package["ntc-tomcat-log4j"]], ! ! ! ensure => "installed"; ! ! "tomcat6-admin-webapps": ! ! ! ensure => "installed"; ! ! "log4j": ! ! ! ensure => "installed"; ! ! "tanukiwrapper": ! ! ! ensure => "installed"; ! ! "mysql-connector-java": ! ! ! ensure => "installed"; ! } ! file { ! ! "/etc/init.d/tomcat6": mode => "0755", owner => "root", group => "root", source => "puppet:///tomcat/tomcat6.init"; } ! user { ! ! "tomcat": ! ! ! ensure => "present", ! ! ! require => Package["tomcat6"]; ! } }! Monday 14 February 2011

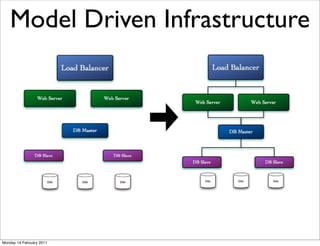

- 26. Model Driven Infrastructure Monday14 February 2011

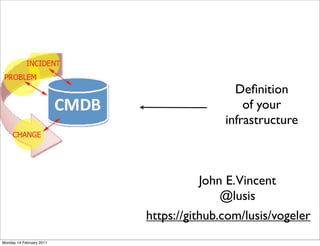

- 27. Definition of your infrastructure John E.Vincent @lusis https://github.com/lusis/vogeler Monday 14 February 2011

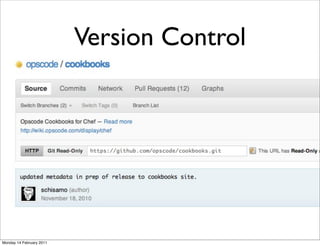

- 28. Version Control Monday 14February 2011

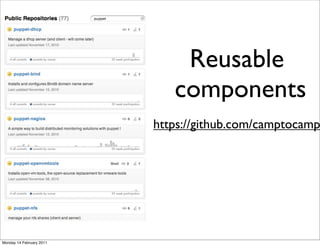

- 29. Reusable components https://github.com/camptocamp Monday 14 February 2011
- 30. Code/Server Smells Private Playground The sysadmin uses the system as his toy playground, doesn't clean up. • /tmp & /var/tmp full of old install files • / full of files Gready Server One server that does every function • combined mail and web and dns and fileshares • all users on the same system Root is the cause of all evil • last show login all root • no sudo is activated • no sshd keys for logins • nfs share/root? • Chmod 777 • most processes run as root Monday 14 February 2011

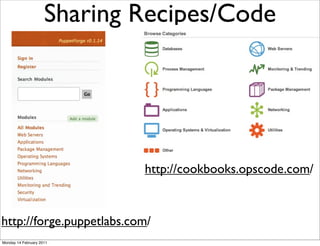

- 31. Sharing Recipes/Code http://cookbooks.opscode.com/ http://forge.puppetlabs.com/ Monday 14 February 2011

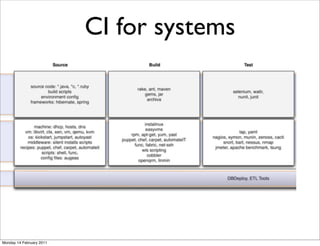

- 32. CI for systems Monday14 February 2011
- 33. CI for systems(2) Monday 14 February 2011

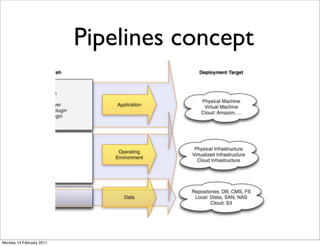

- 34. Pipelines concept Monday 14February 2011
- 35. Automation without tests is Monday 14 February 2011

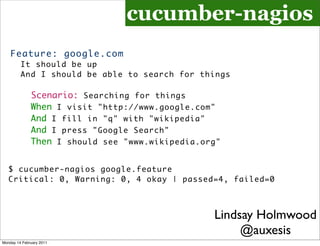

- 36. cucumber-nagios Feature: google.com It should be up And I should be able to search for things Scenario: Searching for things When I visit "http://www.google.com" And I fill in "q" with "wikipedia" And I press "Google Search" Then I should see "www.wikipedia.org" $ cucumber-nagios google.feature Critical: 0, Warning: 0, 4 okay | passed=4, failed=0 Lindsay Holmwood @auxesis Monday 14 February 2011
- 37. cucumber-ssh Scenario: Checking /etc/passwd When I ssh to "example.org" with the following credentials: | username | password | keyfile | | jacob | spifeofstrife | /home/jacob/.ssh/id_dsa | And I run "cat /etc/passwd" Then I should see "jacob" in the output Lindsay Holmwood @auxesis Monday 14 February 2011
- 38. cucumber-apache apache.feature Feature: Inorder to deploy my application As a systems administrator I want to know that the config files are legal Scenario: Valid Apache config Given a config file template apache2.conf in etc/apache2 When I generate it Then there should be a file called apache2.conf in etc/ap And it should be valid Julian Simpson http://pastie.org/693713 @builddoctor Monday 14 February 2011
- 39. cucumber-puppet Feature:cucumber-puppet In order to run my puppet manifest's test suite As an admin I want the cucumber-puppet gem installed Scenario: Install cucumber-puppet Given a node of class "cucumber-puppet" When I compile the catalog Then gem "cucumber-puppet" should be "installed" Nikolay Sturm https://github.com/nistude/cucumber-puppet @nistude Monday 14 February 2011
- 40. The life ofa System Birth, Adoption Life Retired Death Monday 14 February 2011
- 41. Veewee Allows an easy way to build your own basebox https://github.com/jedi4ever/veewee Patrick Debois @patrickdebois Monday 14 February 2011

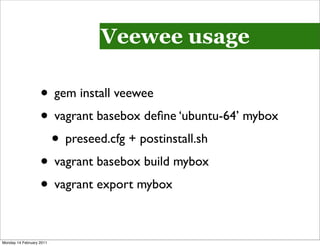

- 42. Veewee usage • gem install veewee • vagrant basebox define ‘ubuntu-64’ mybox • preseed.cfg + postinstall.sh • vagrant basebox build mybox • vagrant export mybox Monday 14 February 2011
- 43. Vagrant Allows an easy way to use the production recipes in your own dev environment http://vagrantup.com/ Mitchell Hashimoto @mitchellh Monday 14 February 2011
- 44. Vagrant usage • vagrant add mybox.box (adds the box) • vagrant init myapp (starts a project) • vagrant up (startup a box) • vagrant ssh (logs into the box) • vagrant provision (runs recipes) Monday 14 February 2011

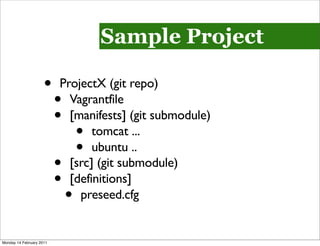

- 45. Sample Project • ProjectX (git repo) • Vagrantfile • [manifests] (git submodule) • tomcat ... • ubuntu .. • [src] (git submodule) • [definitions] • preseed.cfg Monday 14 February 2011

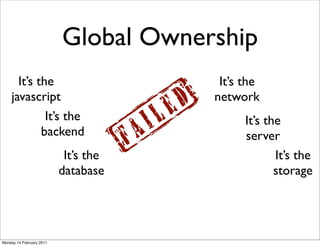

- 46. Global Ownership It’s the It’s the javascript network It’s the It’s the backend server It’s the It’s the database storage Monday 14 February 2011
- 47. IAAS and PAASblurring Pull in both your recipes and your code Monday 14 February 2011
- 48. I know all that What’s new? Monday 14 February 2011

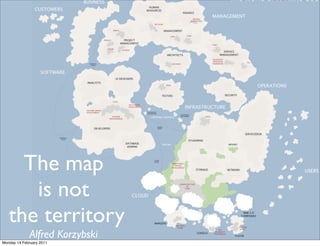

- 49. The map is not the territory Alfred Korzybski Monday 14 February 2011

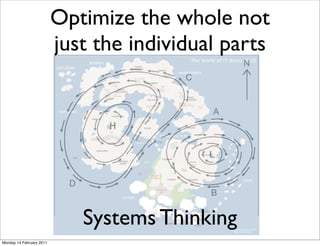

- 50. Optimize the wholenot just the individual parts Systems Thinking Monday 14 February 2011

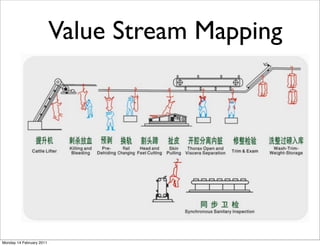

- 51. Value Stream Mapping Monday14 February 2011
- 52. People make ithappen Monday 14 February 2011
- 53. Culture & Mindset Monday14 February 2011
- 54. Collaboration not onlywhen things go wrong Sysadmins Testers Analysts Security Developers Network UI Architects Designers Monday 14 February 2011
- 55. No rock starmentality Mine are bigger then yours Monday 14 February 2011
- 56.
- 57.
- 58. Collaboration not onlywhen things go wrong Sysadmins Testers Analysts Security Developers Network UI Architects Designers Monday 14 February 2011
- 59. Starting a devops culture = restoring trust http://voetstappen.blogspot.com/ Monday 14 February 2011
- 60. Interesting Books Monday 14February 2011
- 61. Want to knowmore? #devops & #infratalk on twitter & irc http://devopsdays.org http://devopscafe.org http://planetdevops.net devops googlegroup devops-toolchain googlegroup Monday 14 February 2011
- 62.
- 63. The End Monday 14February 2011
