This document discusses developing serverless applications with Azure Functions. Azure Functions allow processing of events using small, isolated pieces of code called functions. Functions can be triggered by events from other Azure services and external sources. Functions are easy to develop, scale automatically, and only charge for the time spent processing events.

1. Developing Serverless
Applications with Azure Functions

3. 事件驅動式
擴展
次秒計費伺服器抽象化

5. 複雜框架
微功能獨立於用戶
端應用程式
之外
深入用戶端
應用程式內
單體式應用
鬆散耦合式
元件

6. 聚焦於
商業邏輯
快速入門
為你管理

8. • 語言與框架
• 優越的 DevOps
• 自助服務
• 其他相關
應用
Web Apps Mobile Apps API Apps Functions
eCommerce Digital Global Presence LOB API / Services / ISVCustom Apps
應用服務
• 無極限/自動
• 作業系統與框架
• 負載平衡
• 其他相關
• 企業級 SLA
• 安全與法規符合
• 地端連結
• 其他相關

9. Azure Functions (函式)
以無伺服器之程式處理事件
使組合雲端應用變得容易
可使用 C#, Node.js, F#, Python, PHP, Batch 與更多種語言開發函式
容易跨服務排程事件驅動任務
以 HTTP API 終端點暴露函式
基於客戶需求擴展函式
容易與 Logic App 整合
Azure
Functions

12. • 命令是任何使狀態發生變化的
方法
• 查詢是返回值的任何方法

14. 宜
宜
宜
1

17. http://[fxapp].azurewebsites.net/api
/[fx-name]

21. npm install -g azure-functions-cli
Azure Functions CLI:
https://github.com/Azure/azure-functions-cli

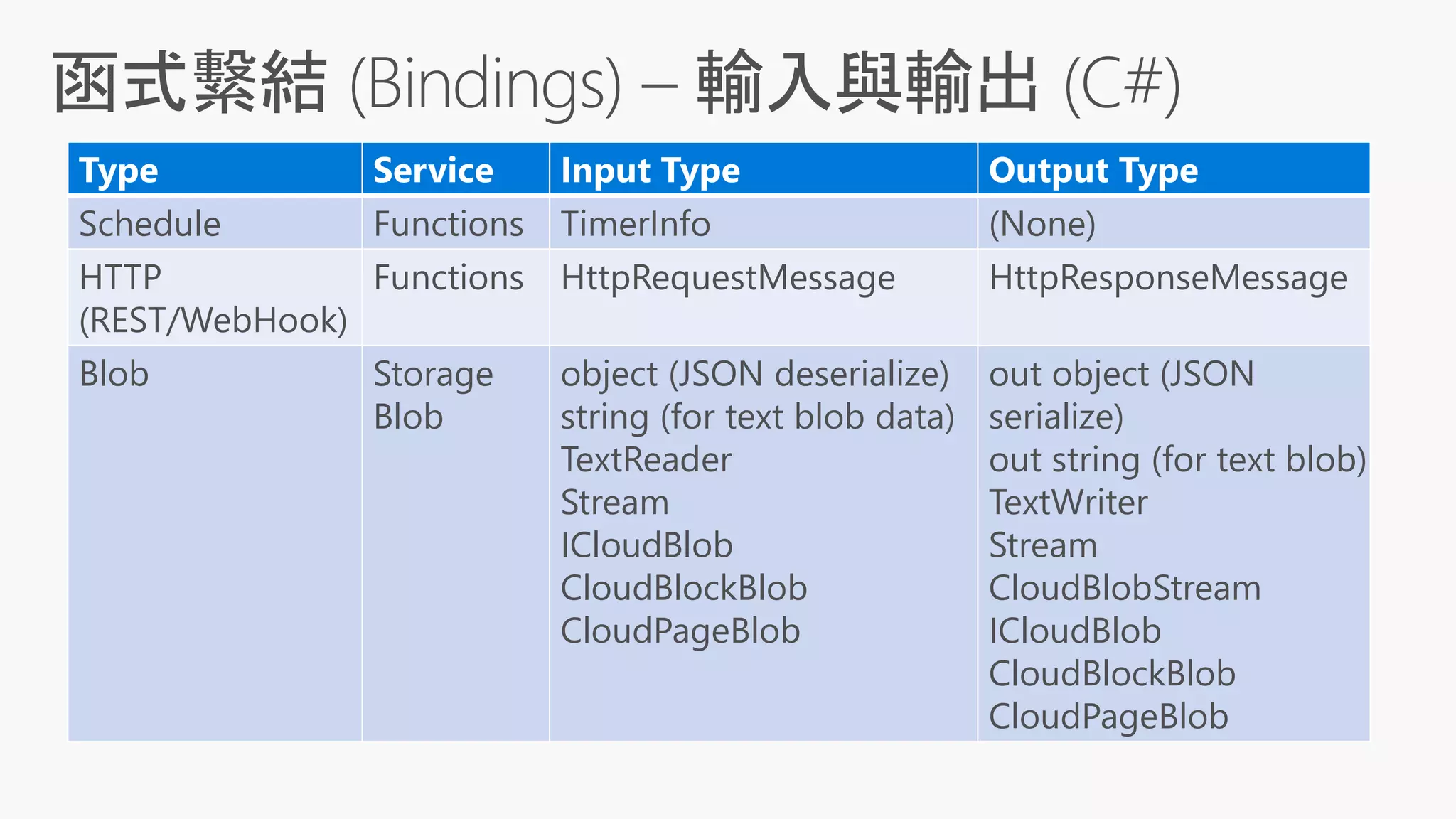

29. Type Service Input Type Output Type
Schedule Functions TimerInfo (None)
HTTP
(REST/WebHook)
Functions HttpRequestMessage HttpResponseMessage
Blob Storage
Blob
object (JSON deserialize)
string (for text blob data)
TextReader
Stream
ICloudBlob
CloudBlockBlob
CloudPageBlob
out object (JSON
serialize)
out string (for text blob)
TextWriter
Stream
CloudBlobStream
ICloudBlob
CloudBlockBlob
CloudPageBlob

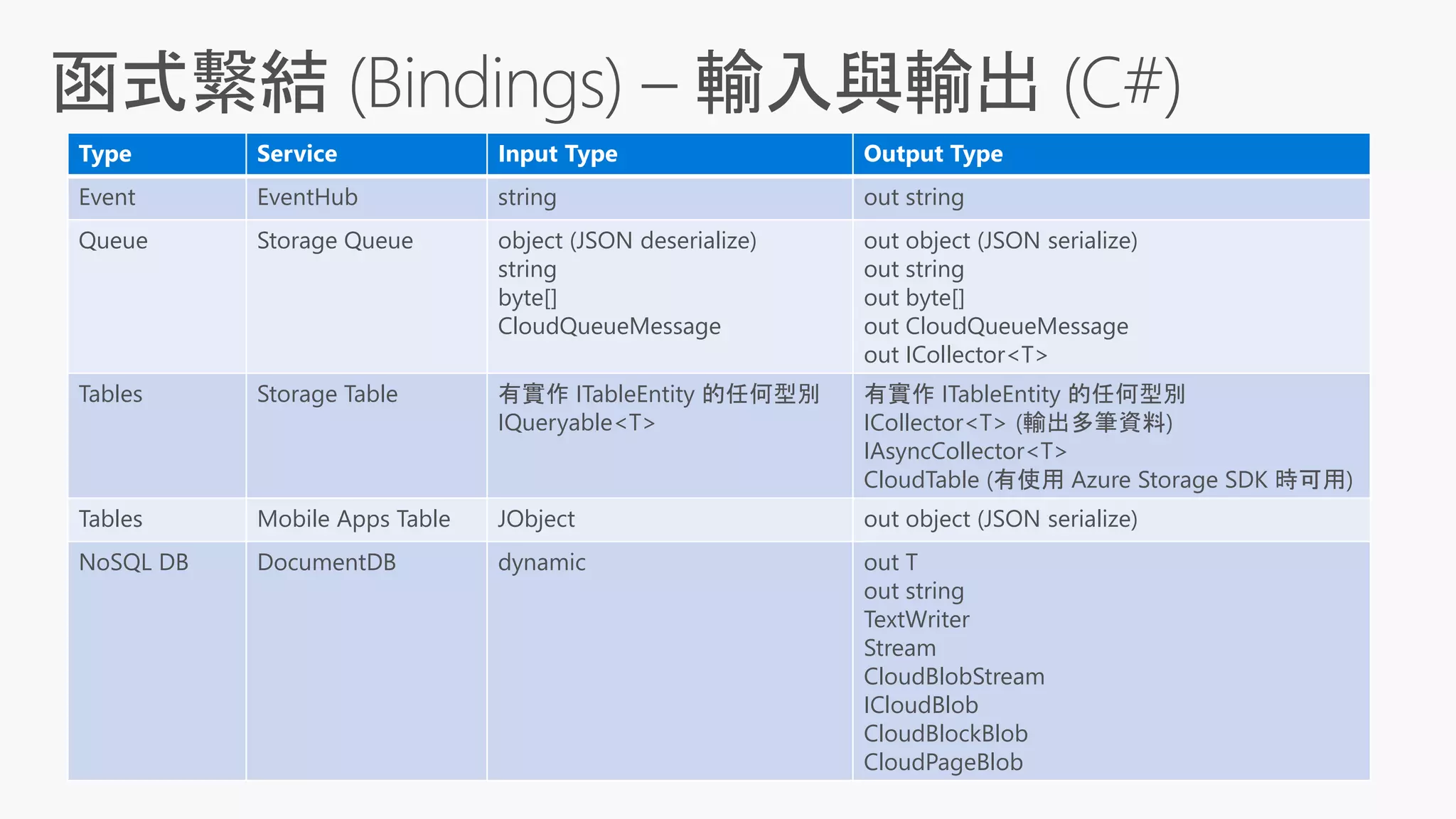

30. Type Service Input Type Output Type
Event EventHub string out string
Queue Storage Queue object (JSON deserialize)
string
byte[]
CloudQueueMessage
out object (JSON serialize)
out string
out byte[]
out CloudQueueMessage
out ICollector<T>
Tables Storage Table 有實作 ITableEntity 的任何型別
IQueryable<T>
有實作 ITableEntity 的任何型別
ICollector<T> (輸出多筆資料)
IAsyncCollector<T>
CloudTable (有使用 Azure Storage SDK 時可用)
Tables Mobile Apps Table JObject out object (JSON serialize)
NoSQL DB DocumentDB dynamic out T
out string
TextWriter
Stream
CloudBlobStream
ICloudBlob
CloudBlockBlob
CloudPageBlob

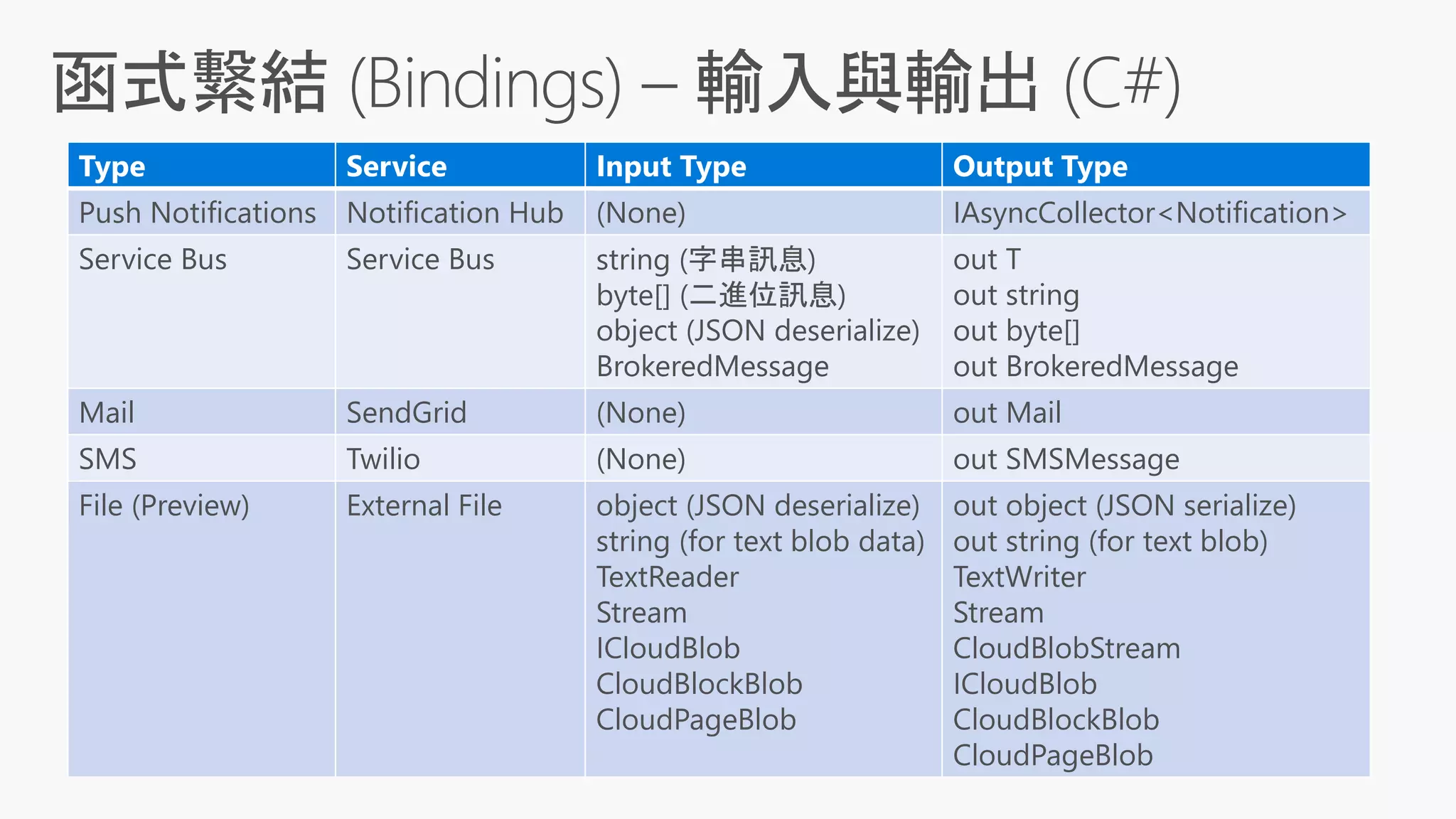

31. Type Service Input Type Output Type
Push Notifications Notification Hub (None) IAsyncCollector<Notification>
Service Bus Service Bus string (字串訊息)
byte[] (二進位訊息)
object (JSON deserialize)
BrokeredMessage
out T
out string
out byte[]
out BrokeredMessage
Mail SendGrid (None) out Mail
SMS Twilio (None) out SMSMessage
File (Preview) External File object (JSON deserialize)
string (for text blob data)
TextReader
Stream
ICloudBlob
CloudBlockBlob
CloudPageBlob
out object (JSON serialize)
out string (for text blob)
TextWriter
Stream
CloudBlobStream
ICloudBlob
CloudBlockBlob
CloudPageBlob

34. AzureFunctions

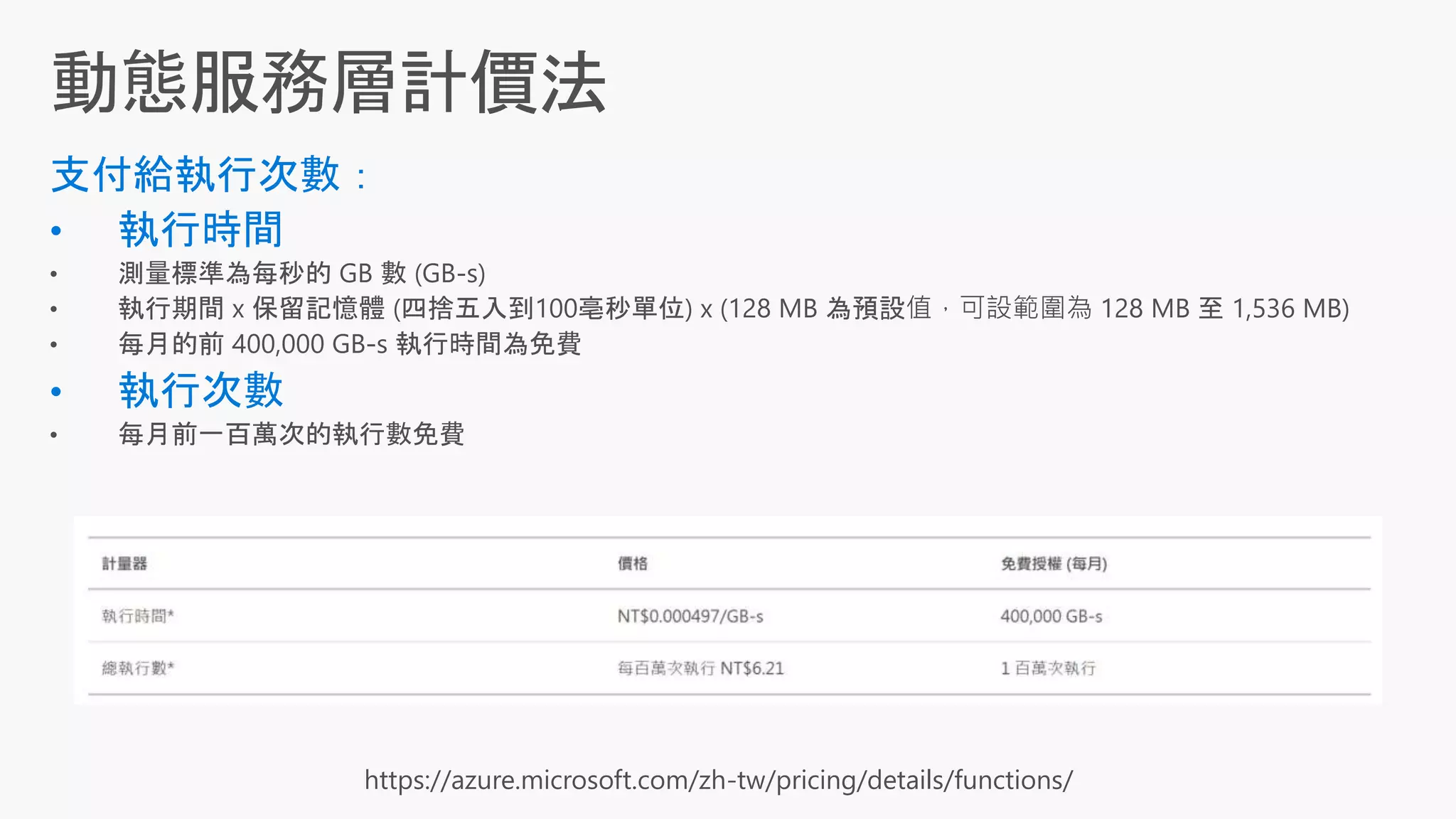

38. https://azure.microsoft.com/zh-tw/pricing/details/functions/

39. WebJobs SDK == 較多自由度-> 較多工作
Azure Functions == 較少責任-> 較少工作

41. • •
• •

42. 1) Trigger
7) Develop Locally
3) Develop 4) Execute
6) Monitor and Improve
2) Input Binding 5) Output Binding
Web
Hooks
Azure Services Azure Services
App Services
Hosting Plans
Azure Services
Azure
Functions

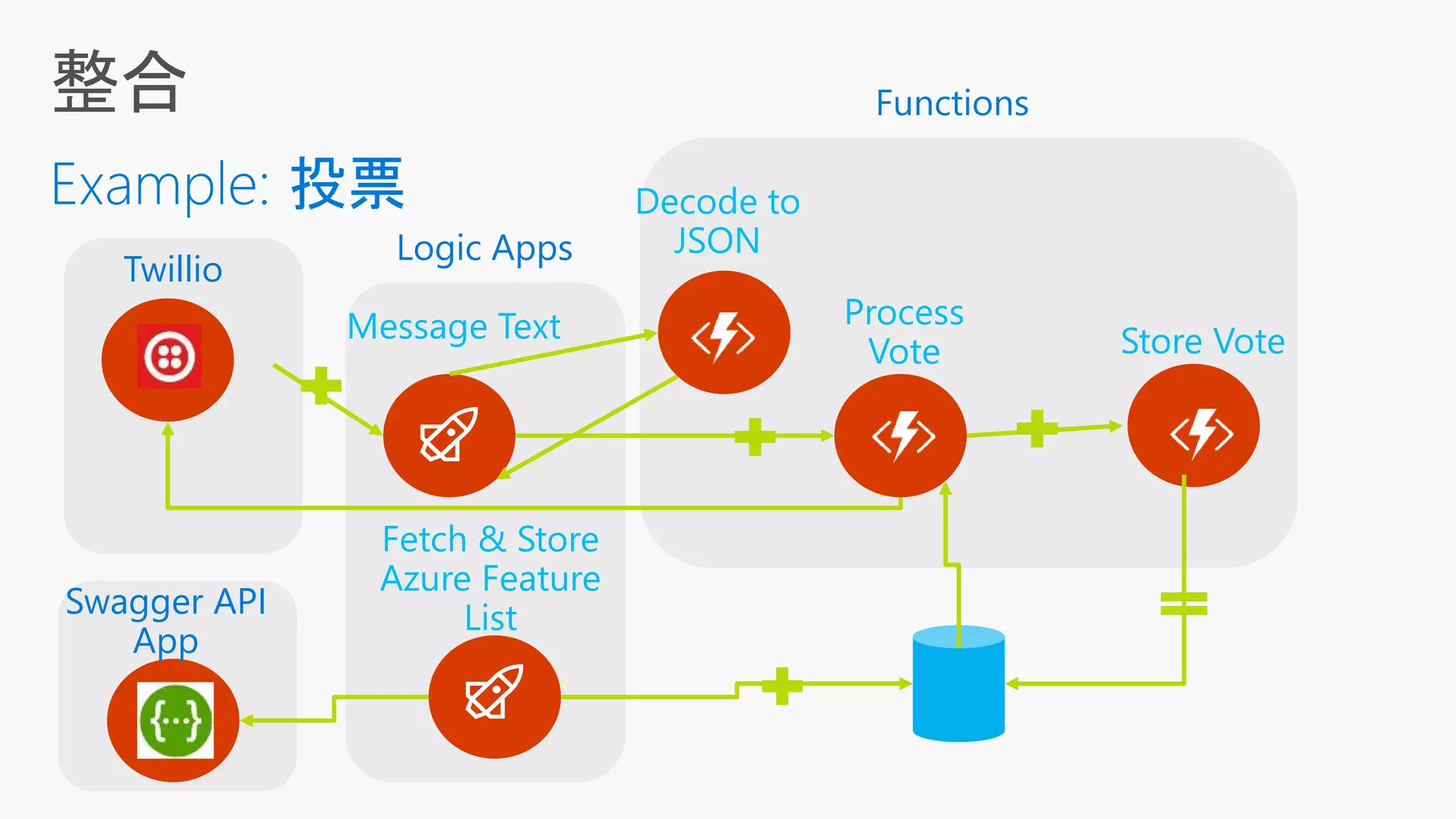

44. Store VoteMessage Text
Decode to
JSON
Process
Vote
Twillio
Logic Apps
Functions
Swagger API
App
Fetch & Store
Azure Feature
List

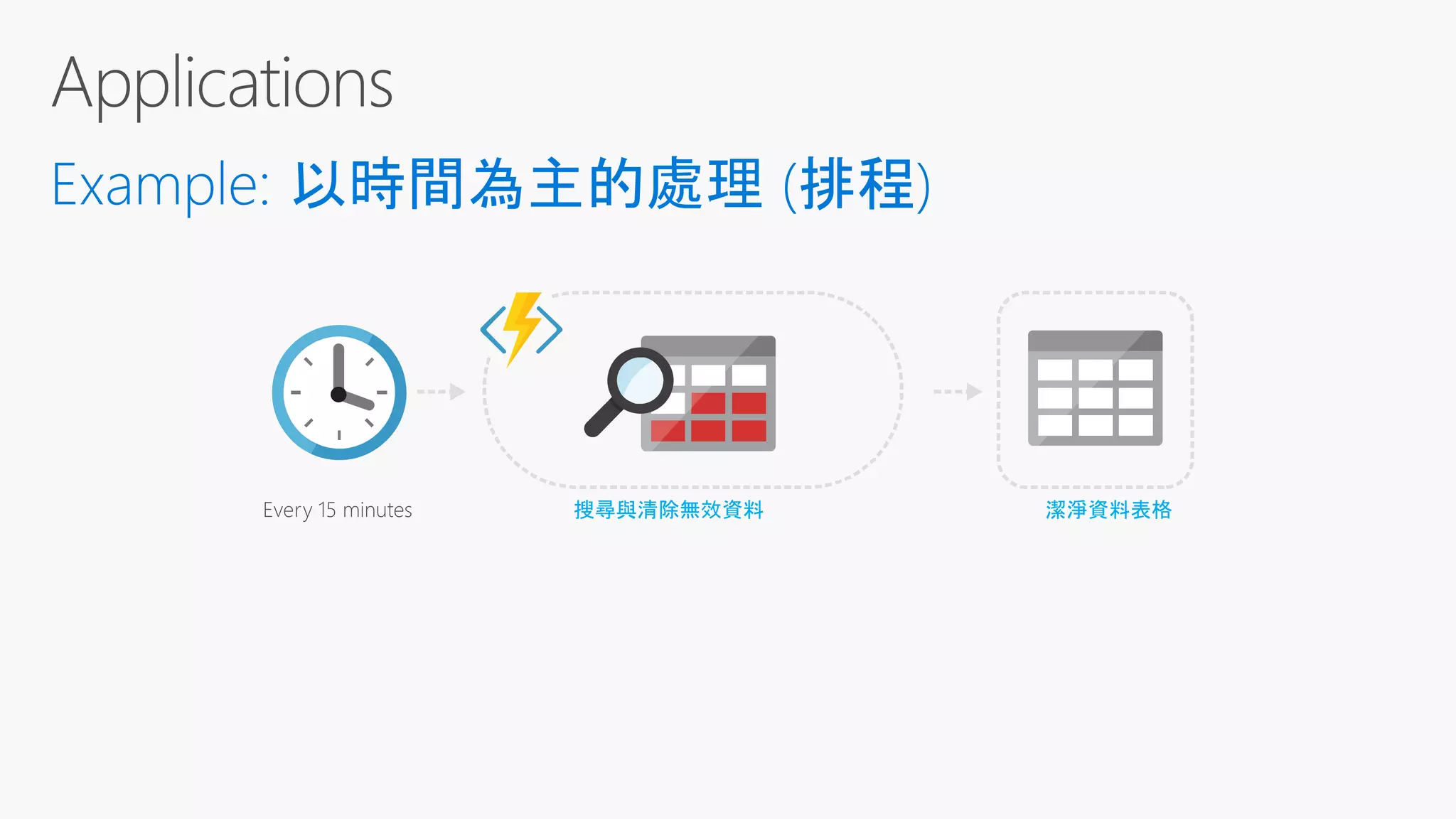

46. Every 15 minutes 潔淨資料表格搜尋與清除無效資料

47. File added to
Blob Storage
Transform CSV to data rows
CSV
Power BI
Chart graphic

48. Excel file saved
to OneDrive
Microsoft Graph API analyzes content Creates new sheets
with charts

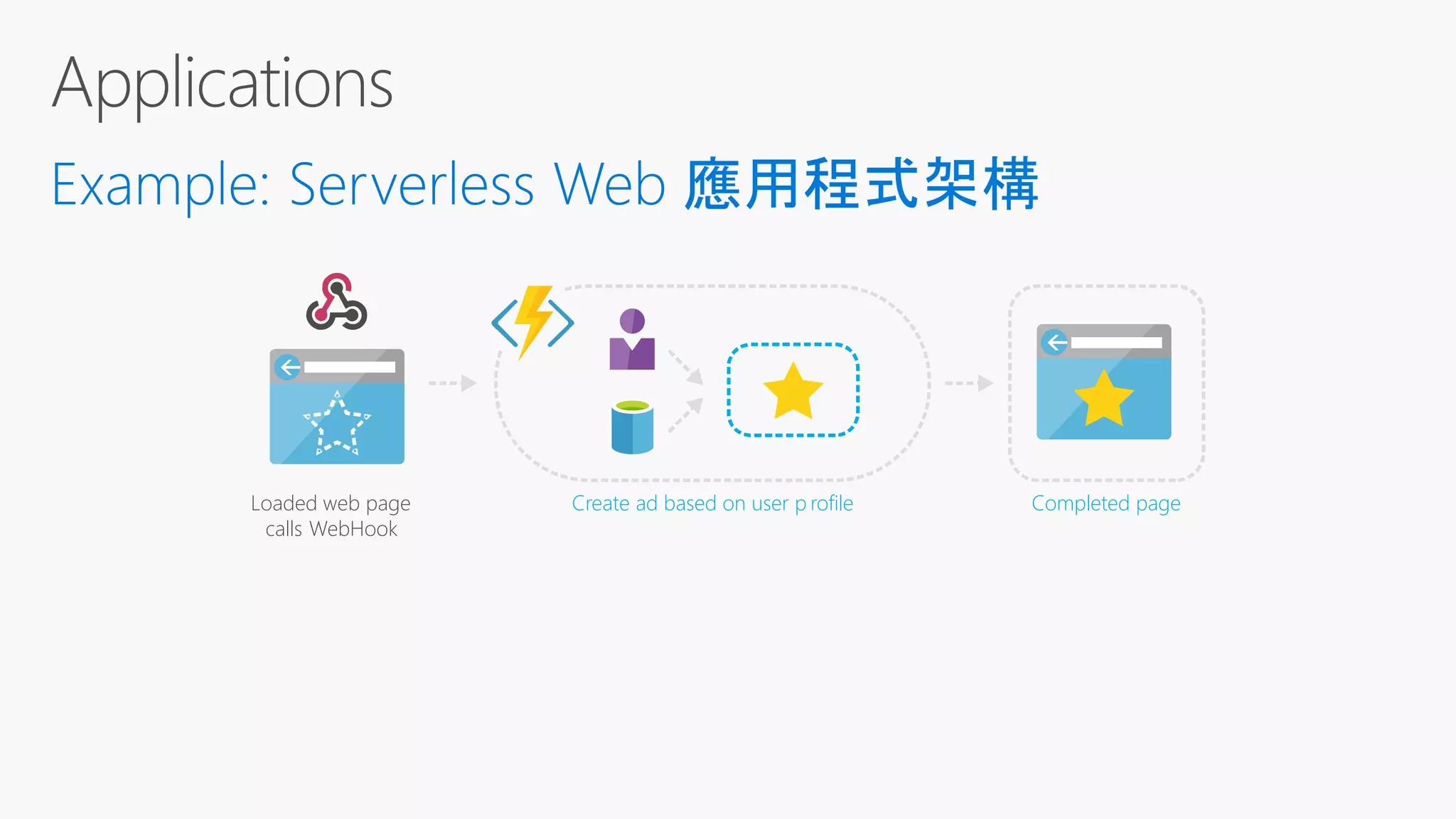

49. Loaded web page
calls WebHook
Completed pageCreate ad based on user p rofile

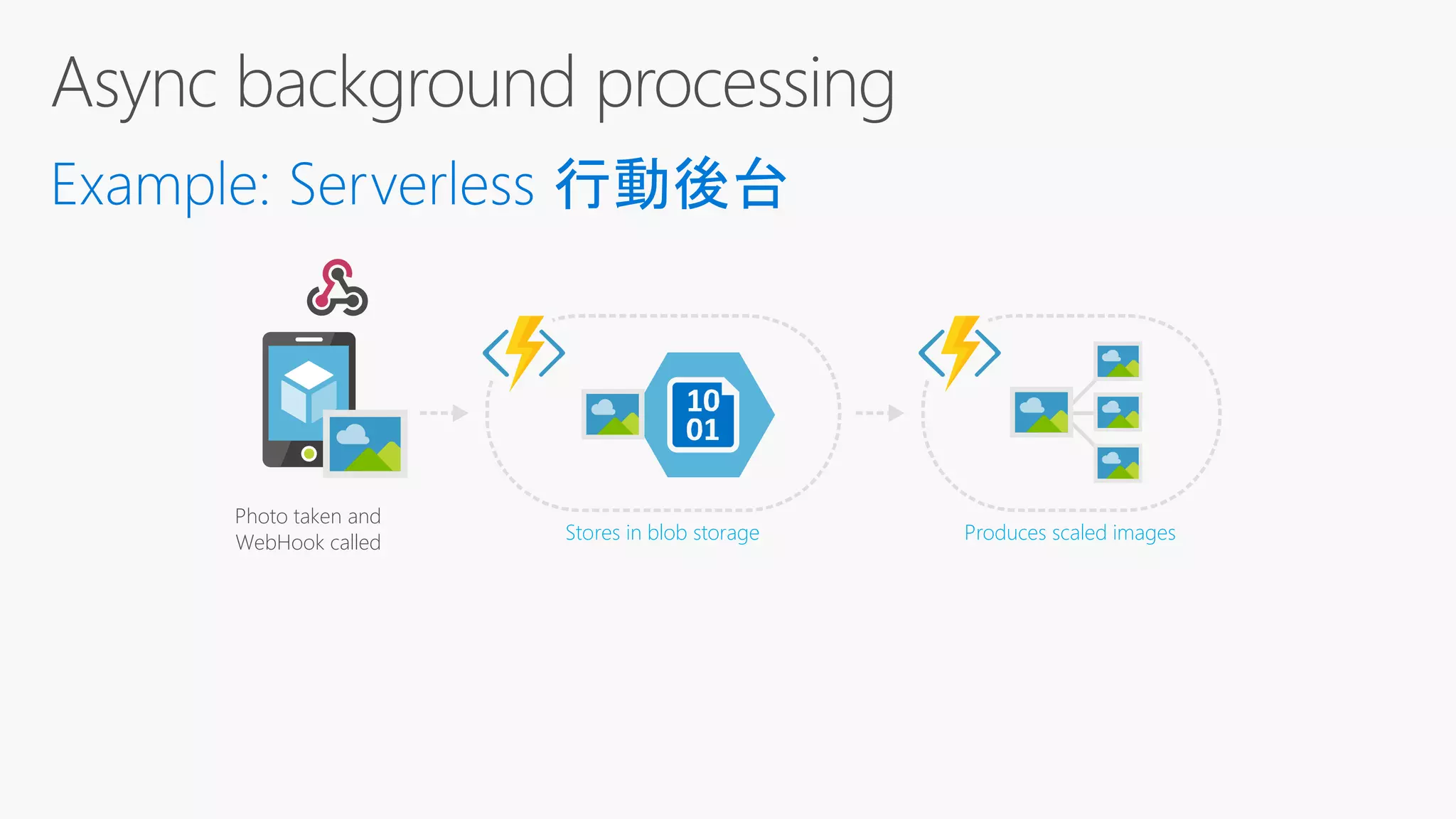

50. Photo taken and
WebHook called Stores in blob storage Produces scaled images

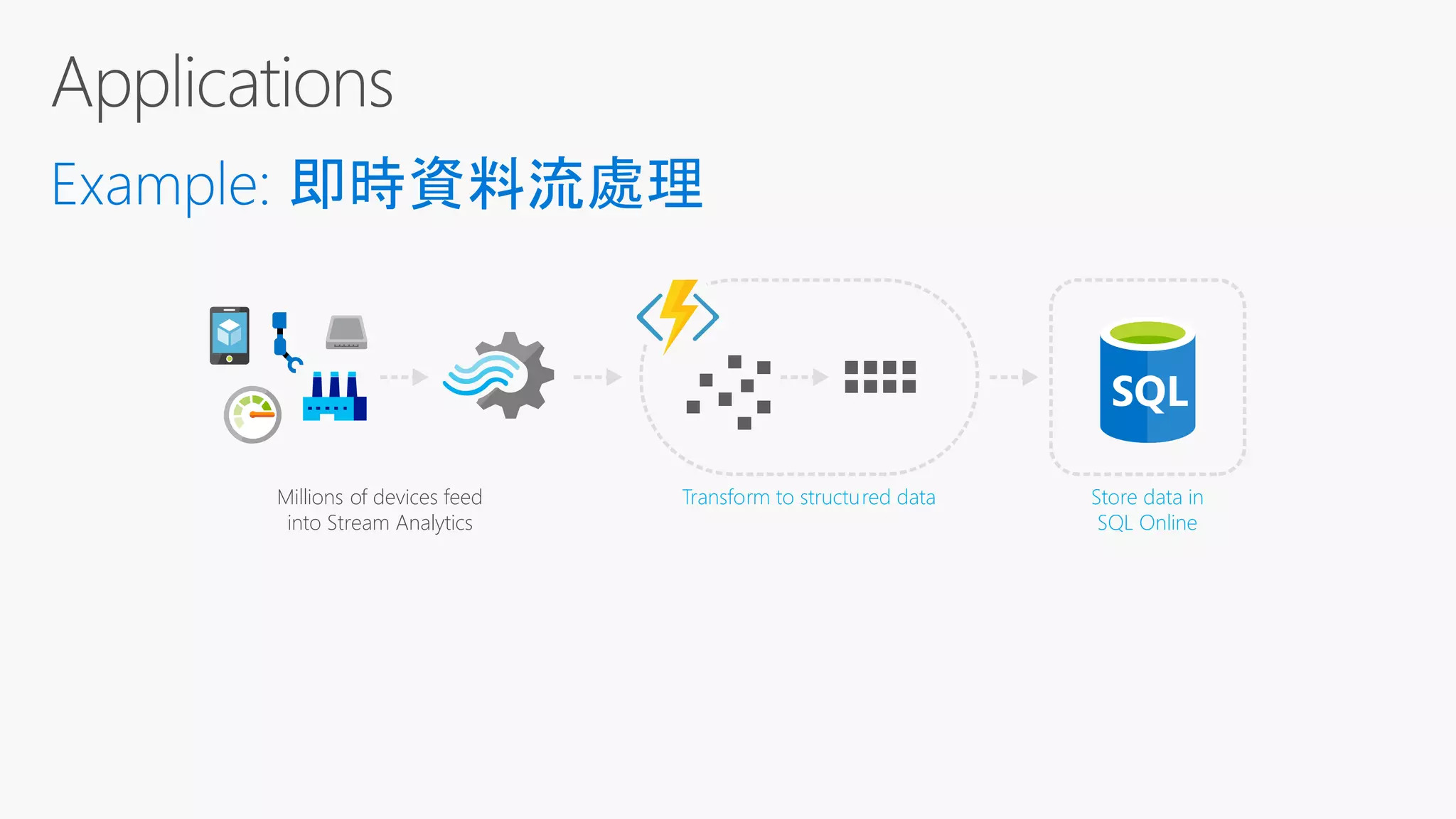

51. Millions of devices feed
into Stream Analytics
Store data in
SQL Online
Transform to structured data

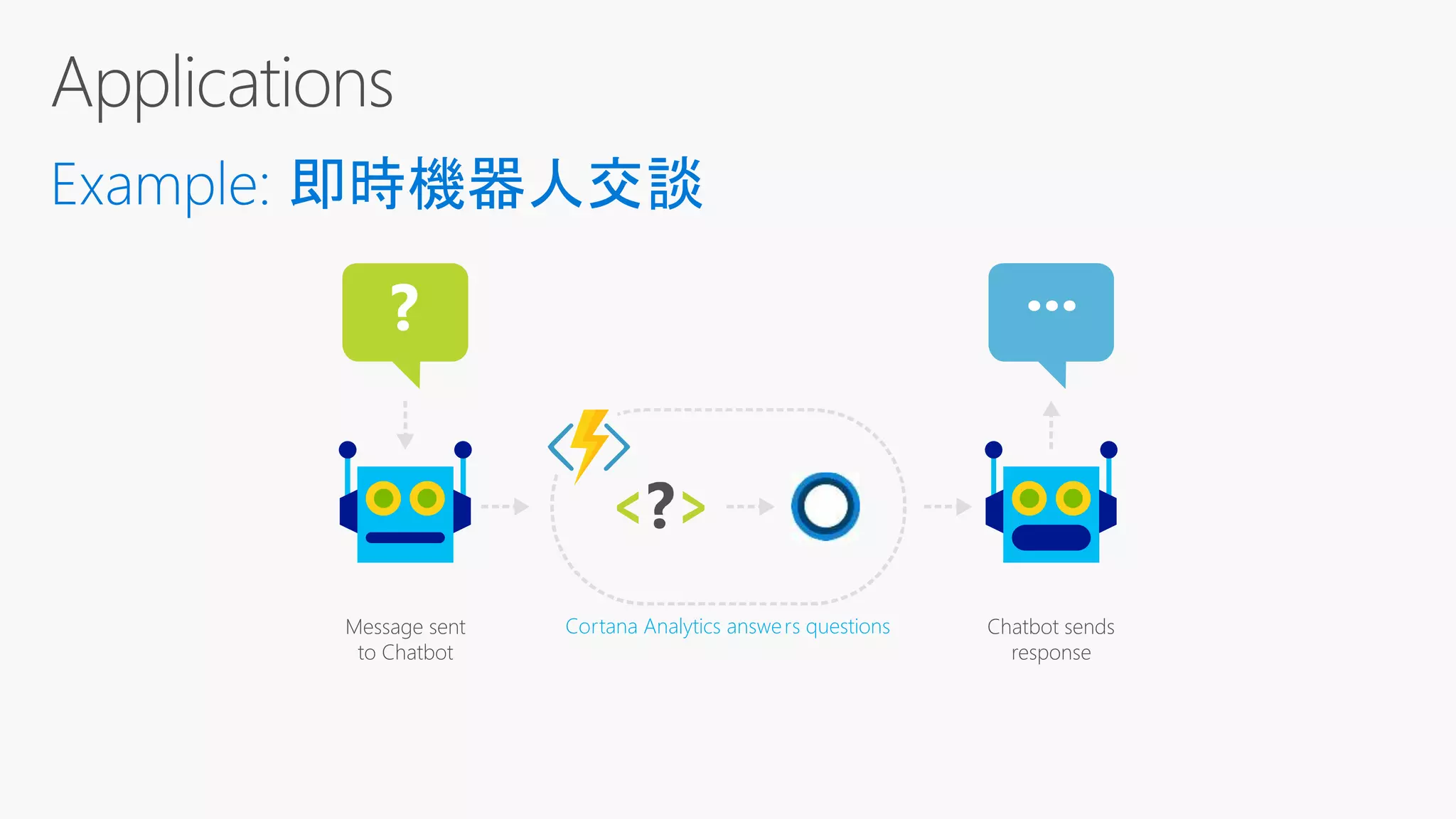

52. ? ...
Cortana Analytics answers questionsMessage sent
to Chatbot
Chatbot sends
response

53. https://github.com/Azure/Azure-Functions
https://blogs.msdn.microsoft.com/martinkearn/2016/05/06/smart-image-re-sizing-with-
azure-functions-and-cognitive-services/
