Design Coordination is the most important aspect of a Building Design as models from multiple users from various software packages have to be coordinated in real-time and checked for clashes and issues. CloudBLM allows users to coordinate various project models using the Model Viewer, create coordination sets and run clashes with them directly in Navisworks & CloudBLM.

1. Design Coordination
Design Coordination is the most important
aspect of a Building Design as models from
multiple users from various software
packages have to be coordinated in real-time
and checked for clashes and issues.
CloudBLM allows users to coordinate various
project models using the Model Viewer,
create coordination sets and run clashes
with them directly in Navisworks &
CloudBLM.

2. The said clashes from
Navisworks & CloudBLM clash
engine can also be posted back
to the application as issues and
tracked. The federated model
can then be used for further
Project Management and
exported as an IFC for sharing
with other BIM collaborators.
Introduction

3. Navisworks
Integration
Cloud-Based
Model
Coordination
Federated 3D
Model Viewer
Built – In Clash
Detection​

4. Models assembled within CloudBLM projects
can be directly loaded into Navisworks for
clash detection and further linked with the
web application. Identified clashes are
streamlined and converted as potential issues
within the plugin.
Using CloudBLM Clash Finder, easily publish
clashes from Navisworks and create real-time
Issues/RFI from them.
Navisworks
Integration

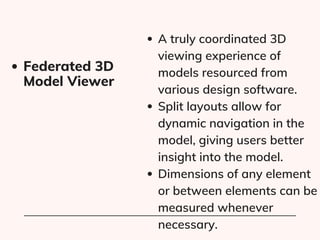

5. A truly coordinated 3D
viewing experience of
models resourced from
various design software.
Split layouts allow for
dynamic navigation in the
model, giving users better
insight into the model.
Dimensions of any element
or between elements can be
measured whenever
necessary.
Federated 3D
Model Viewer

6. A unified design review and
coordination platform which enables
project team to work efficiently.
Integration of models can be
performed without using any CAD
tools.
Published projects can be federated
clash detection can be handled, and
the results can be shared with all
necessary people.
Issues, RFIs, and Assets can be retrieved a
any given time
Cloud-Based
Model
Coordination

7. With the CloudBLM Clash Engine, a server-
based clash detection, users can run Hard
& Clearance clashes with a set tolerance
between models.
Clashes can be categorized by identity and
pattern, which enables the users to better
respond to them.
Built – In Clash
Detection​
