The document contains specifications for various tire sizes, including dimensions, load ratings, and other technical details. It lists over 50 different tire sizes made by Kinforest Tyre Co. along with their respective size code, maximum load capacity, recommended inflation pressure, tread pattern, and other specifications. The tires seem to be targeted towards commercial truck and off-road applications.

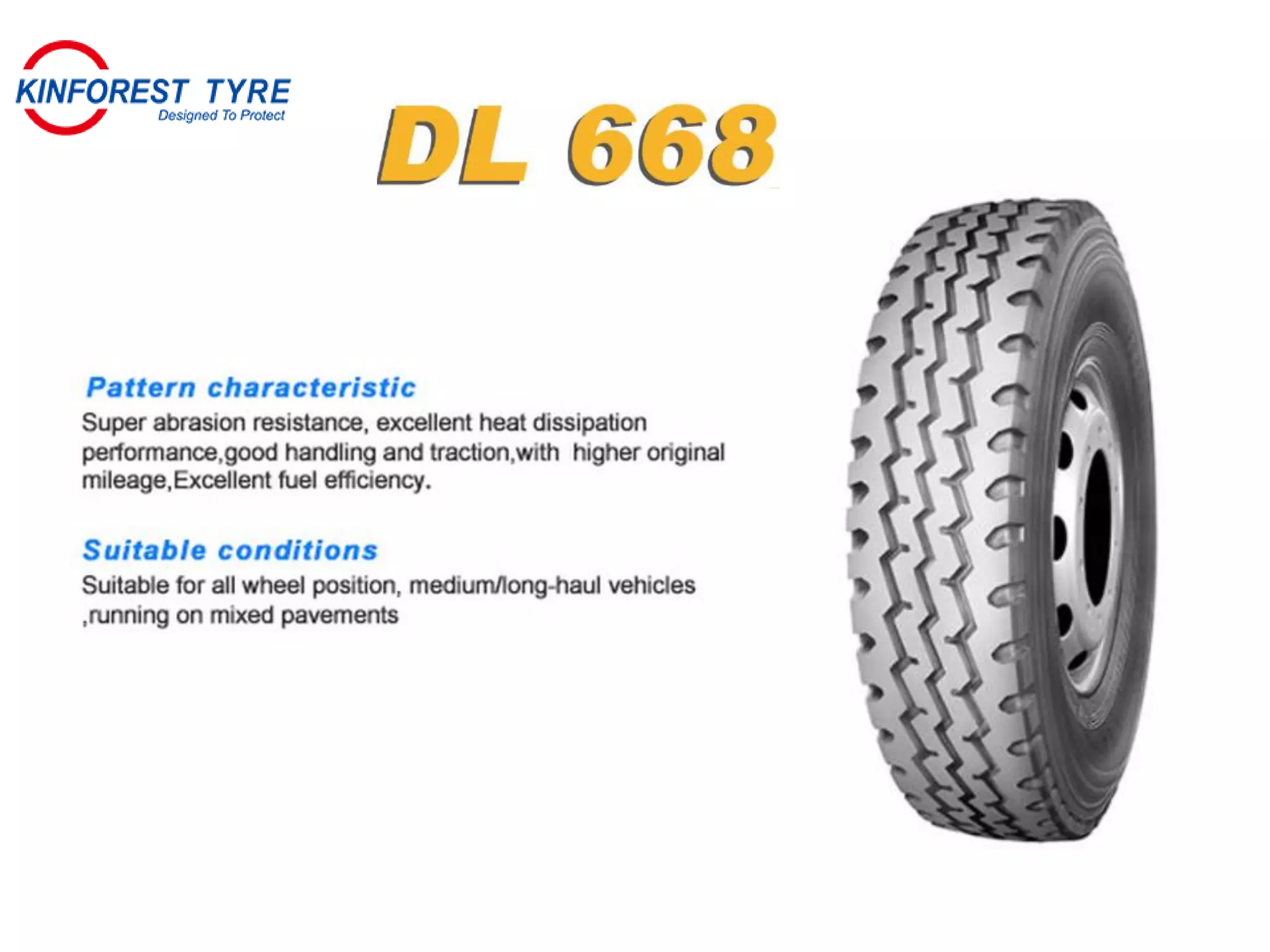

1. DAILYWAY
Kinforest Tyre Co., Ltd
www.kinforestyre.com

3. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

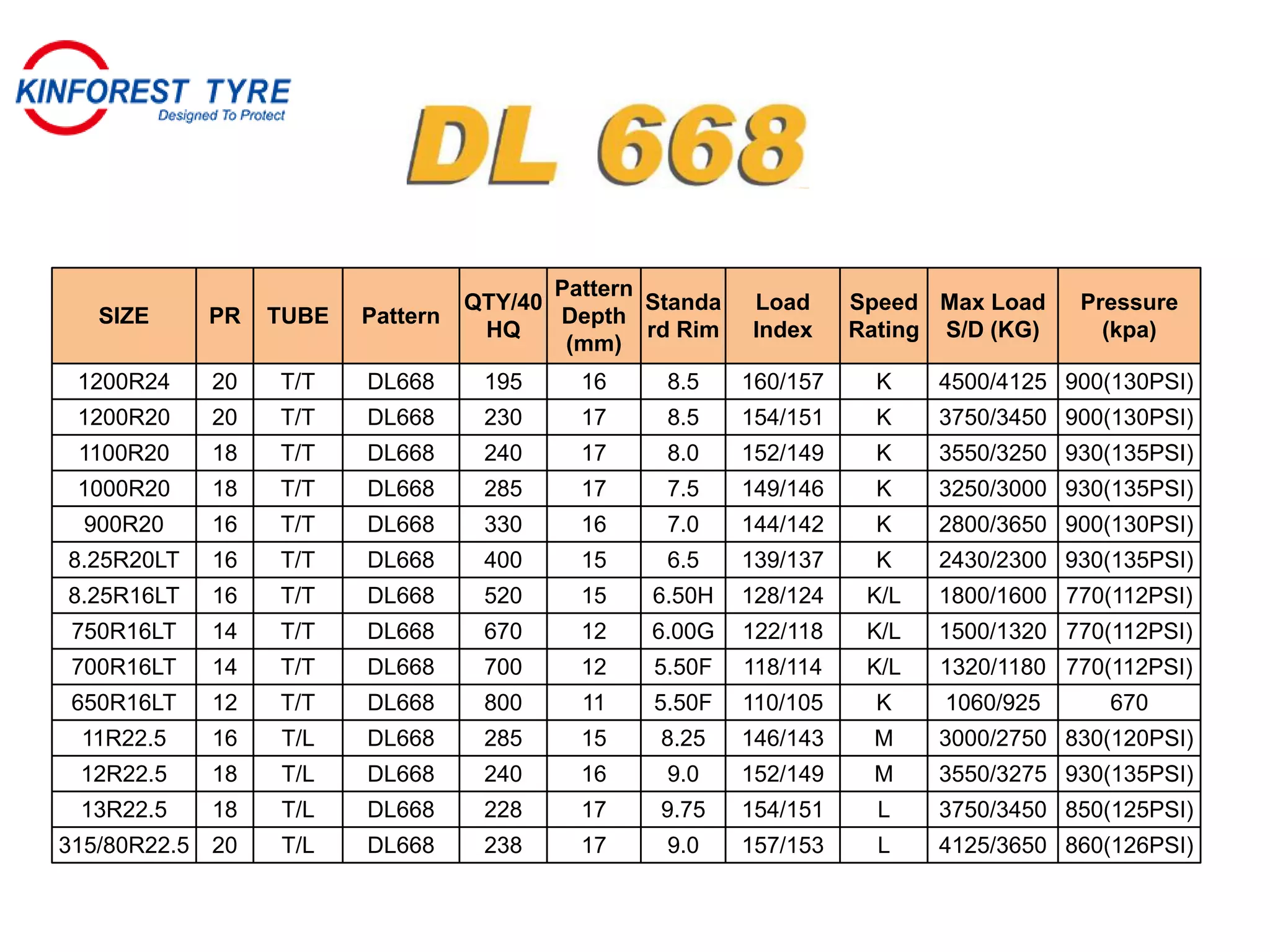

1200R24 20 T/T DL668 195 16 8.5 160/157 K 4500/4125 900(130PSI)
1200R20 20 T/T DL668 230 17 8.5 154/151 K 3750/3450 900(130PSI)
1100R20 18 T/T DL668 240 17 8.0 152/149 K 3550/3250 930(135PSI)
1000R20 18 T/T DL668 285 17 7.5 149/146 K 3250/3000 930(135PSI)
900R20 16 T/T DL668 330 16 7.0 144/142 K 2800/3650 900(130PSI)
8.25R20LT 16 T/T DL668 400 15 6.5 139/137 K 2430/2300 930(135PSI)
8.25R16LT 16 T/T DL668 520 15 6.50H 128/124 K/L 1800/1600 770(112PSI)
750R16LT 14 T/T DL668 670 12 6.00G 122/118 K/L 1500/1320 770(112PSI)
700R16LT 14 T/T DL668 700 12 5.50F 118/114 K/L 1320/1180 770(112PSI)
650R16LT 12 T/T DL668 800 11 5.50F 110/105 K 1060/925 670
11R22.5 16 T/L DL668 285 15 8.25 146/143 M 3000/2750 830(120PSI)
12R22.5 18 T/L DL668 240 16 9.0 152/149 M 3550/3275 930(135PSI)
13R22.5 18 T/L DL668 228 17 9.75 154/151 L 3750/3450 850(125PSI)
315/80R22.5 20 T/L DL668 238 17 9.0 157/153 L 4125/3650 860(126PSI)

4. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

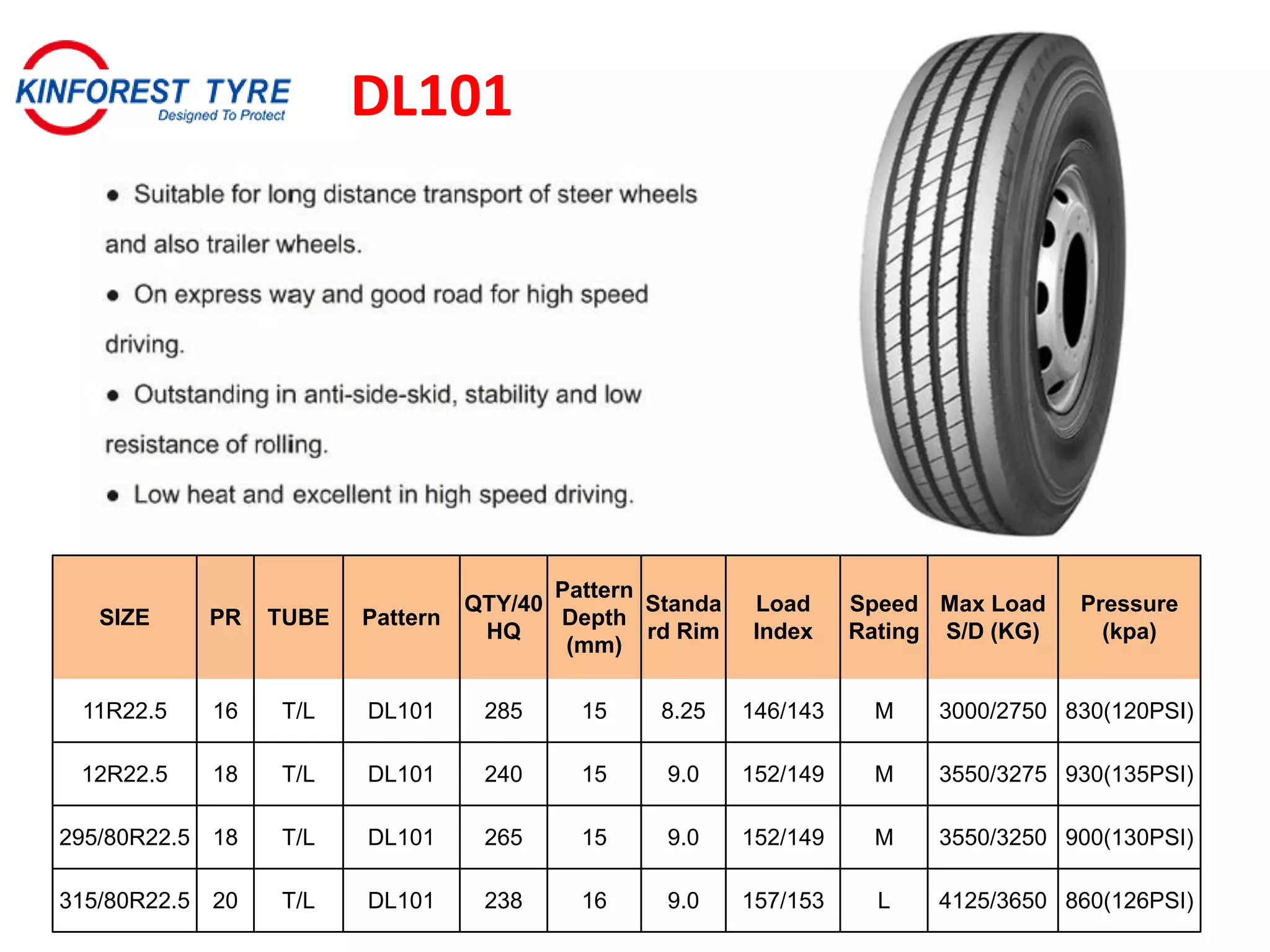

11R22.5 16 T/L DL101 285 15 8.25 146/143 M 3000/2750 830(120PSI)
12R22.5 18 T/L DL101 240 15 9.0 152/149 M 3550/3275 930(135PSI)
295/80R22.5 18 T/L DL101 265 15 9.0 152/149 M 3550/3250 900(130PSI)
315/80R22.5 20 T/L DL101 238 16 9.0 157/153 L 4125/3650 860(126PSI)
DL101

6. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

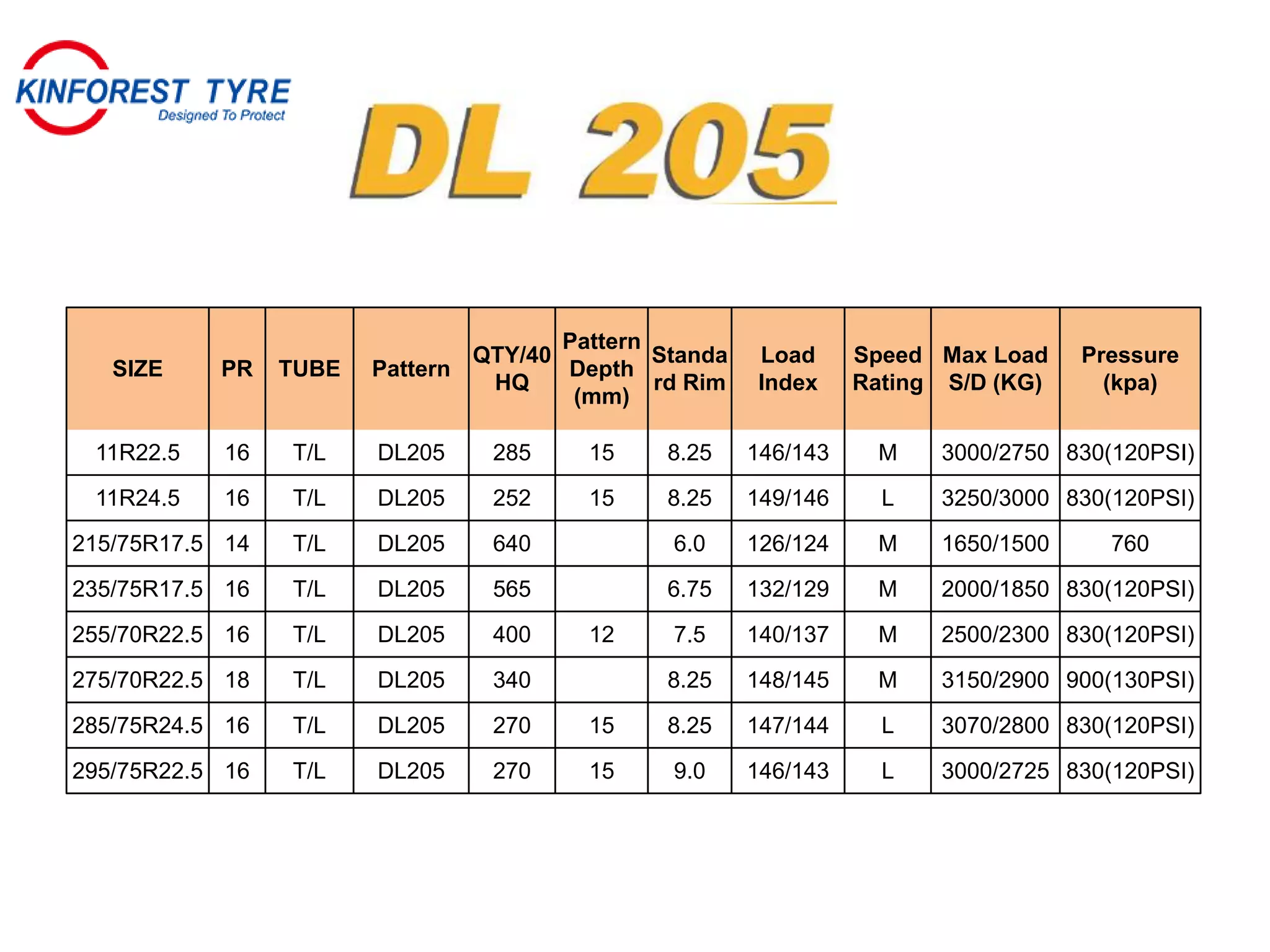

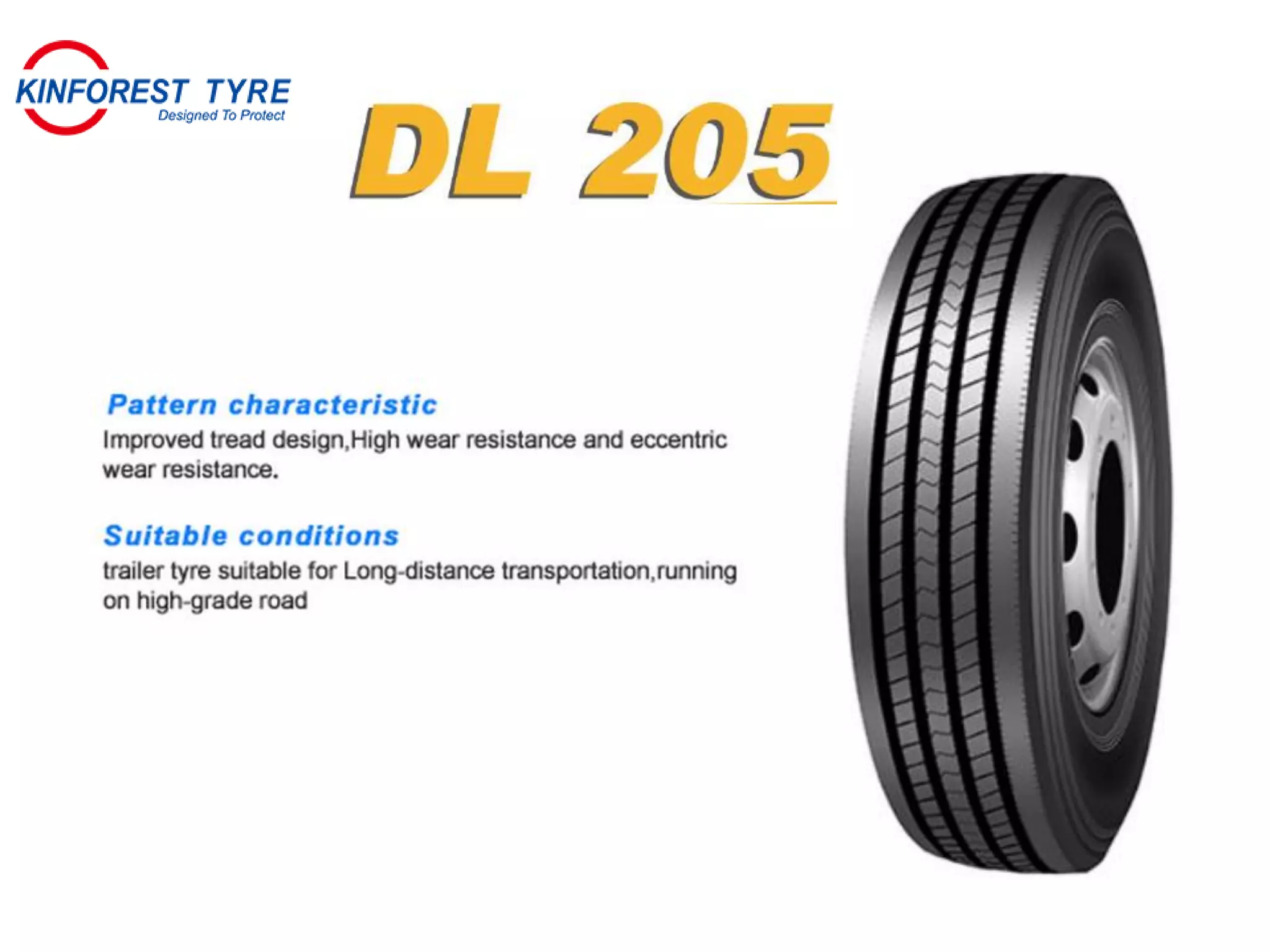

11R22.5 16 T/L DL205 285 15 8.25 146/143 M 3000/2750 830(120PSI)
11R24.5 16 T/L DL205 252 15 8.25 149/146 L 3250/3000 830(120PSI)
215/75R17.5 14 T/L DL205 640 6.0 126/124 M 1650/1500 760
235/75R17.5 16 T/L DL205 565 6.75 132/129 M 2000/1850 830(120PSI)
255/70R22.5 16 T/L DL205 400 12 7.5 140/137 M 2500/2300 830(120PSI)
275/70R22.5 18 T/L DL205 340 8.25 148/145 M 3150/2900 900(130PSI)
285/75R24.5 16 T/L DL205 270 15 8.25 147/144 L 3070/2800 830(120PSI)
295/75R22.5 16 T/L DL205 270 15 9.0 146/143 L 3000/2725 830(120PSI)

7. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

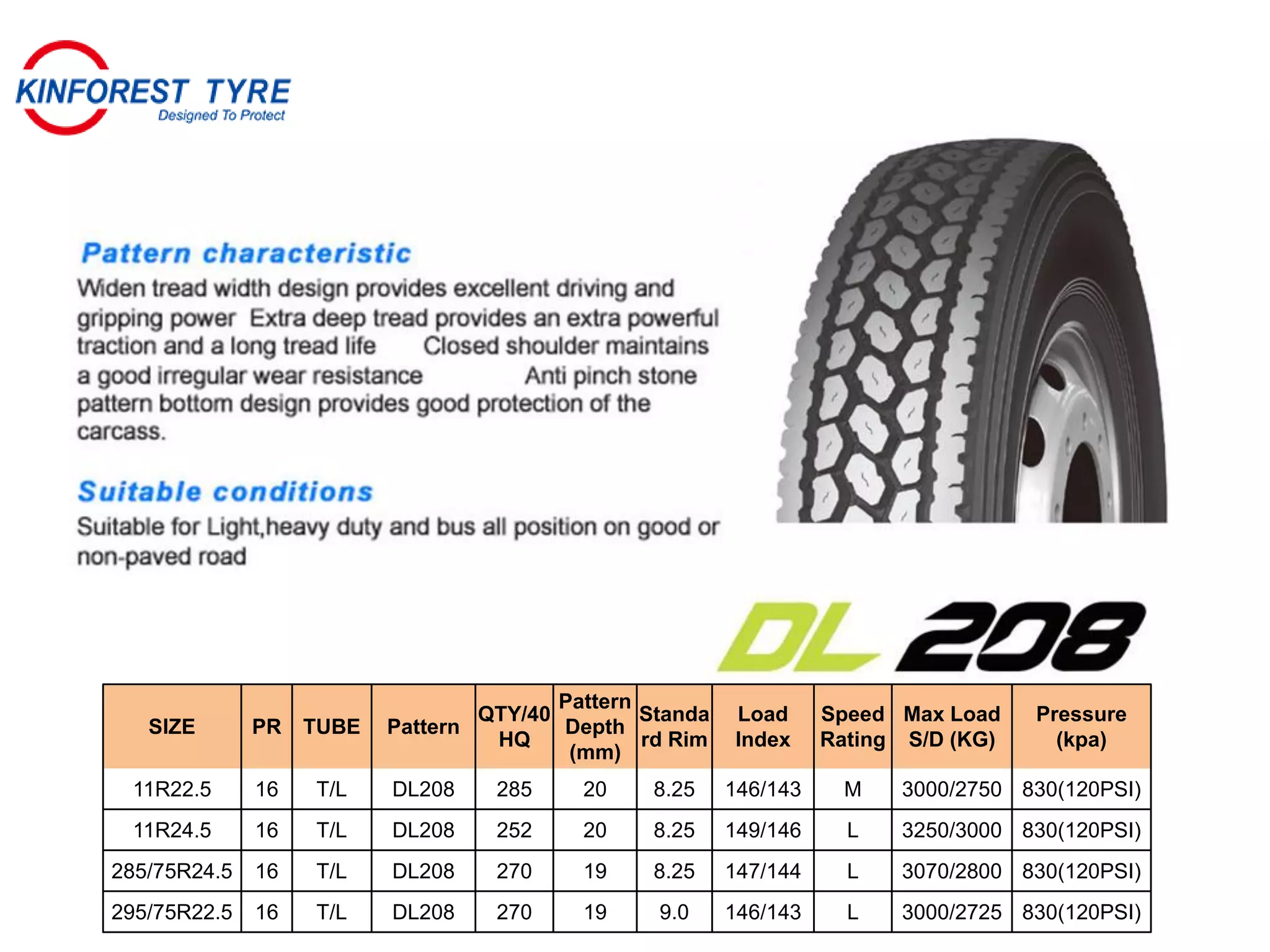

11R22.5 16 T/L DL208 285 20 8.25 146/143 M 3000/2750 830(120PSI)
11R24.5 16 T/L DL208 252 20 8.25 149/146 L 3250/3000 830(120PSI)
285/75R24.5 16 T/L DL208 270 19 8.25 147/144 L 3070/2800 830(120PSI)
295/75R22.5 16 T/L DL208 270 19 9.0 146/143 L 3000/2725 830(120PSI)

8. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

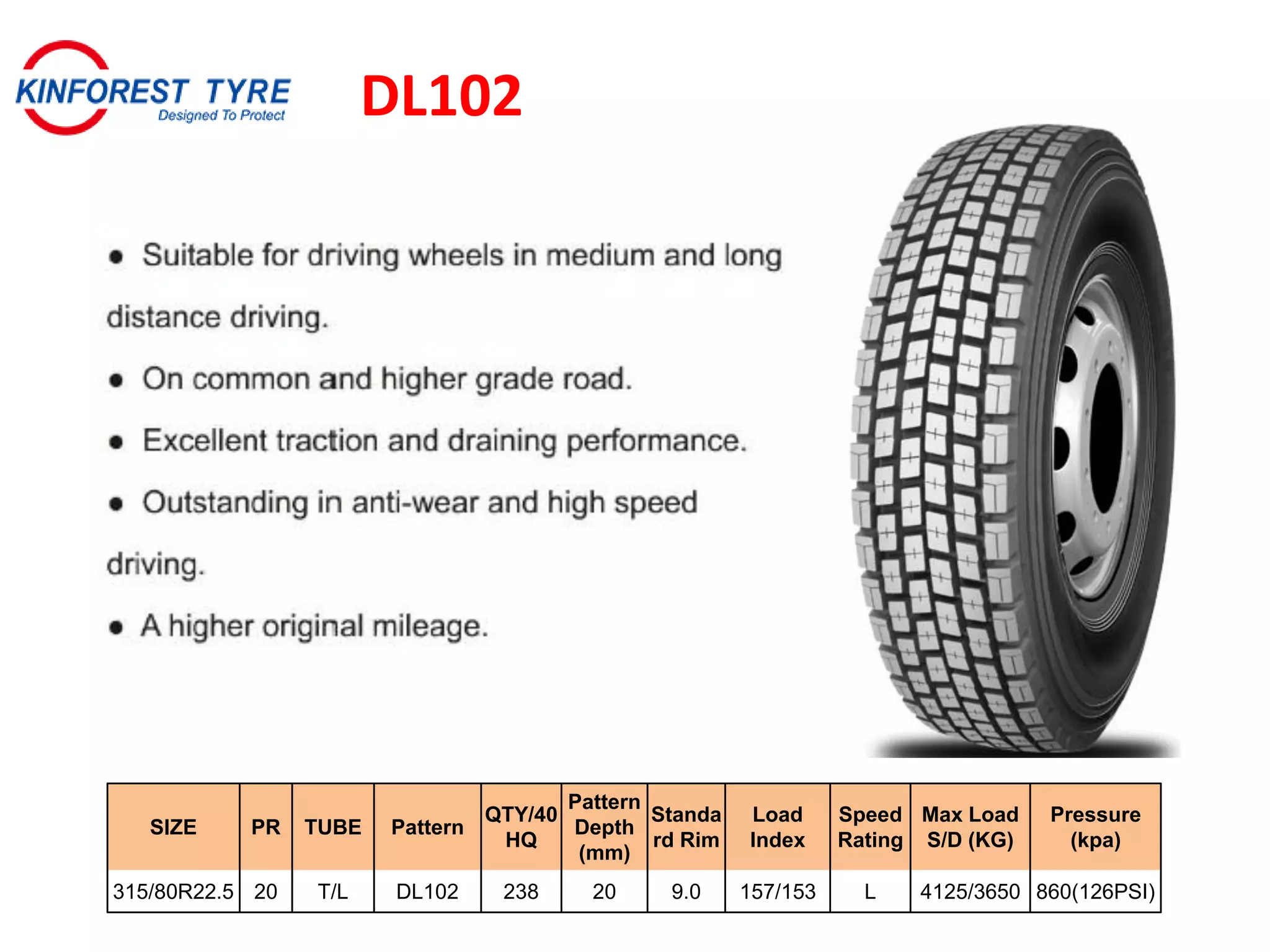

315/80R22.5 20 T/L DL102 238 20 9.0 157/153 L 4125/3650 860(126PSI)
DL102

9. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure

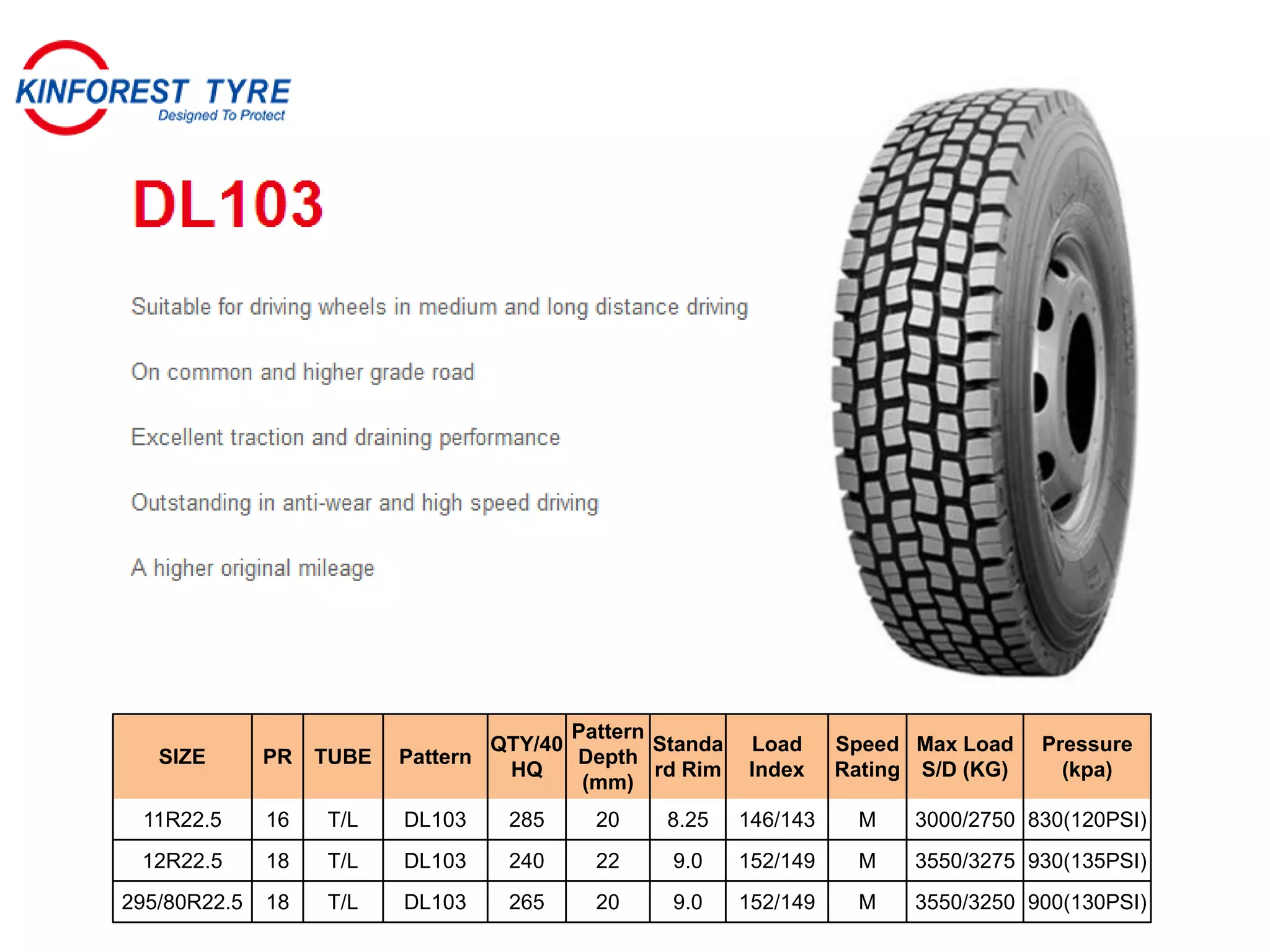

(kpa)
11R22.5 16 T/L DL103 285 20 8.25 146/143 M 3000/2750 830(120PSI)
12R22.5 18 T/L DL103 240 22 9.0 152/149 M 3550/3275 930(135PSI)
295/80R22.5 18 T/L DL103 265 20 9.0 152/149 M 3550/3250 900(130PSI)

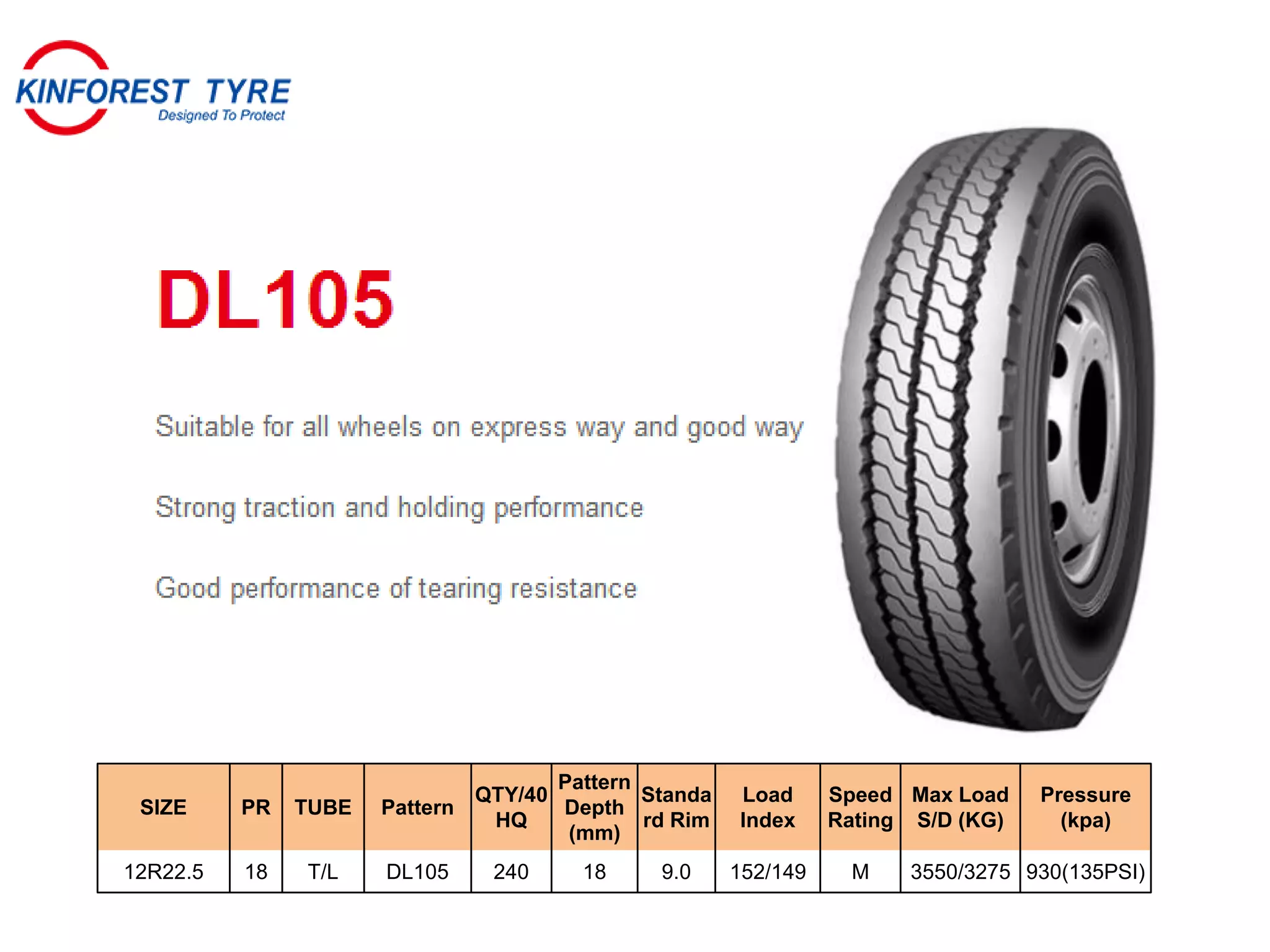

10. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
12R22.5 18 T/L DL105 240 18 9.0 152/149 M 3550/3275 930(135PSI)

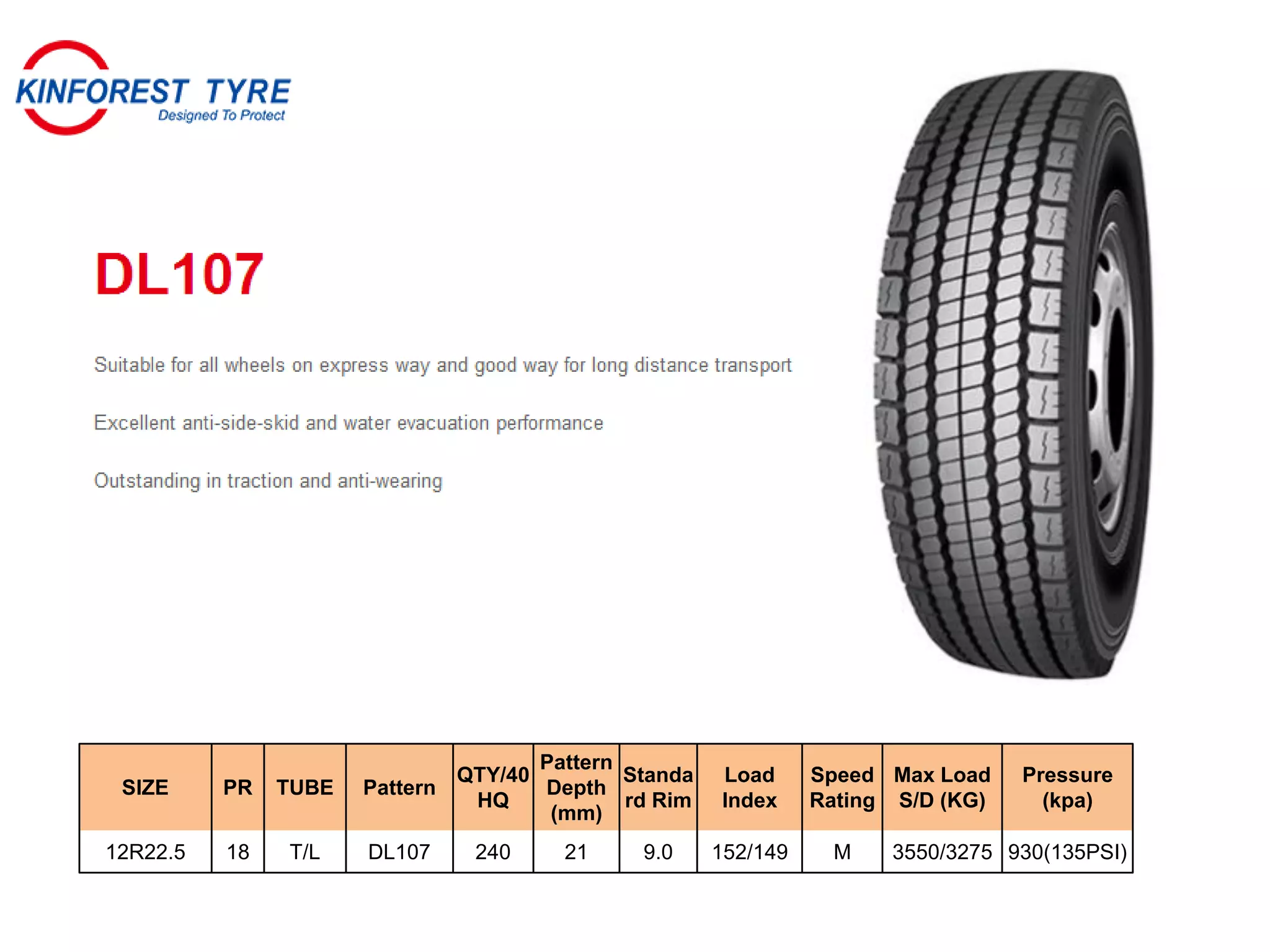

11. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
12R22.5 18 T/L DL107 240 21 9.0 152/149 M 3550/3275 930(135PSI)

12. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
1200R24 20 T/T DL108 191 17 8.5 160/157 K 4500/4125 900(130PSI)

13. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

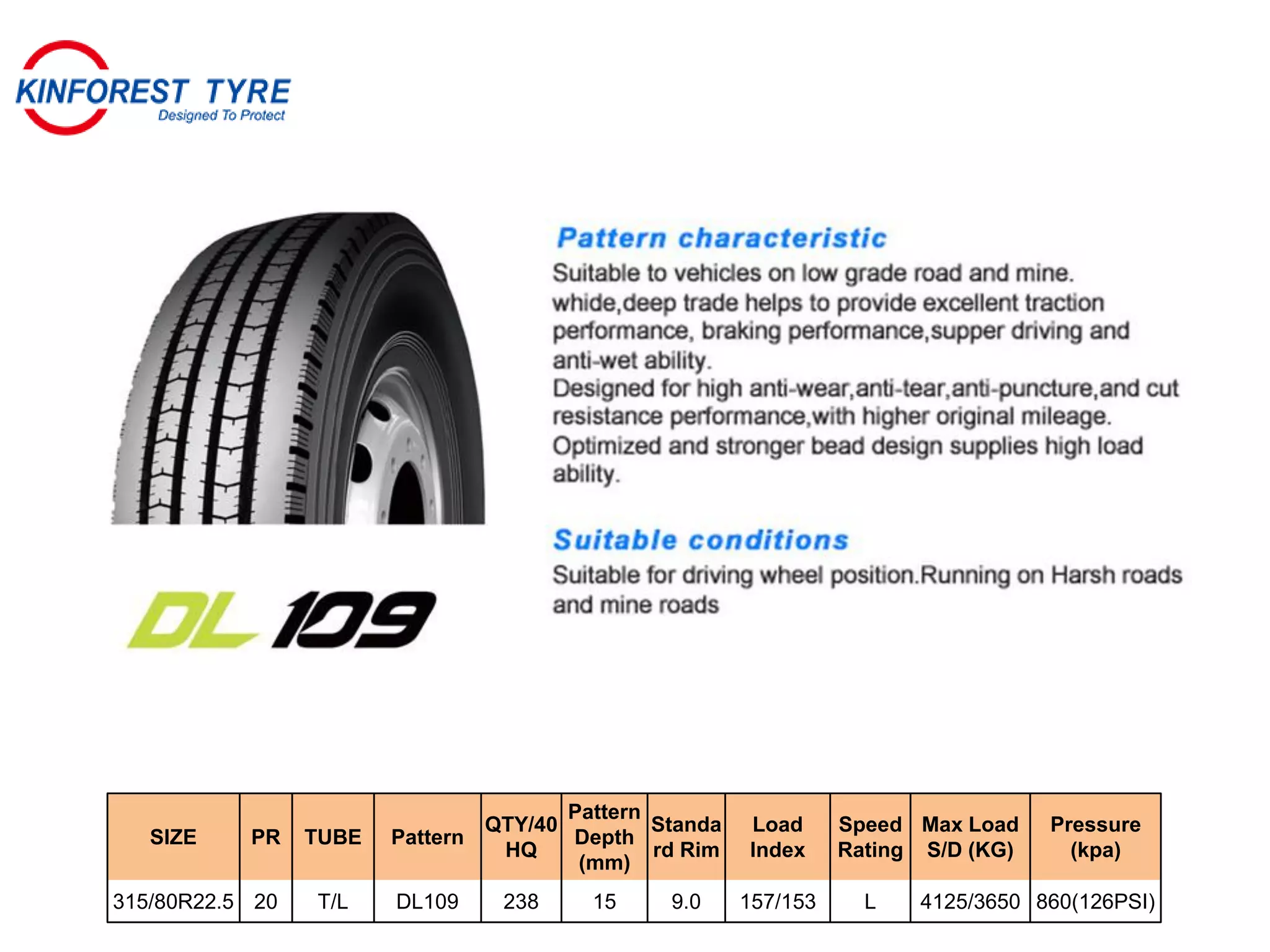

315/80R22.5 20 T/L DL109 238 15 9.0 157/153 L 4125/3650 860(126PSI)

14. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

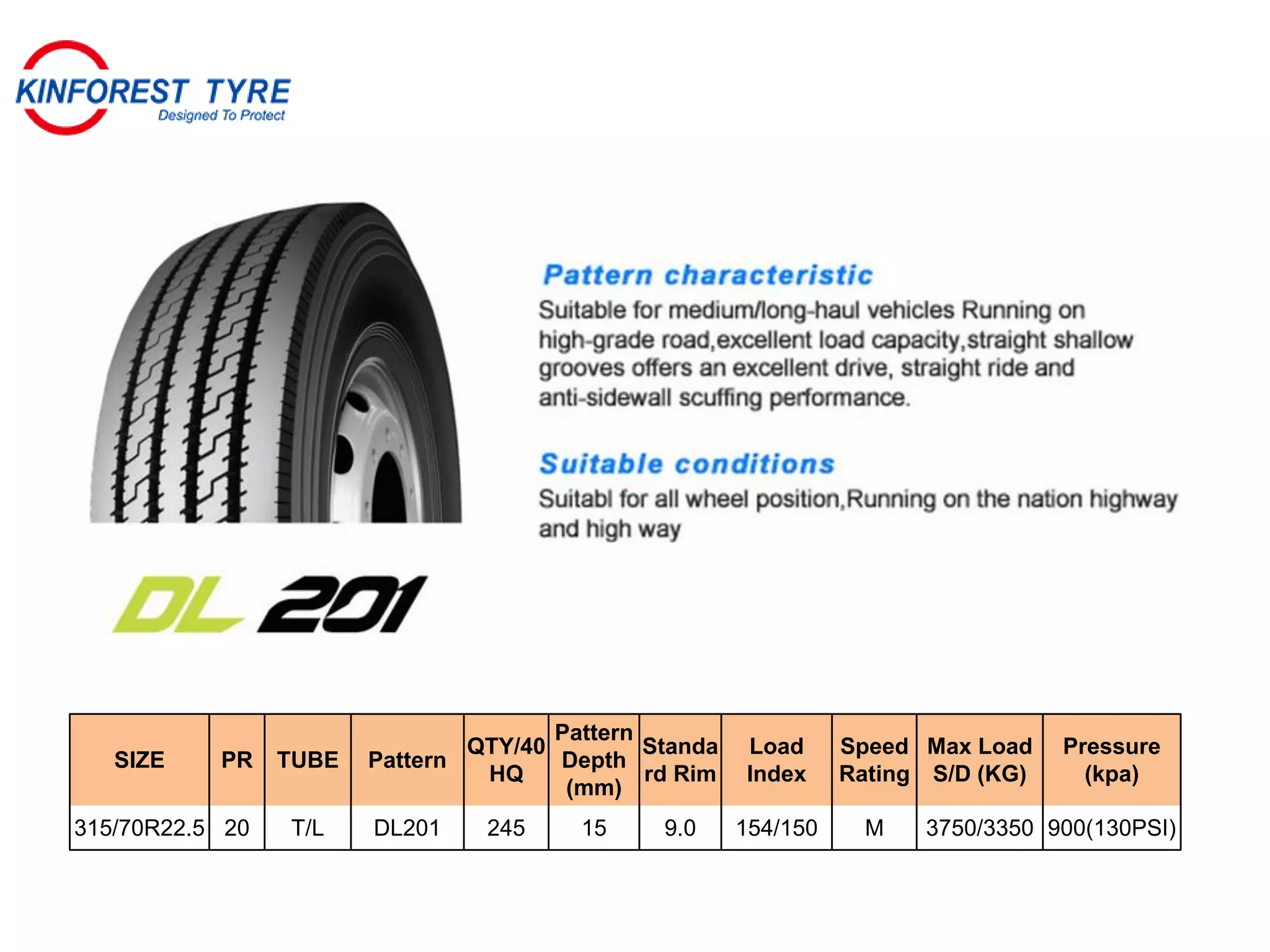

315/70R22.5 20 T/L DL201 245 15 9.0 154/150 M 3750/3350 900(130PSI)

15. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
315/70R22.5 20 T/L DL202 245 19 9.0 154/150 M 3750/3350 900(130PSI)

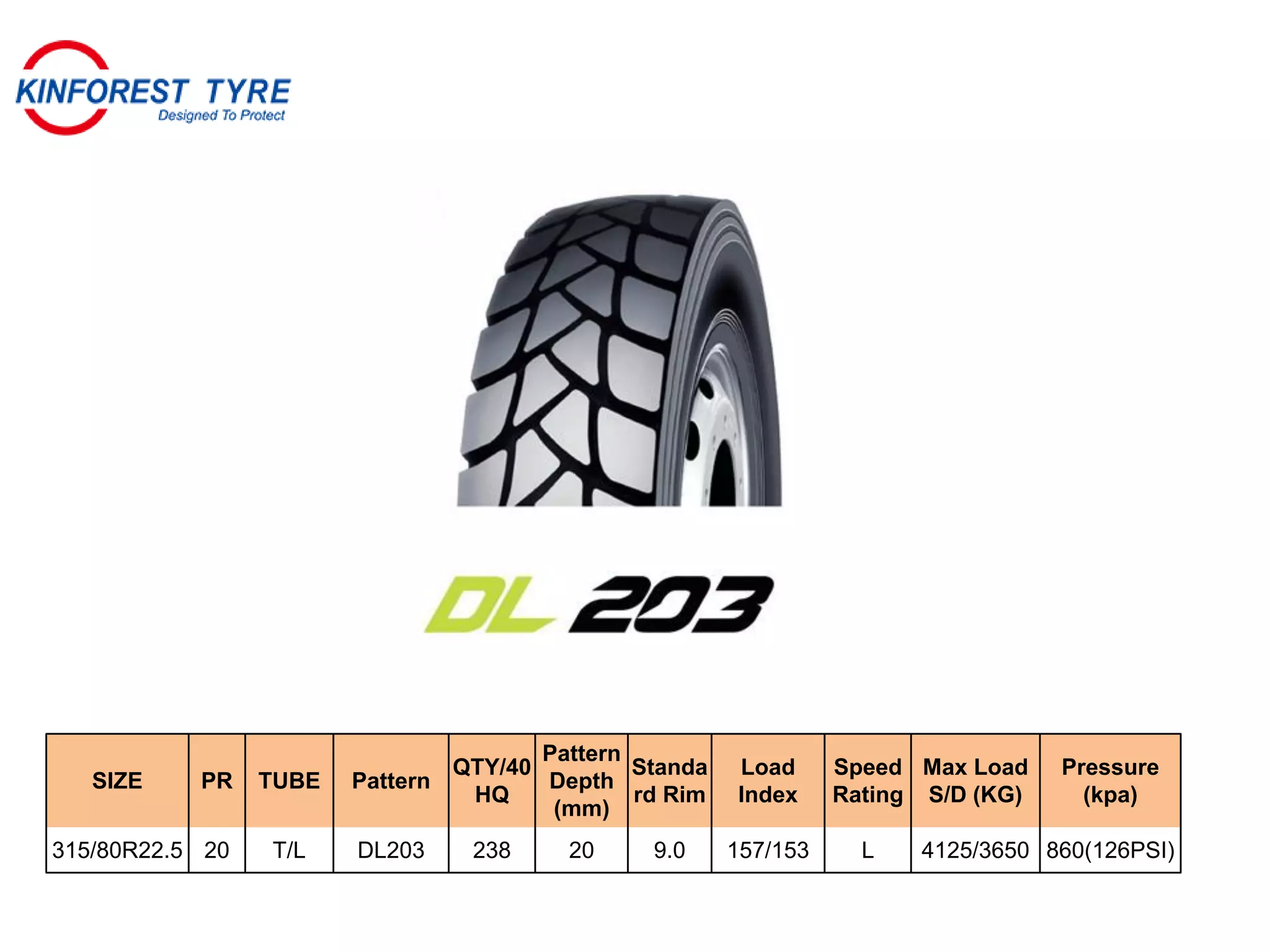

16. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
315/80R22.5 20 T/L DL203 238 20 9.0 157/153 L 4125/3650 860(126PSI)

17. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure

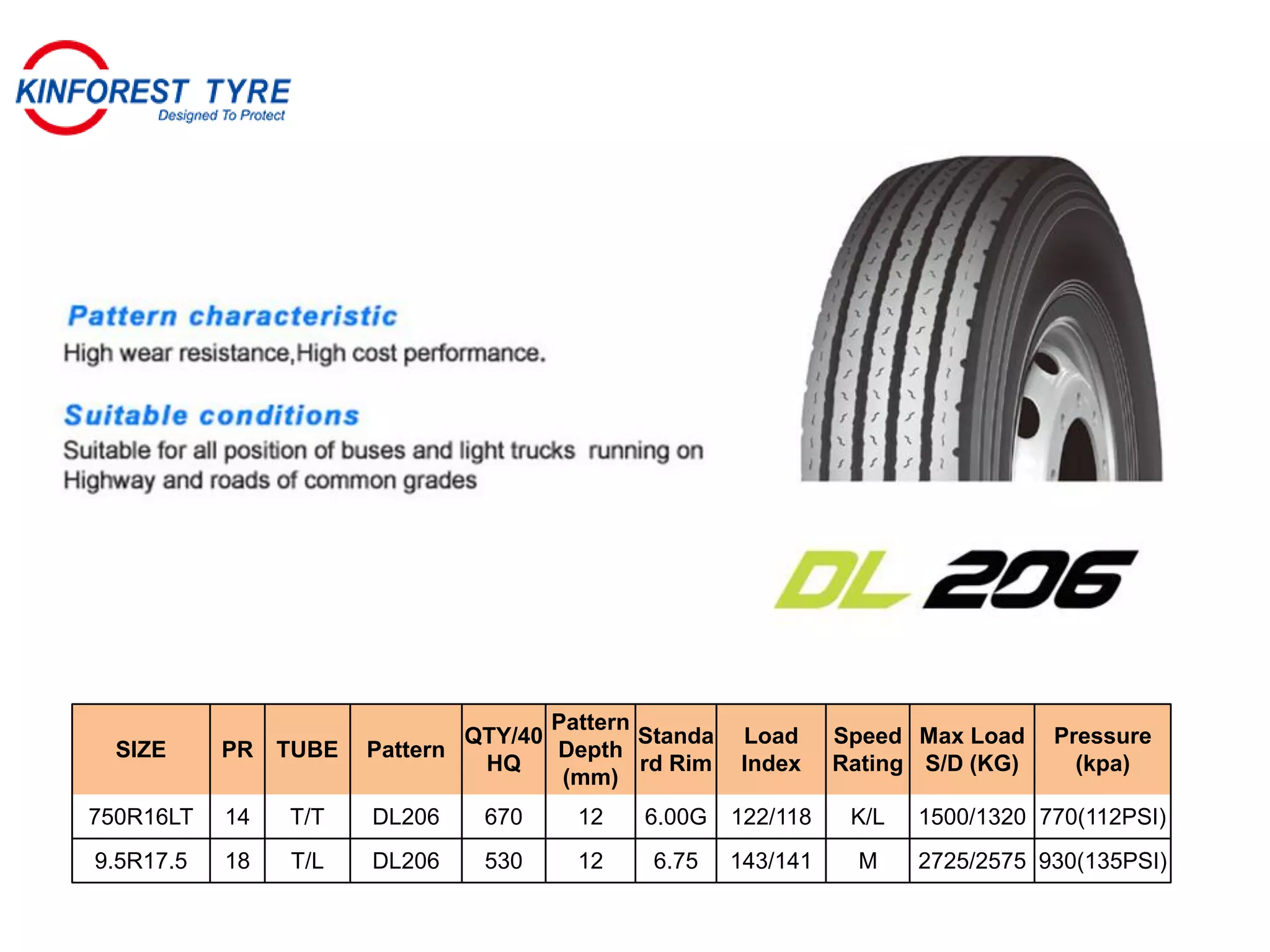

(kpa)
750R16LT 14 T/T DL206 670 12 6.00G 122/118 K/L 1500/1320 770(112PSI)
9.5R17.5 18 T/L DL206 530 12 6.75 143/141 M 2725/2575 930(135PSI)

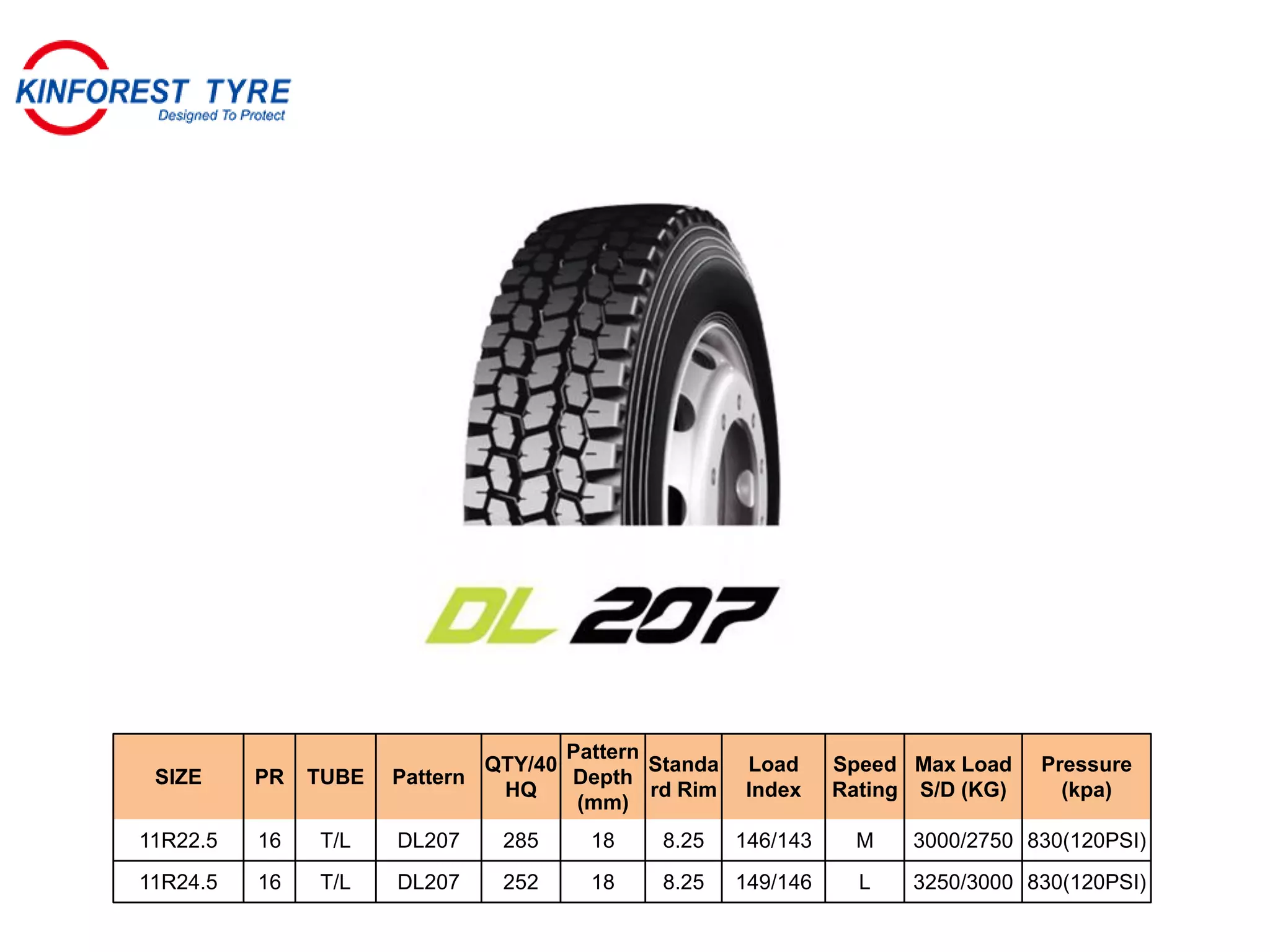

18. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
11R22.5 16 T/L DL207 285 18 8.25 146/143 M 3000/2750 830(120PSI)
11R24.5 16 T/L DL207 252 18 8.25 149/146 L 3250/3000 830(120PSI)

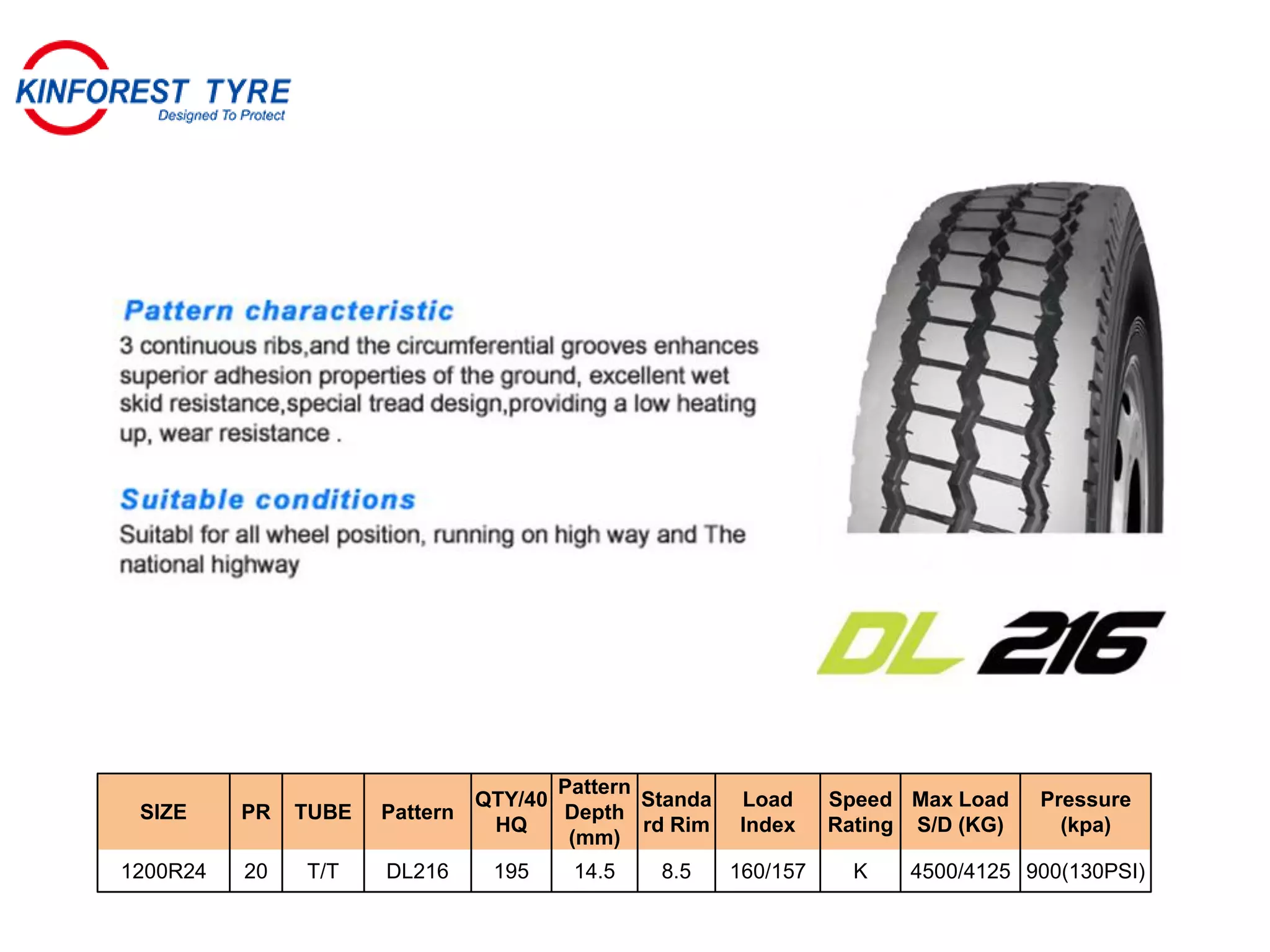

19. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
1200R24 20 T/T DL216 195 14.5 8.5 160/157 K 4500/4125 900(130PSI)

20. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure

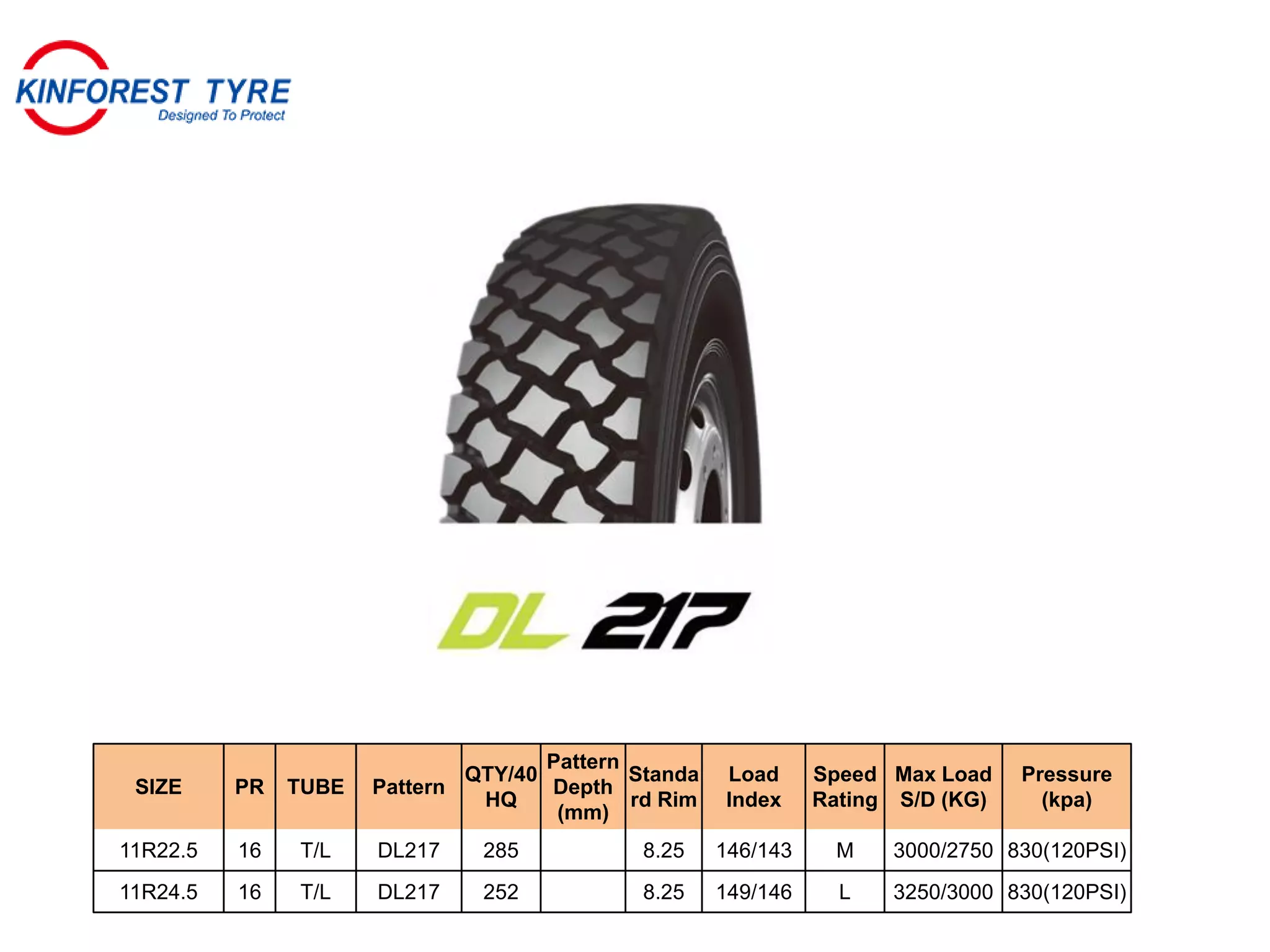

(kpa)
11R22.5 16 T/L DL217 285 8.25 146/143 M 3000/2750 830(120PSI)
11R24.5 16 T/L DL217 252 8.25 149/146 L 3250/3000 830(120PSI)

21. SIZE PR
WEIGH
T(KG)
TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)

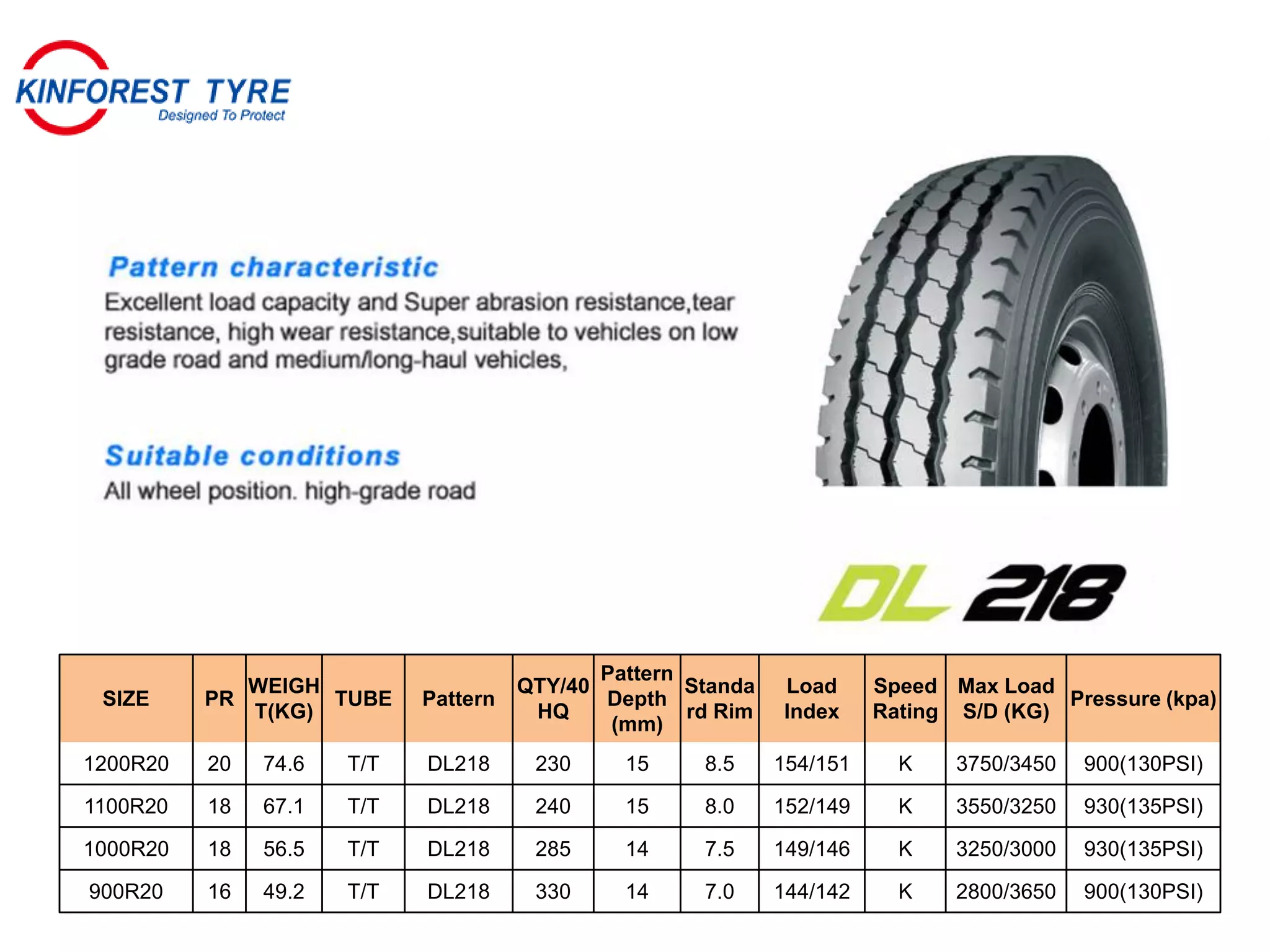

Pressure (kpa)
1200R20 20 74.6 T/T DL218 230 15 8.5 154/151 K 3750/3450 900(130PSI)
1100R20 18 67.1 T/T DL218 240 15 8.0 152/149 K 3550/3250 930(135PSI)
1000R20 18 56.5 T/T DL218 285 14 7.5 149/146 K 3250/3000 930(135PSI)
900R20 16 49.2 T/T DL218 330 14 7.0 144/142 K 2800/3650 900(130PSI)

22. SIZE PR
WEIGH
T(KG)
TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

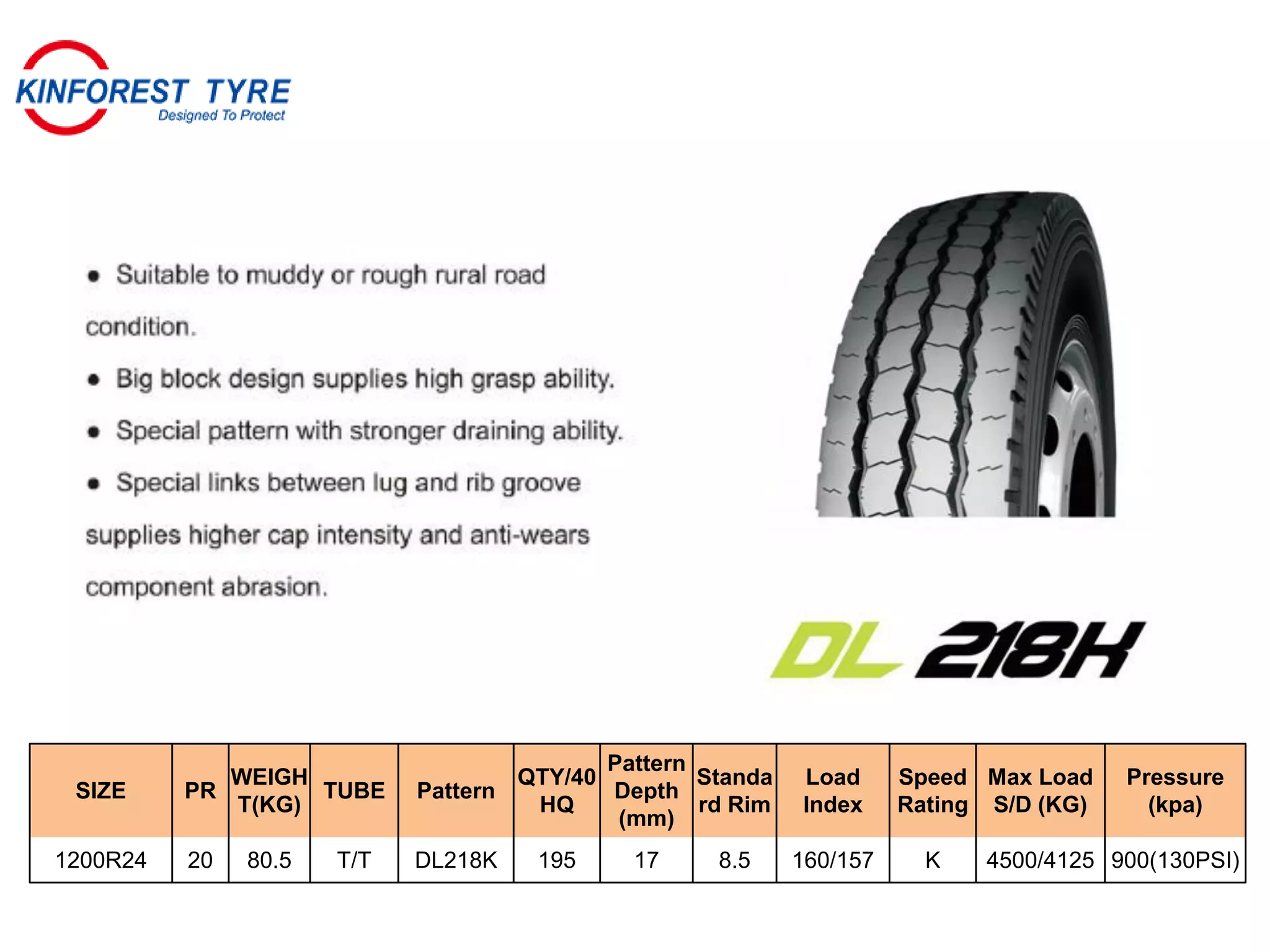

1200R24 20 80.5 T/T DL218K 195 17 8.5 160/157 K 4500/4125 900(130PSI)

23. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standar
d Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

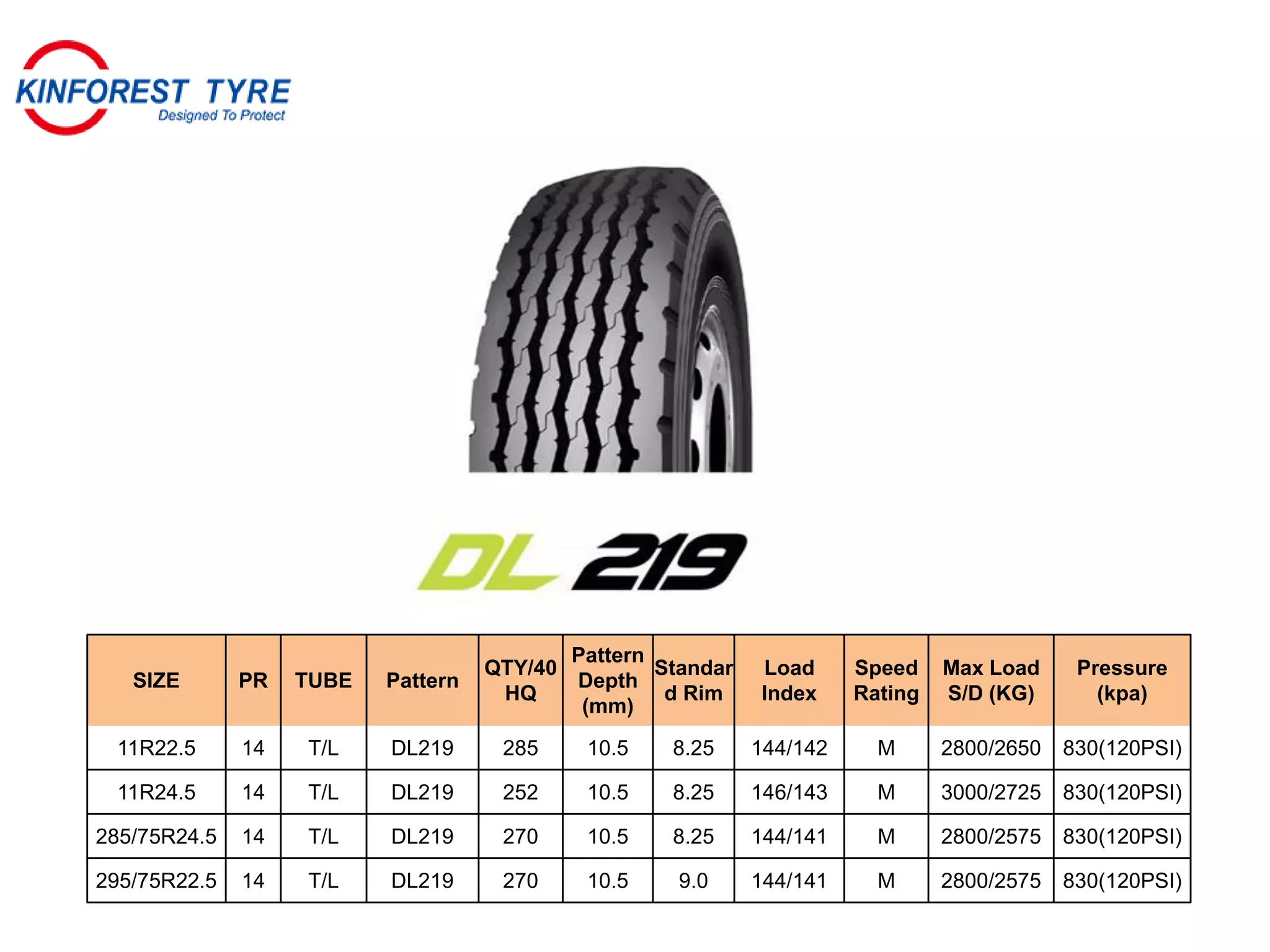

11R22.5 14 T/L DL219 285 10.5 8.25 144/142 M 2800/2650 830(120PSI)
11R24.5 14 T/L DL219 252 10.5 8.25 146/143 M 3000/2725 830(120PSI)
285/75R24.5 14 T/L DL219 270 10.5 8.25 144/141 M 2800/2575 830(120PSI)
295/75R22.5 14 T/L DL219 270 10.5 9.0 144/141 M 2800/2575 830(120PSI)

24. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure

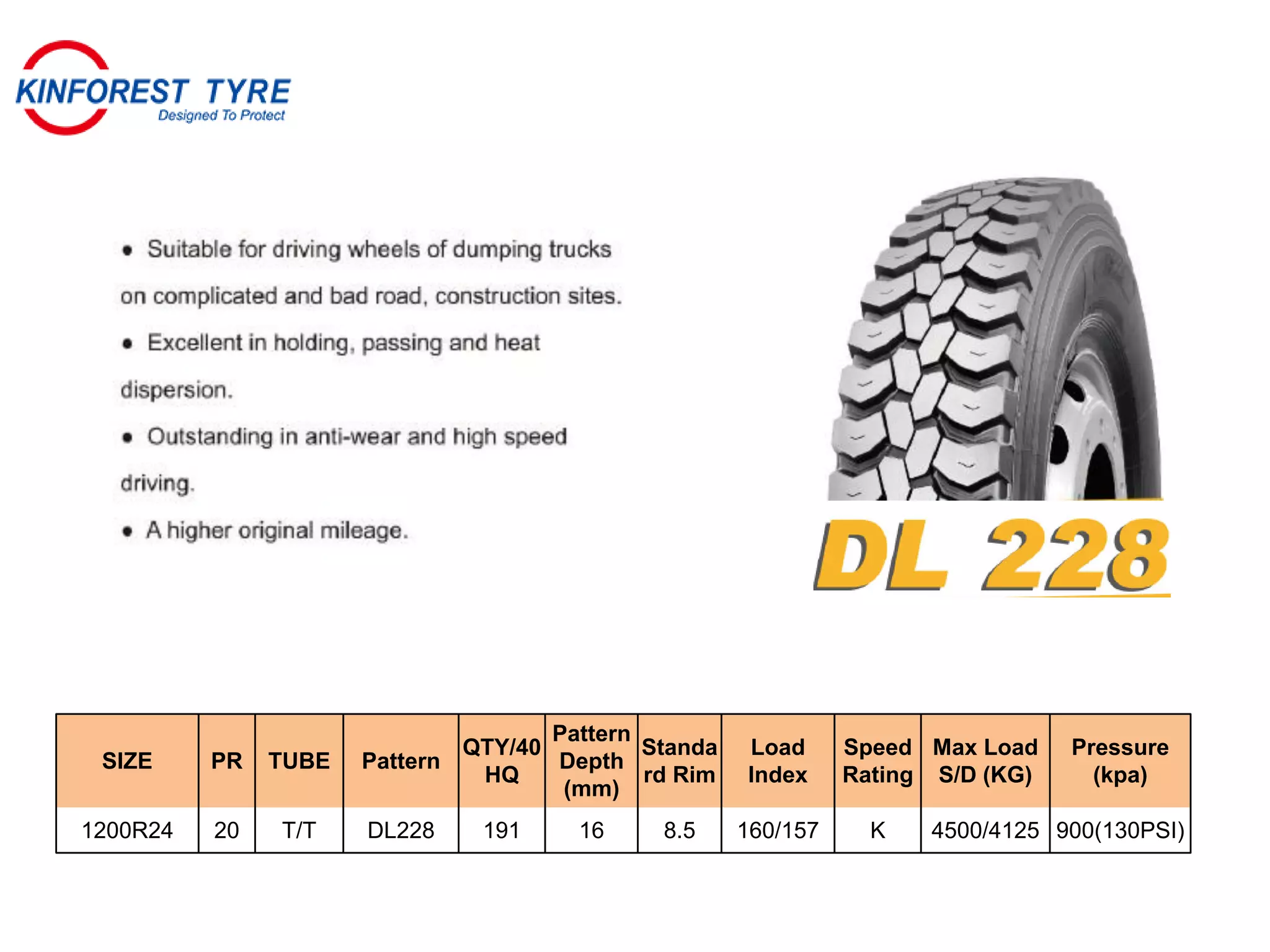

(kpa)
1200R24 20 T/T DL228 191 16 8.5 160/157 K 4500/4125 900(130PSI)

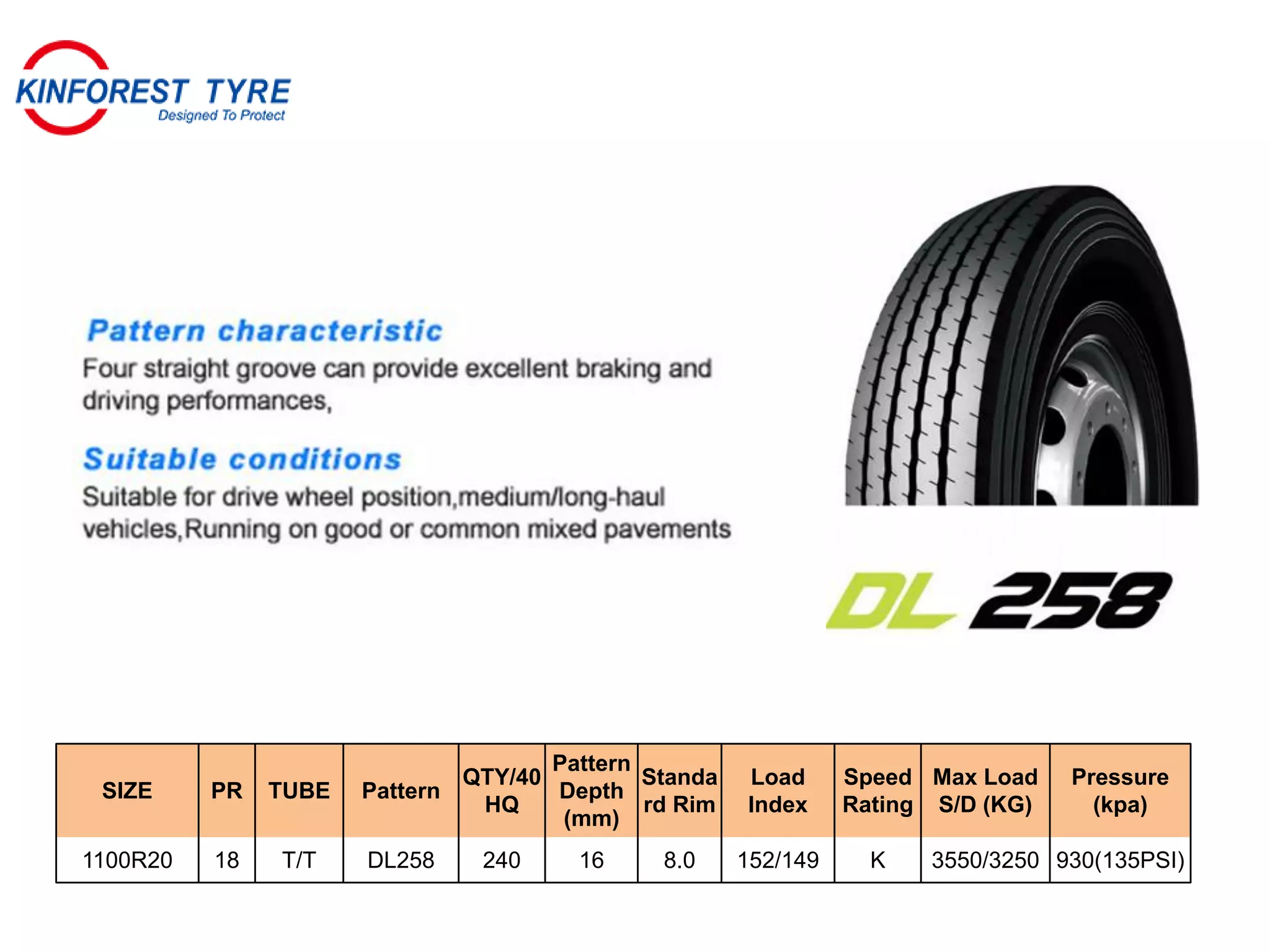

25. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
1100R20 18 T/T DL258 240 16 8.0 152/149 K 3550/3250 930(135PSI)

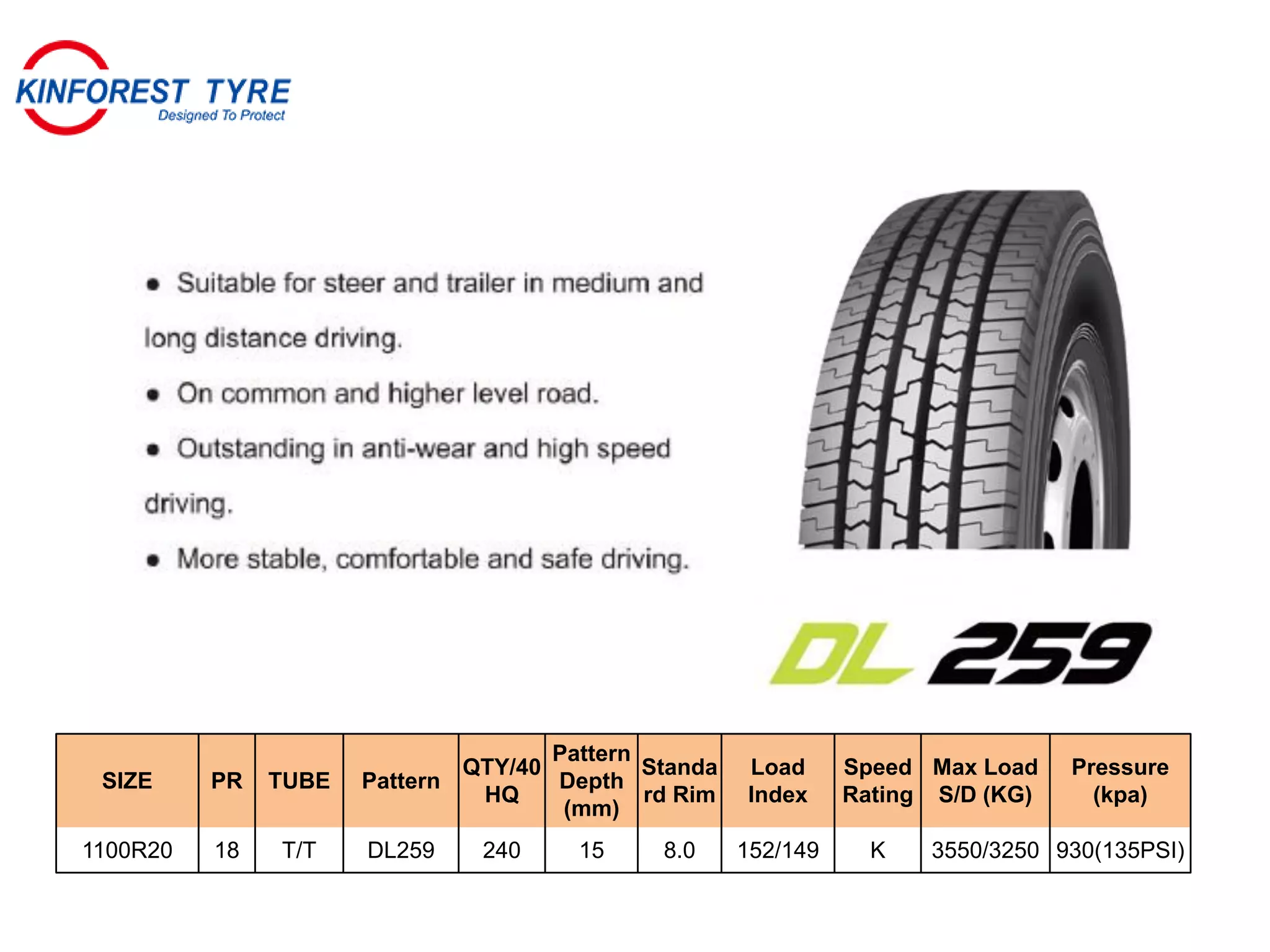

26. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
1100R20 18 T/T DL259 240 15 8.0 152/149 K 3550/3250 930(135PSI)

27. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

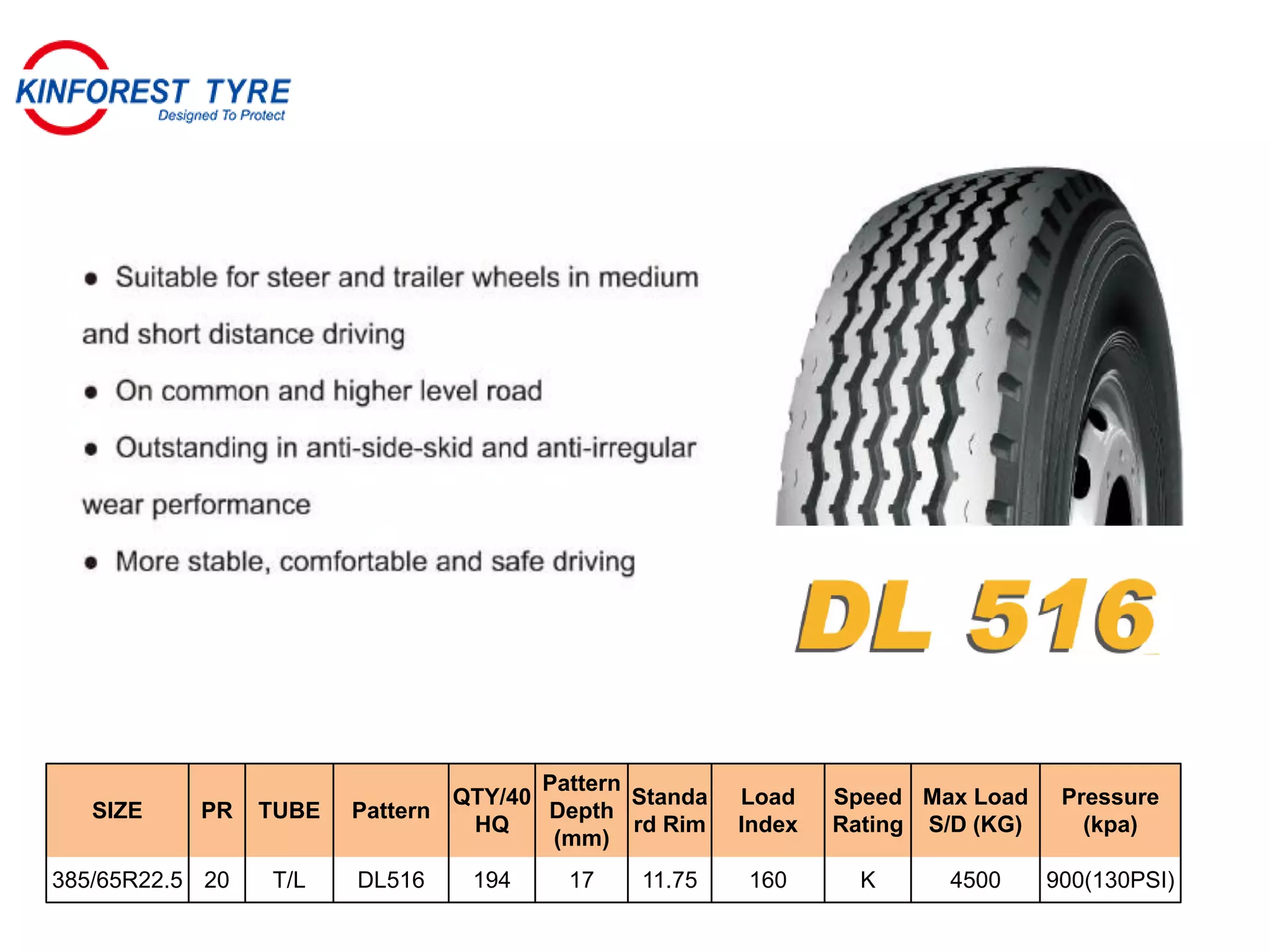

385/65R22.5 20 T/L DL516 194 17 11.75 160 K 4500 900(130PSI)

28. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

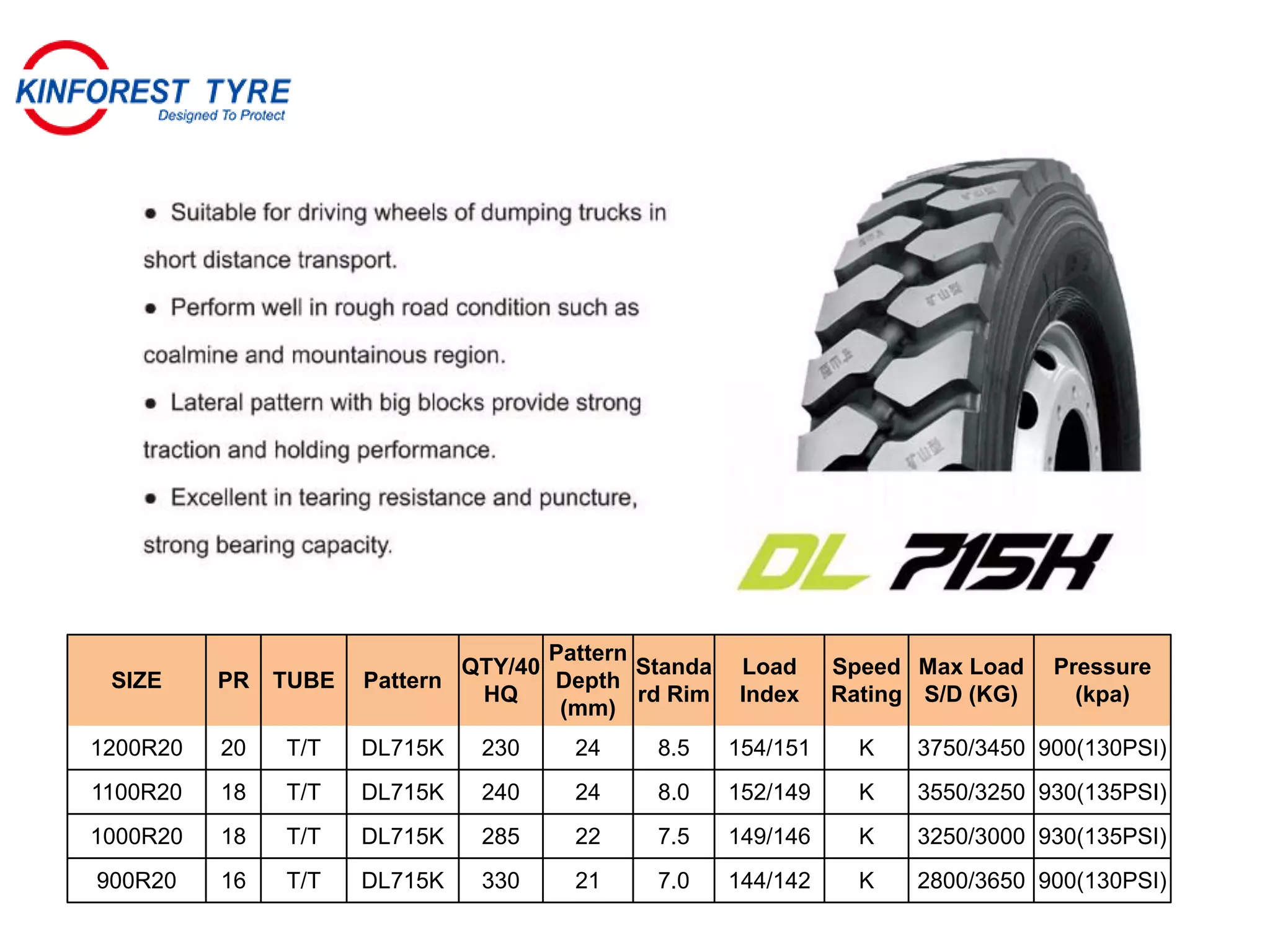

1200R20 20 T/T DL715K 230 24 8.5 154/151 K 3750/3450 900(130PSI)
1100R20 18 T/T DL715K 240 24 8.0 152/149 K 3550/3250 930(135PSI)
1000R20 18 T/T DL715K 285 22 7.5 149/146 K 3250/3000 930(135PSI)
900R20 16 T/T DL715K 330 21 7.0 144/142 K 2800/3650 900(130PSI)

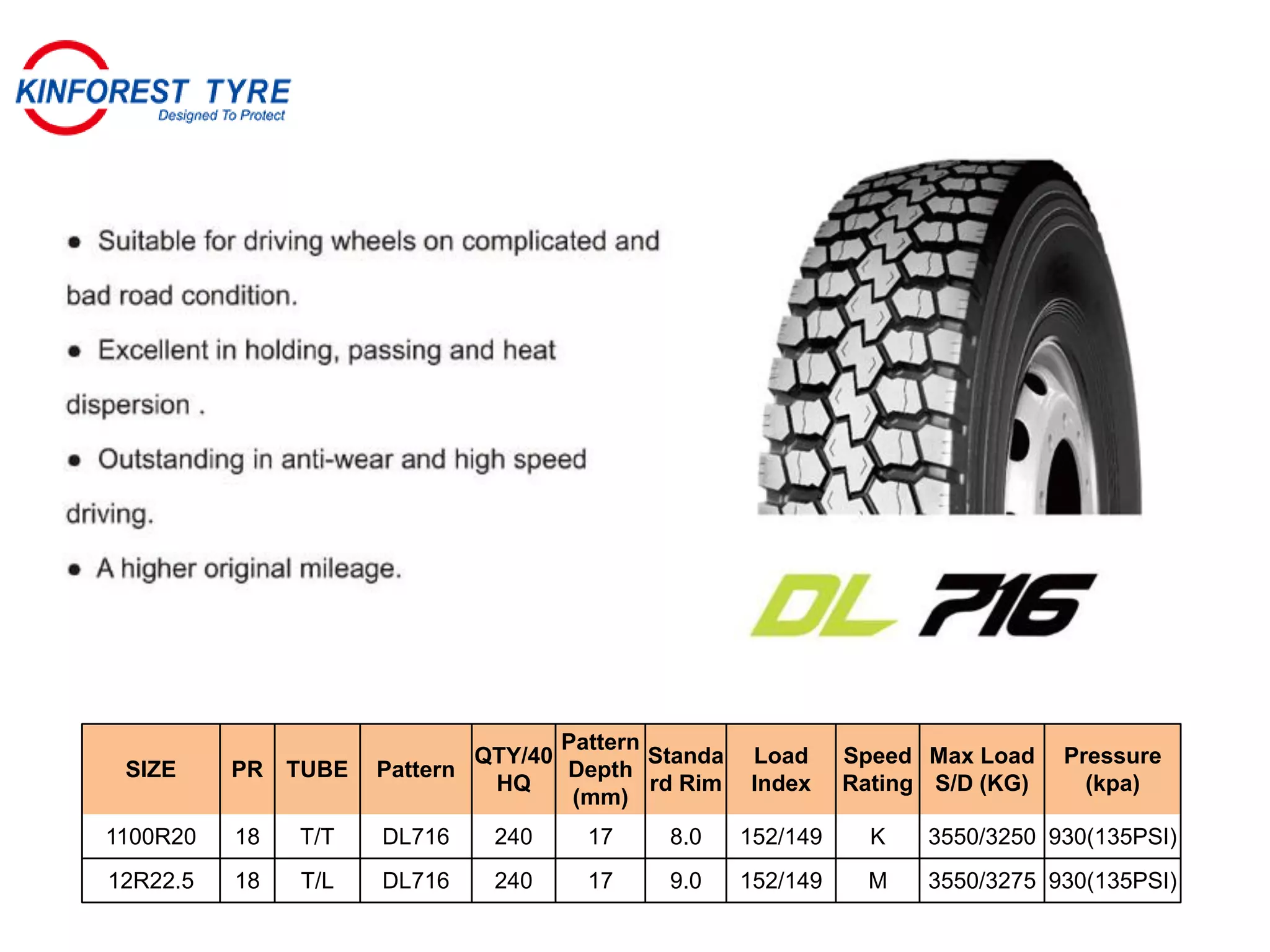

29. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
1100R20 18 T/T DL716 240 17 8.0 152/149 K 3550/3250 930(135PSI)
12R22.5 18 T/L DL716 240 17 9.0 152/149 M 3550/3275 930(135PSI)

30. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

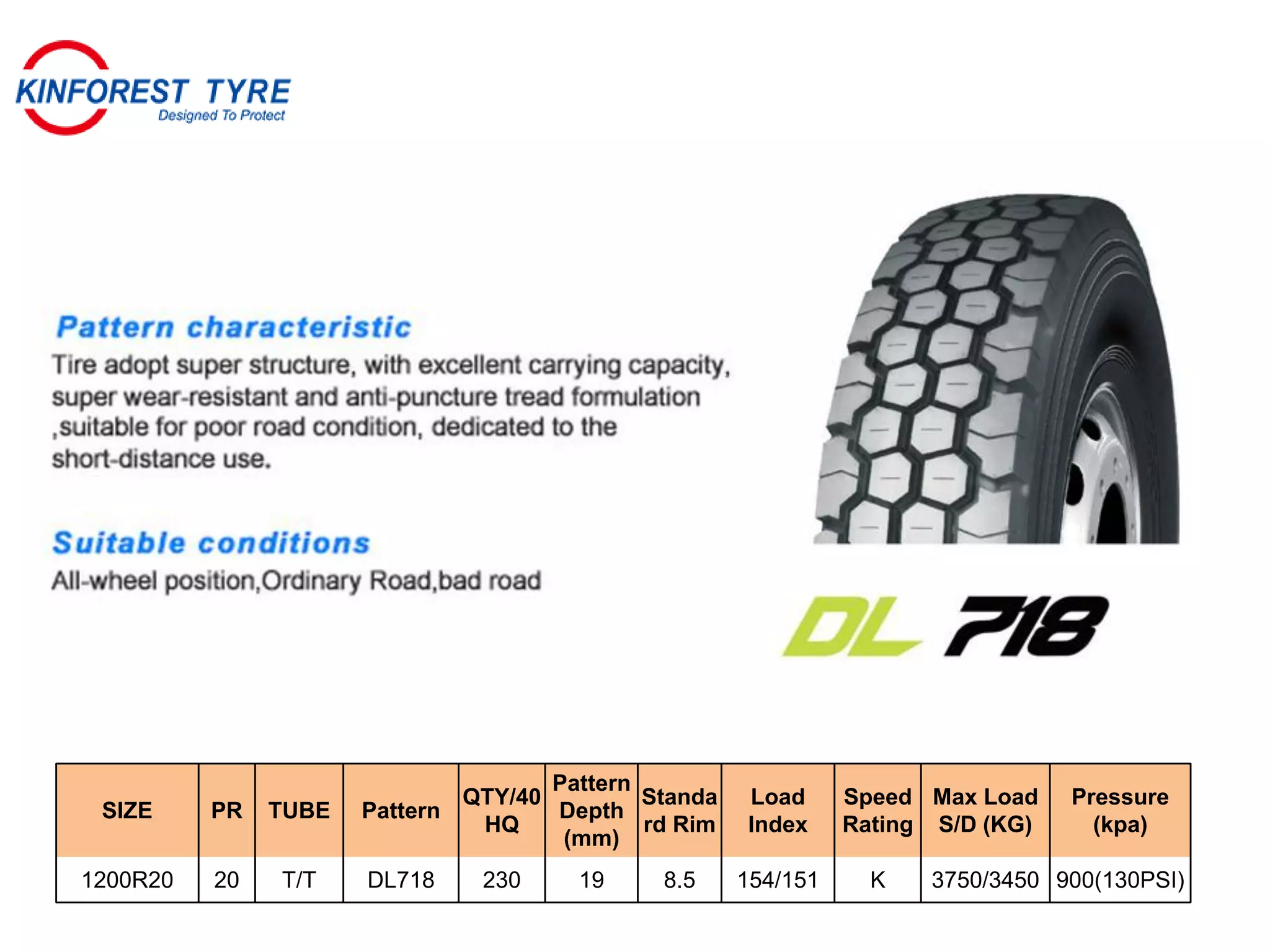

1200R20 20 T/T DL718 230 19 8.5 154/151 K 3750/3450 900(130PSI)

31. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure

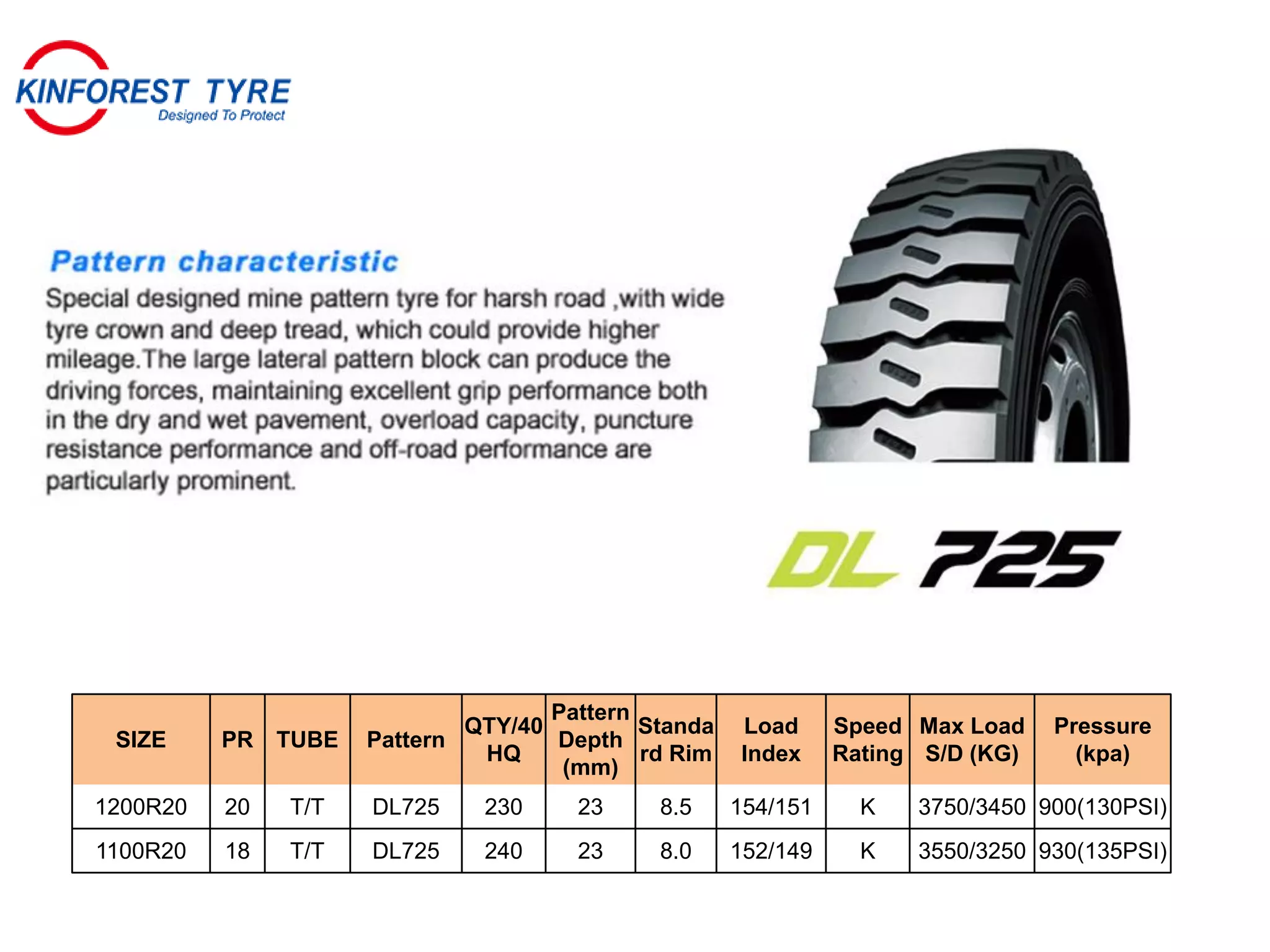

(kpa)
1200R20 20 T/T DL725 230 23 8.5 154/151 K 3750/3450 900(130PSI)
1100R20 18 T/T DL725 240 23 8.0 152/149 K 3550/3250 930(135PSI)

32. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure

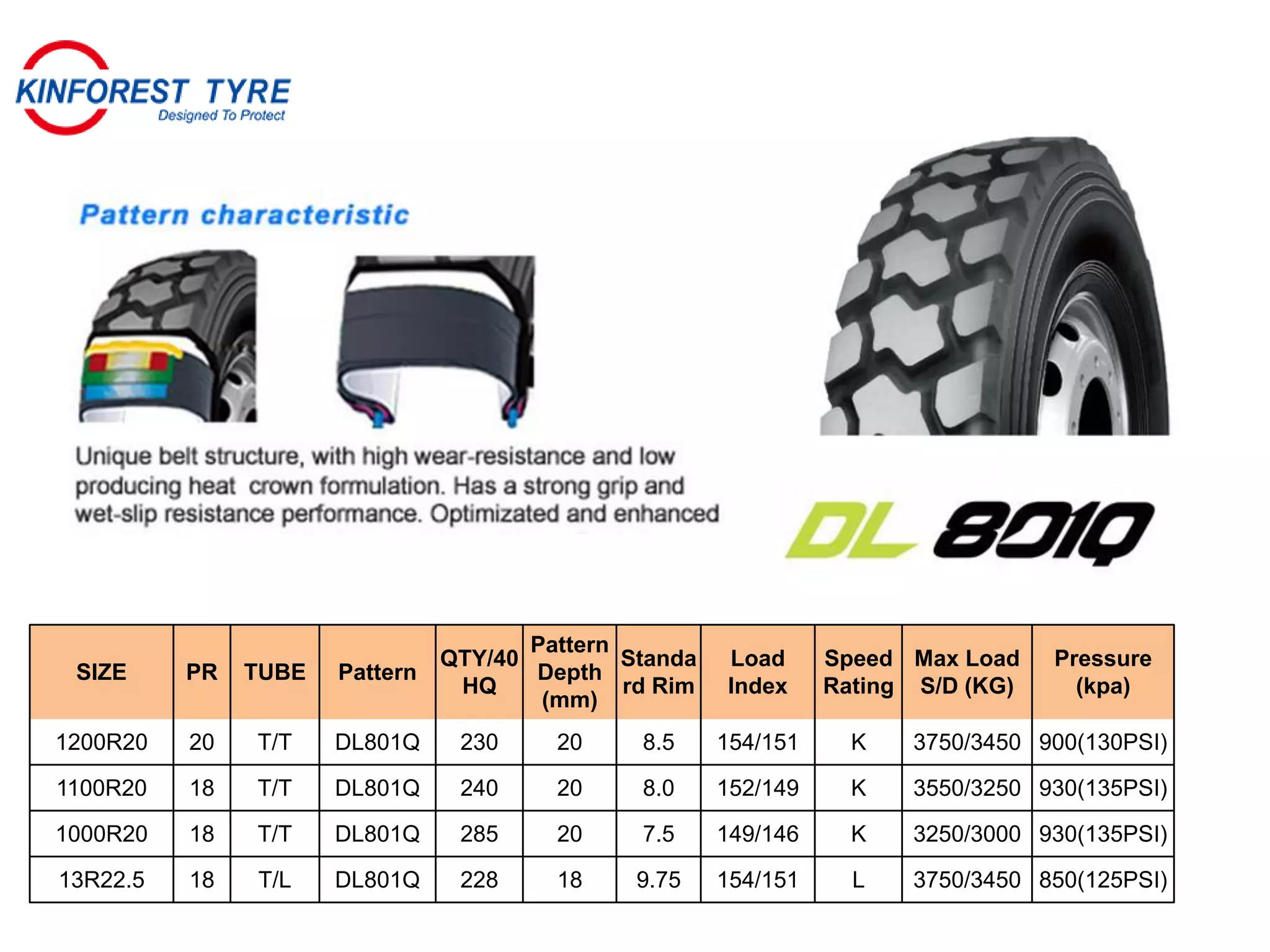

(kpa)
1200R20 20 T/T DL801Q 230 20 8.5 154/151 K 3750/3450 900(130PSI)
1100R20 18 T/T DL801Q 240 20 8.0 152/149 K 3550/3250 930(135PSI)
1000R20 18 T/T DL801Q 285 20 7.5 149/146 K 3250/3000 930(135PSI)
13R22.5 18 T/L DL801Q 228 18 9.75 154/151 L 3750/3450 850(125PSI)

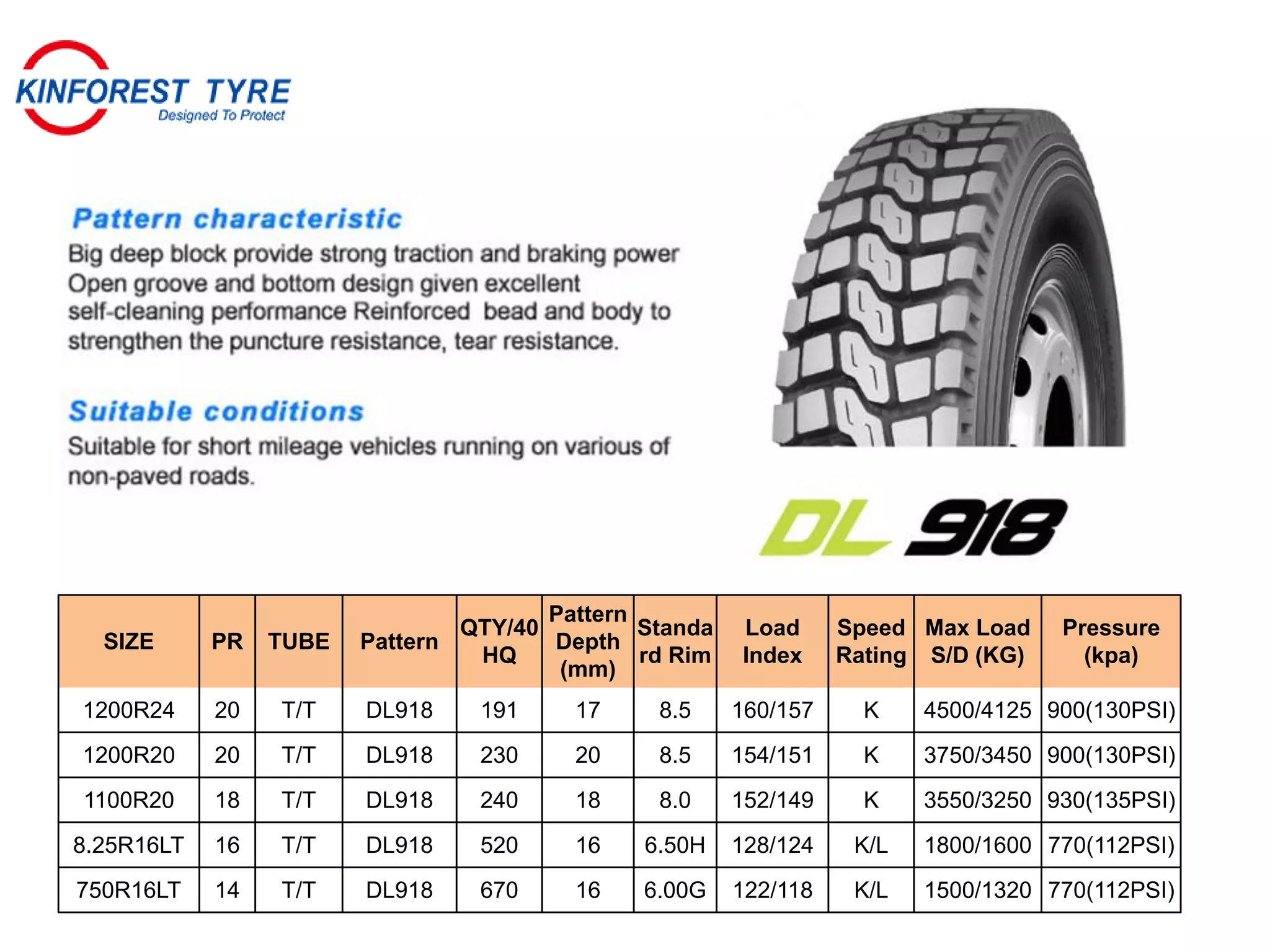

33. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)
1200R24 20 T/T DL918 191 17 8.5 160/157 K 4500/4125 900(130PSI)
1200R20 20 T/T DL918 230 20 8.5 154/151 K 3750/3450 900(130PSI)
1100R20 18 T/T DL918 240 18 8.0 152/149 K 3550/3250 930(135PSI)
8.25R16LT 16 T/T DL918 520 16 6.50H 128/124 K/L 1800/1600 770(112PSI)
750R16LT 14 T/T DL918 670 16 6.00G 122/118 K/L 1500/1320 770(112PSI)

34. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure

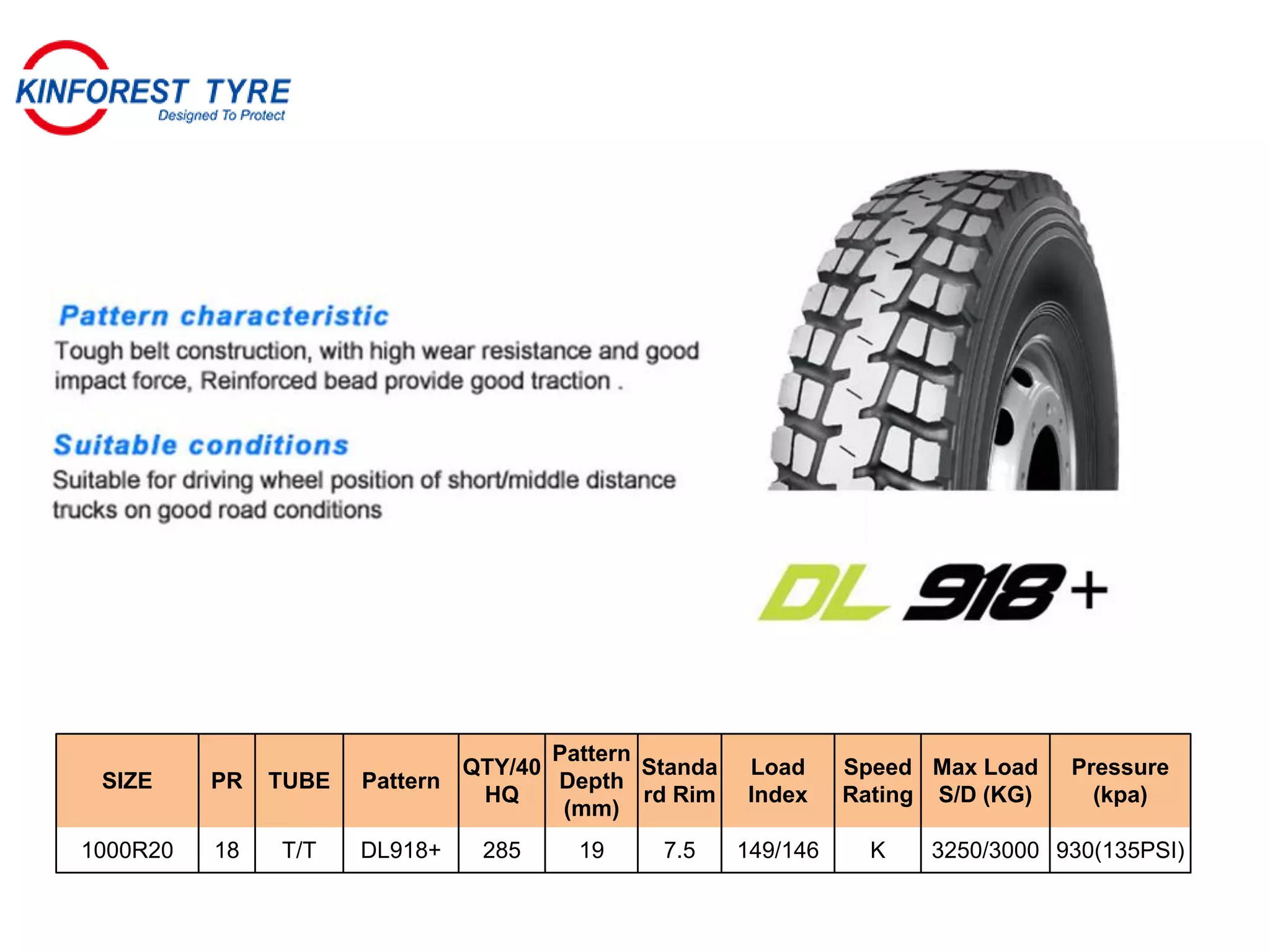

(kpa)
1000R20 18 T/T DL918+ 285 19 7.5 149/146 K 3250/3000 930(135PSI)

35. SIZE PR TUBE Pattern
QTY/40
HQ
Pattern
Depth
(mm)
Standa
rd Rim
Load
Index
Speed
Rating
Max Load
S/D (KG)
Pressure
(kpa)

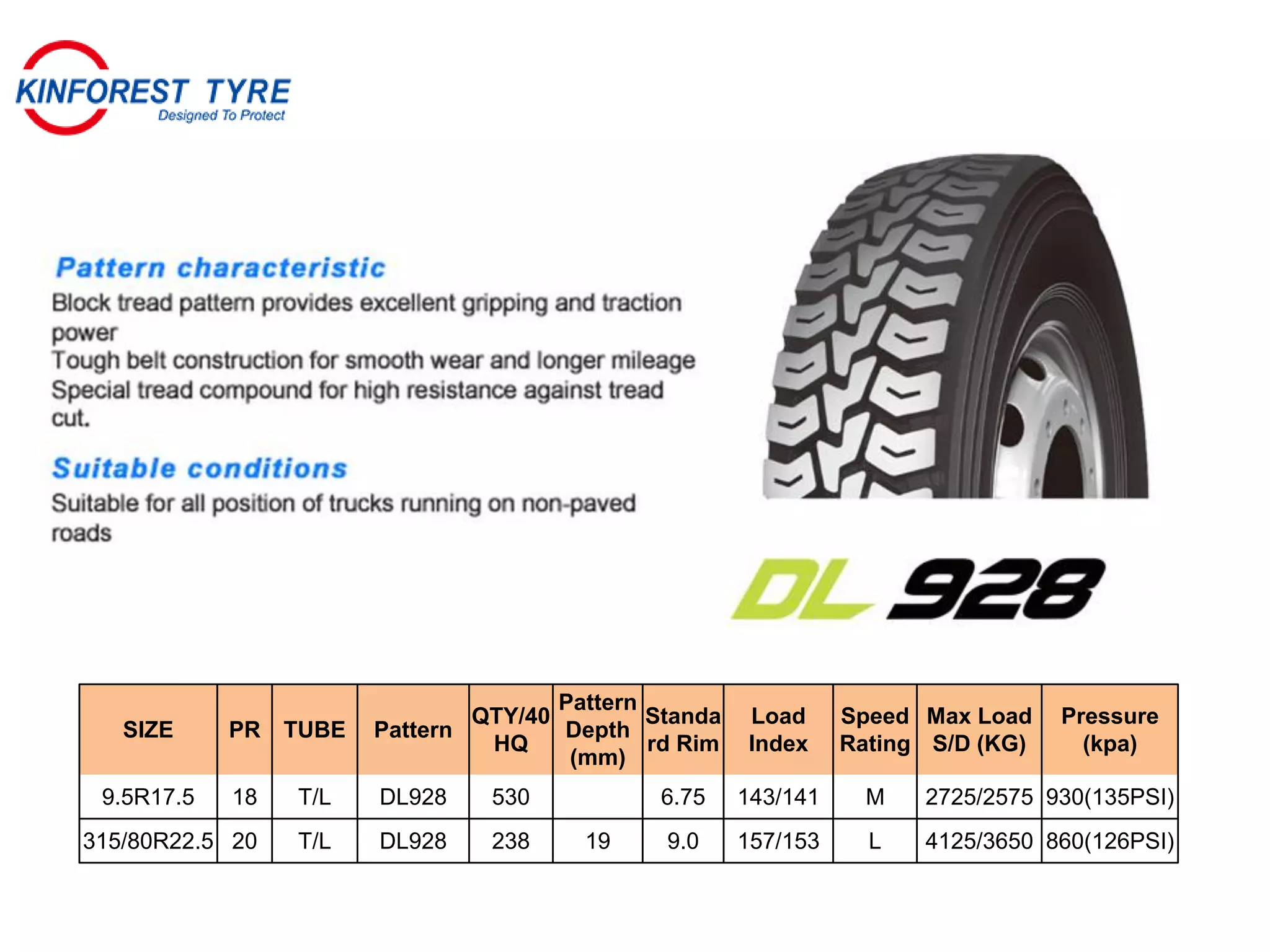

9.5R17.5 18 T/L DL928 530 6.75 143/141 M 2725/2575 930(135PSI)
315/80R22.5 20 T/L DL928 238 19 9.0 157/153 L 4125/3650 860(126PSI)

36. Peter Feng
Brand Manager
Kinforest Tyre Co., Ltd
Add: Fazhan Building, No.730 Yingbin Road, Guangzhou,
P.R. of China
T: 86-20-3928 3497
M: 86-13544534080
F: 86-20-39218052
Whatsapp: 86-13544534080
Skype: peter20025428
E: export5@kinforesttyre.com
www.kinforesttyre.com
Contact Info:
