JAVA Splash Screen
»JTimer
»JProgressBar
»JWindow
»Splash Screen
Prepared By: Azita Azimi
Edited By: Abdul Rahman Sherzad

2. Agenda
»Splash Screen
˃Introduction
˃Demos
»JTimer
»JProgressBar
»JWindow
»Splash Screen Code
2
https://www.facebook.com/Oxus20

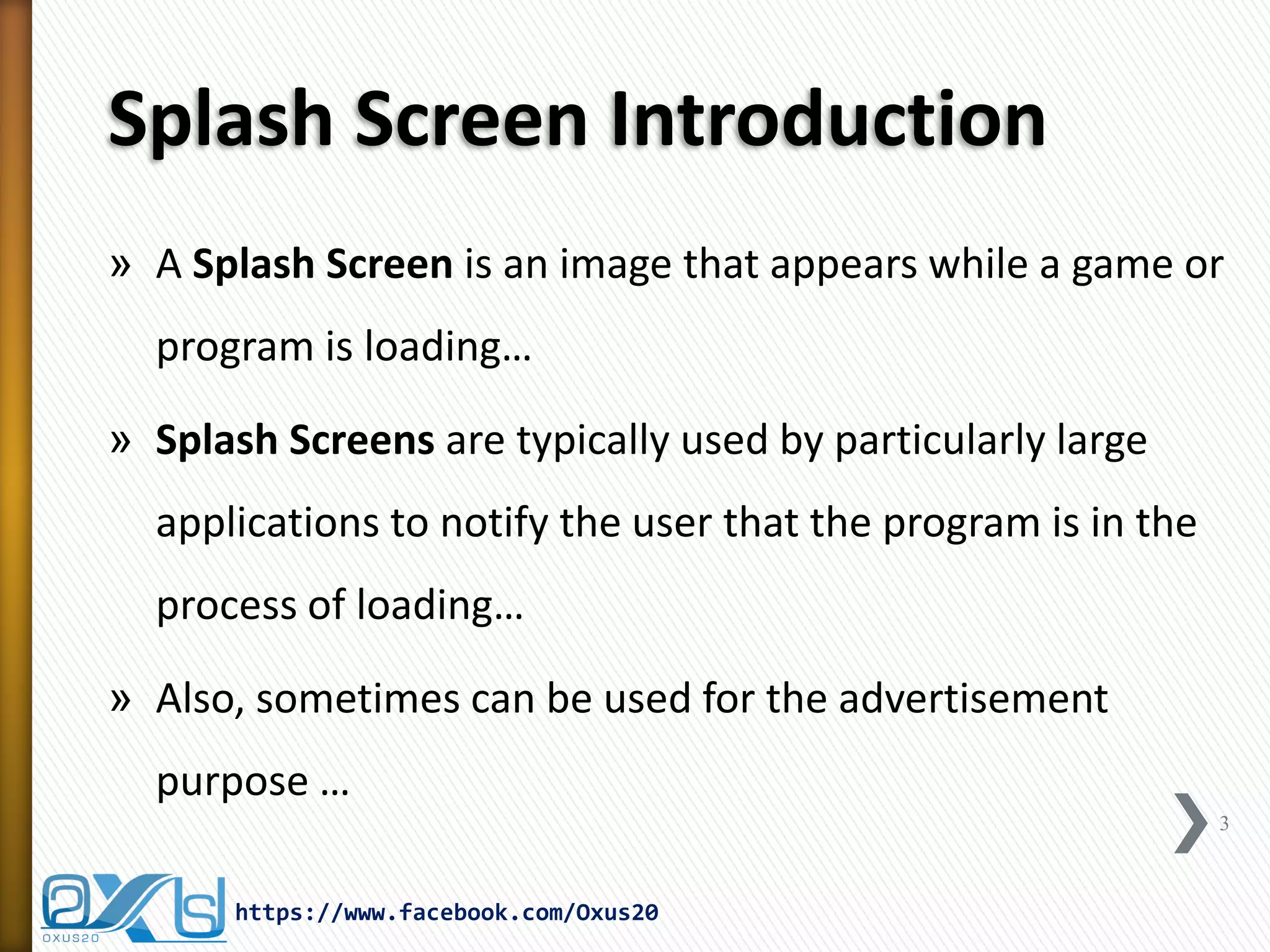

3. Splash Screen Introduction
»A Splash Screen is an image that appears while a game or program is loading…
»Splash Screens are typically used by particularly large applications to notify the user that the program is in the process of loading…
»Also, sometimes can be used for the advertisement purpose …
3
https://www.facebook.com/Oxus20

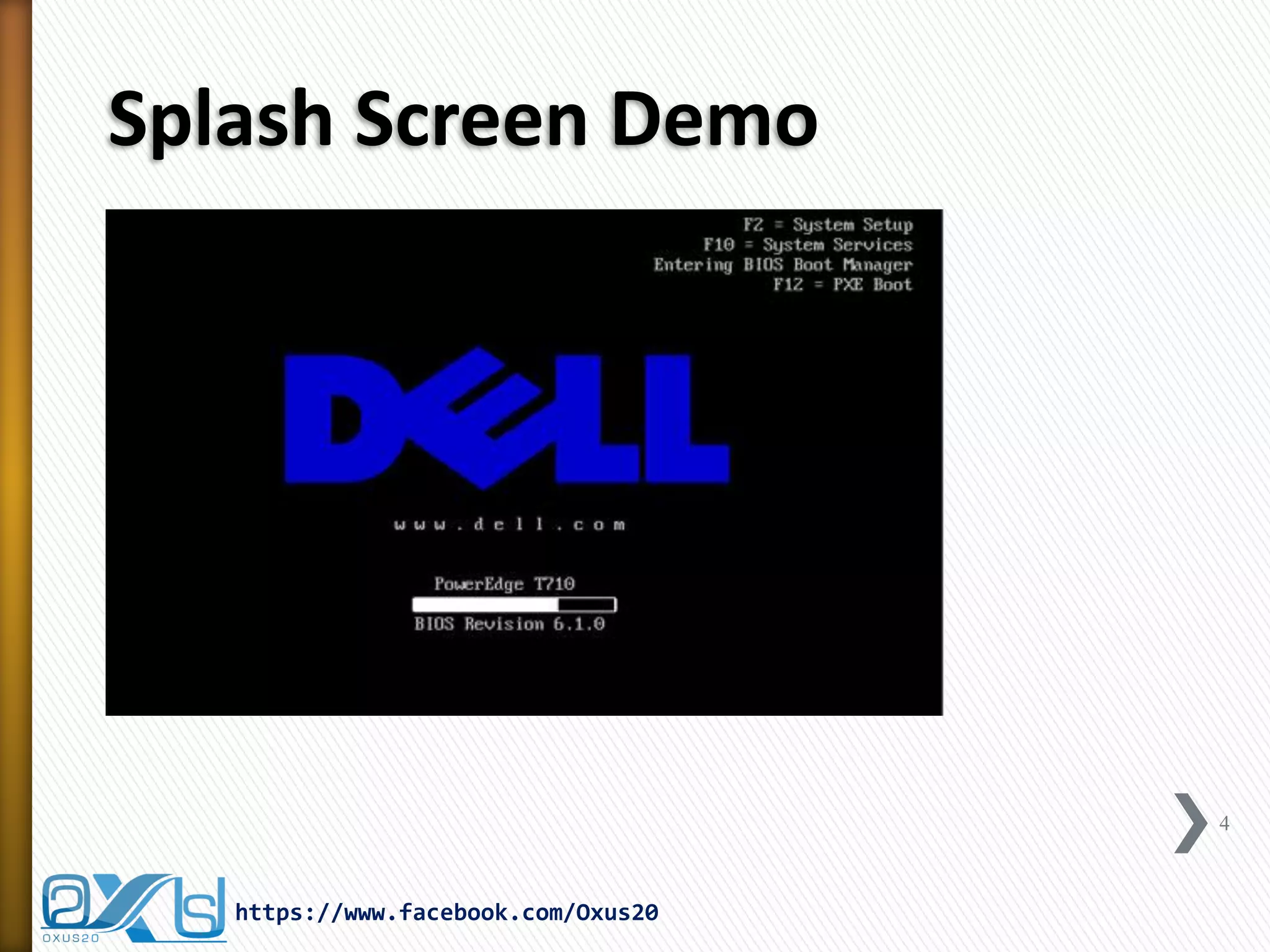

4. Splash Screen Demo
4
https://www.facebook.com/Oxus20

5. Splash Screen Demo
5
https://www.facebook.com/Oxus20

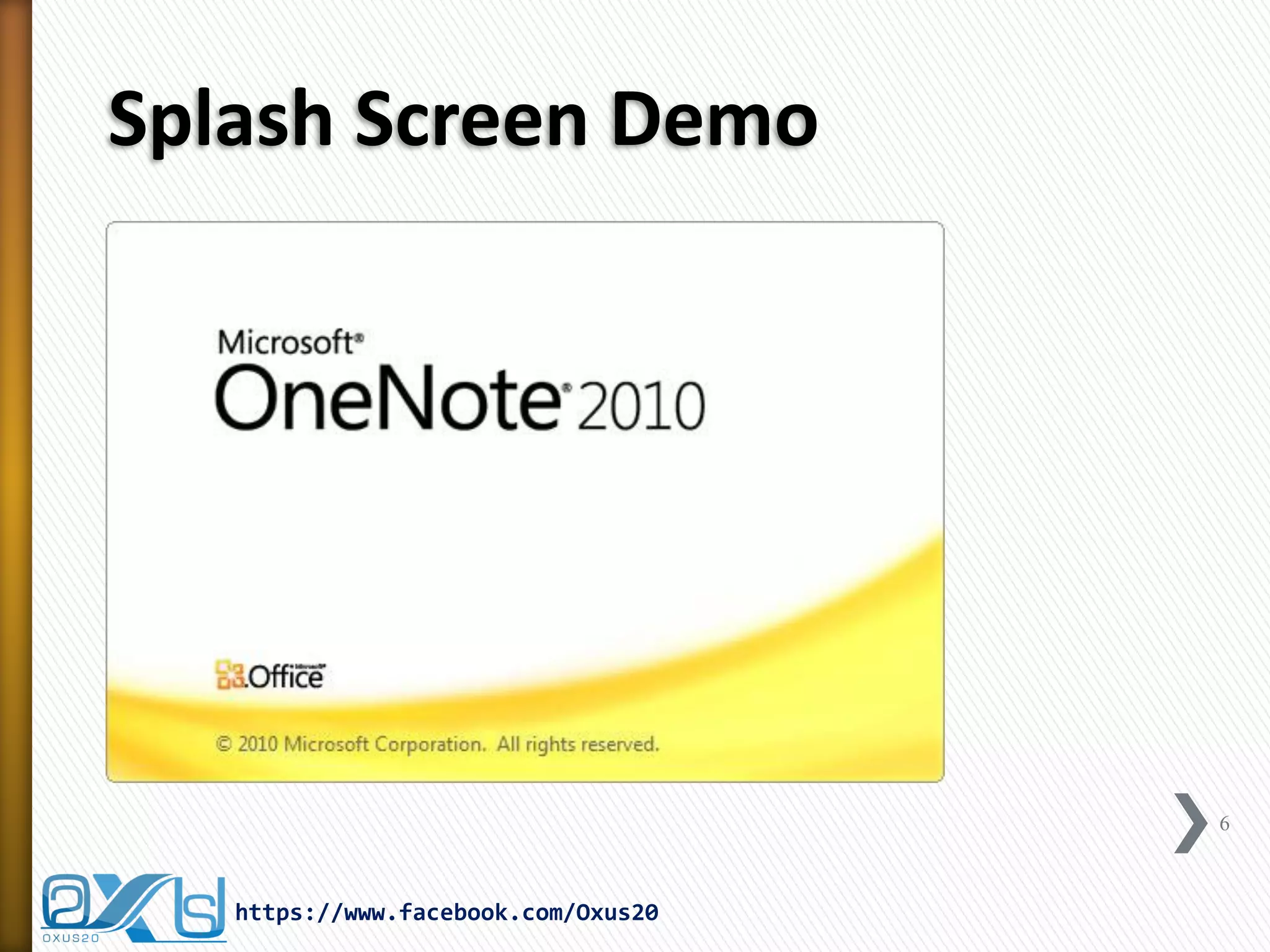

6. Splash Screen Demo
6
https://www.facebook.com/Oxus20

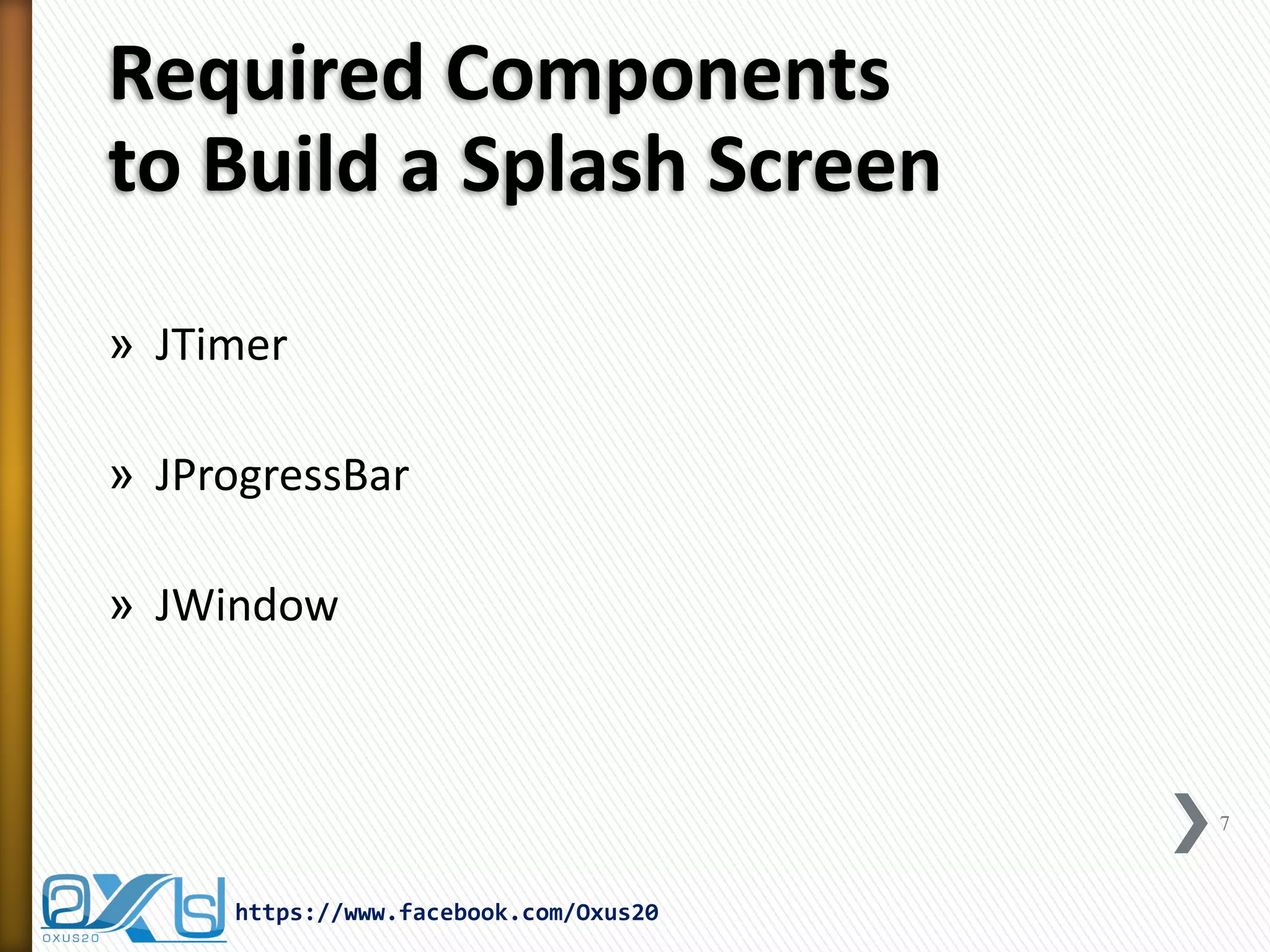

7. Required Components to Build a Splash Screen
»JTimer
»JProgressBar
»JWindow
7
https://www.facebook.com/Oxus20

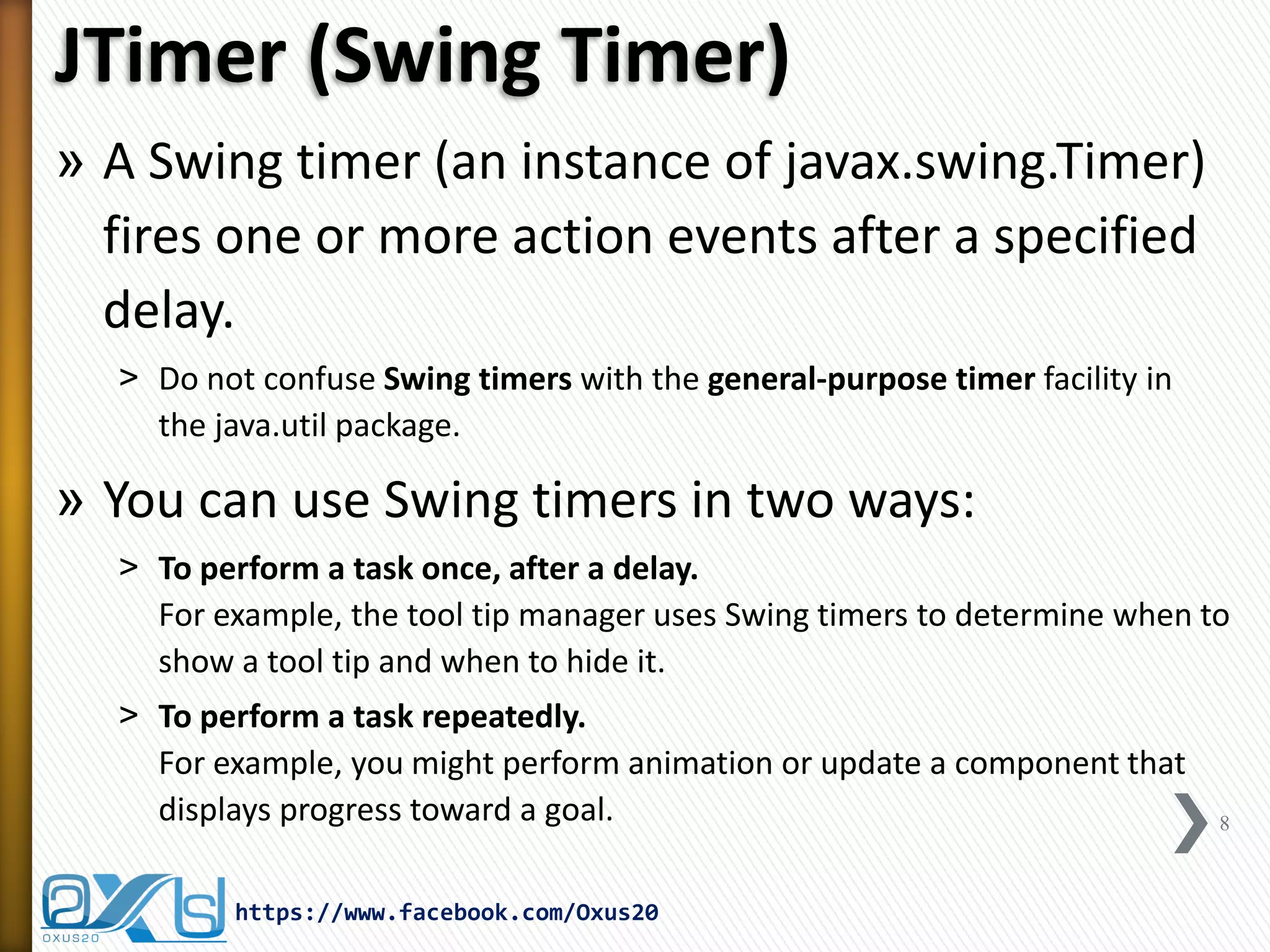

8. JTimer (Swing Timer)
»A Swing timer (an instance of javax.swing.Timer) fires one or more action events after a specified delay.
˃Do not confuse Swing timers with the general-purpose timer facility in the java.util package.
»You can use Swing timers in two ways:
˃To perform a task once, after a delay. For example, the tool tip manager uses Swing timers to determine when to show a tool tip and when to hide it.
˃To perform a task repeatedly. For example, you might perform animation or update a component that displays progress toward a goal.
8
https://www.facebook.com/Oxus20

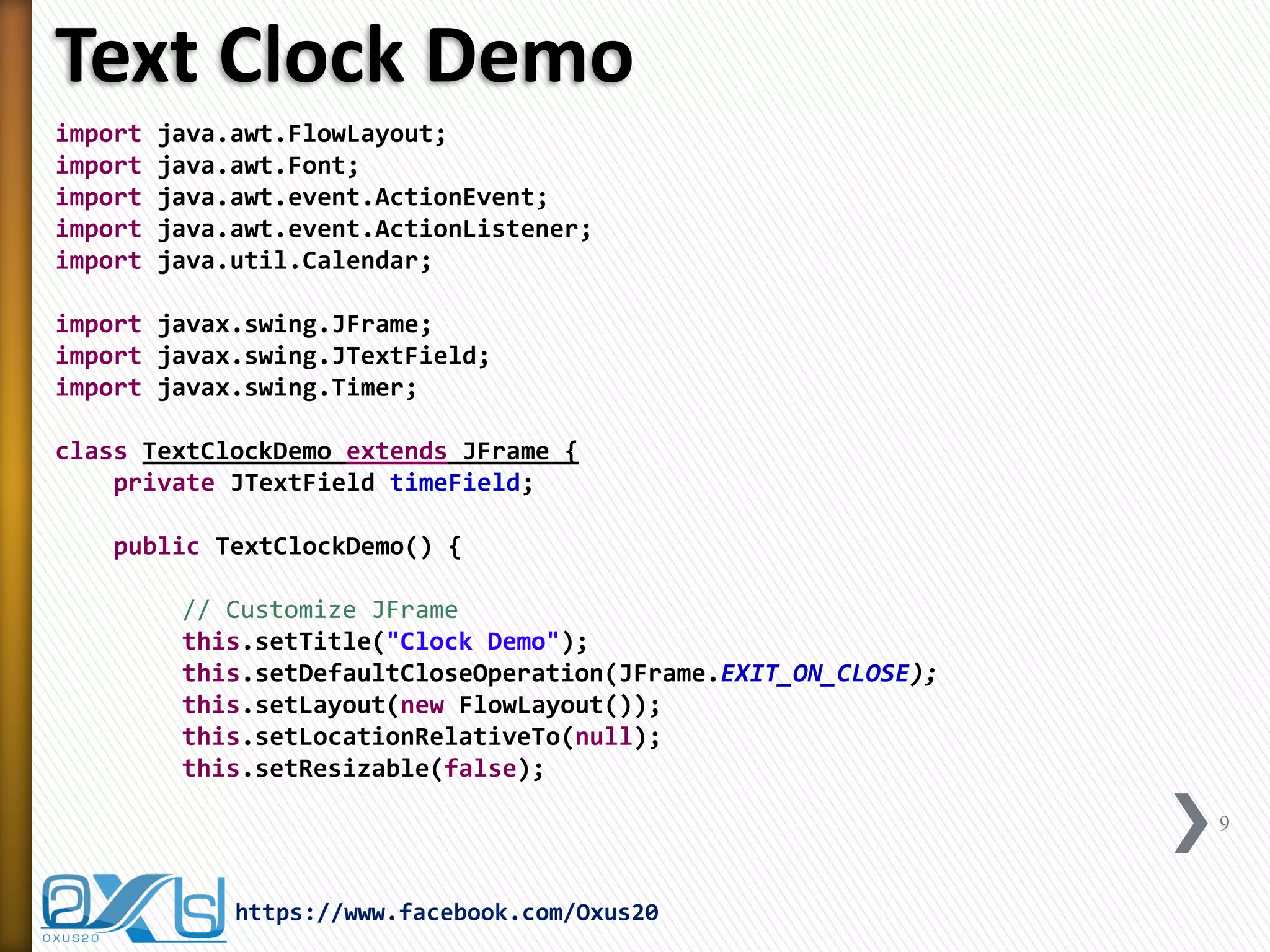

9. Text Clock Demo
import java.awt.FlowLayout;
import java.awt.Font;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import java.util.Calendar;
import javax.swing.JFrame;
import javax.swing.JTextField;
import javax.swing.Timer;
class TextClockDemo extends JFrame {
private JTextField timeField;
public TextClockDemo() {
// Customize JFrame
this.setTitle("Clock Demo");
this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
this.setLayout(new FlowLayout());
this.setLocationRelativeTo(null);
this.setResizable(false);
9
https://www.facebook.com/Oxus20

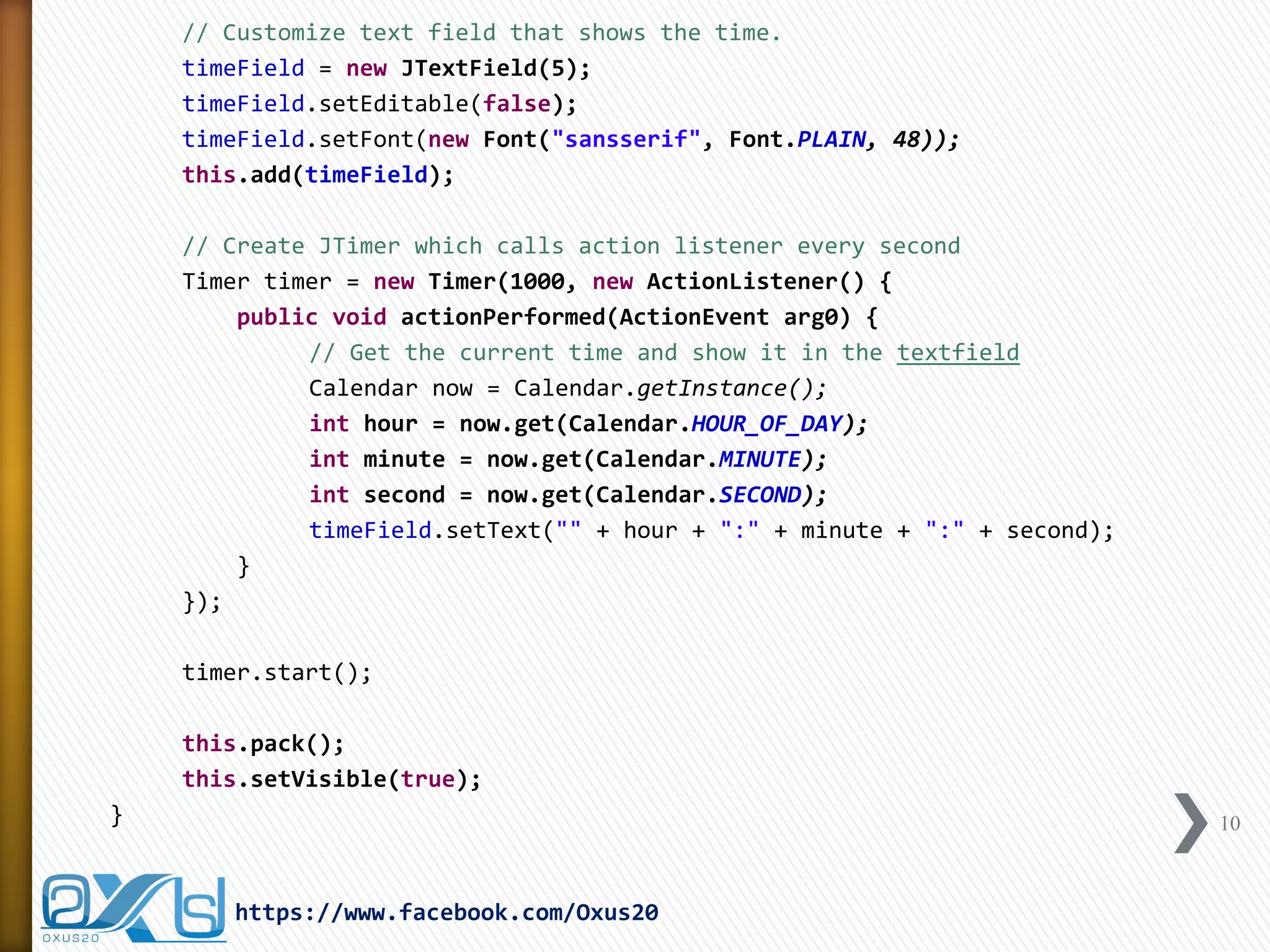

10. // Customize text field that shows the time.
timeField = new JTextField(5);
timeField.setEditable(false);
timeField.setFont(new Font("sansserif", Font.PLAIN, 48));
this.add(timeField);
// Create JTimer which calls action listener every second
Timer timer = new Timer(1000, new ActionListener() {
public void actionPerformed(ActionEvent arg0) {
// Get the current time and show it in the textfield
Calendar now = Calendar.getInstance();
int hour = now.get(Calendar.HOUR_OF_DAY);
int minute = now.get(Calendar.MINUTE);
int second = now.get(Calendar.SECOND);
timeField.setText("" + hour + ":" + minute + ":" + second);
}
});
timer.start();
this.pack();
this.setVisible(true);
}
10
https://www.facebook.com/Oxus20

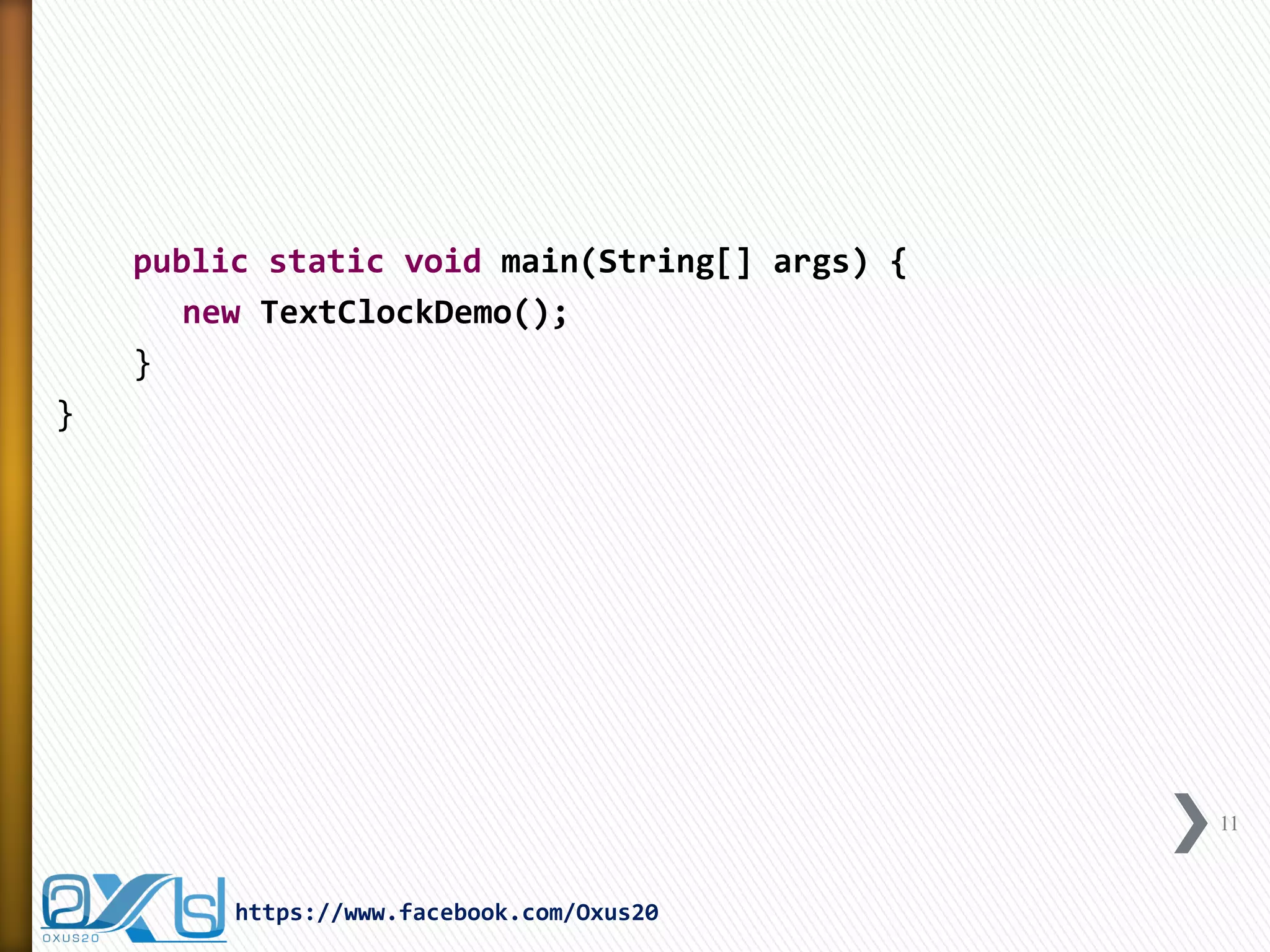

11. public static void main(String[] args) {
new TextClockDemo();
}
}
11
https://www.facebook.com/Oxus20

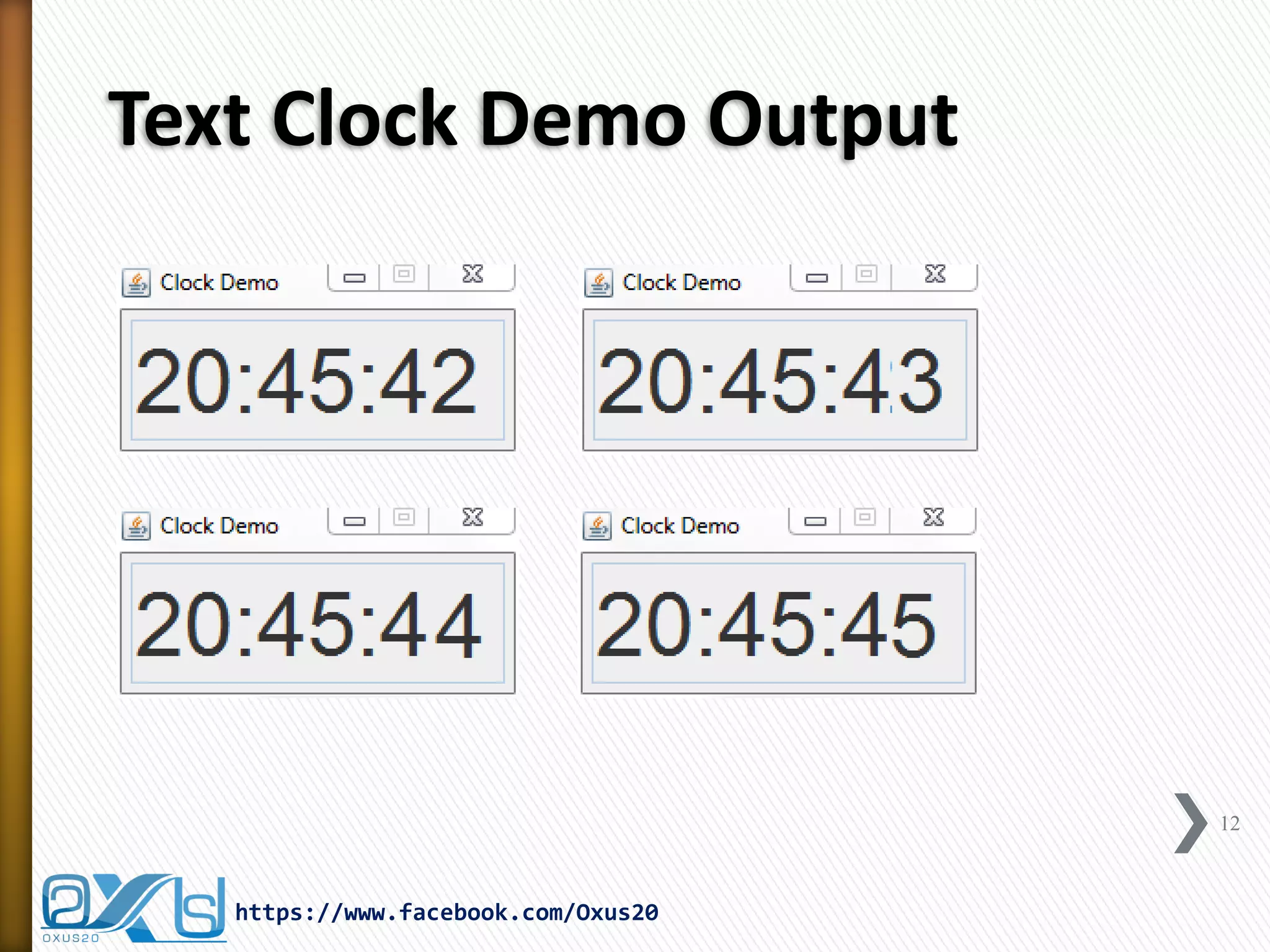

12. Text Clock Demo Output
12
https://www.facebook.com/Oxus20

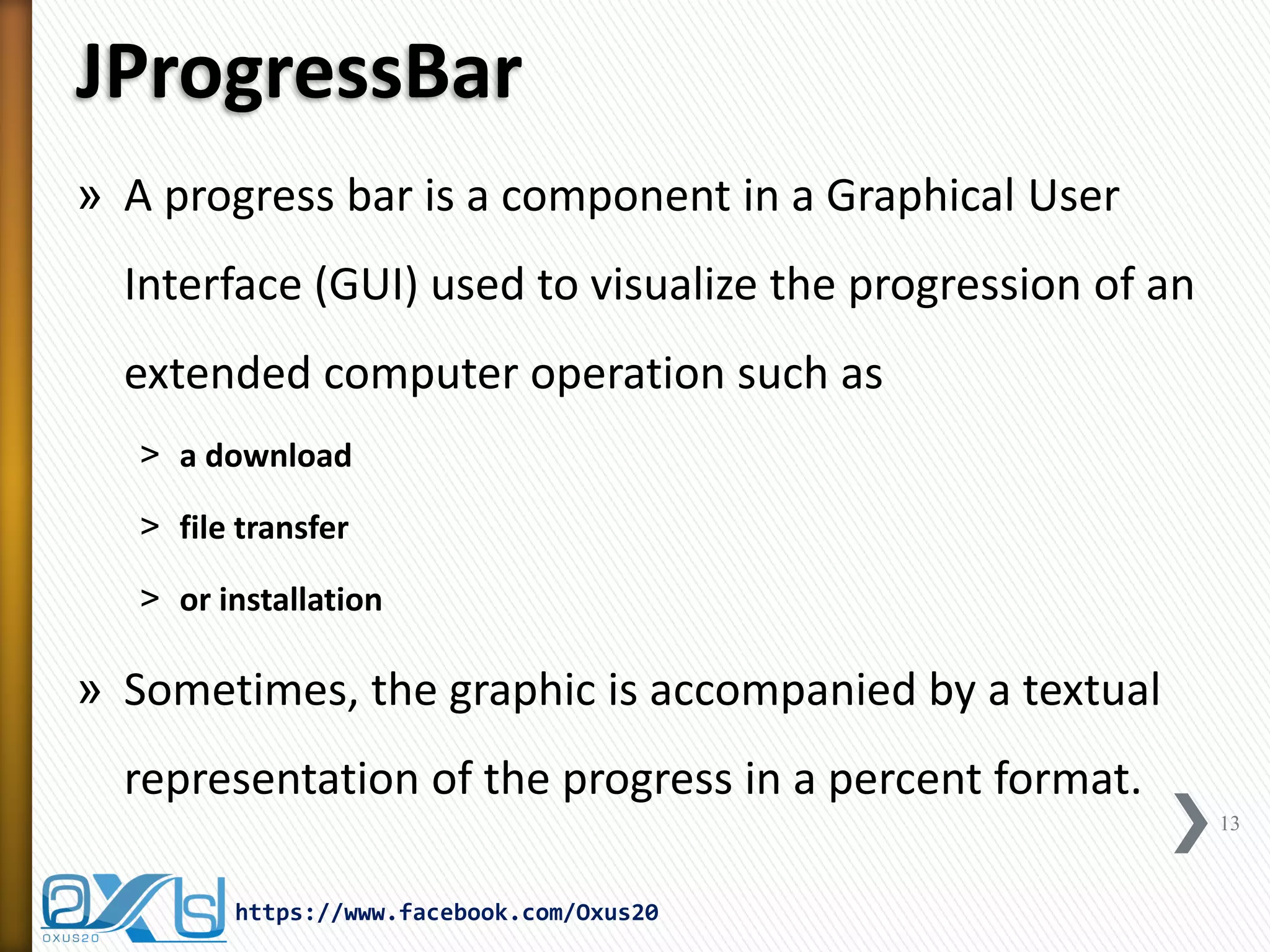

13. JProgressBar
»A progress bar is a component in a Graphical User Interface (GUI) used to visualize the progression of an extended computer operation such as
˃a download
˃file transfer
˃or installation
»Sometimes, the graphic is accompanied by a textual representation of the progress in a percent format.
13
https://www.facebook.com/Oxus20

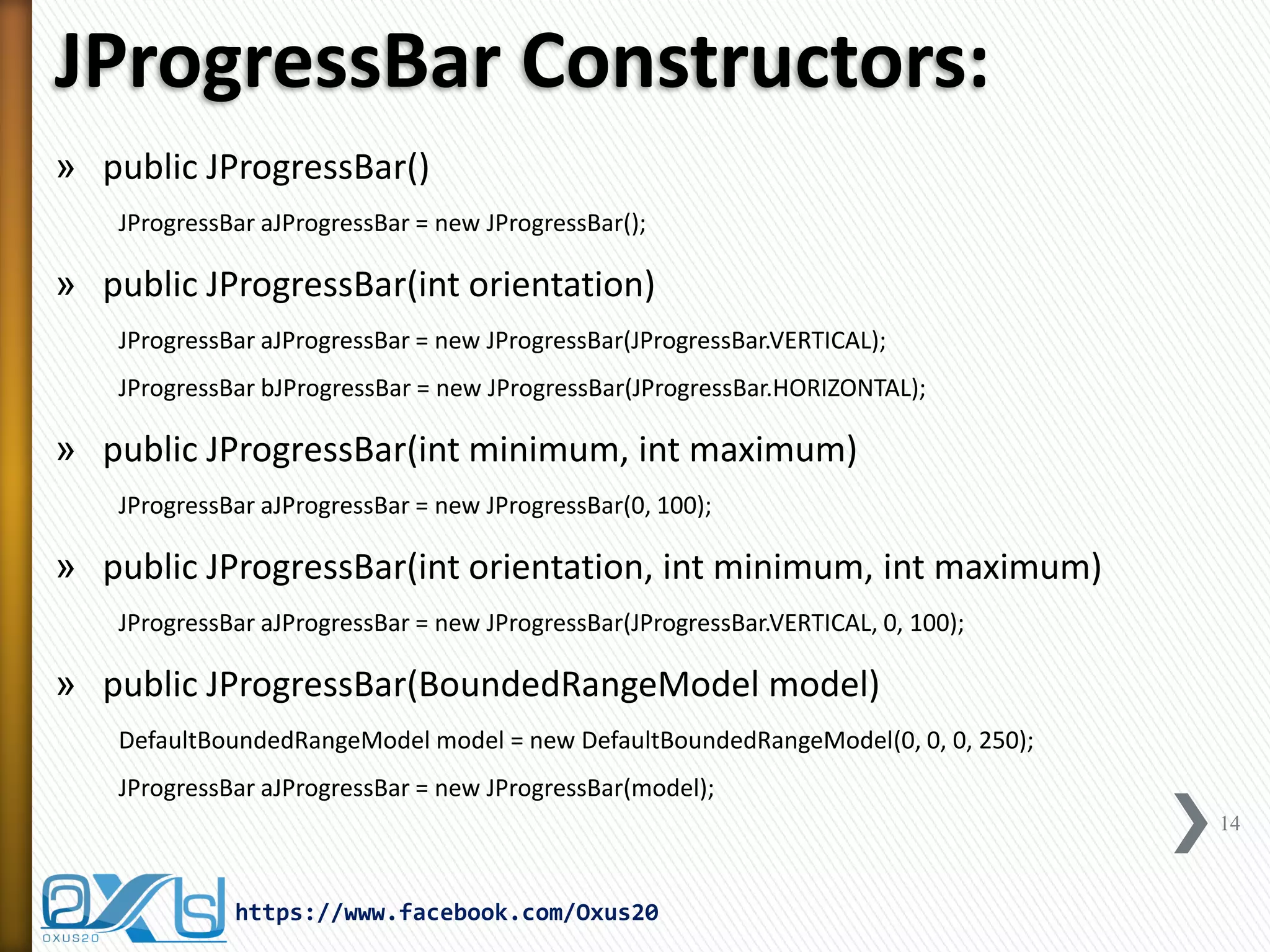

14. JProgressBar Constructors:
»public JProgressBar()
JProgressBar aJProgressBar = new JProgressBar();
»public JProgressBar(int orientation)
JProgressBar aJProgressBar = new JProgressBar(JProgressBar.VERTICAL);
JProgressBar bJProgressBar = new JProgressBar(JProgressBar.HORIZONTAL);
»public JProgressBar(int minimum, int maximum)
JProgressBar aJProgressBar = new JProgressBar(0, 100);
»public JProgressBar(int orientation, int minimum, int maximum)
JProgressBar aJProgressBar = new JProgressBar(JProgressBar.VERTICAL, 0, 100);
»public JProgressBar(BoundedRangeModel model)
DefaultBoundedRangeModel model = new DefaultBoundedRangeModel(0, 0, 0, 250);
JProgressBar aJProgressBar = new JProgressBar(model);
14
https://www.facebook.com/Oxus20

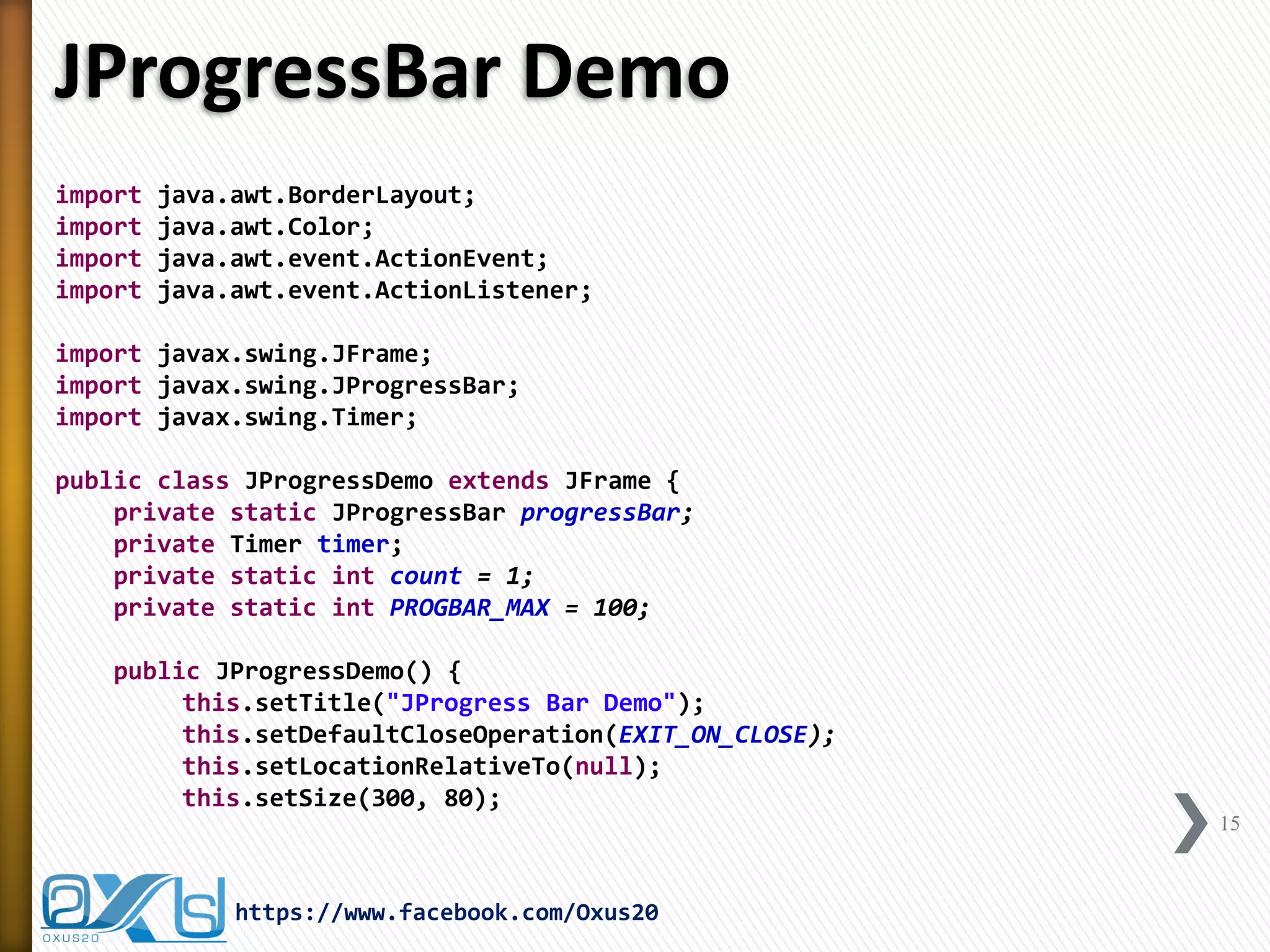

15. JProgressBar Demo
import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.JFrame;
import javax.swing.JProgressBar;
import javax.swing.Timer;
public class JProgressDemo extends JFrame {
private static JProgressBar progressBar;
private Timer timer;
private static int count = 1;
private static int PROGBAR_MAX = 100;
public JProgressDemo() {
this.setTitle("JProgress Bar Demo");
this.setDefaultCloseOperation(EXIT_ON_CLOSE);
this.setLocationRelativeTo(null);
this.setSize(300, 80);
15
https://www.facebook.com/Oxus20

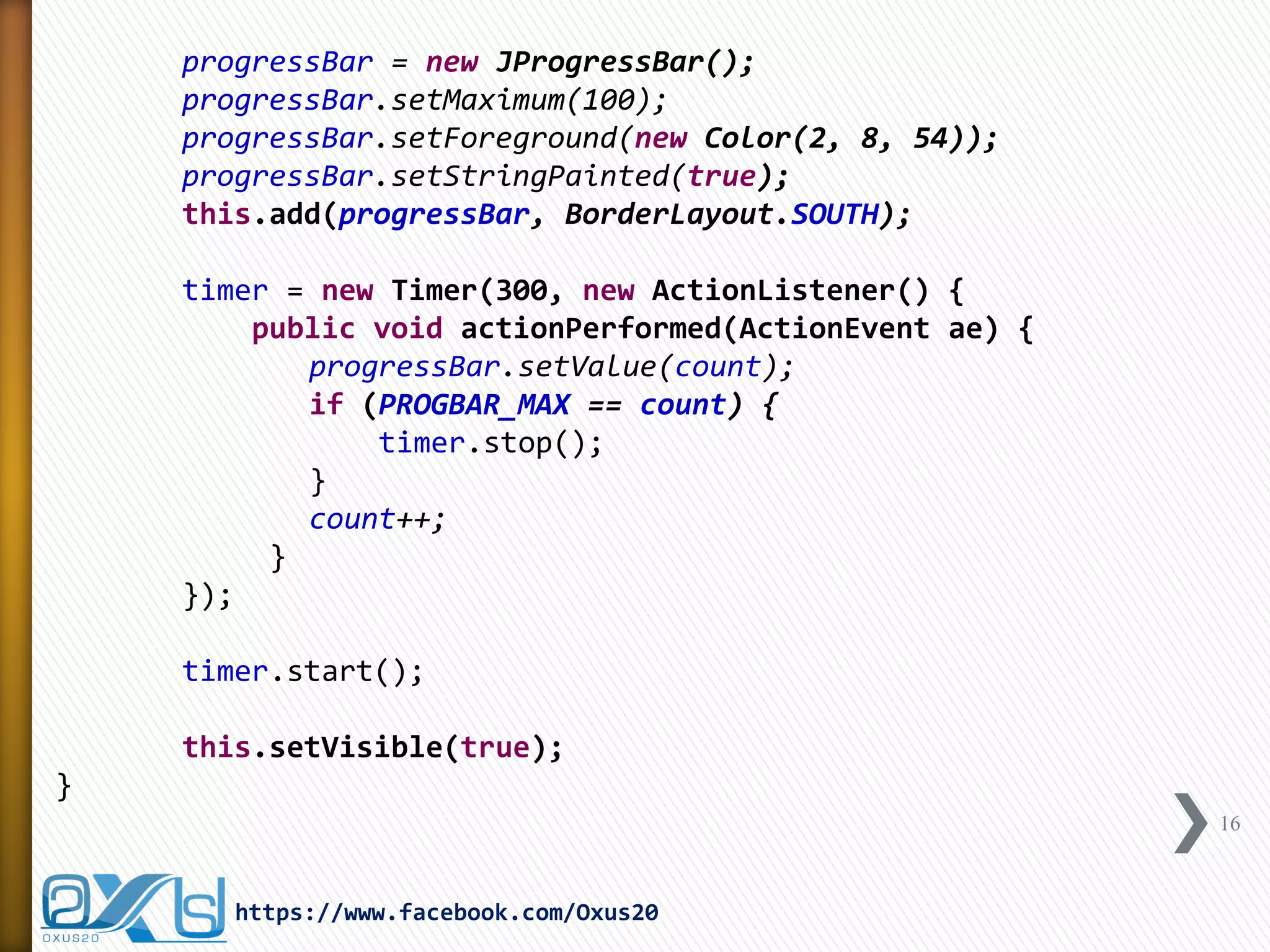

16. progressBar = new JProgressBar();
progressBar.setMaximum(100);
progressBar.setForeground(new Color(2, 8, 54));
progressBar.setStringPainted(true);
this.add(progressBar, BorderLayout.SOUTH);
timer = new Timer(300, new ActionListener() {
public void actionPerformed(ActionEvent ae) {
progressBar.setValue(count);
if (PROGBAR_MAX == count) {
timer.stop();
}
count++;
}
});
timer.start();
this.setVisible(true);
}
16
https://www.facebook.com/Oxus20

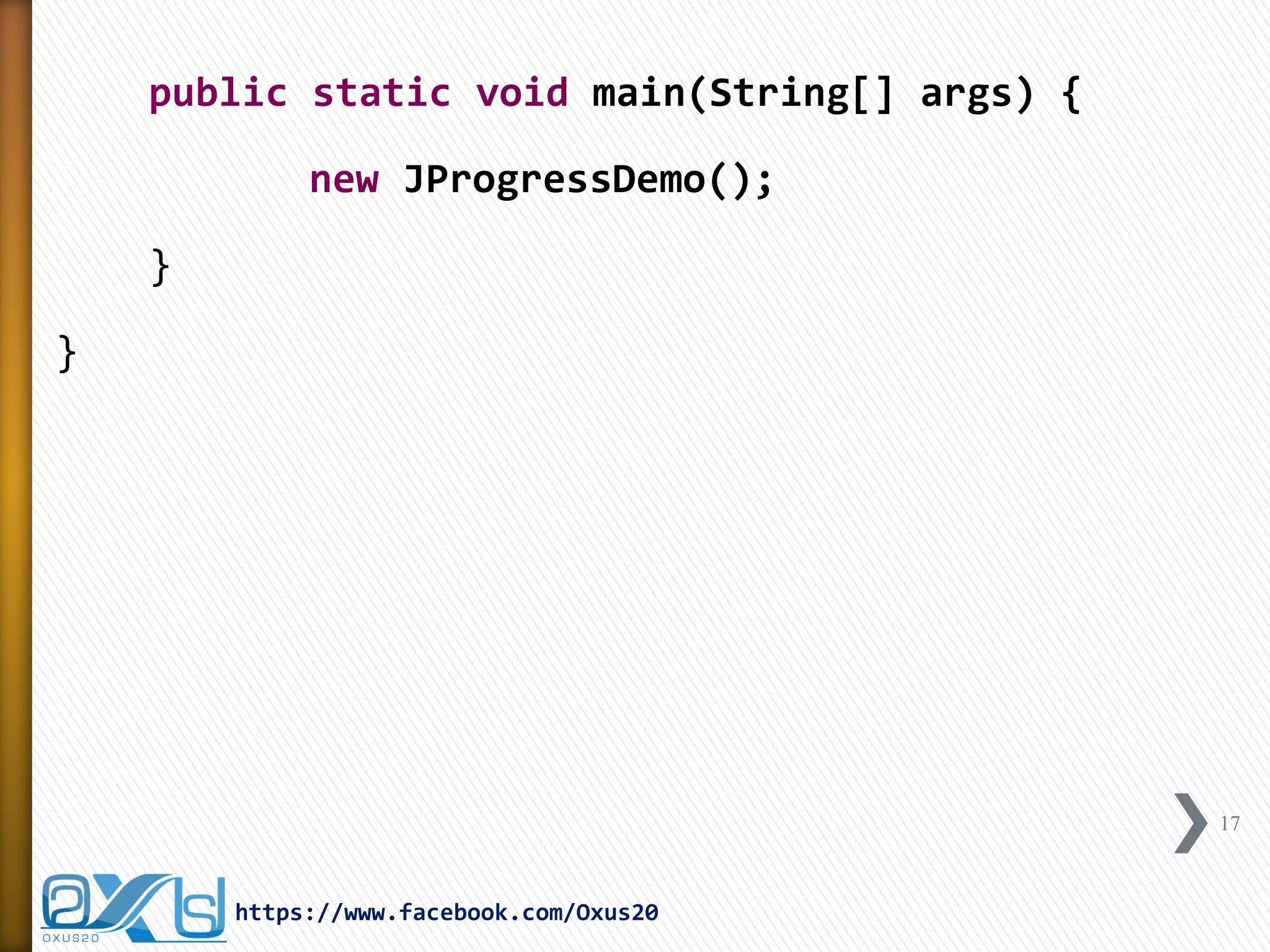

17. public static void main(String[] args) {
new JProgressDemo();
}
}
17
https://www.facebook.com/Oxus20

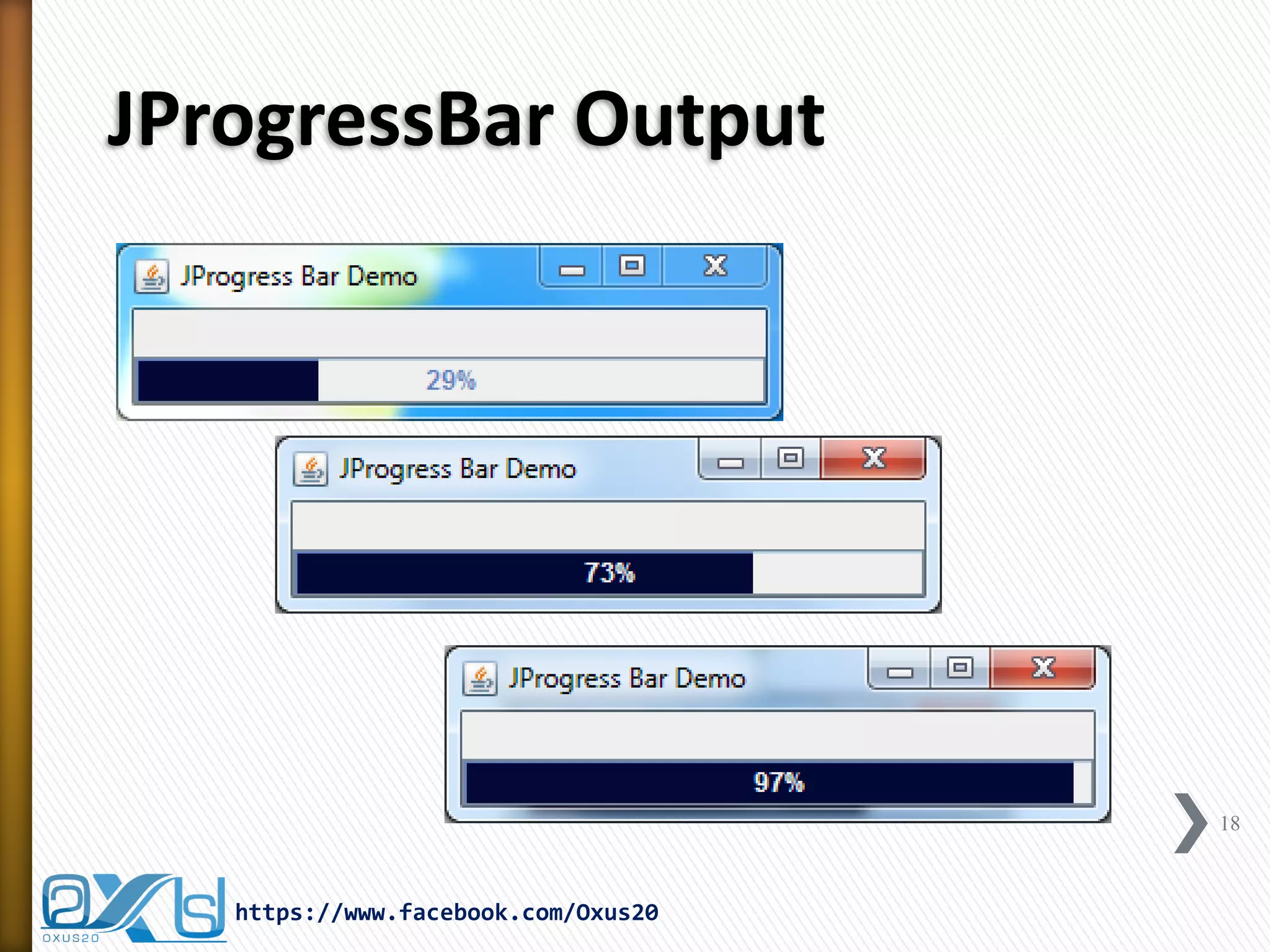

18. JProgressBar Output
18
https://www.facebook.com/Oxus20

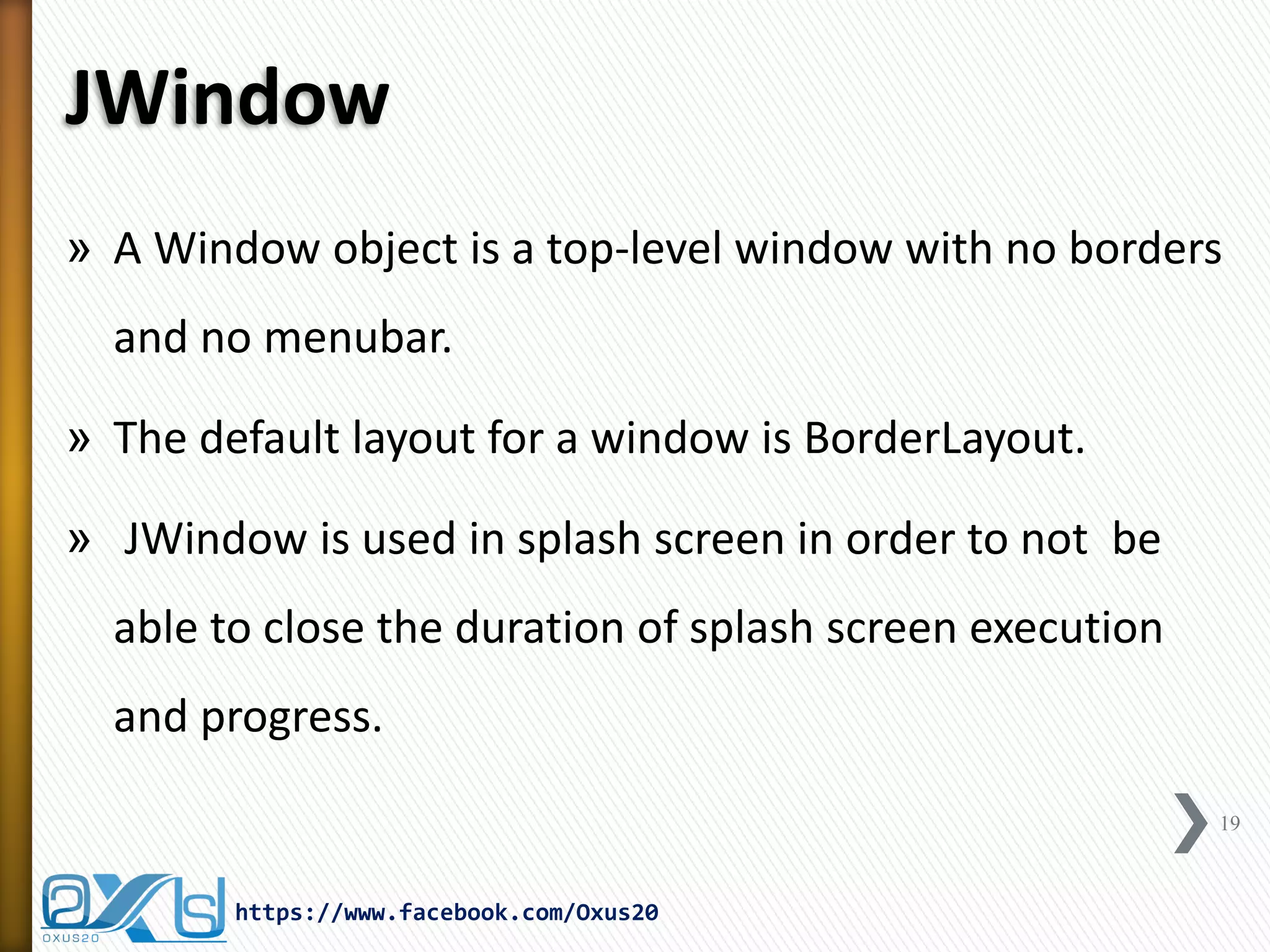

19. JWindow
»A Window object is a top-level window with no borders and no menubar.
»The default layout for a window is BorderLayout.
» JWindow is used in splash screen in order to not be able to close the duration of splash screen execution and progress.
19
https://www.facebook.com/Oxus20

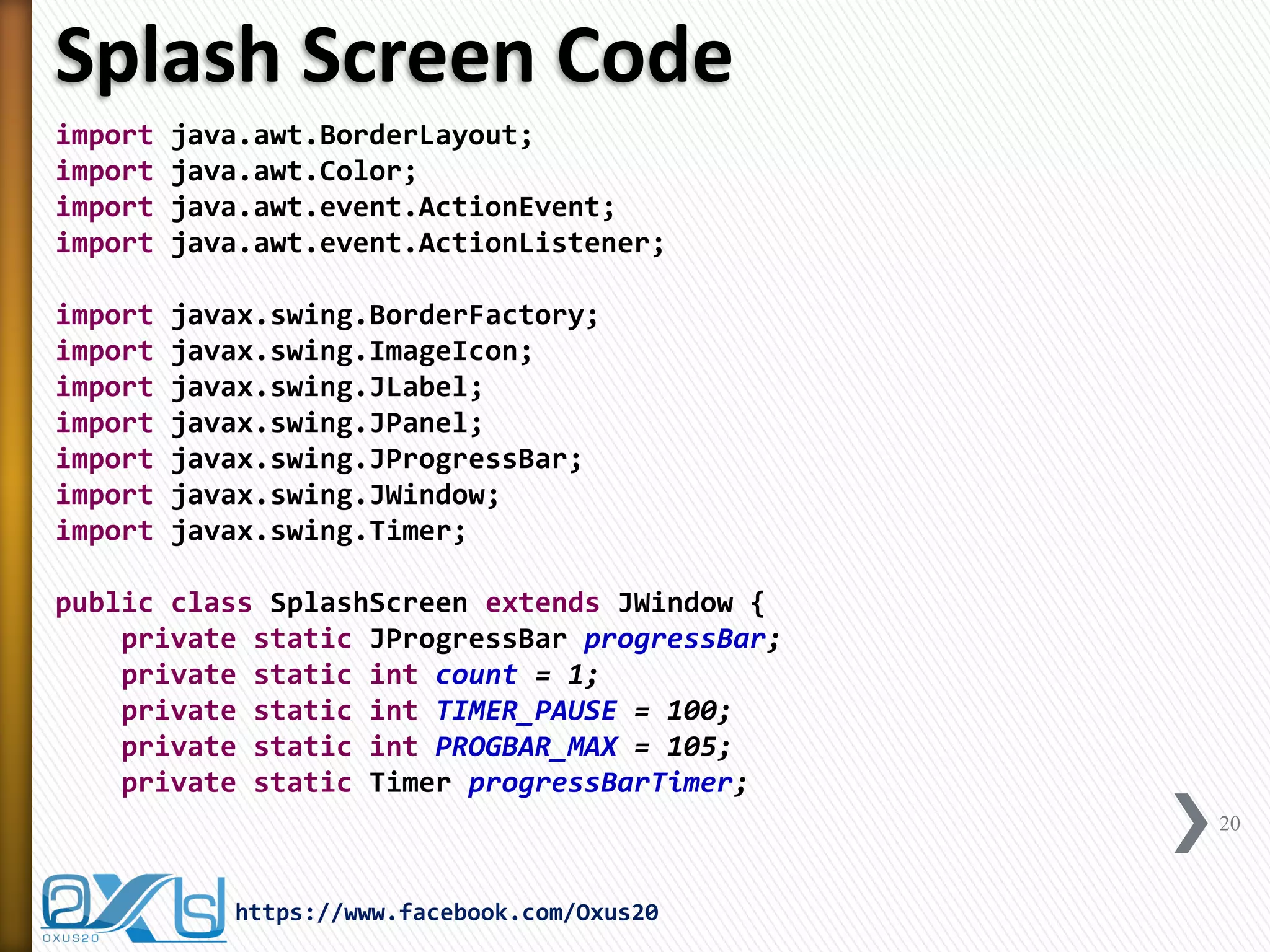

20. Splash Screen Code
import java.awt.BorderLayout;
import java.awt.Color;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;
import javax.swing.BorderFactory;
import javax.swing.ImageIcon;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JProgressBar;
import javax.swing.JWindow;
import javax.swing.Timer;
public class SplashScreen extends JWindow {
private static JProgressBar progressBar;
private static int count = 1;
private static int TIMER_PAUSE = 100;
private static int PROGBAR_MAX = 105;
private static Timer progressBarTimer;
20
https://www.facebook.com/Oxus20

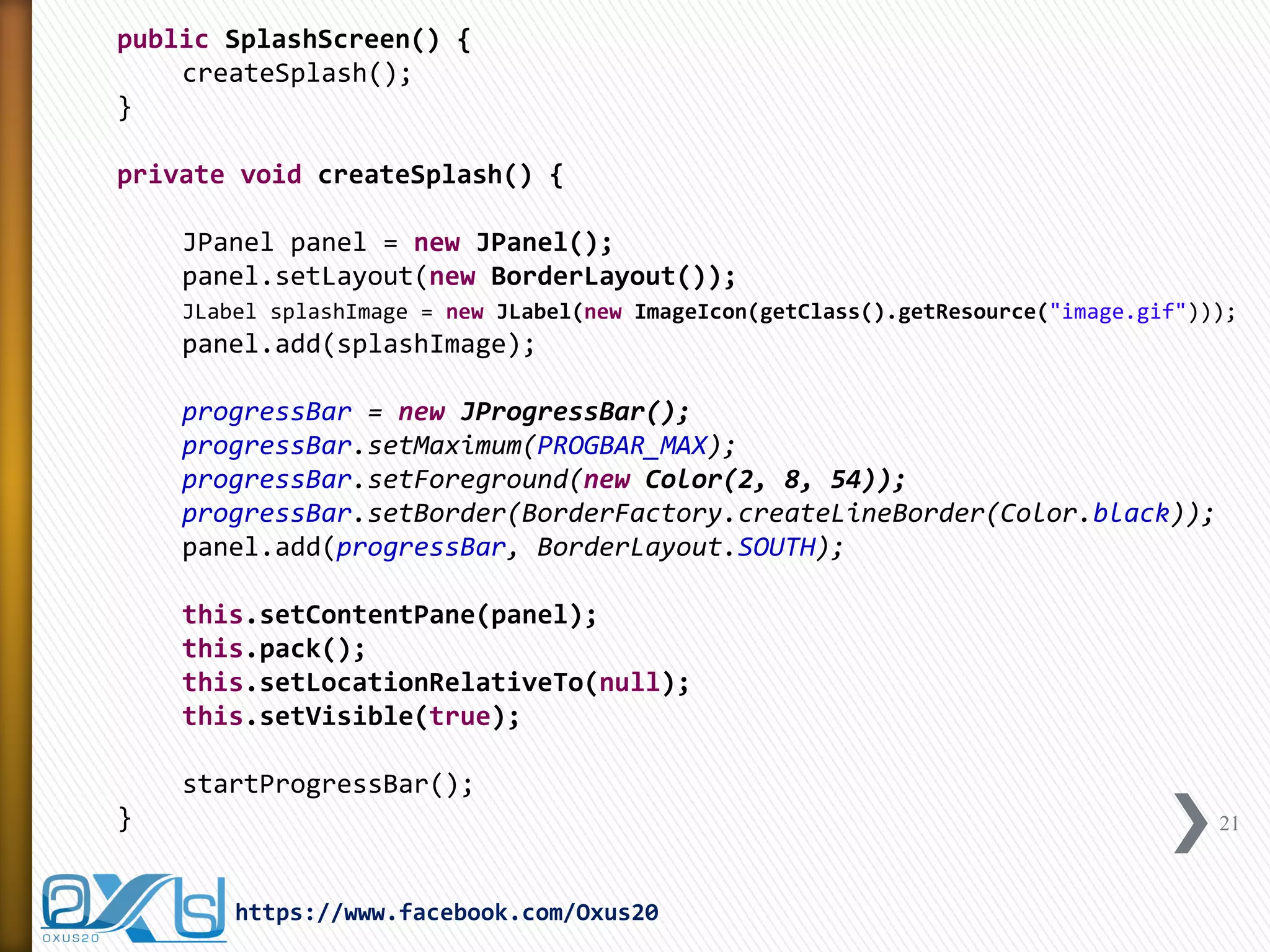

21. public SplashScreen() {
createSplash();
}
private void createSplash() {
JPanel panel = new JPanel();
panel.setLayout(new BorderLayout());
JLabel splashImage = new JLabel(new ImageIcon(getClass().getResource("image.gif")));
panel.add(splashImage);
progressBar = new JProgressBar();
progressBar.setMaximum(PROGBAR_MAX);
progressBar.setForeground(new Color(2, 8, 54));
progressBar.setBorder(BorderFactory.createLineBorder(Color.black));
panel.add(progressBar, BorderLayout.SOUTH);
this.setContentPane(panel);
this.pack();
this.setLocationRelativeTo(null);
this.setVisible(true);
startProgressBar();
}
21
https://www.facebook.com/Oxus20

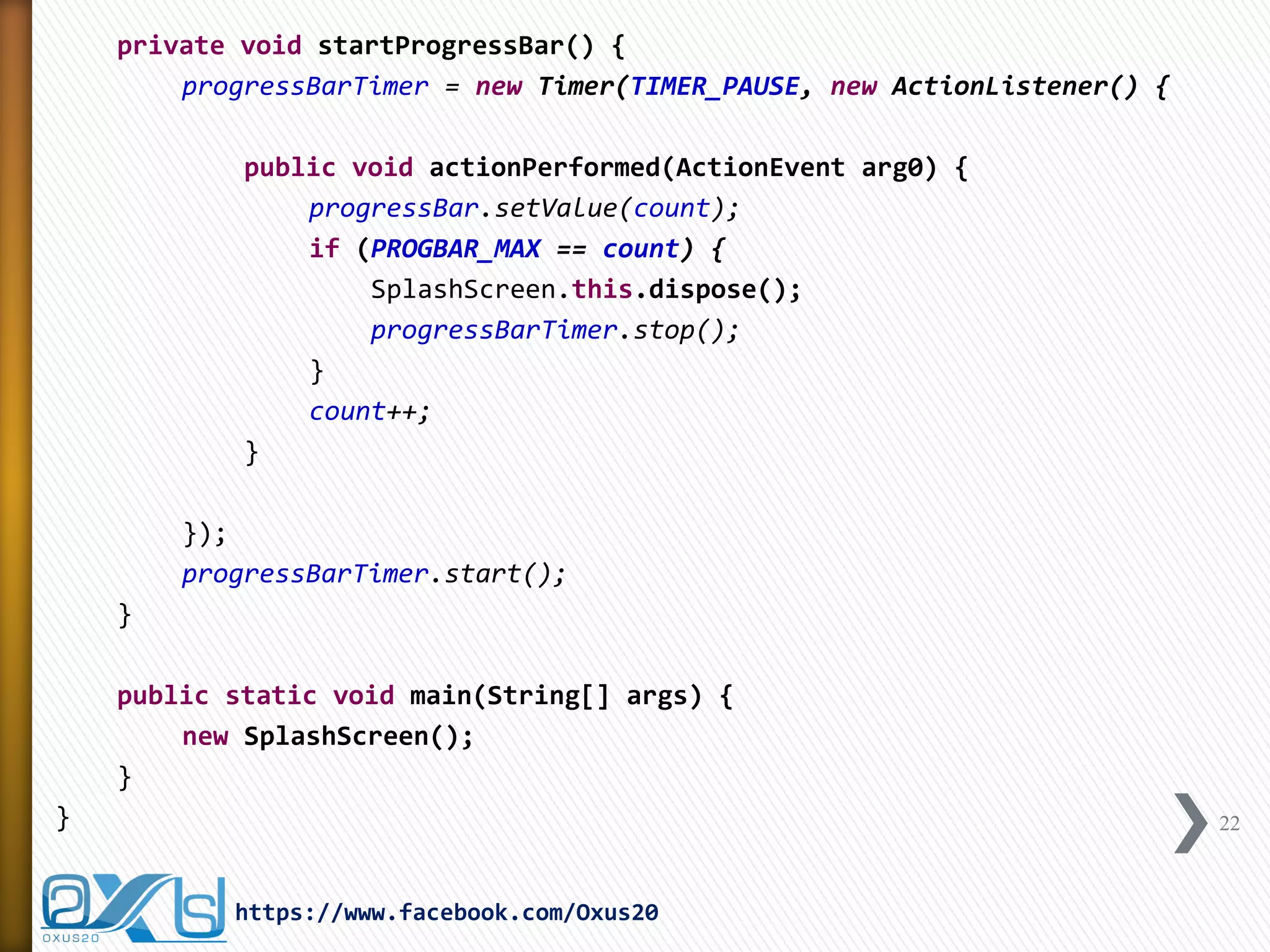

22. private void startProgressBar() {
progressBarTimer = new Timer(TIMER_PAUSE, new ActionListener() {
public void actionPerformed(ActionEvent arg0) {
progressBar.setValue(count);
if (PROGBAR_MAX == count) {
SplashScreen.this.dispose();
progressBarTimer.stop();
}
count++;
}
});
progressBarTimer.start();
}
public static void main(String[] args) {
new SplashScreen();
}
}
22
https://www.facebook.com/Oxus20

23. END
