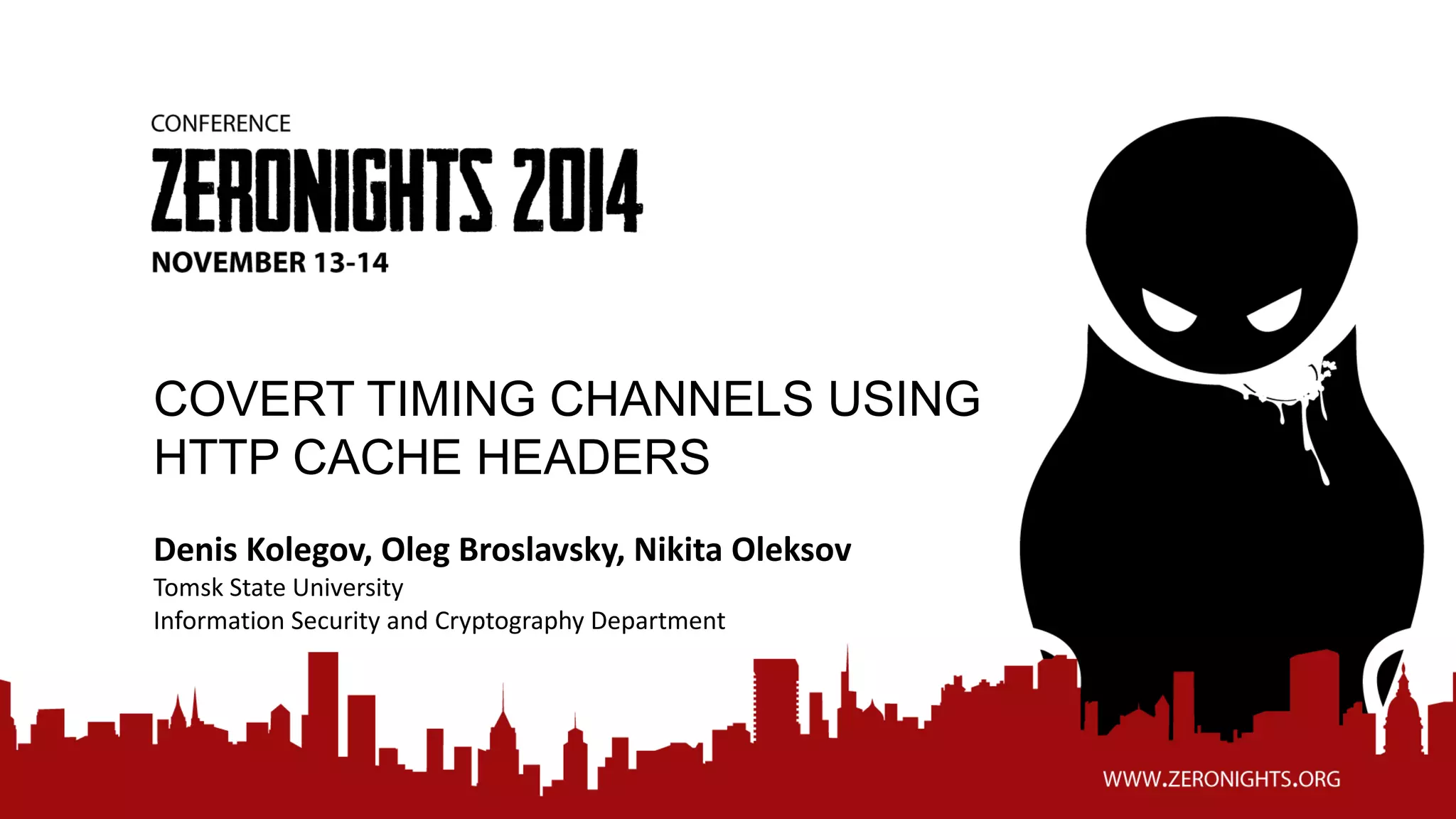

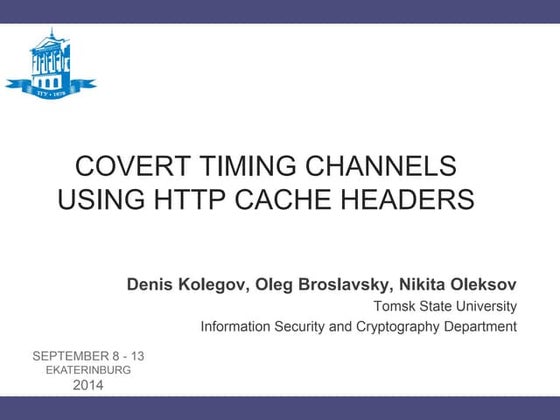

1. COVERT TIMING CHANNELS USING
HTTP CACHE HEADERS
Denis Kolegov, Oleg Broslavsky, Nikita Oleksov
Tomsk State University
Information Security and Cryptography Department

2. Introduction

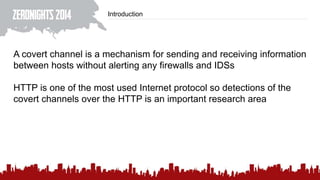

A covert channel is a mechanism for sending and receiving information
between hosts without alerting any firewalls and IDSs
HTTP is one of the most used Internet protocol so detections of the
covert channels over the HTTP is an important research area

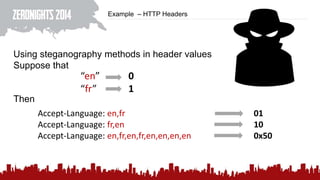

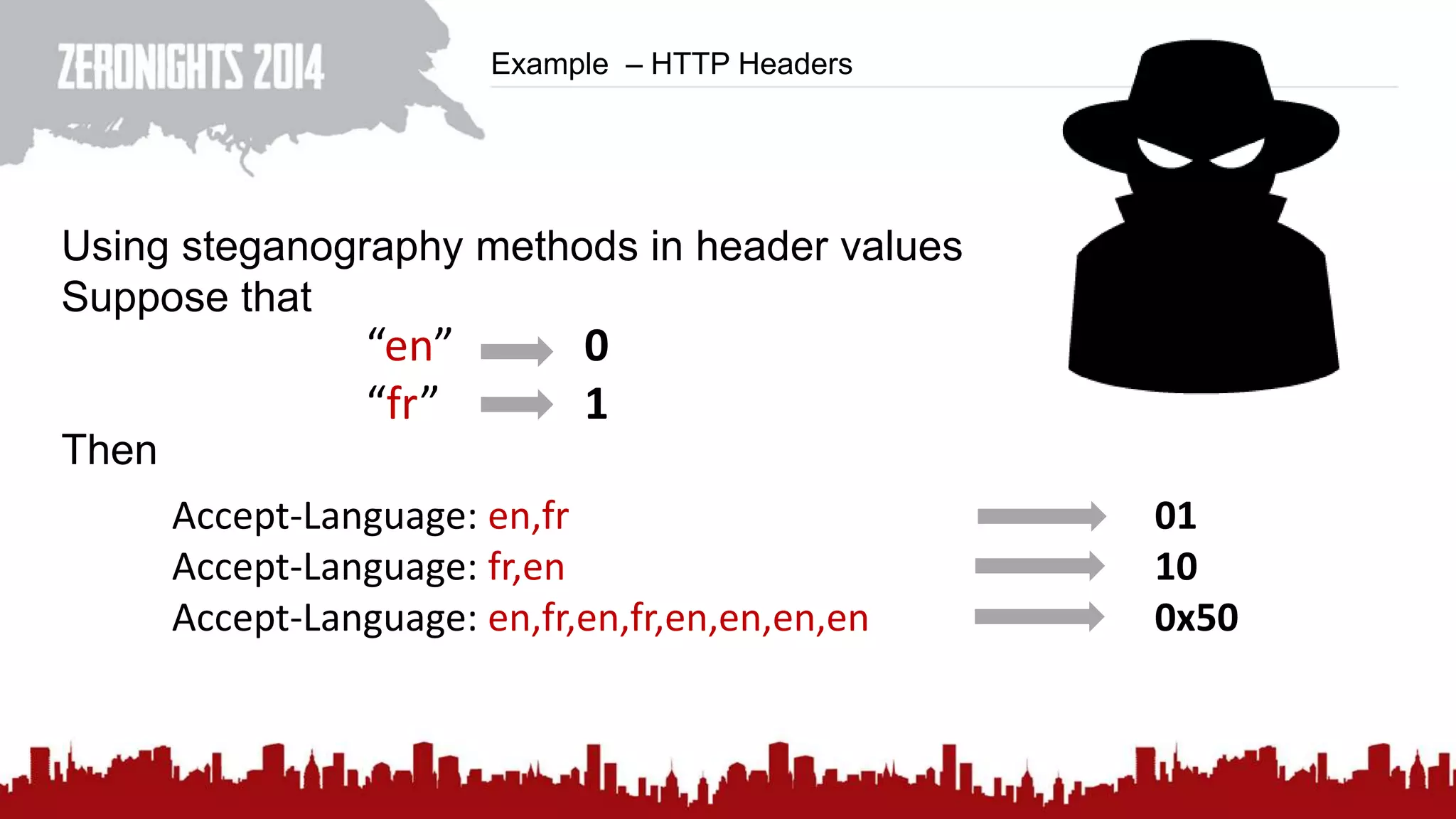

3. Example – HTTP Headers
Using steganography methods in header values
Suppose that
Then
“en” 0
“fr” 1
Accept-Language: en,fr 01
Accept-Language: fr,en 10
Accept-Language: en,fr,en,fr,en,en,en,en 0x50

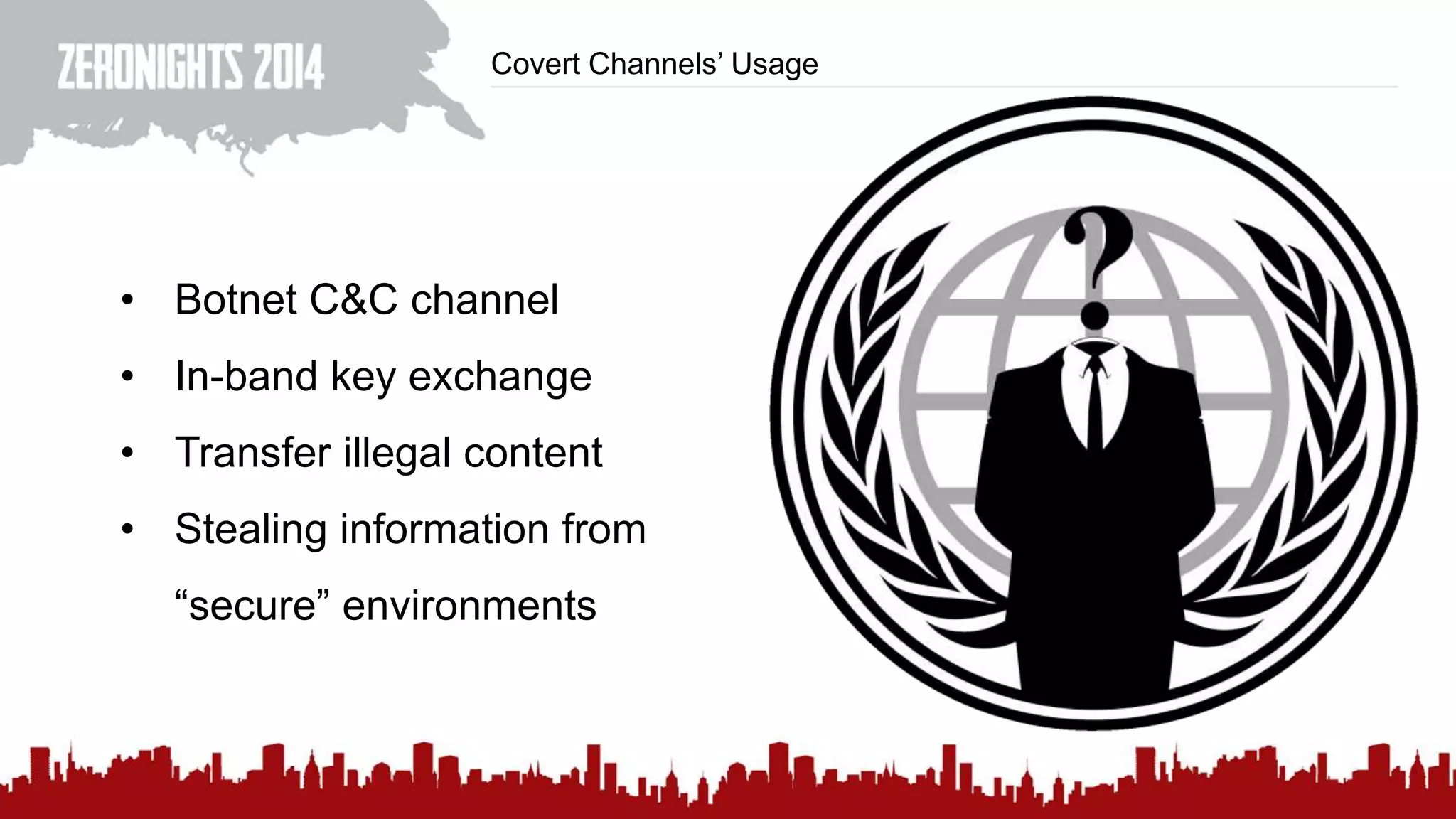

4. Covert Channels’ Usage
• Botnet C&C channel
• In-band key exchange
• Transfer illegal content
• Stealing information from
“secure” environments

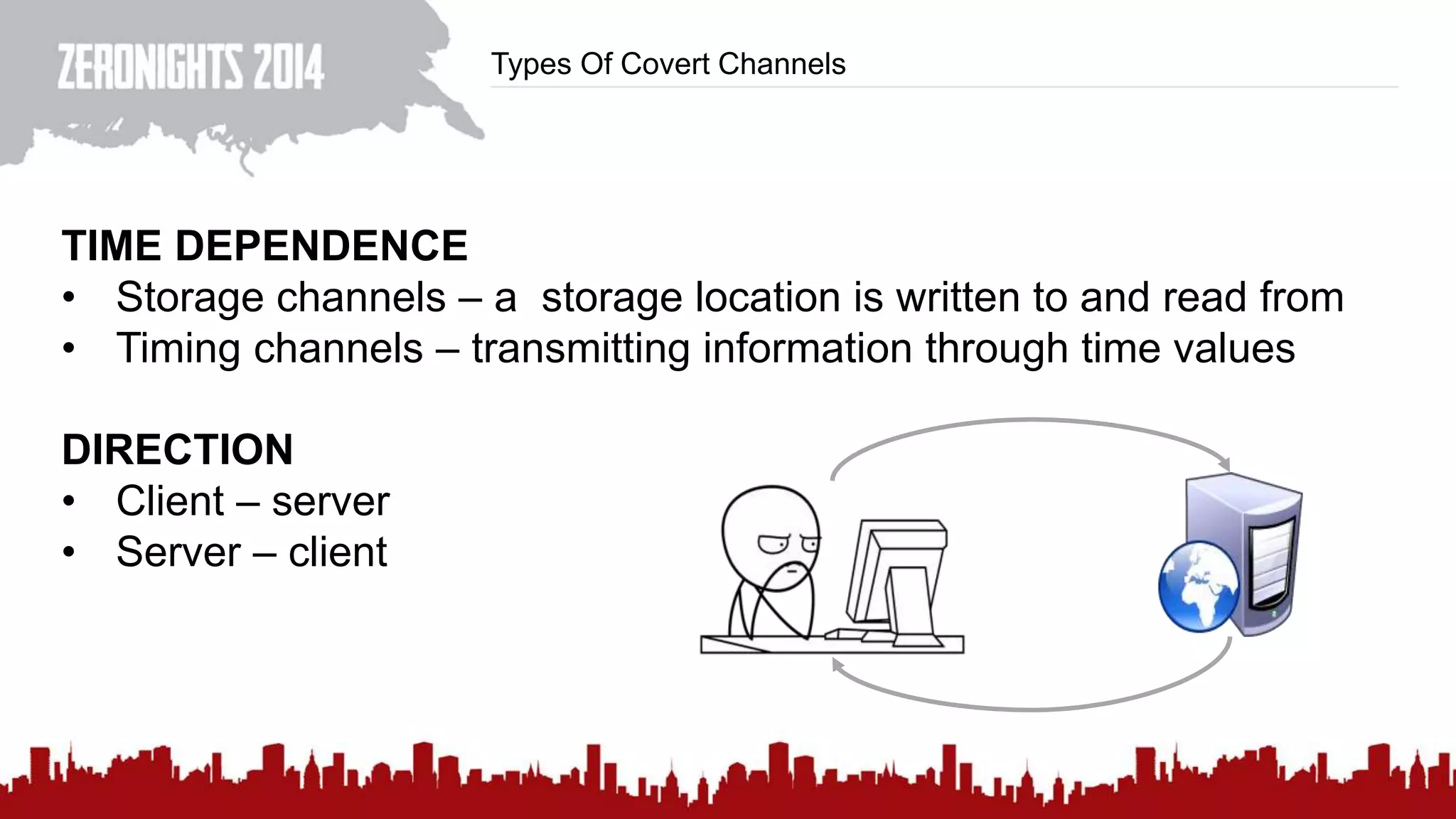

5. Types Of Covert Channels
TIME DEPENDENCE
• Storage channels – a storage location is written to and read from
• Timing channels – transmitting information through time values
DIRECTION
• Client – server
• Server – client

6. Client-Server Covert Channels

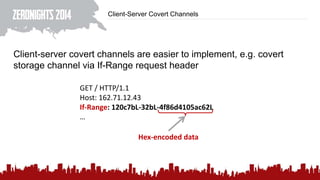

Client-server covert channels are easier to implement, e.g. covert
storage channel via If-Range request header
GET / HTTP/1.1
Host: 162.71.12.43
If-Range: 120c7bL-32bL-4f86d4105ac62L
…
Hex-encoded data

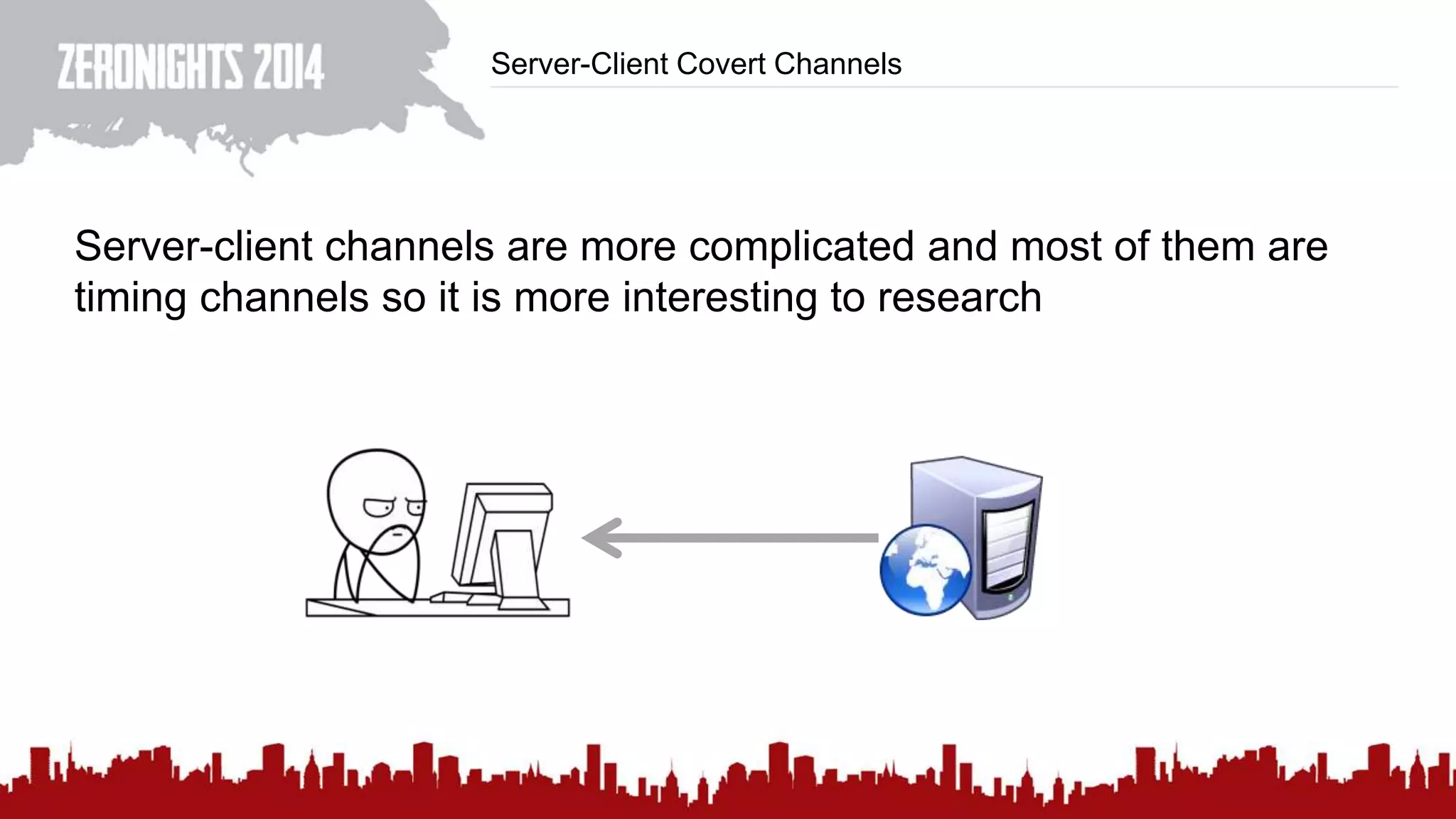

7. Server-Client Covert Channels
Server-client channels are more complicated and most of them are
timing channels so it is more interesting to research

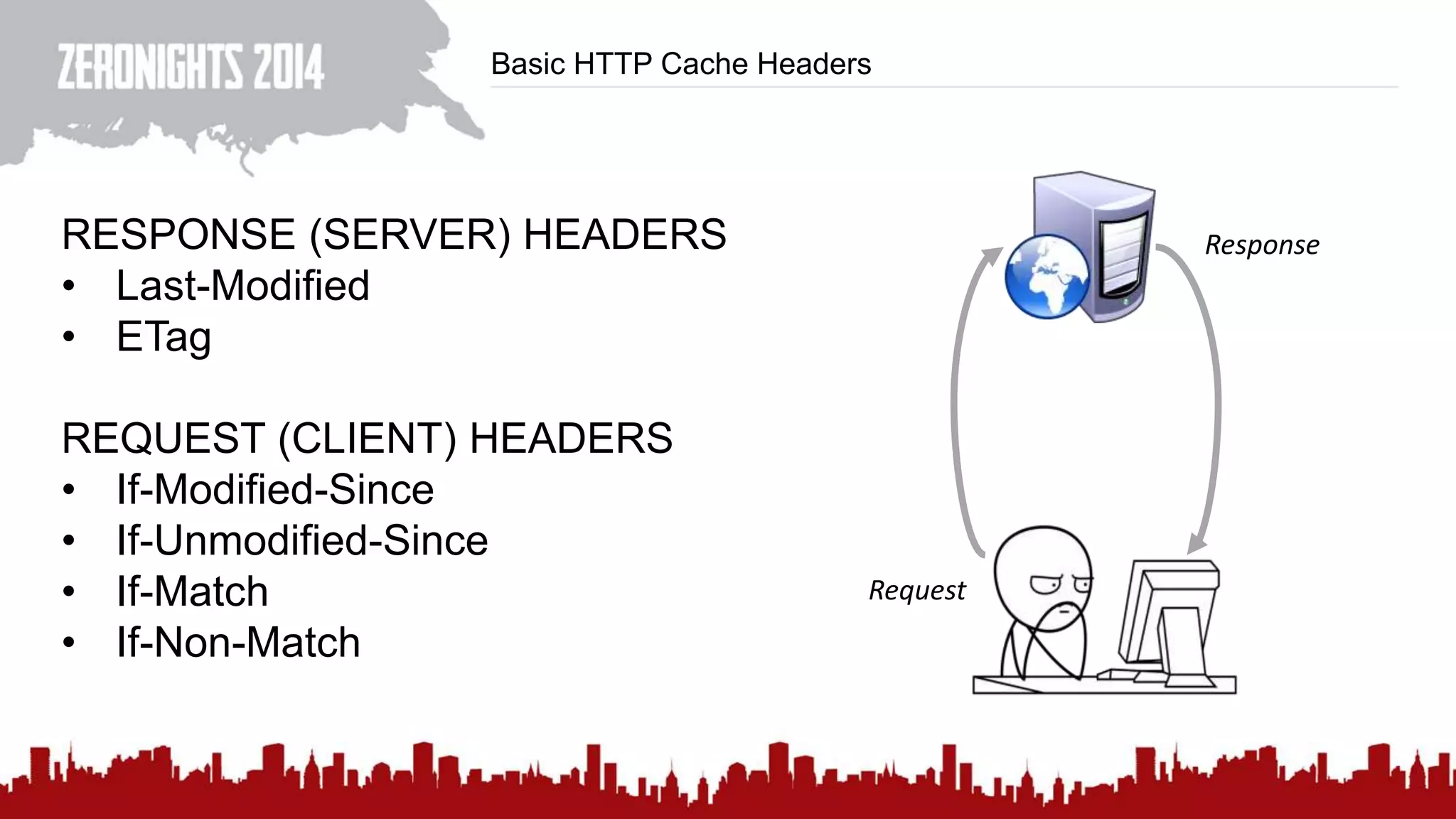

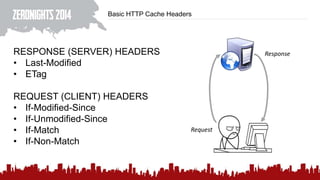

8. Basic HTTP Cache Headers
RESPONSE (SERVER) HEADERS
• Last-Modified
• ETag
REQUEST (CLIENT) HEADERS
• If-Modified-Since
• If-Unmodified-Since
• If-Match
• If-Non-Match
Request
Response

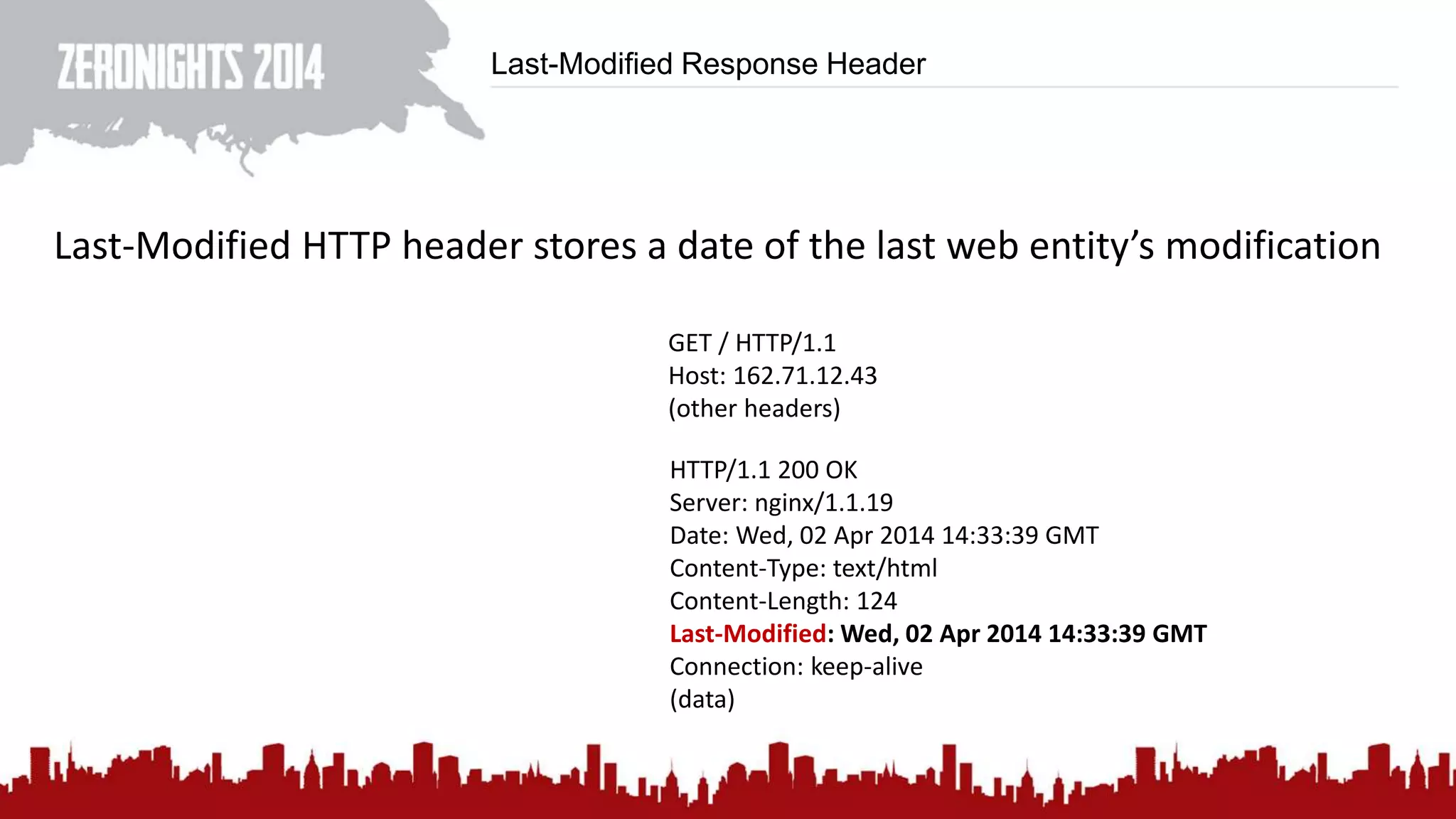

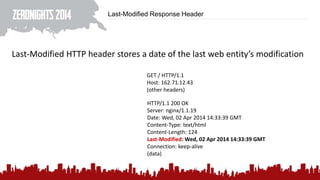

9. Last-Modified Response Header
Last-Modified HTTP header stores a date of the last web entity’s modification
HTTP/1.1 200 OK
Server: nginx/1.1.19
Date: Wed, 02 Apr 2014 14:33:39 GMT
Content-Type: text/html
Content-Length: 124
Last-Modified: Wed, 02 Apr 2014 14:33:39 GMT
Connection: keep-alive
(data)
GET / HTTP/1.1
Host: 162.71.12.43
(other headers)

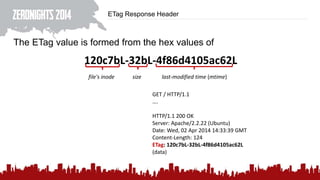

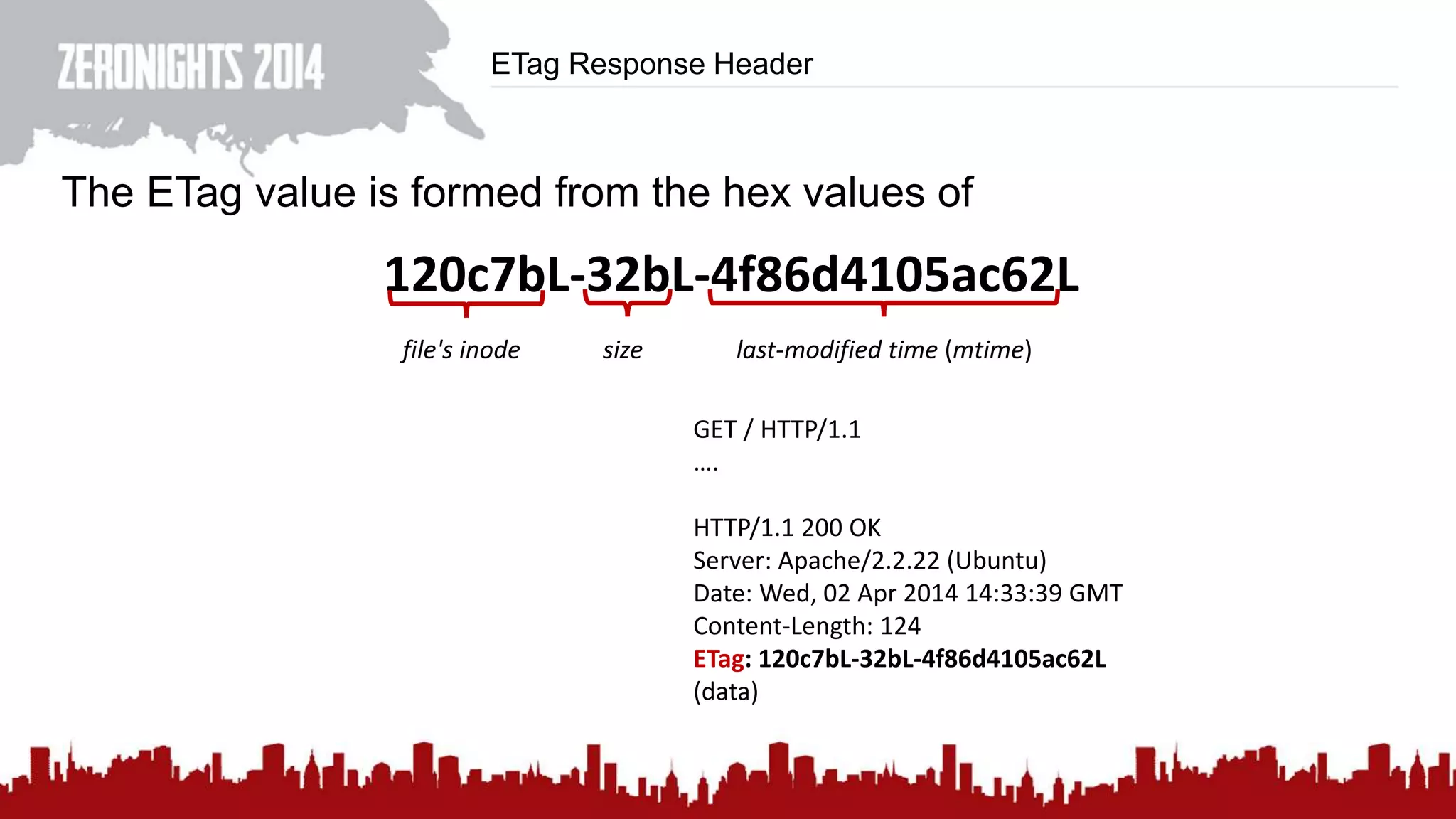

10. ETag Response Header
The ETag value is formed from the hex values of
120c7bL-32bL-4f86d4105ac62L
file's inode size last-modified time (mtime)
GET / HTTP/1.1
….
HTTP/1.1 200 OK
Server: Apache/2.2.22 (Ubuntu)
Date: Wed, 02 Apr 2014 14:33:39 GMT
Content-Length: 124
ETag: 120c7bL-32bL-4f86d4105ac62L
(data)

11. Common Usage of Cache Request Headers
HTTP cache headers allows web-client not to download a page if it
hasn’t been changed since the certain time
GET / HTTP/1.1
Host: 162.71.12.43
If-Modified-Since:
Wed, 02 Apr 2014 14:33:39 GMT
(other headers)
GET / HTTP/1.1
Host: 162.71.12.43
If-None-Match:
120c7bL-32bL-4f86d4105ac62L
(other headers)

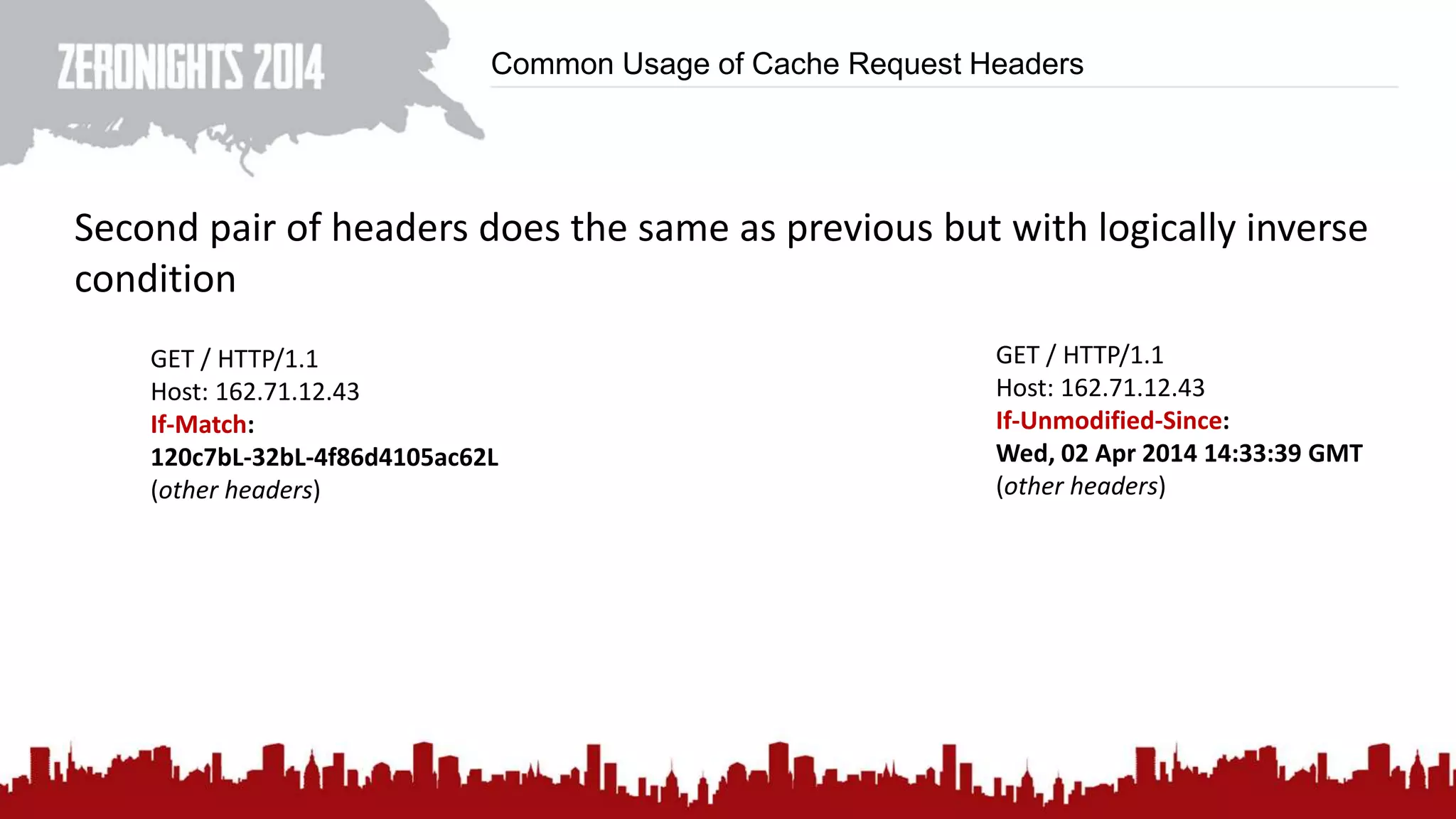

12. Common Usage of Cache Request Headers
Second pair of headers does the same as previous but with logically inverse
condition
GET / HTTP/1.1
Host: 162.71.12.43
If-Unmodified-Since:
Wed, 02 Apr 2014 14:33:39 GMT
(other headers)
GET / HTTP/1.1
Host: 162.71.12.43
If-Match:
120c7bL-32bL-4f86d4105ac62L
(other headers)

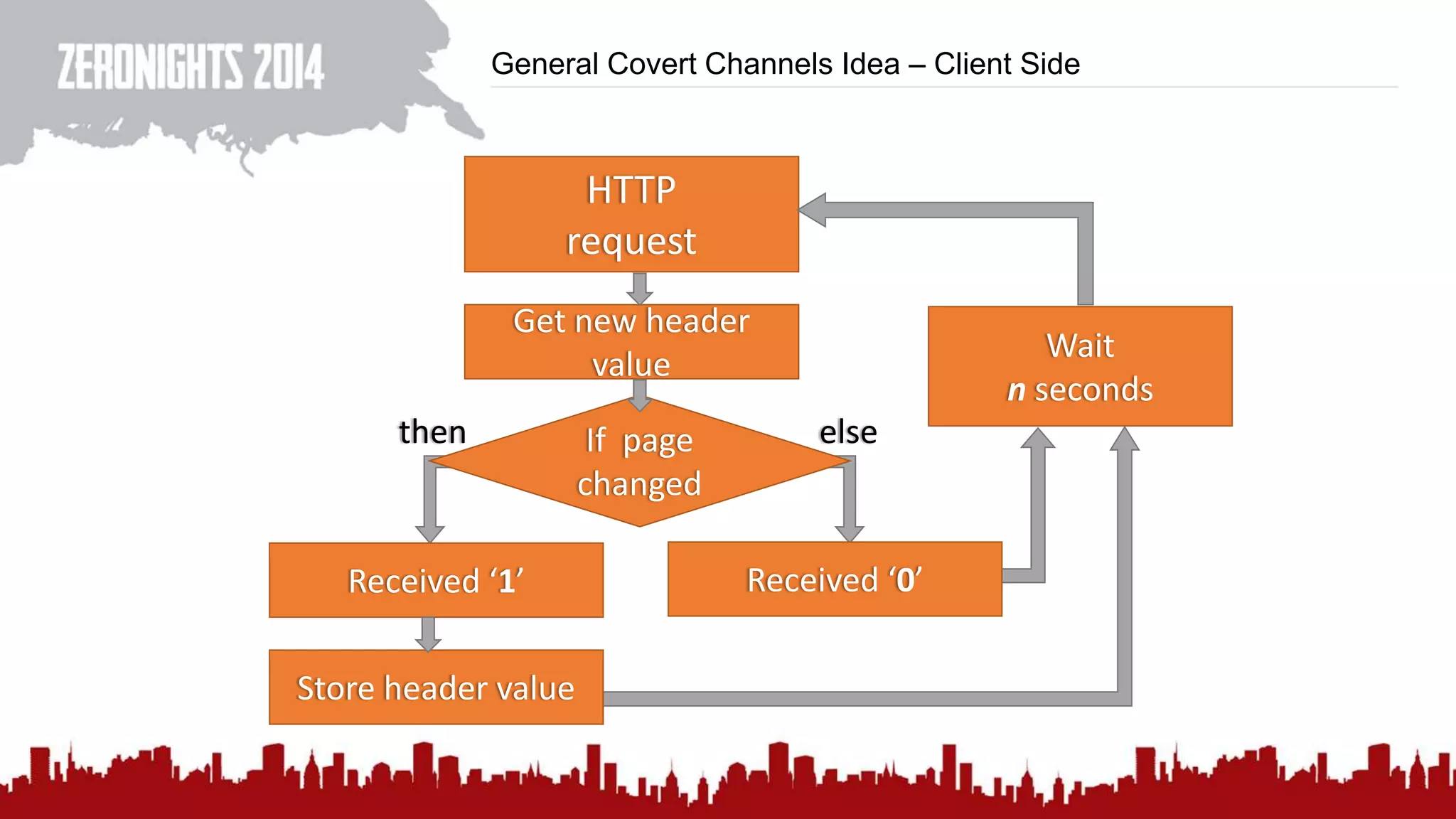

13. General Covert Channels Idea – Client Side
HTTP
request
Get new header
value
Received ‘1’
If page
changed
Store header value
Received ‘0’
Wait
n seconds
then else

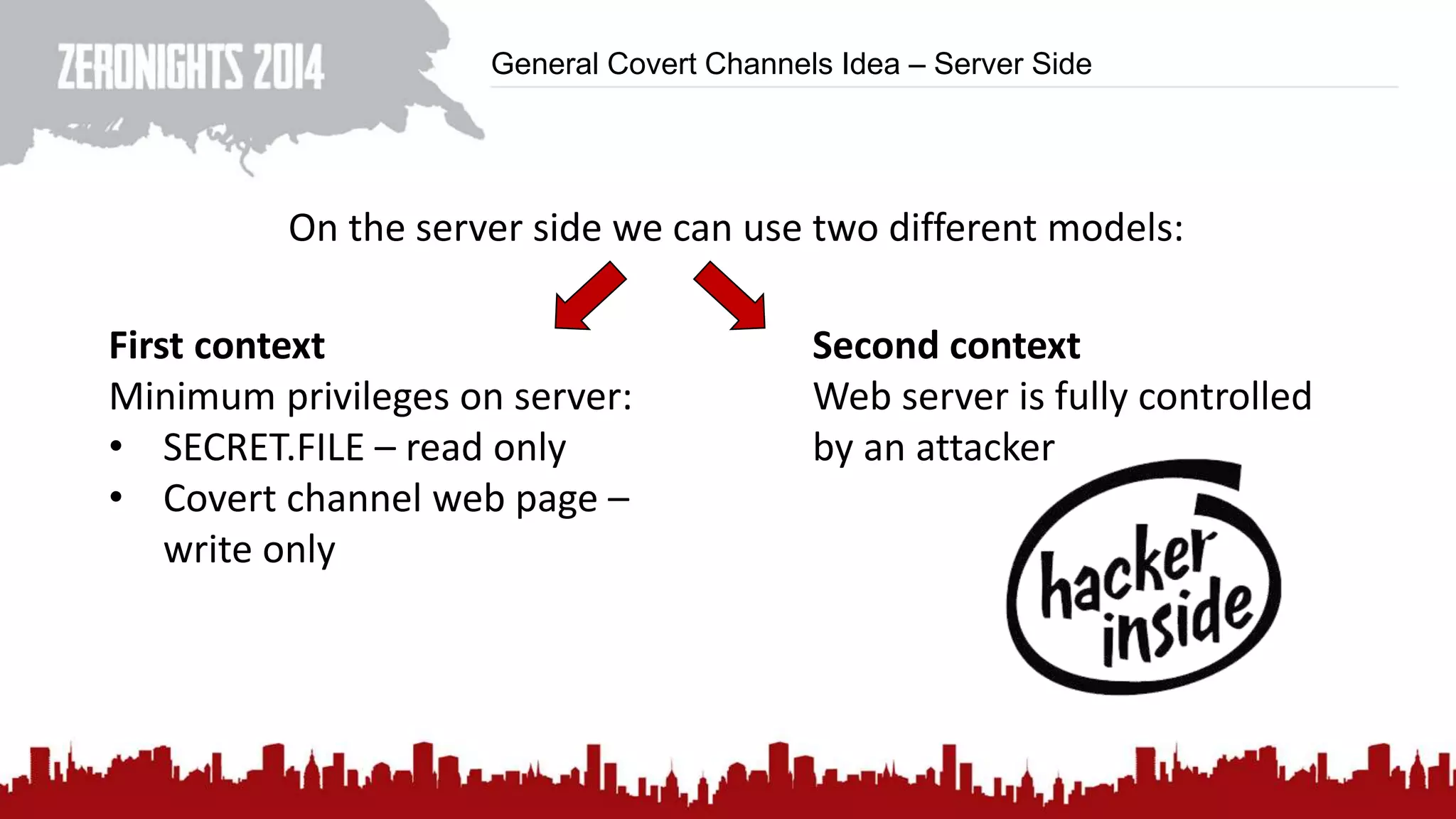

14. General Covert Channels Idea – Server Side
On the server side we can use two different models:
First context
Minimum privileges on server:
• SECRET.FILE – read only
• Covert channel web page –
write only
Second context
Web server is fully controlled
by an attacker

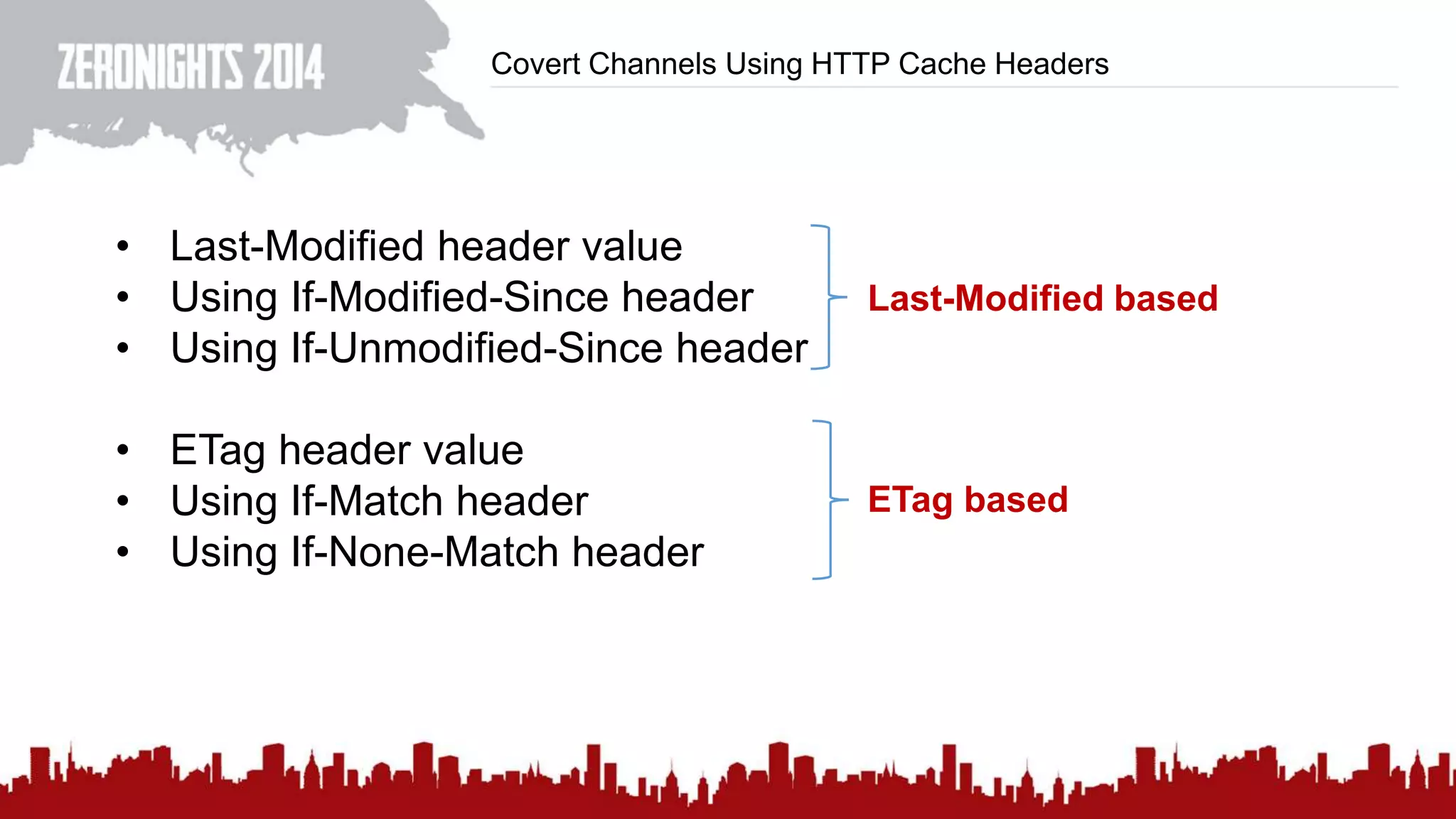

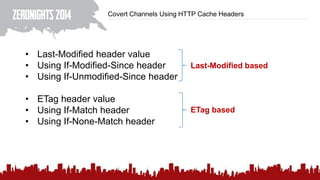

15. Covert Channels Using HTTP Cache Headers
• Last-Modified header value
• Using If-Modified-Since header
• Using If-Unmodified-Since header
• ETag header value
• Using If-Match header
• Using If-None-Match header
Last-Modified based
ETag based

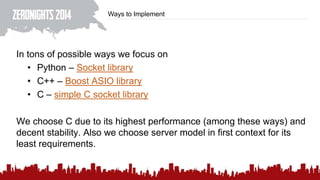

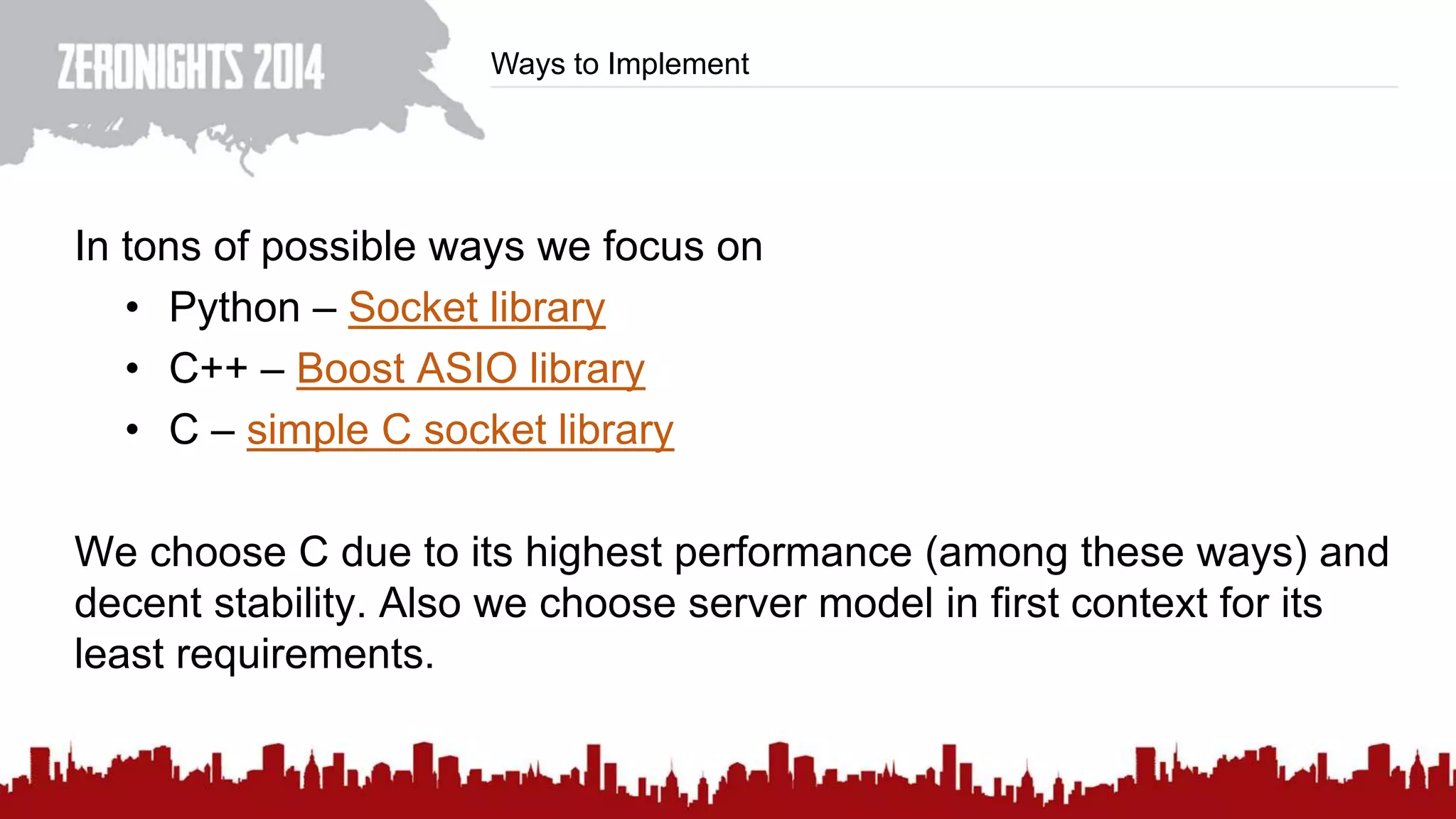

16. Ways to Implement
In tons of possible ways we focus on
• Python – Socket library
• C++ – Boost ASIO library
• С – simple C socket library
We choose C due to its highest performance (among these ways) and
decent stability. Also we choose server model in first context for its
least requirements.

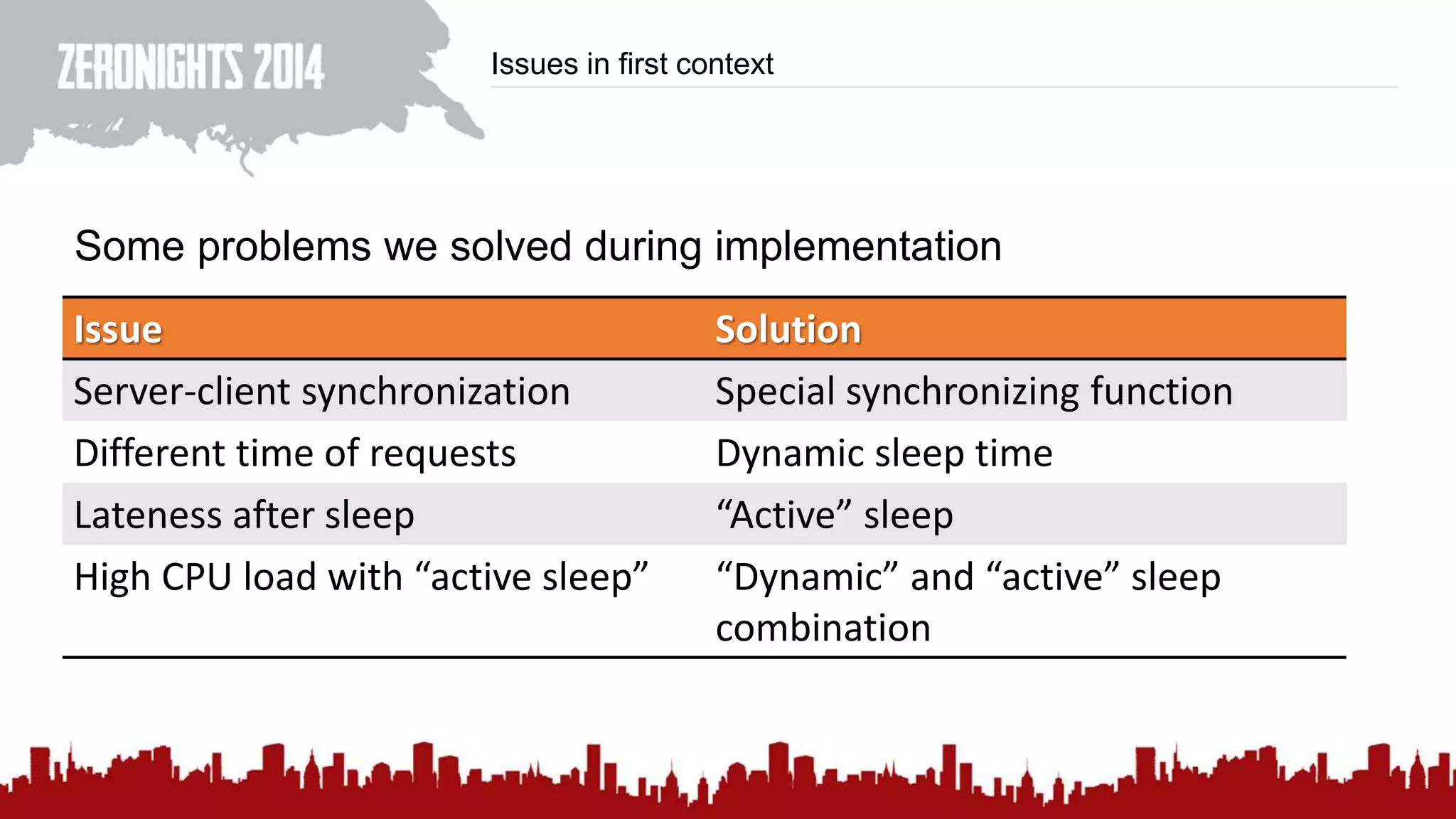

17. Issues in first context
Some problems we solved during implementation
Issue Solution
Server-client synchronization Special synchronizing function
Different time of requests Dynamic sleep time
Lateness after sleep “Active” sleep
High CPU load with “active sleep” “Dynamic” and “active” sleep
combination

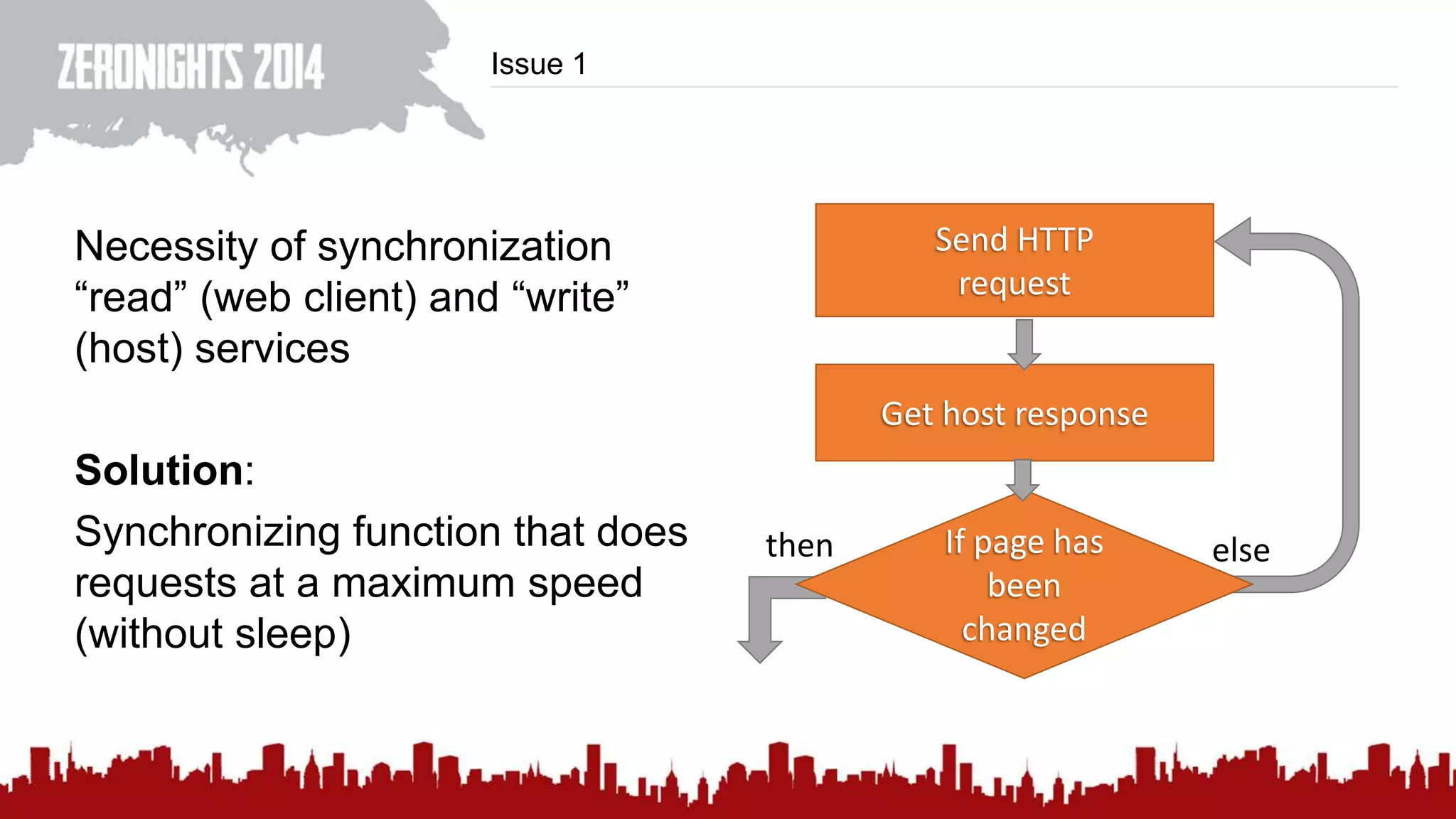

18. Issue 1
Necessity of synchronization
“read” (web client) and “write”
(host) services
Solution:
Synchronizing function that does
requests at a maximum speed
(without sleep)
Send HTTP
request
Get host response
If page has
been
changed
then else

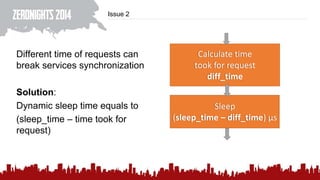

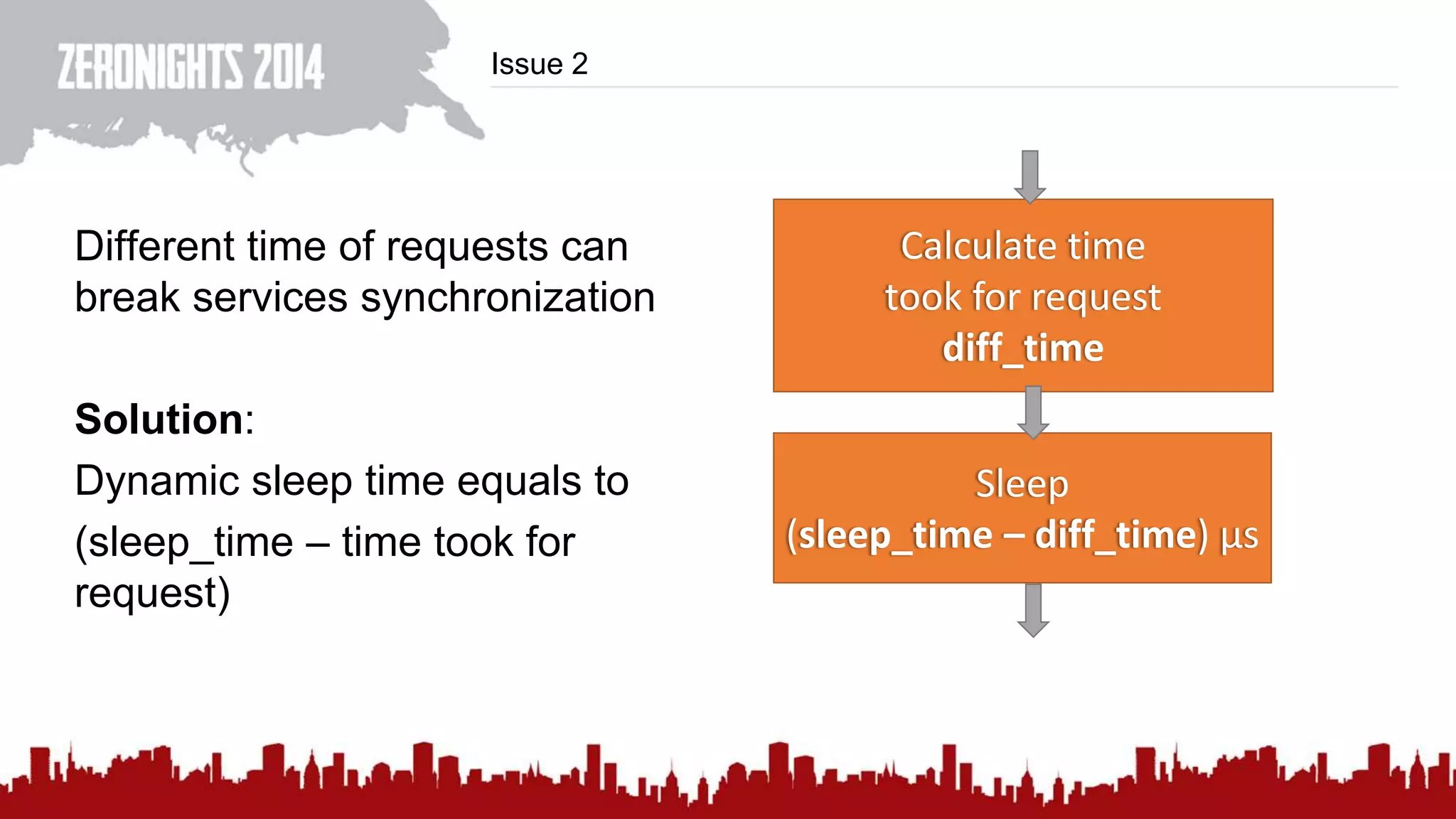

19. Issue 2
Different time of requests can
break services synchronization
Solution:
Dynamic sleep time equals to
(sleep_time – time took for
request)
Calculate time
took for request
diff_time
Sleep
(sleep_time – diff_time) µs

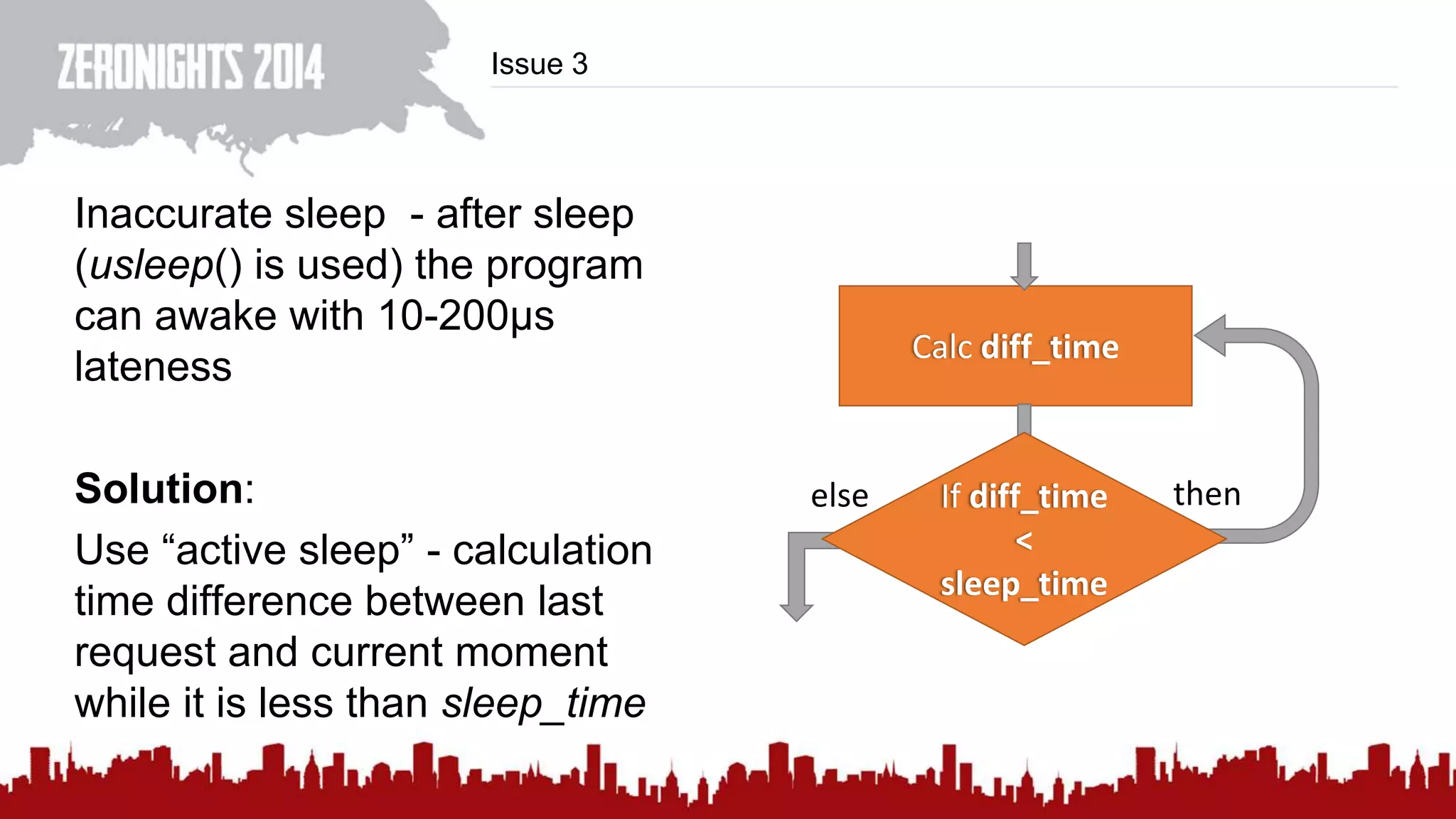

20. Issue 3
Inaccurate sleep - after sleep
(usleep() is used) the program
can awake with 10-200μs
lateness
Solution:
Use “active sleep” - calculation
time difference between last
request and current moment
while it is less than sleep_time
Calc diff_time
thenelse If diff_time
<
sleep_time

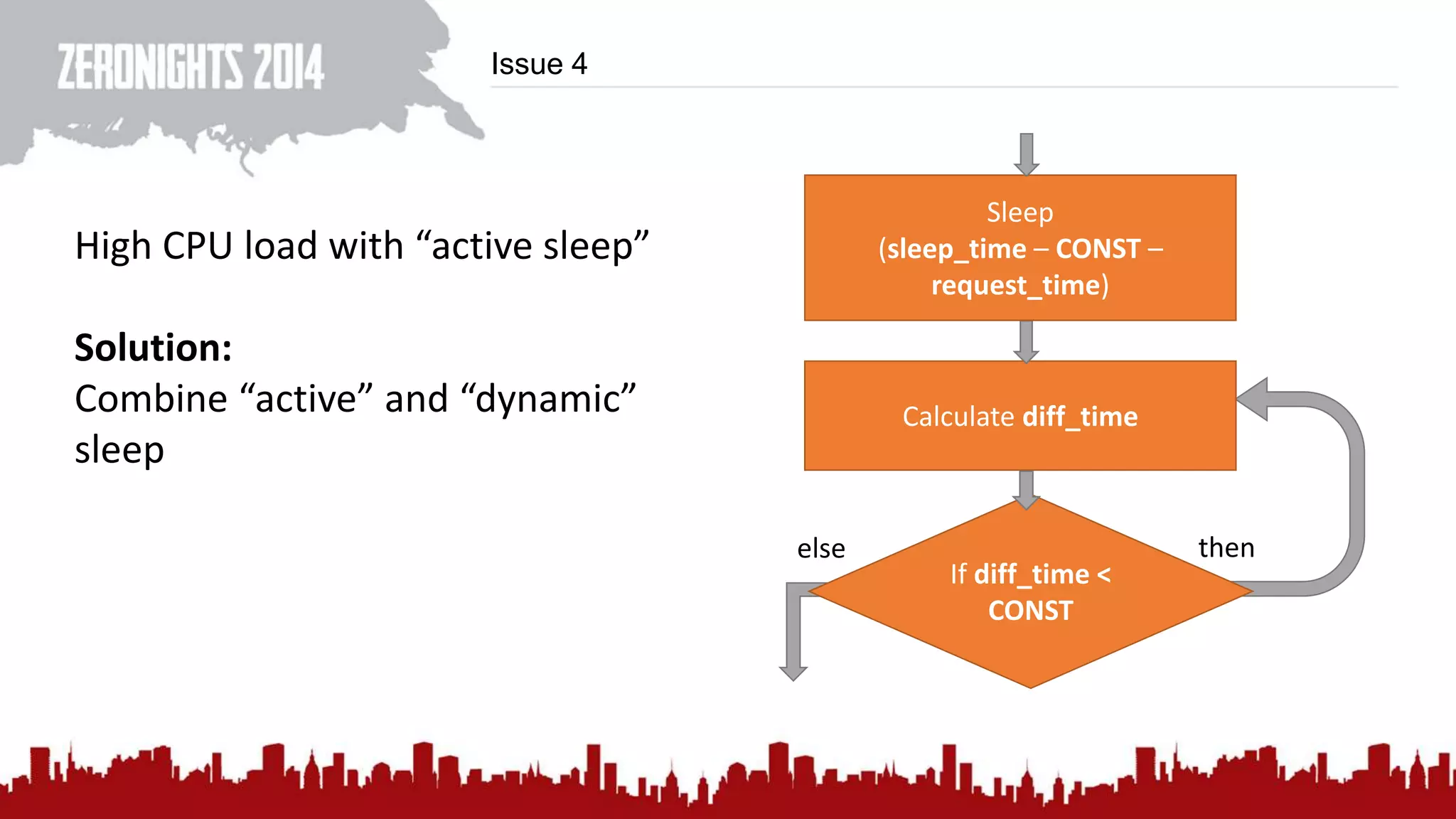

21. Issue 4
High CPU load with “active sleep”
Solution:
Combine “active” and “dynamic”
sleep
Calculate diff_time
If diff_time <
CONST
thenelse
Sleep
(sleep_time – CONST –
request_time)

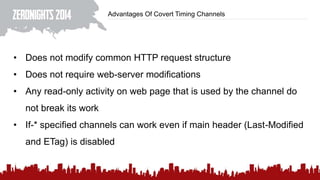

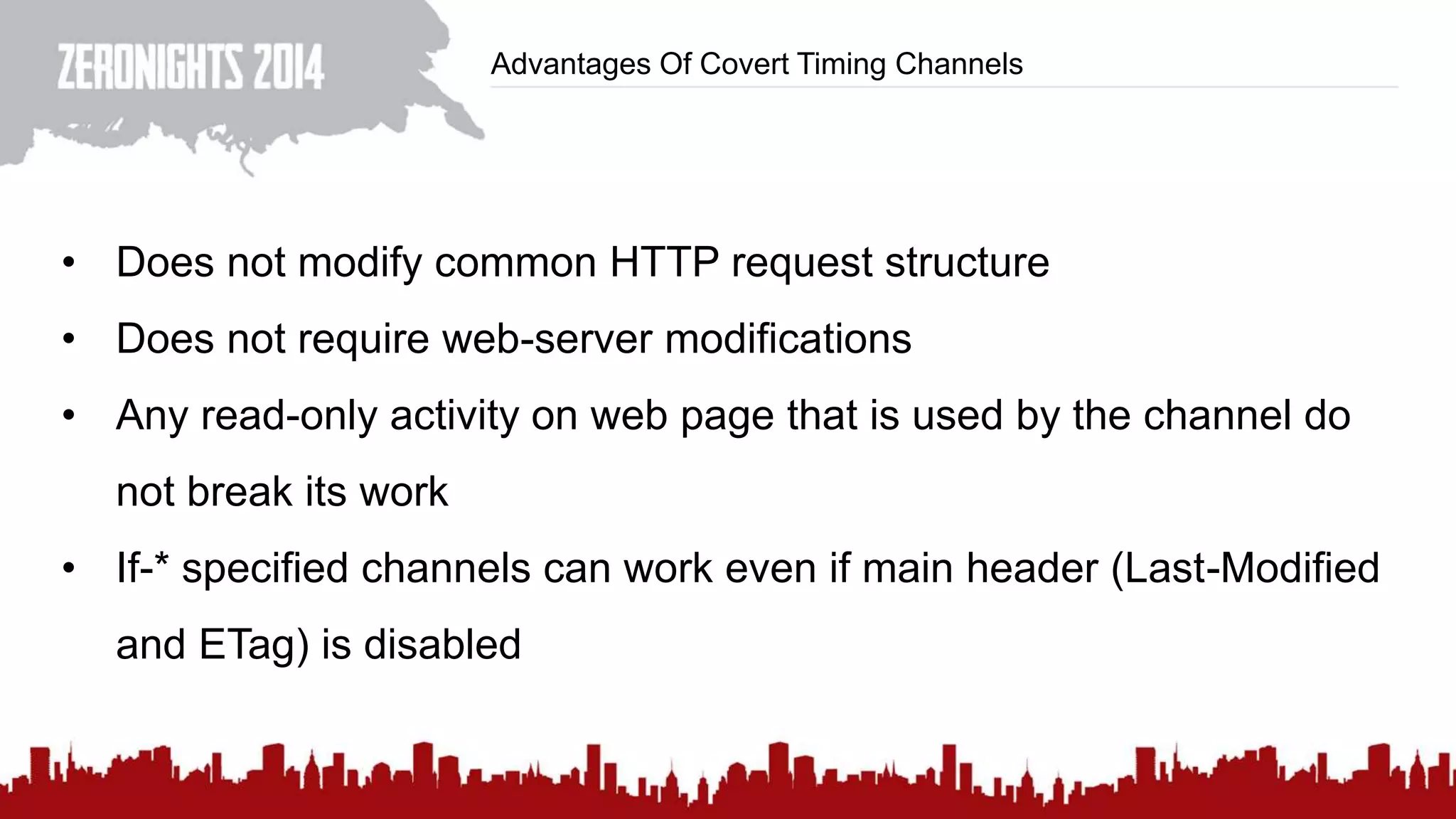

22. Advantages Of Covert Timing Channels
• Does not modify common HTTP request structure
• Does not require web-server modifications
• Any read-only activity on web page that is used by the channel do
not break its work
• If-* specified channels can work even if main header (Last-Modified
and ETag) is disabled

23. Specification

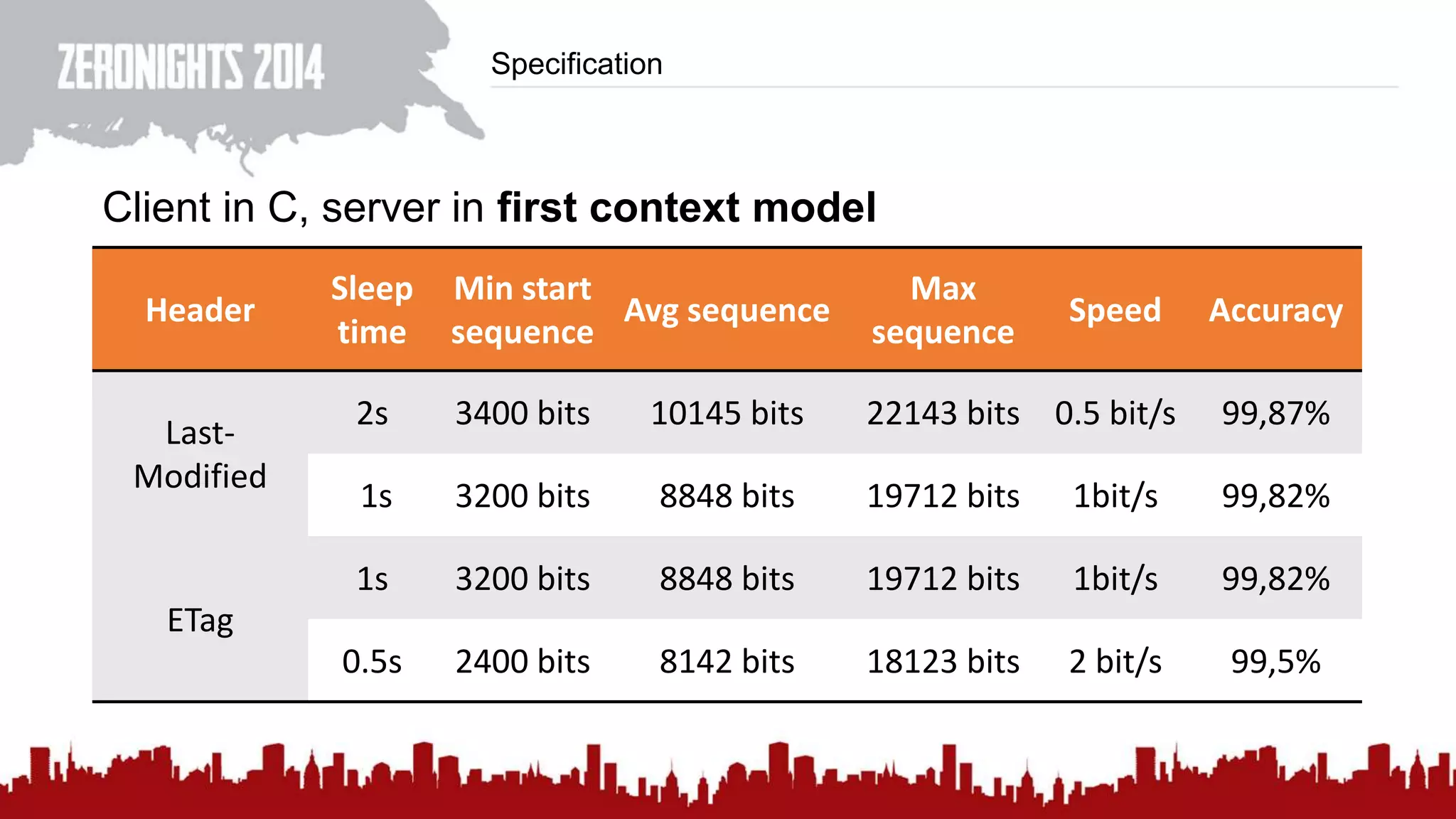

Header
Sleep
time
Min start
sequence
Avg sequence
Max
sequence
Speed Accuracy
Last-
Modified
2s 3400 bits 10145 bits 22143 bits 0.5 bit/s 99,87%
1s 3200 bits 8848 bits 19712 bits 1bit/s 99,82%
ETag
1s 3200 bits 8848 bits 19712 bits 1bit/s 99,82%
0.5s 2400 bits 8142 bits 18123 bits 2 bit/s 99,5%
Client in C, server in first context model

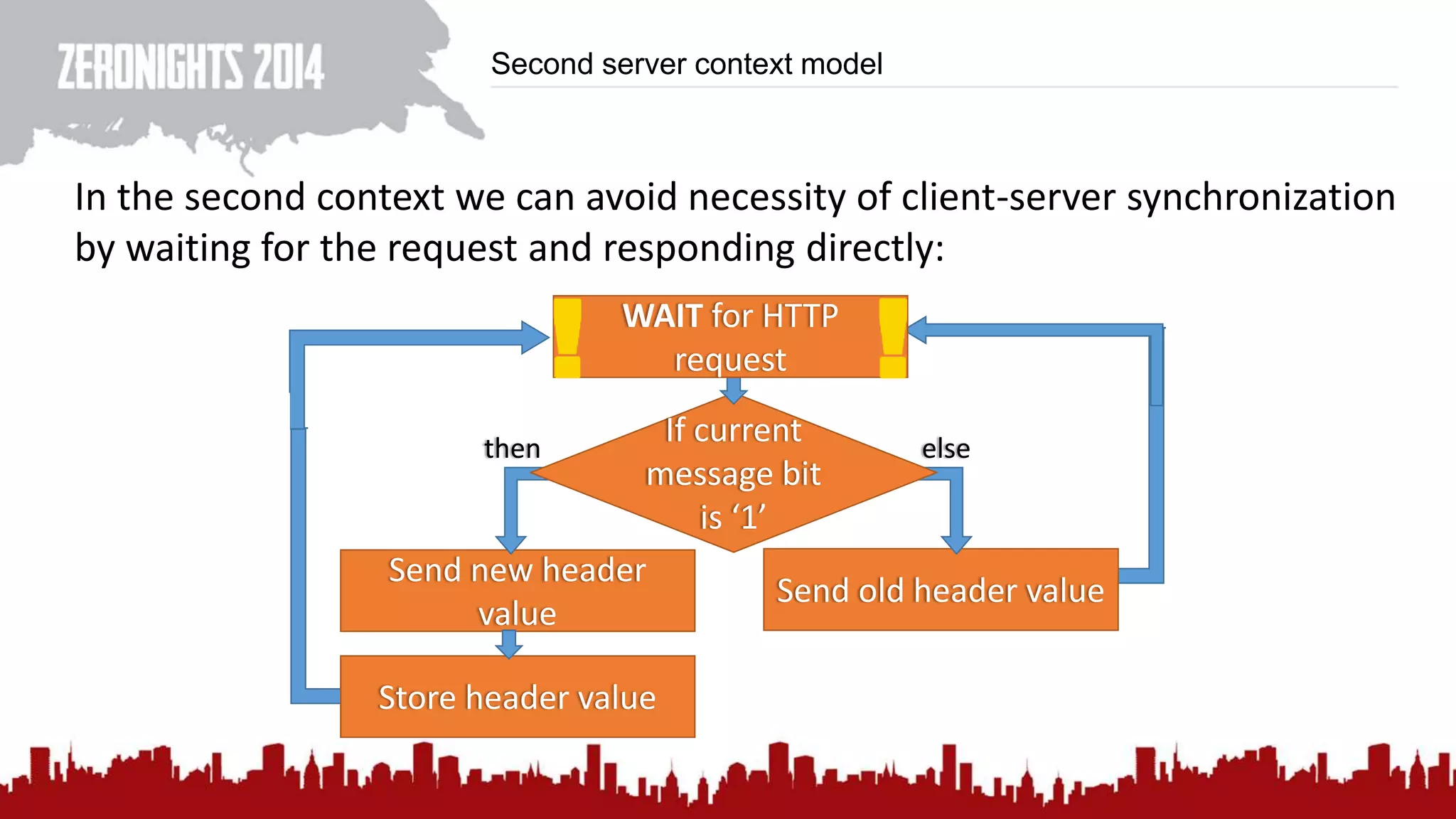

24. Second server context model
In the second context we can avoid necessity of client-server synchronization
by waiting for the request and responding directly:
Send new header
value
Send old header value
If current
message bit
is ‘1’
Store header value
then else
WAIT for HTTP
request

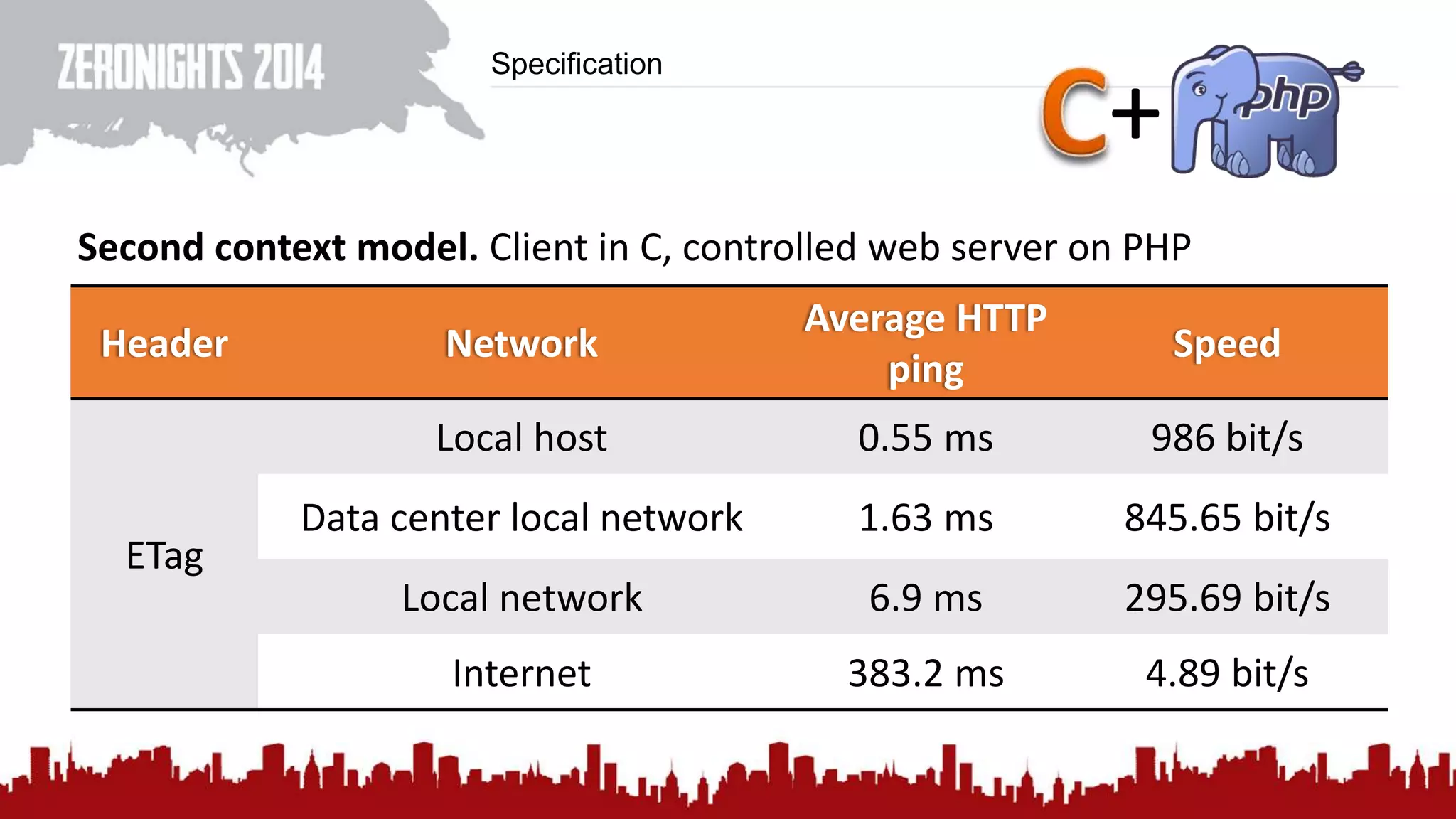

25. Specification
Second context model. Client in C, controlled web server on PHP
+
Header Network
Average HTTP
ping
Speed
ETag
Local host 0.55 ms 986 bit/s
Data center local network 1.63 ms 845.65 bit/s
Local network 6.9 ms 295.69 bit/s
Internet 383.2 ms 4.89 bit/s

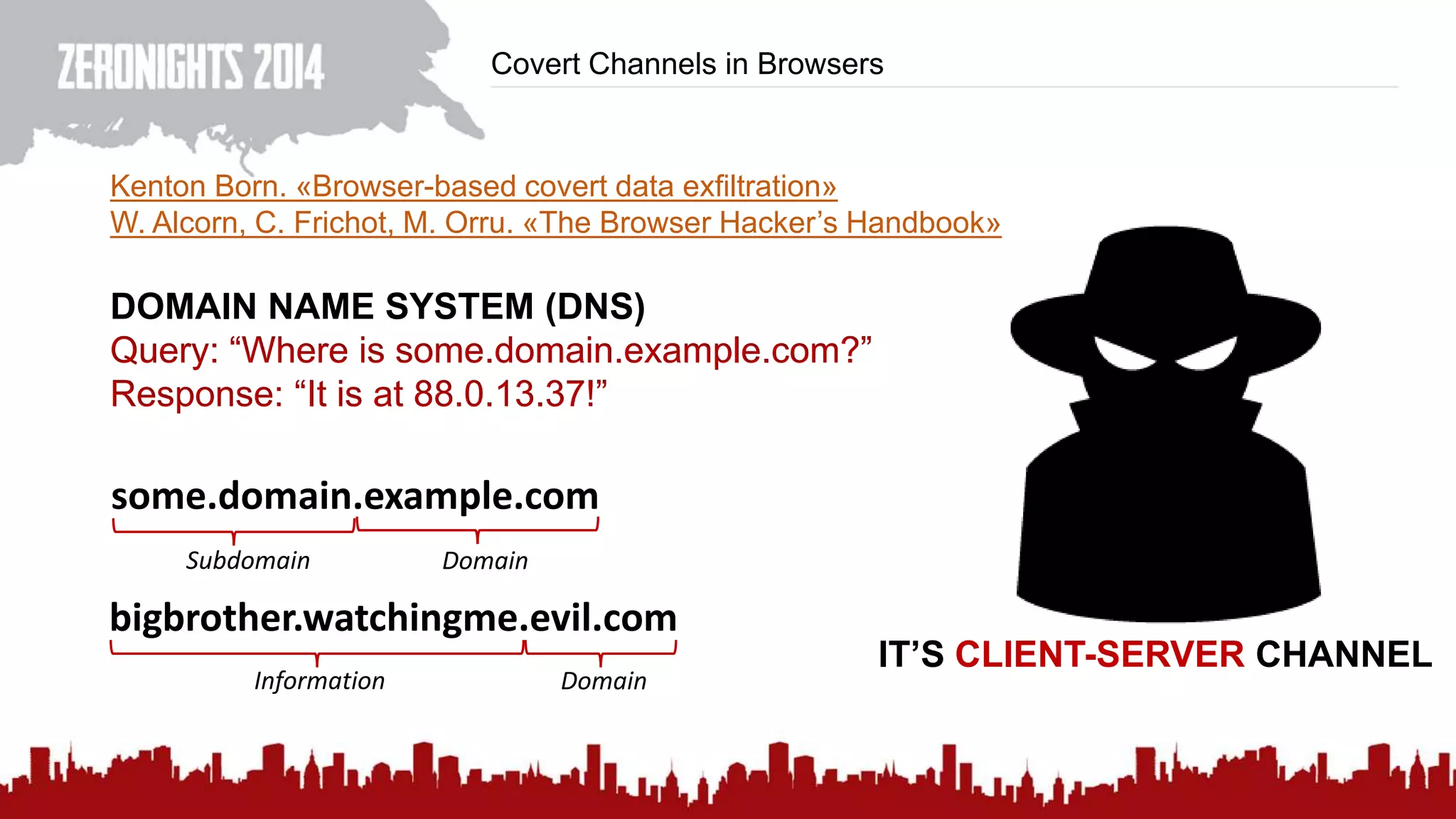

26. Covert Channels in Browsers
Kenton Born. «Browser-based covert data exfiltration»
W. Alcorn, C. Frichot, M. Orru. «The Browser Hacker’s Handbook»

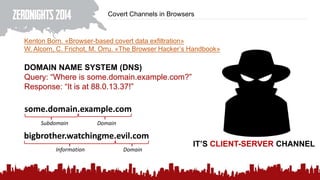

DOMAIN NAME SYSTEM (DNS)
Query: “Where is some.domain.example.com?”
Response: “It is at 88.0.13.37!”
some.domain.example.com
Subdomain Domain
bigbrother.watchingme.evil.com
Information Domain
IT’S CLIENT-SERVER CHANNEL

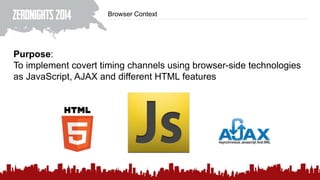

27. Browser Context
Purpose:
To implement covert timing channels using browser-side technologies
as JavaScript, AJAX and different HTML features

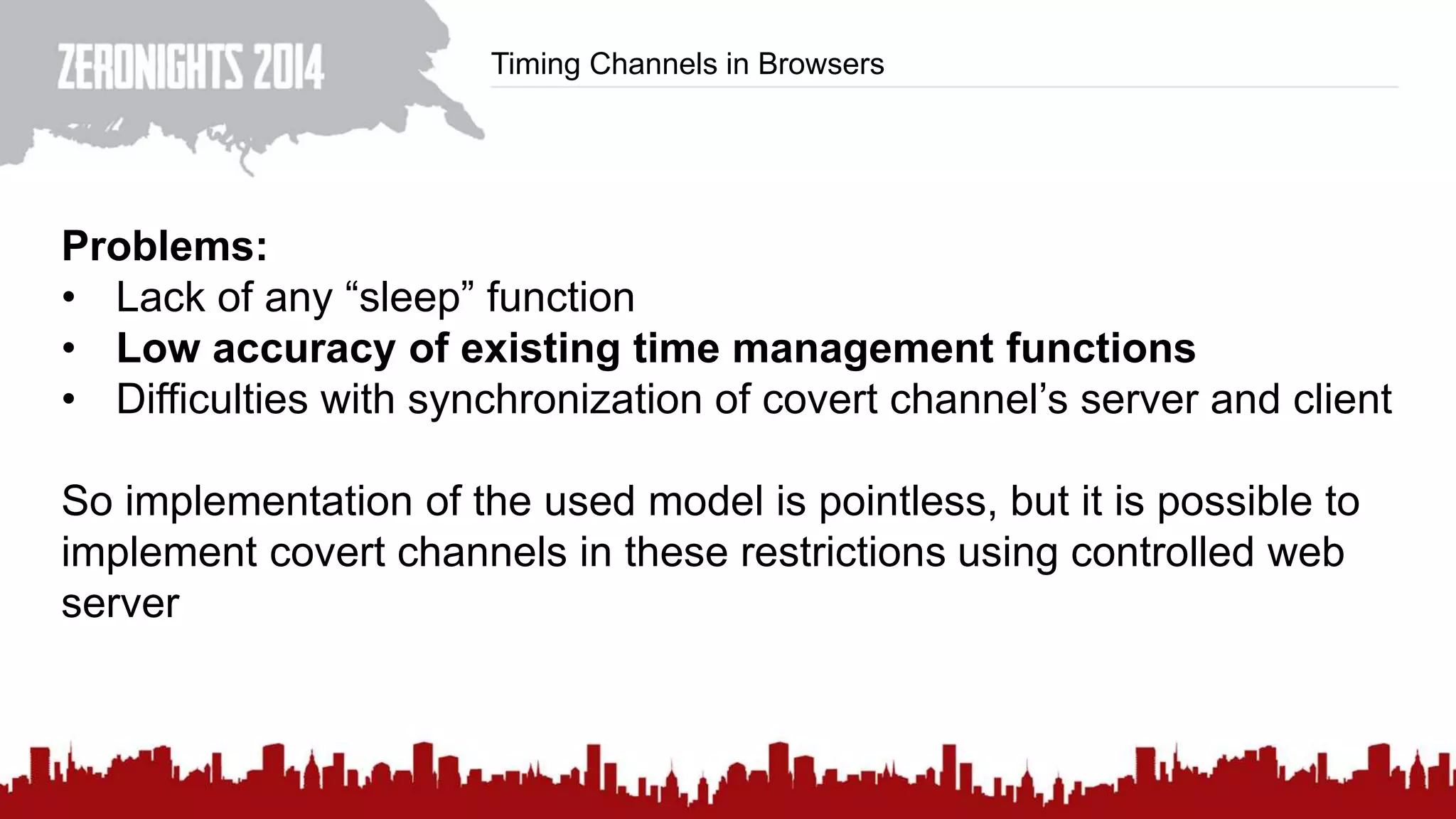

28. Timing Channels in Browsers
Problems:
• Lack of any “sleep” function
• Low accuracy of existing time management functions
• Difficulties with synchronization of covert channel’s server and client
So implementation of the used model is pointless, but it is possible to
implement covert channels in these restrictions using controlled web
server

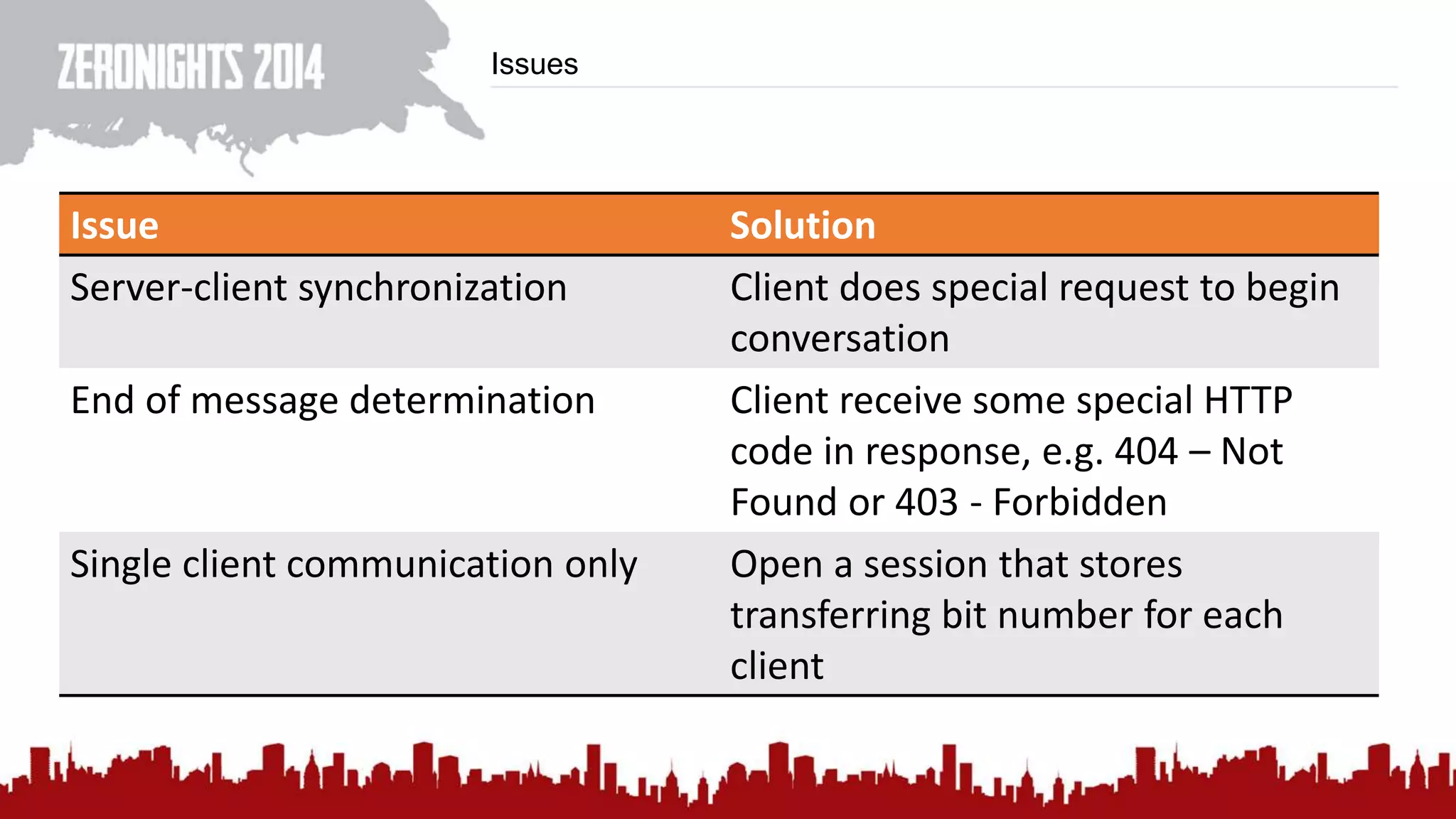

29. Issues
Issue Solution
Server-client synchronization Client does special request to begin
conversation
End of message determination Client receive some special HTTP
code in response, e.g. 404 – Not
Found or 403 - Forbidden
Single client communication only Open a session that stores
transferring bit number for each
client

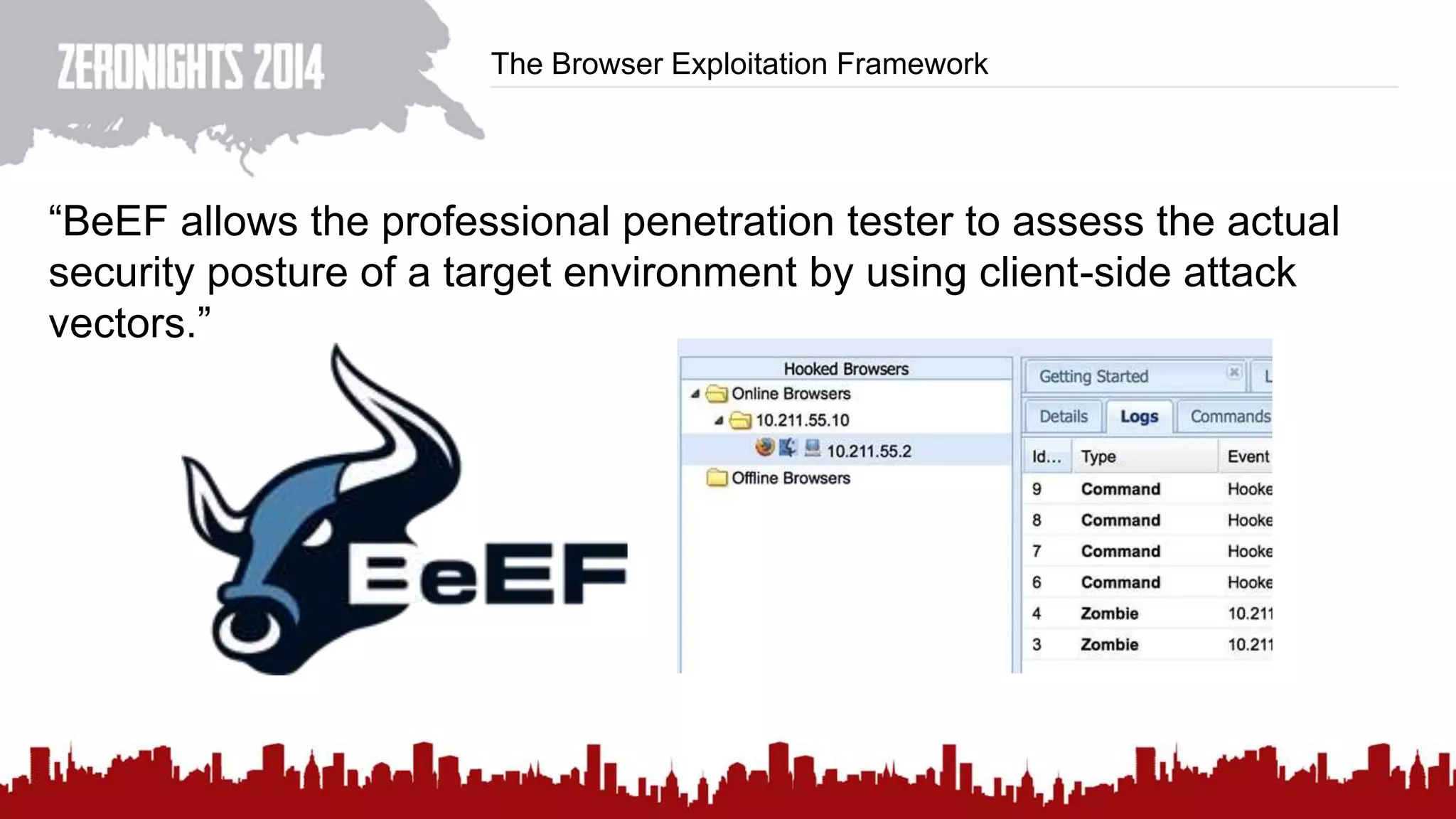

30. The Browser Exploitation Framework
“BeEF allows the professional penetration tester to assess the actual
security posture of a target environment by using client-side attack
vectors.”

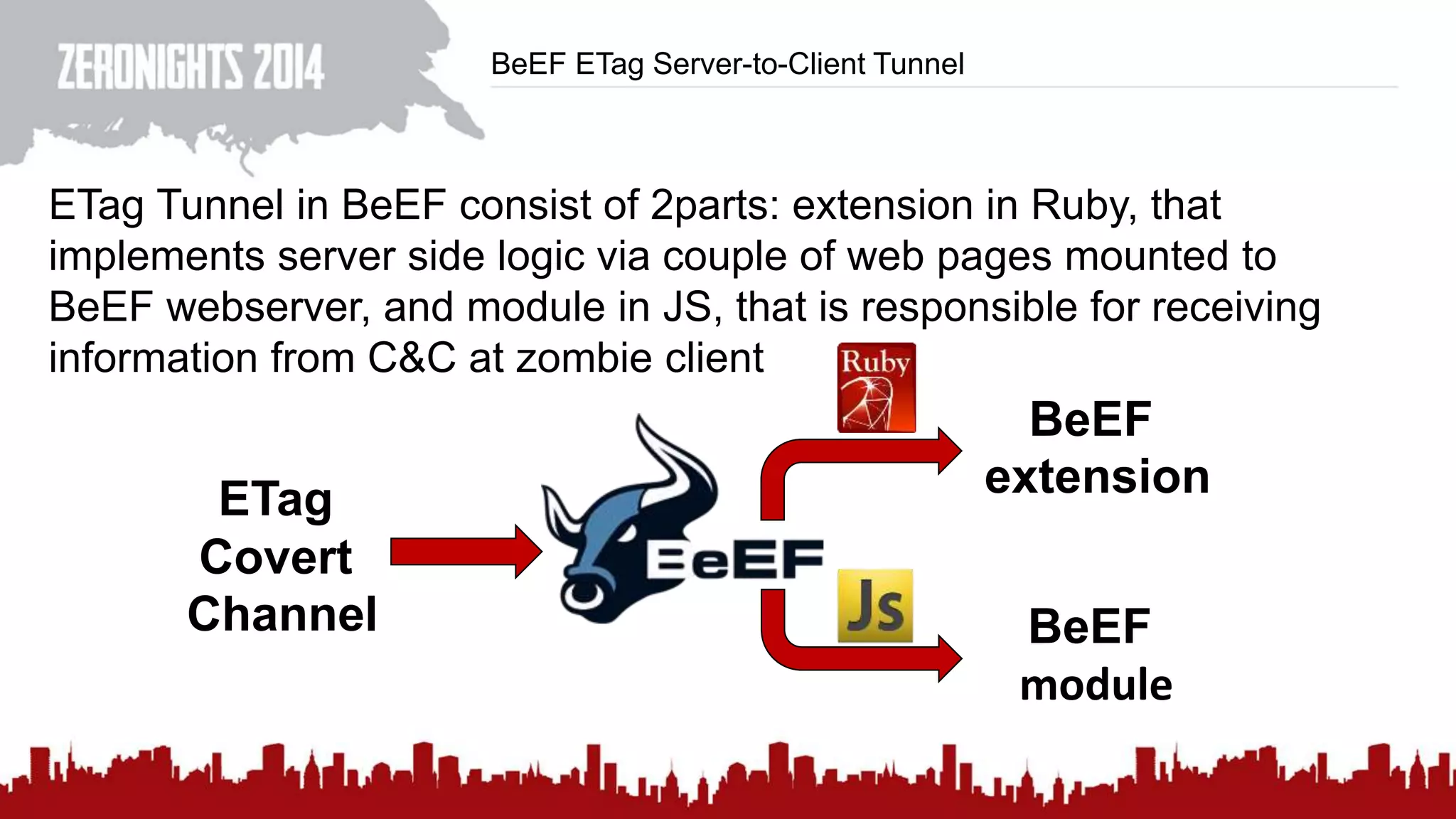

31. BeEF ETag Server-to-Client Tunnel
ETag Tunnel in BeEF consist of 2parts: extension in Ruby, that
implements server side logic via couple of web pages mounted to
BeEF webserver, and module in JS, that is responsible for receiving
information from C&C at zombie client
ETag
Covert
Channel
BeEF
extension
BeEF
module

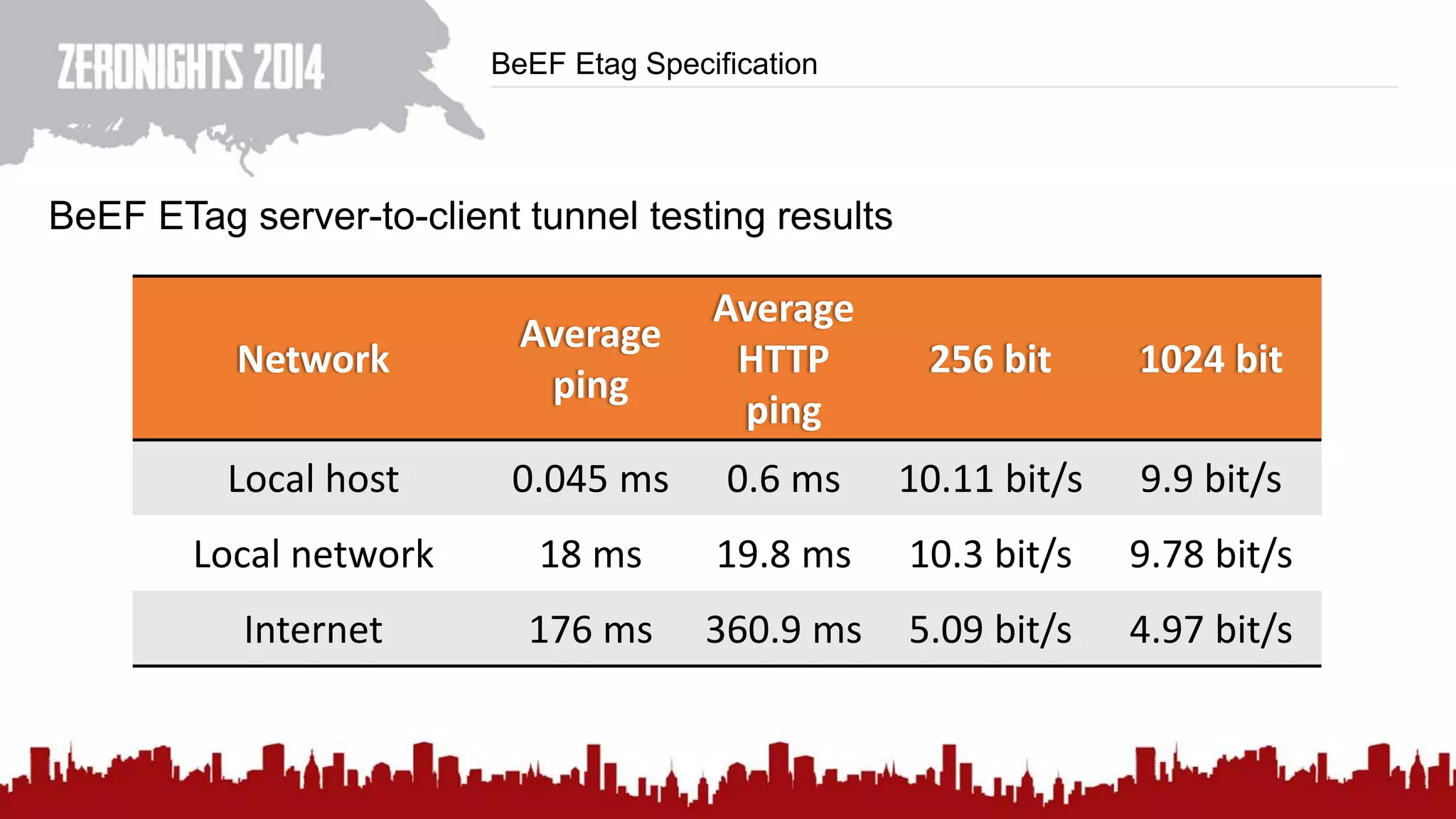

32. BeEF Etag Specification

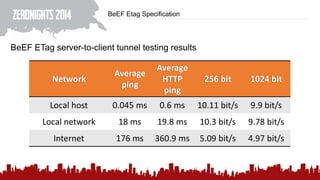

BeEF ETag server-to-client tunnel testing results
Network
Average
ping
Average
HTTP
ping
256 bit 1024 bit
Local host 0.045 ms 0.6 ms 10.11 bit/s 9.9 bit/s
Local network 18 ms 19.8 ms 10.3 bit/s 9.78 bit/s
Internet 176 ms 360.9 ms 5.09 bit/s 4.97 bit/s

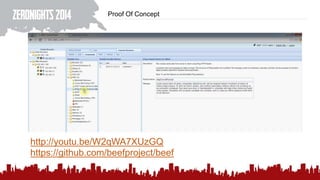

33. Proof Of Concept

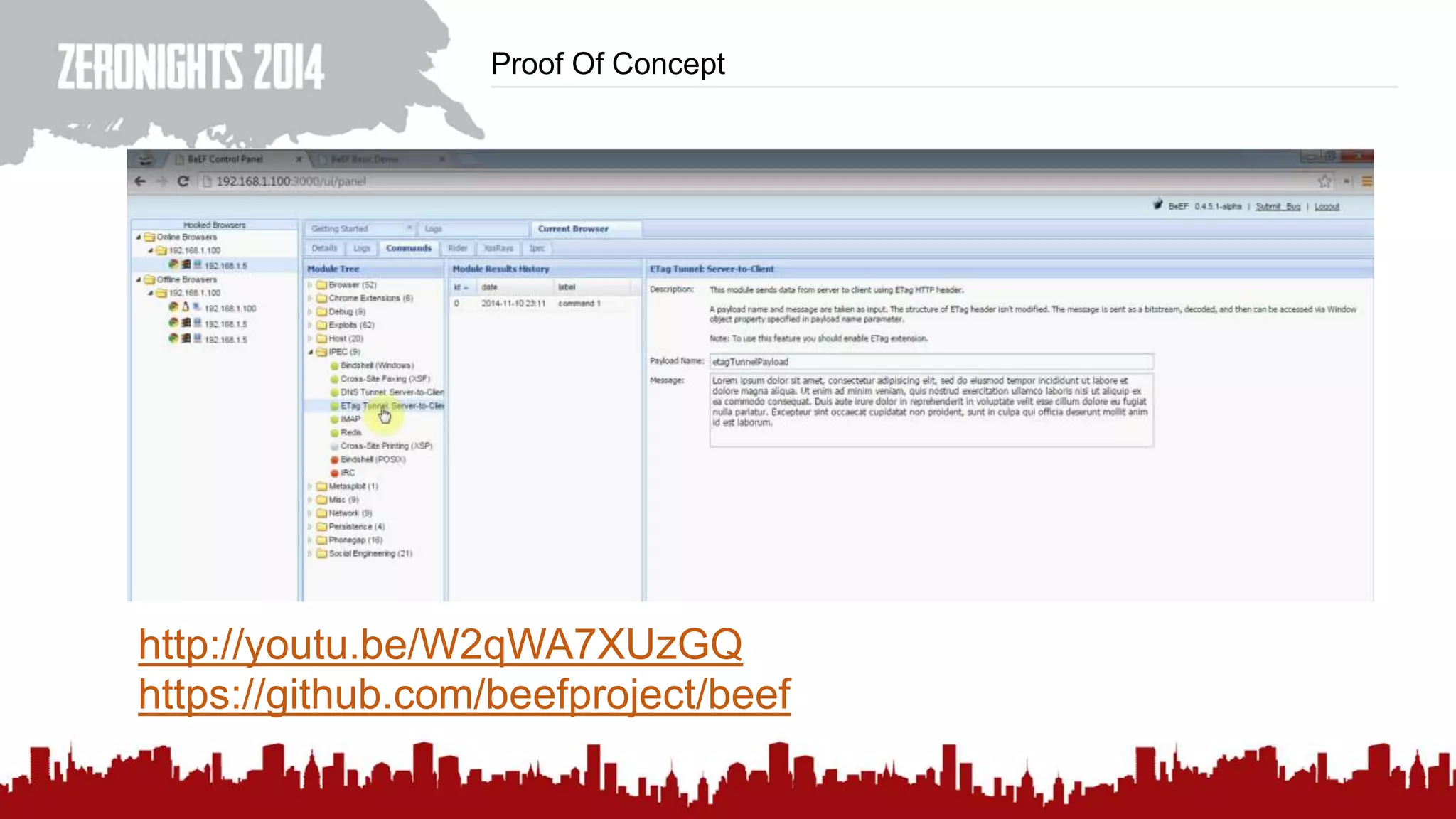

http://youtu.be/W2qWA7XUzGQ
https://github.com/beefproject/beef
