1. Coupling Semantic MediaWiki with
MASTRO
Student: Albin Ahmeti
Advisor: Prof. Maurizio Lenzerini
Master thesis 26/01/2011

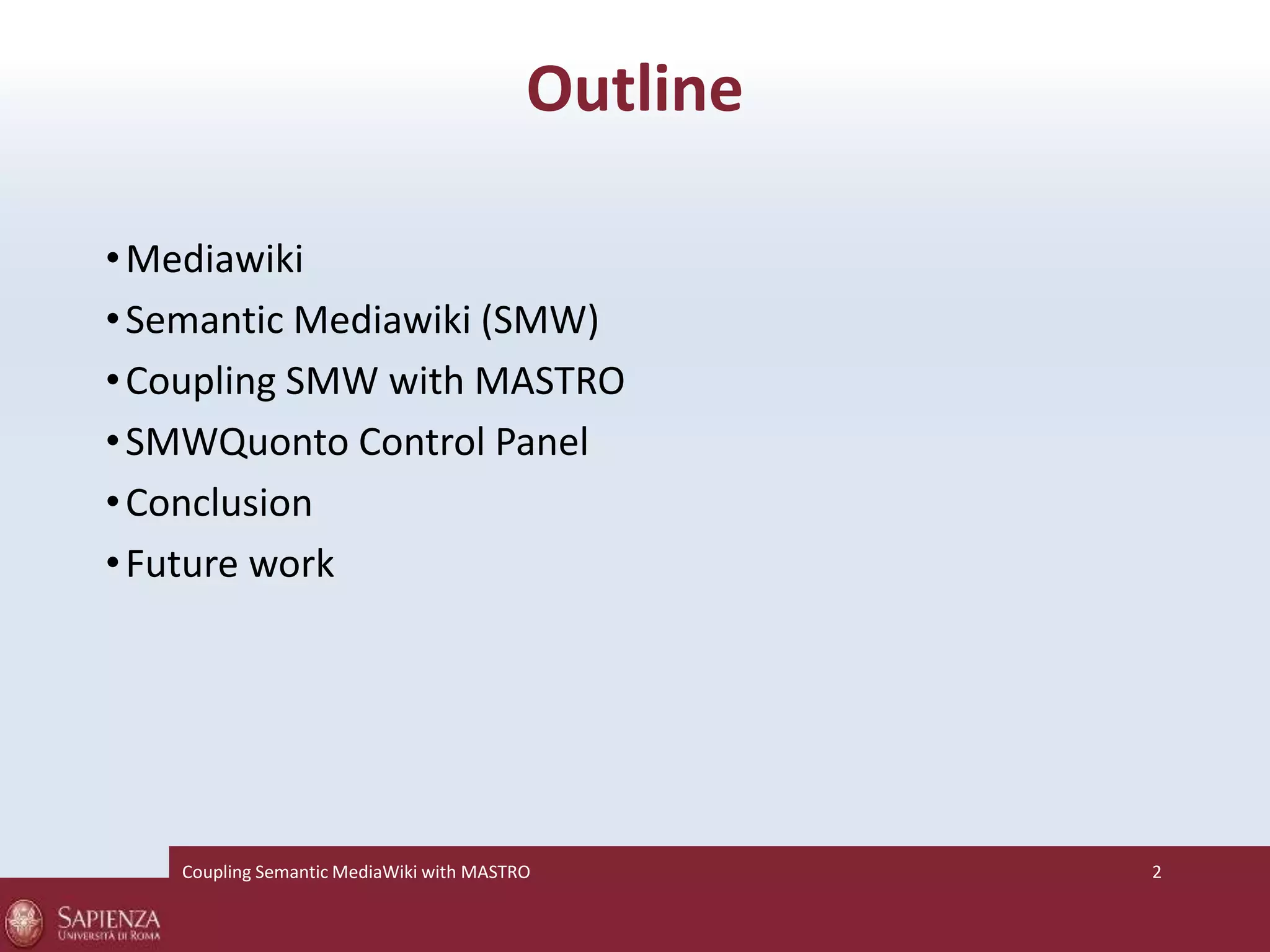

2. Outline
• Mediawiki
•Semantic Mediawiki (SMW)
• Coupling SMW with MASTRO
•SMWQuonto Control Panel
• Conclusion
• Future work
Coupling SemanticMediaWiki with MASTRO 2

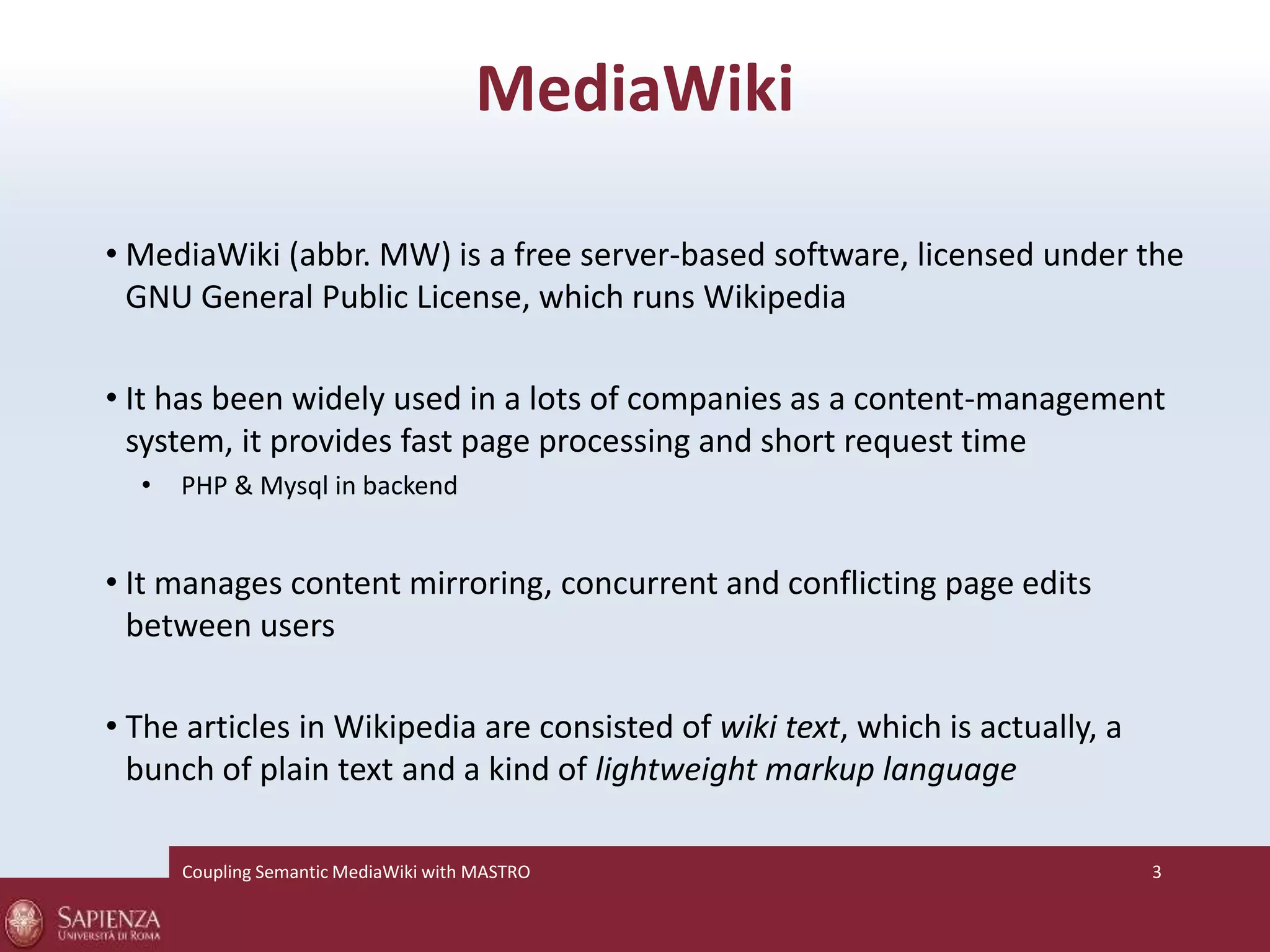

3. MediaWiki
• MediaWiki (abbr. MW) is a free server-based software, licensed under the
GNU General Public License, which runs Wikipedia
• It has been widely used in a lots of companies as a content-management
system, it provides fast page processing and short request time
• PHP & Mysql in backend
• It manages content mirroring, concurrent and conflicting page edits
between users
• The articles in Wikipedia are consisted of wiki text, which is actually, a
bunch of plain text and a kind of lightweight markup language
Coupling SemanticMediaWiki with MASTRO 3

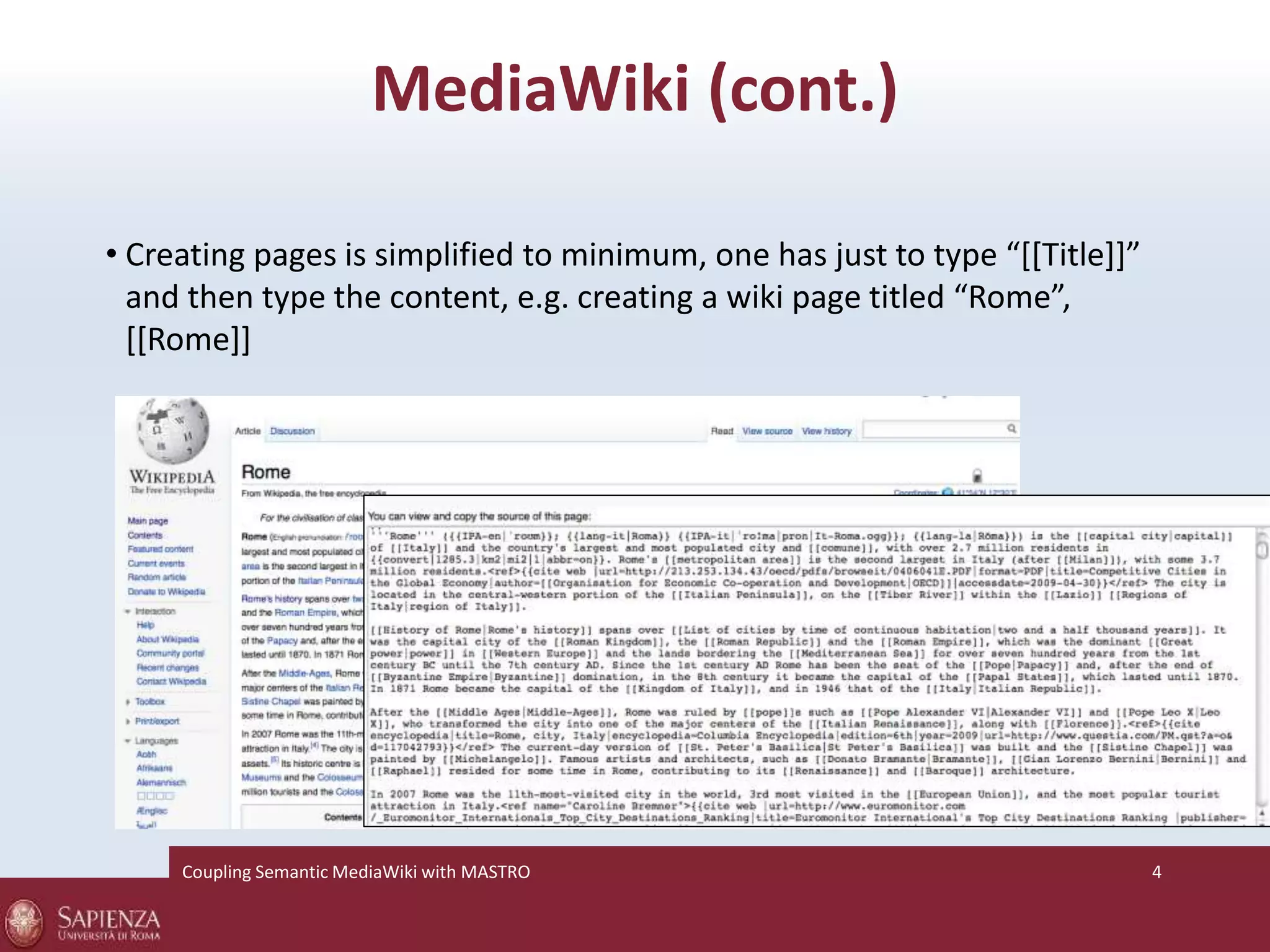

4. MediaWiki (cont.)
• Creating pages is simplified to minimum, one has just to type “[[Title]]”
and then type the content, e.g. creating a wiki page titled “Rome”,
[[Rome]]
Coupling SemanticMediaWiki with MASTRO 4

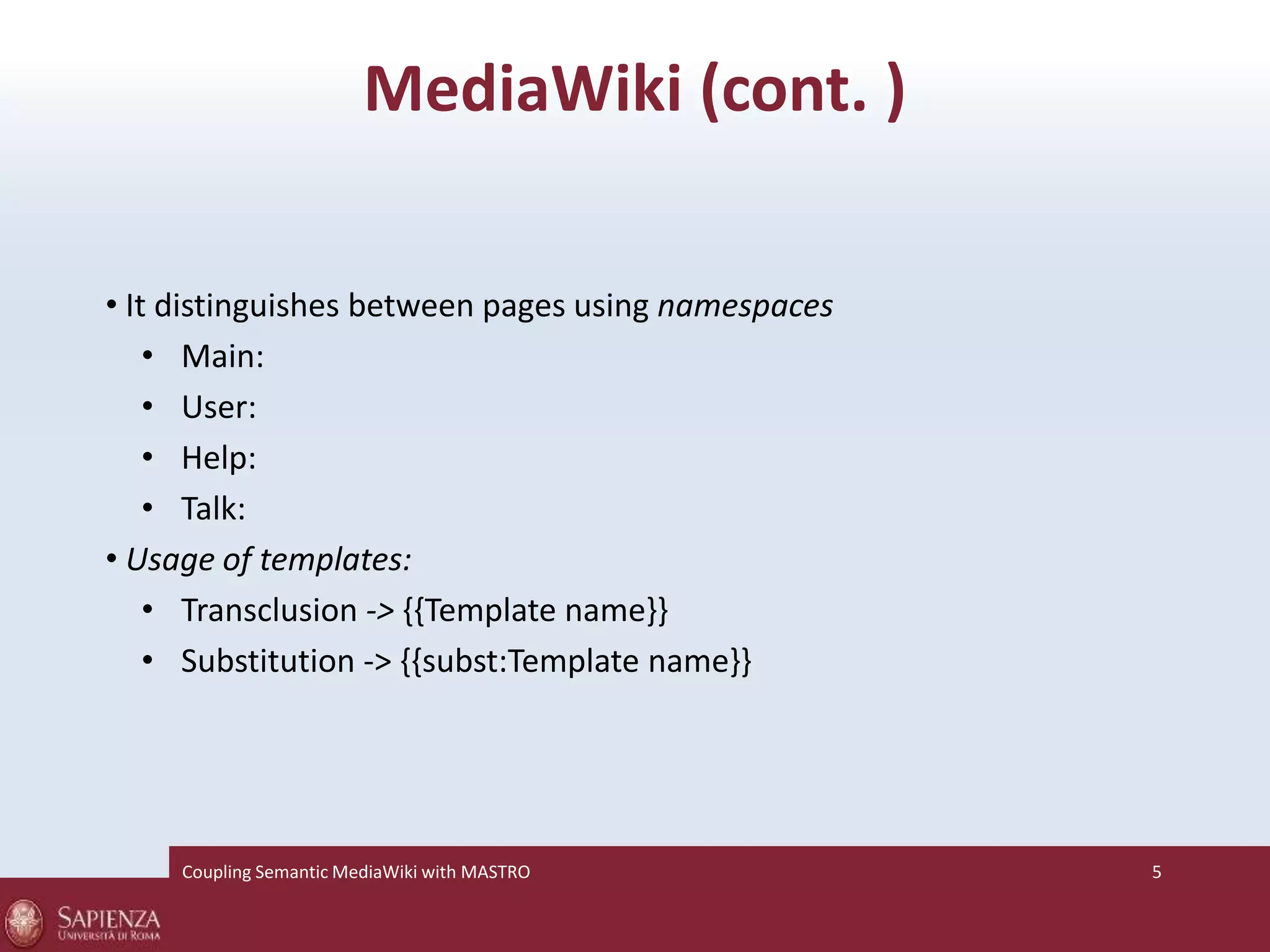

5. MediaWiki (cont. )
• It distinguishes between pages using namespaces
• Main:
• User:
• Help:
• Talk:
• Usage of templates:
• Transclusion -> {{Template name}}
• Substitution -> {{subst:Template name}}
Coupling SemanticMediaWiki with MASTRO 5

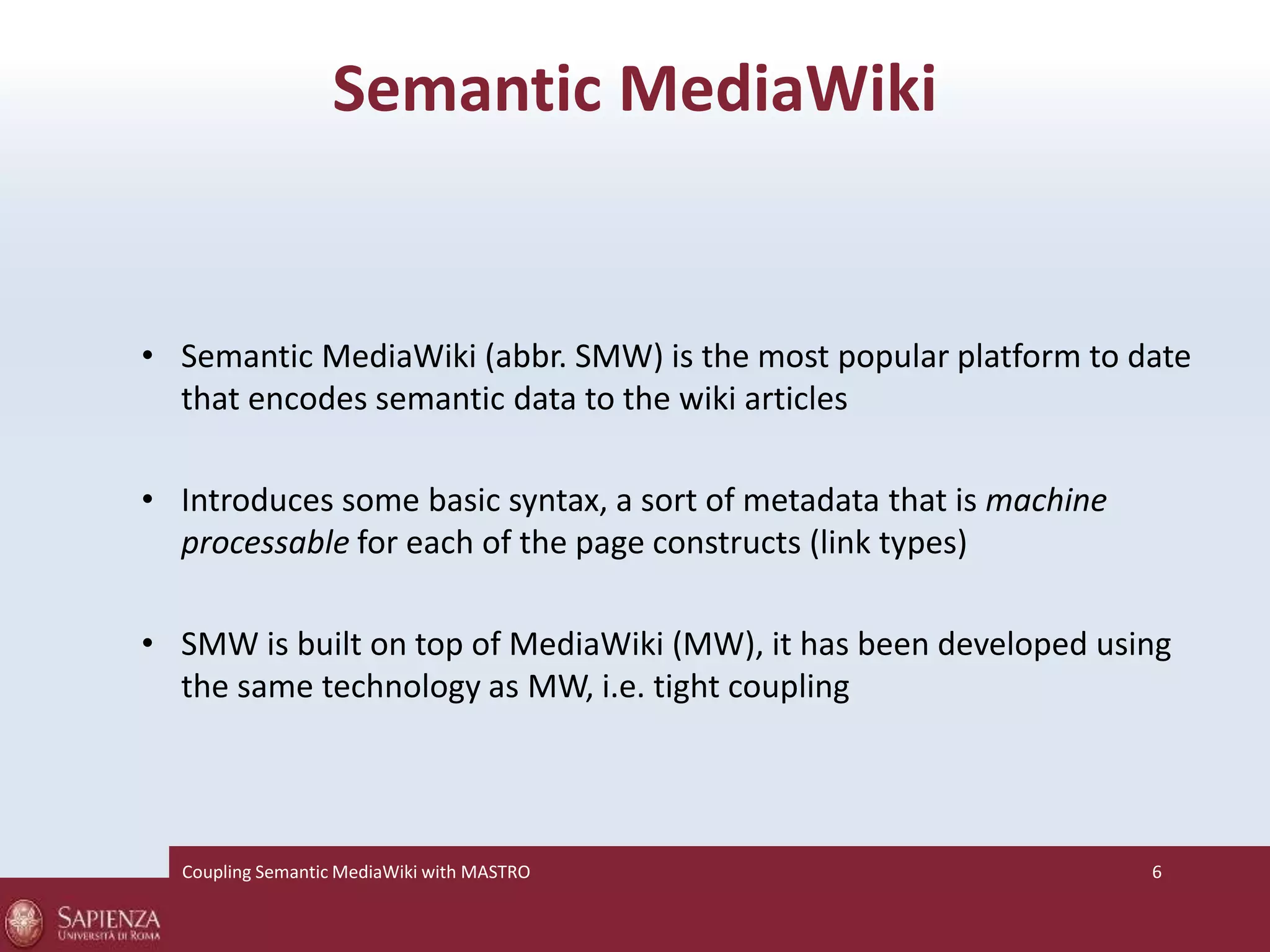

6. Semantic MediaWiki
• Semantic MediaWiki (abbr. SMW) is the most popular platform to date
that encodes semantic data to the wiki articles
• Introduces some basic syntax, a sort of metadata that is machine
processable for each of the page constructs (link types)
• SMW is built on top of MediaWiki (MW), it has been developed using
the same technology as MW, i.e. tight coupling
Coupling SemanticMediaWiki with MASTRO 6

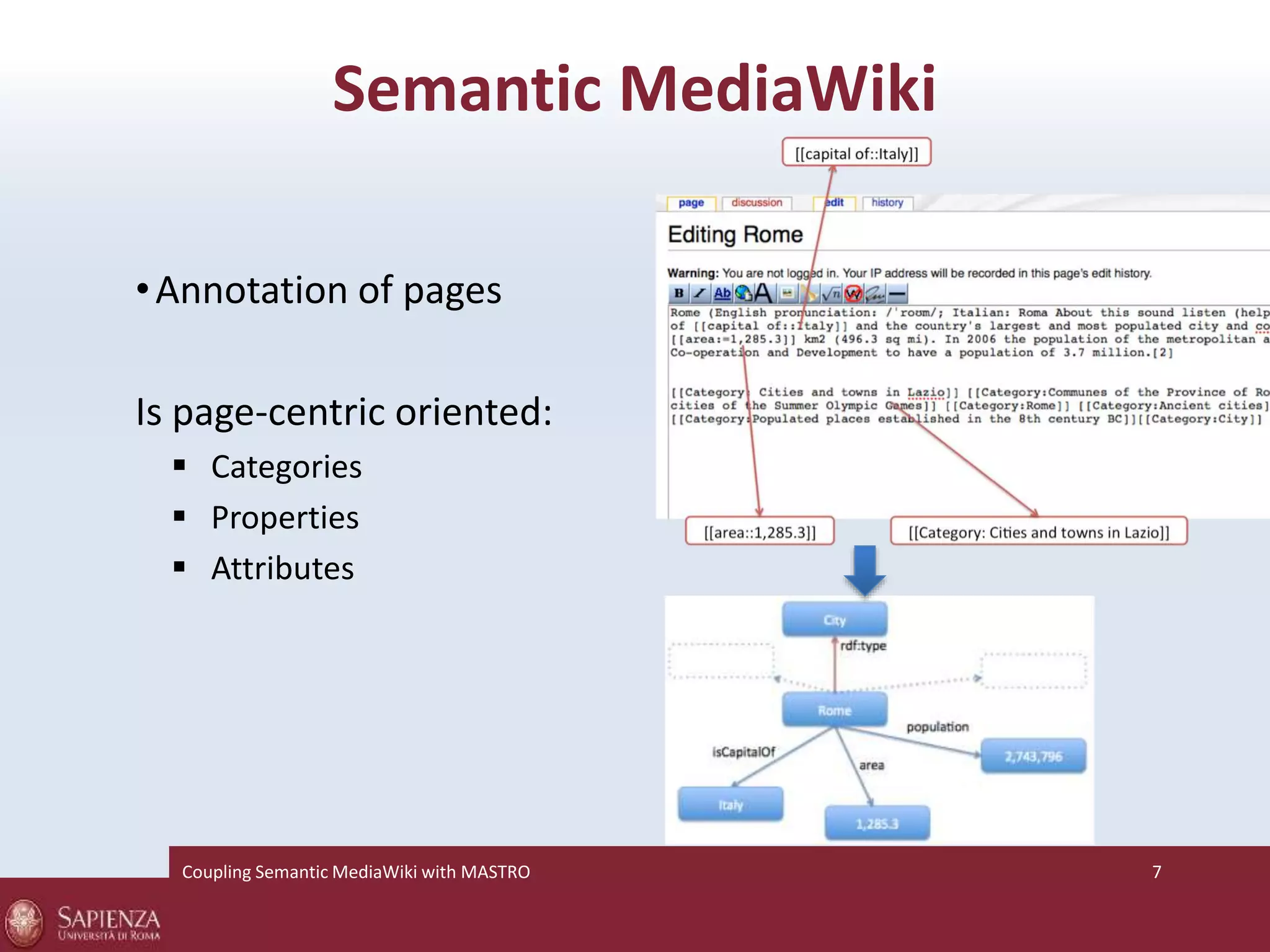

7. Semantic MediaWiki
• Annotation of pages
Is page-centric oriented:
 Categories
 Properties
 Attributes
Coupling SemanticMediaWiki with MASTRO 7

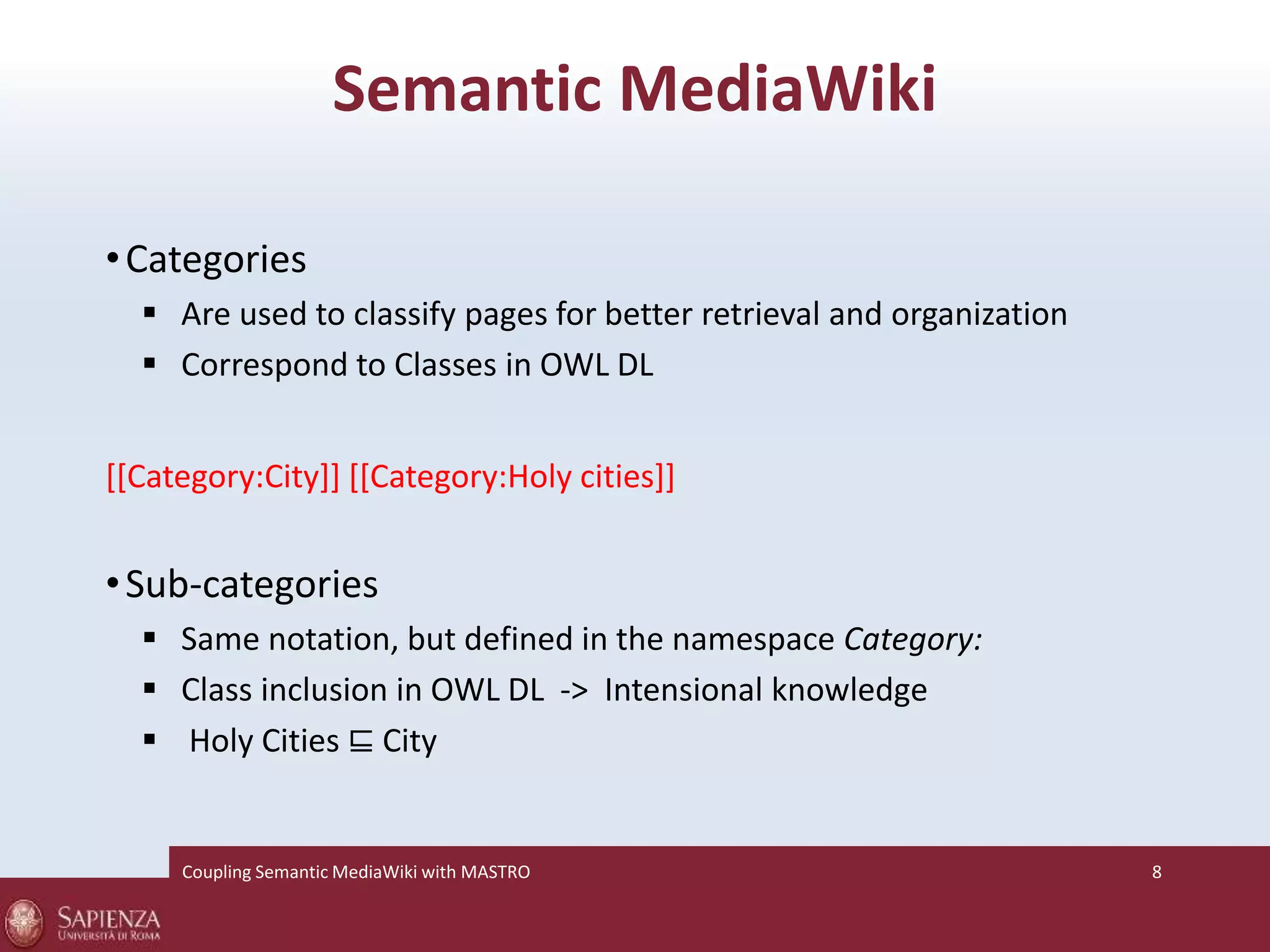

8. Semantic MediaWiki
•Categories
 Are used to classify pages for better retrieval and organization
 Correspond to Classes in OWL DL
[[Category:City]] [[Category:Holy cities]]
•Sub-categories
 Same notation, but defined in the namespace Category:
 Class inclusion in OWL DL -> Intensional knowledge
 Holy Cities ⊑ City
Coupling SemanticMediaWiki with MASTRO 8

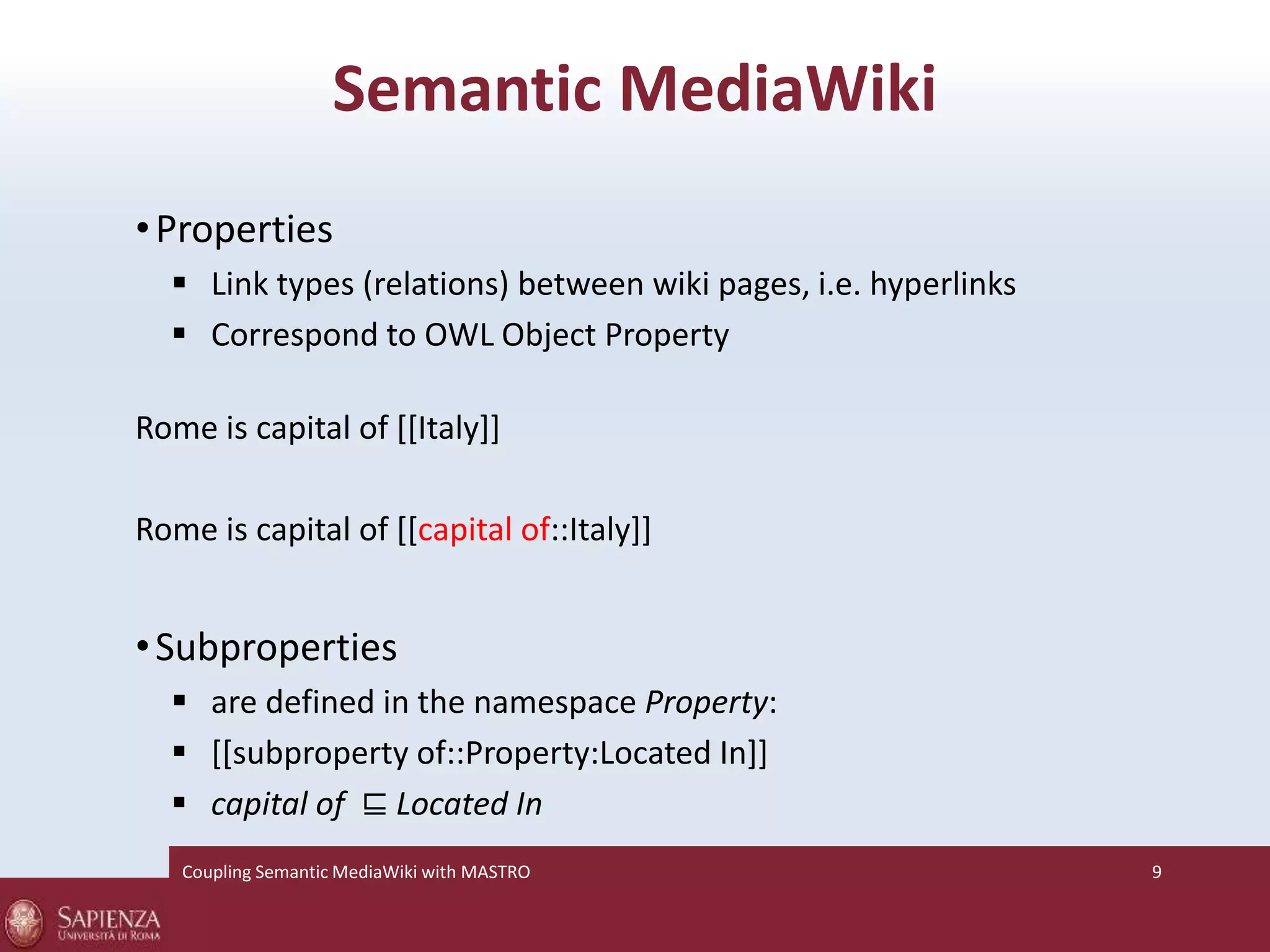

9. Semantic MediaWiki
• Properties
 Link types (relations) between wiki pages, i.e. hyperlinks
 Correspond to OWL Object Property
Rome is capital of [[Italy]]
Rome is capital of [[capital of::Italy]]
• Subproperties
 are defined in the namespace Property:
 [[subproperty of::Property:Located In]]
 capital of ⊑ Located In
Coupling SemanticMediaWiki with MASTRO 9

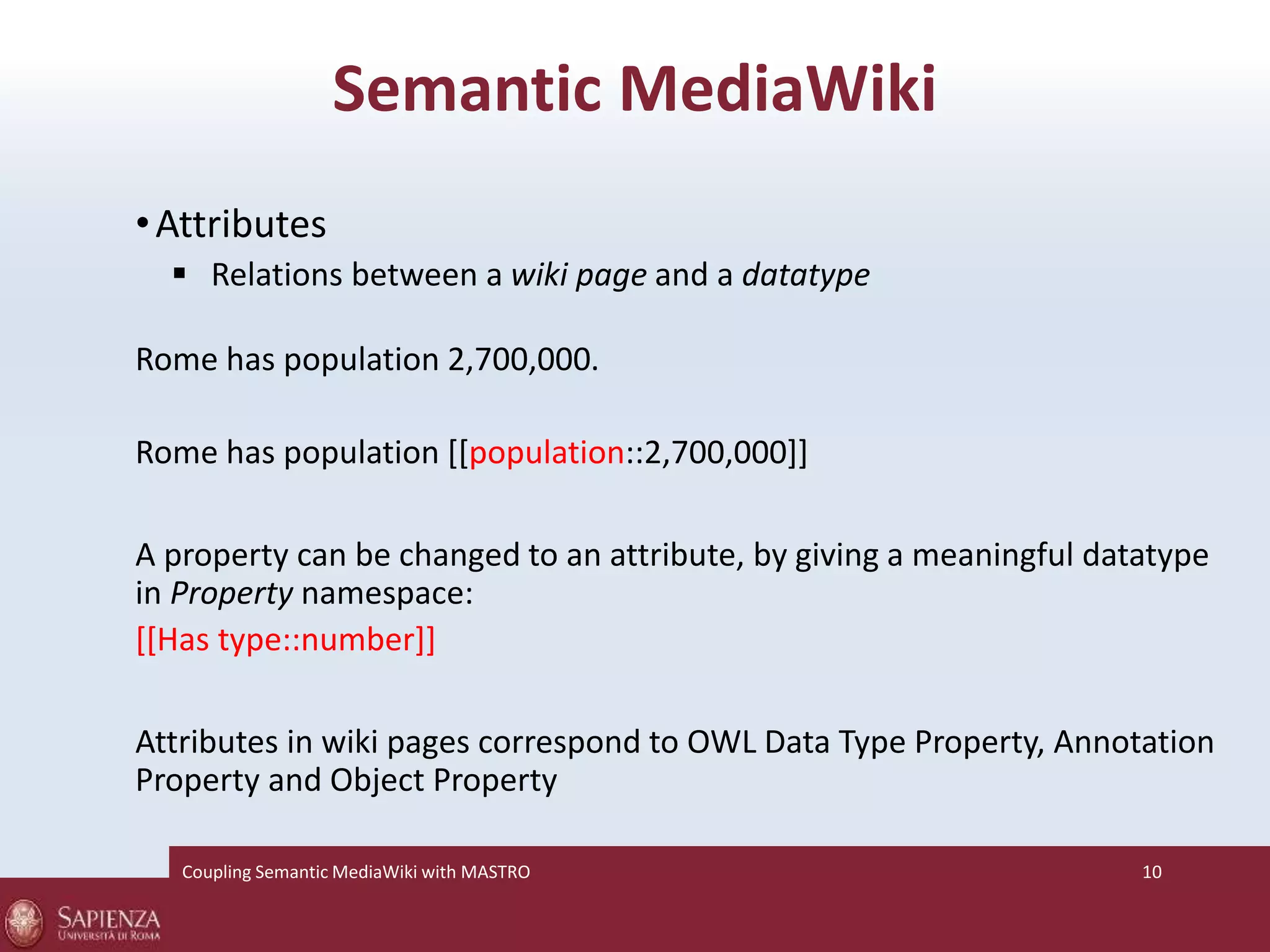

10. Semantic MediaWiki
•Attributes
 Relations between a wiki page and a datatype
Rome has population 2,700,000.
Rome has population [[population::2,700,000]]
A property can be changed to an attribute, by giving a meaningful datatype
in Property namespace:
[[Has type::number]]
Attributes in wiki pages correspond to OWL Data Type Property, Annotation
Property and Object Property
Coupling SemanticMediaWiki with MASTRO 10

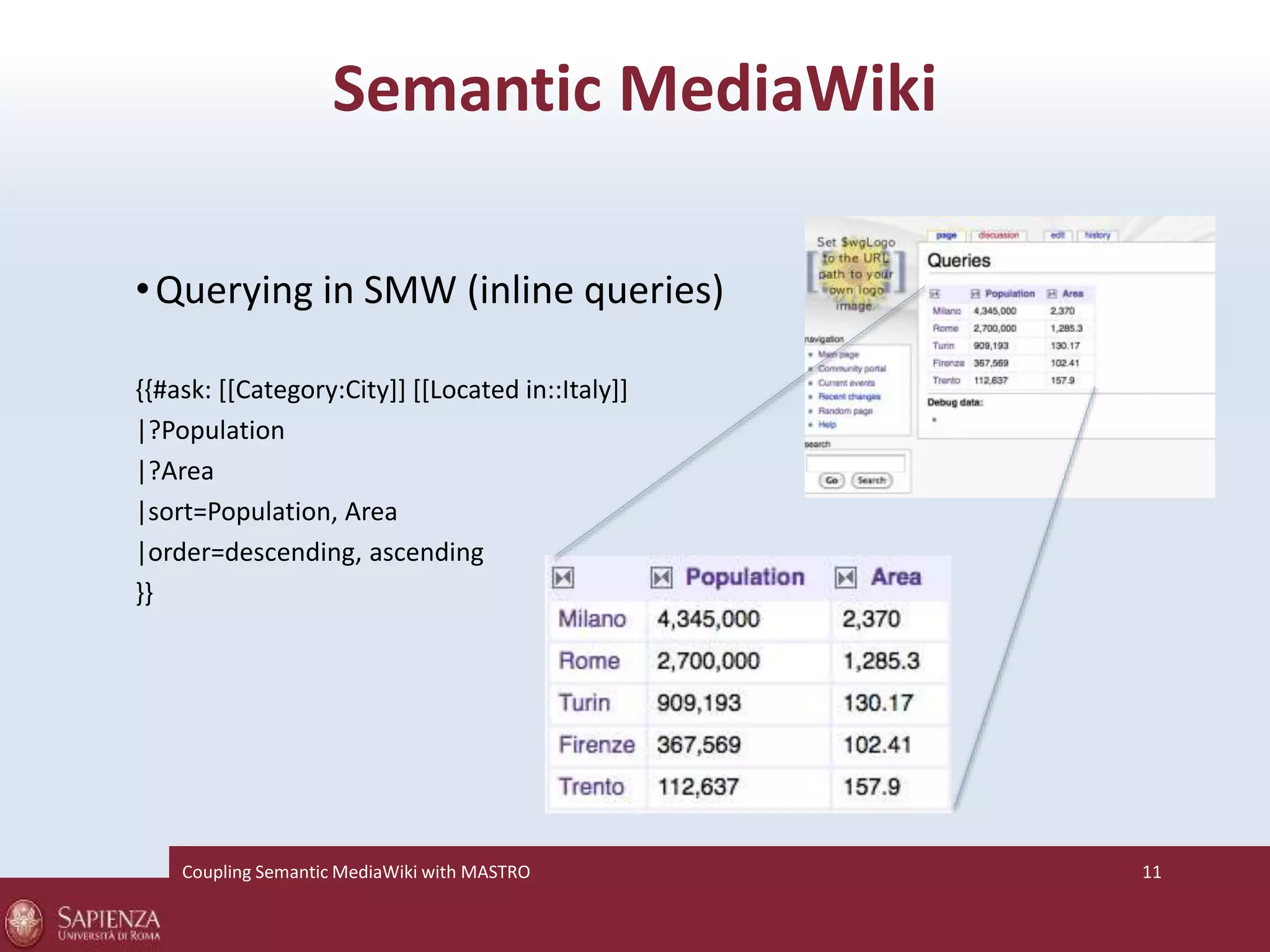

11. Semantic MediaWiki
•Querying in SMW (inline queries)
{{#ask: [[Category:City]] [[Located in::Italy]]
|?Population
|?Area
|sort=Population, Area
|order=descending, ascending
}}
Coupling SemanticMediaWiki with MASTRO 11

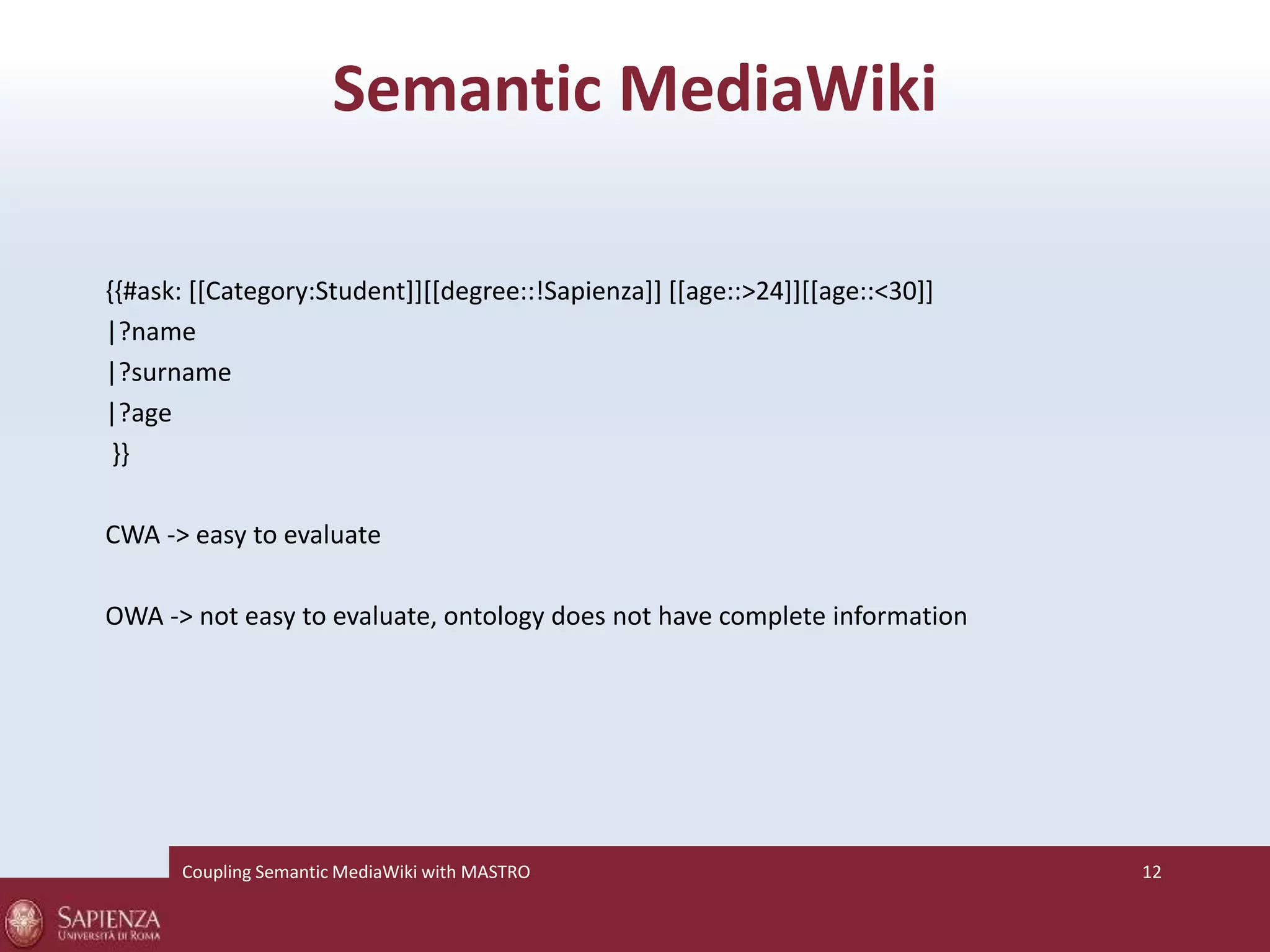

12. Semantic MediaWiki
{{#ask: [[Category:Student]][[degree::!Sapienza]] [[age::>24]][[age::<30]]
|?name
|?surname
|?age
}}
CWA -> easy to evaluate
OWA -> not easy to evaluate, ontology does not have complete information
Coupling SemanticMediaWiki with MASTRO 12

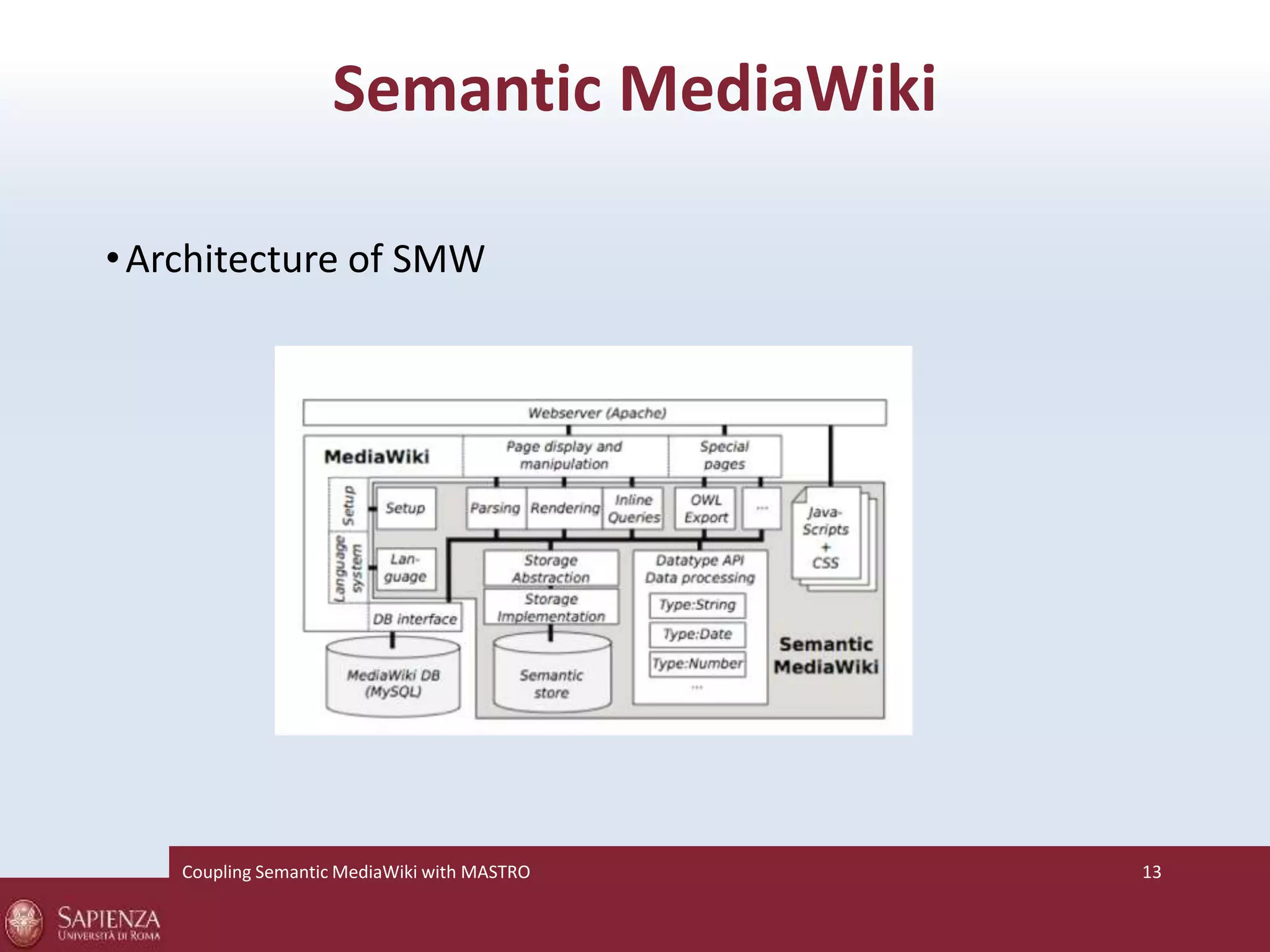

13. Semantic MediaWiki
• Architecture of SMW
Coupling SemanticMediaWiki with MASTRO 13

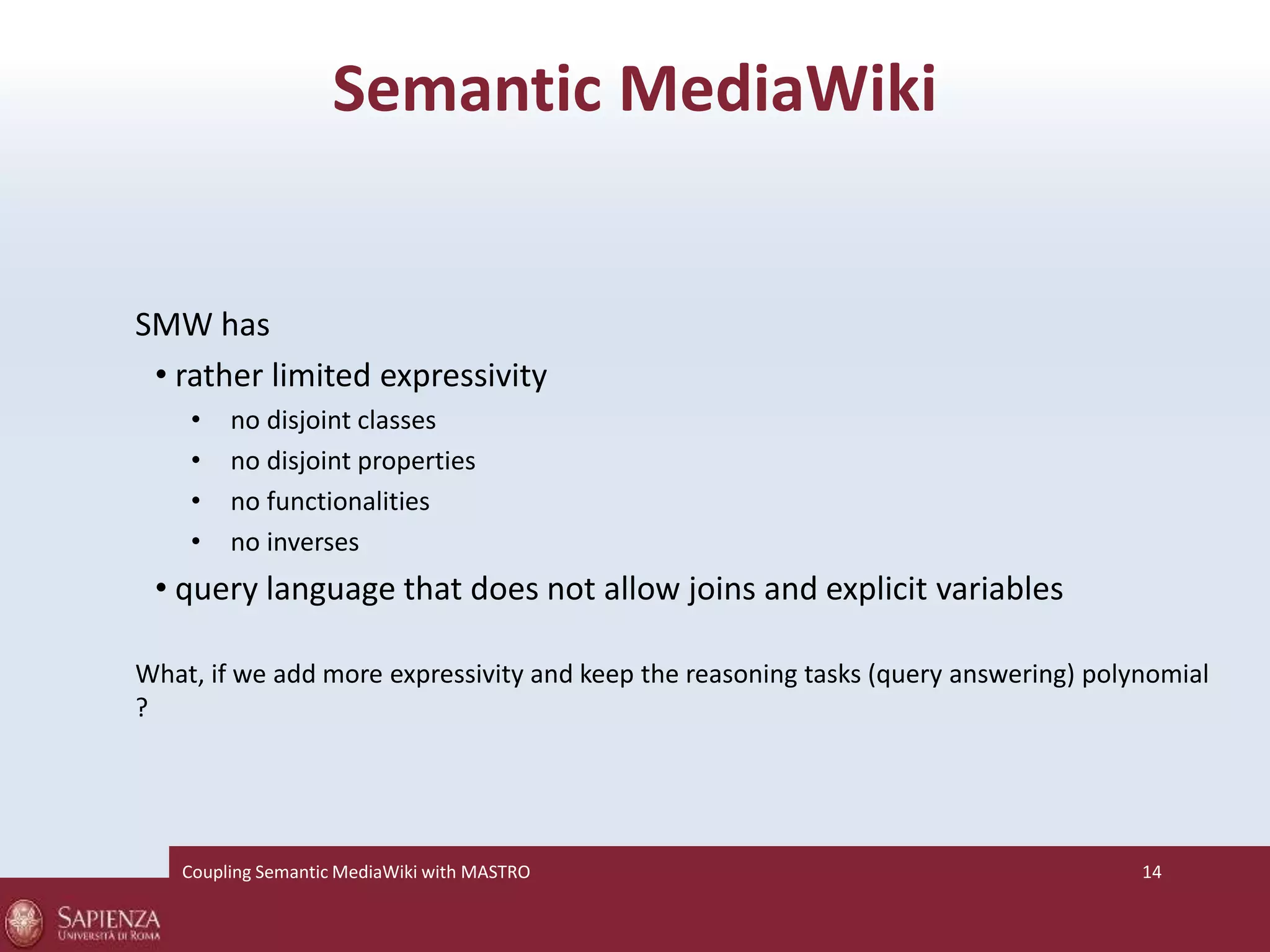

14. Semantic MediaWiki
SMW has
• rather limited expressivity
• no disjoint classes
• no disjoint properties
• no functionalities
• no inverses
• query language that does not allow joins and explicit variables
What, if we add more expressivity and keep the reasoning tasks (query answering) polynomial
?
Coupling SemanticMediaWiki with MASTRO 14

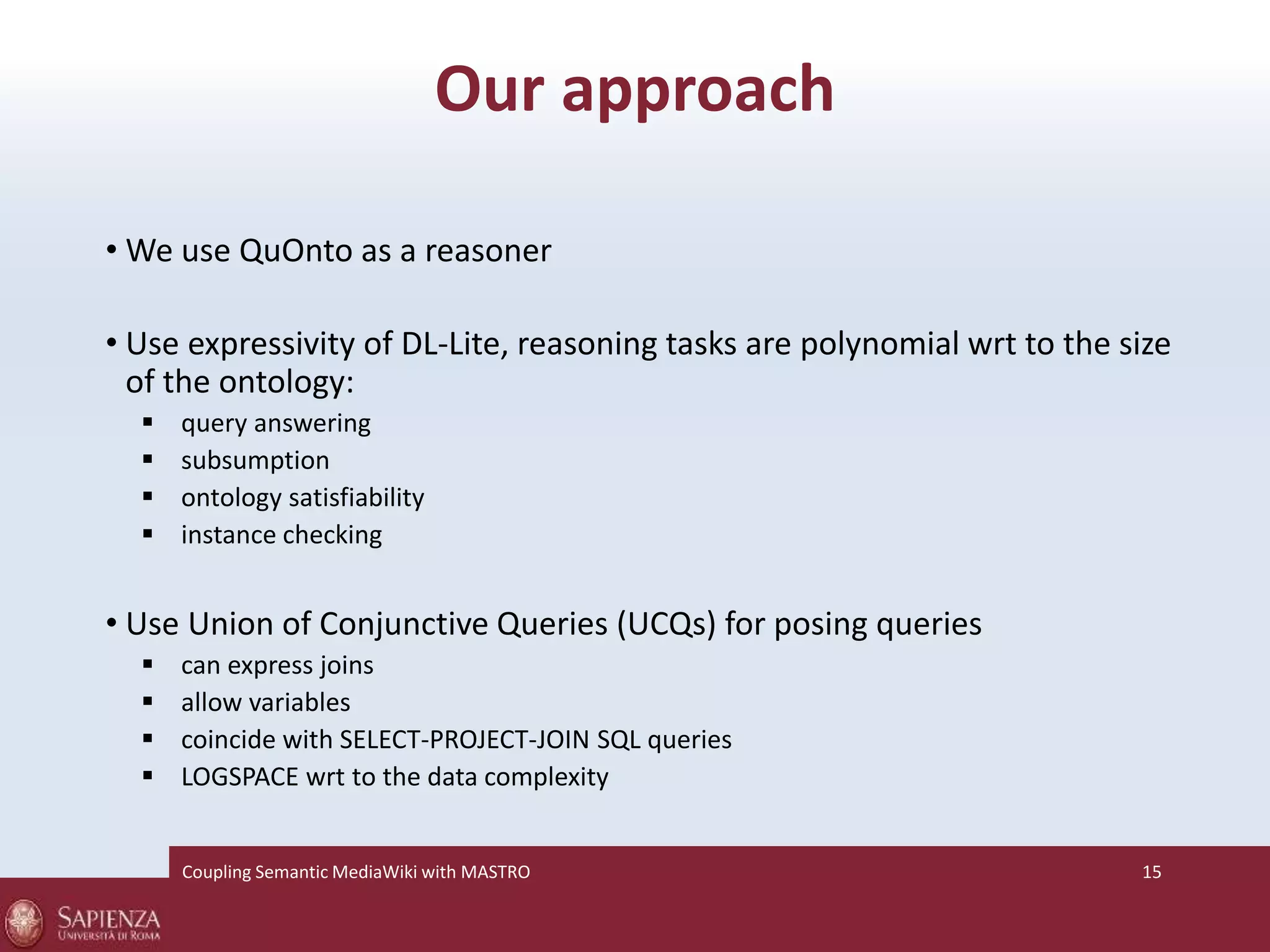

15. Our approach
•We use QuOnto as a reasoner
• Use expressivity of DL-Lite, reasoning tasks are polynomial wrt to the size
of the ontology:
 query answering
 subsumption
 ontology satisfiability
 instance checking
• Use Union of Conjunctive Queries (UCQs) for posing queries
 can express joins
 allow variables
 coincide with SELECT-PROJECT-JOIN SQL queries
 LOGSPACE wrt to the data complexity
Coupling SemanticMediaWiki with MASTRO 15

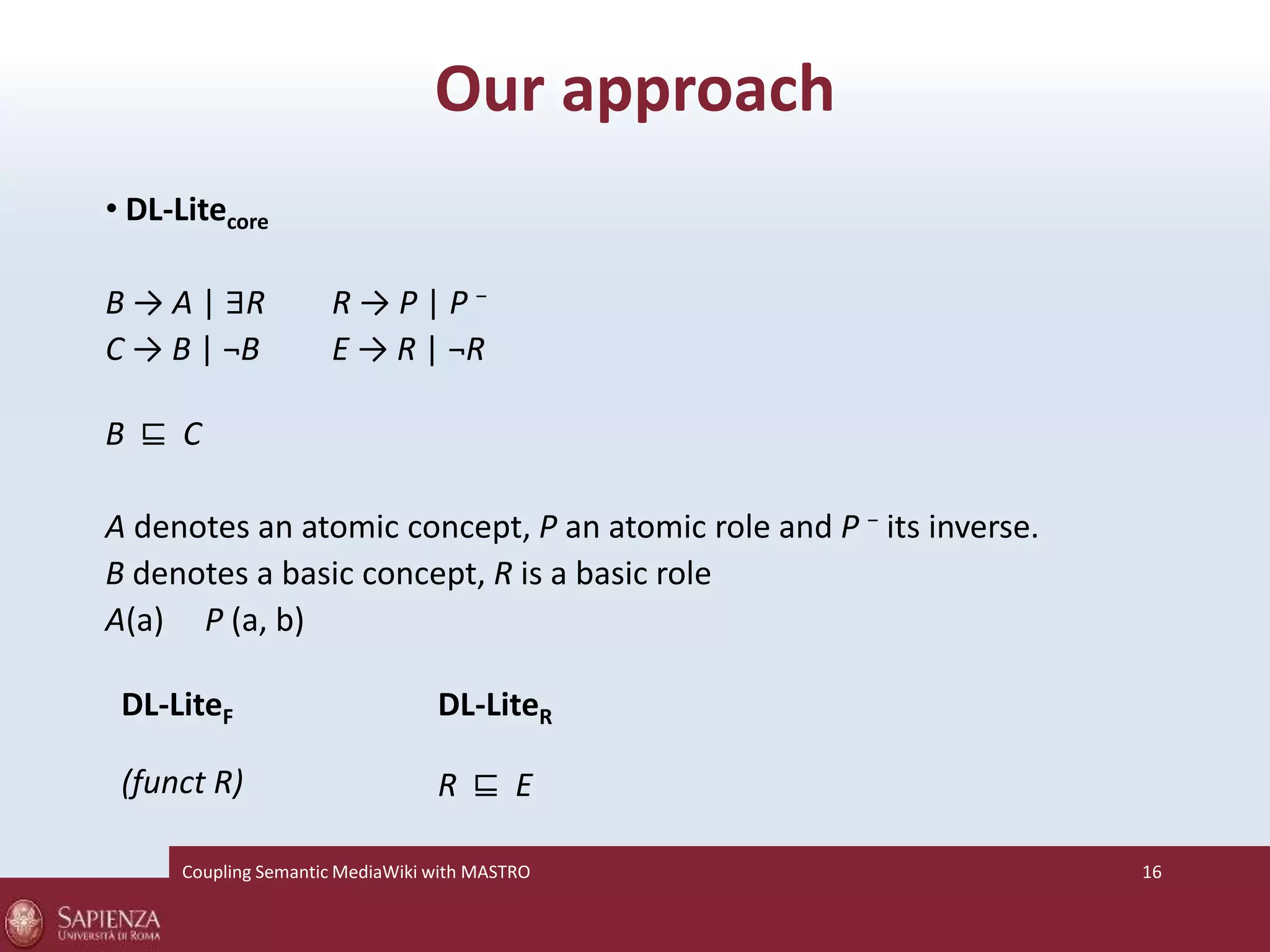

16. Our approach
• DL-Litecore
B → A | ∃R R → P | P −
C → B | ¬B E → R | ¬R
B ⊑ C
A denotes an atomic concept, P an atomic role and P − its inverse.
B denotes a basic concept, R is a basic role
A(a) P (a, b)
DL-LiteF
(funct R)
DL-LiteR
R ⊑ E
Coupling SemanticMediaWiki with MASTRO 16

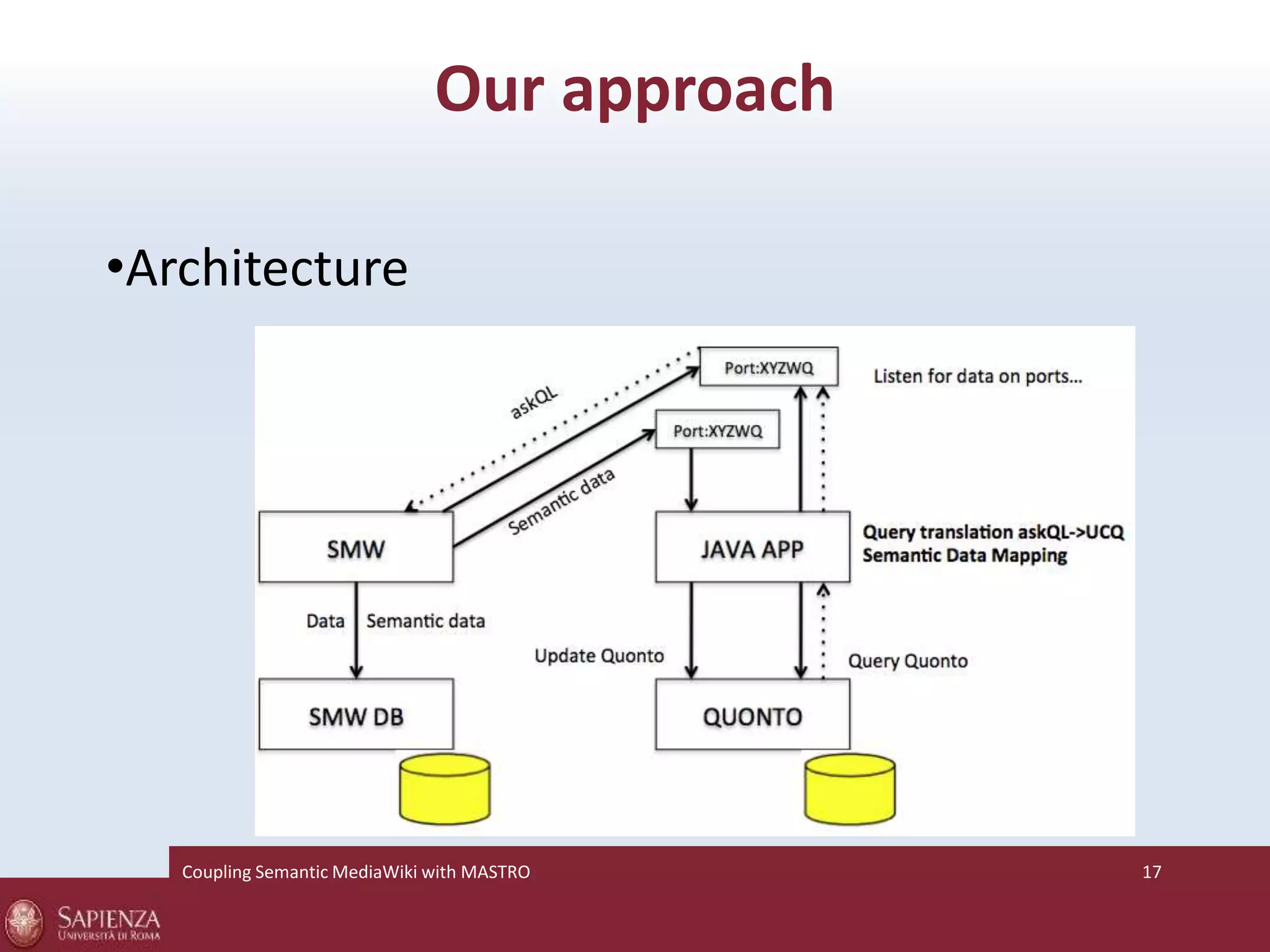

17. Our approach
•Architecture
Coupling SemanticMediaWiki with MASTRO 17

18. Exploration vs. Exploitation 18

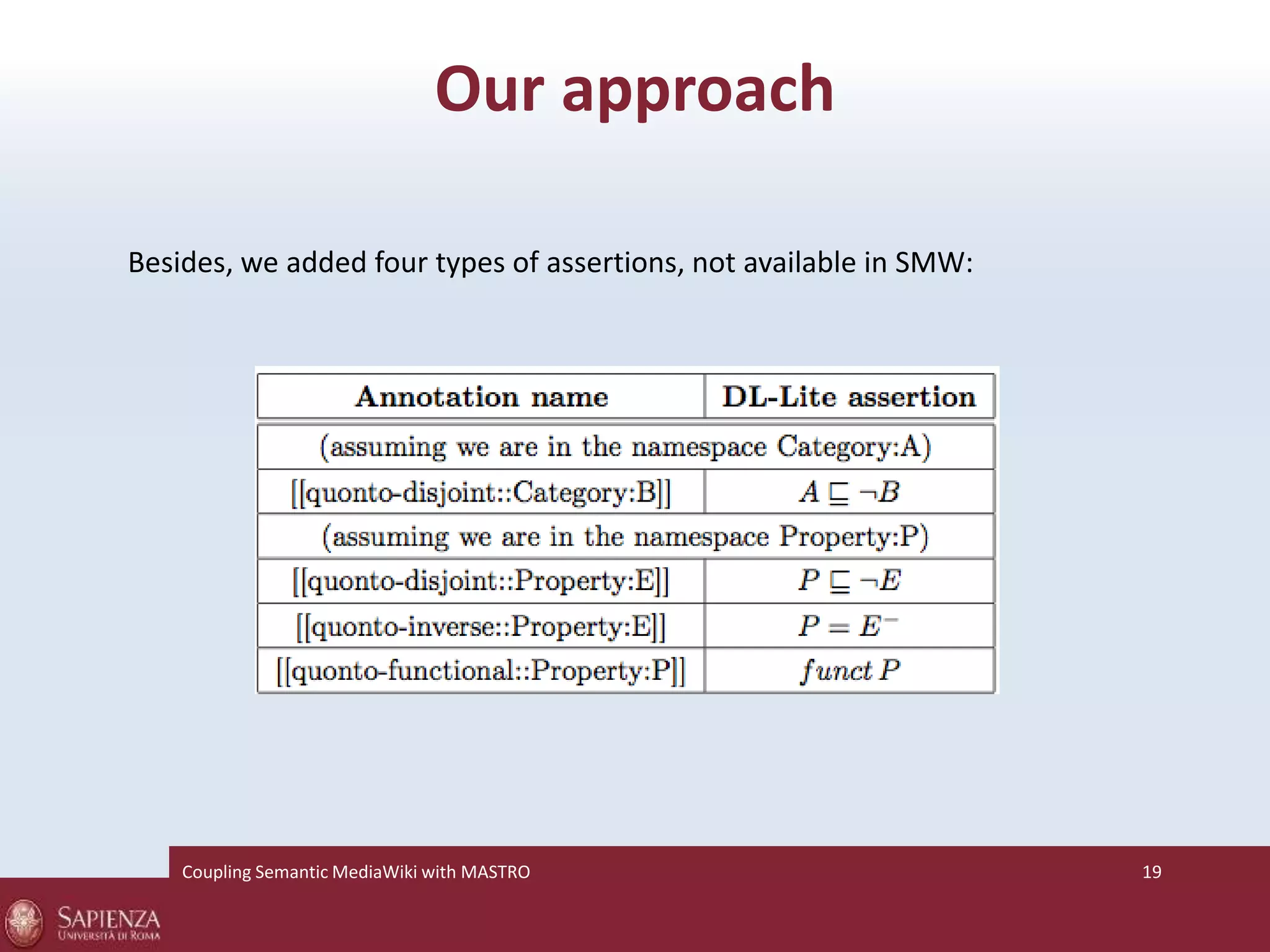

19. Our approach
Besides, we added four types of assertions, not available in SMW:
Coupling SemanticMediaWiki with MASTRO 19

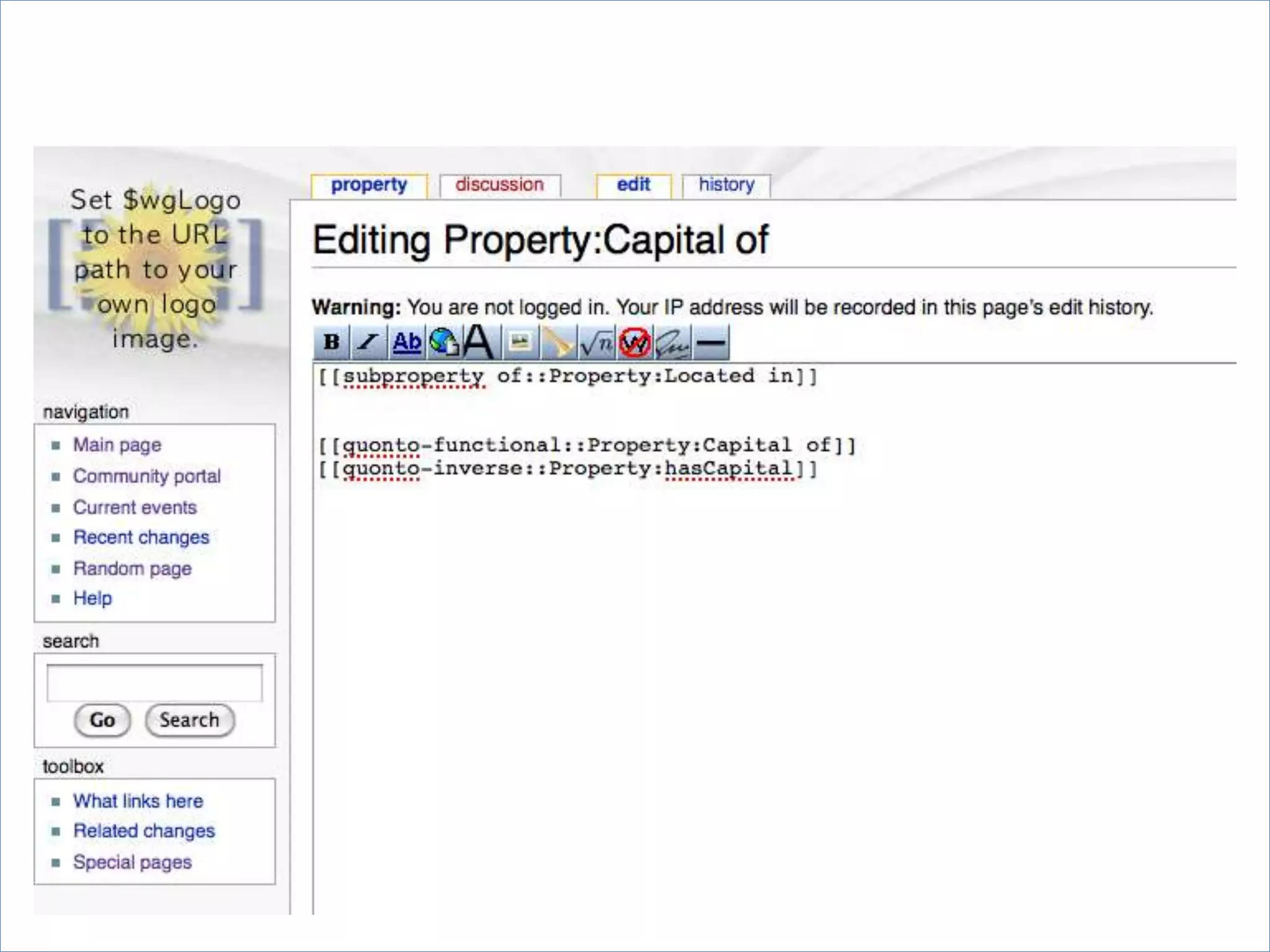

20. Our approach
Coupling SemanticMediaWiki with Mastro 20

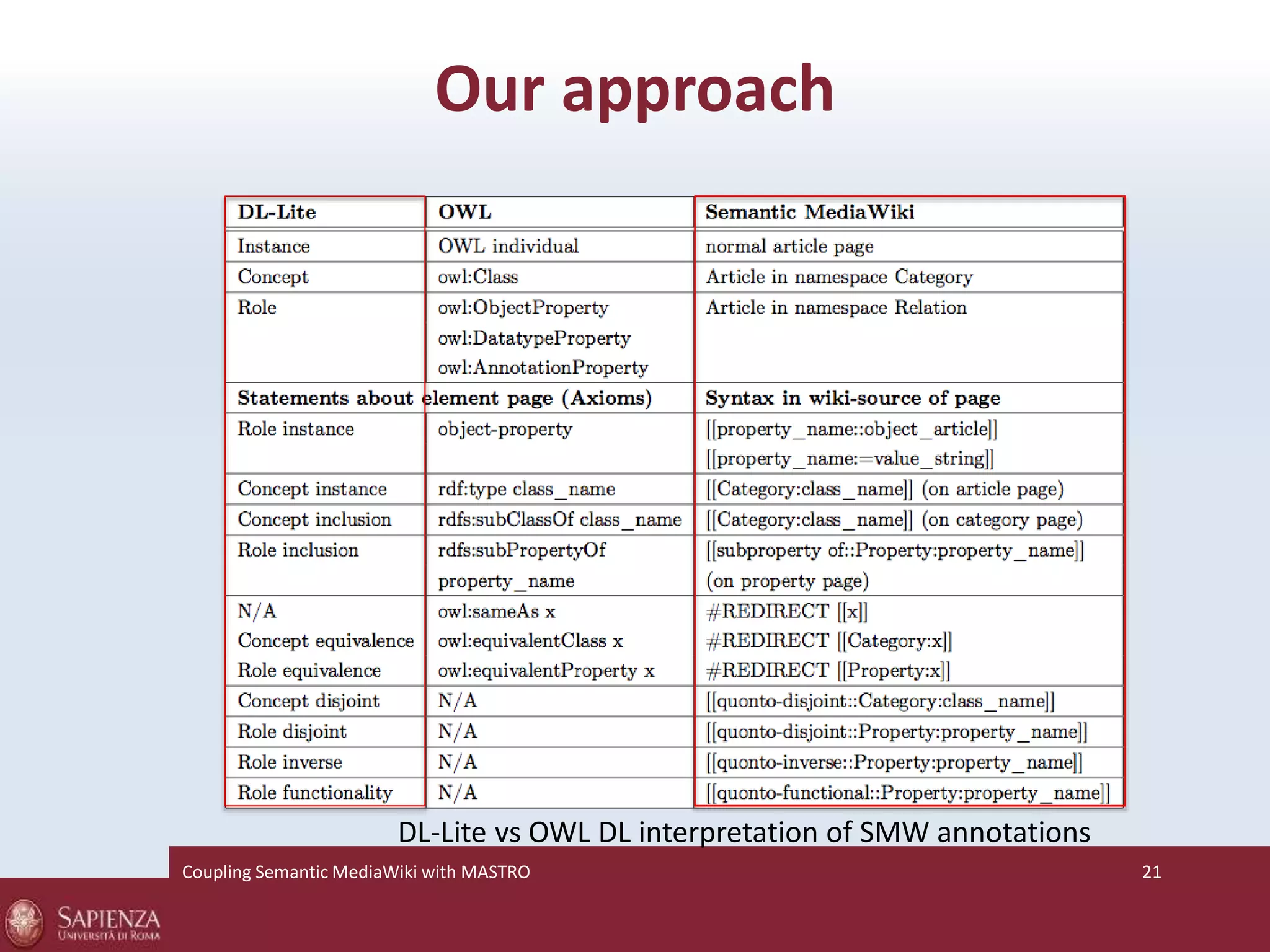

21. Our approach
DL-Lite vs OWL DL interpretation of SMW annotations
Coupling SemanticMediaWiki with MASTRO 21

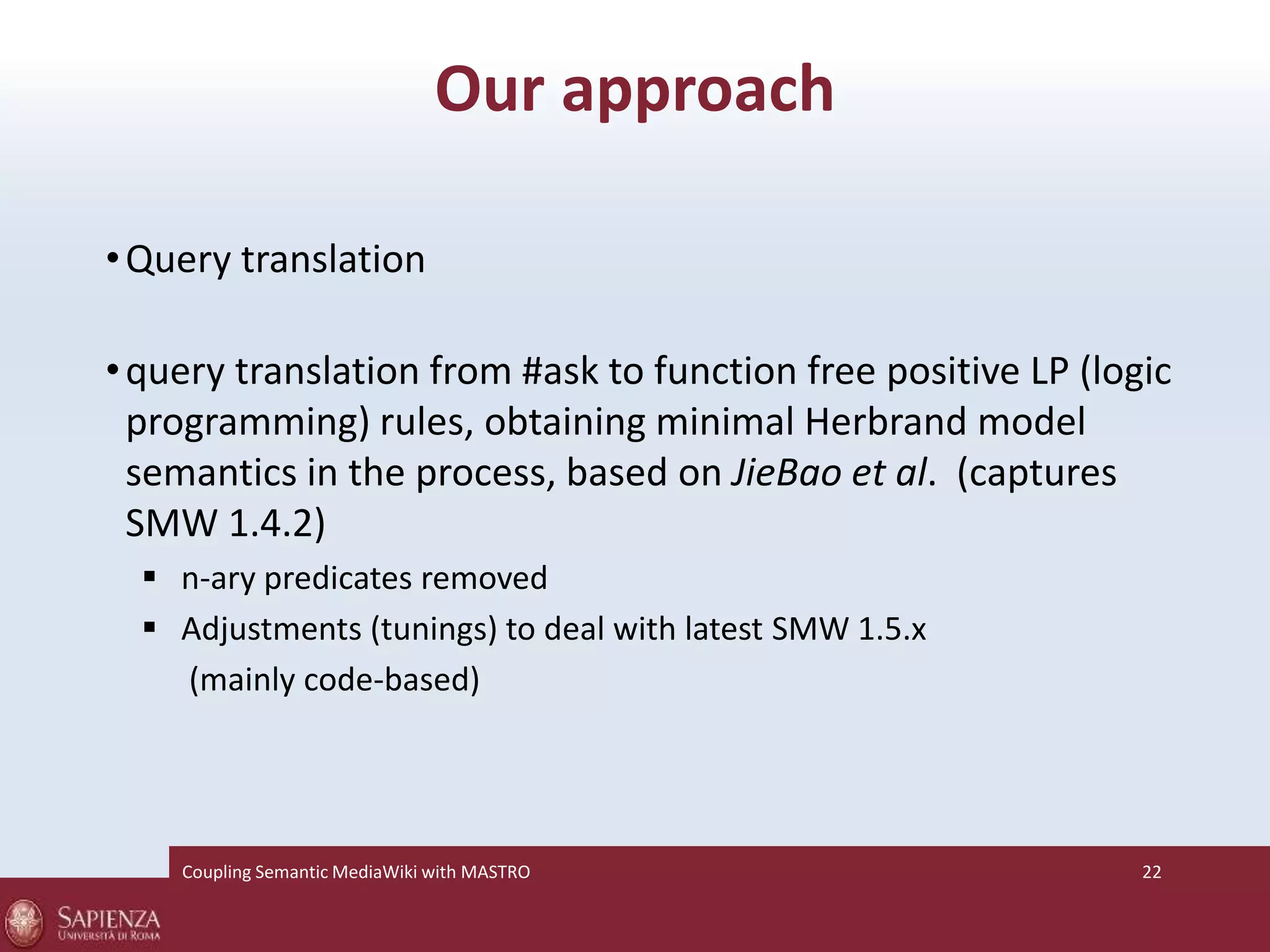

22. Our approach
•Query translation
• query translation from #ask to function free positive LP (logic
programming) rules, obtaining minimal Herbrand model
semantics in the process, based on JieBao et al. (captures
SMW 1.4.2)
 n-ary predicates removed
 Adjustments (tunings) to deal with latest SMW 1.5.x
(mainly code-based)
Coupling SemanticMediaWiki with MASTRO 22

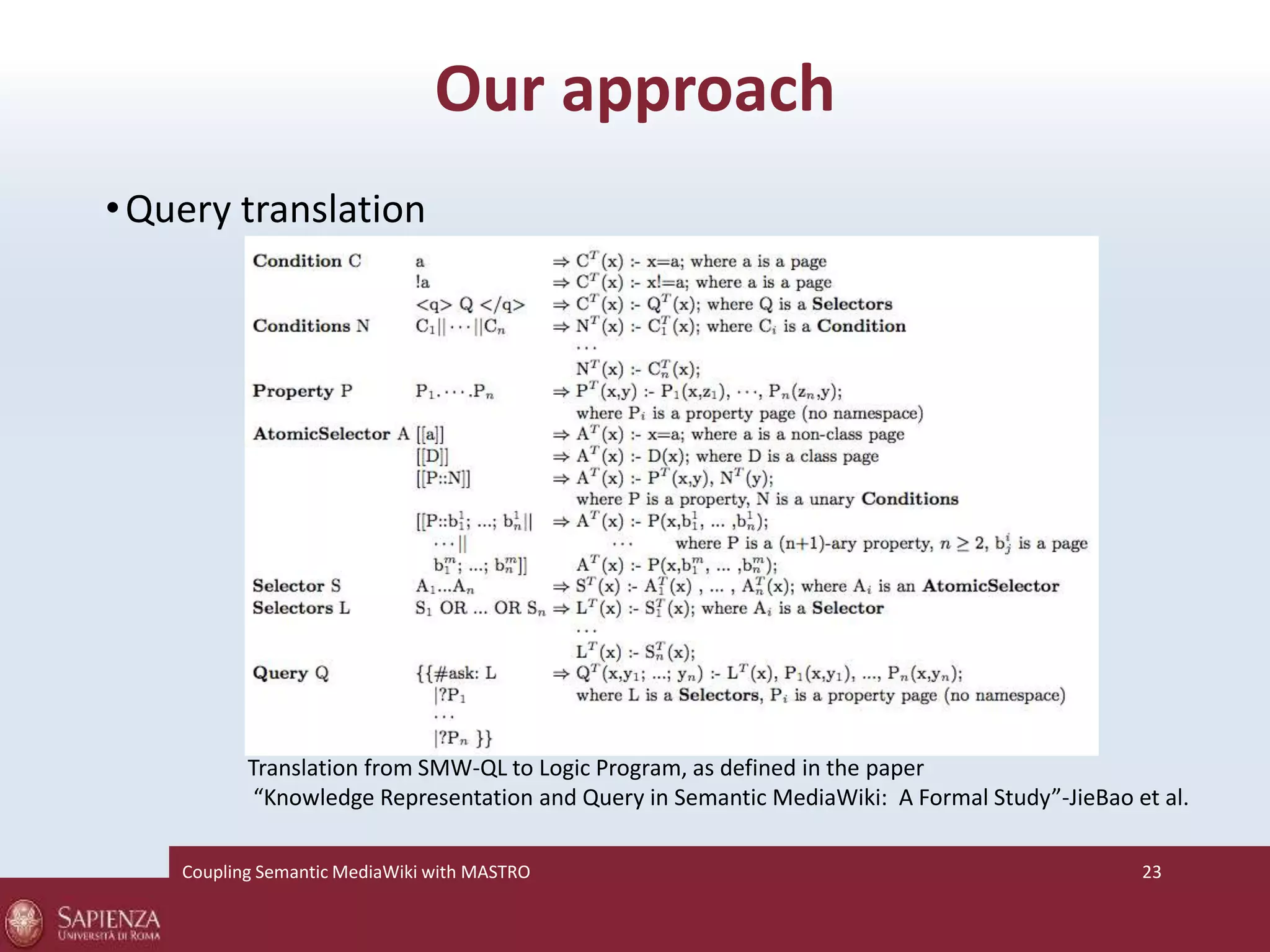

23. Our approach
•Query translation
Translation from SMW-QL to Logic Program, as defined in the paper
“Knowledge Representation and Query in Semantic MediaWiki: A Formal Study”-JieBao et al.
Coupling SemanticMediaWiki with MASTRO 23

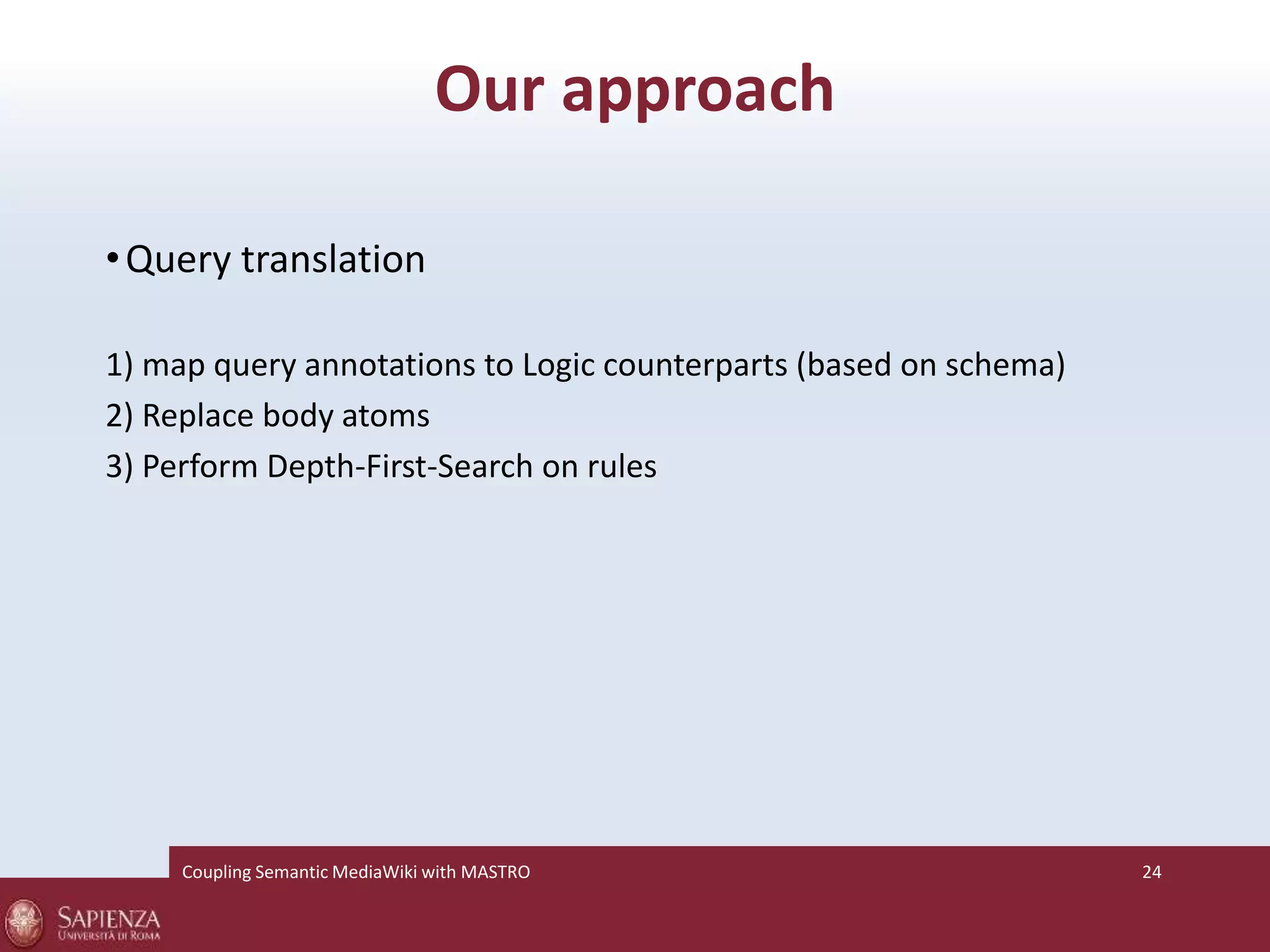

24. Our approach
•Query translation
1) map query annotations to Logic counterparts (based on schema)
2) Replace body atoms
3) Perform Depth-First-Search on rules
Coupling SemanticMediaWiki with MASTRO 24

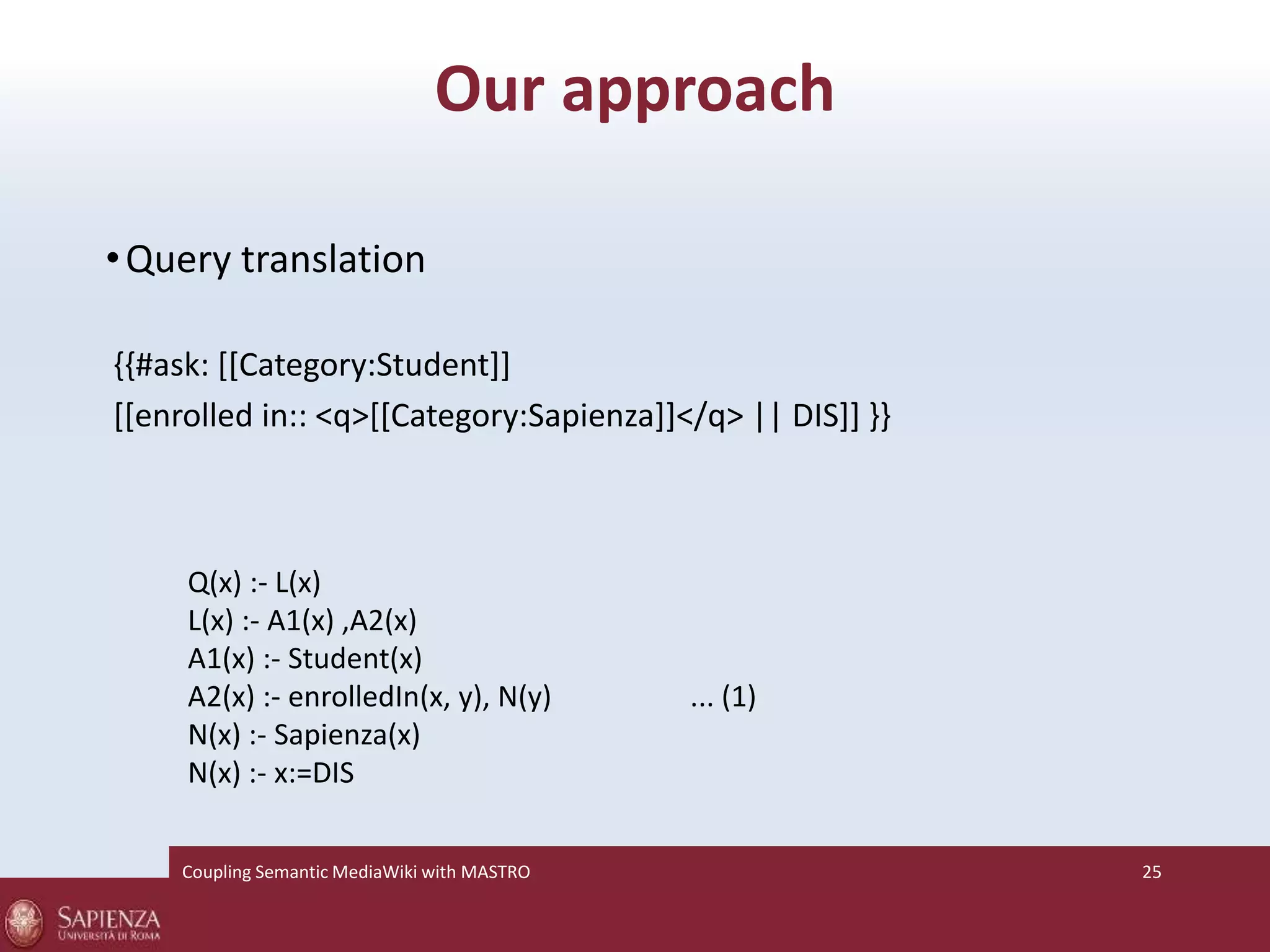

25. Our approach
•Query translation
{{#ask: [[Category:Student]]
[[enrolled in:: <q>[[Category:Sapienza]]</q> || DIS]] }}
Q(x) :- L(x)
L(x) :- A1(x) ,A2(x)
A1(x) :- Student(x)
A2(x) :- enrolledIn(x, y), N(y) ... (1)
N(x) :- Sapienza(x)
N(x) :- x:=DIS
Coupling SemanticMediaWiki with MASTRO 25

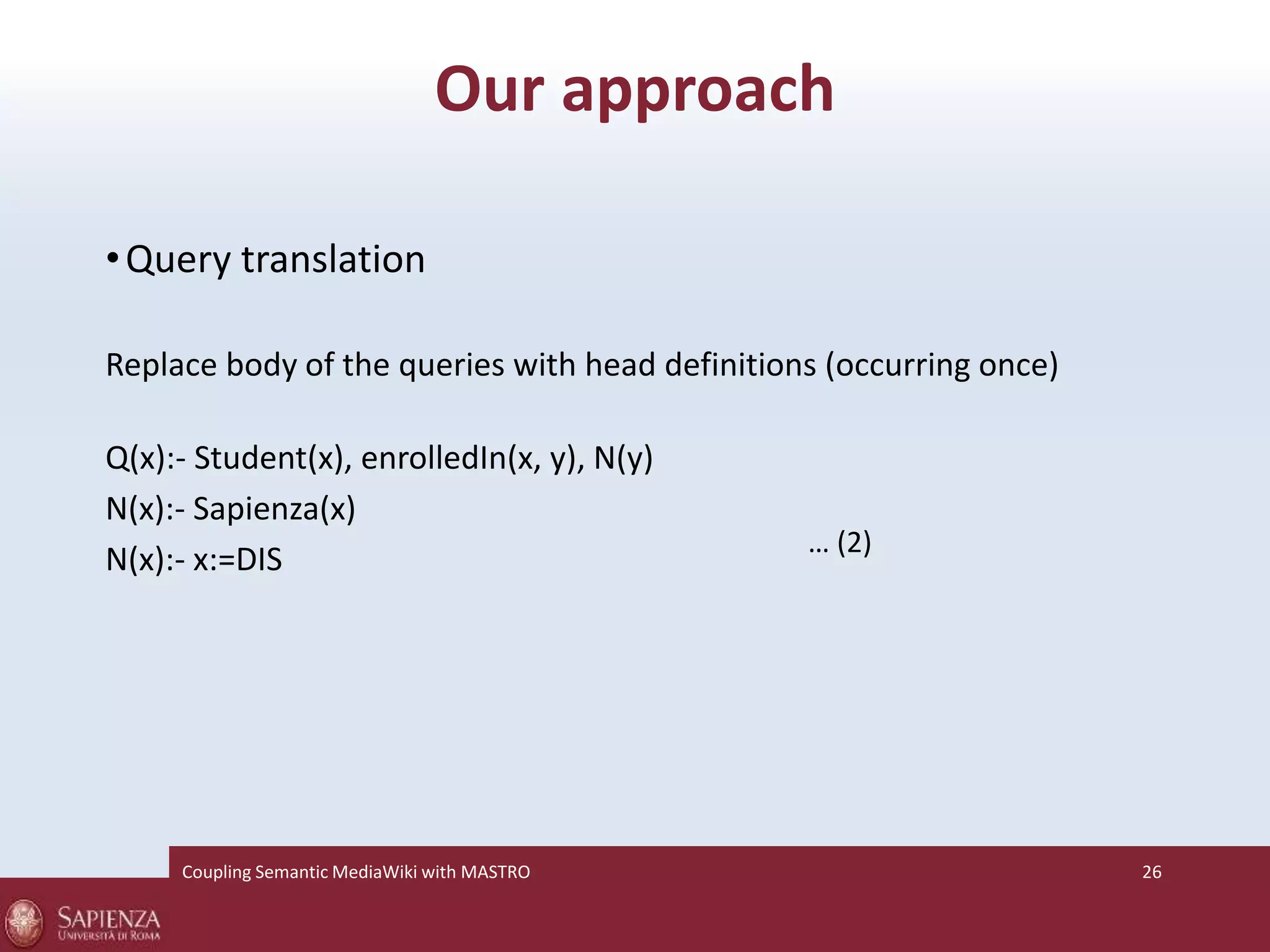

26. Our approach
•Query translation
Replace body of the queries with head definitions (occurring once)
Q(x):- Student(x), enrolledIn(x, y), N(y)
N(x):- Sapienza(x)
N(x):- x:=DIS … (2)
Coupling SemanticMediaWiki with MASTRO 26

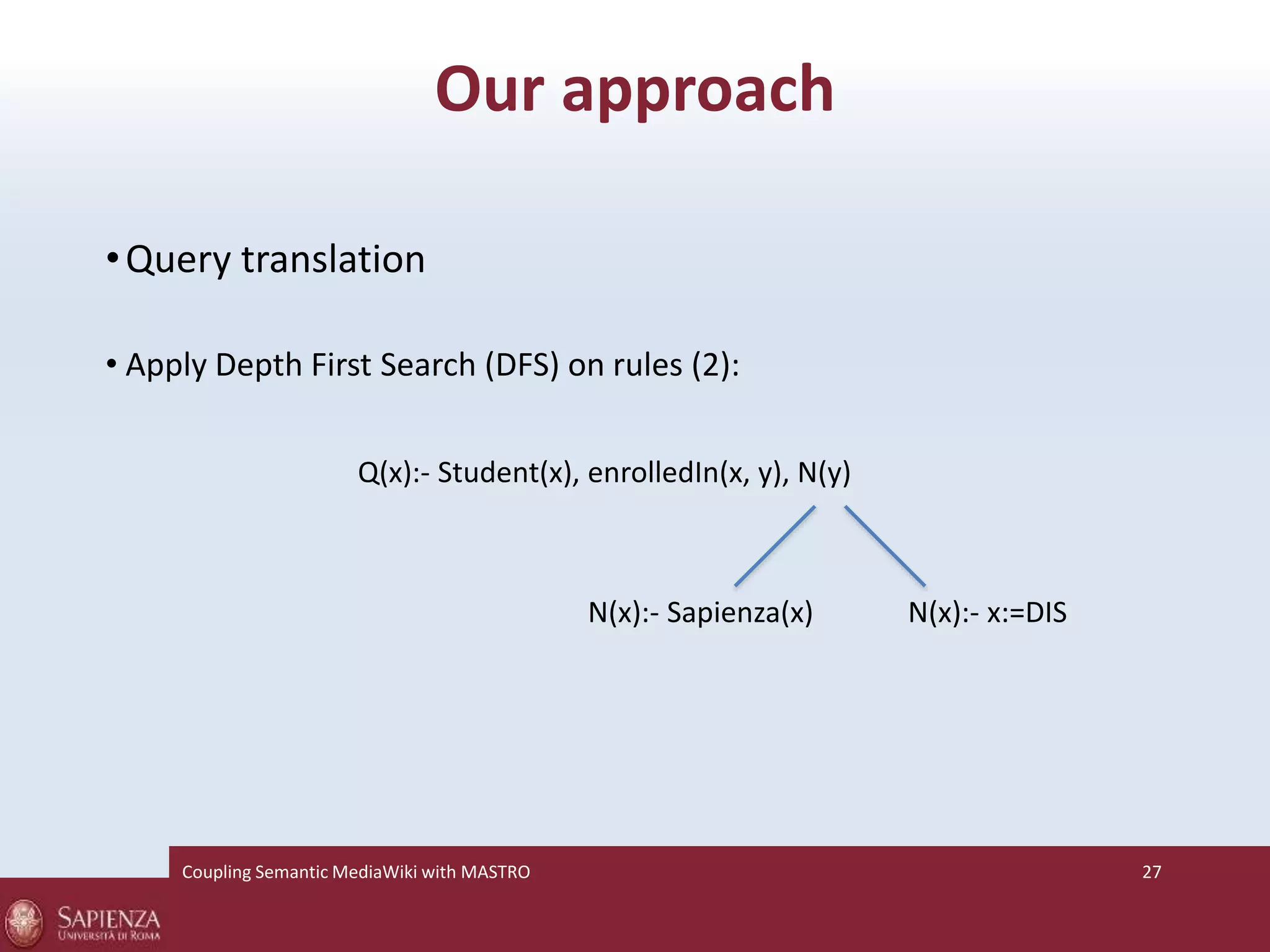

27. Our approach
•Query translation
• Apply Depth First Search (DFS) on rules (2):
Q(x):- Student(x), enrolledIn(x, y), N(y)
N(x):- Sapienza(x) N(x):- x:=DIS
Coupling SemanticMediaWiki with MASTRO 27

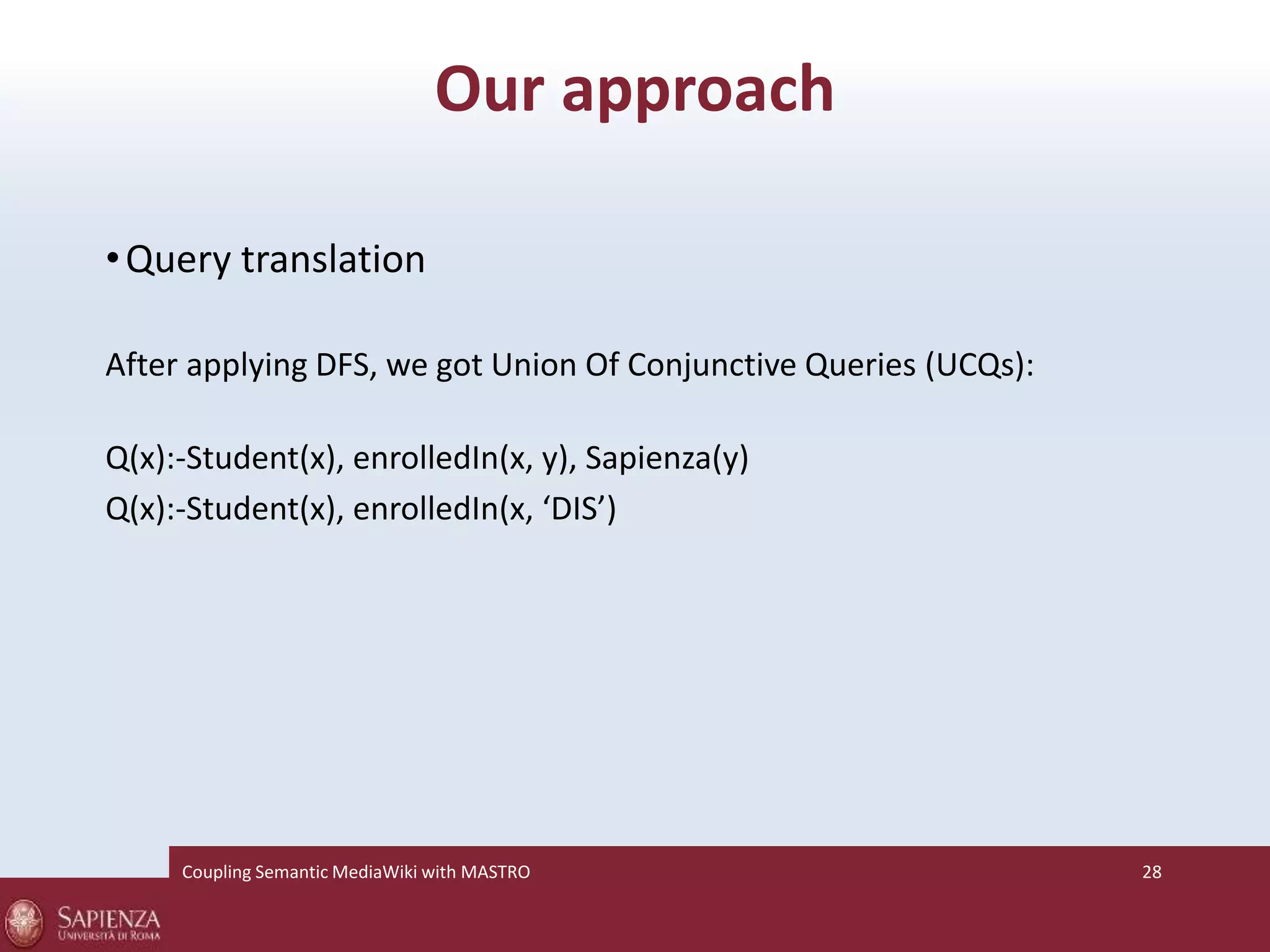

28. Our approach
•Query translation
After applying DFS, we got Union Of Conjunctive Queries (UCQs):
Q(x):-Student(x), enrolledIn(x, y), Sapienza(y)
Q(x):-Student(x), enrolledIn(x, ‘DIS’)
Coupling SemanticMediaWiki with MASTRO 28

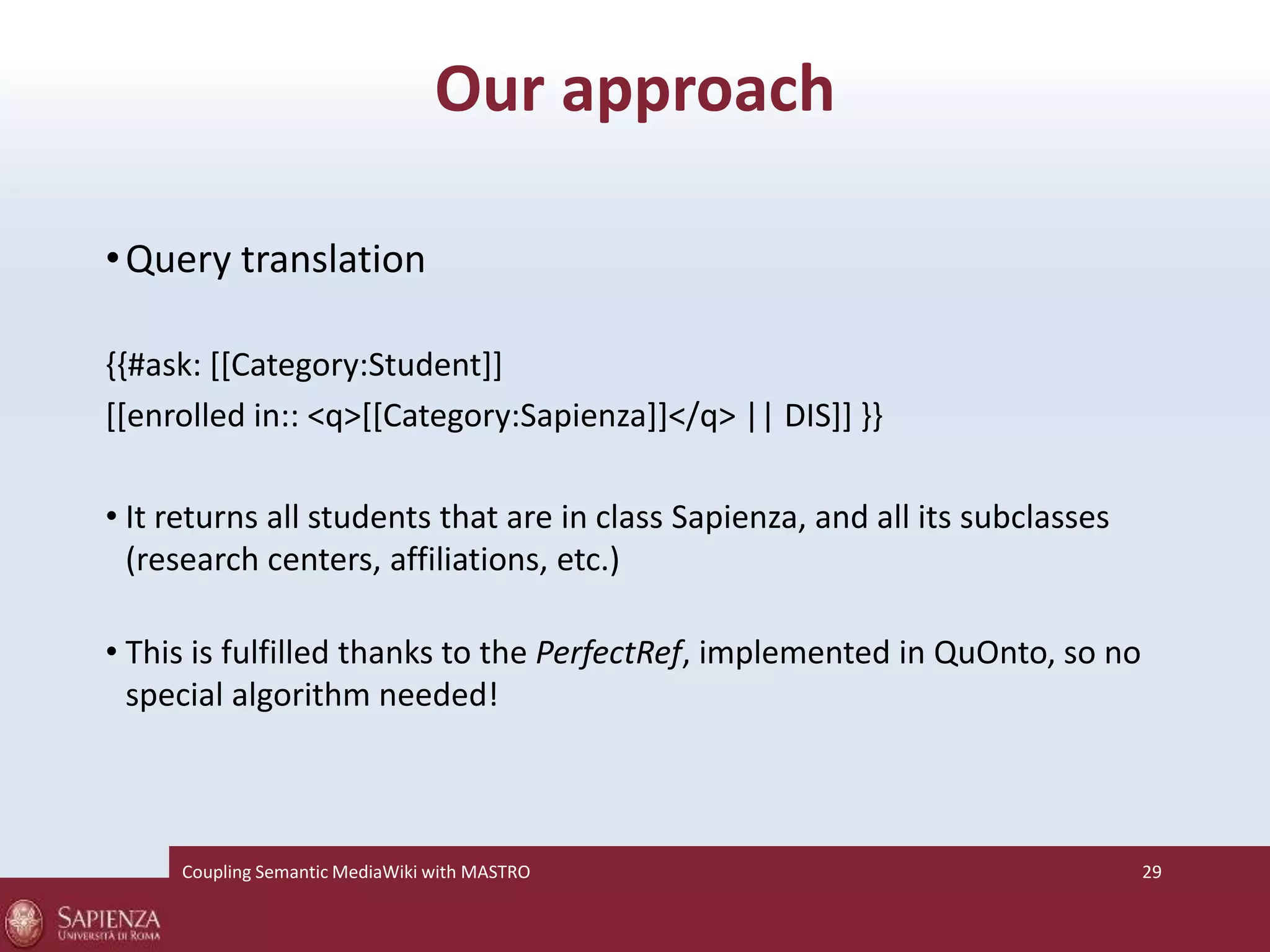

29. Our approach
•Query translation
{{#ask: [[Category:Student]]
[[enrolled in:: <q>[[Category:Sapienza]]</q> || DIS]] }}
• It returns all students that are in class Sapienza, and all its subclasses
(research centers, affiliations, etc.)
• This is fulfilled thanks to the PerfectRef, implemented in QuOnto, so no
special algorithm needed!
Coupling SemanticMediaWiki with MASTRO 29

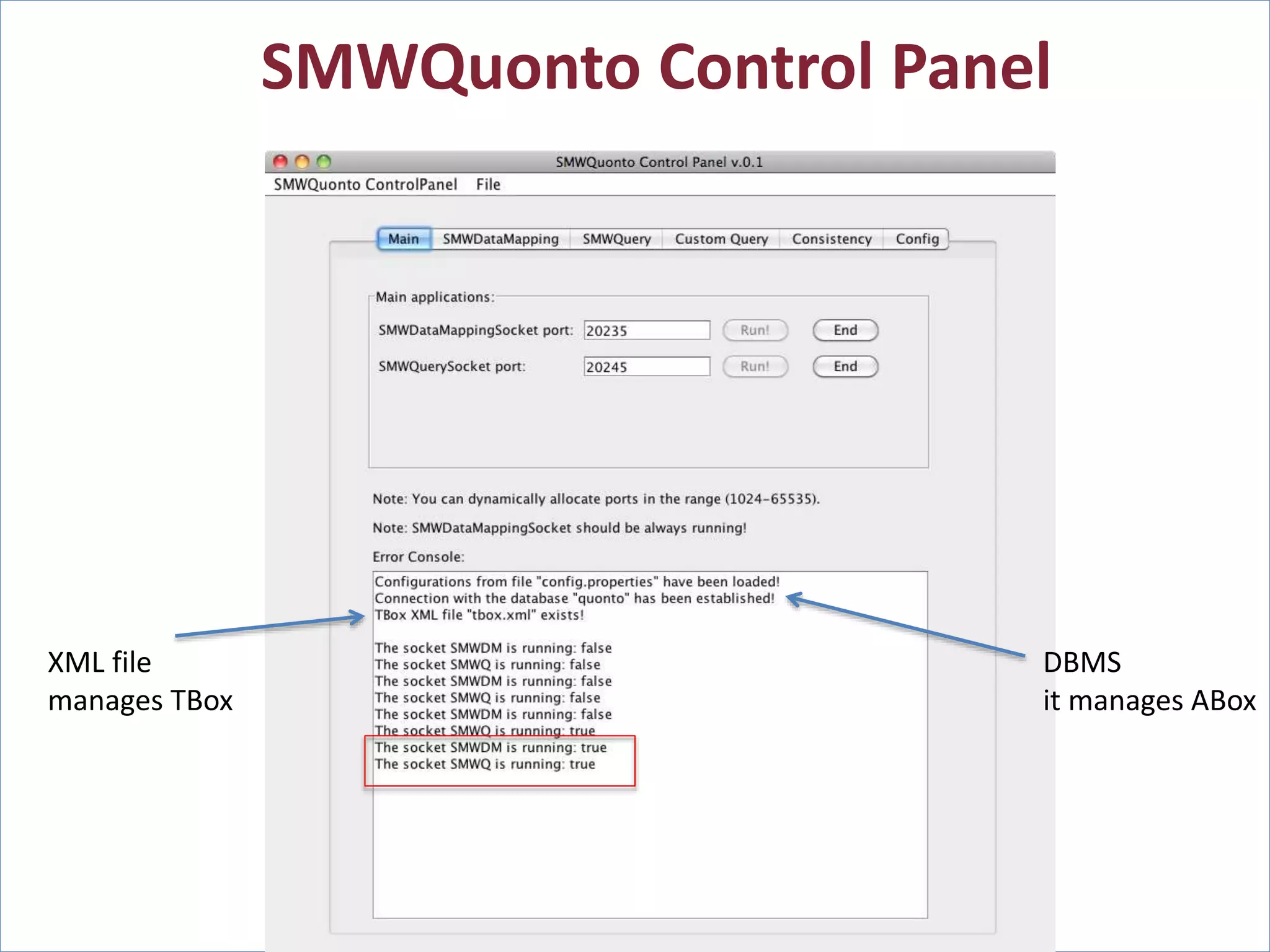

30. SMWQuonto Control Panel
DBMS
it manages ABox
XML file
manages TBox
Coupling SemanticMediaWiki with Mastro 30

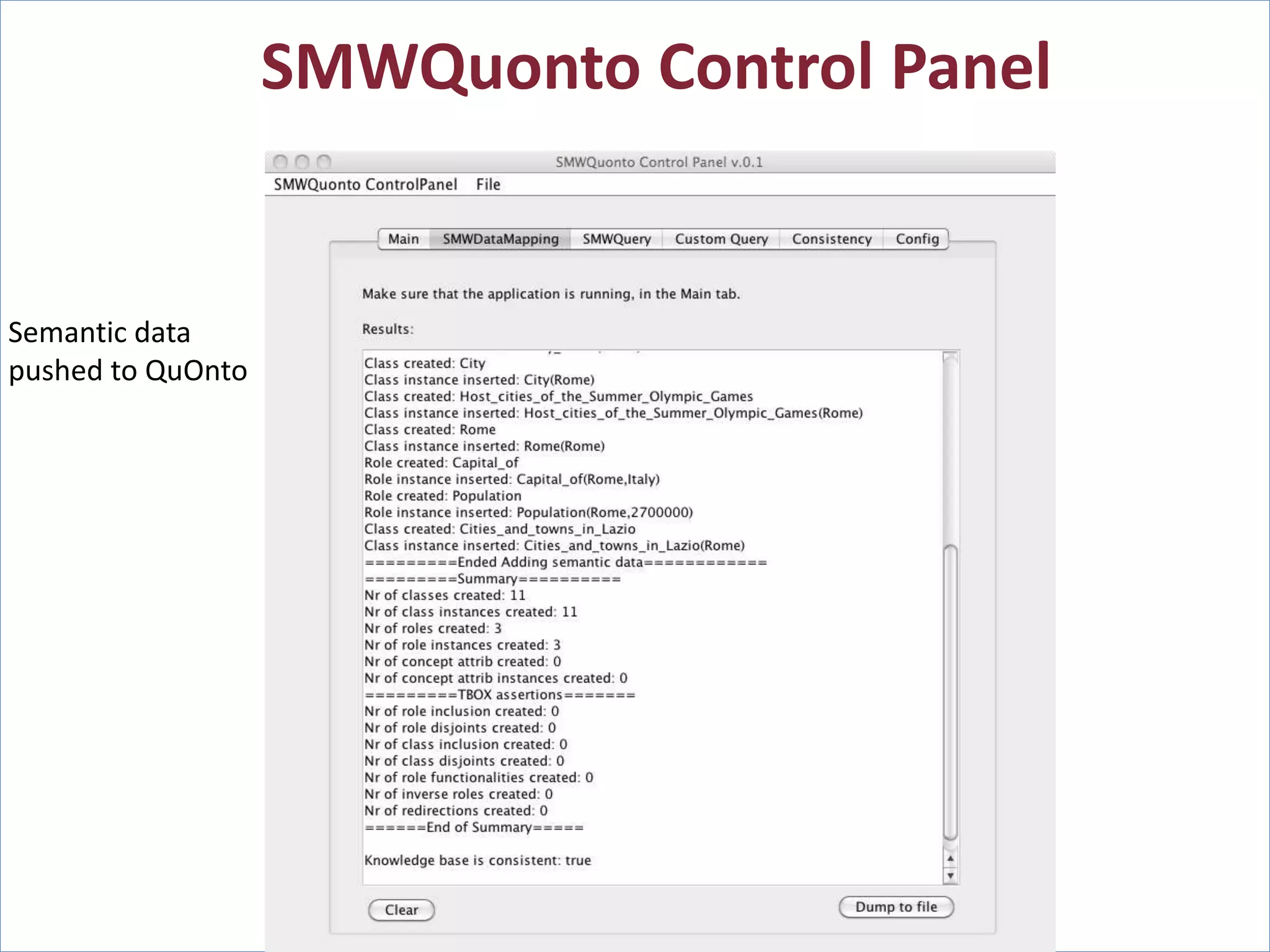

31. SMWQuonto Control Panel
Semantic data
pushed to QuOnto
Coupling SemanticMediaWiki with Mastro 31

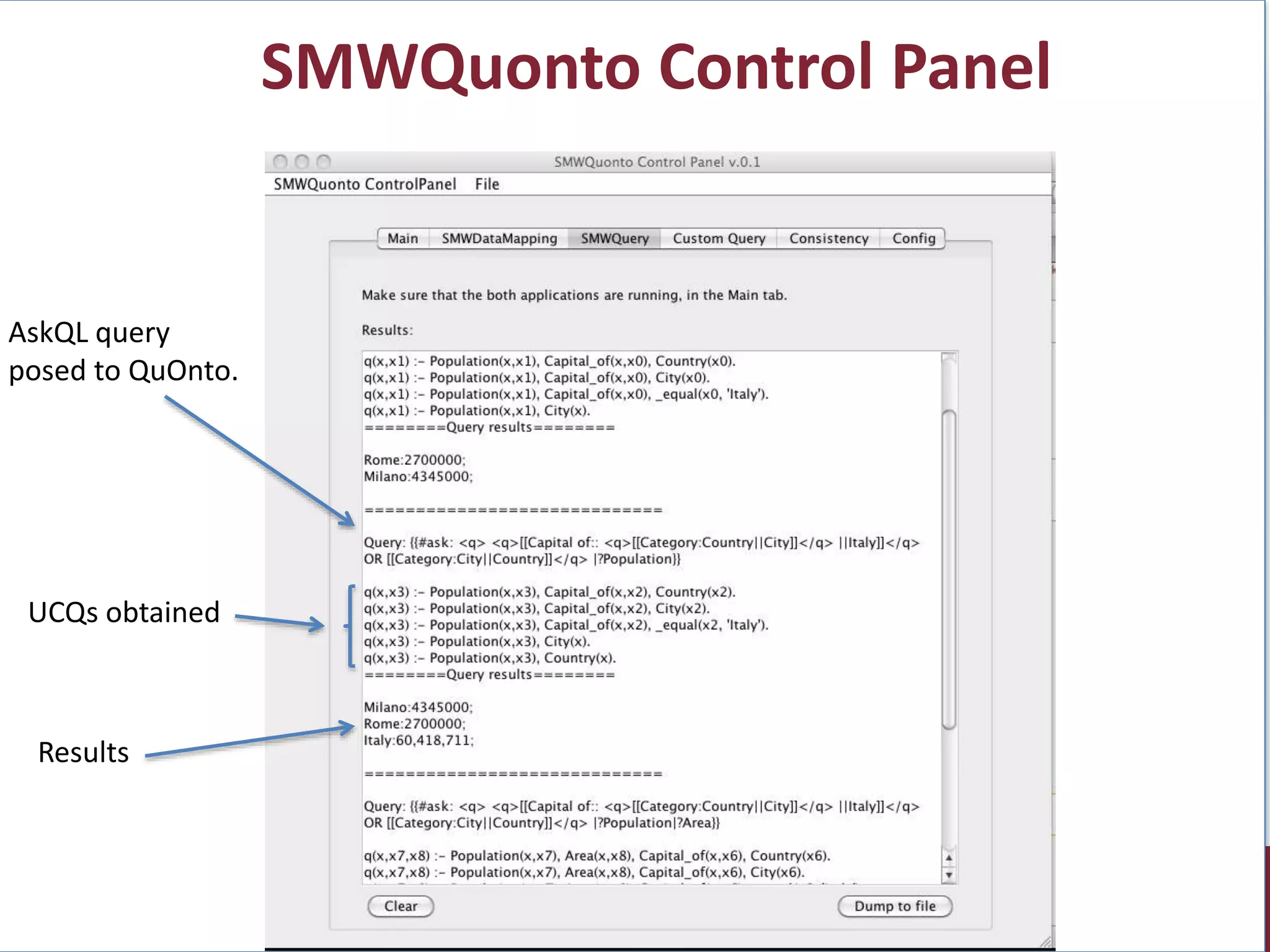

32. SMWQuonto Control Panel
AskQL query
posed to QuOnto.
UCQs obtained
Coupling SemanticMediaWiki with Mastro 32
Results

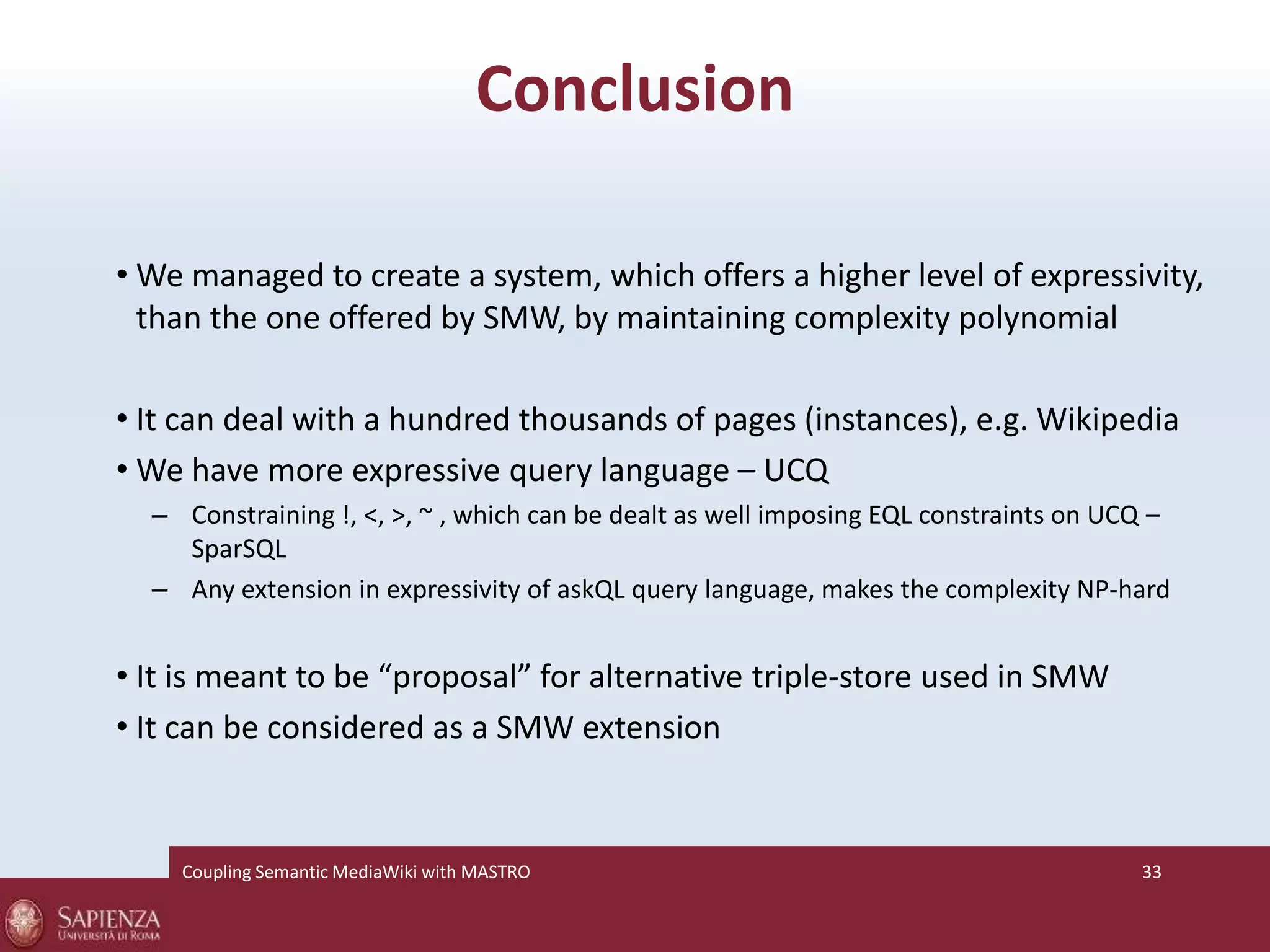

33. Conclusion
•We managed to create a system, which offers a higher level of expressivity,
than the one offered by SMW, by maintaining complexity polynomial
• It can deal with a hundred thousands of pages (instances), e.g. Wikipedia
•We have more expressive query language – UCQ
– Constraining !, <, >, ~ , which can be dealt as well imposing EQL constraints on UCQ –
SparSQL
– Any extension in expressivity of askQL query language, makes the complexity NP-hard
• It is meant to be “proposal” for alternative triple-store used in SMW
• It can be considered as a SMW extension
Coupling SemanticMediaWiki with MASTRO 33

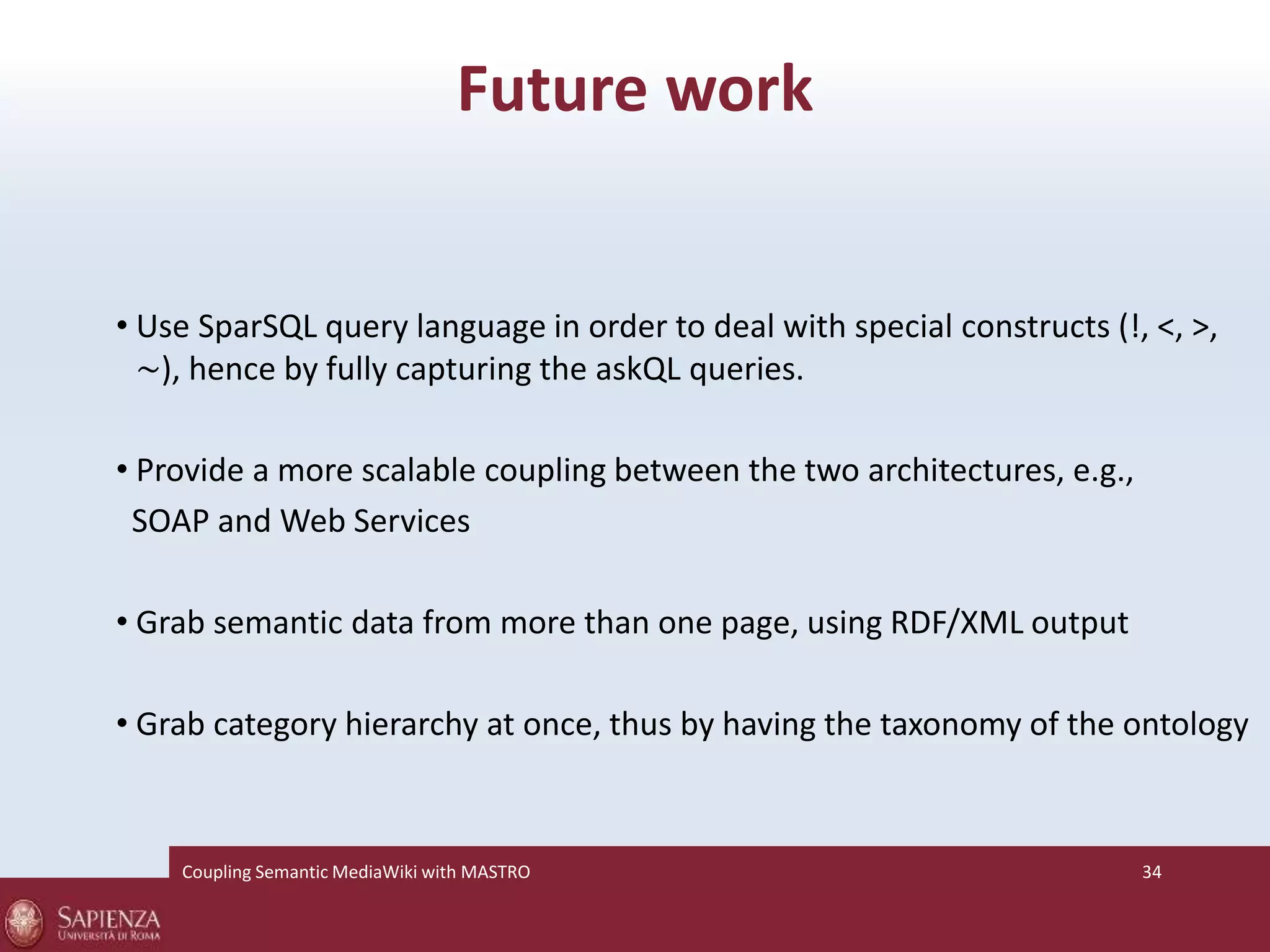

34. Future work
• Use SparSQL query language in order to deal with special constructs (!, <, >,
∼), hence by fully capturing the askQL queries.
• Provide a more scalable coupling between the two architectures, e.g.,
SOAP and Web Services
• Grab semantic data from more than one page, using RDF/XML output
• Grab category hierarchy at once, thus by having the taxonomy of the ontology
Coupling SemanticMediaWiki with MASTRO 34

35. Questions ?
Coupling SemanticMediaWiki with MASTRO 35
