1. Established 1986

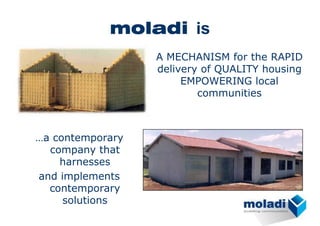

2. moladi is
A MECHANISM for the RAPID
delivery of QUALITY housing
EMPOWERING local
communities
…a contemporary
company that
harnesses
and implements
contemporary
solutions

3. Foundation-Raft Former

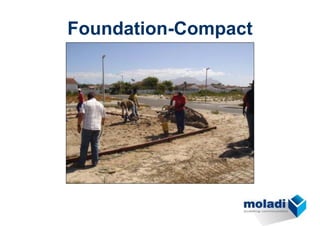

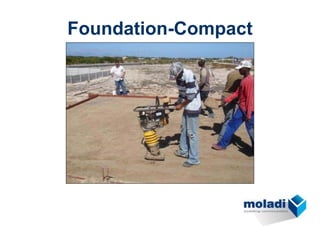

4. Foundation-Compact

5. Foundation-Compact

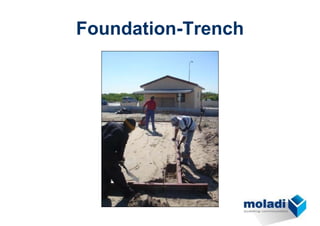

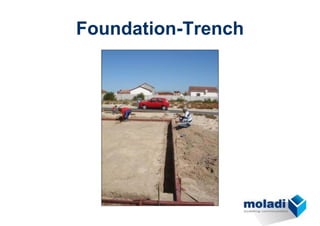

6. Foundation-Trench

7. Foundation-Trench

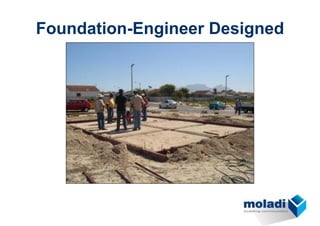

8. Foundation-Engineer Designed

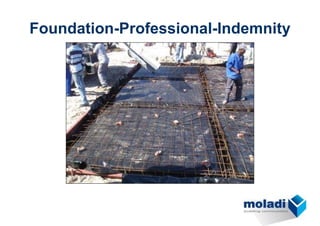

9. Foundation-Professional-Indemnity

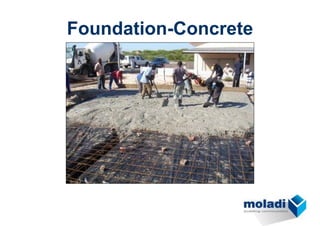

10. Foundation-Concrete

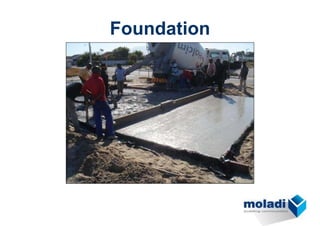

11. Foundation

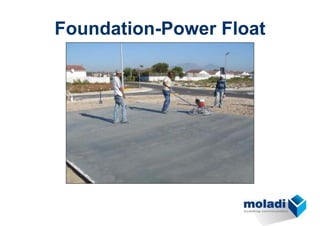

12. Foundation-Power Float

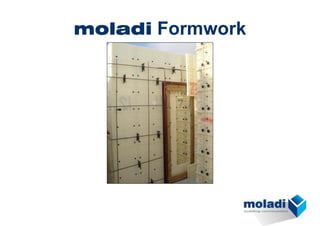

13. moladi Formwork

14. moladi Formwork

15. moladi Formwork

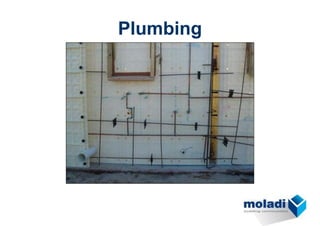

16. Plumbing

17. Plumbing

18. moladi Formwork

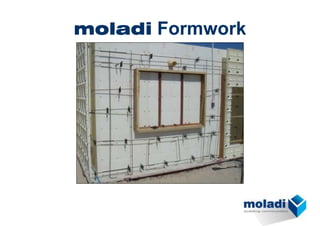

19. moladi Formwork

20. Reinforcing

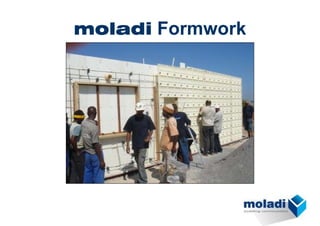

21. moladi Formwork

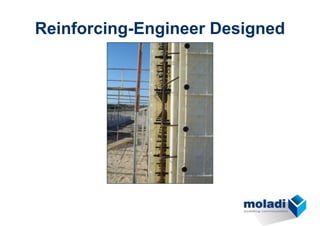

22. Reinforcing-Engineer Designed

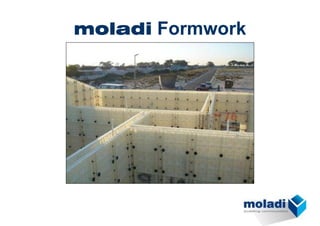

23. moladi Formwork

24. moladi Truss Block Out

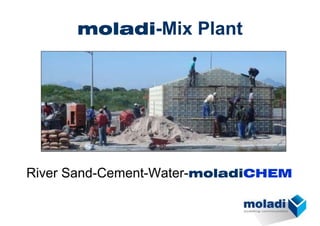

25. moladi-Mix Plant
River Sand-Cement-Water-moladiCHEM

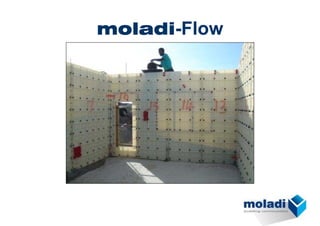

26. moladi-Flow

27. moladi-Cast In-situ

28. moladi Formwork

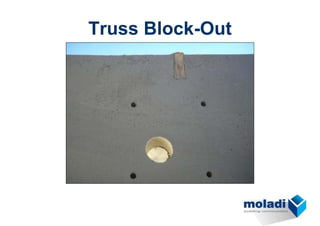

29. Truss Block-Out

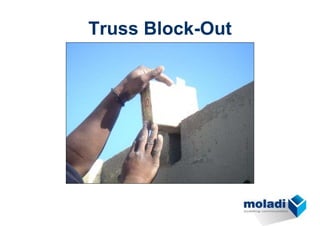

30. Truss Block-Out

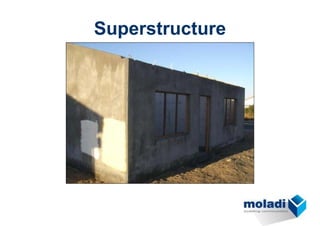

31. Superstructure

32. Superstructure

33. Roof

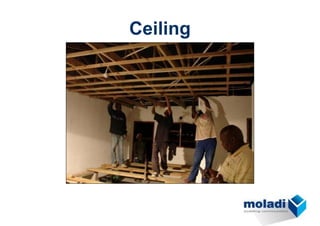

34. Ceiling

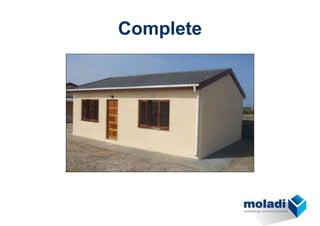

35. Complete

36. Wall Properties

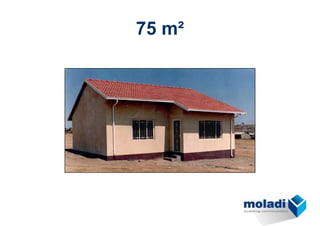

37. 75 m²

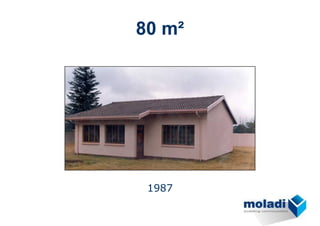

38. 80 m²
1987

39. 110 m²
Bonded by Standard Bank since 1993

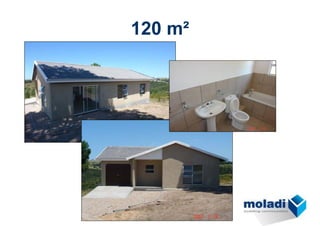

40. 120 m²

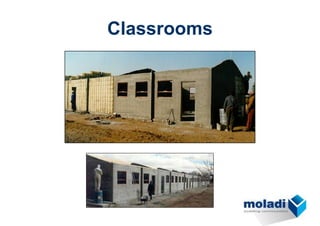

41. Classrooms

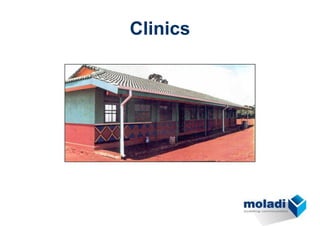

42. Clinics

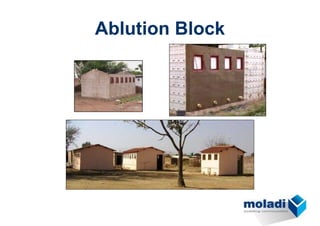

43. Ablution Block

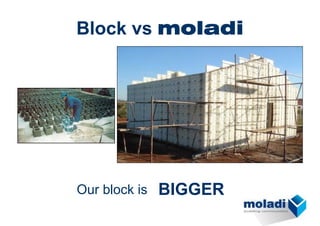

44. Block vs moladi
Our block is BIGGER

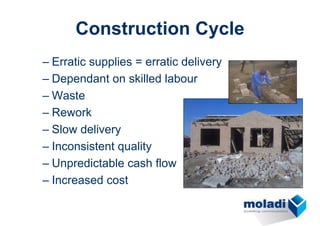

45. Construction Cycle
– Erratic supplies = erratic delivery
– Dependant on skilled labour
– Waste
– Rework
– Slow delivery
– Inconsistent quality
– Unpredictable cash flow
– Increased cost

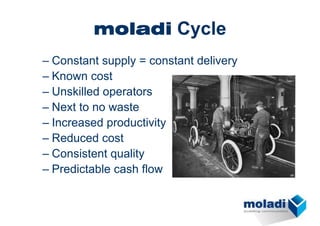

46. moladi Cycle
– Constant supply = constant delivery
– Known cost
– Unskilled operators
– Next to no waste
– Increased productivity
– Reduced cost
– Consistent quality
– Predictable cash flow

47. Key Benefits
• NHBRC – Rational Design
• Agrément Certified (CSIR)
• SABS tested and approved
• Engineer Certified *
– Foundation
– Super Structure
– Roof
• Superior wall strength
• Quality Controls
• Community acceptance NBR SABS - 0400
...QUALITY
* Professional Indemnity

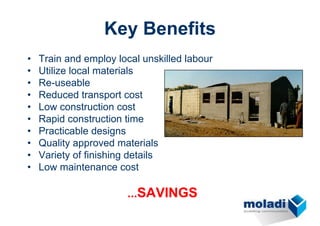

48. Key Benefits
• Train and employ local unskilled labour
• Utilize local materials
• Re-useable
• Reduced transport cost
• Low construction cost
• Rapid construction time
• Practicable designs
• Quality approved materials
• Variety of finishing details
• Low maintenance cost
...SAVINGS

49. Key Benefits
• Speed without compromising quality
• No need to plaster
• No need to chase
• No beam filling
• Waterproof
• Reinforced
• Waste reduction
• Logistics
• Alterations and additions
...SAVINGS

50. Fundamental Criteria
• Social acceptance
• Durability
• Quality
• Variety
• Increase in value
• Re-sale ability
• Minimise risk - Insurance/Professional Indemnity
• Certified
• Bondable/Financed

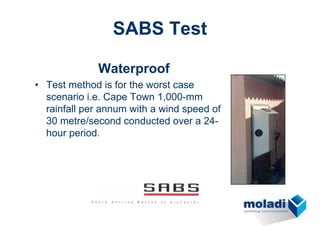

51. SABS Test
Waterproof
• Test method is for the worst case
scenario i.e. Cape Town 1,000-mm
rainfall per annum with a wind speed of
30 metre/second conducted over a 24-
hour period.

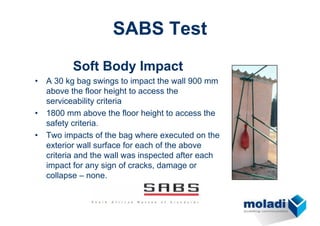

52. SABS Test
Soft Body Impact
• A 30 kg bag swings to impact the wall 900 mm
above the floor height to access the
serviceability criteria
• 1800 mm above the floor height to access the
safety criteria.
• Two impacts of the bag where executed on the
exterior wall surface for each of the above
criteria and the wall was inspected after each
impact for any sign of cracks, damage or
collapse – none.

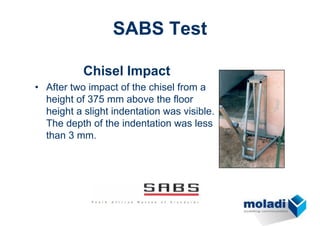

53. SABS Test
Chisel Impact
• After two impact of the chisel from a
height of 375 mm above the floor
height a slight indentation was visible.
The depth of the indentation was less
than 3 mm.

54. SABS Test
• All test conducted by the South African Bureau of
Standards, have been executed on a 100 mm (4
inch) wall as this is an acceptable norm for in situ
walls and is also the standard applied to low cost
housing units.
• Thermal conductivity of 100 mm moladi wall =
0,54 W/m.K

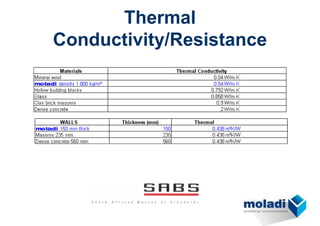

55. Thermal
Conductivity/Resistance
